Network Configuration and Troubleshooting Part 3

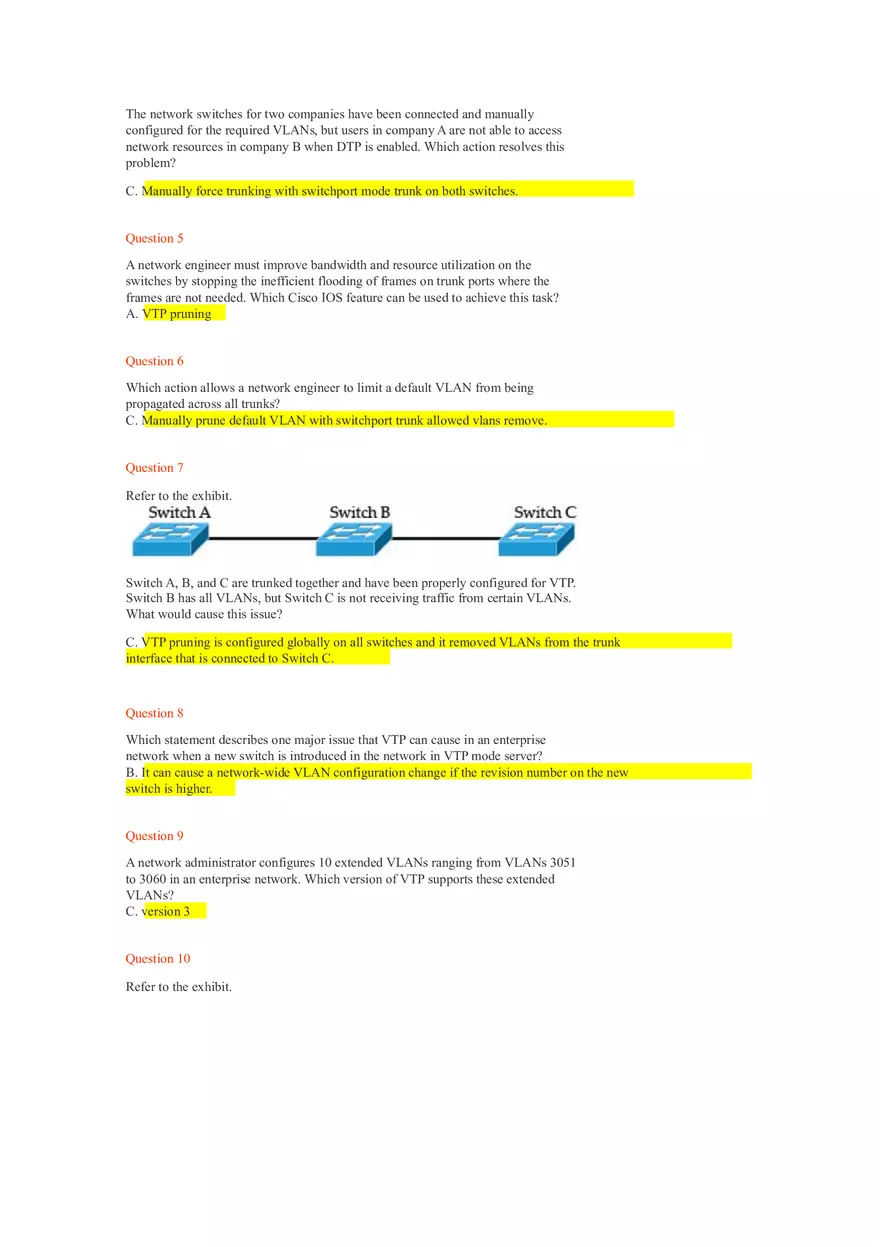

VLAN Trunking Question 1 Refer to the exhibit. SW-1#sh logging %SPANTREE-SP-2-RECV_PVID_ERR: Received BPDU with inconsistent peer Vlan id 1 on GigabitEthernet1/2 VLAN2013. %SPANTREE-SP-2-BLOCK_PVID_PEER: Blocking GigabitEthernet1/2 on VLAN0001. Inconsistent peer vlan. A multilayer switch has been configured to send and receive encapsulated and tagged frames. VLAN 2013 on the multilayer switch is configured as the native VLAN. Which option is the cause of the spanning-tree error? C. 802.1q trunks are on both sides, both with native VLAN mismatch. Question 2 Refer to the exhibit. 3512xl(config)#int fastEthernet 0/1 3512xl(config-if)#switchport mode trunk 3512xl(config-if)#switchport trunk encapsulation dot1q How many bytes are added to each frame as a result of the configuration? A. 4-bytes except the native VLAN Question 3 A network engineer must implement Ethernet links that are capable of transporting frames and IP traffic for different broadcast domains that are mutually isolated. Consider that this is a multivendor environment. Which Cisco IOS switching feature can be used to achieve the task? C. dot1q VLAN trunking Question 4 Which technique allows specific VLANs to be strictly permitted by the administrator? C. trunk allowed VLANs Question 5 For security reasons, the IT manager has prohibited users from dynamically establishing trunks with their associated upstream switch. Which two actions can prevent interface trunking? (Choose two) A. Configure trunk and access interfaces manually. B. Disable DTP on a per interface basis. Question 6 Which two protocols can be automatically negotiated between switches for trunking? (Choose two) C. ISL F. DOT1Q Question 7 The network manager has requested that several new VLANs (VLAN 10, 20, and 30) are allowed to traverse the switch trunk interface. After the command “switchport trunk allowed vlan 10,20,30” is issued, all other existing VLANs no longer pass traffic over the trunk. What is the root cause of the problem? A. The command effectively removed all other working VLANs and replaced them with the new VLANs. Question 8 A manager tells the network engineer to permit only certain VLANs across a specific trunk interface. Which option can be configured to accomplish this? A. allowed VLAN list Question 9 Refer to the exhibit. interface GigabitEthernet 1/0/1 switchport access vlan 10 switchport trunk encapsulation dot1q switchport mode trunk switchport voice vlan 11 spanning-tree portfast ! Which option shows the expected result if a “show vlan” command is issued? Question 10 Refer to the exhibit. A network engineer changes the default native VLAN to VLAN 999. After applying the settings on the uplinks to the core switches, the switch control traffic, such as CDP and VTP, is no longer working. The standard configuration is used for each uplink. What is wrong with the configuration? D. The native VLAN is not present on the trunk. Question 11 Which command is used to verify trunk native VLANs? B. show interfaces trunk Question 1 Which two statements about 802.1 q are true? (Choose two) B. It adds a 32-bit field to the Ethernet frame between the source MAC address and length. C. When it is enabled, it forces a recalculation of the frame-check sequence field. Question 2 Which option is the minimum frame size for an 802.1Q frame? B. 68 bytes Question 3 Which option is the maximum frame size for an 802.1Q frame? D. 1522 bytes uestion 4 EXHIBIT – switchport trunk allowed vlan 1,80,99-250 Which two commands will remove VLAN 100 from the allowed VLAN list? (Choose two) A. switchport trunk allowed vlan remove 100 B. switchport trunk allowed vlan 1-80,99,101-250 Question 5 Which two configurations cause the frames to be tagged? (Choose two) A. interface gi0/1.116 encapsulation dot1q B. vlan trunk allowed vlan 116 Question 6 What is the value of the TPID/tag protocol identifier of QinQ? A. 0x88a8 Question 7 What is the value of the TPID/tag protocol identifier in dot1Q? A. 0x8100 Question 8 Which two commands are used to remove VLAN 55 from the trunk port? (Choose two) B. switchport trunk allowed vlan remove 55 C. switchport trunk allowed vlan except 55 Question 9 Refer to the exhibit. ! interface GigabitEthernet2/0/1 switchport access vlan 700 switchport trunk allowed vlan 200,300,700 switchport mode trunk end ! Refer to the exhibit. Which statement about the current configuration on port GigabitEthernet2/0/1 is true? B. It is a trunk port and the native VLAN is VLAN1 Question 1 A switch has been configured with the vlan dot1q tag native command. Which statement describes what the switch does with untagged frames that it receive? B. It drops the untagged frames Question 2 Refer to the exhibit. Which two commands about SW1 are true? (Choose two) C. The device is configured with the default MST region D. Interface Gi5/1 is using an industry standard trunking protocol Question 3 Question about trunk configuration int faX/X switchport trunk allowed vlan x,x,x,x switchport mode trunk exit show vlan VLAN Name Status Ports —- ——————————– ——— ——————————1 default active Fa0/1, Fa0/3, Fa0/3, FaX/X show interface trunk (no output) A. link is shutdown Question 4 Which two DTP negotiated interface mode combinations negotiate to form an access port? (Choose two) B. Dynamic Desirable and access C. Dynamic auto and Dynamic auto Question 5 Which two configurations can you apply to a port so that it tags traffic with VLAN 915? (Choose two) B. interface GigabitEthernet0/0 switchport mode trunk switchport trunk encapsulation dot1q switchport trunk allowed vlan 915 D. interface GigabitEthernet0/0.915 encapsulation dot1q 915 Question 6 Refer to the exhibit. Which statement about the interface is true? A. The interface is down. Question 8 How can you set VLAN 99 on a trunk to become a native VLAN? A. switchport trunk native vlan 99 Question 7 Refer to the exhibit. Which description of the effect of entering the switch port trunk allowed vlan 2,3,4 command on FastEthernet0/2 is true? D. The two workstation stop communicating because they are on VLAN 5. Question 9 If VLAN 99 is set to trunk, how can you set it to untagged from trunk VLAN 99? A. switchport access vlan 99 Question 10 Which command configures VLAN 99 as an untagged VLAN on a trunk? D. switchport trunk native vlan 99 Question 1 Refer to the output below. interface FastEthernet0/1 description to server room A 76-79430 switchport trunk allowed VLAN 81-97,99-121 switchport mode trunk end How can you remove vlan 100 from the allowed vlan list? (Choose two) B. switchport trunk allowed vlan remove 100 C. switchport trunk allowed vlan 81-97,99,101-121 Question 2 Refer to the output below. Which two effects of this configuration are true? (Choose two) ! interface GigabrtEthernet1/1 description to Accounting Floor A1460-516 switchport switchport trunk encapsulation dotlq switchport trunk allowed vlan 2,4,6,8 switchport trunk native vlan 2 switchport mode trunk end ! B. Data on VLAN 2 remains untagged. E. The switch adds a 4-byte VLAN tag to data on VLANs 4, 6 and 8. Question 3 A question about a configuration with a dot1q enabled trunk port. (Choose two) A. Supports VLANs 1-4096 C. Dot1q supports tagging 1000 VLANs including the native VLAN Question 4 Which statement describes what a port that is configured as an access port does if it receives an 802.1Q tagged frame? A. It drops the frame Question 5 Which two requirements for dot1q trunking in IOS are true? (Choose two) A. the native VLAN must have the same number on each side of the link C. The encapsulation protocol must be the same on each end of the trunk Question 6 Which two statements about 802.1Q are true? (Choose two) C. When it is enabled, the minimum Ethernet frame size is 68 bytes. D. It inserts a 4-bytes tag field to the Ethernet frame. VTP Questions Question 1 Several new switches have been added to the existing network as VTP clients. All of the new switches have been configured with the same VTP domain, password, and version. However, VLANs are not passing from the VTP server (existing network) to the VTP clients. What must be done to fix this? D. Ensure that all switch interconnects are configured as trunks to allow VTP information to be transferred. Question 2 After implementing VTP, the extended VLANs are not being propagated to other VTP switches. What should be configured for extended VLANs? B. Enable VTP version 3, which supports extended VLAN propagation. Question 3 Which technique automatically limits VLAN traffic to only the switches that require it? A. access lists B. DTP in nonegotiate C. VTP pruning D. PBR Question 4 Refer to the exhibit. Switch A, B, and C are trunked together and have been properly configured for VTP. Switch C receives VLAN information from the VTP server Switch A, but Switch B does not receive any VLAN information. What is the most probable cause of this behavior? A. Switch B is configured in transparent mode. Question 5 A network is running VTPv2. After verifying all VTP settings, the network engineer notices that the new switch is not receiving the list of VLANs from the server. Which action resolves this problem? D. Verify connected trunk ports. Question 7 A network engineer is extending a LAN segment between two geographically separated data centers. Which enhancement to a spanning-tree design prevents unnecessary traffic from crossing the extended LAN segment? C. Use VTP pruning on the trunk interfaces. Question 8 When you design a switched network using VTPv2, how many VLANs can be used to carry user traffic? B. 1001 Question 9 A new network that consists of several switches has been connected together via trunking interfaces. If all switches currently have the default VTP domain name “null”, which statement describes what happens when a domain name is configured on one of the switches? C. VTP summary advertisements are sent out of all ports with the new domain name. Question 10 Which VTP mode is needed to configure an extended VLAN, when a switch is configured to use VTP versions 1 or 2? A. transparent Question 1 Which VLAN range is eligible to be pruned when a network engineer enables VTP pruning on a switch? C. VLANs 2-1001 Question 2 Which feature must be enabled to eliminate the broadcasting of all unknown traffic to switches that are not participating in the specific VLAN? A. VTP pruning Question 3 Refer to the exhibit. Switch1(config)#vlan 10 VTP vlan configuration not allowed when device is in CLIENT mode. Switch1#show interfaces trunk Switch1# The users in an engineering department that connect to the same access switch cannot access the network. The network engineer found that the engineering VLAN is missing from the database. Which action resolves this problem? C. Change VTP mode to server and enable 802.1q. Question 4 Refer to the exhibit. The network switches for two companies have been connected and manually configured for the required VLANs, but users in company A are not able to access network resources in company B when DTP is enabled. Which action resolves this problem? C. Manually force trunking with switchport mode trunk on both switches. Question 5 A network engineer must improve bandwidth and resource utilization on the switches by stopping the inefficient flooding of frames on trunk ports where the frames are not needed. Which Cisco IOS feature can be used to achieve this task? A. VTP pruning Question 6 Which action allows a network engineer to limit a default VLAN from being propagated across all trunks? C. Manually prune default VLAN with switchport trunk allowed vlans remove. Question 7 Refer to the exhibit. Switch A, B, and C are trunked together and have been properly configured for VTP. Switch B has all VLANs, but Switch C is not receiving traffic from certain VLANs. What would cause this issue? C. VTP pruning is configured globally on all switches and it removed VLANs from the trunk interface that is connected to Switch C. Question 8 Which statement describes one major issue that VTP can cause in an enterprise network when a new switch is introduced in the network in VTP mode server? B. It can cause a network-wide VLAN configuration change if the revision number on the new switch is higher. Question 9 A network administrator configures 10 extended VLANs ranging from VLANs 3051 to 3060 in an enterprise network. Which version of VTP supports these extended VLANs? C. version 3 Question 10 Refer to the exhibit. DSW1 should share the same MST region with switch DSW2. Which statement is true? D. Configure DSW1 with the same region name, revision number, and VLAN-to-instance mapping as shown on DSW2. Question 1 When a Cisco Catalyst switch that is configured in VTP server mode is first booted, which two VLAN ranges are loaded on the switch? B. VLANs greater than 1005 in the startup-config file C. The first 1005 VLANs in the VLAN database file Question 2 Which two options are advantages of deploying VTPv3? (Choose two) C. It supports the propagation of private VLANs E. It can be configured to allow only one VTP server to make changes to the VTP domain Question 3 To provide security, a service provider various private VLANs in its backbone network infrastructure to prevent certain VLANs communicating to each other. Which version of VTP supports the use of private VLANs? B. version 3 Question 4 What action should a network administrator take to enable VTP pruning on an entire management domain? C. Enable VTP pruning on a VTP server in the management domain. Question 5 Refer to the exhibit. If switch SW6 is operating VTP Server and the other devices have the same configuration as SW4, which statement about the VLANs network is true? SW4# show run | include vtp vtp mode client vtp domain cisco vtp domain ciscotest vtp pruning vtp version 3 C. VLANs 1 through 9 are pruned on the link between SW1 and SW4 Question 6 Which statement about the VTPv2 is true? B. It propagates VLANs 1-1005 only Question 7 Which two statements about extended-range VLANs are true? (Choose two) A. Created in VTP server mode in VTP version 3. D. VTP version 3 stores extended-range VLAN in VLAN database. Question 8 Which two statements about VTP modes are true? (Choose two) A. Private VLANs are supported on devices that run VTP version 2 in transparent mode C. When VTP pruning is enabled on a VTP server, it is enabled for the entire management domain Question 9 Which two statements about VTP modes are true? (Choose two) A. Private VLANs are supported on devices that run VTP version 2 in transparent mode C. When VTP pruning is enabled on a VTP server, it is enabled for the entire management domain Question 10 Which three new features of VTPv3 are true? (Choose three) A. It offers better administrative control over which device is allowed to update other devices view of VLAN topology. B. Unintended and disruptive changes are reduced and availability has increased. C. The functionality of the VLAN environment has been expanded. Question 1 Which two beneficial features are used for VTPv3? (Choose two) A. It supports the whole IEEE 802.1Q VLAN range up to 4095. B. It can transfer information based on PVLAN structure. Question 2 Which major feature is supported using VTPv3? A. It supports databases other than VLAN. Question 3 A question with recognition of VLANs 3050 and 3060. A. VTP version 3 Question 4 Which two features are new in VTPv3? (Choose two) B. extended VLAN support C. private VLAN propagation Question 5 Which two statements about VTP are true? (Choose two) A. Advertisements are sent periodically from trunk port to a multicast address D. A configuration revision number is included in VTP packets Question 6 Which VTPv2 mode does the switch operate without participating in VTP? C. transparent Question 7 A question with a diagram with 6 switches configured with VTP pruning. Which statement is true? D. VLAN 1 to 9 will be pruned between SW3 and SW4. Question 8 In which VTP mode VLAN configured on the switch are propagated to other switch? A. Server Question 9 What is the effect of VTP transparent? A. It will pass VTP information Question 10 Which statement about vlan pruning on trunk ports is true? B. Manually pruning VLANs reduces unnecessary forwarding of broadcast traffic. Question 11 Which VTP mode must you configure on a VTP domain so that the switch with the highest VTP configuration revision number in the domain propagates VLAN information to the other switches? A. server mode EtherChannel Questions Question 1 Refer to the exhibit. Which set of configurations will result in all ports on both switches successfully bundling into an EtherChannel? D. switch1 channel-group 1 mode desirable switch2 channel-group 1 mode auto uestion 2 After an EtherChannel is configured between two Cisco switches, interface port channel 1 is in the down/down state. Switch A is configured with “channel-group 1 mode active”, while Switch B is configured with “channel-group 1 mode desirable”. Why is the EtherChannel bundle not working? A. The switches are using mismatched EtherChannel negotiation modes. Question 3 An EtherChannel bundle has been established between a Cisco switch and a corporate web server. The network administrator noticed that only one of the EtherChannel links is being utilized to reach the web server. What should be done on the Cisco switch to allow for better EtherChannel utilization to the corporate web server? E. Adjust the EtherChannel load-balancing method based on source IP addresses. Question 4 An access switch has been configured with an EtherChannel port. After configuring SPAN to monitor this port, the network administrator notices that not all traffic is being replicated to the management server. What is a cause for this issue? C. The port channel can be used as a SPAN source, but not a destination. Question 5 Refer to the exhibit. What is the result of the configuration? B. The EtherChannels would form and function properly even though the load-balancing and EtherChannel modes do not match. Question 6 A network engineer tries to configure storm control on an EtherChannel bundle. What is the result of the configuration? D. The settings will be applied to the EtherChannel bundle and all associated physical interfaces. Question 7 A network engineer must set the load balance method on an existing port channel. Which action must be done to apply a new load balancing method? A. Configure the new load balancing method using port-channel load-balance. Question 8 A network engineer configured a fault-tolerance link on Gigabit Ethernet links G0/1, G0/2, G0/3, and G0/4 between two switches using Ethernet port-channel. Which action allows interface G0/1 to always actively forward traffic in the portchannel? B. Configure LACP port-priority on G0/1 to 1. Question 9 Which statement about the use of PAgP link aggregation on a Cisco switch that is running Cisco IOS Software is true? A. PAgP modes are off, auto, desirable, and on. Only the combinations auto-desirable, desirable- desirable, and on-on allow the formation of a channel. Question 10 Refer to the exhibit. Which EtherChannel negotiation protocol is configured on the interface f0/13 – f0/15? B. Port Aggregation Protocol
