Fighting the Flow of Entropy

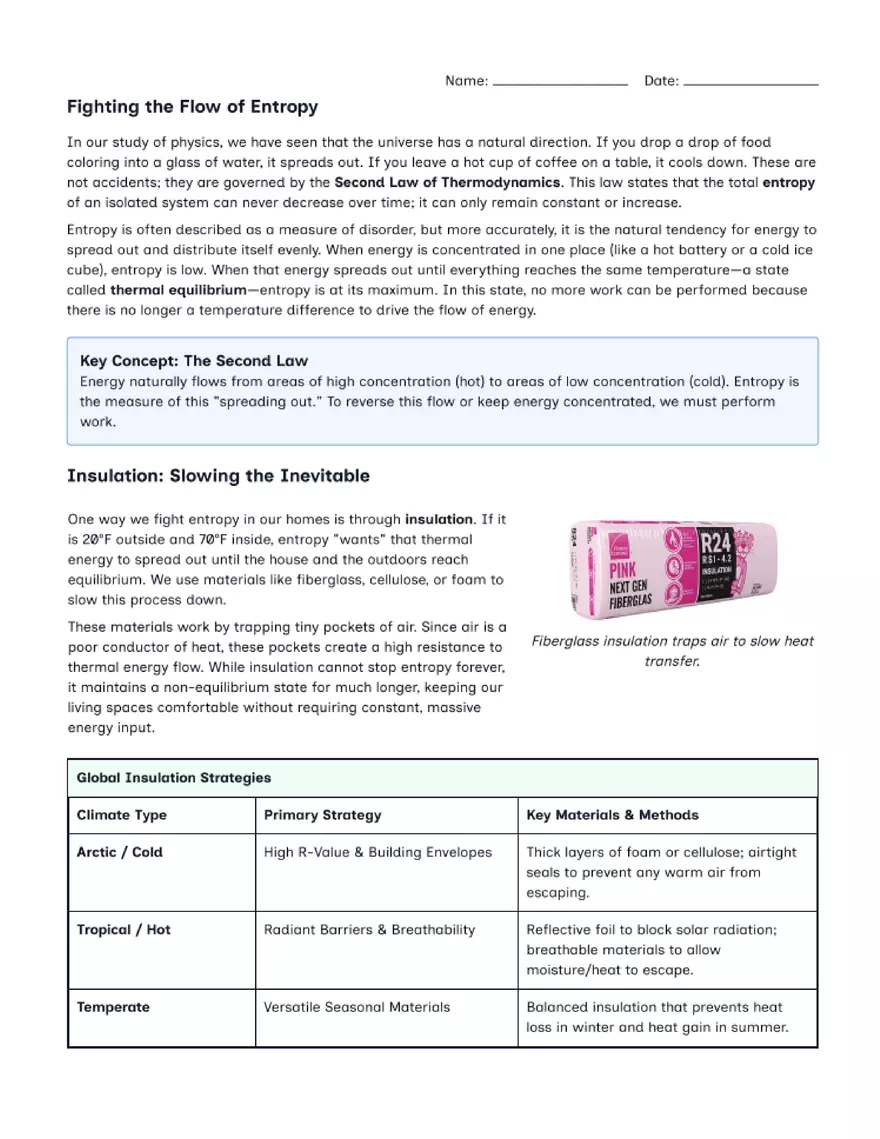

Fighting the Flow of Entropy In our study of physics, we have seen that the universe has a natural direction. If you drop a drop of food coloring into a glass of water, it spreads out. If you leave a hot cup of coffee on a table, it cools down. These are not accidents; they are governed by the Second Law of Thermodynamics. This law states that the total entropy of an isolated system can never decrease over time; it can only remain constant or increase. Entropy is often described as a measure of disorder, but more accurately, it is the natural tendency for energy to spread out and distribute itself evenly. When energy is concentrated in one place (like a hot battery or a cold ice cube), entropy is low. When that energy spreads out until everything reaches the same temperature-a state called thermal equilibrium-entropy is at its maximum. In this state, no more work can be performed because there is no longer a temperature difference to drive the flow of energy. Key Concept: The Second Law Energy naturally flows from areas of high concentration (hot) to areas of low concentration (cold). Entropy is the measure of this "spreading out." To reverse this flow or keep energy concentrated, we must perform work. Insulation: Slowing the Inevitable One way we fight entropy in our homes is through insulation. If it is 20°F outside and 70°F inside, entropy "wants" that thermal energy to spread out until the house and the outdoors reach equilibrium. We use materials like fiberglass, cellulose, or foam to slow this process down. These materials work by trapping tiny pockets of air. Since air is a poor conductor of heat, these pockets create a high resistance to thermal energy flow. While insulation cannot stop entropy forever, it maintains a non-equilibrium state for much longer, keeping our living spaces comfortable without requiring constant, massive energy input. PINK NEXT GEN FIBERGLAS R24 Fiberglass insulation traps air to slow heat transfer. Global Insulation Strategies Climate Type Primary Strategy Arctic / Cold High R-Value & Building Envelopes Tropical / Hot Radiant Barriers & Breathability Key Materials & Methods Thick layers of foam or cellulose; airtight seals to prevent any warm air from escaping. Reflective foil to block solar radiation; breathable materials to allow moisture/heat to escape. Temperate Versatile Seasonal Materials Balanced insulation that prevents heat loss in winter and heat gain in summer. Refrigeration: Pumping Heat Uphill While insulation simply slows heat down, a refrigerator does something much more radical: it moves heat against its natural flow. According to the Second Law, heat will never move from a cold object to a hot object on its own. To make this happen, we must use a heat pump system and perform work (using electricity). Expansion valın Cand Compressor The Refrigeration Cycle: A closed system moving heat from inside to outside. The Physics of the Refrigeration Cycle: 1. Evaporator: The cold liquid refrigerant absorbs heat from the food inside the fridge. As it gains energy, the liquid evaporates into a low-pressure gas. 2. Compressor: An electric motor squeezes the gos, significantly increasing its pressure and temperature. This step requires external work to be performed. 3. Condenser: The hot, high-pressure gas flows through coils on the outside of the fridge. It releases its heat to the kitchen air and condenses back into a liquid. 4. Expansion Valve: The high-pressure liquid passes through a small opening, causing a sudden drop in pressure. This cools the refrigerant significantly before it returns to the evaporator. By plugging the fridge into the wall, we provide the energy needed to "fight" entropy. We decrease the entropy inside the refrigerator by concentrating the thermal energy and moving it outside. However, the Second Low is never truly defeated. The heat released by the coils at the back of the fridge, combined with the heat generated by the motor, means that the total entropy of your kitchen actually increases more than the entropy inside the fridge decreases. Summary Reflection Based on the reading, explain why a house with perfect insulation would still eventually reach the same temperature as the outdoors if the heater was turned off. Use the term thermal equilibrium in your answer. Name: Date: Part 1: Recall & Comprehension Directions: Answer the following questions based on the reading "Fighting the Flow of Entropy." 1. According to the Second Law of Thermodynamics, what is the natural tendency of entropy in an isolated system over time? 2. Define thermal equilibrium. Why is it impossible to perform work once a system has reached this state? 3. How does Insulation help maintain a non-equilibrium state in a home during winter? 4. In the refrigeration cycle, which specific component is responsible for releasing heat into the kitchen environment? 5. Why is a refrigerator classified as a heat pump rather than just a passive cooling device? Part 2: Critical Analysis 6. The Cost of Order: To decrease entropy inside a refrigerator (concentrating thermal energy to move it out), the unit must be plugged into a power source to perform work. Explain why this work is necessary according to the Second Law, and describe what happens to the total entropy of the kitchen as a result of the fridge running. 8. Visualizing the Flow: Use the data below to explain the relationship between work and temperature difference. If a refrigerator has to move heat from a very cold interior (0°F) to a very hot kitchen (100°F), how does the required work change compared to a standard day (35°F to 70°F)? Electrical Work Required vs. Temperature Gradient 90 Work Units (Joules) 10 45 Small Gradient (5 DM Medium Gradient (35 Df Large Gradient (100* D) Name: Date: Practical Application: Household Audit According to the Second Law of Thermodynamics, energy naturally spreads out, and entropy-the measure of disorder-tends to increase. In our homes, we spend a significant amount of energy and money to "fight" this natural flow, keeping our living spaces and food at temperatures different from the outside environment. Entropy Reminder Heat naturally flows from hot to cold. To move heat in the opposite direction, or to slow down its natural movement, we must use technology and perform work. Thermodynamics of Refrigeration Electrical work (Compressor) Refrigerant cycle Insulated walls Maintaining a Cold Refrigerator Lower entropy inside Heat rejected to kitchen Higher entropy in surroundings A Multi-Flow Map showing how we use work to create a low-entropy environment. Audit Task: Identify three areas in your home where technology is used to combat the natural increase of entropy. Location & Method (e.g.. Attic/Fiberglass Insulation) Entropy Analysis Identify the natural heat flow direction and how we stop/reverse it. Critical Thinking: If your home were a truly 'closed system' (no energy entering or leaving), what would eventually happen to the temperature differences between your freezer, your living room, and the outdoors? Explain using the term thermal equilibrium.
