DIY Reverse Hyper Ebook

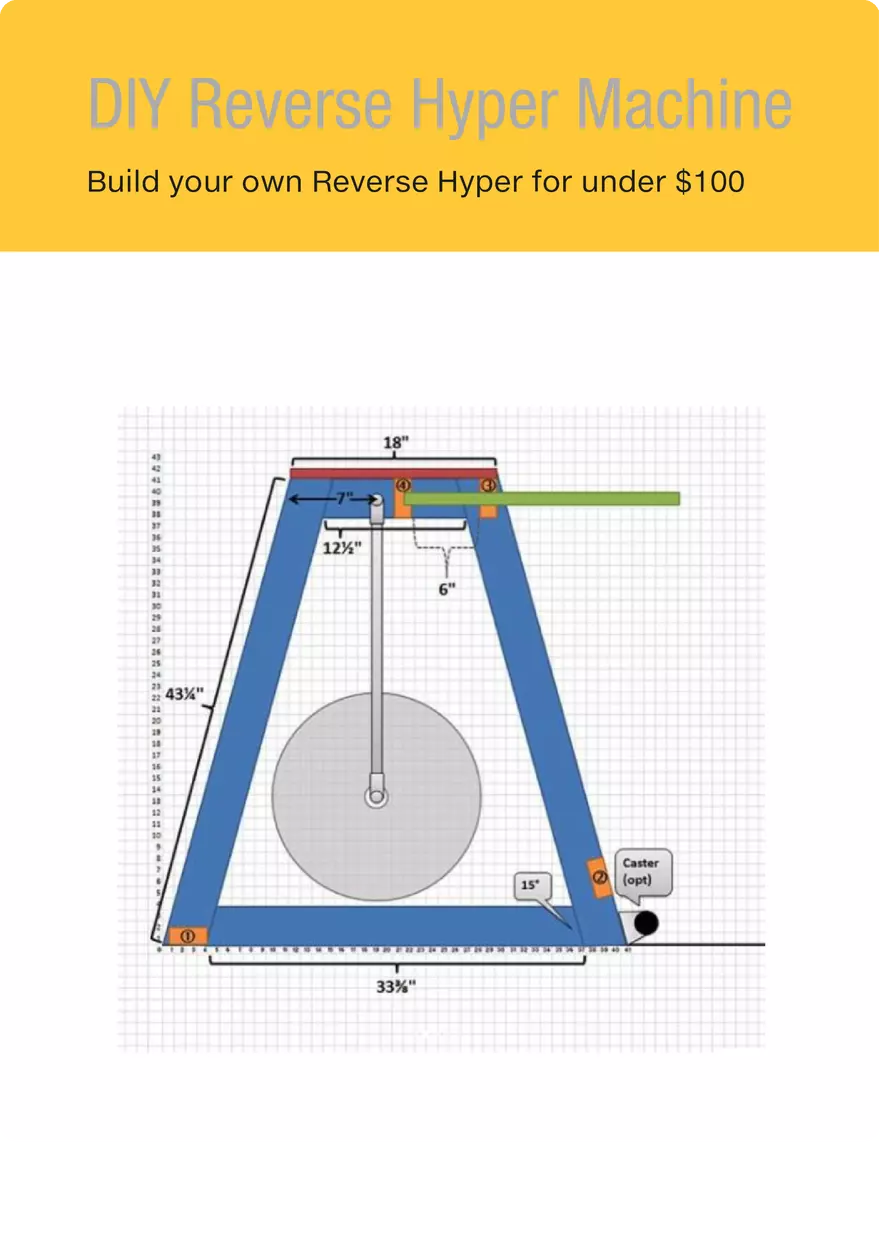

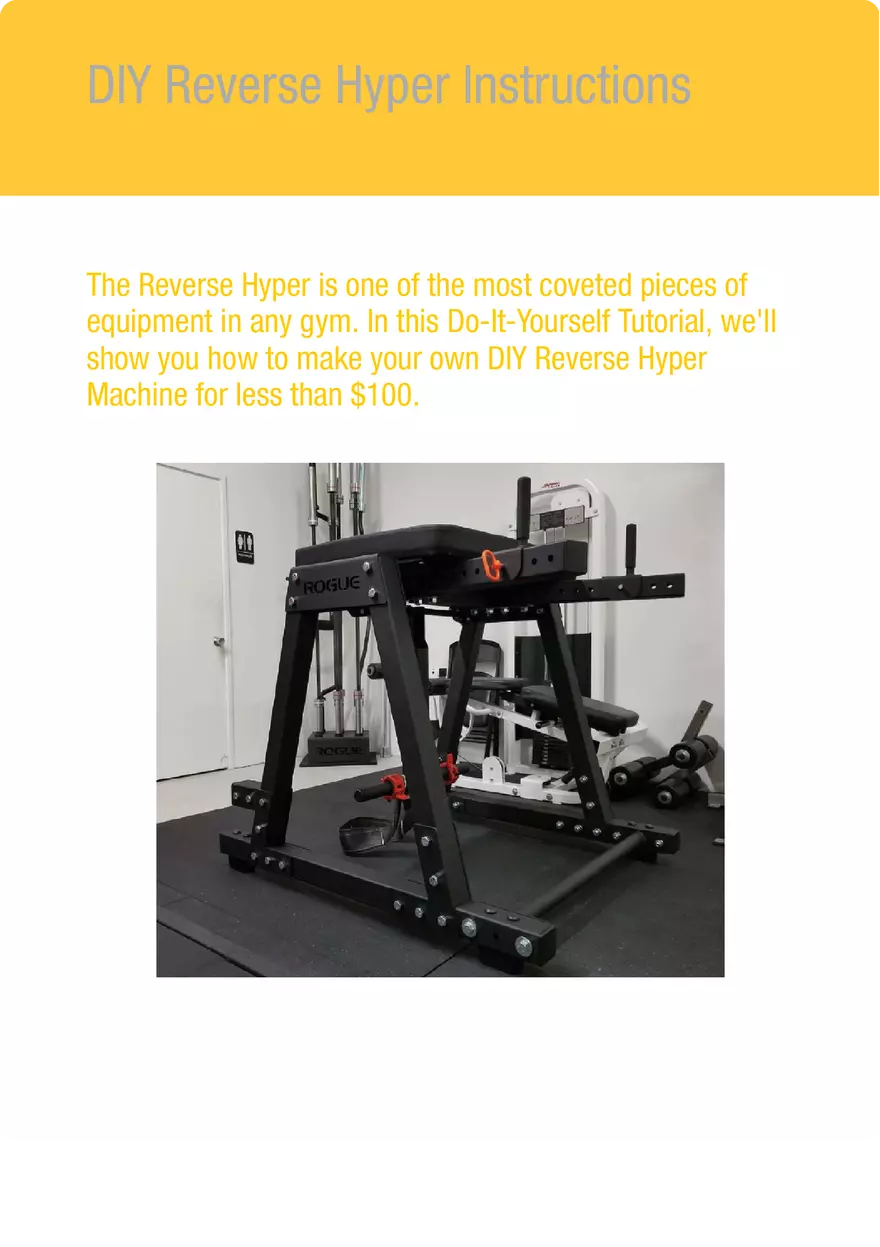

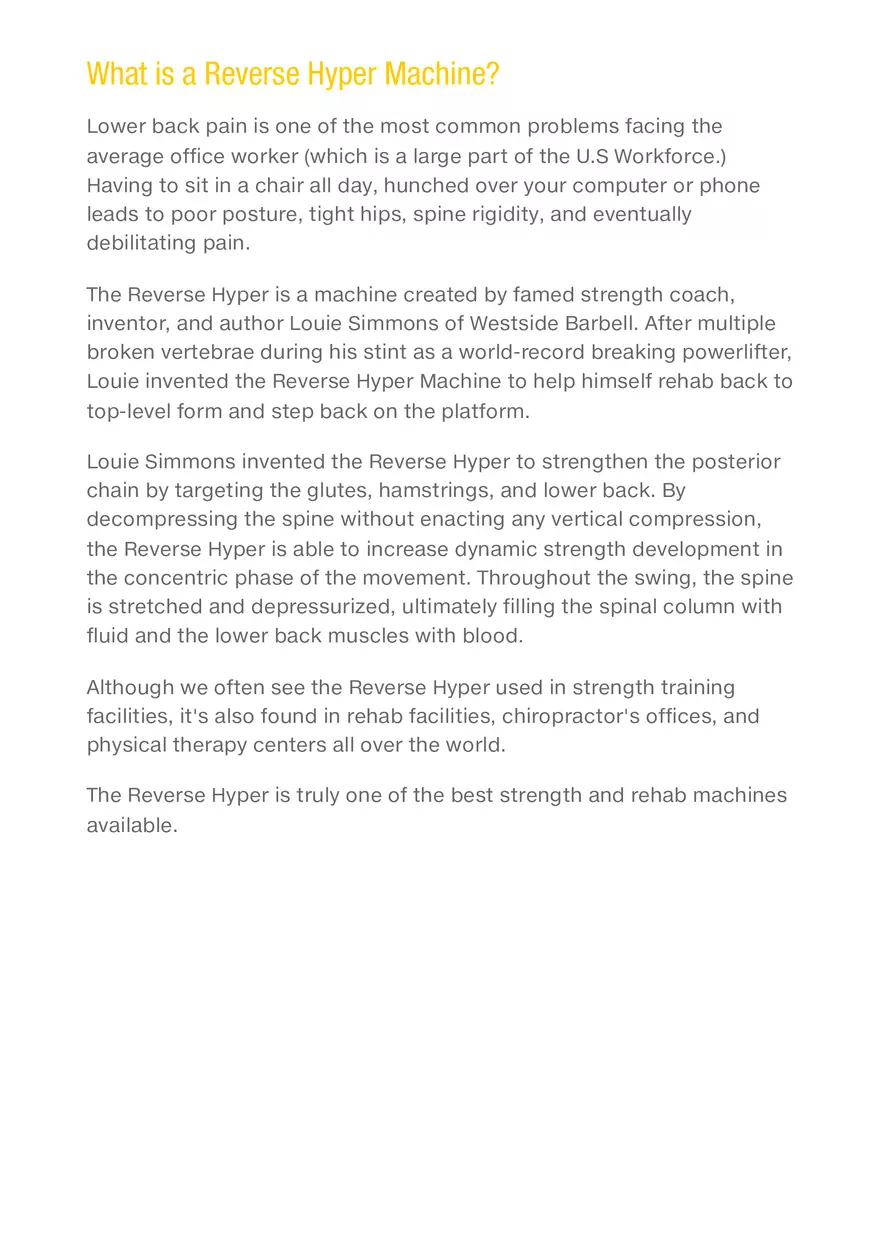

DIY Reverse Hyper Machine Build your own Reverse Hyper for under $100 DIY Reverse Hyper Instructions The Reverse Hyper is one of the most coveted pieces of equipment in any gym. In this Do-It-Yourself Tutorial, we'll show you how to make your own DIY Reverse Hyper Machine for less than $100. What is a Reverse Hyper Machine? Lower back pain is one of the most common problems facing the average office worker (which is a large part of the U.S Workforce.) Having to sit in a chair all day, hunched over your computer or phone leads to poor posture, tight hips, spine rigidity, and eventually debilitating pain. The Reverse Hyper is a machine created by famed strength coach, inventor, and author Louie Simmons of Westside Barbell. After multiple broken vertebrae during his stint as a world-record breaking powerlifter, Louie invented the Reverse Hyper Machine to help himself rehab back to top-level form and step back on the platform. Louie Simmons invented the Reverse Hyper to strengthen the posterior chain by targeting the glutes, hamstrings, and lower back. By decompressing the spine without enacting any vertical compression, the Reverse Hyper is able to increase dynamic strength development in the concentric phase of the movement. Throughout the swing, the spine is stretched and depressurized, ultimately filling the spinal column with fluid and the lower back muscles with blood. Although we often see the Reverse Hyper used in strength training facilities, it's also found in rehab facilities, chiropractor's offices, and physical therapy centers all over the world. The Reverse Hyper is truly one of the best strength and rehab machines available. Diagrams This is the front of the DIY Reverse Hyper. Modifications can be made, but all of the dimensions are designed to accommodatemost people. This is the side of the DIY Reverse Hyper Machine. As you can see on the front, there is an option to use casters to allow for easy movement of the machine. Due to the construction, it's much lighter than made-to-order versions, yet still has quite a bit rigidity for the materials used. Supplies (4)2"x4"x8 (1)2"x2' 3/4 PLYWOOD (2)8" 3/4 BLACK IRON PIPE (2)10" 3/4 BLACK IRON PIPE (1)24" 3/4 BLACK IRON PIPE (2)3/4 T-JUNCTIONS (2)3/4 FLANGES (1)4' 1.25" WOOD DOWEL (1)BOX OF 50 2.5" POCKET HOLE SCREWS (2)FIXED WHEEL CASTERS Tools Circular Saw & Speed Square (or miter saw and/or table saw) Drill 1" Spade Bit (or Forstner Bit) 1.25"Spade Bit (or Forstner Bit) Pocket Hole Jig (Kreg, Harbor Freight, etc.) Instructions 1. Pipe arm (Gray on Diagram) 1. Screw a T-Junction into each end of the 24" pipe. 2. Screw (2) 10" pipes into the top T. 3. Screw (2) 8" pipes into the bottom T. 4. Make sure all connections are as tight as possible. During usage, you will loosely screw the flanges on to the 8" pipes after loading plates to prevent them from sliding off. 2. Side Frames (Blue on Diagram) 1. Set your miter saw at a 15° angle. 2. Cut two of the 2x4's into (4) 43.25" pieces. Make sure the 15° angle slants the same way at both ends, like a parallelogram. These will be the corner posts. 3. Cut the last 2x4 into (2) 12 1/2" pieces and (2) 33 3/8" pieces (measured at the bottom/widest point.) Make sure the 15° angle slants the opposite way at both ends, like a trapezoid. These will be the tops and bottoms of the side frames. 4. Drill two pocket holes in both ends of each top and bottom piece, then screw them into the corner posts side frames. 5. Once the frames are assembled, on the inside top of each frame, make a mark 7" from the front. Using the 1" Spade Bit, drill a hole 3/81/2" deep on each piece.DO NOT DRILL TOO DEEP or the black iron pipe could slide out of the machine during use. 3. Cross Braces (Orange on Diagram) 1. Reset your miter saw to 0°. Straight cut one 2x4 into (4) 21" pieces. 2. Drill two pocket holes in both ends of each piece. 3. Stack two of the pieces. Make a mark 4.5" from each edn. Using the 1.25" Spade Bit, drill all the way through the top piece, and halfway through the bottom piece. These will be the holes the handles (wooden dowels) will be placed in, labeled #3 and #4 on the diagram. 4. Dowel Handles (Green on Plan) 1. Cut the 48" dowel in half, making (2) 24" pieces. 5. Assembly 1. Stand the side frames up and attach cross brace #1 at the front/bottom of the frames using pocket screws. 2. Place the 10" segments of the pipe armature in the holes at the top of the frames. Make sure the pipes are fully inserted, you may need to tap the frames with a hammer. 3. Confirm the distance between the frames is now 21". If it is more than this, remove the pipe, deepen the holes slightly, and recheck. 4. Install cross braces 2-4. Remember #3 is the one with holes drilled all the way through, and #4 is the one with holes drilled halfway through. 5. Cut one end of the plywood down to 18" (for an exact fit on the top) or 19-20" (if you want to wrap upholstrery/padding aroun the edge, so you have somewhere to staple.) 6. Screw the plywood down on top of the frames (if you have 1.25" screws, use them, 2.5" is probably excessive here.) 7. Slide the dowels into the holes in pieces 3 and 4. If the handles are too loose, hammer in a woode shim to wedge them, then break off 1. the remaining shim. 2. Make a foot strap to loop around the bottom T of the arm. You could use an old belt, dog leash, or buy one by Spud Inc. 6. Optional Upgrades 1. Attach casters to the back legs; this way you can wheel it around. Adds $5-6. 2. If you want, pad or uphoster the top. You could use rubber fitness mats, peel and stick carpet tiles, upholstery foam and cloth/leather/vinyl, etc. 3. Additional cross braces. Mine feels sturdy, but if yours doesn't, add some more crossbraces along the bottom or back, just make sure you don't put them in the path of the swinging arm (with weights loaded.) 4. Paint or stain.  Alternatives If you'd like a Reverse Hyper but aren't too sure on building your own, there are many commercial alternatives that are tested and Garage Gym Reviews approved. Rogue RH-2 Reverse Hyper The Rogue Fitness RH-2 Reverse Hyper is the Reverse Hyper that we most often recommend. It combines outstanding build quality with a price that isn't beat by any other retailers. Rogue Fitness is known for producing some of the best equipment in the industry, and the RH-2 Reverse Hyper is no different. Featureing 2x3 steel construction with an overbuilt frame and vinyl top, the RH-2 is designed to meet the demands of strength training and rehab facilities alike. If you want a Reverse Hyper and don't want to build one, this is what we would suggest. Westside Barbell Scout Reverse Hyper If you're looking for the absolute cheapest way to own a Reverse Hyper outside of a DIY option, then we suggest the Westside barbell Scout Reverse Hyper. The Scout Reverse Hyper is not capable of having the weight that many desire on a Reverse Hyper, but what it lacks in strength, it makes up for in portability. The Scout is able to fold-up and be stored away in a closet or somewhere else which is a big benefit for those in small spaces. The Scout Reverse Hyper is a great start for those who have yet to find the effectiveness of the Reverse Hyper and is a model we recomm for the budget conscious.
