A Piston-cylinder Device Contains 50 kg of Water at 250 k Pa

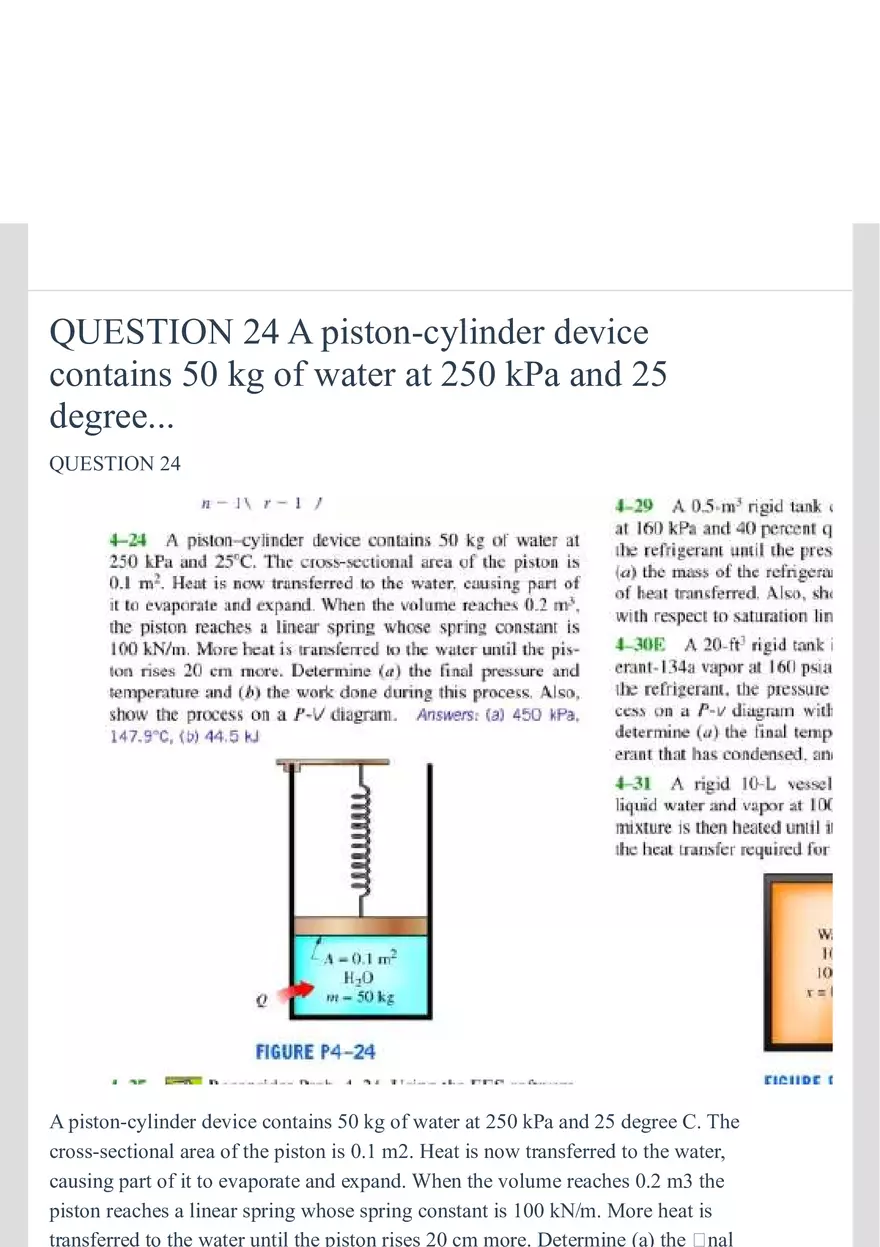

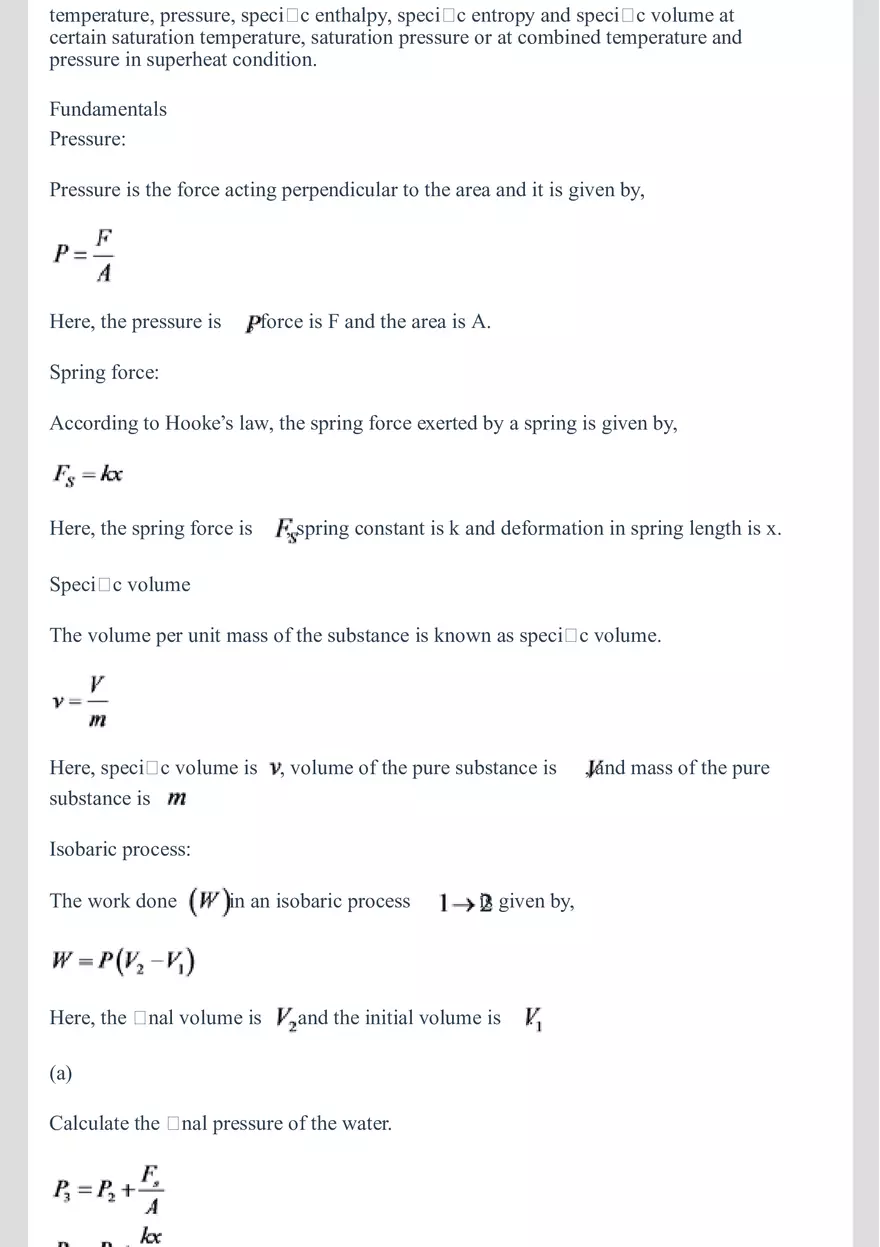

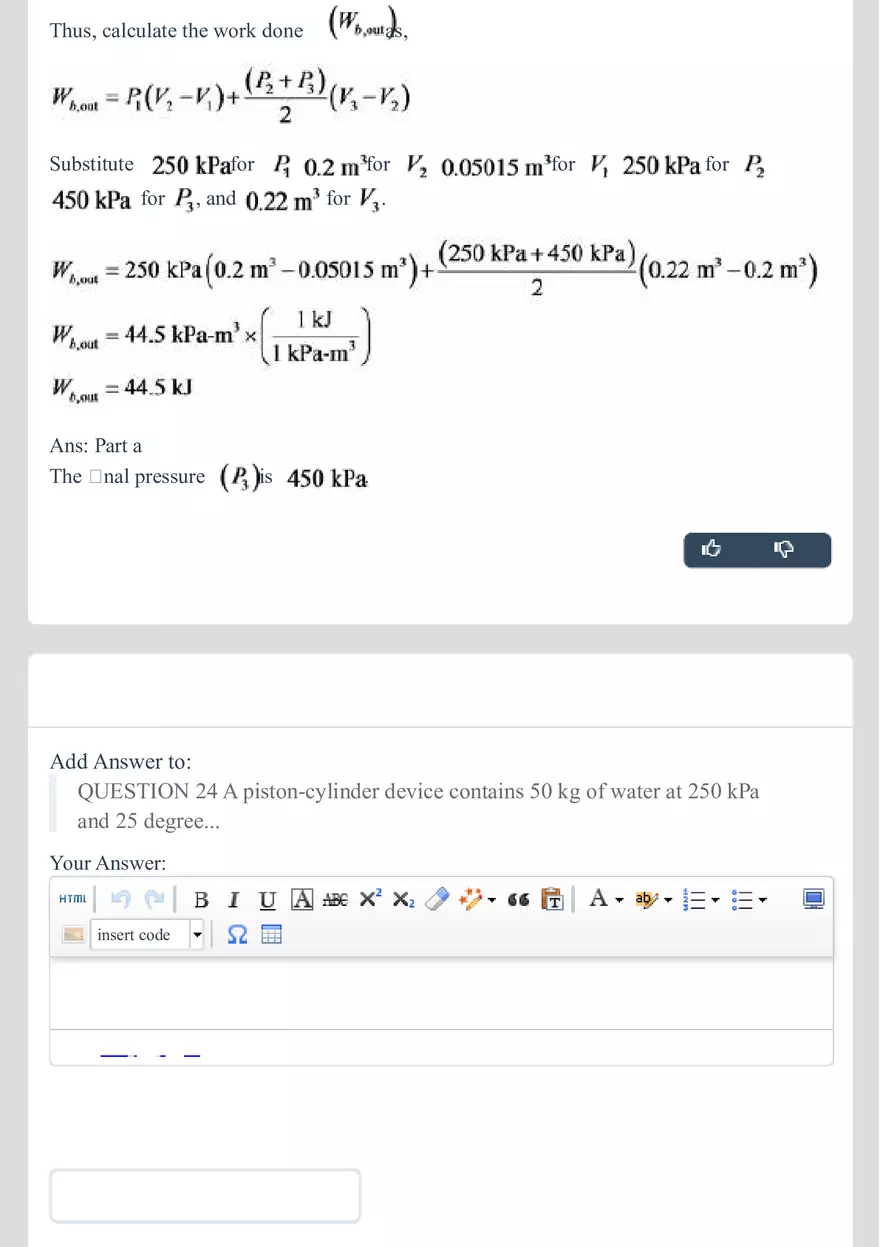

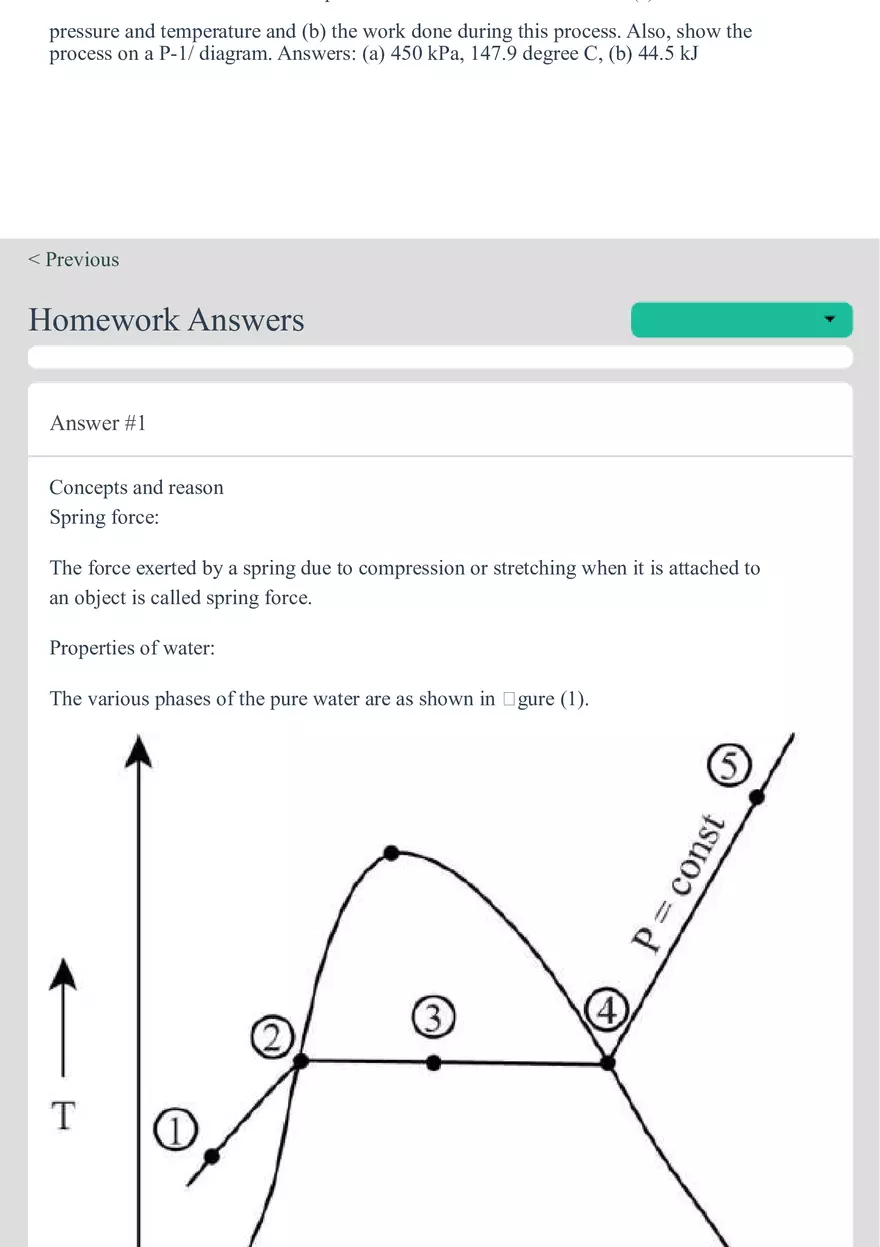

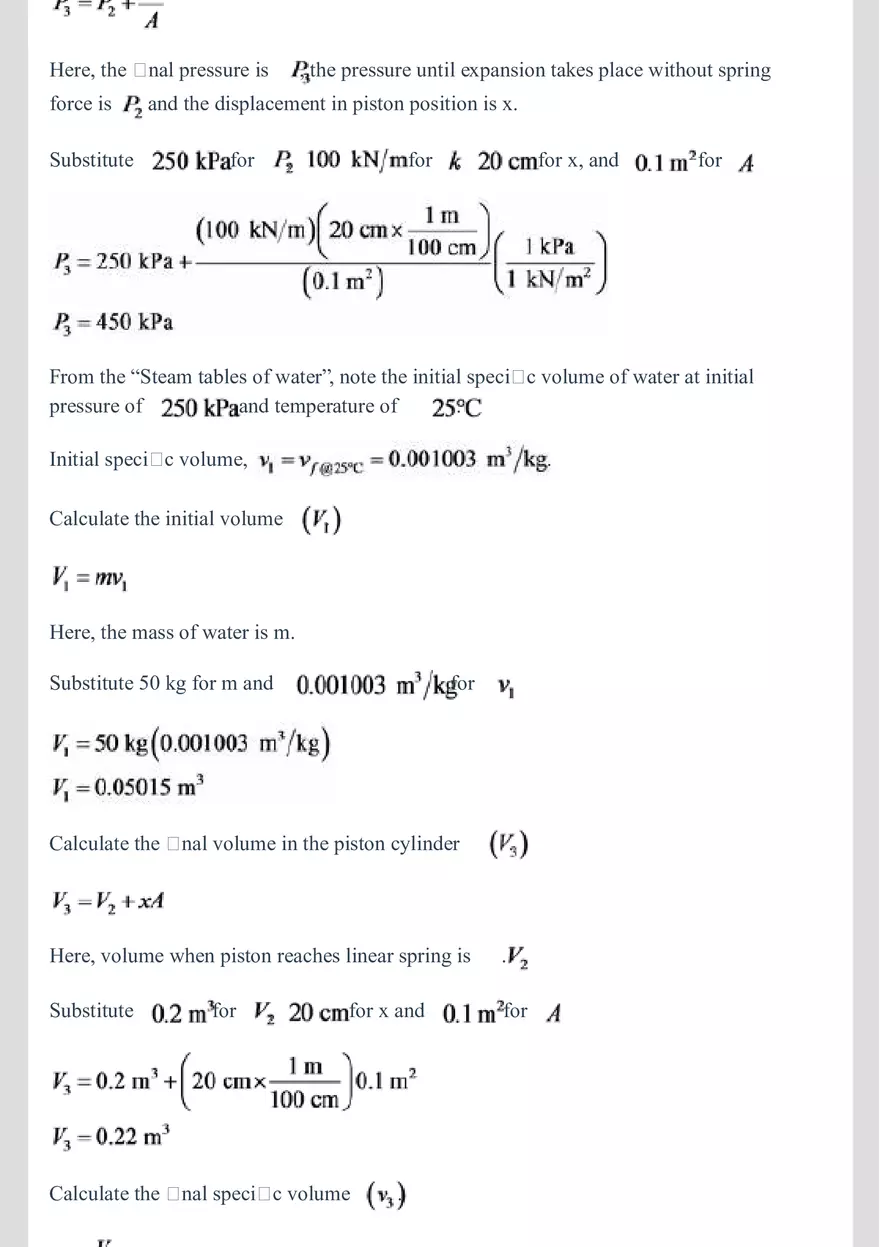

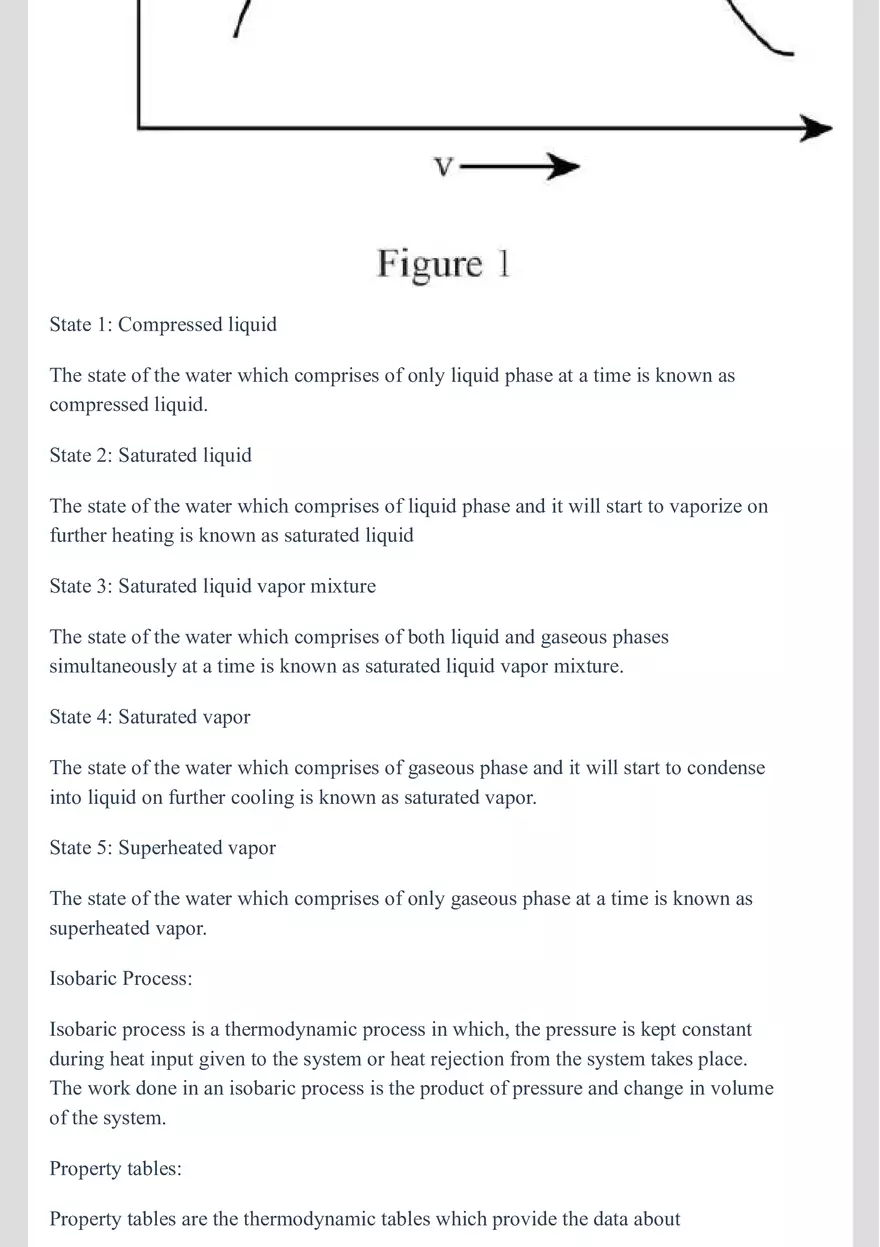

QUESTION 24 A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree... QUESTION 24 A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree C. The cross-sectional area of the piston is 0.1 m2. Heat is now transferred to the water, causing part of it to evaporate and expand. When the volume reaches 0.2 m3 the piston reaches a linear spring whose spring constant is 100 kN/m. More heat is transferred to the water until the piston rises 20 cm more. Determine (a) the nal pressure and temperature and (b) the work done during this process. Also, show the process on a P-1/ diagram. Answers: (a) 450 kPa, 147.9 degree C, (b) 44.5 kJ < Previous Homework Answers Answer #1 Concepts and reason Spring force: The force exerted by a spring due to compression or stretching when it is attached to an object is called spring force. Properties of water: The various phases of the pure water are as shown in gure (1). State 1: Compressed liquid The state of the water which comprises of only liquid phase at a time is known as compressed liquid. State 2: Saturated liquid The state of the water which comprises of liquid phase and it will start to vaporize on further heating is known as saturated liquid State 3: Saturated liquid vapor mixture The state of the water which comprises of both liquid and gaseous phases simultaneously at a time is known as saturated liquid vapor mixture. State 4: Saturated vapor The state of the water which comprises of gaseous phase and it will start to condense into liquid on further cooling is known as saturated vapor. State 5: Superheated vapor The state of the water which comprises of only gaseous phase at a time is known as superheated vapor. Isobaric Process: Isobaric process is a thermodynamic process in which, the pressure is kept constant during heat input given to the system or heat rejection from the system takes place. The work done in an isobaric process is the product of pressure and change in volume of the system. Property tables: Property tables are the thermodynamic tables which provide the data about temperature, pressure, speci c enthalpy, speci c entropy and speci c volume at certain saturation temperature, saturation pressure or at combined temperature and pressure in superheat condition. Fundamentals Pressure: Pressure is the force acting perpendicular to the area and it is given by, Here, the pressure is , force is F and the area is A. Spring force: According to Hooke’s law, the spring force exerted by a spring is given by, Here, the spring force is , spring constant is k and deformation in spring length is x. Speci c volume The volume per unit mass of the substance is known as speci c volume. Here, speci c volume is substance is . , volume of the pure substance is Isobaric process: The work done Here, the in an isobaric process nal volume is and the initial volume is (a) Calculate the is given by, nal pressure of the water. . , and mass of the pure Here, the nal pressure is force is and the displacement in piston position is x. Substitute for , the pressure until expansion takes place without spring , for , for x, and for . From the “Steam tables of water”, note the initial speci c volume of water at initial pressure of and temperature of . Initial speci c volume, . Calculate the initial volume . Here, the mass of water is m. Substitute 50 kg for m and Calculate the for . nal volume in the piston cylinder . Here, volume when piston reaches linear spring is . Substitute for Calculate the for , for x and nal speci c volume . . Substitute for and 50 kg for m. From the “Saturated water-Pressure tables”, note the speci c volumes at On observation, the nal state of , nal speci c volume is, Thus, note the saturated temperature at as the nal temperature from the “Saturated water-Pressure” table. (b) Draw the P-V diagram from the values of pressure and volume as in gure (1). The work done during the process is nothing but the area under the lines 1-2 and 2-3. Thus, calculate the work done Substitute for for , , and Ans: Part a The nal pressure as, for for is , for , for , . . Add Answer to: QUESTION 24 A piston-cylinder device contains 50 kg of water at 250 kPa and 25 degree... Your Answer: insert code Similar Homework Help Questions quality x=0.5 indicates a liquid/vapor mix. A piston cylinder device contains V-0 2 m3 of water... quality x=0.5 indicates a liquid/vapor mix. A piston cylinder device contains V-0 2 m3 of water at P 140 kPa and a quality of x/=0.5. The cross- sectional area of the piston is A-0.2 m2 and is restrained by a linear spring with spring constant K-52 kN/m Heat is added to the water until the volume expands to V2= 0.4 m3 (a) Determine the mass of water and the nal pressure P2 (b) Fill in all other missing properties in... 2. A piston-cylinder device maintain a constant pressure of 800 kPa while containing 20 kg of... 2. A piston-cylinder device maintain a constant pressure of 800 kPa while containing 20 kg of saturated water vapor. The system is heated with a resistance heater for 10 min at a current of 8 A at the standard wall voltage of 120 V. In that time, 3.2 kJ of heat is lost through the walls. What is the temperature at the heated state? 3 5-18E Hydrogen is contained in a piston-cylinder device at 14.7 psia and 15 ft. At... Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device tted... Patm 100 kPa 1 kg of water is contained in a frictionless piston cylinder device tted with two stops. The mass of the piston is 50 kg and the system is open to the atmosphere with Ptm - 100 kPa. The initial temperature of the system Ti Tantal 105 'C and the initial volume V1 Vinitial 1 m3 When the piston reaches the second stop, the volume of the water is doubled (V4Vinal2 Vinitial). Heat is EE transferred between the... Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa.... Required information A piston-cylinder device initially contains 0.6 m3 of saturated water vapor at 250 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 300 kPa is required to move it. Heat is now slowly transferred to the steam until the volume becomes 1.3 m3. Use the data from the steam tables. Determine the nal temperature. (You must provide an answer before moving on... 3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat... 3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat is transferred to the water until the cylinder contains saturated vapor only. Determine water m = 3 kg p = 500 kPa a) The initial and nal volume of the cylinder, b) The boundary work of the piston, and c) The heat added to the system P3.3 A piston-cylinder device (shown in Figure P3.3) contains 0.2 m of nitrogen at 100 kPa... P3.3 A piston-cylinder device (shown in Figure P3.3) contains 0.2 m of nitrogen at 100 kPa and 30°C. Heat is now transferred at constant pressure until the temperature reaches 500°C. a) Determine the mass of nitrogen. b) Calculate the nal denisty of nitrogen. c) Calculate the change in the internal energy of nitrogen during the process. 0.2 m nitrogen Figure P3.3 5-18E Hydrogen is contained in a piston-cylinder device at 14.7 psia and 15 ft'. At this... 5-18E Hydrogen is contained in a piston-cylinder device at 14.7 psia and 15 ft'. At this state, a linear spring (F « x) with a spring constant of 15,000 lbf/ft is touching the piston but exerts no force on it. The cross-sectional area of the piston is 3 f?. Heat is transferred to the hydrogen, causing it to expand until its volume doubles. Determine (a) the nal pressure, (b) the total work done by the hydrogen, and (c) the... A piston - cylinder device contains 0.15 kg of steam at 1 MPa and 320 degree... A piston - cylinder device contains 0.15 kg of steam at 1 MPa and 320 degree C. The steam now expand to a nal state of 150 kPa and 160 degree C. Energy losses via heat transfer from system to surroundings are estimated to be 3KJ, while the contact temperature with the surroundings is 25 degree C.Assuming: T0=25c and P0=100kPa,Determine: A: the available energy of the steam at the initial and nal states B: the work done by the system... 3.13 A two step process for a control mass A piston/cylinder device contains 0.2 kg water at 1000... I don't solve this problem(please write your text clearly) 3.13 A two step process for a control mass A piston/cylinder device contains 0.2 kg water at 1000 kPa, 300°C. There is a constant force on the piston with stops mountedSo a minimum volume is 0,025 m, if is now cooled to 100°C. Find the nal water volume, the Work and heat transfer in the overall process and show the process in P-v and T-v diagrams. ywork and heat transfer in... A piston-cylinder contains 0.1 kg of water at 1000 kPaand 500 o C. The water is... A piston-cylinder contains 0.1 kg of water at 1000 kPaand 500 o C. The water is now cooled with a constant force on the piston until it reaches half the initial volume. After it cools to 25oCwhile the piston is against the stops. Find the water pressure (in kPa) and the work in the overall process (in kJ). n
