Chassis

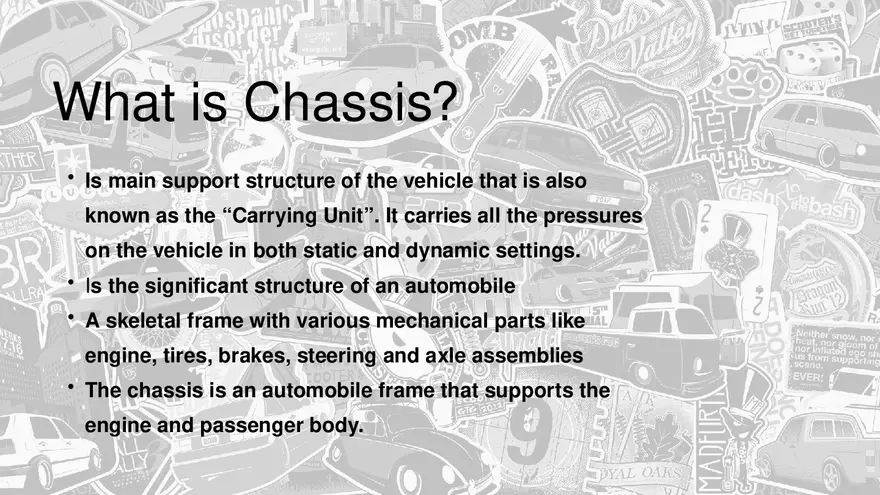

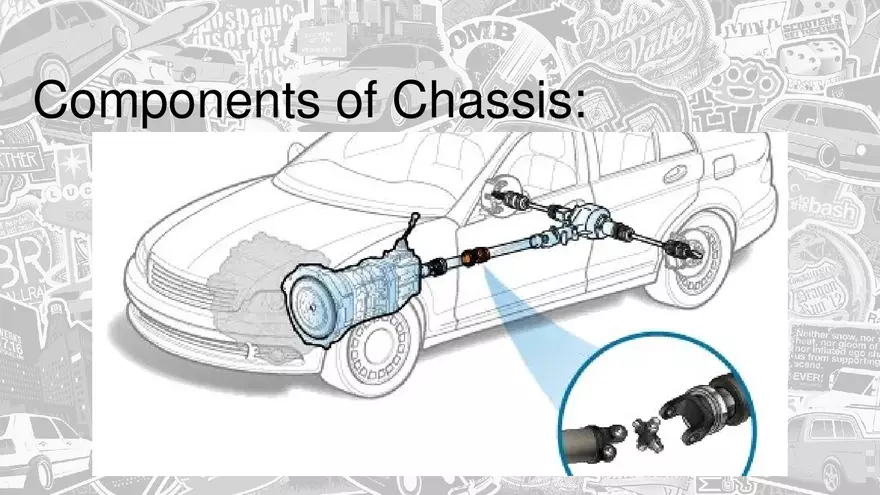

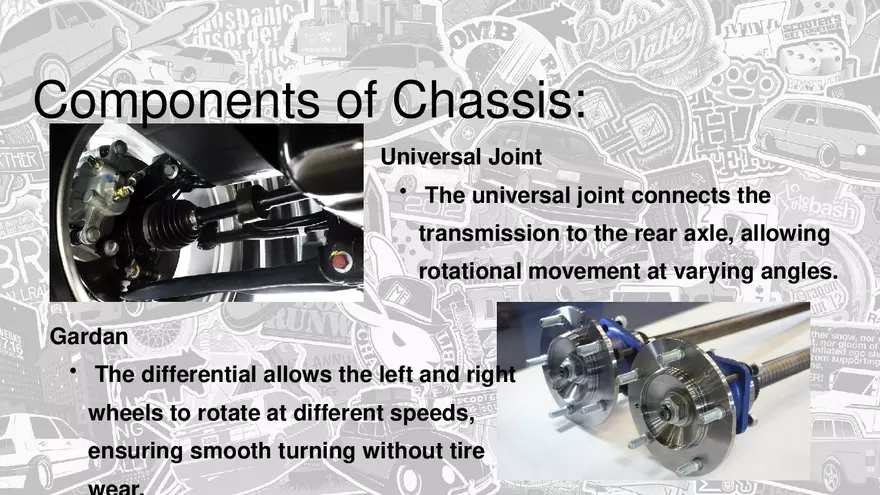

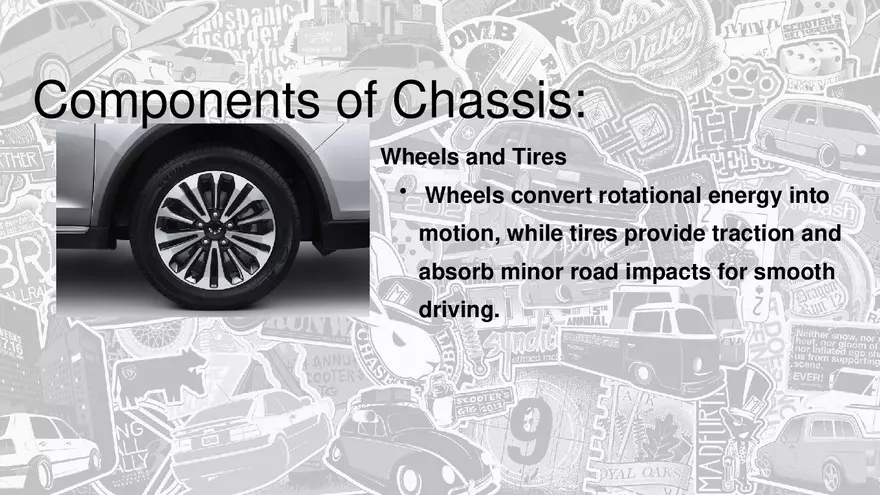

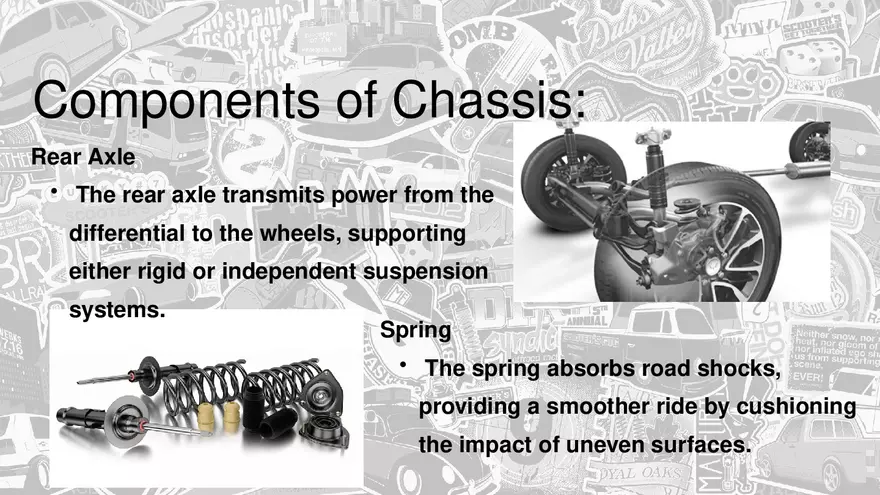

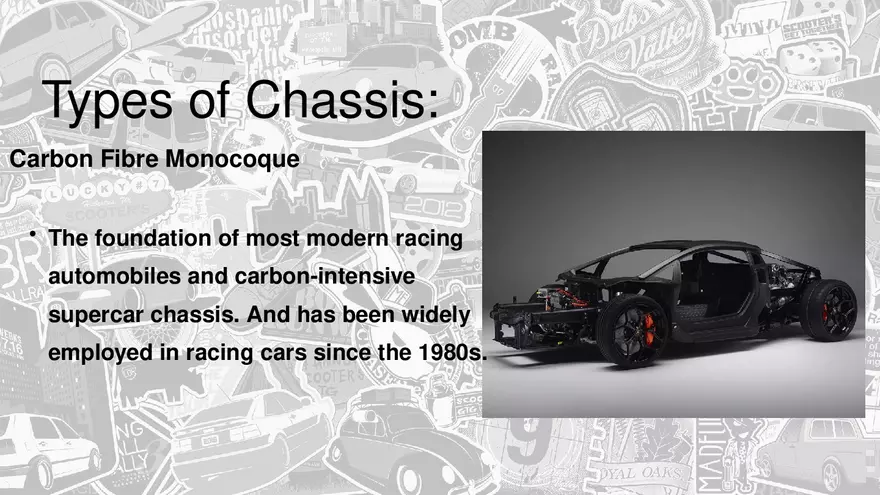

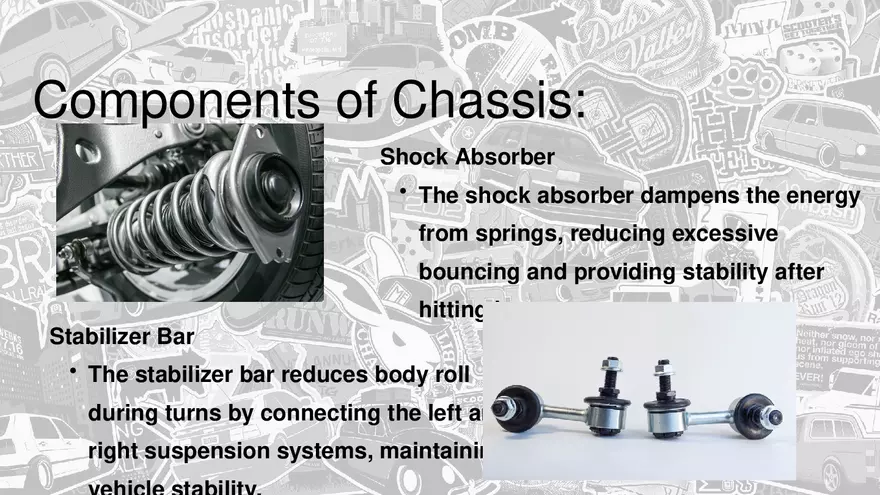

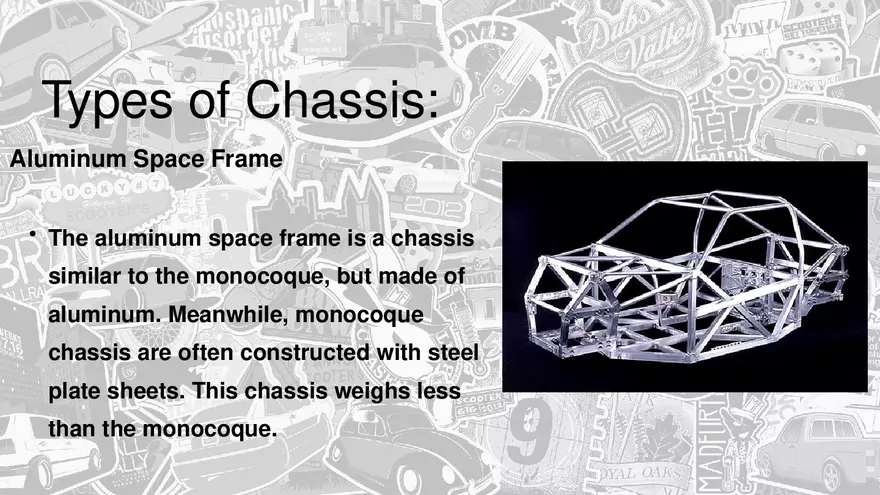

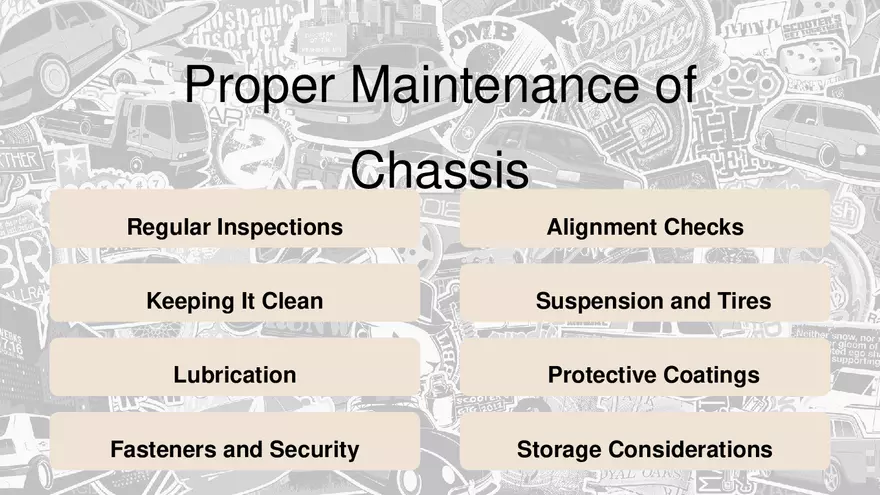

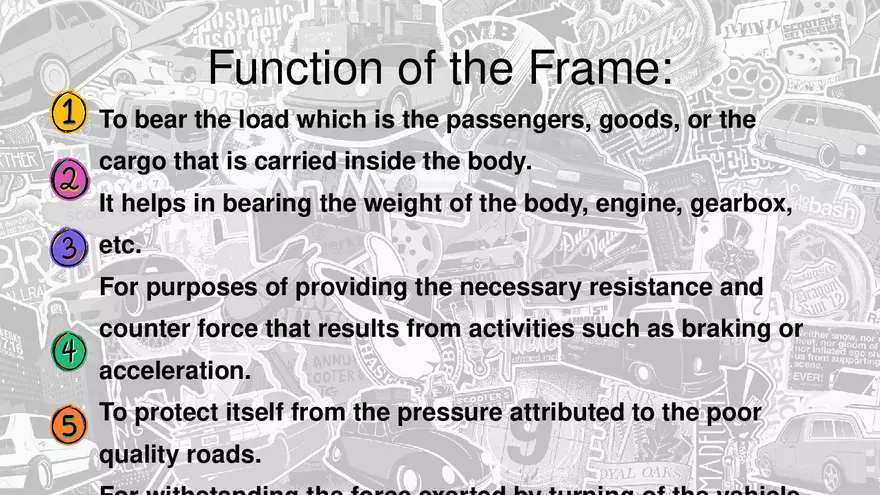

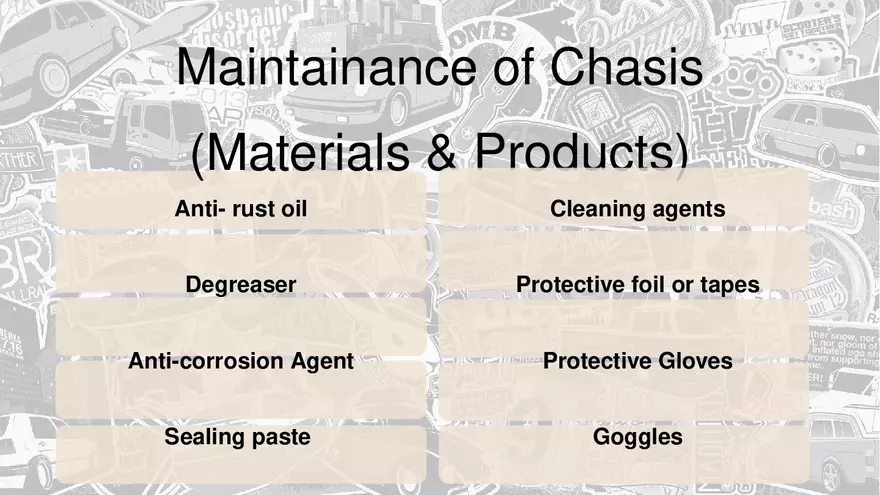

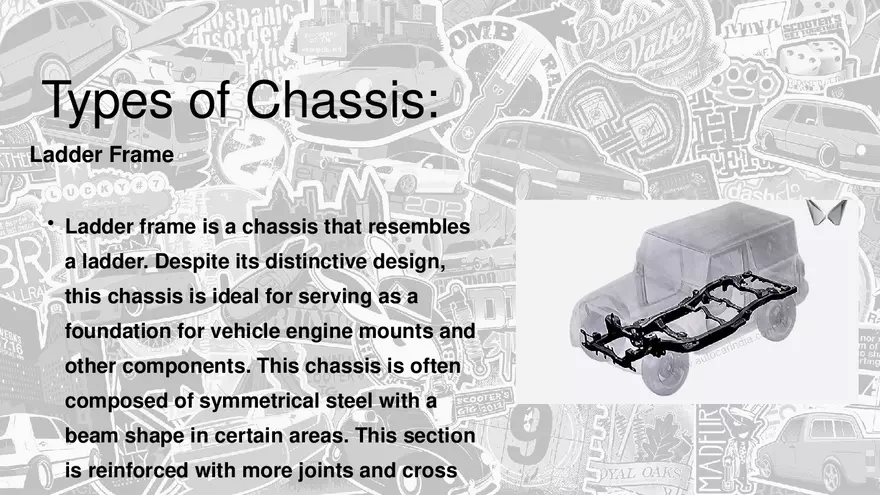

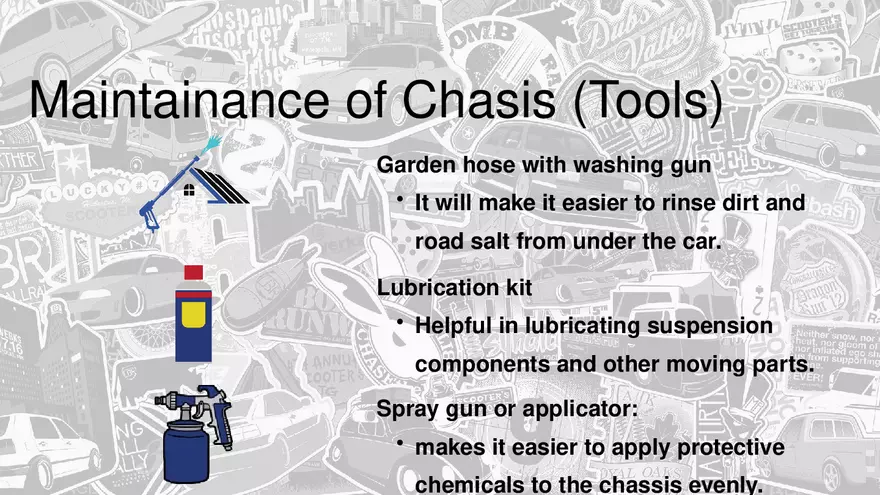

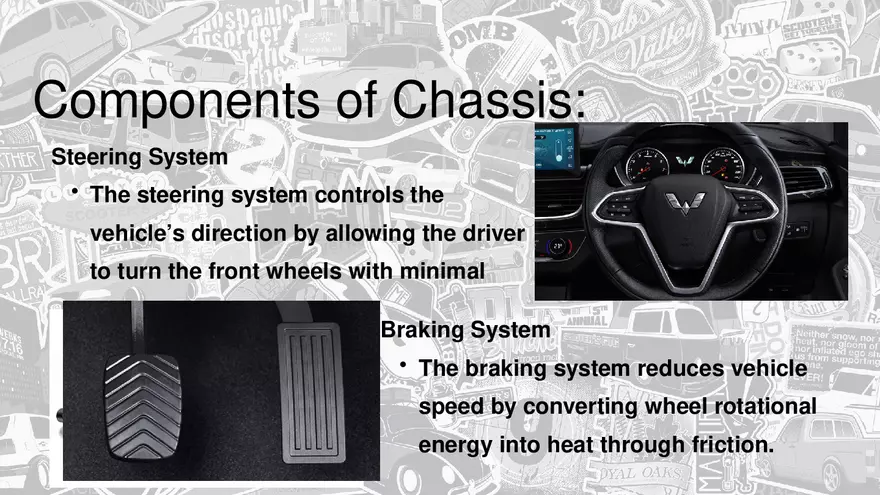

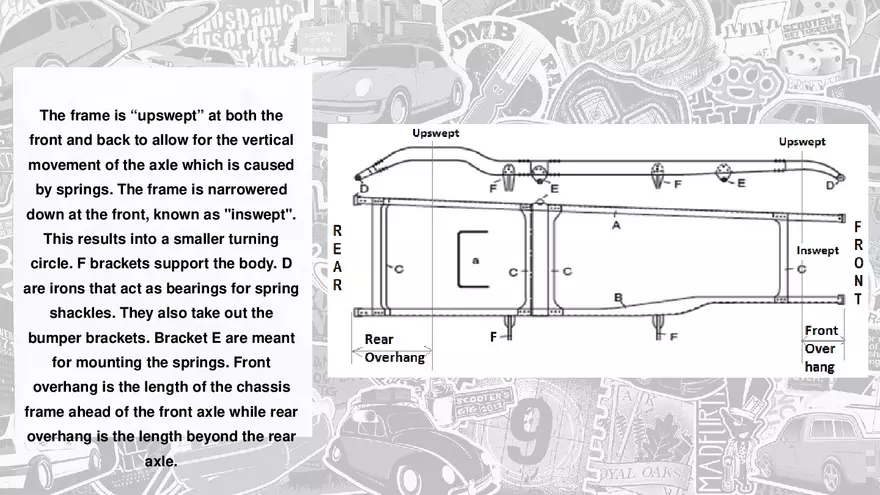

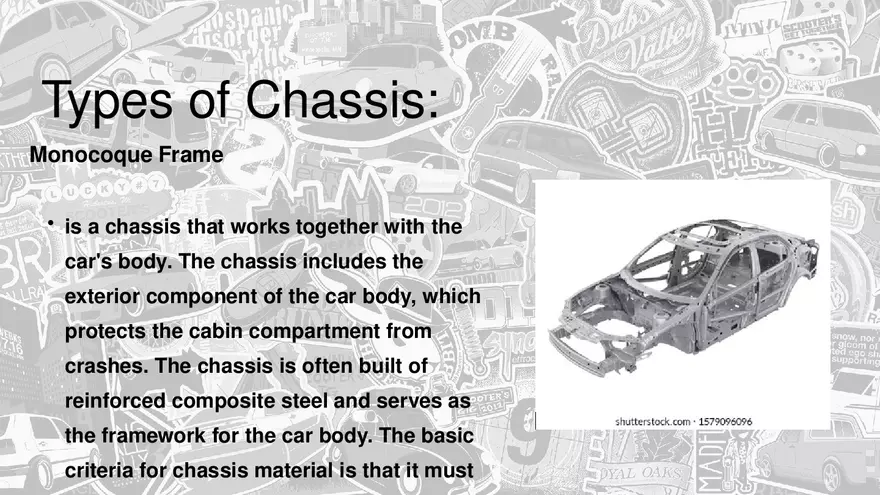

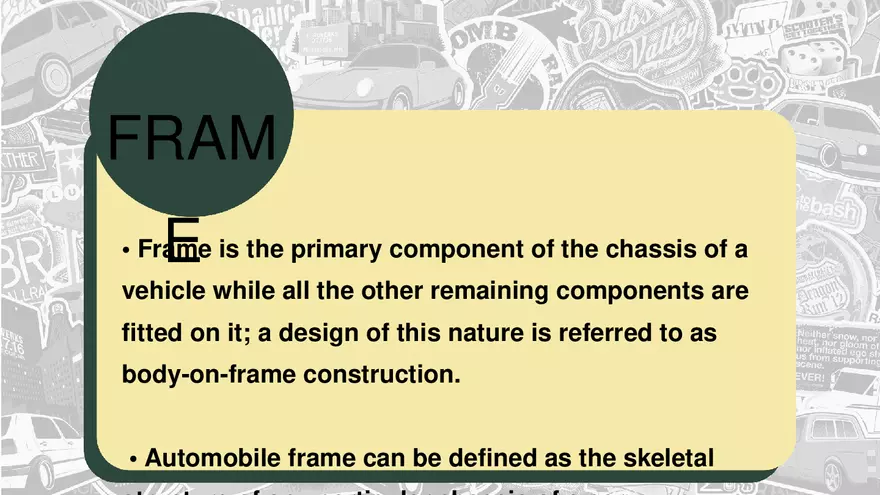

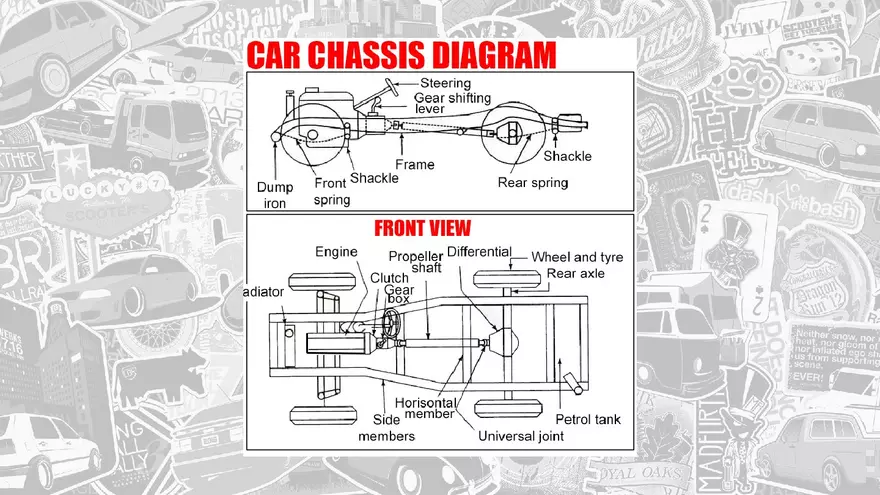

What is Chassis? • Is main support structure of the vehicle that is also known as the “Carrying Unit”. It carries all the pressures on the vehicle in both static and dynamic settings. • Is the significant structure of an automobile • A skeletal frame with various mechanical parts like engine, tires, brakes, steering and axle assemblies • The chassis is an automobile frame that supports the engine and passenger body. FRAM E • Frame is the primary component of the chassis of a vehicle while all the other remaining components are fitted on it; a design of this nature is referred to as body-on-frame construction. • Automobile frame can be defined as the skeletal The frame is “upswept” at both the front and back to allow for the vertical movement of the axle which is caused by springs. The frame is narrowered down at the front, known as "inswept". This results into a smaller turning circle. F brackets support the body. D are irons that act as bearings for spring shackles. They also take out the bumper brackets. Bracket E are meant for mounting the springs. Front overhang is the length of the chassis frame ahead of the front axle while rear overhang is the length beyond the rear axle. Components of Chassis: Components of Chassis: Clutch • The clutch connects and disconnects engine power to the transmission, allowing smooth gear changes and power control. Transmission • The transmission adjusts engine output by changing gear ratios, providing the necessary torque or speed based on driving conditions. Components of Chassis: Universal Joint • The universal joint connects the transmission to the rear axle, allowing rotational movement at varying angles. Gardan • The differential allows the left and right wheels to rotate at different speeds, ensuring smooth turning without tire Components of Chassis: Rear Axle • The rear axle transmits power from the differential to the wheels, supporting either rigid or independent suspension systems. Spring • The spring absorbs road shocks, providing a smoother ride by cushioning the impact of uneven surfaces. Components of Chassis: Shock Absorber • The shock absorber dampens the energy from springs, reducing excessive bouncing and providing stability after Stabilizer Bar hitting bumps. • The stabilizer bar reduces body roll during turns by connecting the left and right suspension systems, maintaining Components of Chassis: Steering System • The steering system controls the vehicle’s direction by allowing the driver to turn the front wheels with minimal effort. Braking System • The braking system reduces vehicle speed by converting wheel rotational energy into heat through friction. Components of Chassis: Wheels and Tires • Wheels convert rotational energy into motion, while tires provide traction and absorb minor road impacts for smooth driving. Function of the Frame: To bear the load which is the passengers, goods, or the cargo that is carried inside the body. It helps in bearing the weight of the body, engine, gearbox, etc. For purposes of providing the necessary resistance and counter force that results from activities such as braking or acceleration. To protect itself from the pressure attributed to the poor quality roads. Types of Chassis: Ladder Frame • Ladder frame is a chassis that resembles a ladder. Despite its distinctive design, this chassis is ideal for serving as a foundation for vehicle engine mounts and other components. This chassis is often composed of symmetrical steel with a beam shape in certain areas. This section is reinforced with more joints and cross Types of Chassis: Monocoque Frame • is a chassis that works together with the car's body. The chassis includes the exterior component of the car body, which protects the cabin compartment from crashes. The chassis is often built of reinforced composite steel and serves as the framework for the car body. The basic criteria for chassis material is that it must Types of Chassis: Backbone Chassis • The backbone chassis appears like a single primary skeleton. Its position will span the center of the car, connecting the front and back. A backbone chassis is sometimes known as a single chassis. This chassis has a number of downsides, Types of Chassis: Tubular Space Frame • Tubular space frame is a chassis in the shape of a steel pipe that can directly shape the car based on its construction. The strength of this one chassis will be determined by the quality of its welded connections. This chassis is regarded the greatest because of its durability. Because of this advantage, this particular chassis Types of Chassis: Carbon Fibre Monocoque • The foundation of most modern racing automobiles and carbon-intensive supercar chassis. And has been widely employed in racing cars since the 1980s. Types of Chassis: Aluminum Space Frame • The aluminum space frame is a chassis similar to the monocoque, but made of aluminum. Meanwhile, monocoque chassis are often constructed with steel plate sheets. This chassis weighs less than the monocoque. Proper Maintenance of Chassis Regular Inspections Alignment Checks Keeping It Clean Suspension and Tires Lubrication Protective Coatings Fasteners and Security Storage Considerations Maintainance of Chasis (Tools) Car Lift • you may reach the car's undercarriage by raising the vehicle. Screwdrivers and wrenches: • to remove different parts, including covers, in order to reach the chassis. Wheel Wrench • Necessary for dismantling the wheels Maintainance of Chasis (Tools) Garden hose with washing gun • It will make it easier to rinse dirt and road salt from under the car. Lubrication kit • Helpful in lubricating suspension components and other moving parts. Spray gun or applicator: • makes it easier to apply protective chemicals to the chassis evenly. Maintainance of Chasis (Materials & Products) Anti- rust oil Cleaning agents Degreaser Protective foil or tapes Anti-corrosion Agent Protective Gloves Sealing paste Goggles
