Greenhouse Effect

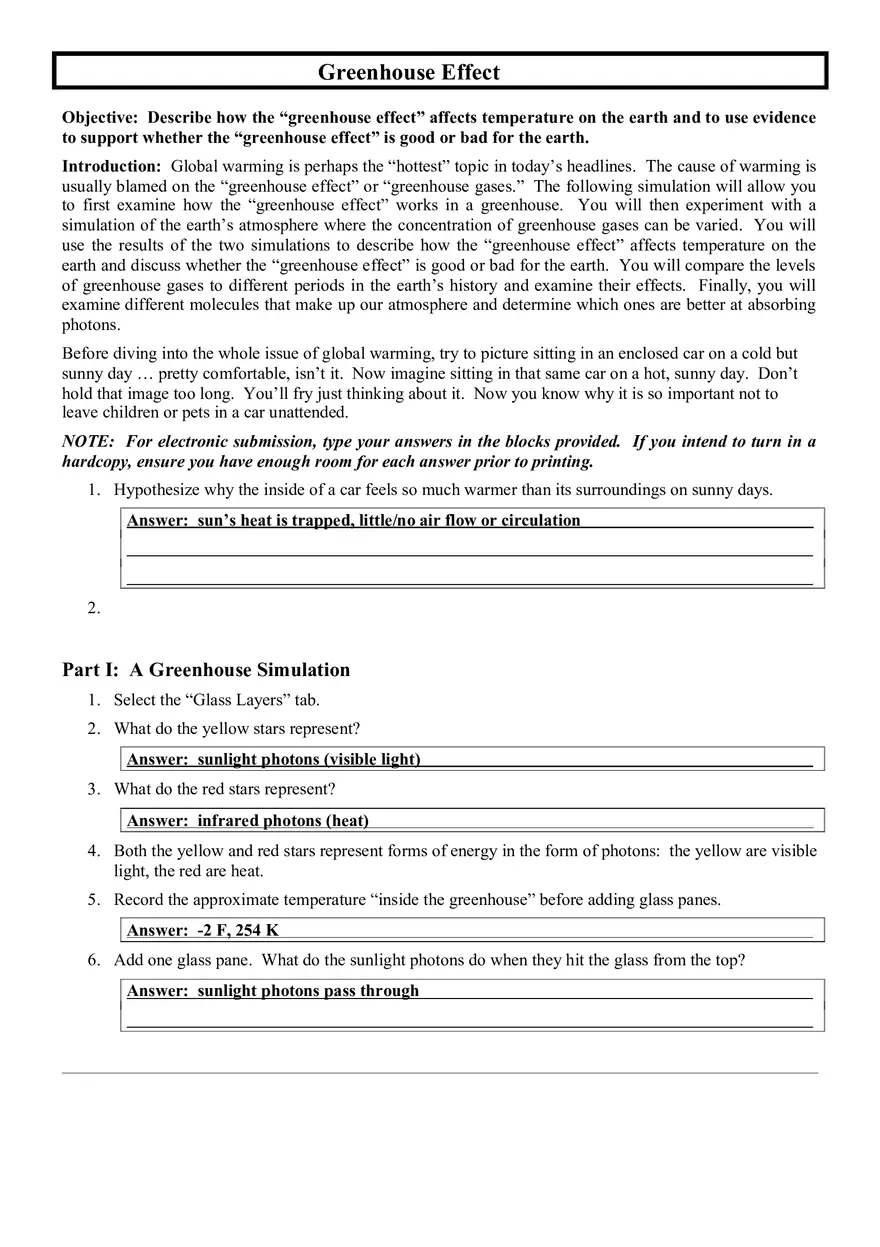

Greenhouse Effect Objective: Describe how the “greenhouse effect” affects temperature on the earth and to use evidence to support whether the “greenhouse effect” is good or bad for the earth. Introduction: Global warming is perhaps the “hottest” topic in today’s headlines. The cause of warming is usually blamed on the “greenhouse effect” or “greenhouse gases.” The following simulation will allow you to first examine how the “greenhouse effect” works in a greenhouse. You will then experiment with a simulation of the earth’s atmosphere where the concentration of greenhouse gases can be varied. You will use the results of the two simulations to describe how the “greenhouse effect” affects temperature on the earth and discuss whether the “greenhouse effect” is good or bad for the earth. You will compare the levels of greenhouse gases to different periods in the earth’s history and examine their effects. Finally, you will examine different molecules that make up our atmosphere and determine which ones are better at absorbing photons. Before diving into the whole issue of global warming, try to picture sitting in an enclosed car on a cold but sunny day … pretty comfortable, isn’t it. Now imagine sitting in that same car on a hot, sunny day. Don’t hold that image too long. You’ll fry just thinking about it. Now you know why it is so important not to leave children or pets in a car unattended. NOTE: For electronic submission, type your answers in the blocks provided. If you intend to turn in a hardcopy, ensure you have enough room for each answer prior to printing. 1. Hypothesize why the inside of a car feels so much warmer than its surroundings on sunny days. Answer: sun’s heat is trapped, little/no air flow or circulation 2. Part I: A Greenhouse Simulation 1. Select the “Glass Layers” tab. 2. What do the yellow stars represent? Answer: sunlight photons (visible light) 3. What do the red stars represent? Answer: infrared photons (heat) 4. Both the yellow and red stars represent forms of energy in the form of photons: the yellow are visible light, the red are heat. 5. Record the approximate temperature “inside the greenhouse” before adding glass panes. Answer: -2 F, 254 K 6. Add one glass pane. What do the sunlight photons do when they hit the glass from the top? Answer: sunlight photons pass through 7. What do the infrared photons do when they hit the glass from the bottom? Be specific. Answer: infrared photons pass through or bounce back toward Earth 8. What is the new temperature “inside the greenhouse?” Answer: 80 F or 300 K 9. Based on the observations of the photons, why does the temperature go up so much? Answer: some of the infrared photons bounce back toward Earth and are trapped. This causes an increase in temps 10. What happens to the temperature as additional glass panes are added? Answer: the temperature increases 11. Explain why this happens by observing the photons. Answer: the additional pane traps some of the photons that made it through the first pane 12. Before proceeding to the earth, predict how what you have discovered regarding greenhouses might apply to the earth and its atmosphere. Answer: greenhouse gases in the atm act much like the panes and can trap heat Part II: The Earth Simulation 1. Select the “Greenhouse Effect” tab. Which greenhouse gases are considered by the simulation? Answer: H2O, CO2, CH4, N2O 2. Which time period do the default conditions represent? Answer: today 3. The thermometer represents the average global temperature. What is the average global temperature for the “today” simulation? Answer: 58 F or 289 K 4. Is the behavior of the photons more similar to the greenhouse simulation with or without glass panes? Answer: with glass panes 5. Reduce the greenhouse gas concentration to “None”. Is the behavior of the photons more similar to the greenhouse simulation with or without glass panes? Answer: without glass panes 6. What is the average global temperature? Answer: -2 F or 254 K 7. Considering the behavior of the photons, why does the temperature drop so much? Answer: the infrared photons are not trapped. They all reflect back into space. 8. Increase the greenhouse gas concentration to “Lots.” What is the average global temperature? Answer: 70 F or 294 K 9. Considering the behavior of the photons, why does the temperature increase? Answer: more infrared photons are absorbed (bounce back to Earth) Part III: Incremental Analysis. Write a paragraph that answers the following questions: 1. How does the “greenhouse effect” affect temperature on the earth? Answer: The greenhouse effect acts much like the glass panes in that the gases in the atmosphere trap the heat. This causes temps to rise. 2. How is the “greenhouse effect” similar to blankets on a bed? Answer: Blankets trap heat like greenhouse gases 3. Is the “greenhouse effect” good or bad for the earth? Answer: Good in moderation. We would die without it, and we’d die if it gets too strong. Part IV: Analyze how Greenhouse Gases affect Earth’s temperature and identify processes that might increase or decrease Earth’s temperature Ice Age 1. Click on the “Ice Age” button and record the minimum temperature. _36 F_____ 2. Record: CO2 _180____ CH4 _.380____ N2O _.215____ 3. What happens to the sunlight photons as they hit the ground? Are all of the sunlight photons being reflected back into space? Answer: some are absorbed, some are reflected 4. What happens to the temperature when you add clouds? Answer: the temp drops 5. How are the photons affected by adding clouds? _________________________ Answer: infrared are kept in while some sunlight is kept out 1750 1. Click on the “1750” button and record the minimum temperature. _58 F______ 2. Record: CO2 _280____ CH4 _.730____ N2O _.270____ 3. What happens to the sunlight photons as they hit the ground? Answer: sunlight photons are absorbed as they hit the ground 4. What happens to the temperature when you add clouds? Answer: the temp drops 5. How are the photons affected by adding clouds? _________________________ Answer: infrared are kept in while some sunlight is kept out Today 1. Click on the “Today” button and record the minimum temperature. _59 F______ 2. Record: CO2 _388____ CH4 _1.843____ N2O _.317____ 3. What happens to the sunlight photons as they hit the ground? Answer: sunlight photons are absorbed 4. What happens to the temperature when you add clouds? Answer: the temp drops slightly 5. How are the photons affected by adding clouds? _________________________ Answer: infrared are kept in while some sunlight is kept out Comparison 1. Describe how, according to the model, the effects of Greenhouse Gases on the Earth’s atmosphere have changed from the Ice Age to today. Answer: greenhouse gases in our atm have increased, so the avg temp increased 2. What assumptions do you think the model is making? Do you think those assumptions are valid? Answer: if greenhouse gases increase then the average global temps will increase as well 3. What would happen if there were no Greenhouse gases? (Adjust the Greenhouse Gas Concentration Level to None.) Answer: average global temps would drop drastically 4. What will happen if Greenhouse gases increase in the future? (Adjust the Greenhouse Gas Concentration Level to Lots.) Answer: average global temps would rise 5. Identify some natural or human processes that might increase or decrease the amount of greenhouse gases in the atmosphere. Answer: volcanism, burning of fossil fuels, deforestation, respiration, ocean absorption Part V: Scientific Question: Which atmospheric gas (CH4, CO2, H20, N2, or 02) is the best absorber of infrared photons? Lab Background Information Table 1: Average composition of the Earth’s atmosphere up to an altitude of 25 km. Gas Name Chemical Formula Percent Volume Nitrogen N2 78.08% Oxygen O2 20.95% *Water H2O 0 to 4% Argon Ar 0.93% *Carbon dioxide CO2 0.0360% Neon Ne 0.0018% Helium He 0.0005% *Methane CH4 0.00017% Hydrogen H2 0.00005% *Nitrous oxide N2O 0.00003% *Ozone O3 0.000004% * variable gases CH4 is a very strong greenhouse gas. Since 1750, methane concentrations in the atmosphere have increased by more than 150%. The primary sources for the additional methane added to the atmosphere (in order of importance) are: rice cultivation; domestic grazing animals; termites; landfills; coal mining; and, oil and gas extraction.   The volume of CO2 has increased by over 35% in the last three hundred years. This increase is primarily due to human activities such as combustion of fossil fuels, deforestation, and other forms of land-use change. It is now fact—the increase is causing global warming through an enhancement of the greenhouse effect.  H20 (water vapor) varies in concentration in the atmosphere both spatially and temporally. Water vapor has several very important functional roles on our planet. For example, the condensation of water vapor creates precipitation that falls to the Earth's surface providing needed fresh water for plants and animals. Additionally, it helps warm the Earth's atmosphere through the greenhouse effect.  N2 is removed from the atmosphere and deposited at the Earth's surface mainly by specialized nitrogen fixing bacteria, and by way of lightning through precipitation. The addition of this nitrogen to the Earth's surface soils and various water bodies’ supplies much needed nutrition for plant growth.  O2 is exchanged between the atmosphere and life through the processes of photosynthesis and respiration. Photosynthesis produces oxygen when carbon dioxide and water are chemically converted into glucose with the help of sunlight.  Remember, infrared radiation is heat. Tools: 1. Click on the “Photon Absorption” Tab 2. Observe what happens when you move the slider on the photon emitter. 3. Observe what happens when you change which atmospheric gas you are examining. 4. After examining how this application works for a few minutes, you are now ready to begin your experiment! Design and Execute An Experiment: 1. Develop a methodology for testing the different elements for photon absorption (infrared only). Write the steps for your procedure below: a. Select a gas. b. Count how many particles out of 10 are absorbed. c. Record data. d. Repeat 4 times (5 total trials). (add an average as well) e. Repeat b-d with all gases f. Analyze data. 2. Summarize your results in the following table (disregard error and uncertainty, but ensure you are clear in what your measurements consist of). SAMPLE DATA ONLY. YOUR’S MAY LOOK DIFFERENT. Trial 1 Trial 2 Trial 3 Trial 4 Trial 5 Average CH4 4 4 4 7 3 4.4 CO2 4 5 3 4 8 4.8 H20 6 4 3 6 6 5 N2 0 0 0 0 0 0 02 0 0 0 0 0 0 3. Write a conclusion that answers the question, “Which atmospheric gas (CH4, CO2, H20, N2, or 02) is the best absorber of infrared photons?”
