Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme

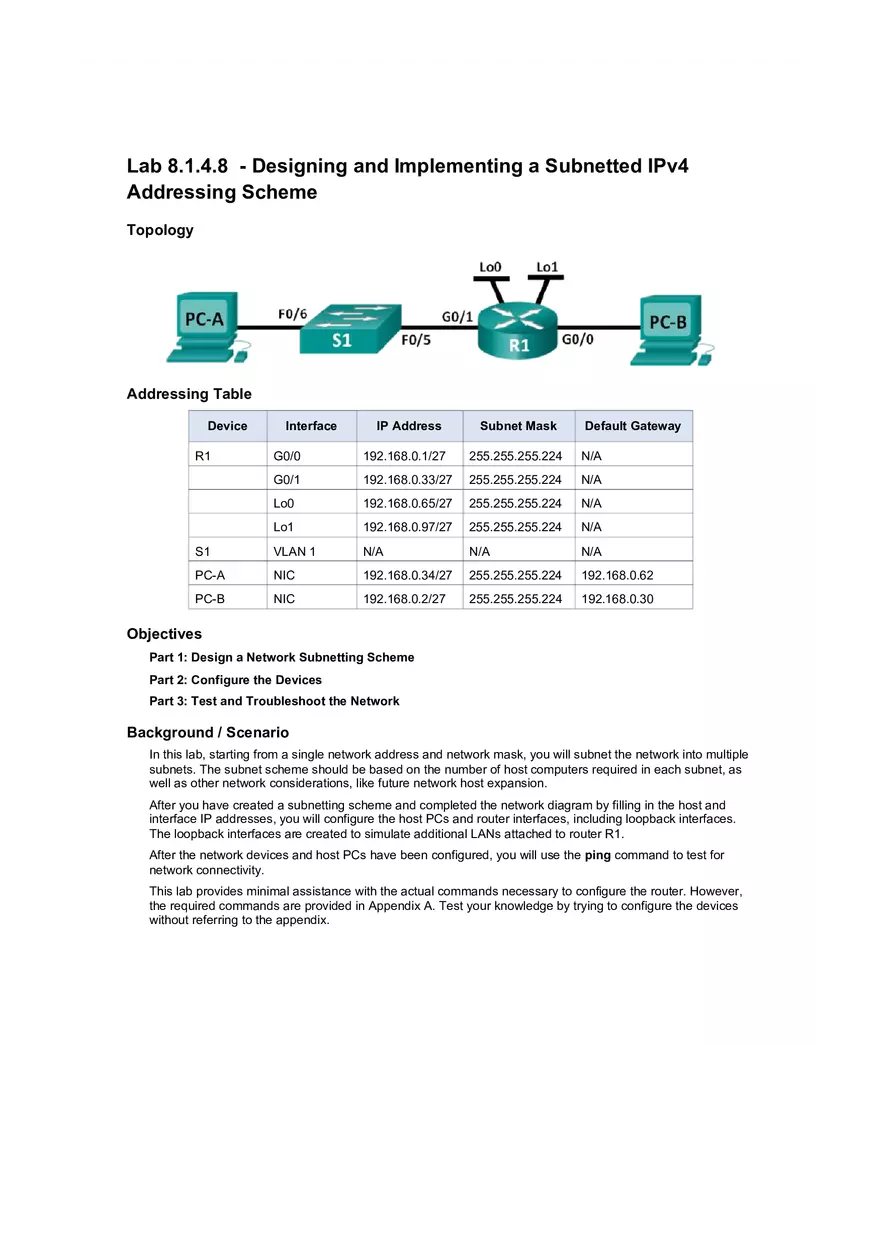

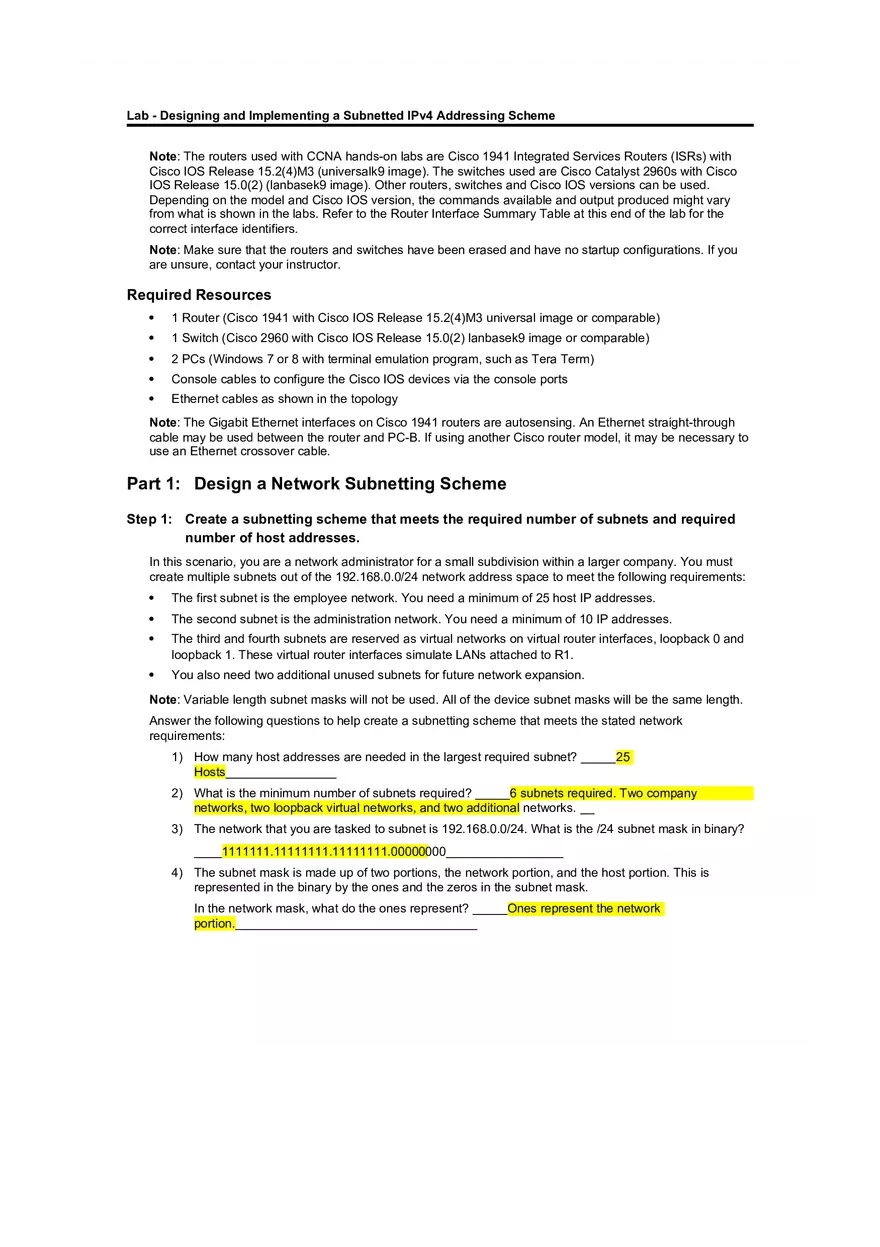

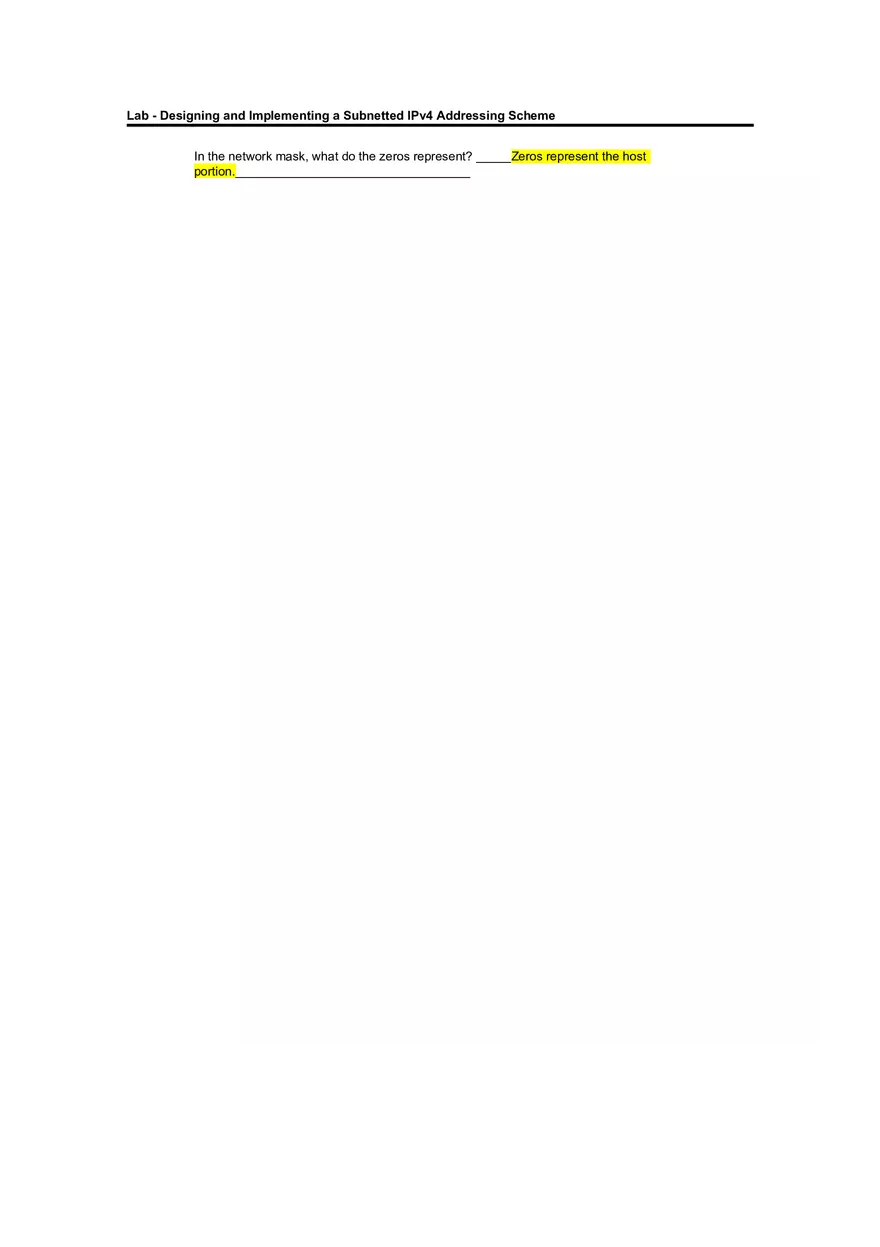

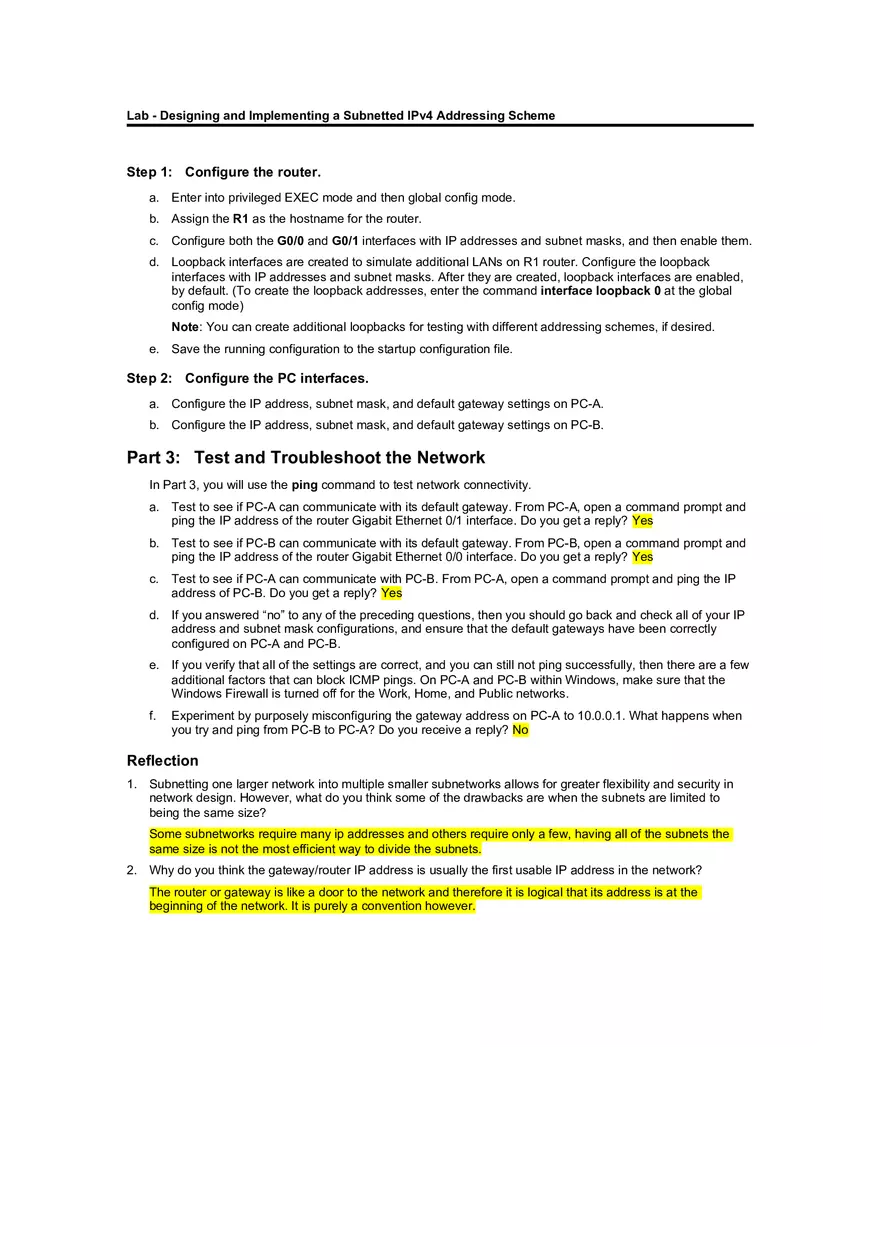

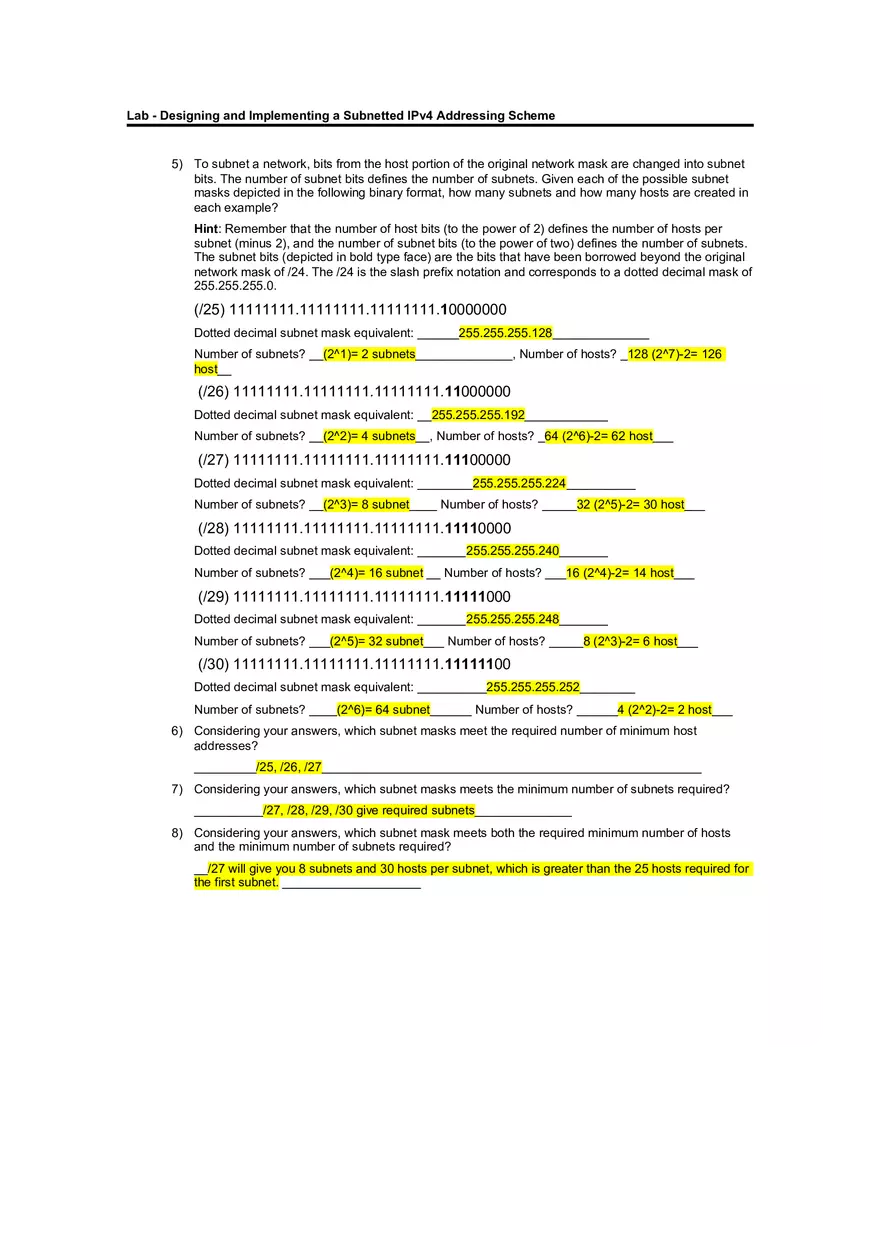

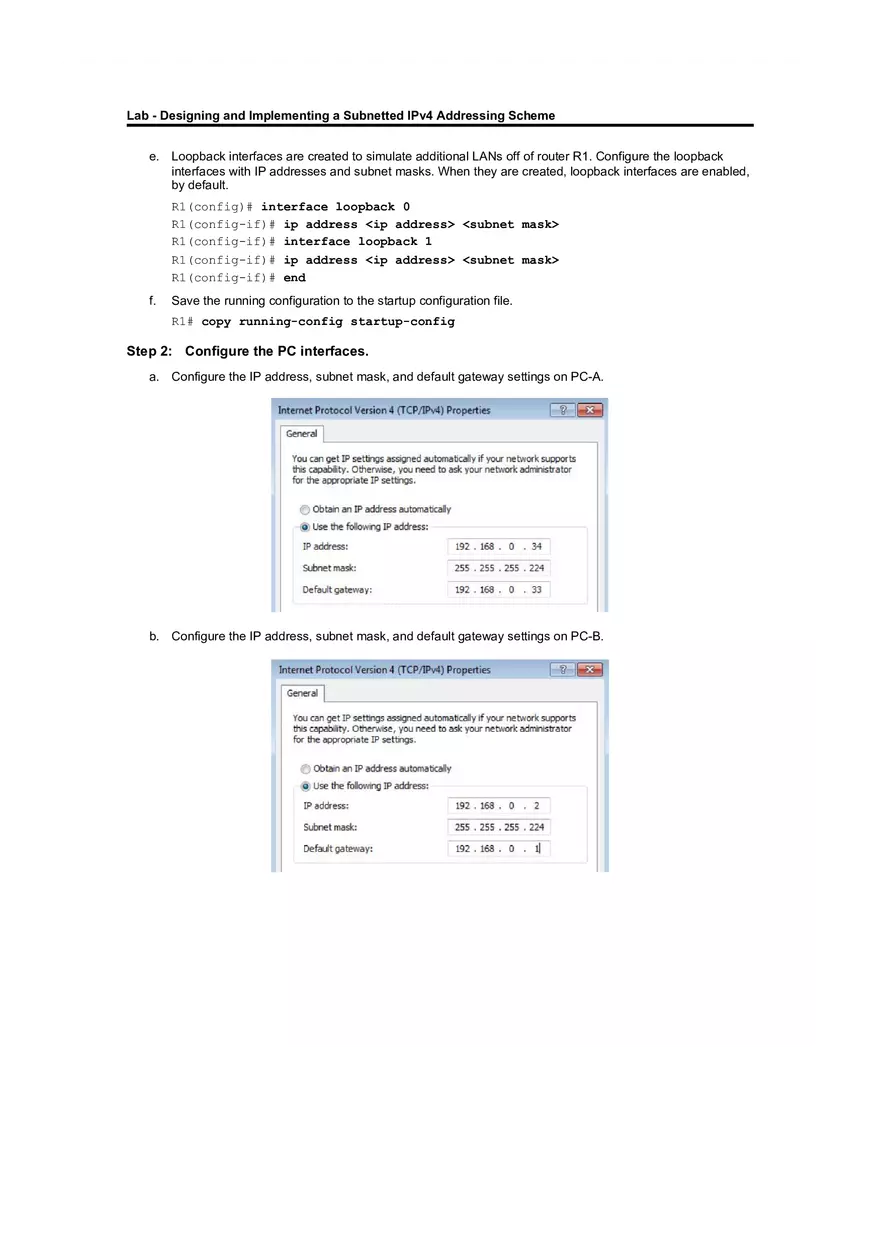

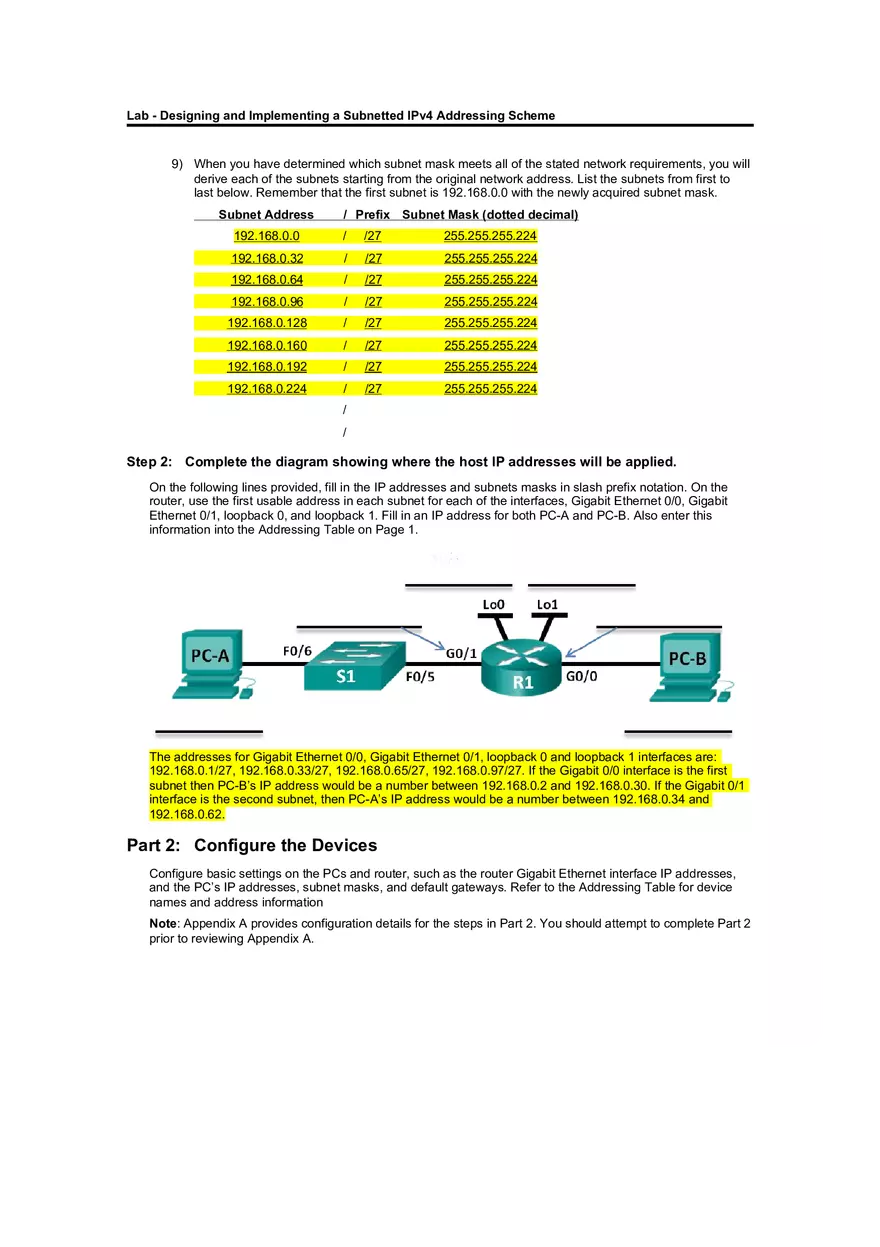

Lab 8.1.4.8 - Designing and Implementing a Subnetted IPv4 Addressing Scheme Topology Addressing Table Device R1 Interface IP Address Subnet Mask Default Gateway G0/0 192.168.0.1/27 255.255.255.224 N/A G0/1 192.168.0.33/27 255.255.255.224 N/A Lo0 192.168.0.65/27 255.255.255.224 N/A Lo1 192.168.0.97/27 255.255.255.224 N/A S1 VLAN 1 N/A N/A N/A PC-A NIC 192.168.0.34/27 255.255.255.224 192.168.0.62 PC-B NIC 192.168.0.2/27 255.255.255.224 192.168.0.30 Objectives Part 1: Design a Network Subnetting Scheme Part 2: Configure the Devices Part 3: Test and Troubleshoot the Network Background / Scenario In this lab, starting from a single network address and network mask, you will subnet the network into multiple subnets. The subnet scheme should be based on the number of host computers required in each subnet, as well as other network considerations, like future network host expansion. After you have created a subnetting scheme and completed the network diagram by filling in the host and interface IP addresses, you will configure the host PCs and router interfaces, including loopback interfaces. The loopback interfaces are created to simulate additional LANs attached to router R1. After the network devices and host PCs have been configured, you will use the ping command to test for network connectivity. This lab provides minimal assistance with the actual commands necessary to configure the router. However, the required commands are provided in Appendix A. Test your knowledge by trying to configure the devices without referring to the appendix. Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme Note: The routers used with CCNA hands-on labs are Cisco 1941 Integrated Services Routers (ISRs) with Cisco IOS Release 15.2(4)M3 (universalk9 image). The switches used are Cisco Catalyst 2960s with Cisco IOS Release 15.0(2) (lanbasek9 image). Other routers, switches and Cisco IOS versions can be used. Depending on the model and Cisco IOS version, the commands available and output produced might vary from what is shown in the labs. Refer to the Router Interface Summary Table at this end of the lab for the correct interface identifiers. Note: Make sure that the routers and switches have been erased and have no startup configurations. If you are unsure, contact your instructor. Required Resources  1 Router (Cisco 1941 with Cisco IOS Release 15.2(4)M3 universal image or comparable)  1 Switch (Cisco 2960 with Cisco IOS Release 15.0(2) lanbasek9 image or comparable)  2 PCs (Windows 7 or 8 with terminal emulation program, such as Tera Term)  Console cables to configure the Cisco IOS devices via the console ports  Ethernet cables as shown in the topology Note: The Gigabit Ethernet interfaces on Cisco 1941 routers are autosensing. An Ethernet straight-through cable may be used between the router and PC-B. If using another Cisco router model, it may be necessary to use an Ethernet crossover cable. Part 1: Design a Network Subnetting Scheme Step 1: Create a subnetting scheme that meets the required number of subnets and required number of host addresses. In this scenario, you are a network administrator for a small subdivision within a larger company. You must create multiple subnets out of the 192.168.0.0/24 network address space to meet the following requirements:  The first subnet is the employee network. You need a minimum of 25 host IP addresses.  The second subnet is the administration network. You need a minimum of 10 IP addresses.  The third and fourth subnets are reserved as virtual networks on virtual router interfaces, loopback 0 and loopback 1. These virtual router interfaces simulate LANs attached to R1.  You also need two additional unused subnets for future network expansion. Note: Variable length subnet masks will not be used. All of the device subnet masks will be the same length. Answer the following questions to help create a subnetting scheme that meets the stated network requirements: 1) How many host addresses are needed in the largest required subnet? _____25 Hosts________________ 2) What is the minimum number of subnets required? _____6 subnets required. Two company networks, two loopback virtual networks, and two additional networks. __ 3) The network that you are tasked to subnet is 192.168.0.0/24. What is the /24 subnet mask in binary? ____1111111.11111111.11111111.00000000_________________ 4) The subnet mask is made up of two portions, the network portion, and the host portion. This is represented in the binary by the ones and the zeros in the subnet mask. In the network mask, what do the ones represent? _____Ones represent the network portion.___________________________________ Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme In the network mask, what do the zeros represent? _____Zeros represent the host portion.__________________________________ Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme 5) To subnet a network, bits from the host portion of the original network mask are changed into subnet bits. The number of subnet bits defines the number of subnets. Given each of the possible subnet masks depicted in the following binary format, how many subnets and how many hosts are created in each example? Hint: Remember that the number of host bits (to the power of 2) defines the number of hosts per subnet (minus 2), and the number of subnet bits (to the power of two) defines the number of subnets. The subnet bits (depicted in bold type face) are the bits that have been borrowed beyond the original network mask of /24. The /24 is the slash prefix notation and corresponds to a dotted decimal mask of 255.255.255.0. (/25) 11111111.11111111.11111111.10000000 Dotted decimal subnet mask equivalent: ______255.255.255.128______________ Number of subnets? __(2^1)= 2 subnets______________, Number of hosts? _128 (2^7)-2= 126 host__ (/26) 11111111.11111111.11111111.11000000 Dotted decimal subnet mask equivalent: __255.255.255.192____________ Number of subnets? __(2^2)= 4 subnets__, Number of hosts? _64 (2^6)-2= 62 host___ (/27) 11111111.11111111.11111111.11100000 Dotted decimal subnet mask equivalent: ________255.255.255.224__________ Number of subnets? __(2^3)= 8 subnet____ Number of hosts? _____32 (2^5)-2= 30 host___ (/28) 11111111.11111111.11111111.11110000 Dotted decimal subnet mask equivalent: _______255.255.255.240_______ Number of subnets? ___(2^4)= 16 subnet __ Number of hosts? ___16 (2^4)-2= 14 host___ (/29) 11111111.11111111.11111111.11111000 Dotted decimal subnet mask equivalent: _______255.255.255.248_______ Number of subnets? ___(2^5)= 32 subnet___ Number of hosts? _____8 (2^3)-2= 6 host___ (/30) 11111111.11111111.11111111.11111100 Dotted decimal subnet mask equivalent: __________255.255.255.252________ Number of subnets? ____(2^6)= 64 subnet______ Number of hosts? ______4 (2^2)-2= 2 host___ 6) Considering your answers, which subnet masks meet the required number of minimum host addresses? _________/25, /26, /27_______________________________________________________ 7) Considering your answers, which subnet masks meets the minimum number of subnets required? __________/27, /28, /29, /30 give required subnets______________ 8) Considering your answers, which subnet mask meets both the required minimum number of hosts and the minimum number of subnets required? __/27 will give you 8 subnets and 30 hosts per subnet, which is greater than the 25 hosts required for the first subnet. ____________________ Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme 9) When you have determined which subnet mask meets all of the stated network requirements, you will derive each of the subnets starting from the original network address. List the subnets from first to last below. Remember that the first subnet is 192.168.0.0 with the newly acquired subnet mask. Subnet Address / Prefix Subnet Mask (dotted decimal) 192.168.0.0 / /27 255.255.255.224 192.168.0.32 / /27 255.255.255.224 192.168.0.64 / /27 255.255.255.224 192.168.0.96 / /27 255.255.255.224 192.168.0.128 / /27 255.255.255.224 192.168.0.160 / /27 255.255.255.224 192.168.0.192 / /27 255.255.255.224 192.168.0.224 / /27 255.255.255.224 / / Step 2: Complete the diagram showing where the host IP addresses will be applied. On the following lines provided, fill in the IP addresses and subnets masks in slash prefix notation. On the router, use the first usable address in each subnet for each of the interfaces, Gigabit Ethernet 0/0, Gigabit Ethernet 0/1, loopback 0, and loopback 1. Fill in an IP address for both PC-A and PC-B. Also enter this information into the Addressing Table on Page 1. The addresses for Gigabit Ethernet 0/0, Gigabit Ethernet 0/1, loopback 0 and loopback 1 interfaces are: 192.168.0.1/27, 192.168.0.33/27, 192.168.0.65/27, 192.168.0.97/27. If the Gigabit 0/0 interface is the first subnet then PC-B’s IP address would be a number between 192.168.0.2 and 192.168.0.30. If the Gigabit 0/1 interface is the second subnet, then PC-A’s IP address would be a number between 192.168.0.34 and 192.168.0.62. Part 2: Configure the Devices Configure basic settings on the PCs and router, such as the router Gigabit Ethernet interface IP addresses, and the PC’s IP addresses, subnet masks, and default gateways. Refer to the Addressing Table for device names and address information Note: Appendix A provides configuration details for the steps in Part 2. You should attempt to complete Part 2 prior to reviewing Appendix A. Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme Step 1: Configure the router. a. Enter into privileged EXEC mode and then global config mode. b. Assign the R1 as the hostname for the router. c. Configure both the G0/0 and G0/1 interfaces with IP addresses and subnet masks, and then enable them. d. Loopback interfaces are created to simulate additional LANs on R1 router. Configure the loopback interfaces with IP addresses and subnet masks. After they are created, loopback interfaces are enabled, by default. (To create the loopback addresses, enter the command interface loopback 0 at the global config mode) Note: You can create additional loopbacks for testing with different addressing schemes, if desired. e. Save the running configuration to the startup configuration file. Step 2: Configure the PC interfaces. a. Configure the IP address, subnet mask, and default gateway settings on PC-A. b. Configure the IP address, subnet mask, and default gateway settings on PC-B. Part 3: Test and Troubleshoot the Network In Part 3, you will use the ping command to test network connectivity. a. Test to see if PC-A can communicate with its default gateway. From PC-A, open a command prompt and ping the IP address of the router Gigabit Ethernet 0/1 interface. Do you get a reply? Yes b. Test to see if PC-B can communicate with its default gateway. From PC-B, open a command prompt and ping the IP address of the router Gigabit Ethernet 0/0 interface. Do you get a reply? Yes c. Test to see if PC-A can communicate with PC-B. From PC-A, open a command prompt and ping the IP address of PC-B. Do you get a reply? Yes d. If you answered “no” to any of the preceding questions, then you should go back and check all of your IP address and subnet mask configurations, and ensure that the default gateways have been correctly configured on PC-A and PC-B. e. If you verify that all of the settings are correct, and you can still not ping successfully, then there are a few additional factors that can block ICMP pings. On PC-A and PC-B within Windows, make sure that the Windows Firewall is turned off for the Work, Home, and Public networks. f. Experiment by purposely misconfiguring the gateway address on PC-A to 10.0.0.1. What happens when you try and ping from PC-B to PC-A? Do you receive a reply? No Reflection 1. Subnetting one larger network into multiple smaller subnetworks allows for greater flexibility and security in network design. However, what do you think some of the drawbacks are when the subnets are limited to being the same size? Some subnetworks require many ip addresses and others require only a few, having all of the subnets the same size is not the most efficient way to divide the subnets. 2. Why do you think the gateway/router IP address is usually the first usable IP address in the network? The router or gateway is like a door to the network and therefore it is logical that its address is at the beginning of the network. It is purely a convention however. Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme Router Interface Summary Table Router Interface Summary Router Model Ethernet Interface #1 Ethernet Interface #2 Serial Interface #1 Serial Interface #2 1800 Fast Ethernet 0/0 (F0/0) Fast Ethernet 0/1 (F0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) 1900 Gigabit Ethernet 0/0 (G0/0) Gigabit Ethernet 0/1 (G0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) 2801 Fast Ethernet 0/0 (F0/0) Fast Ethernet 0/1 (F0/1) Serial 0/1/0 (S0/1/0) Serial 0/1/1 (S0/1/1) 2811 Fast Ethernet 0/0 (F0/0) Fast Ethernet 0/1 (F0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) 2900 Gigabit Ethernet 0/0 (G0/0) Gigabit Ethernet 0/1 (G0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) Note: To find out how the router is configured, look at the interfaces to identify the type of router and how many interfaces the router has. There is no way to effectively list all the combinations of configurations for each router class. This table includes identifiers for the possible combinations of Ethernet and Serial interfaces in the device. The table does not include any other type of interface, even though a specific router may contain one. An example of this might be an ISDN BRI interface. The string in parenthesis is the legal abbreviation that can be used in Cisco IOS commands to represent the interface. Appendix A: Configuration Details for Steps in Part 2 Step 1: Configure the router. a. Console into the router and enable privileged EXEC mode. Router> enable Router# b. Enter into configuration mode. Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)# c. Assign a device name to the router. Router(config)# hostname R1 R1(config)# d. Configure both the G0/0 and G0/1 interfaces with IP addresses and subnet masks, and enable them. R1(config)# interface g0/0 R1(config-if)# ip address R1(config-if)# no shutdown R1(config-if)# interface g0/1 R1(config-if)# ip address R1(config-if)# no shutdown Lab - Designing and Implementing a Subnetted IPv4 Addressing Scheme e. Loopback interfaces are created to simulate additional LANs off of router R1. Configure the loopback interfaces with IP addresses and subnet masks. When they are created, loopback interfaces are enabled, by default. R1(config)# interface loopback 0 R1(config-if)# ip address R1(config-if)# interface loopback 1 R1(config-if)# ip address R1(config-if)# end f. Save the running configuration to the startup configuration file. R1# copy running-config startup-config Step 2: Configure the PC interfaces. a. Configure the IP address, subnet mask, and default gateway settings on PC-A. b. Configure the IP address, subnet mask, and default gateway settings on PC-B.
