Perceptron Algorithm and Binary Classification 3

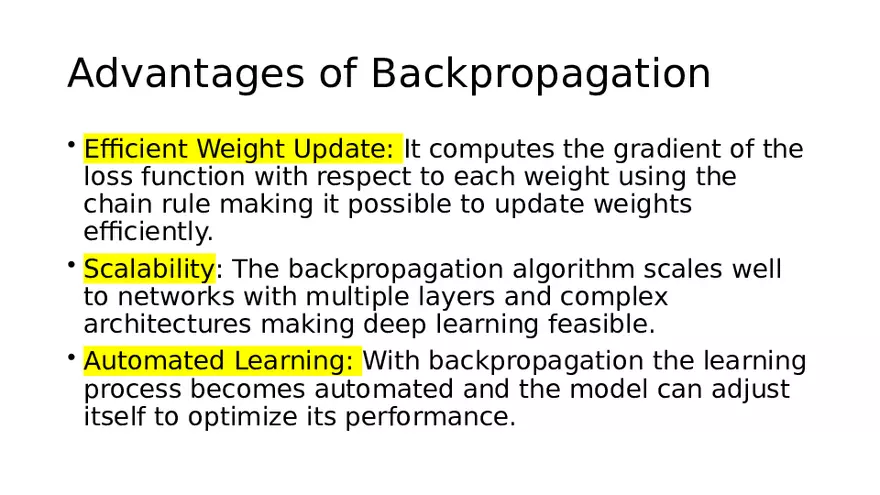

Advantages of Backpropagation • Efficient Weight Update: It computes the gradient of the loss function with respect to each weight using the chain rule making it possible to update weights efficiently. • Scalability: The backpropagation algorithm scales well to networks with multiple layers and complex architectures making deep learning feasible. • Automated Learning: With backpropagation the learning process becomes automated and the model can adjust itself to optimize its performance. • Gradient descent, a fundamental optimization algorithm, can sometimes encounter two common issues: • vanishing gradients and • exploding gradients. Vanishing Gradients • The vanishing gradient problem is a challenge that emerges during backpropagation when the derivatives or slopes of the activation functions become progressively smaller as we move backward through the layers of a neural network. • This phenomenon is particularly prominent in deep networks with many layers, hindering the effective training of the model. The weight updates becomes extremely tiny, or even exponentially small, it can significantly prolong the training time, and in the worstcase scenario, it can halt the training process altogether. Vanishing Gradients • During backpropagation, the gradients propagate back through the layers of the network, they decrease significantly. This means that as they leave the output layer and return to the input layer, the gradients become progressively smaller. As a result, the weights associated with the initial levels, which accommodate these small gradients, are updated little or not at each iteration of the optimization process. Exploding Gradients • The exploding gradient problem is a challenge encountered during training deep neural networks. It occurs when the gradients of the network's loss function with respect to the weights (parameters) become excessively large. • The issue of exploding gradients arises when, during backpropagation, the derivatives or slopes of the neural network's layers grow progressively larger as we move backward. This is essentially the opposite of the vanishing gradient problem. Exploding Gradients • The root cause of this problem lies in the weights of the network, rather than the choice of activation function. • High weight values lead to correspondingly high derivatives, causing significant deviations in new weight values from the previous ones. As a result, the gradient fails to converge and can lead to the network oscillating around local minima, making it challenging to reach the global minimum point. Solution For These Issues • Weights Regularizations: The initialization of weights can be adjusted to ensure that they are in an appropriate range. Using a different activation function, such as the Rectified Linear Unit (ReLU), can also help to mitigate the vanishing gradient problem. • Gradient clipping: It involves limiting the maximum and minimum values of the gradient during backpropagation. This can prevent the gradients from becoming too large or too small and can help to stabilize the training process. • Batch normalization: It can also help to address these problems by normalizing the input to each layer, which can prevent the activation function from saturating and help to reduce the vanishing and exploding gradient problems. Convolutional Neural Network (CNN) • Convolutional Neural Networks (CNNs) are a specialized class of neural networks designed to process grid-like data, such as images. • They are particularly well-suited for image recognition and processing tasks. • They are inspired by the visual processing mechanisms in the human brain. • CNNs excel at capturing hierarchical patterns and spatial dependencies within images. Convolutional Neural Network (CNN) Working Principle of CNN • Input Image: The CNN receives an input image, which is typically preprocessed to ensure uniformity in size and format. • Convolutional Layers: Filters are applied to the input image to extract features like edges, textures, and shapes. • Pooling Layers: The feature maps generated by the convolutional layers are downsampled to reduce dimensionality. • Fully Connected Layers: The downsampled feature maps are passed through fully connected layers to produce the final output, such as a classification label. • Output: The CNN outputs a prediction, such as the class of the image. Components of a Convolutional Neural Network • Convolutional Layers: These layers apply convolutional operations to input images, using filters (also known as kernels) to detect features such as edges, textures, and more complex patterns. Convolutional operations help preserve the spatial relationships between pixels. • Pooling Layers: They downsample the spatial dimensions of the input, reducing the computational complexity and the number of parameters in the network. • Max pooling is a common pooling operation, selecting the maximum value from a group of neighboring pixels. Components of a Convolutional Neural Network • Activation Functions: They introduce non-linearity to the model, allowing it to learn more complex relationships in the data. • Fully Connected Layers: These layers are responsible for making predictions based on the high-level features learned by the previous layers. They connect every neuron in one layer to every neuron in the next layer. Convolutional Neural Network Training • The training process for a CNN involves the following steps: • Data Preparation: The training images are preprocessed to ensure that they are all in the same format and size. • Loss Function: A loss function is used to measure how well the CNN is performing on the training data. The loss function is typically calculated by taking the difference between the predicted labels and the actual labels of the training images. • Optimizer: An optimizer is used to update the weights of the CNN in order to minimize the loss function. • Backpropagation: Backpropagation is a technique used to calculate the gradients of the loss function with respect to the weights of the CNN. The gradients are then used to update the weights of the CNN using the optimiz Advantages of CNN • High Accuracy: CNNs achieve state-of-the-art accuracy in various image recognition tasks. • Efficiency: CNNs are efficient, especially when implemented on GPUs. • Robustness: CNNs are robust to noise and variations in input data. • Adaptability: CNNs can be adapted to different tasks by modifying their architecture. Disadvantages of CNN • Complexity: CNNs can be complex and difficult to train, especially for large datasets. • Resource-Intensive: CNNs require significant computational resources for training and deployment. • Data Requirements: CNNs need large amounts of labeled data for training. • Interpretability: CNNs can be difficult to interpret, making it challenging to understand their predictions.
