8.01SC Chapter 12: Momentum and the Flow of Mass

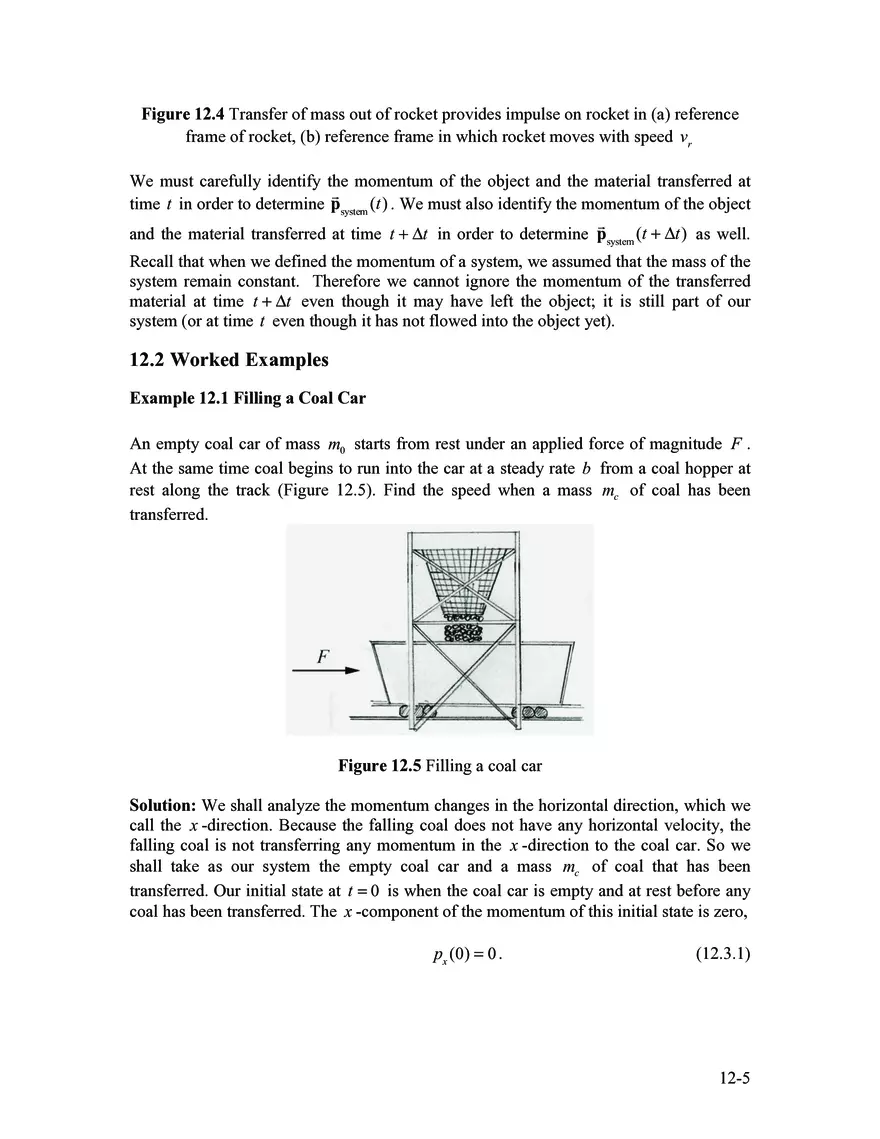

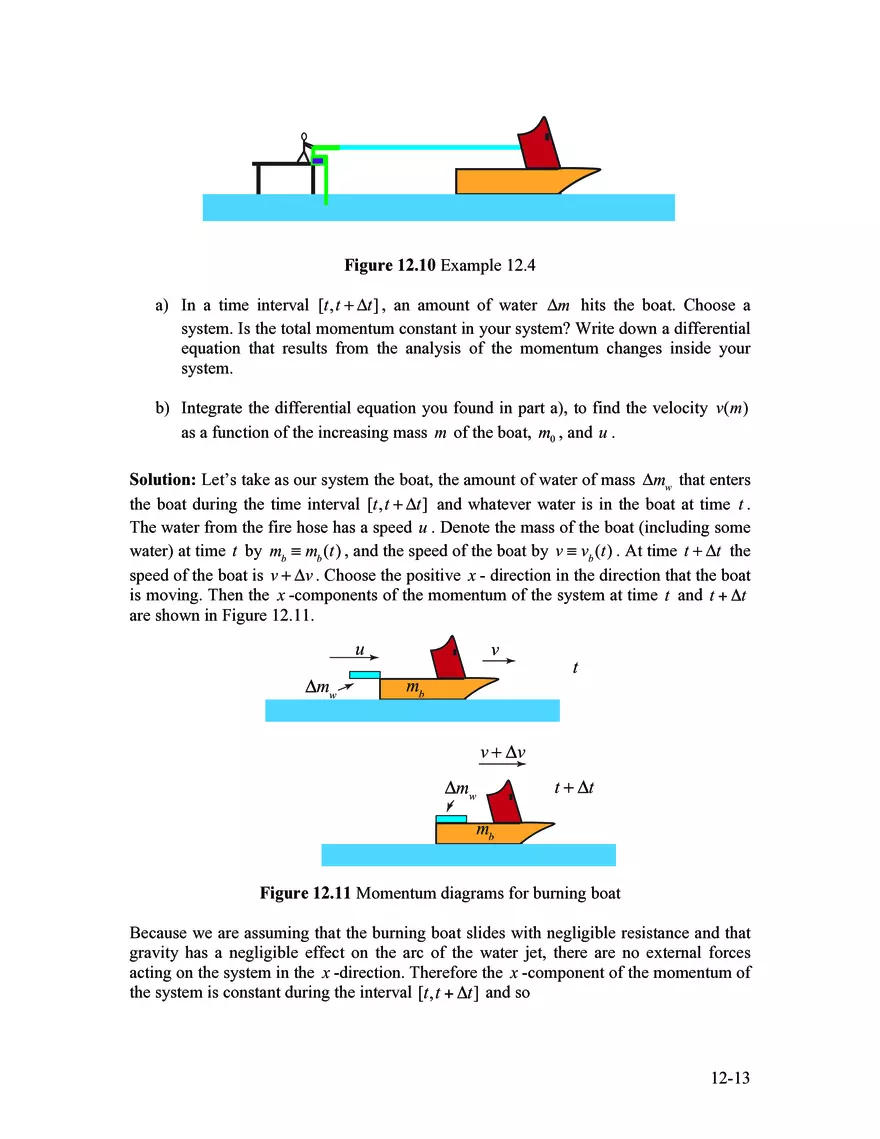

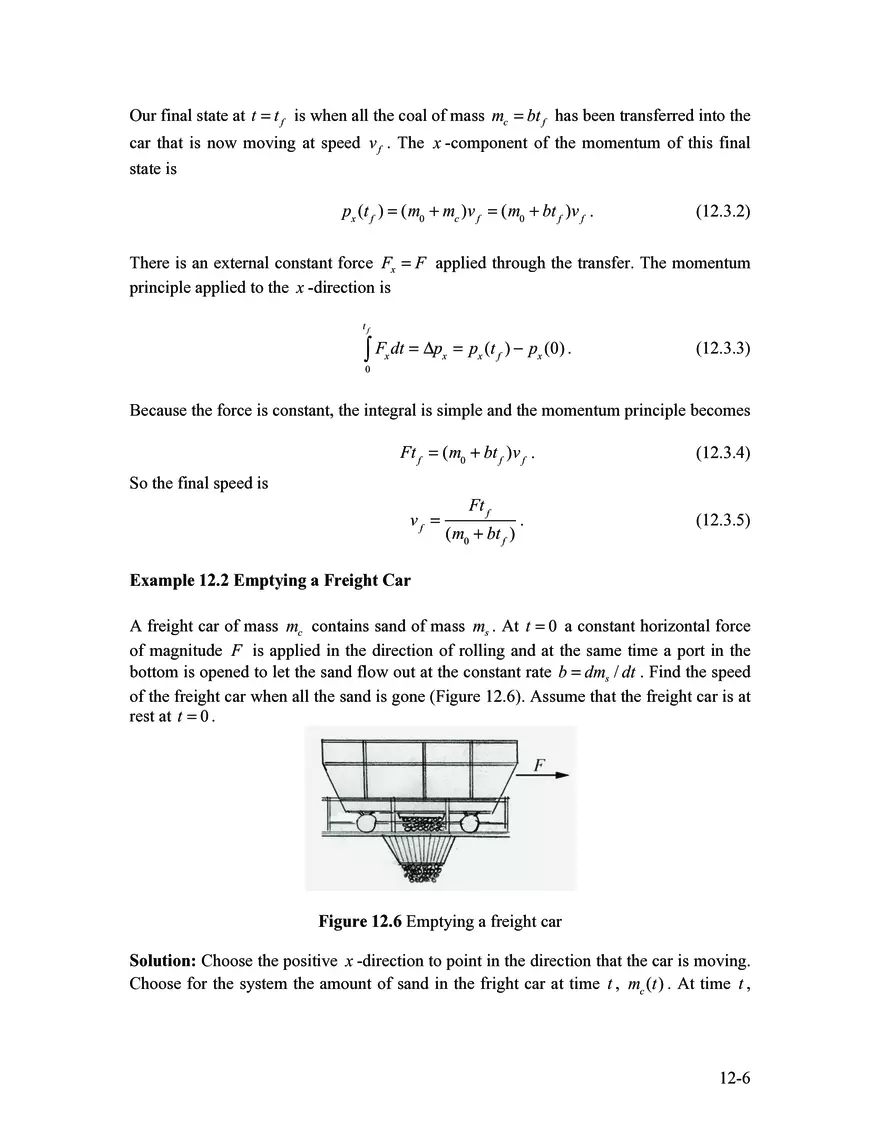

Chapter 12 Momentum and the Flow of Mass Preface: The Challenger Flight.................................................................................... 1 12.1 Introduction........................................................................................................... 2 12.1.1 Transfer of Material into an Object, but no Transfer of Momentum ...... 3 12.1.2 Transfer of Material Out of an Object, but no Transfer of Momentum .. 3 12.1.3 Transfer of Material Impulses Object Via Transfer of Momentum ......... 4 12.1.4 Material Continually Ejected From Object results in Recoil of Object ... 4 12.2 Worked Examples................................................................................................. 5 Example 12.1 Filling a Coal Car.............................................................................. 5 Example 12.2 Emptying a Freight Car ................................................................... 6 Example 12.3 Filling a Freight Car ......................................................................... 9 Example 12.4 Boat and Fire Hose ......................................................................... 12 12.3 Rocket Propulsion............................................................................................... 18 12.3.1 Rocket Equation in Gravity-free Space ..................................................... 21 Example 12.4 Single-Stage Rocket ........................................................................ 23 Example 12.5 Two-Stage Rocket ........................................................................... 23 12.3.2 Rocket in a Constant Gravitational Field:................................................. 24 Chapter 12 Momentum and the Flow of Mass Even though the release was pulled, the rocket did not rise at first, but the flame came out, and there was a steady roar. After a number of seconds it rose, slowly until it cleared the flame, and then at express-train speed, curving over to the left, and striking the ice and snow, still going at a rapid rate. It looked almost magical as it rose, without any appreciably greater noise or flame, as if it said, “I've been here long enough; I think I'll be going somewhere else, if you don't mind.” 1 Robert Goddard Preface: The Challenger Flight When the Rogers Commission in 1986 investigated the Challenger disaster, a commission member, physicist Richard Feynman, made an extraordinary demonstration during the hearings. “He (Feynman) also learned that rubber used to seal the solid rocket booster joints using O-rings, failed to expand when the temperature was at or below 32 degrees F (0 degrees C). The temperature at the time of the Challenger liftoff was 32 degrees F. Feynman now believed that he had the solution, but to test it, he dropped a piece of the O-ring material, squeezed with a C-clamp to simulate the actual conditions of the shuttle, into a glass of ice water. Ice, of course, is 32 degrees F. At this point one needs to understand exactly what role the O-rings play in the solid rocket booster (SRB) joints. When the material in the SRB start to heat up, it expands and pushes against the sides of the SRB. If there is an opening in a joint in the SRB, the gas tries to escape through that opening (think of it like water in a tea kettle escaping through the spout.) This leak in the Challenger's SRB was easily visible as a small flicker in a launch photo. This flicker turned into a flame and began heating the fuel tank, which then ruptured. When this happened, the fuel tank released liquid hydrogen into the atmosphere where it exploded. As Feynman explained, because the O-rings cannot expand in 32 degree weather, the gas finds gaps in the joints, which led to the explosion of the booster and then the shuttle itself.”2 In the Report of the Presidential Commission on the Space Shuttle Challenger Accident (1986), Appendix F - Personal observations on the reliability of the Shuttle, Feynman wrote The Challenger flight is an excellent example. … The O-rings of the Solid Rocket Boosters were not designed to erode. Erosion was a clue that something was wrong. Erosion was not something from which safety can be inferred. There was no way, without 1 describing the first rocket flight using liquid propellants at Aunt Effie's farm, 17 March 1926. 2 http://www.fotuva.org/online/frameload.htm?/online/challenger.htm. 12-1 full understanding, that one could have confidence that conditions the next time might not produce erosion three times more severe than the time before. Nevertheless, officials fooled themselves into thinking they had such understanding and confidence, in spite of the peculiar variations from case to case. A mathematical model was made to calculate erosion. This was a model based not on physical understanding but on empirical curve fitting. To be more detailed, it was supposed a stream of hot gas impinged on the O-ring material, and the heat was determined at the point of stagnation (so far, with reasonable physical, thermodynamic laws). But to determine how much rubber eroded it was assumed this depended only on this heat by a formula suggested by data on a similar material. A logarithmic plot suggested a straight line, so it was supposed that the erosion varied as the .58 power of the heat, the .58 being determined by a nearest fit. At any rate, adjusting some other numbers, it was determined that the model agreed with the erosion (to depth of one-third the radius of the ring). There is nothing much so wrong with this as believing the answer! Uncertainties appear everywhere. How strong the gas stream might be was unpredictable, it depended on holes formed in the putty. Blow-by showed that the ring might fail even though not, or only partially eroded through. The empirical formula was known to be uncertain, for it did not go directly through the very data points by which it was determined. There were a cloud of points some twice above, and some twice below the fitted curve, so erosions twice predicted were reasonable from that cause alone. Similar uncertainties surrounded the other constants in the formula, etc., etc. When using a mathematical model careful attention must be given to uncertainties in the model. … In any event this has had very unfortunate consequences, the most serious of which is to encourage ordinary citizens to fly in such a dangerous machine, as if it had attained the safety of an ordinary airliner. The astronauts, like test pilots, should know their risks, and we honor them for their courage. Who can doubt that McAuliffe was equally a person of great courage, who was closer to an awareness of the true risk than NASA management would have us believe? Let us make recommendations to ensure that NASA officials deal in a world of reality in understanding technological weaknesses and imperfections well enough to be actively trying to eliminate them. …. For a successful technology, reality must take precedence over public relations, for nature cannot be fooled.3 12.1 Introduction So far we have restricted ourselves to considering systems consisting of discrete objects or point-like objects that have fixed amounts of mass. We shall now consider systems in which material flows between the objects in the system, for example we shall consider coal falling from a hopper into a moving railroad car, sand leaking from railroad car fuel, grain moving forward into a railroad car, and fuel ejected from the back of a rocket, In each of these examples material is continuously flows into or out of an object. We have already shown that the total external force causes the momentum of a system to change, 3 R. P. Feynman, Appendix F - Personal observations on the reliability of the Shuttle, Report of the PRESIDENTIAL COMMISSION on the Space Shuttle Challenger Accident (1986), http://history.nasa.gov/rogersrep/genindex.htm. 12-2  d psystem  total Fext = . dt (12.2.1) We shall analyze how the momentum of the constituent elements our system change over a time interval [t,t + Δt] , and then consider the limit as Δt → 0 . We can then explicit calculate the derivative on the right hand side of Eq. (12.2.1) and Eq. (12.2.1) becomes     Δpsystem psystem (t + Δt) − psystem (t)  total dpsystem = lim = lim Fext = . Δt→0 Δt→0 dt Δt Δt (12.2.2) We need to be very careful how we apply this generalized version of Newton’s Second Law to systems in which mass flows between constituent objects. In particular, when we isolate elements as part of our system we must be careful to identify the mass Δm of the material that continuous flows in or out of an object that is part of our system during the time interval Δt under consideration. We shall consider four categories of mass flow problems that are characterized by the momentum transfer of the material of mass Δm . 12.1.1 Transfer of Material into an Object, but no Transfer of Momentum Consider for example rain falling vertically downward with speed u into car of mass m moving forward with speed v . A small amount of falling rain Δmr has no component of momentum in the direction of motion of the car. There is a transfer of rain into the car but no transfer of momentum in the direction of motion of the car (Figure 12.1). u mr rain frictionless frictionless v u v Figure 12.1 Transfer of rain mass into the car but no transfer of momentum in direction of motion 12.1.2 Transfer of Material Out of an Object, but no Transfer of Momentum The material continually leaves the object but it does not transport any momentum away from the object in the direction of motion of the object (Figure 12.2). Consider an ice skater gliding on ice at speed v holding a bag of sand that is leaking straight down with respect to the moving skater. The sand continually leaves the bag but it does not transport any momentum away from the bag in the direction of motion of the object. In Figure 12.2, sand of mass Δms leaves the bag. 12-3 Figure 12.2 Transfer of mass out of object but no transfer of momentum in direction of motion 12.1.3 Transfer of Material Impulses Object Via Transfer of Momentum Suppose a fire hose is used to put out a fire on a boat of mass mb . Assume the column of water moves horizontally with speed u . The incoming water continually hits the boat propelling it forward. During the time interval Δt , a column of water of mass Δms will hit the boat that is moving forward with speed v increasing it’s speed (Figure 12.3). Figure 12.3 Transfer of mass of water increases speed of boat 12.1.4 Material Continually Ejected From Object results in Recoil of Object When fuel of mass Δm f is ejected from the back of a rocket with speed u relative to the rocket, the rocket of mass mr recoils forward. Figure 12.4a shows the recoil of the rocket in the reference frame of the rocket. The rocket recoils forward with speed Δvr . In a reference frame in which the rocket is moving forward with speed vr , then the speed after recoil is vr + Δvr . The speed of the backwardly ejected fuel is u − vr (Figure 12.4b). (a) (b) 12-4 Figure 12.4 Transfer of mass out of rocket provides impulse on rocket in (a) reference frame of rocket, (b) reference frame in which rocket moves with speed vr We must carefully identify the momentum of the object and the material transferred at  time t in order to determine psystem (t) . We must also identify the momentum of the object  and the material transferred at time t + Δt in order to determine psystem (t + Δt) as well. Recall that when we defined the momentum of a system, we assumed that the mass of the system remain constant. Therefore we cannot ignore the momentum of the transferred material at time t + Δt even though it may have left the object; it is still part of our system (or at time t even though it has not flowed into the object yet). 12.2 Worked Examples Example 12.1 Filling a Coal Car An empty coal car of mass m0 starts from rest under an applied force of magnitude F . At the same time coal begins to run into the car at a steady rate b from a coal hopper at rest along the track (Figure 12.5). Find the speed when a mass mc of coal has been transferred. Figure 12.5 Filling a coal car Solution: We shall analyze the momentum changes in the horizontal direction, which we call the x -direction. Because the falling coal does not have any horizontal velocity, the falling coal is not transferring any momentum in the x -direction to the coal car. So we shall take as our system the empty coal car and a mass mc of coal that has been transferred. Our initial state at t = 0 is when the coal car is empty and at rest before any coal has been transferred. The x -component of the momentum of this initial state is zero, px (0) = 0 . (12.3.1) 12-5 Our final state at t = t f is when all the coal of mass mc = bt f has been transferred into the car that is now moving at speed v f . The x -component of the momentum of this final state is px (t f ) = (m0 + mc )v f = (m0 + bt f )v f . (12.3.2) There is an external constant force Fx = F applied through the transfer. The momentum principle applied to the x -direction is tf ∫ F dt = Δp x x = px (t f ) − px (0) . (12.3.3) 0 Because the force is constant, the integral is simple and the momentum principle becomes Ft f = (m0 + bt f )v f . (12.3.4) So the final speed is vf = Ft f (m0 + bt f ) . (12.3.5) Example 12.2 Emptying a Freight Car A freight car of mass mc contains sand of mass ms . At t = 0 a constant horizontal force of magnitude F is applied in the direction of rolling and at the same time a port in the bottom is opened to let the sand flow out at the constant rate b = dms / dt . Find the speed of the freight car when all the sand is gone (Figure 12.6). Assume that the freight car is at rest at t = 0 . Figure 12.6 Emptying a freight car Solution: Choose the positive x -direction to point in the direction that the car is moving. Choose for the system the amount of sand in the fright car at time t , mc (t) . At time t , 12-6 ! the car is moving with velocity v c (t) = vc (t) î . The momentum diagram for the system at time t is shown in the diagram on the left in Figure 12.7. v c (t) v c (t) + v c mc (t) + mc mc (t) v c (t) + v c ms time t time t + t Figure 12.7 Momentum diagram at time t and at time t + Δt The momentum of the system at time t is given by ! ! p sys (t) = mc (t) v c (t) . (12.3.6) During the time interval [t , t + Δt] , an amount of sand of mass Δms leaves the freight car and the mass of the freight car changes by mc (t + Δt) = mc (t) + Δmc , where Δmc = −Δms . At the end of the interval the car is moving with velocity ! ! ! v c (t + Δt) = v c (t) + Δv c = (vc (t) + Δvc ) î . The momentum diagram for the system at time t + Δt is shown in the diagram on the right in Figure 12.7. The momentum of the system at time t + Δt is given by ! ! ! ! ! p sys (t + Δt) = (Δms + mc (t) + Δmc )(v c (t) + Δv c ) = mc (t)(v c (t) + Δv c ) .(12.3.7) ! ! Note that the sand that leaves the car is shown with velocity v c (t) + Δv c . This implies that all the sand leaves the car with the velocity of the car at the end of the interval. This is an approximation. Because the sand leaves continuous, the velocity will vary from ! ! ! v c (t) to v c (t) + Δv c but so does the change in mass of the car and these two contributions to the system’s moment exactly cancel. The change in momentum of the system is then ! ! ! ! ! ! ! Δp sys = p sys (t + Δt) − p sys (t) = mc (t)( v c (t) + Δv c ) − mc (t) v c (t) = mc (t)Δv c .(12.3.8) ! Throughout the interval a constant force F = Fî is applied to the system so the momentum principle becomes 12-7 ! ! ! ! ! p sys (t + Δt) − p sys (t) Δv c dv c F = lim = lim mc (t) = mc (t) . Δt→0 Δt→0 Δt Δt dt (12.3.9) Because the motion is one-dimensional, Eq. (12.3.9) written in terms of x -components becomes dv F = mc (t) c . (12.3.10) dt Denote by initial mass of the car by mc,0 = mc + ms where mc is the mass of the car and ms is the mass of the sand in the car at t = 0 . The mass of the sand that has left the car at time t is given by t t dms (12.3.11) ms (t) = ∫ dt = ∫ bdt = bt . dt 0 0 Thus mc (t) = mc,0 − bt = mc + ms − bt . (12.3.12) Therefore Eq. (12.3.10) becomes F = (mc + ms − bt) dvc . dt (12.3.13) This equation can be solved for the x -component of the velocity at time t , vc (t) , (which in this case is the speed) by the method of separation of variables. Rewrite Eq. (12.3.13) as Fdt . (12.3.14) dvc = (mc + ms − bt) Then integrate both sides of Eq. (12.3.14) with the limits as shown vc′ =vc (t ) ∫ v′c =0 t′=t dv′c = Fdt′ . mc + ms − bt′ t′=0 ∫ (12.3.15) Integration yields the speed of the car as a function of time vc (t) = − t′= t F F ⎛ m + ms − bt ⎞ F ⎛ mc + ms ⎞ . (12.3.16) ln(mc + ms − bt′) t′= 0 = − ln ⎜ c = ln b b ⎝ mc + ms ⎟⎠ b ⎜⎝ mc + ms − bt ⎟⎠ 12-8 In writing Eq. (12.3.16), we used the property that ln(a) − ln(b) = ln(a / b) and therefore ln(a / b) = − ln(b / a) . Note mc + ms ≥ mc + ms − bt , that so the term ⎛ mc + ms ⎞ ln ⎜ ⎟ ≥ 0 , and the speed of the car increases as we expect. ⎝ mc + ms − bt ⎠ Example 12.3 Filling a Freight Car Grain is blown into car A from car B at a rate of b kilograms per second. The grain leaves the chute vertically downward, so that it has the same horizontal velocity, u as car B , (Figure 12.8). Car A is initially at rest before any grain is transferred in and has mass mA,0 . At the moment of interest, car A has mass mA and speed v . Determine an expression for the speed car A as a function of time t . Figure 12.8 Filling a freight car Solution: Choose positive x -direction to the right in the direction the cars are moving. Define the system at time t to be the car and grain that is already in it, which together has mass mA (t) , and the small amount of material of mass Δmg that is blown into car A during the time interval [t,t + Δt] . At time that is moving with x -component of the ! velocity v A . At time t , car A is moving with velocity v A (t) = v A (t) î , and the material ! blown into car is moving with velocity u = uî At time t + Δt , car A is moving with ! ! velocity v A (t) + Δv A = (v A (t) + Δv A ) î , and the mass of car A is mA (t + Δt) = mA (t) + ΔmA , where ΔmA = Δmg . The momentum diagram for times t and for t + Δt is shown in Figure 12.9. u î mg v A (t) A mA (t) v A (t) + v A A mA (t) + mA time t time t + t Figure 12.9 Momentum diagram at times t and t + Δt 12-9 The momentum at time t is ! ! ! Psys (t) = mA (t) v A (t) + Δmg u . (12.3.17) ! ! ! Psys (t + Δt) = (mA (t) + ΔmA )( v A (t) + Δv A ) . (12.3.18) The momentum at time t + Δt is There are no external forces acting on the system in the x -direction and the external forces acting on the system perpendicular to the motion sum to zero, so the momentum principle becomes ! ! ! Psys (t + Δt) − Psys (t) 0 = lim . (12.3.19) Δt→0 Δt Using the results above (Eqs. (12.3.17) and (12.3.18), the momentum principle becomes ! ! ! ! ! (mA (t) + ΔmA )( v A (t) + Δv A ) − (mA (t) v A (t) + Δmg u) 0 = lim . (12.3.20) Δt→0 Δt which after using the condition that ΔmA = Δmg and some rearrangement becomes ! ! ! ! ! mA (t)Δv A ΔmA Δv A ΔmA ( v A (t) − u) 0 = lim + lim + lim . Δt→0 Δt→0 Δt→0 Δt Δt Δt (12.3.21) ! In the limit as , the product ΔmA Δv A is a second order differential (the product of two ! first order differentials) and the term ΔmA Δv A / Δt approaches zero, therefore the momentum principle yields the differential equation ! ! dv A dmA ! ! 0 = mA (t) + ( v A (t) − u) . dt dt (12.3.22) The x -component of Eq. (12.3.22) is then 0 = mA (t) dv A dmA + (v (t) − u) . dt dt A (12.3.23) Rearranging terms and using the fact that the material is blown into car A at a constant rate b ≡ dmA / dt , we have that the rate of change of the x -component of the velocity of car A is given by dv A (t) b(u − v A (t)) . (12.3.24) = dt mA (t) 12-10 We cannot directly integrate Eq. (12.3.24) with respect to dt because the mass of the car A is a function of time. In order to find the x -component of the velocity of car A we need to know the relationship between the mass of car A and the x -component of the velocity of the car A . There are two approaches. In the first approach we separate variables in Eq. (12.3.24) where we have suppressed the dependence on t in the expressions for mA and v A yielding dv A dmA , = u − v A mA (12.3.25) which becomes the integral equation v′A= v A (t ) ∫ v′A=0 dv′A u − v ′A m′A= mA (t ) = ∫ m′A= mA,0 dm′A m′A , (12.3.26) where mA,0 is the mass of the car before any material has been blown in. After integration we have that ln m (t) u = ln A . u − v A (t) mA,0 (12.3.27) m (t) u = A . u − v A (t) mA,0 (12.3.28) Exponentiate both side yields We can solve this equation for the x -component of the velocity of the car v A (t) = mA (t) − mA,0 mA (t) u. (12.3.29) Because the material is blown into the car at a constant rate b ≡ dmA / dt , the mass of the car as a function of time is given by mA (t) = mA,0 + bt . (12.3.30) Therefore substituting Eq. (12.3.30) into Eq. (12.3.29) yields the x -component of the velocity of the car as a function of time bt (12.3.31) v A (t) = u. mA,0 + bt In a second approach, we substitute Eq. (12.3.30) into Eq. (12.3.24) yielding 12-11 dv A b(u − v A ) = . dt mA,0 + bt (12.3.32) dv A bdt = , u − v A mA,0 + bt (12.3.33) Separate variables in Eq. (12.3.32): which then becomes the integral equation v A′ = v A (t ) ∫ v A′ =0 dv A′ u − v A′ t ′ =t = ∫ dt ′ ′ t ′ =0 mA,0 + bt . (12.3.34) Integration yields ln m + bt u . = ln A,0 u − v A (t) mA,0 Again exponentiate both sides resulting in m + bt u . = A,0 u − v A (t) mA,0 (12.3.35) (12.3.36) After some algebraic manipulation we can find the speed of the car as a function of time bt (12.3.37) v A (t) = u. mA,0 + bt in agreement with Eq. (12.3.31). Check result: We can rewrite Eq. (12.3.37) as (mA,0 + bt)v A (t) = btu , (12.3.38) which illustrates the point that the momentum of the system at time t is equal to the momentum of the grain that has been transferred to the system during the interval [0,t] . Example 12.4 Boat and Fire Hose A burning boat of mass m0 is initially at rest. A fire fighter stands on a bridge and sprays water onto the boat. The water leaves the fire hose with a speed u at a rate α (measured in kg ⋅ s -1 ). Assume that the motion of the boat and the water jet are horizontal, that gravity does not play any role, and that the river can be treated as a frictionless surface. Also assume that the change in the mass of the boat is only due to the water jet and that all the water from the jet is added to the boat, (Figure 12.10). 12-12 Figure 12.10 Example 12.4 a)   In a time interval [t , t + Δt] , an amount of water Δm hits the boat. Choose a system. Is the total momentum constant in your system? Write down a differential equation that results from the analysis of the momentum changes inside your system. b)   Integrate the differential equation you found in part a), to find the velocity v(m) as a function of the increasing mass m of the boat, m0 , and u . Solution: Let’s take as our system the boat, the amount of water of mass Δmw that enters the boat during the time interval [t , t + Δt] and whatever water is in the boat at time t . The water from the fire hose has a speed u . Denote the mass of the boat (including some water) at time t by mb ≡ mb (t) , and the speed of the boat by v ≡ vb (t) . At time t + Δt the speed of the boat is v + Δv . Choose the positive x - direction in the direction that the boat is moving. Then the x -components of the momentum of the system at time t and t + Δt are shown in Figure 12.11. u mw v mb t v+ v t+ t mw mb Figure 12.11 Momentum diagrams for burning boat Because we are assuming that the burning boat slides with negligible resistance and that gravity has a negligible effect on the arc of the water jet, there are no external forces acting on the system in the x -direction. Therefore the x -component of the momentum of the system is constant during the interval [t , t + Δt] and so 12-13 0 = lim Δt →0 px (t + Δt) − px (t ) . Δt (12.3.39) Using the information from the figure above, Eq. (12.3.39) becomes (mb + Δmw )(v + Δv) − (Δmwu + mb v) . Δt →0 Δt 0 = lim (12.3.40) Eq. (12.3.40) simplifies to 0 = lim mb Δt →0 Δmw Δv Δmw Δmw Δv + lim v + lim − lim u. Δ t → 0 Δ t → 0 Δ t → 0 Δt Δt Δt Δt (12.3.41) The third term vanishes when we take the limit Δt → 0 because it is of second order in the infinitesimal quantities (in this case Δmw Δv ) and so when dividing by Δt the quantity is of first order and hence vanishes since both Δmw → 0 and Δv → 0 . Eq. (12.3.41) becomes Δmw Δmw Δv (12.3.42) 0 = lim mb + lim v − lim u. Δt →0 Δt →0 Δt Δt Δt →0 Δt We now use the definition of the derivatives: Δmw dmw Δv dv . = ; lim = Δt →0 Δt dt Δt →0 Δt dt lim (12.3.43) in Eq. (12.3.42) to fund the differential equation describing the relation between the acceleration of the boat and the time rate of change of the mass of water entering the boat dv dmw (12.3.44) 0 = mb + (v − u) . dt dt The mass of the boat is increasing due to the addition of the water. Let mw (t ) denote the mass of the water that is in the boat at time t . Then the mass of the boat can be written as mb (t) = m0 + mw (t) , (12.3.45) where m0 is the mass of the boat before any water entered. Note we are neglecting the effect of the fire on the mass of the boat. Differentiating Eq. (12.3.45) with respect to time yields dmb dmw , (12.3.46) = dt dt Then Eq. (12.3.44) becomes dv dmb (12.3.47) 0 = mb + (v − u) . dt dt 12-14 (b) We can integrate this equation through the separation of variable technique. Rewrite Eq. (12.3.47) as (cancel the common factor dt ) dm dv =− b. v −u mb (12.3.48) We can then integrate both sides of Eq. (12.3.48) with the limits as shown v(t ) dv ∫v=0 v − u = − mb (t ) ∫ m0 dmb mb (12.3.49) Integration yields ⎛ m (t) ⎞ ⎛ v(t) − u ⎞ ln ⎜ = − ln ⎜ b ⎟ ⎟ ⎝ −u ⎠ ⎝ m0 ⎠ (12.3.50) Recall that ln(a / b) = − ln(b / a) so Eq. (12.3.50) becomes ⎛ m0 ⎞ ⎛ v(t) − u ⎞ ln ⎜ = ln ⎜⎝ m (t) ⎟⎠ ⎝ −u ⎟⎠ b (12.3.51) Also recall that exp(ln(a / b)) = a / b and so exponentiating both sides of Eq. (12.3.51) yields m0 v(t) − u = −u mb (t) (12.3.52) So the speed of the boat at time t can be expressed as ⎛ m ⎞ v(t) = u ⎜ 1− 0 ⎟ ⎝ mb (t) ⎠ (12.3.53) mb (t)(v(t) − u) = −m0u ⇒ mb (t)v(t) = (mb (t) − m0 )u . (12.3.54) Check result: We can rewrite Eq. (12.3.52) as Recall that the mass of the water that enters the car during the interval [0,t] is mw (t) = mb (t) − m0 . Therefore Eq. (12.3.54) becomes mb (t)v(t) = mw (t)u . (12.3.55) 12-15 During the interaction between the jet of water and the boat, the water transfers an amount of momentum mw (t)u to the boat and car producing a momentum mb (t)v(t) . Because all the water that collides with the boat ends up in the boat, all the interaction forces between the jet of water and the boat are internal forces. The boat recoils forward and the water recoils backward and through collisions with the boat stays in the boat. Therefore if we choose as our system, all of the water that eventually ends up in the boat and the boat then the momentum principle states psys (t) = psys (0) , (12.3.56) where psys (0) = mw (t)u is the momentum of all of the water that eventually ends up in the boat. Note that the problem didn’t ask to find the speed of the boat as a function t . We shall now show how to find that. We begin by observing that dmb dmw = ≠α dt dt (12.3.57) where the constant α is measured in kg ⋅ s-1 and is specified as a given constant according to the information in the problem statement. The reason is that α is the rate that the water is ejected from the hose but not the rate that the water enters the boat. u t m= u t Figure 12.12 Mass per unit length of water jet Consider a small amount of water that is moving with speed u that, in a time interval Δt , flows through a cross sectional area oriented perpendicular to the flow (see Figure 12.12). The area is larger than the cross sectional area of the jet of water. The amount of water that floes through the area element Δm = λ uΔt , where λ is the mass per unit length of the jet and uΔt is the length of the jet that flows through the area in the interval Δt . The mass rate of water that flows through the cross sectional area element is then α= Δm = λu . Δt (12.3.58) 12-16 In the Figure 12.13 we consider a small length uΔt of the water jet that is just behind the boat at time t . During the time interval [t , t + Δt] , the boat moves a distance vΔt . u t v t v t (u v) t t+ t Figure 12.13 Amount of water that enter boat in time interval [t,t + Δt] Only a fraction of the length uΔt of water enters the boat and is given by Δmw = λ (u − v)Δt = α (u − v)Δt u (12.3.59) Dividing Eq. (12.3.59) through by Δt and taking limits we have that dmw Δmw α v = lim = (u − v) = α (1− ) . Δt→0 Δt dt u u (12.3.60) Substituting Eq. (12.3.53) and Eq. (12.3.46) into Eq. (12.3.60) yields dmb m v = α (1− ) = α 0 . dt u mb (t) (12.3.61) We can integrate this equation by separating variables to find an integral expression for the mass of the boat as a function of time mb (t ) ∫ m0 t mb dmb = α m0 ∫ dt . (12.3.62) t=0 We can easily integrate both sides of Eq. (12.3.62) yielding 12-17 ( ) 1 mb (t)2 − m0 2 = α mb,0t . 2 (12.3.63) The mass of the boat as a function of time is then mb (t) = m0 1+ 2 αt . m0 (12.3.64) We now substitute Eq. (12.3.64) into Eq. (12.3.65)yielding the speed of the burning boat as a function of time ⎛ ⎞ ⎜ ⎟ 1 ⎜ ⎟ v(t ) = u 1 − (12.3.66) ⎜ αt ⎟ ⎜ ⎟ 1+ 2 ⎜ mb,0 ⎟⎠ ⎝ 12.3 Rocket Propulsion ! A rocket at time t = ti is moving with velocity v r ,i with respect to a fixed reference frame. During the time interval [ti ,t f ] the rocket continuously burns fuel that is ! continuously ejected backwards with velocity u relative to the rocket. This exhaust velocity is independent of the velocity of the rocket. The rocket must exert a force to accelerate the ejected fuel backwards and therefore by Newton’s Third law, the fuel exerts a force that is equal in magnitude but opposite in direction accelerating the rocket forward. The rocket velocity is a function of time, v! r (t) . Because fuel is leaving the rocket, the mass of the rocket is also a function of time, mr (t) , and is decreasing at a rate ! dmr / dt . Let Fext denote the total external force acting on the rocket. We shall use the ! momentum principle, to determine a differential equation that relates dv r / dt , dmr / dt , ! ! u , v! r (t) , and Fext , an equation known as the rocket equation. We shall apply the momentum principle during the time interval [t,t + Δt] with Δt taken to be a small interval (we shall eventually consider the limit that Δt → 0 ), and ti < t < t f . During this interval, choose as our system the mass of the rocket at time t , msys = mr (t) = mr ,d + m f (t) , (12.3.67) where mr ,d is the dry mass of the rocket and m f (t) is the mass of the fuel in the rocket at time t . During the time interval [t,t + Δt] , a small amount of fuel of mass Δm f (in the 12-18 ! limit that Δt → 0 , Δm f → 0 ) is ejected backwards with velocity u to the rocket. Before the fuel is ejected, it is traveling at the velocity of the rocket and so during the time interval [t,t + Δt] , the elected fuel undergoes a change in momentum and the rocket ! recoils forward. At time t + Δt the rocket has velocity v r (t + Δt) . Although the ejected fuel continually changes its velocity, we shall assume that the fuel is all ejected at the instant t + Δt and then consider the limit as Δt → 0 . Therefore the velocity of the ejected fuel with respect to the fixed reference frame is the vector sum of the relative velocity of ! ! the fuel with respect to the rocket and the velocity of the rocket, u + v r (t + Δt) . Figure 12.14 represents momentum diagrams for our system at time t and t + Δt relative to a fixed inertial reference frame in which velocity of the rocket at time t is v! r (t) . mr (t ) v r (t) time t mf u + v r (t + t) mr (t) + mr v r (t + t) time t + t Figure 12.14 Momentum diagrams for system at time t and t + Δt The momentum of the system at time t is ! ! p sys (t) = mr (t)v r (t) . (12.3.68) Note that the mass of the system at time t is msys = mr (t) . (12.3.69) The momentum of the system at time t + Δt is ! ! ! ! p sys (t + Δt) = mr (t + Δt)v r (t + Δt) + Δm f (u + v r (t + Δt)) , (12.3.70) where mr (t + Δt) = mr (t) + Δmr . With this notation the mass of the system at time t + Δt is given by msys = mr (t + Δt) + Δm f = mr (t) + Δmr + Δm f . (12.3.71) Because the mass of the system is constant, setting Eq. (12.3.69) equal to Eq. (12.3.71) requires that 12-19 Δmr = −Δm f . (12.3.72) The momentum of the system at time t + Δt (Eq. (12.3.70)) can be rewritten as ! ! ! ! p sys (t + Δt) = (mr (t) + Δmr )v r (t + Δt) − Δmr (u + v r (t + Δt)) , ! ! ! p sys (t + Δt) = mr (t)v r (t + Δt) − Δmr u (12.3.73) We can now apply Newton’s Second Law in the form of the momentum principle, ! ! ! ! ( mr (t ) v r (t + Δt ) − Δmr u) − mr (t ) v r (t ) Fext = lim Δt→0 Δt .. ! ! v r (t + Δt) − v r (t) Δmr ! = mr (t) lim − lim u Δt→0 Δt Δt→0 Δt We now take the limit as ! ! dv r dmr ! − u. Fext = mr (t) dt dt (12.3.74) (12.3.75) Eq. (12.3.75) is known as the rocket equation. Suppose the rocket is moving in the positive x -direction with an external force given by ! ! Fext = Fext ,x î Then u = −u î , where u > 0 is the relative speed of the fuel and it is moving ! in the negative x -direction, v r = vr ,x î . Then the rocket equation (Eq. (12.3.75)) becomes Fext ,x = mr (t) dvr ,x dt + dmr u. dt (12.3.76) Note that the rate of decrease of the mass of the rocket, dmr / dt , is equal to the negative of the rate of increase of the exhaust fuel dm f dmr =− . (12.3.77) dt dt We can rewrite Eq. (12.3.76) as dv dm Fext ,x − r u = mr (t) r ,x . (12.3.78) dt dt The second term on the left-hand-side of Eq. (12.3.78) is called the thrust 12-20 Fthrust ,x = − dm f dmr u= u. dt dt (12.3.79) Note that this is not an extra force but the result of the forward recoil due to the ejection of the fuel. Because we are burning fuel at a positive rate dm f / dt > 0 and the speed u > 0 , the direction of the thrust is in the positive x -direction. 12.3.1 Rocket Equation in Gravity-free Space We shall first consider the case in which there are no external forces acting on the system, then Eq. (12.3.78) becomes − dv dmr u = mr (t) r ,x . dt dt (12.3.80) In order to solve this equation, we separate the variable quantities vr ,x (t) and mr (t) and multiply both sides by dt yielding dvr ,x = −u dmr . mr (t) (12.3.81) We now integrate both sides of Eq. (12.3.81) with limits corresponding to the values of the x -component of the velocity and mass of the rocket at times ti when the ejection of the burned fuel began and the time t f when the process stopped, v′r ,x = vr ,x , f ∫ v′r ,x = vr ,x ,i m′r = mr , f dvr′,x = − ∫ m′r = mr ,i u dmr′ . m′r (12.3.82) Performing the integration and substituting in the values at the endpoints yields ⎛ mr , f vr ,x, f − vr ,x,i = −u ln ⎜ ⎝ mr ,i ⎞ ⎟. ⎠ (12.3.83) Because the rocket is losing fuel, mr , f < mr ,i , we can rewrite Eq. (12.3.83) as ⎛m ⎞ vr ,x, f − vr ,x,i = u ln ⎜ r ,i ⎟ . ⎝ mr , f ⎠ (12.3.84) 12-21 We note ln(mr ,i / mr , f ) > 1 . Therefore vr ,x, f > vr ,x,i , as we expect. After a slight rearrangement of Eq. (12.3.84), we have an expression for the x -component of the velocity of the rocket as a function of the mass mr of the rocket ⎛m ⎞ vr ,x, f = vr ,x,i + u ln ⎜ r ,i ⎟ . ⎝ mr , f ⎠ (12.3.85) Let’s examine our result. First, let’s suppose that all the fuel was burned and ejected. Then mr , f ≡ mr ,d is the final dry mass of the rocket (empty of fuel). The ratio R= mr ,i (12.3.86) mr ,d is the ratio of the initial mass of the rocket (including the mass of the fuel) to the final dry mass of the rocket (empty of fuel). The final velocity of the rocket is then vr ,x, f = vr ,x,i + u ln R . (12.3.87) This is why multistage rockets are used. You need a big container to store the fuel. Once all the fuel is burned in the first stage, the stage is disconnected from the rocket. During the next stage the dry mass of the rocket is much less and so R is larger than the single stage, so the next burn stage will produce a larger final speed then if the same amount of fuel were burned with just one stage (more dry mass of the rocket). In general rockets do not burn fuel at a constant rate but if we assume that the burning rate is constant where b= dm f dt =− dmr (12.3.88) dt then we can integrate Eq. (12.3.88) mr′ = mr (t ) ∫ m′r = mr ,i dm′r = −b t ′ =t ∫ dt′ (12.3.89) t ′ =ti and find an equation that describes how the mass of the rocket changes in time mr (t) = mr ,i − b(t − ti ) . (12.3.90) For this special case, if we set t f = t in Eq. (12.3.85), then the velocity of the rocket as a function of time is given by ⎛ mr ,i ⎞ vr ,x, f = vr ,x,i + u ln ⎜ ⎟. ⎝ mr ,i − bt ⎠ (12.3.91) 12-22 Example 12.4 Single-Stage Rocket Before a rocket begins to burn fuel, the rocket has a mass of mr ,i = 2.81 × 107 kg , of which the mass of the fuel is m f ,i = 2.46 × 107 kg . The fuel is burned at a constant rate with total burn time is 510 s and ejected at a speed u = 3000 m/s relative to the rocket. If the rocket starts from rest in empty space, what is the final speed of the rocket after all the fuel has been burned? Solution: The dry mass of the rocket is mr ,d ≡ mr ,i − m f ,i = 0.35 × 107 kg , hence R = mr ,i / mr ,d = 8.03 . The final speed of the rocket after all the fuel has burned is vr , f = Δvr = u ln R = 6250 m/s . (12.3.92) Example 12.5 Two-Stage Rocket Now suppose that the same rocket in Example 12.4 burns the fuel in two stages ejecting the fuel in each stage at the same relative speed. In stage one, the available fuel to burn is m f ,1,i = 2.03 × 107 kg with burn time 150 s . Then the empty fuel tank and accessories from stage one are disconnected from the rest of the rocket. These disconnected parts have a mass m = 1.4 × 106 kg . All the remaining fuel with mass is burned during the second stage with burn time of 360 s . What is the final speed of the rocket after all the fuel has been burned? Solution: The mass of the rocket after all the fuel in the first stage is burned is mr ,1,d = mr ,1,i − m f ,1,i = 0.78 × 107 kg and R1 = mr ,1,i / mr ,1,d = 3.60 . The change in speed after the first stage is complete is Δvr ,1 = u ln R1 = 3840 m/s . (12.3.93) After the empty fuel tank and accessories from stage one are disconnected from the rest of the rocket, the remaining mass of the rocket is mr ,2,d = 2.1 × 106 kg . The remaining fuel has mass m f ,2,i = 4.3 × 106 kg . The mass of the rocket plus the unburned fuel at the beginning of the second stage is mr ,2,i = 6.4 × 106 kg . Then R2 = mr ,2,i / mr ,2,d = 3.05 . Therefore the rocket increases its speed during the second stage by an amount Δvr ,2 = u ln R2 = 3340 m/s . (12.3.94) The final speed of the rocket is the sum of the change in speeds due to each stage, 12-23 v f = Δvr = u ln R1 + u ln R2 = u ln(R1 R2 ) = 7190 m/s , (12.3.95) which is greater than if the fuel were burned in one stage. Plots of the speed of the rocket as a function time for both one-stage and two-stage burns are shown Figure 12.15. Figure 12.15 Plots of speed of rocket for both one-stage burn and two-stage burn 12.3.2 Rocket in a Constant Gravitational Field: Now suppose that the rocket takes off from rest at time t = 0 in a constant gravitational field then the external force is  total  Fext = mr g . (12.3.96) Choose the positive x -axis in the upward direction then Fext , x (t) = −mr (t)g . Then the rocket equation (Eq. (12.3.75) becomes −mr (t)g − dmr dt u = mr (t) dvr ,x dt . (12.3.97) Multiply both sides of Eq. (12.3.97) by dt , and divide both sides by mr (t) . Then Eq. (12.3.97) can be written as dmr (12.3.98) dvr ,x = −gdt − u. mr (t) We now integrate both sides 12-24 vr ,x (t ) ∫ vr ,x ,i = 0 mr (t ) dv′r ,x = −u ∫ mr ,i t dm′r − g ∫ dt′ , m′r 0 (12.3.99) where mr ,i is the initial mass of the rocket and the fuel. Integration yields ⎛ m (t) ⎞ ⎛ m ⎞ vr ,x (t) = −u ln ⎜ r ⎟ − gt = u ln ⎜ r ,i ⎟ − gt . ⎝ mr (t) ⎠ ⎝ mr ,i ⎠ (12.3.100) After all the fuel is burned at t = t f , the mass of the rocket is equal to the dry mass mr , f = mr ,d and so vr ,x (t f ) = u ln R − gt f . (12.3.101) The first term on the right hand side is independent of the burn time. However the second term depends on the burn time. The shorter the burn time, the smaller the negative contribution from the third turn, and hence the rocket ends up with a larger final speed. So the rocket engine should burn the fuel as fast as possible in order to obtain the maximum possible speed. 12-25
