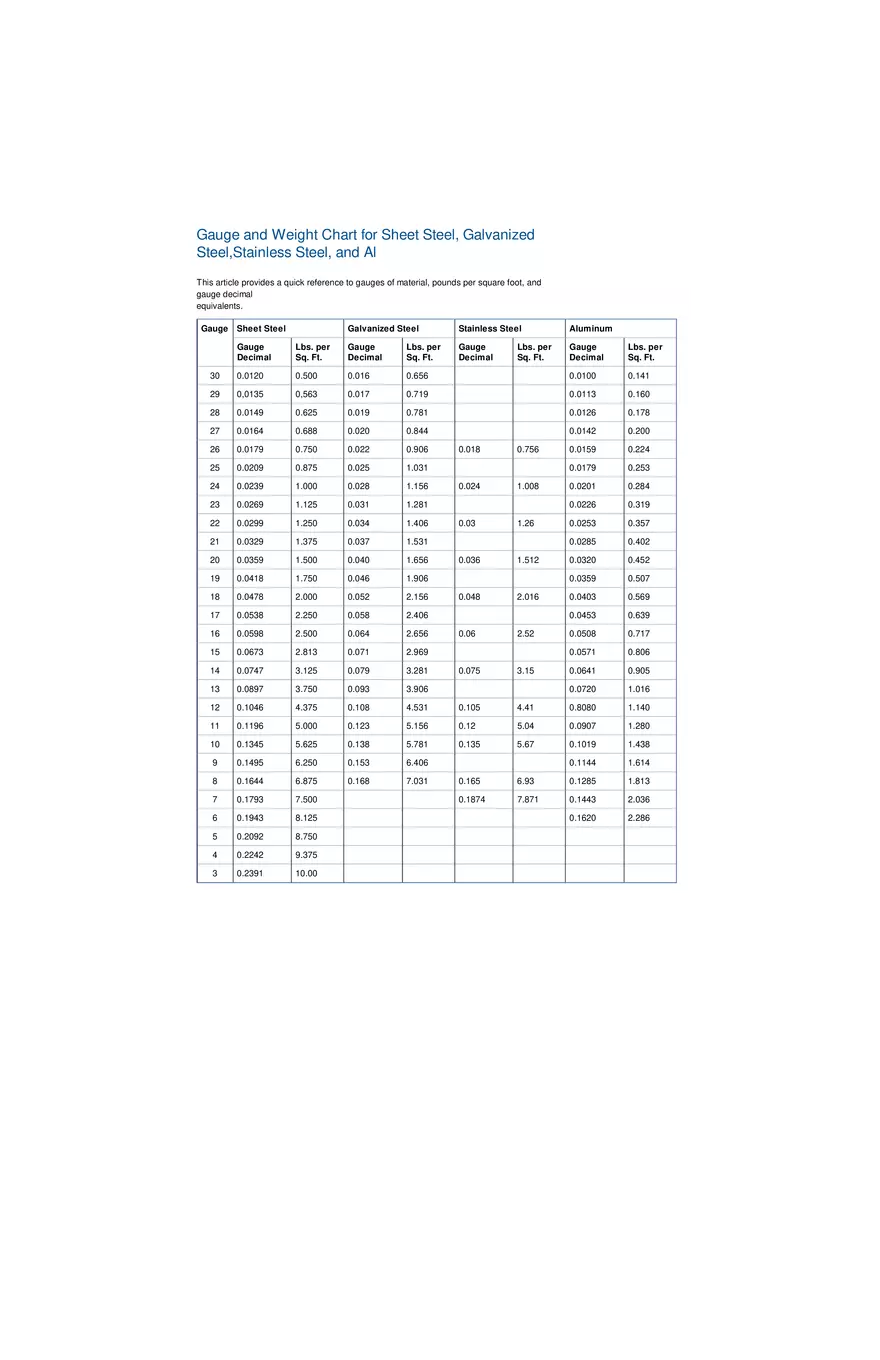

Gauge and Weight Chart for Sheet Steel, Galvanized Steel,Stainless Steel, and Al This article provides a quick reference to gauges of material, pounds per square foot, and gauge decimal equivalents. Gauge Sheet Steel Galvanized Steel Stainless Steel Aluminum Gauge Decimal Gauge Decimal Lbs. per Sq. Ft. Gauge Decimal Lbs. per Sq. Ft. Gauge Decimal Lbs. per Sq. Ft. 30 0.0120 0.500 0.016 0.656 0.0100 0.141 29 0,0135 0,563 0.017 0.719 0.0113 0.160 28 0.0149 0.625 0.019 0.781 0.0126 0.178 27 0.0164 0.688 0.020 0.844 0.0142 0.200 26 0.0179 0.750 0.022 0.906 0.0159 0.224 25 0.0209 0.875 0.025 1.031 0.0179 0.253 24 0.0239 1.000 0.028 1.156 0.0201 0.284 23 0.0269 1.125 0.031 1.281 0.0226 0.319 22 0.0299 1.250 0.034 1.406 0.0253 0.357 21 0.0329 1.375 0.037 1.531 0.0285 0.402 20 0.0359 1.500 0.040 1.656 0.0320 0.452 19 0.0418 1.750 0.046 1.906 0.0359 0.507 18 0.0478 2.000 0.052 2.156 0.0403 0.569 17 0.0538 2.250 0.058 2.406 0.0453 0.639 16 0.0598 2.500 0.064 2.656 0.0508 0.717 15 0.0673 2.813 0.071 2.969 0.0571 0.806 14 0.0747 3.125 0.079 3.281 0.0641 0.905 13 0.0897 3.750 0.093 3.906 0.0720 1.016 12 0.1046 4.375 0.108 4.531 0.105 4.41 0.8080 1.140 11 0.1196 5.000 0.123 5.156 0.12 5.04 0.0907 1.280 10 0.1345 5.625 0.138 5.781 0.135 5.67 0.1019 1.438 9 0.1495 6.250 0.153 6.406 0.1144 1.614 8 0.1644 6.875 0.168 7.031 7 0.1793 7.500 6 0.1943 8.125 5 0.2092 8.750 4 0.2242 9.375 3 0.2391 10.00 0.018 0.024 0.03 0.036 0.048 0.06 0.075 Lbs. per Sq. Ft. 0.756 1.008 1.26 1.512 2.016 2.52 3.15 0.165 6.93 0.1285 1.813 0.1874 7.871 0.1443 2.036 0.1620 2.286
