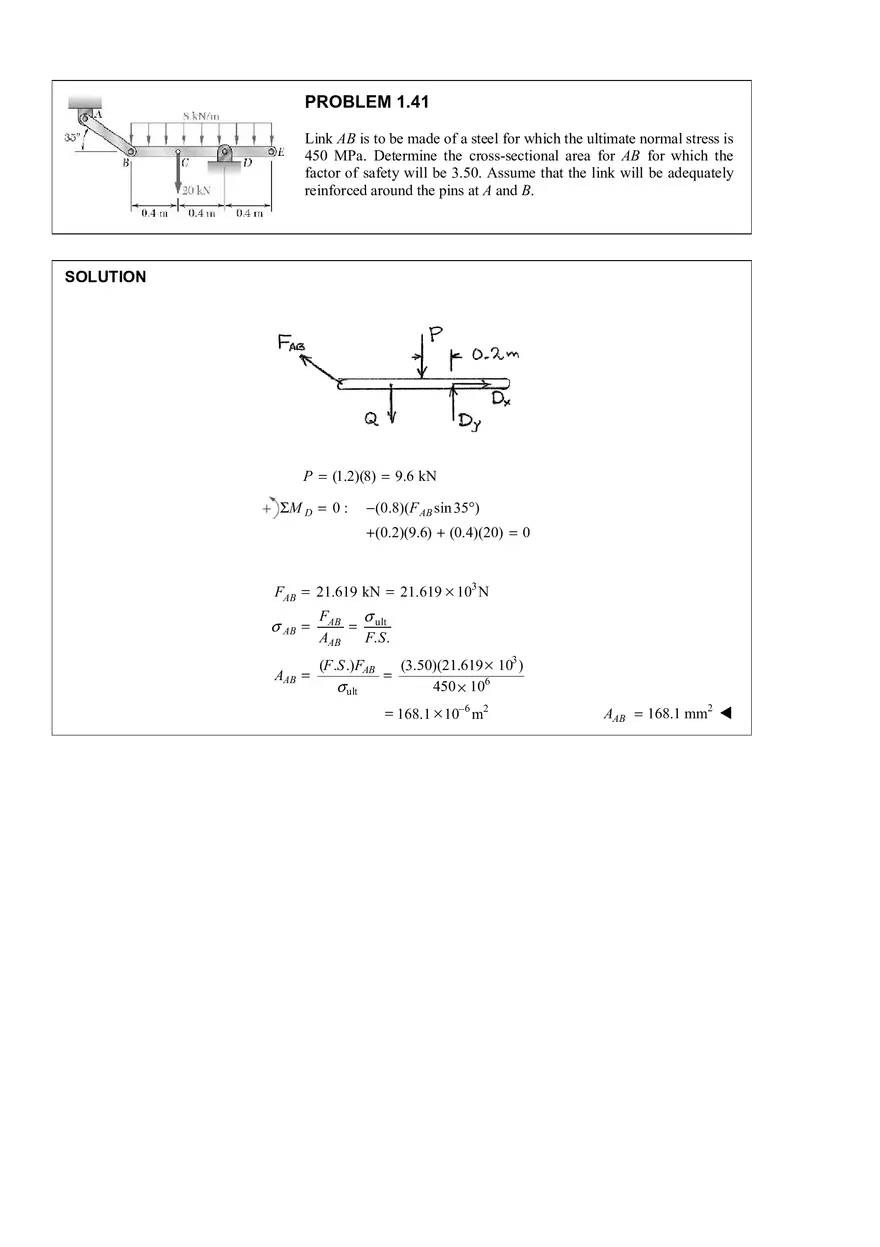

PROBLEM 1.41 Link AB is to be made of a steel for which the ultimate normal stress is 450 MPa. Determine the cross-sectional area for AB for which the factor of safety will be 3.50. Assume that the link will be adequately reinforced around the pins at A and B. SOLUTION P = (1.2)(8) = 9.6 kN ΣM D = 0 : −(0.8)(F AB sin 35°) +(0.2)(9.6) + (0.4)(20) = 0 FAB = 21.619 kN = 21.619 × 103 N σ AB = AAB = FAB σ = ult AAB F. S. (F .S .)FAB σ ult = (3.50)(21.619 × 103 ) 450 × 106 = 168.1 × 10−6 m2 AAB = 168.1 mm2 W
