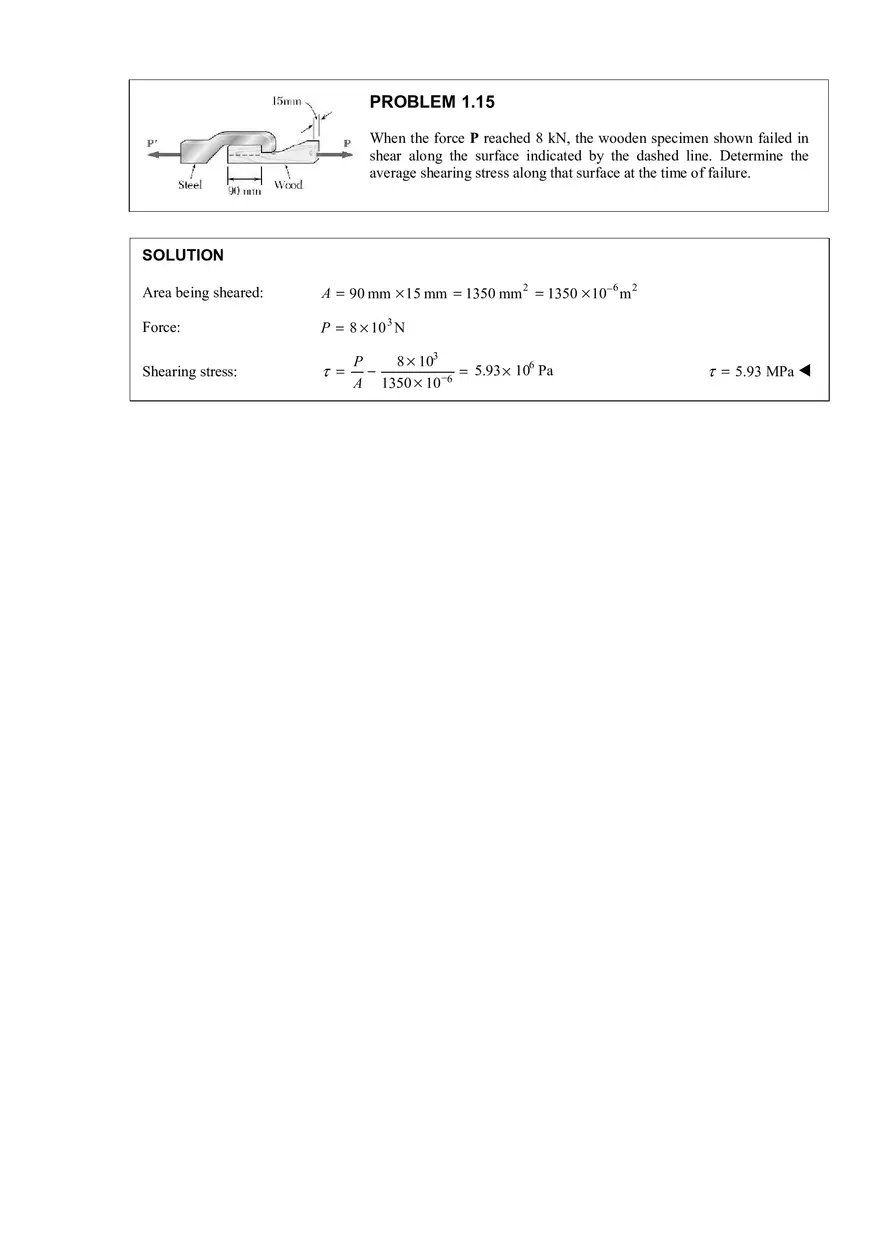

PROBLEM 1.15 When the force P reached 8 kN, the wooden specimen shown failed in shear along the surface indicated by the dashed line. Determine the average shearing stress along that surface at the time of failure. SOLUTION Area being sheared: A = 90 mm × 15 mm = 1350 mm 2 = 1350 × 10− 6 m 2 Force: P = 8 × 10 3 N Shearing stress: τ = P 8 × 103 − = 5.93 × 106 Pa A 1350 × 10 −6 τ = 5.93 MPa W
