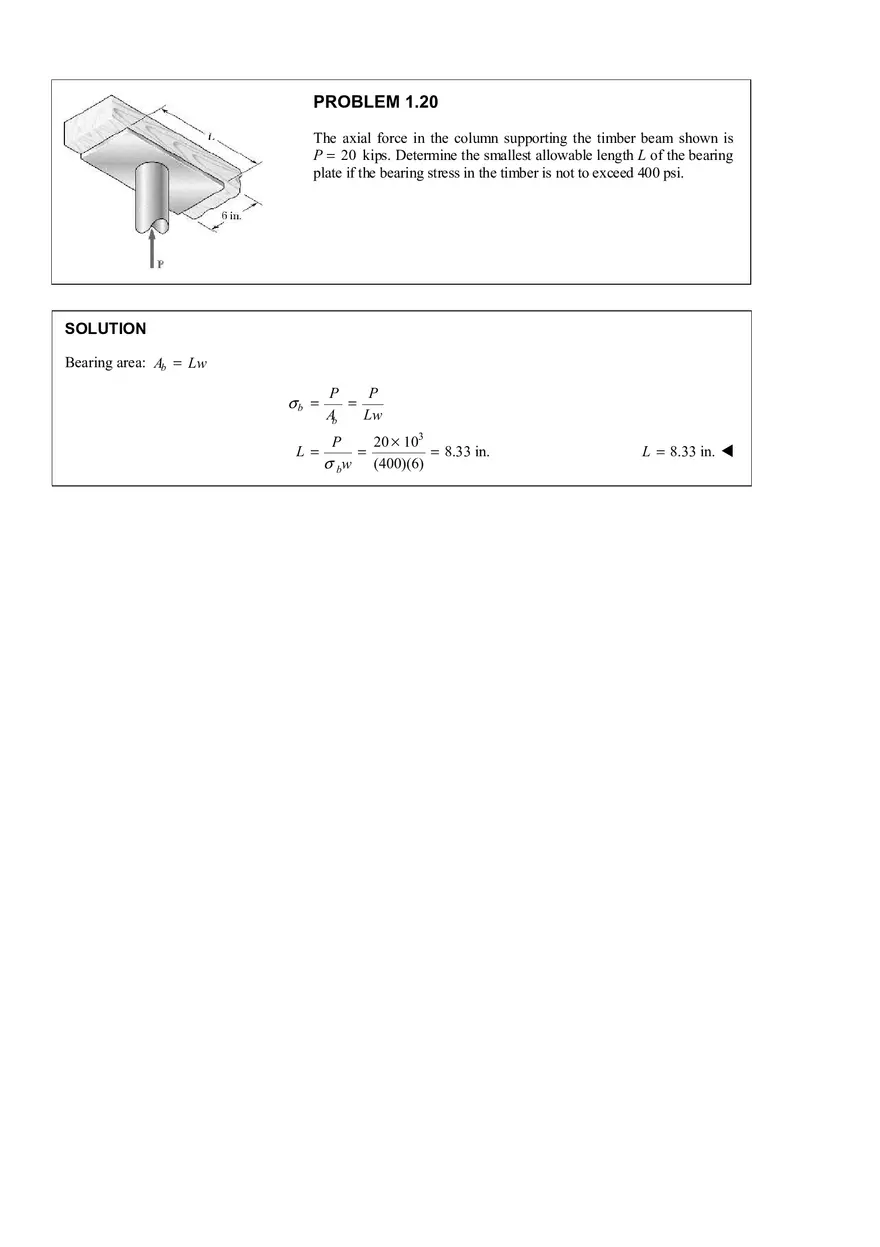

PROBLEM 1.20 The axial force in the column supporting the timber beam shown is P = 20 kips. Determine the smallest allowable length L of the bearing plate if the bearing stress in the timber is not to exceed 400 psi. SOLUTION Bearing area: Ab = Lw σb = L= P P = Ab Lw P σ bw = 20 × 103 = 8.33 in. (400)(6) L = 8.33 in. W
