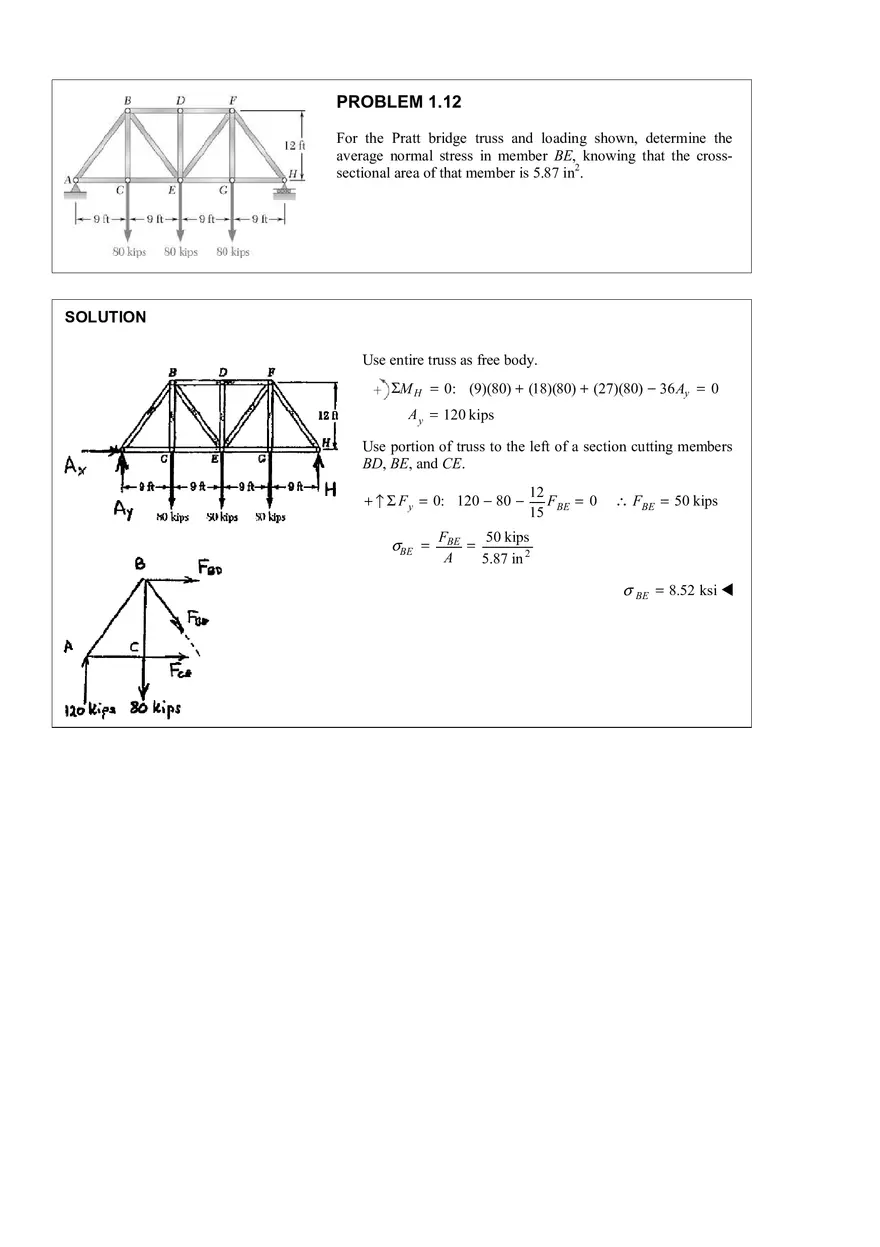

PROBLEM 1.12 For the Pratt bridge truss and loading shown, determine the average normal stress in member BE, knowing that the crosssectional area of that member is 5.87 in2. SOLUTION  Use entire truss as free body. ΣM H = 0: (9)(80) + (18)(80) + (27)(80) − 36 Ay = 0 A y = 120 kips Use portion of truss to the left of a section cutting members BD, BE, and CE.   + ↑ Σ F y = 0: 120 − 80 − σBE = 12 F =0 15 BE ∴ FBE = 50 kips FBE 50 kips = A 5.87 in 2 σ BE = 8.52 ksi W 
