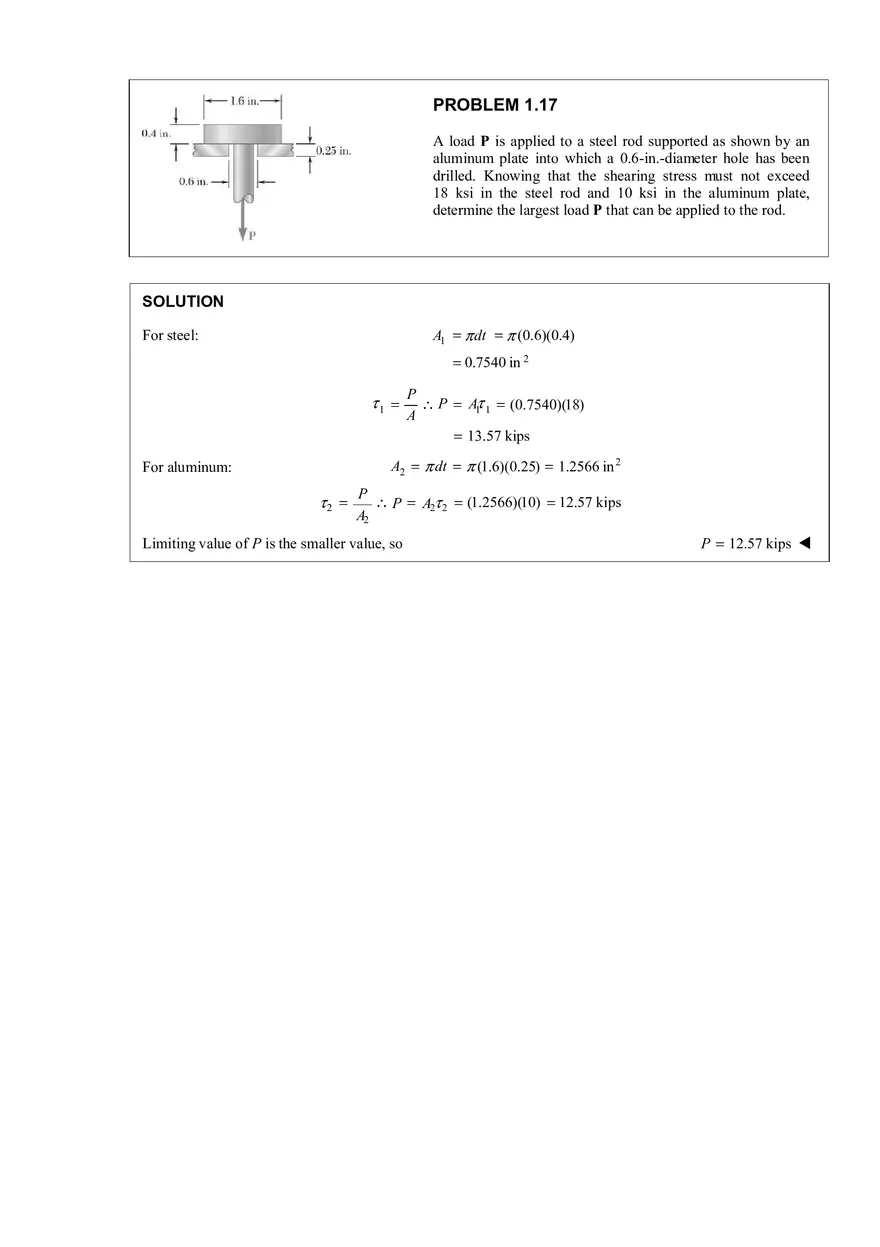

PROBLEM 1.17 A load P is applied to a steel rod supported as shown by an aluminum plate into which a 0.6-in.-diameter hole has been drilled. Knowing that the shearing stress must not exceed 18 ksi in the steel rod and 10 ksi in the aluminum plate, determine the largest load P that can be applied to the rod. SOLUTION A1 = π dt = π (0.6)(0.4) For steel: = 0.7540 in 2 τ1 = P ∴ P = A1τ 1 = (0.7540)(18) A = 13.57 kips A2 = π dt = π (1.6)(0.25) = 1.2566 in 2 For aluminum: τ2 = P ∴ P = A2τ 2 = (1.2566)(10) = 12.57 kips A2 Limiting value of P is the smaller value, so P = 12.57 kips W
