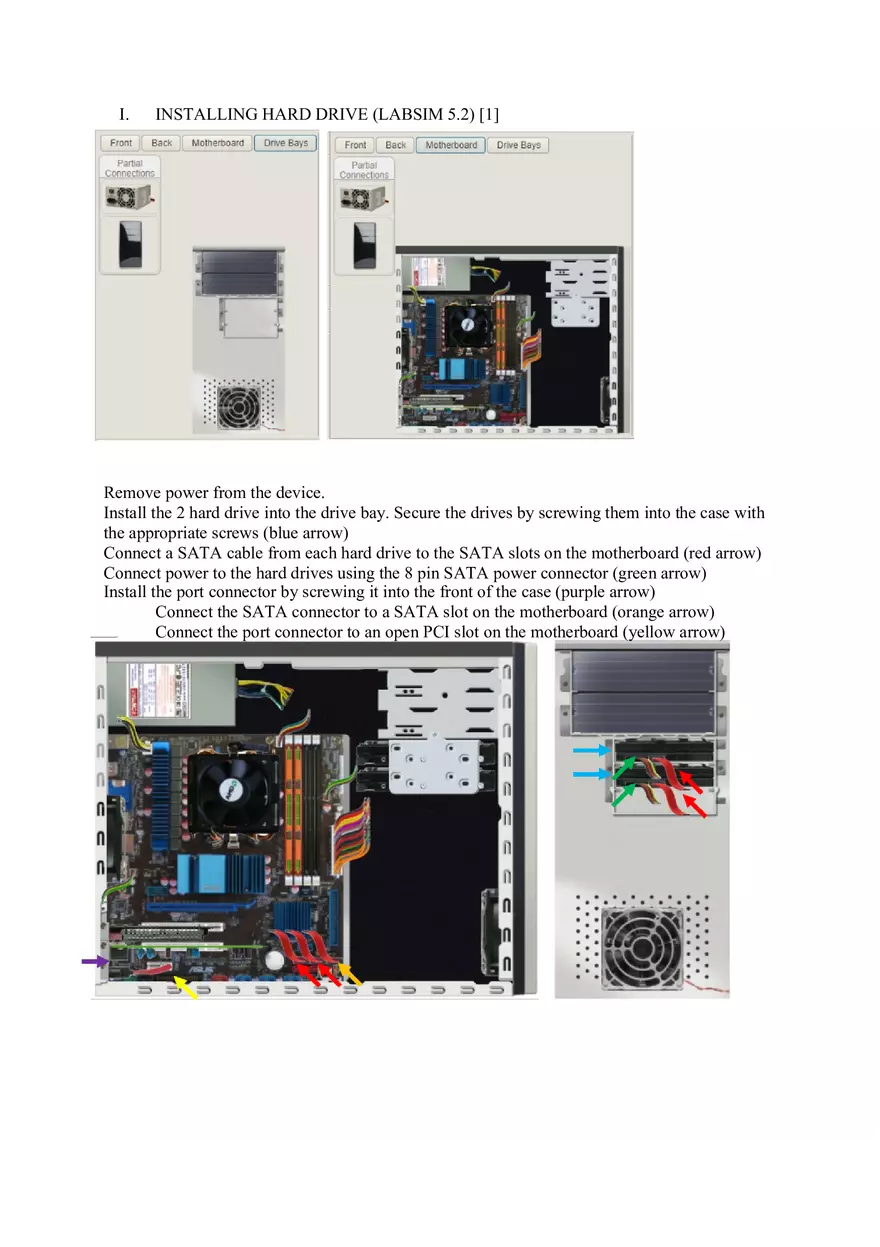

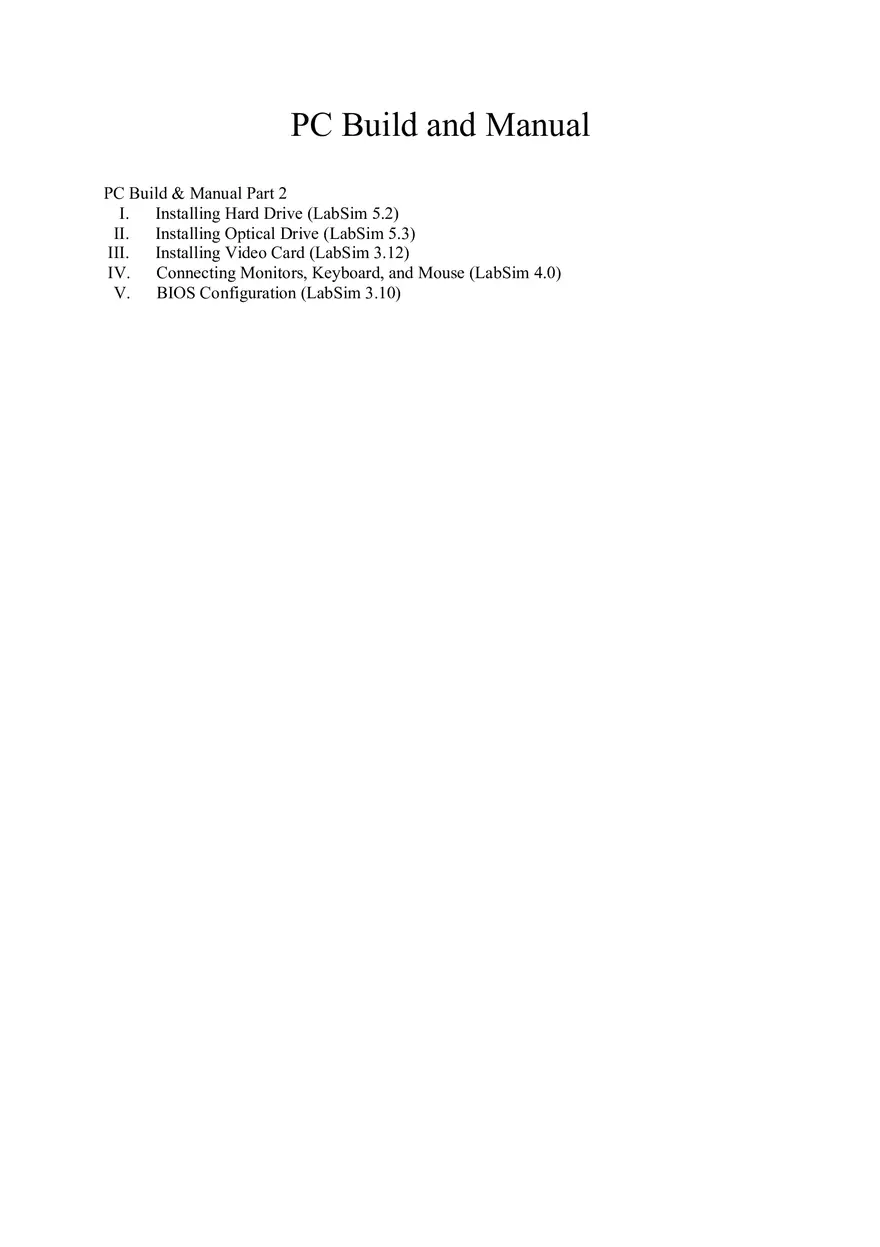

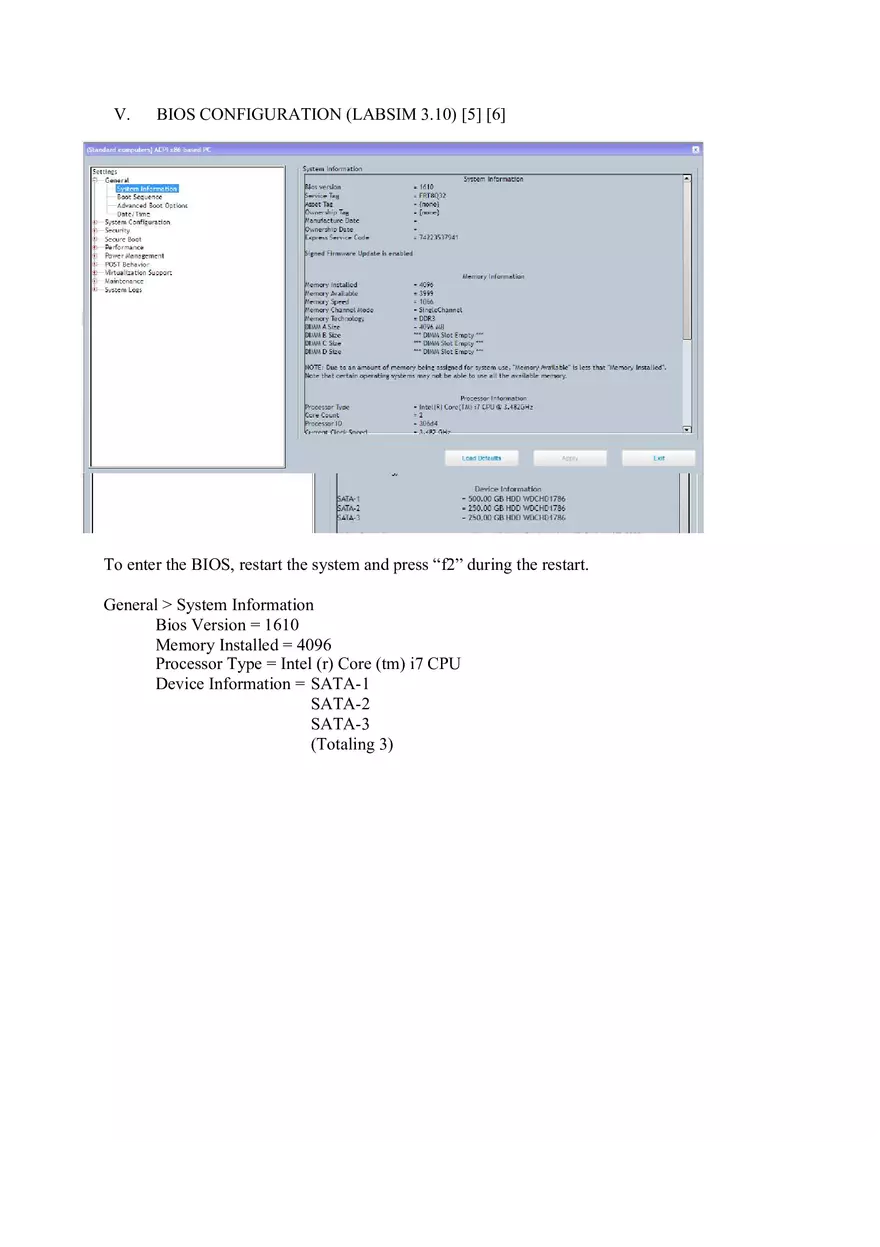

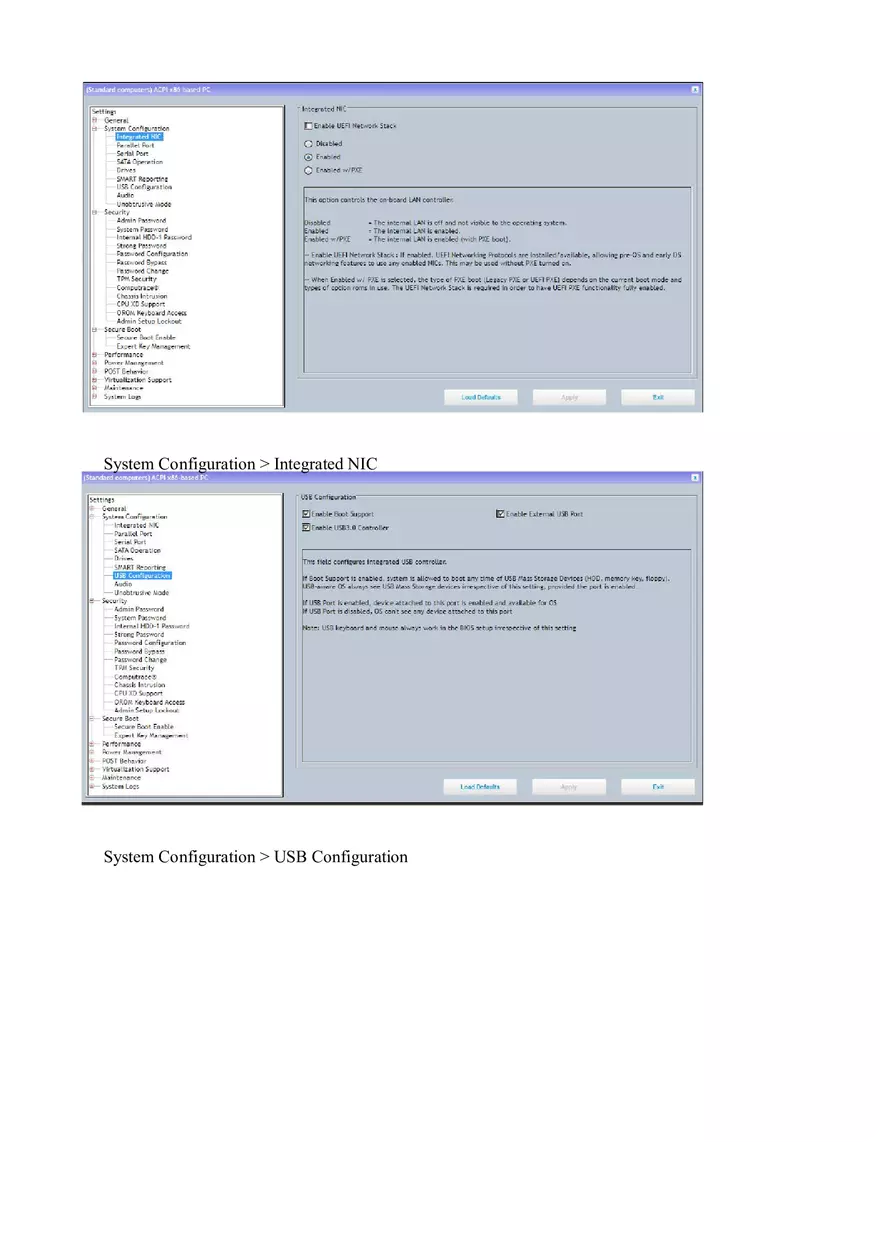

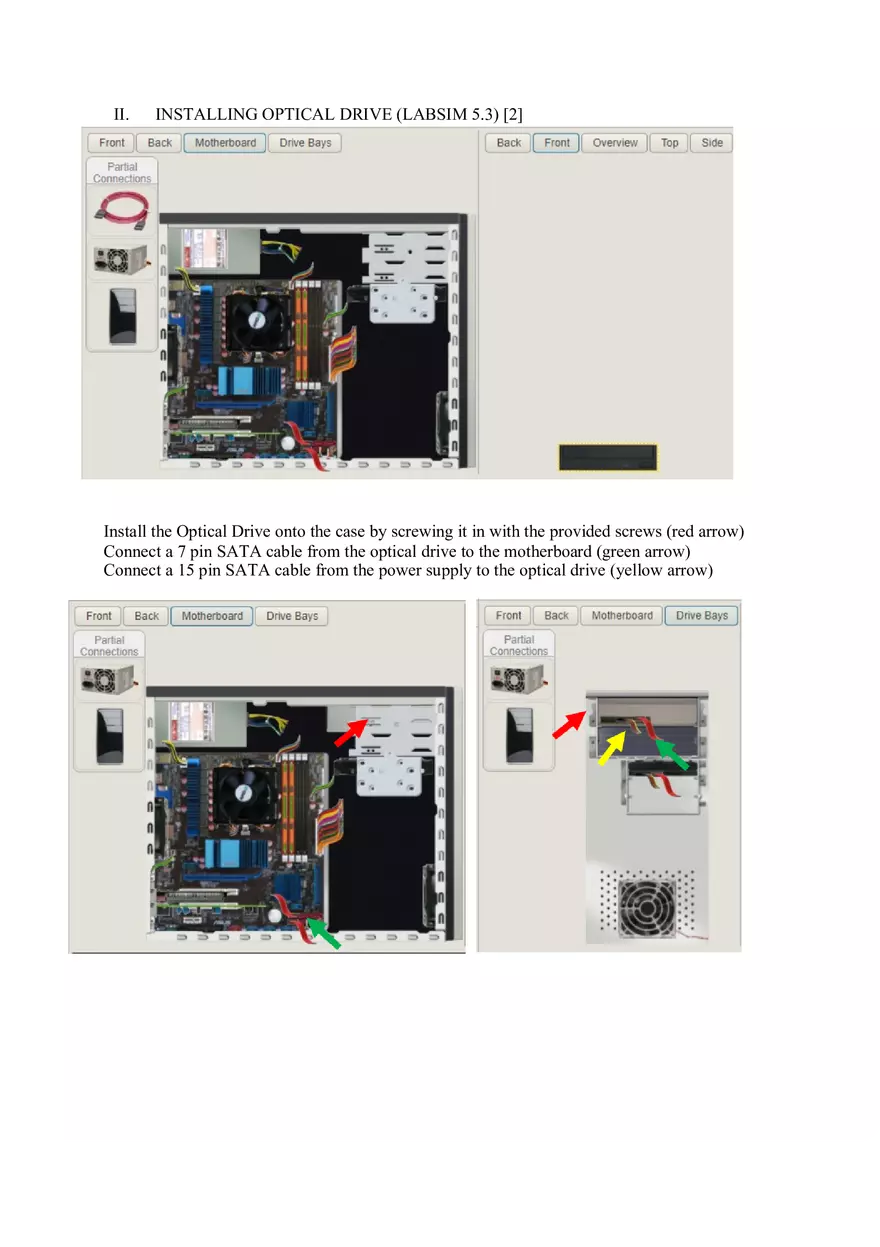

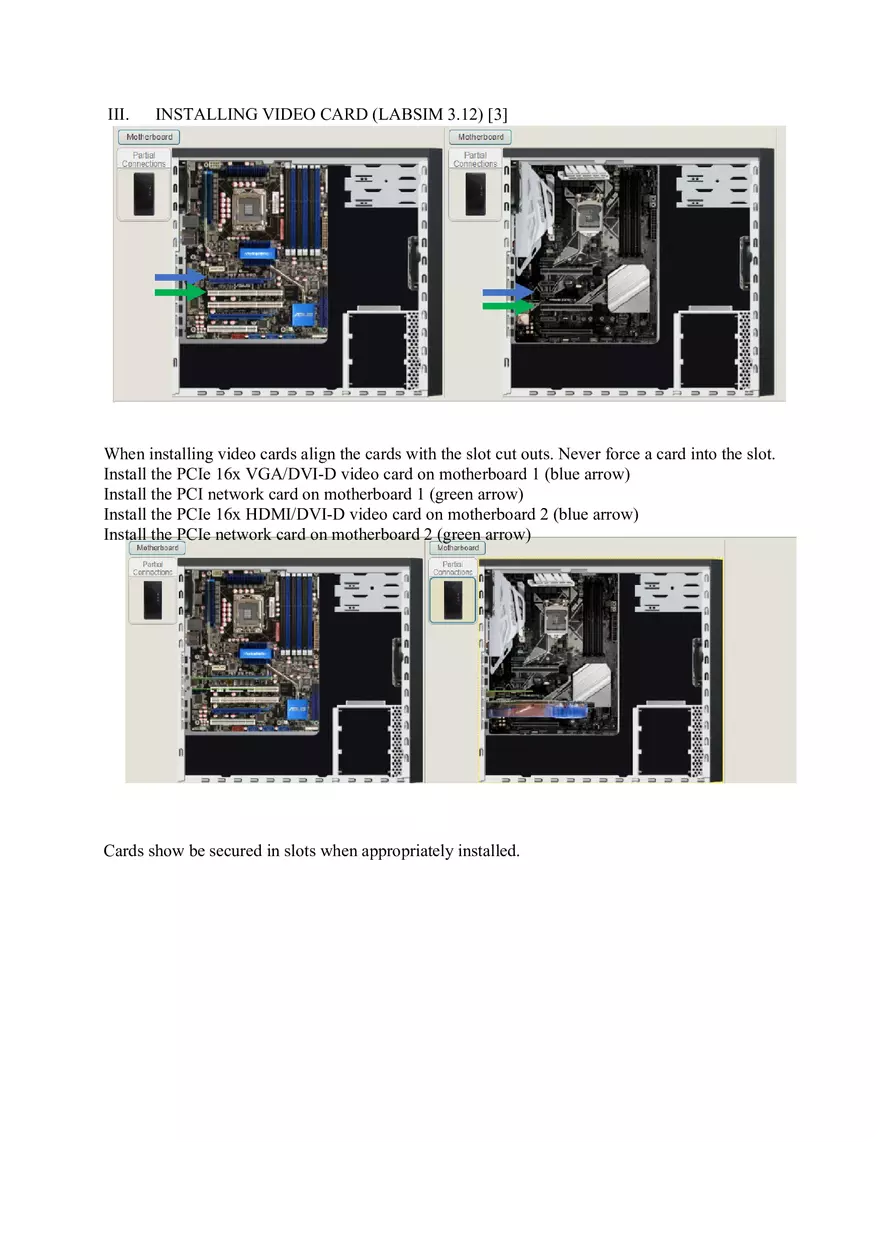

PC Build and Manual PC Build & Manual Part 2 I. Installing Hard Drive (LabSim 5.2) II. Installing Optical Drive (LabSim 5.3) III. Installing Video Card (LabSim 3.12) IV. Connecting Monitors, Keyboard, and Mouse (LabSim 4.0) V. BIOS Configuration (LabSim 3.10) I. INSTALLING HARD DRIVE (LABSIM 5.2) [1] Remove power from the device. Install the 2 hard drive into the drive bay. Secure the drives by screwing them into the case with the appropriate screws (blue arrow) Connect a SATA cable from each hard drive to the SATA slots on the motherboard (red arrow) Connect power to the hard drives using the 8 pin SATA power connector (green arrow) Install the port connector by screwing it into the front of the case (purple arrow) Connect the SATA connector to a SATA slot on the motherboard (orange arrow) Connect the port connector to an open PCI slot on the motherboard (yellow arrow) II. INSTALLING OPTICAL DRIVE (LABSIM 5.3) [2] Install the Optical Drive onto the case by screwing it in with the provided screws (red arrow) Connect a 7 pin SATA cable from the optical drive to the motherboard (green arrow) Connect a 15 pin SATA cable from the power supply to the optical drive (yellow arrow) III. INSTALLING VIDEO CARD (LABSIM 3.12) [3] When installing video cards align the cards with the slot cut outs. Never force a card into the slot. Install the PCIe 16x VGA/DVI-D video card on motherboard 1 (blue arrow) Install the PCI network card on motherboard 1 (green arrow) Install the PCIe 16x HDMI/DVI-D video card on motherboard 2 (blue arrow) Install the PCIe network card on motherboard 2 (green arrow) Cards show be secured in slots when appropriately installed. IV. CONNECTING MONITORS, KEYBOARD, AND MOUSE (LABSIM 4.0) [4] Connect the mouse and keyboard to the KVM using USB (orange arrow) Connect the monitor to the KVM.by using an HDMI cable (red arrow) Connect the power adapter to the KVM slot (DC SV) and plug the other end to the power strip Use one KVM Cable to connect the left computer to the slots labeled PC1. Connect the HDMI to the back of the CPU to the KVM (green arrow) Connect the USB to the back of the CPU to the KVM (blue arrow) Connect the Mic to the back of the CPU to the KVM (yellow arrow) Repeat for the second computer using slots PC2 Verify the KVM can toggle between computers by pressing “SELECT” on the KVM. Ensure all peripheral devices (monitor, mouse, keyboard and microphone) work for both computers. V. BIOS CONFIGURATION (LABSIM 3.10) [5] [6] To enter the BIOS, restart the system and press “f2” during the restart. General > System Information Bios Version = 1610 Memory Installed = 4096 Processor Type = Intel (r) Core (tm) i7 CPU Device Information = SATA-1 SATA-2 SATA-3 (Totaling 3) System Configuration > Integrated NIC System Configuration > USB Configuration To erase the CMOS locate the battery (see arrow) and remove it. Replace the battery and verify in BIOS that the CMOS was erased.
