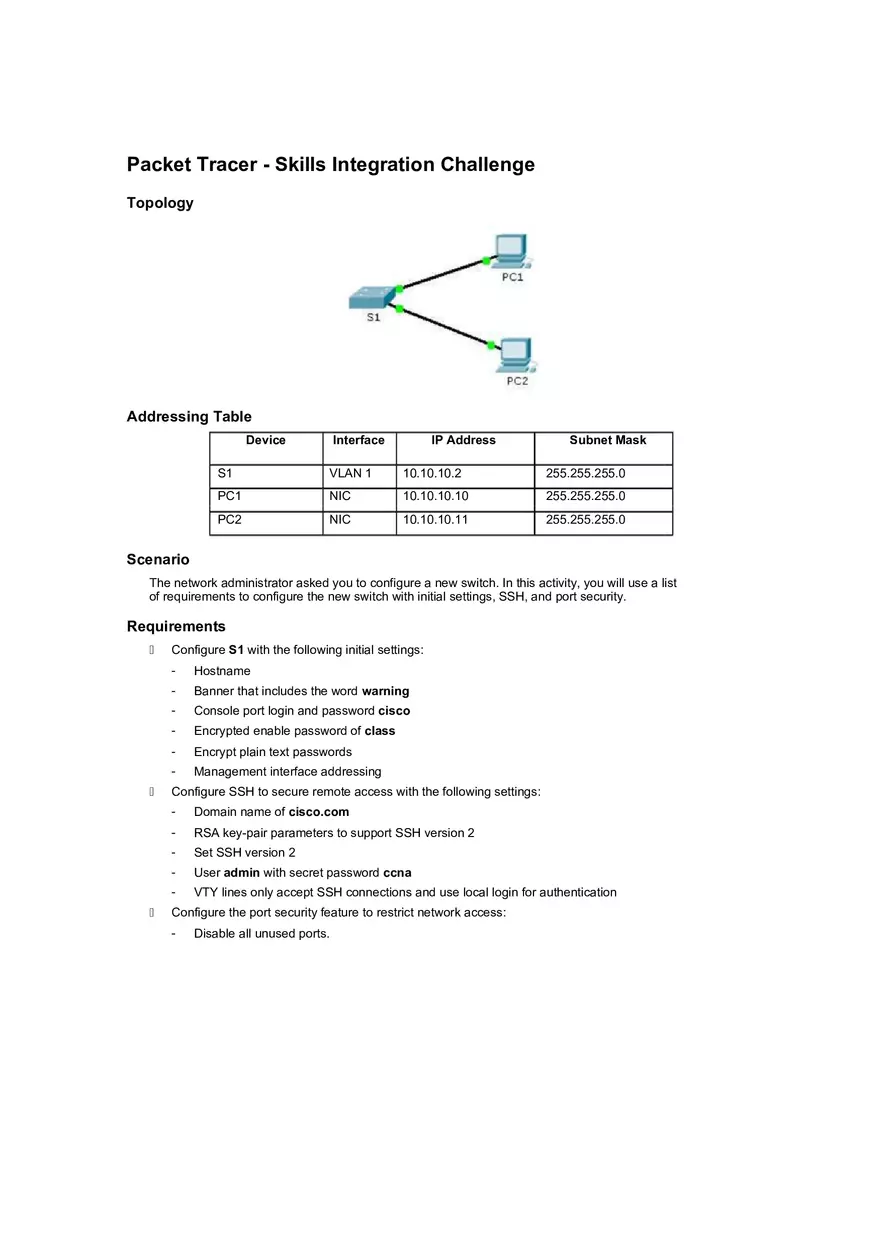

Packet Tracer - Skills Integration Challenge Topology Addressing Table Device Interface IP Address Subnet Mask S1 VLAN 1 10.10.10.2 255.255.255.0 PC1 NIC 10.10.10.10 255.255.255.0 PC2 NIC 10.10.10.11 255.255.255.0 Scenario The network administrator asked you to configure a new switch. In this activity, you will use a list of requirements to configure the new switch with initial settings, SSH, and port security. Requirements    Configure S1 with the following initial settings: - Hostname - Banner that includes the word warning - Console port login and password cisco - Encrypted enable password of class - Encrypt plain text passwords - Management interface addressing Configure SSH to secure remote access with the following settings: - Domain name of cisco.com - RSA key-pair parameters to support SSH version 2 - Set SSH version 2 - User admin with secret password ccna - VTY lines only accept SSH connections and use local login for authentication Configure the port security feature to restrict network access: - Disable all unused ports. Packet Tracer - Skills Integration Challenge - Set the interface mode to access. - Enable port security to allow only two hosts per port. - Record the MAC address in the running configuration. - Ensure that port violations disable ports.
