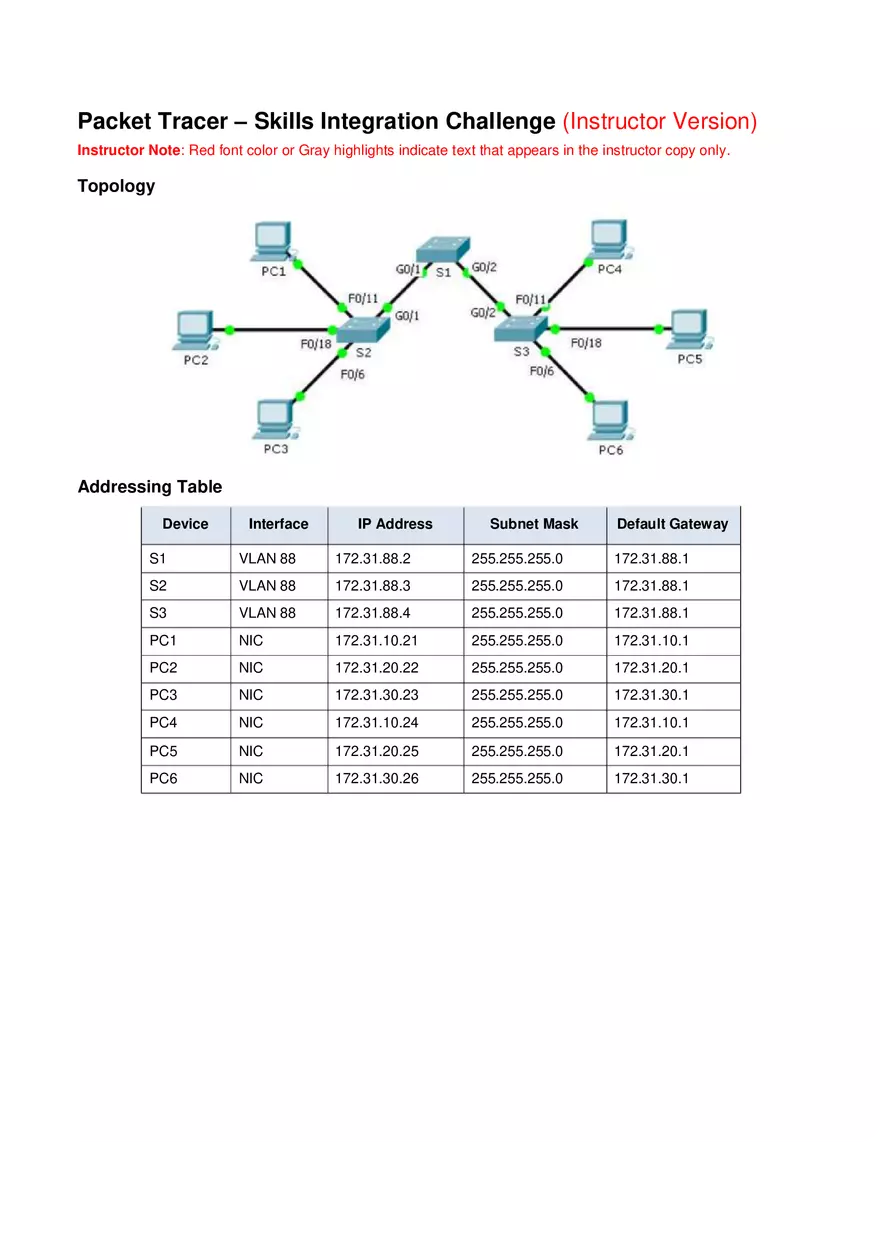

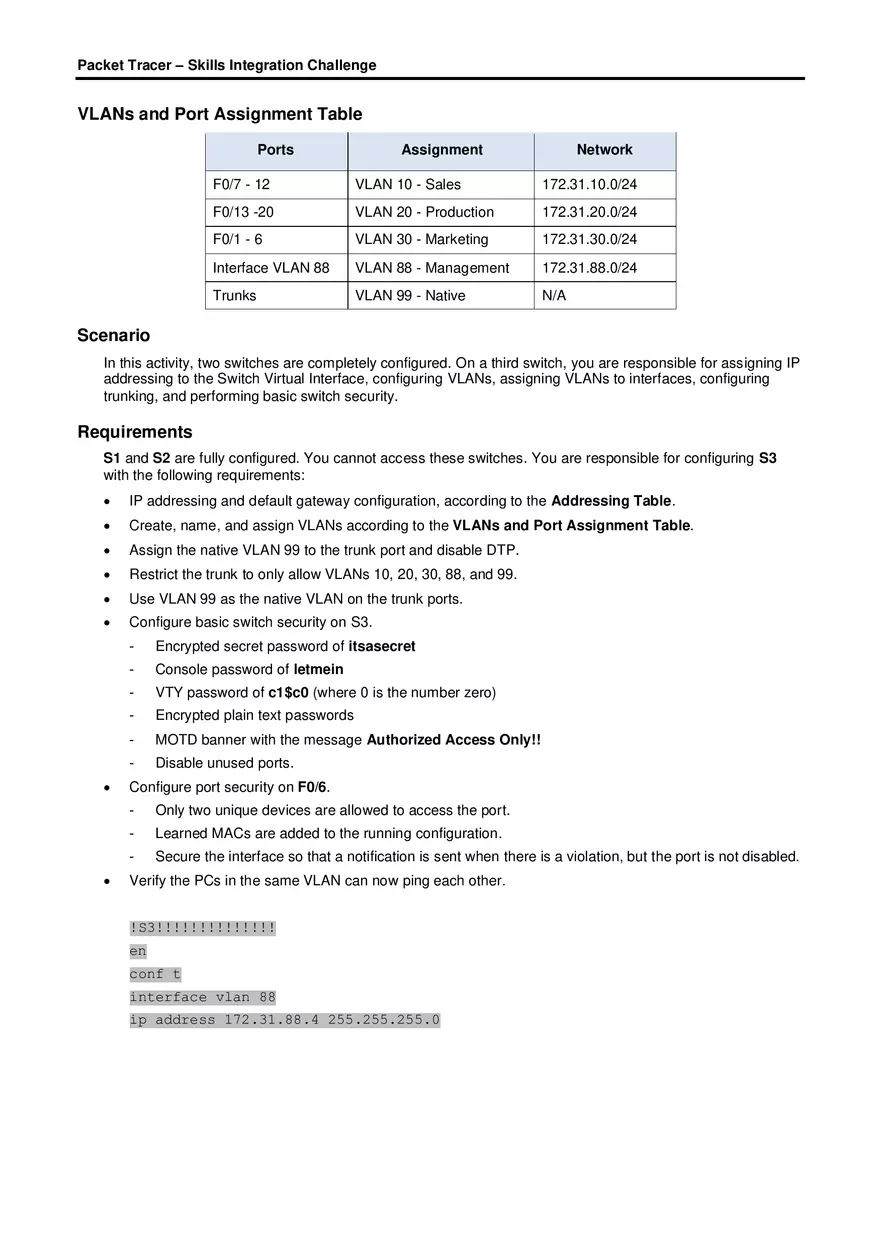

Packet Tracer – Skills Integration Challenge (Instructor Version) Instructor Note: Red font color or Gray highlights indicate text that appears in the instructor copy only. Topology Addressing Table Device Interface IP Address Subnet Mask Default Gateway S1 VLAN 88 172.31.88.2 255.255.255.0 172.31.88.1 S2 VLAN 88 172.31.88.3 255.255.255.0 172.31.88.1 S3 VLAN 88 172.31.88.4 255.255.255.0 172.31.88.1 PC1 NIC 172.31.10.21 255.255.255.0 172.31.10.1 PC2 NIC 172.31.20.22 255.255.255.0 172.31.20.1 PC3 NIC 172.31.30.23 255.255.255.0 172.31.30.1 PC4 NIC 172.31.10.24 255.255.255.0 172.31.10.1 PC5 NIC 172.31.20.25 255.255.255.0 172.31.20.1 PC6 NIC 172.31.30.26 255.255.255.0 172.31.30.1 Packet Tracer – Skills Integration Challenge VLANs and Port Assignment Table Ports Assignment Network F0/7 - 12 VLAN 10 - Sales 172.31.10.0/24 F0/13 -20 VLAN 20 - Production 172.31.20.0/24 F0/1 - 6 VLAN 30 - Marketing 172.31.30.0/24 Interface VLAN 88 VLAN 88 - Management 172.31.88.0/24 Trunks VLAN 99 - Native N/A Scenario In this activity, two switches are completely configured. On a third switch, you are responsible for assigning IP addressing to the Switch Virtual Interface, configuring VLANs, assigning VLANs to interfaces, configuring trunking, and performing basic switch security. Requirements S1 and S2 are fully configured. You cannot access these switches. You are responsible for configuring S3 with the following requirements:  IP addressing and default gateway configuration, according to the Addressing Table .  Create, name, and assign VLANs according to the VLANs and Port Assignment Table.  Assign the native VLAN 99 to the trunk port and disable DTP.  Restrict the trunk to only allow VLANs 10, 20, 30, 88, and 99.  Use VLAN 99 as the native VLAN on the trunk ports.    Configure basic switch security on S3. - Encrypted secret password of itsasecret - Console password of letmein - VTY password of c1$c0 (where 0 is the number zero) - Encrypted plain text passwords - MOTD banner with the message Authorized Access Only!! - Disable unused ports. Configure port security on F0/6. - Only two unique devices are allowed to access the port. - Learned MACs are added to the running configuration. - Secure the interface so that a notification is sent when there is a violation, but the port is not disabled. Verify the PCs in the same VLAN can now ping each other. !S3!!!!!!!!!!!!!! en conf t interface vlan 88 ip address 172.31.88.4 255.255.255.0 Packet Tracer – Skills Integration Challenge no shutdown ip default-gateway 172.31.88.1 !VLAN names are accepted as long as the first 3 letters are correct vlan 10 name Sales vlan 20 name Production vlan 30 name Marketing vlan 88 name Management vlan 99 name Native !Ports Fa0/6, Fa0/11 and Fa0/18 are checked for VLAN assignment interface range fa0/7 - 12 switchport mode access switchport access vlan 10 interface range fa0/13 - 20 switchport mode access switchport access vlan 20 interface range fa0/1 - 6 switchport mode access switchport access vlan 30 interface g0/2 switchport trunk native vlan 99 switchport trunk allowed vlan 10,20,30,88,99 switchport mode trunk switchport nonegotiate enable secret itsasecret line console 0 password letmein login line vty 0 15 password c1$c0 login service password-encryption !Only the first 3 letters of the word ‘Access’ in banner text are checked banner motd $Authorized Access Only!!$ int fa0/6 switchport port-security Packet Tracer – Skills Integration Challenge switchport port-security maximum 2 switchport port-security mac-address sticky switchport port-security violation restrict !Ports fa0/4, fa0/14 and fa0/24 are checked for shutdown interface range fa0/1 - 5, fa0/7 - 10, fa0/12 - 17, fa0/19 - 24, g0/1 shutdown
