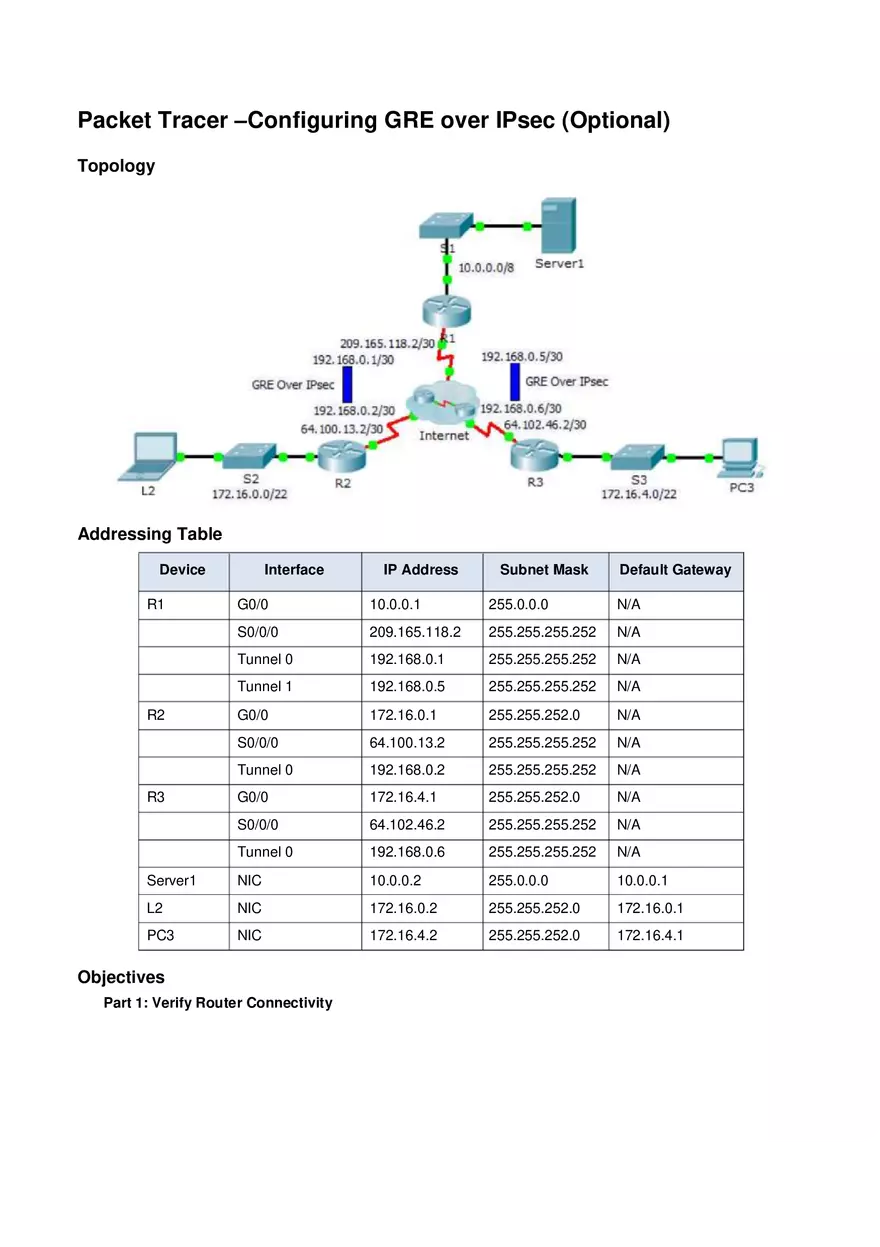

Packet Tracer –Configuring GRE over IPsec (Optional) Topology Addressing Table Device R1 R2 R3 Interface IP Address Subnet Mask Default Gateway G0/0 10.0.0.1 255.0.0.0 N/A S0/0/0 209.165.118.2 255.255.255.252 N/A Tunnel 0 192.168.0.1 255.255.255.252 N/A Tunnel 1 192.168.0.5 255.255.255.252 N/A G0/0 172.16.0.1 255.255.252.0 N/A S0/0/0 64.100.13.2 255.255.255.252 N/A Tunnel 0 192.168.0.2 255.255.255.252 N/A G0/0 172.16.4.1 255.255.252.0 N/A S0/0/0 64.102.46.2 255.255.255.252 N/A Tunnel 0 192.168.0.6 255.255.255.252 N/A Server1 NIC 10.0.0.2 255.0.0.0 10.0.0.1 L2 NIC 172.16.0.2 255.255.252.0 172.16.0.1 PC3 NIC 172.16.4.2 255.255.252.0 172.16.4.1 Objectives Part 1: Verify Router Connectivity Packet Tracer – Configuring GRE Over IPsec (Optional) Part 2: Enable Security Features Part 3: Configure IPSec Parameters Part 4: Configure GRE Tunnels over IPSec Part 5: Verify Connectivity Scenario You are the network administrator for a company which wants to set up a GRE tunnel over IPsec to remote offices. All networks are locally configured, and need only the tunnel and the encryption configured. Part 1: Verify Router Connectivity Step 1: Ping R2 and R3 from R1. a. From R1, ping the IP address of S0/0/0 on R2. b. From R1, ping the IP address of S0/0/0 on R3. Step 2: Ping Server1 from L2 and PC3. Attempt to ping the IP address of Server1 from L2. We will repeat this test after configuring the GRE tunnel over IPsec. What were the ping results? Why? Step 3: Ping PC3 from L2. Attempt to ping the IP address of PC3 from L2. We will repeat this test after configuring the GRE tunnel over IPsec. What were the ping results? Why? Part 2: Enable Security Features Step 1: Activate securityk9 module. The Security Technology Package license must be enabled to complete this activity. a. Issue the show version command in the user EXEC or privileged EXEC mode to verify that the Security Technology Package license is activated. ---------------------------------------------------------------Technology Technology-package Technology-package Current Type Next reboot ----------------------------------------------------------------ipbase ipbasek9 Permanent ipbasek9 security None None None uc None None None data None None None Configuration register is 0x2102 b. If not, activate the securityk9 module for the next boot of the router, accept the license, save the configuration, and reboot. R1(config)# license boot module c2900 technology-package securityk9 Packet Tracer – Configuring GRE Over IPsec (Optional) R1(config)# end R1# copy running-config startup-config R1# reload c. After the reloading is completed, issue the show version again to verify the Security Technology Package license activation. Technology Package License Information for Module:'c2900' ---------------------------------------------------------------Technology Technology-package Technology-package Current Type Next reboot ----------------------------------------------------------------ipbase ipbasek9 Permanent ipbasek9 security securityk9 Evaluation securityk9 uc data None None None None None None d. Repeat Steps 1a to 1c with R2 and R3. Part 3: Configure IPsec Parameters Step 1: Identify interesting traffic on R1. a. Configure ACL 101 to identify the traffic from the LAN on R1 to the LAN on R2 and R3 as interesting. This interesting traffic will trigger the IPsec VPN to be implemented whenever there is traffic between the R1 and R2 - R3 LANs. All other traffic sourced from the LANs will not be encrypted. Remember that because of the implicit deny any, there is no need to add the statement to the list. R1(config)# access-list 101 permit ip 10.0.0.0 0.255.255.255 172.16.0.0 0.0.3.255 b. Repeat Step 1a to configure ACL 101 to identify the traffic on the LAN of R3 as interesting. Step 2: Configure the ISAKMP Phase 1 properties on R1. a. Configure the crypto ISAKMP policy 101 properties on R1 along with the shared crypto key cisco. Default values do not have to be configured therefore only the encryption, key exchange method, and DH method must be configured. R1(config)# crypto isakmp policy 101 R1(config-isakmp)# encryption aes R1(config-isakmp)# authentication pre-share R1(config-isakmp)# group 5 R1(config-isakmp)# exit b. Generate isakmp keys for each peer of R1. R1(config)# crypto isakmp key cisco address 64.100.13.2 R1(config)# crypto isakmp key cisco address 64.102.46.2 Packet Tracer – Configuring GRE Over IPsec (Optional) Step 3: Configure the ISAKMP Phase 2 properties on R1. a. Create the transform-set VPN-SET to use esp-aes and esp-sha-hmac. Then create the crypto map VPN-MAP that binds all of the Phase 2 parameters together. Use sequence number 101 and identify it as an ipsec-isakmp map. R1(config)# crypto ipsec transform-set R1_Set esp-aes esp-sha-hmac R1(config)# crypto map R1_Map 101 ipsec-isakmp R1(config-crypto-map)# set peer 64.100.13.2 R1(config-crypto-map)# set peer 64.102.46.2 R1(config-crypto-map)# set transform-set R1_Set R1(config-crypto-map)# match address 101 R1(config-crypto-map)# exit Step 4: Configure the crypto map on the outgoing interface. Finally, bind the R1_Map crypto map to the outgoing Serial 0/0/0 interface. Note: This is not graded. R1(config)# interface S0/0/0 R1(config-if)# crypto map R1_Map Step 5: Configure IPsec Parameters on R2 and R3 Repeat Steps 1-4 on R2 and R3. Modify the set, and map names from R1 to R2 and R3. Use the same extended ACL number, 101. Note that each router only needs one encrypted connection to R1. There is no encrypted connection between R2 and R3. Part 4: Configure GRE Tunnels over IPSec Step 1: Configure the Tunnel interfaces of R1. a. Enter into the configuration mode for R1 Tunnel 0. R1(config)# interface tunnel 0 b. Set the IP address as indicated in the Addressing Table. R1(config-if)# ip address 192.168.0.1 255.255.255.252 c. Set the source and destination for the endpoints of Tunnel 0. R1(config-if)# tunnel source s0/0/0 R1(config-if)# tunnel destination 64.100.13.2 d. Configure Tunnel 0 to convey IP traffic over GRE. R1(config-if)# tunnel mode gre ip e. The Tunnel 0 interface should already be active. In the event that it is not, treat it like any other interface. f. Repeat Steps 1a-f to create the Tunnel 1 interface to R3. Change the addressing where appropriate. Step 2: Configure the Tunnel 0 interface of R2 and R3. a. Repeat Steps 1a – e with R2. Be sure to change the IP addressing as appropriate. b. Repeat Steps 1a – e with R3. Be sure to change the IP addressing as appropriate. Packet Tracer – Configuring GRE Over IPsec (Optional) Step 3: Configure a route for private IP traffic. a. Define a route from R1 to the 172.16.0.0 and 172.16.4.0 networks using the next-hop address of the tunnel interface. b. Define a route from R2 and R3 to the 10.0.0.0 network using the next-hop address of the tunnel interface. Part 5: Verify Connectivity Step 1: Ping Server1 from L2 and PC3. a. Attempt to ping the IP address of Server1 from L2 and PC3. The ping should be successful. b. Attempt to ping the IP address of L2 from PC3. The ping should fail because there is no tunnel between the two networks.
