22 Subject: LDIC Notes
Unit 1 : Operational Amplifier
Introduction of ICs Operational Amplifier
•
An operational amplifier is a direct coupled high gain amplifier usually consisting of one
or more differential amplifier and usually followed by a level translator and an output
stage.
•
An operational amplifier is available as a single integrated circuit package.
•
The operational amplifier is a versatile device that can be used to amplify DC as well as
AC input signals and was originally designed for computing such mathematical functions
as addition, subtraction, multiplication and integration.
•
With the addition of suitable external feedback components, the modern day op-amp
can be used for a variety of applications such as AC and DC signal amplification, active
filters, oscillator, comparators and regulators, and others Block Diagram of Op-amp.
Since an op-amp is a multi stage amplifier it can be represented by a block diagram as shown in
the following figure.
Non-inverting input terminal
Dual Input
Balanced output
Dual Input
Unbalanced Output
emitter follower
complementary &
with constant current bias Symmetry push-pull amp.
•
The input stage generally provides most of the voltage gain of the amplifier and also
establishes the input resistance of the op-amp
•
Because of the direct coupling used, the DC voltage at the output of the intermediate
stage is well above the ground potential. Therefore, generally, the level translator circuit
is used after the intermediate stage
•
The final stage is usually a push-pull complimentary amplifier output stage. The output
stage increases the output voltage swing and raises the current supplying capability of
op-amp. A well designed output stage also provides low output resistance.
The IDEAL Op-amp
•
An IDEAL op-amp would exhibit the following electrical characteristics.
– Infinite voltage gain, A
– Infinite input resistance Ri
– Zero output resistance Ro
– Zero output voltage when input voltage is zero. – Infinite bandwidth – any signal can be amplified without attenuation
– Infinite common mode rejection ratio
–
Infinite slew rate so that output voltage changes occur simultaneously with input
voltage changes.
Practical Op-amp.
Input offset voltage: Input offset voltage Vio is the differential input voltage that exists
between two input terminals of an op-amp without any external inputs applied.

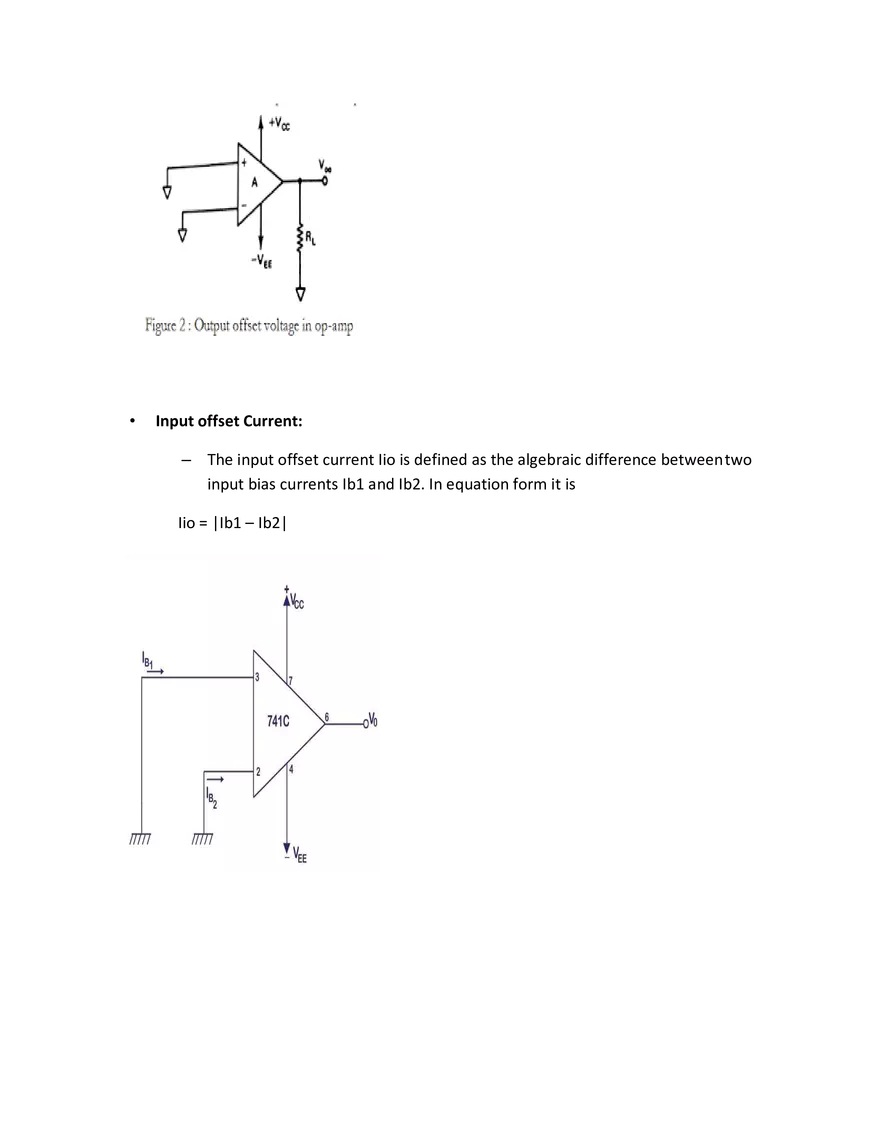

Output Offset Voltage:
– The output voltage caused by mismatching between two input terminals is called
the output offset voltage Voo.
– The output offset voltage Voo is a DC voltage, it may be +ve or –ve in polarity
depending on whether the potential differences between the two input
terminals is +ve or –ve. •
Input offset Current:
– The input offset current Iio is defined as the algebraic difference between two
input bias currents Ib1 and Ib2. In equation form it is
Iio = |Ib1 – Ib2| •

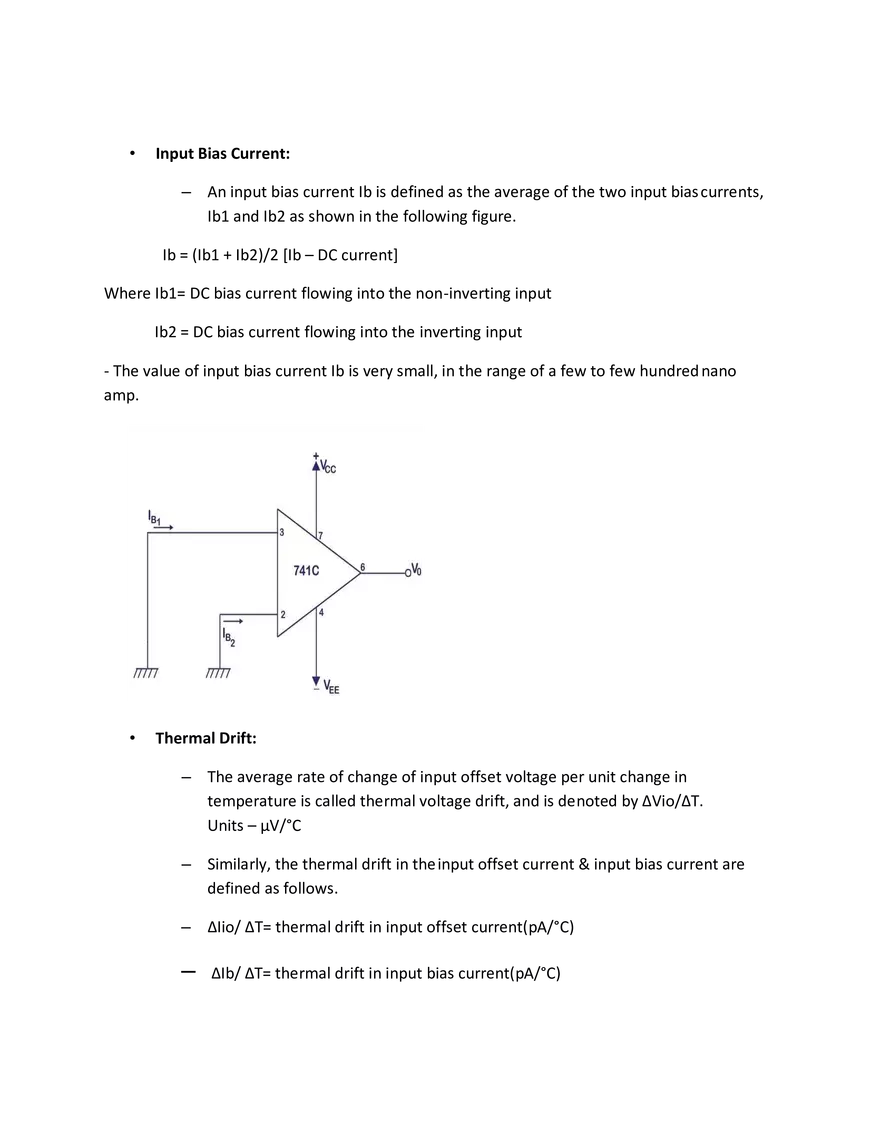

Input Bias Current:
– An input bias current Ib is defined as the average of the two input bias currents,
Ib1 and Ib2 as shown in the following figure.
Ib = (Ib1 + Ib2)/2 [Ib – DC current]
Where Ib1= DC bias current flowing into the non-inverting input
Ib2 = DC bias current flowing into the inverting input
- The value of input bias current Ib is very small, in the range of a few to few hundred nano
amp.
•
Thermal Drift:
– The average rate of change of input offset voltage per unit change in
temperature is called thermal voltage drift, and is denoted by ΔVio/ΔT.
Units – μV/°C
– Similarly, the thermal drift in the input offset current & input bias current are
defined as follows.
– ΔIio/ ΔT= thermal drift in input offset current(pA/°C)
–
ΔIb/ ΔT= thermal drift in input bias current(pA/°C) •
Supply Voltage Rejection Ratio (SVRR) or Power Supply Rejection Ratio (PSRR):
– The change in op-amp’s input offset voltage caused by variations in the supply
voltages is called Supply voltage Rejection Ratio or Power Supply Rejection Ratio.
– This is expressed either in microvolts per volt or in decibles
–
•
For example, SVRR for µA741 is ΔVio/ΔV =150 µV/V maximum and it is 76.48 in
DB.
Common Mode Rejection Ratio (CMRR):
– It can be defined as the ratio of the differential gain AD to the common mode
gain Acm, that is CMRR = Ad/Acm
–
It is a measure of the degree of matching between two input terminals, that is,
the larger the value of CMRR, the better is the matching between the two input
terminals and the smaller is the output common mode voltage Vocm. Differences between Ideal and Practical Op-amp
Characteristics
Ideal Op-amp
Practical O
Voltage gain
Infinite
High
Input resistance
Infinite
High
Output resistance
Zero
Low
Output voltage when input voltage is zero
Zero
Low
Band width
Infinite
High
CMRR
Infinite
High
Slew Rate
Infinite
High
Characteristics of Op-amp
DC Characteristics
DC Characteristics include input bias current, input offset current, Input offset voltage, Output
offset voltage and Thermal drift.
AC Characteristics:
AC characteristics include
– Frequency Response
– Slew Rate •
Frequency Response:
– Ideally an op-amp should have an infinite band width.
– The practical op-amp gain, however, decreases at higher frequencies.
– What is the cause for the gain of the op-amp to roll-off after certain frequency is
reached?
– Obviously, there must be a capacitive component in the equivalent circuit of the
op-amp. This capacitace is due to the physical characteristics of the device(BJT or
FET) used and internal construction of op-amp.
– For an op-amp with only one break frequency, all the capacitor effects can be
represented by a single capacitor C as shown in figure 3.4 (a). •
The open loop voltage gain of an op-amp with only one corner frequency is obtained
from Figure 3.4(a) as
Vo = -j Xc/(Ro-jXc) AolVd
=> A = Vo/Vd = Aol/(1+j2πfRoC) A = Aol/(1+jf/f1) where f1 = 1/2π Ro C
•
f1 is the corner frequency or the upper 3 dB frequency of the op-amp.
•
The magnitude and the phase angle of the open loop voltage gain are function of
frequency and can be written as
•
|A| = Aol/(√(1+(f/f1)^2)
ᶲ = -tan-1(f/f1)
•

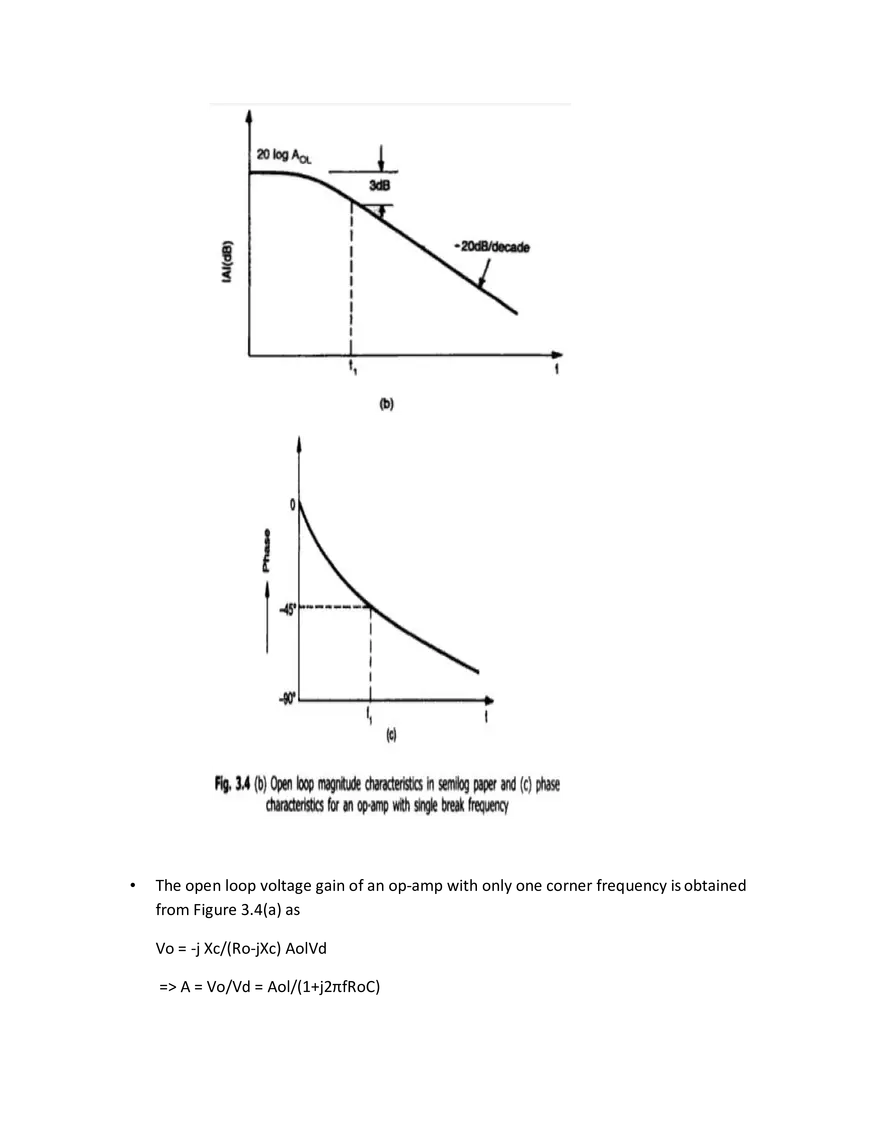

these are shown in Fig 3.4(b) and 3.4 ( c )
•
It can be seen that
•
For frequency f<>f1, the gain rolls off at the rate of -20dB/decade.
•
It can further be seen from the phase characteristics that the phase angle is zero at
frequency f=0.
•
At corner frequency f1, the phase angle is -45° and at infinite frequency the phase angle
is -90°. This shows that a maximum of 90° phase change can occur in an op-amp with
a single capacitor.
•
Slew Rate:
•
•
The slew rate is defined as the maximum rate of change of output voltage per
unit of time and is expressed in volts per micro seconds. In equation form, SR =
(dVo/dt)|maximum V/μs.
•
Slew rate indicates how rapidly the output of an op-amp can change in response
to changes in the input frequency.
•
One of the drawbacks of the 741C is it’s low slew rate(0.5 V/μs), which limits its
use in relatively high frequency applications, especially in oscillators,
comparators and filters
In high-speed op-amps especially, the slew rate is significantly improved. For instance,
the LM138 has a slew rate of 70 V/μs. •
What causes the slew rate? There is usually a capacitor with in or outside an op-amp to
prevent oscillation. It is this capacitor which prevents the output voltage from
responding immediately to a fast changing input.
•
The rate at which the voltage across the capacitor Vc increases is given by dVc/dt = I/C.
Here, I is the maximum current furnished by op-amp to the capacitor C. This means that
for obtaining faster slew rate, op-amp should have either a higher current or a small
compensating capacitor.
•
For the 741C, that maximum internal capacitor charging current is limited to about 15
μA. So the slew rate of 741C is
SR = dVc/dt|max = Imax/C = 15 μA/30 PF = 0.5 V/ μs.
741 Op-amp and It’s features
•
The μA741 is a high performance monolithic operation amplifier constructed using the
planar epitaxial process.
The op-amp features are given below
1. High common mode voltage range make the μA741 ideal for use as voltage follower.
2. The high gain and wide range of operating voltage provides superior performance in
integrator, summing amplifier, and general feedback applications.
3. 741 is internally frequency compensated op-amp 4. 741 is available in all 3 packages viz 8-pin metal can, 10-pin flat pack, and 8 or 14 pin

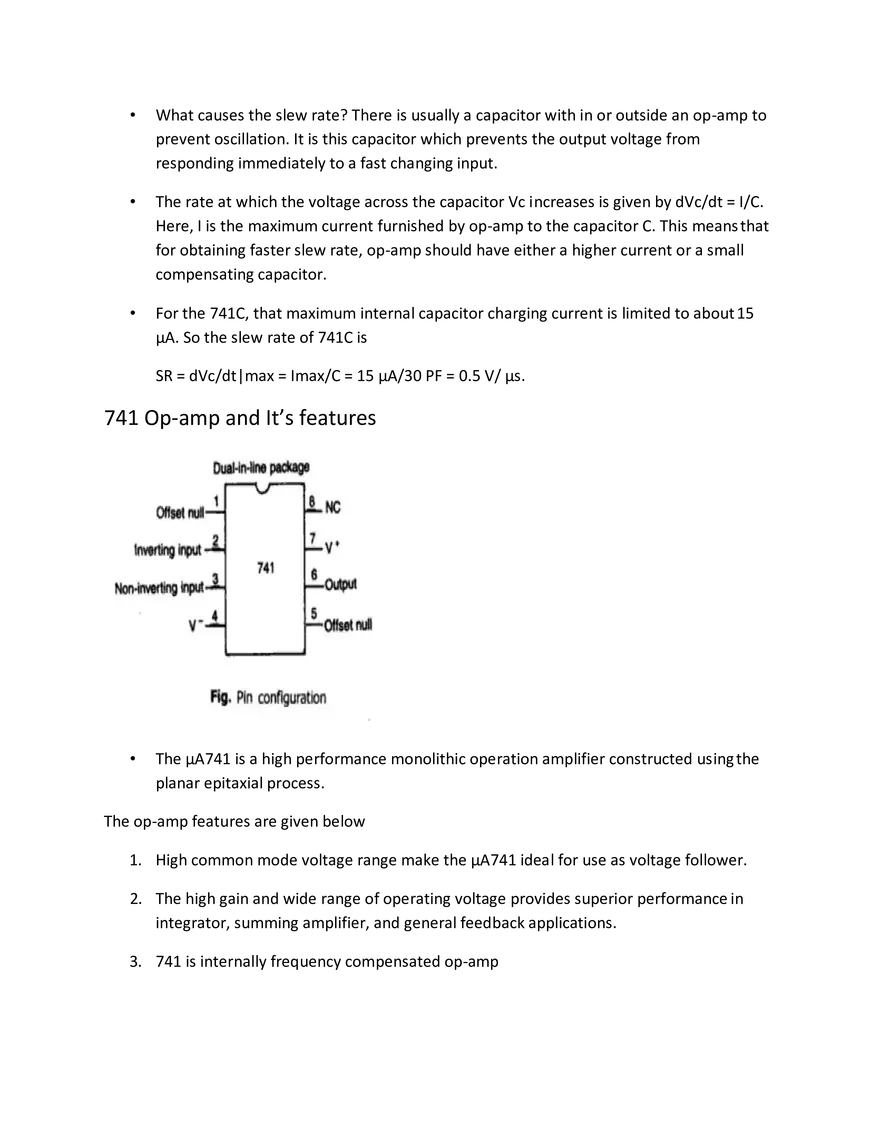

DIP.
5. Offset voltage null capability is available.
6. It consumes low power
Modes of op-amp
•
Basically there are 2 modes of op-amp. They are
– Inverting Amplifier
–
Non-Inverting Amplifier
Inverting Amplifier
•
There are two types of connecting inverting amplifier. They are
– Open loop inverting amplifier
– Closed loop inverting amplifier
Open Loop Inverting Amplifier
•

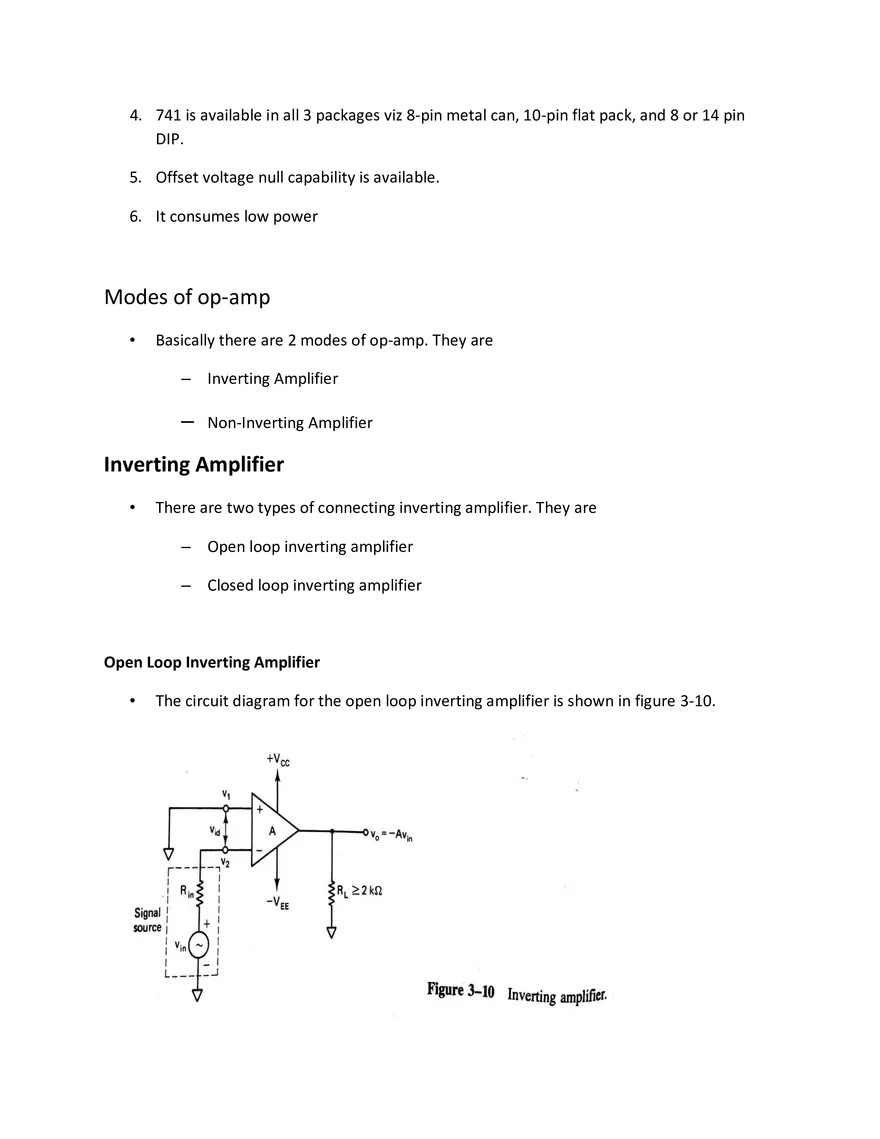

The circuit diagram for the open loop inverting amplifier is shown in figure 3-10. •
The equation for the output voltage is given by
Vo= A(V1 – V2)
where A – large signal voltage gain
V1 – voltage at non-inverting input terminal
V2 – voltage at inverting input terminal
here V1 = 0 and V2 = Vi therefore
Vo = A (-Vi) = - A Vi
•
The negative sign indicates that the output voltage is out of phase with respect to the
input by 180° or is of opposite polarity.
•
Thus in the inverting amplifier the input signal is amplified by gain A and is also inverted
at the output.
Closed Loop Inverting amplifier
•
This is perhaps the most widely used of all the op-amp circuits.
•

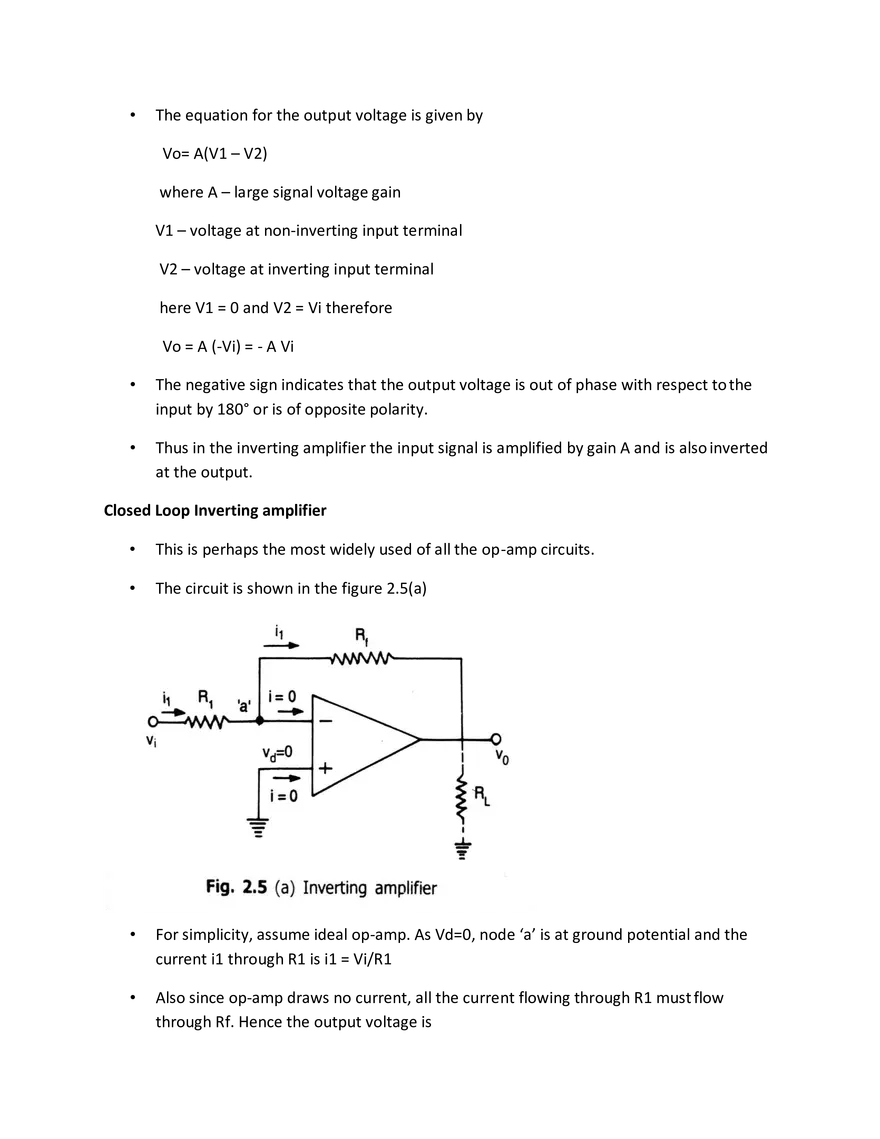

The circuit is shown in the figure 2.5(a)
•
For simplicity, assume ideal op-amp. As Vd=0, node ‘a’ is at ground potential and the
current i1 through R1 is i1 = Vi/R1
•
Also since op-amp draws no current, all the current flowing through R1 must flow
through Rf. Hence the output voltage is Vo = -i1 Rf = -(Vi/R1) Rf
therefore the gain of the closed loop inverting amplifier is Acl = Vo/Vi = -Rf/R1
•
The –ve sign indicates a phase shift of 180° between Vi and Vo.
Example 2.2:
•

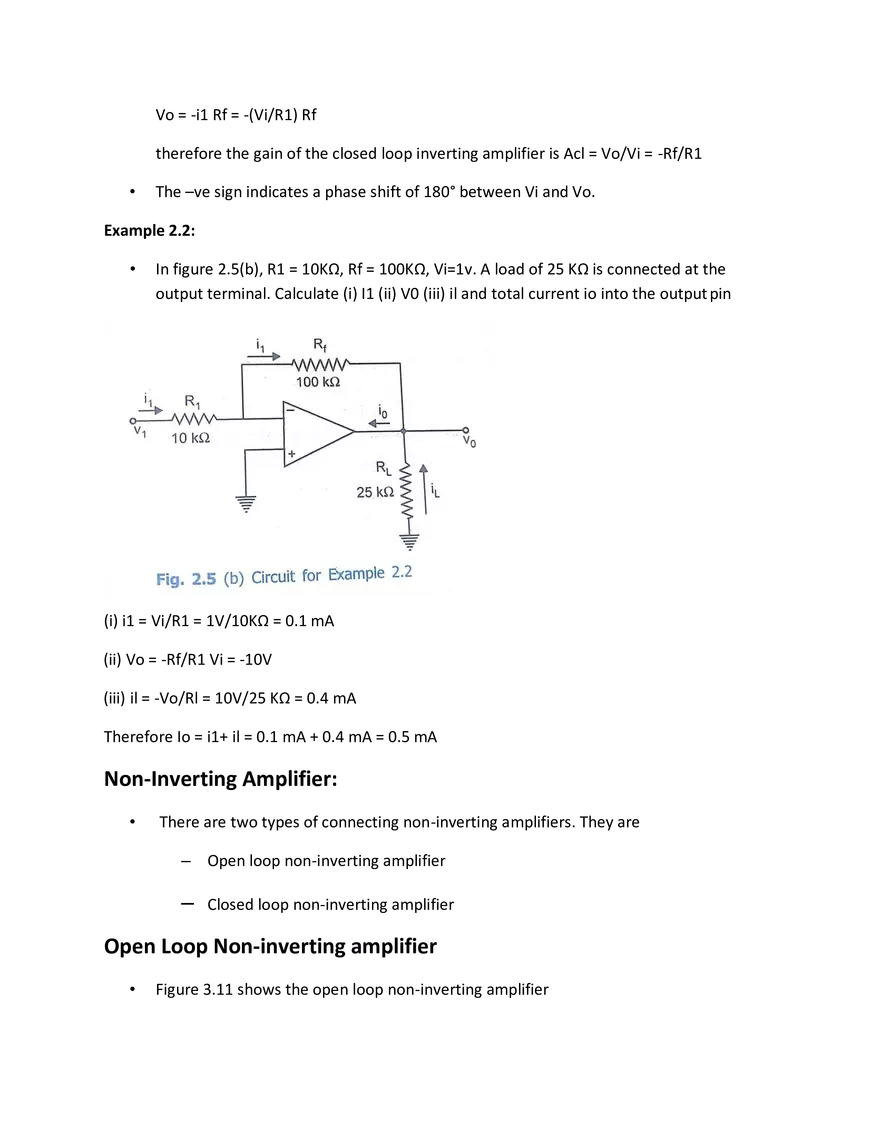

In figure 2.5(b), R1 = 10KΩ, Rf = 100KΩ, Vi=1v. A load of 25 KΩ is connected at the
output terminal. Calculate (i) I1 (ii) V0 (iii) il and total current io into the output pin
(i) i1 = Vi/R1 = 1V/10KΩ = 0.1 mA
(ii) Vo = -Rf/R1 Vi = -10V
(iii) il = -Vo/Rl = 10V/25 KΩ = 0.4 mA
Therefore Io = i1+ il = 0.1 mA + 0.4 mA = 0.5 mA
Non-Inverting Amplifier:
•
There are two types of connecting non-inverting amplifiers. They are
– Open loop non-inverting amplifier
–
Closed loop non-inverting amplifier
Open Loop Non-inverting amplifier
•

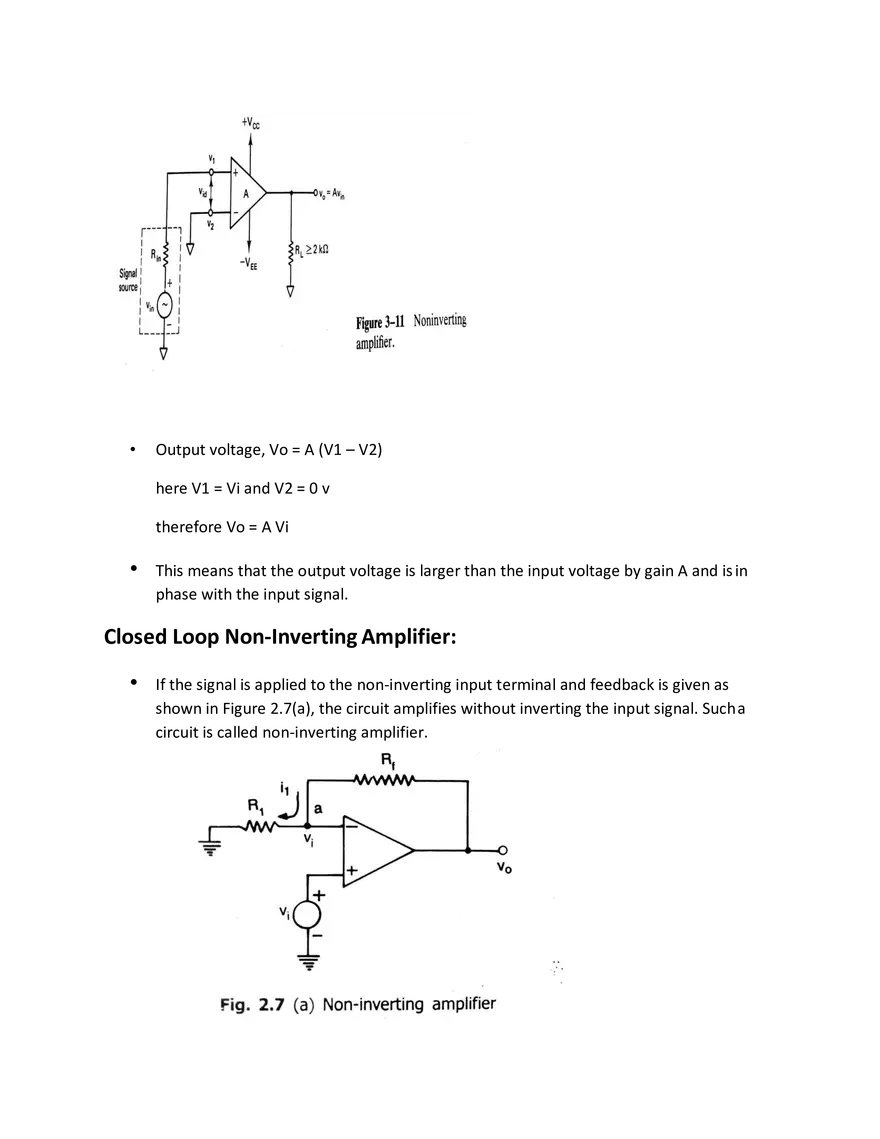

Figure 3.11 shows the open loop non-inverting amplifier •
Output voltage, Vo = A (V1 – V2)
here V1 = Vi and V2 = 0 v
therefore Vo = A Vi
•
This means that the output voltage is larger than the input voltage by gain A and is in
phase with the input signal.
Closed Loop Non-Inverting Amplifier:
•
If the signal is applied to the non-inverting input terminal and feedback is given as
shown in Figure 2.7(a), the circuit amplifies without inverting the input signal. Such a
circuit is called non-inverting amplifier. •
As Vd=0, the voltage at node ‘a’ in Figure 2.7(a) is Vi. Now R1 and Rf forms a potential
divider.
Hence Vi = (Vo/(R1+Rf)) * R1 as no current flows into op-amp.
therefore Vo/Vi = (R1+Rf)/R1 = 1+ (Rf/R1)
•
Thus, for non-inverting amplifier the voltage gain Acl = Vo/Vi = 1 + (Rf/R1)
•
The gain can be adjusted to unity or more, by proper selection of resistors Rf and R1.
Difference Amplifier:
•

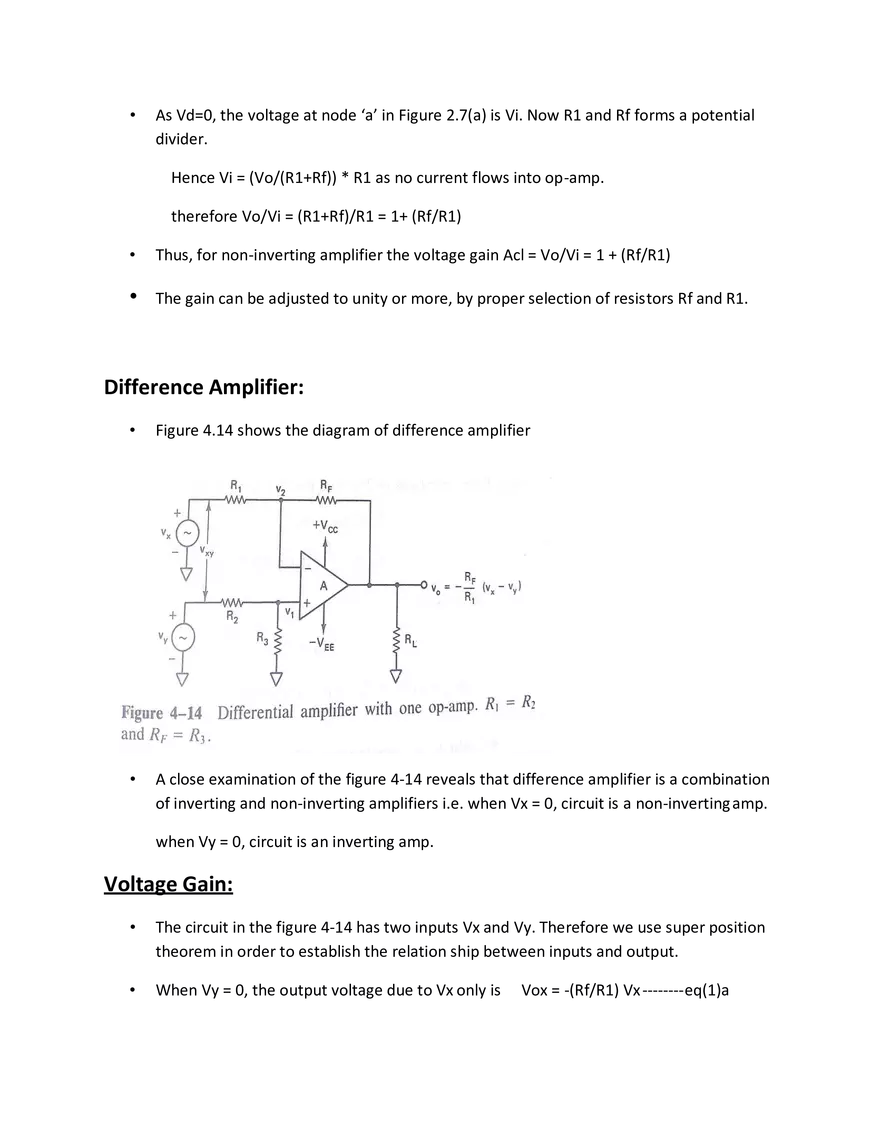

Figure 4.14 shows the diagram of difference amplifier
•
A close examination of the figure 4-14 reveals that difference amplifier is a combination
of inverting and non-inverting amplifiers i.e. when Vx = 0, circuit is a non-inverting amp.
when Vy = 0, circuit is an inverting amp.
Voltage Gain:
•
The circuit in the figure 4-14 has two inputs Vx and Vy. Therefore we use super position
theorem in order to establish the relation ship between inputs and output.
•
When Vy = 0, the output voltage due to Vx only is
Vox = -(Rf/R1) Vx -------- eq(1)a Similarly when Vx=0, the configuration is a non-inverting amplifier having a voltage divider
network composed of R2 and R3 at the non-inverting input.
Therefore V1 =
(R3/R2+R3) (Vy)
the output due to Vy alone is
Voy = (1 + Rf/R1) V1
Voy= (R1+Rf)/R1 (R3/R2+R3) Vy
Since R1 = R2 and Rf = R3, Voy= (Rf/R1) (Vy) ----- eq(1)b
Thus from equations (1)a and (1)b, the net output voltage is Vo = Vox + Voy
Vo= (-Rf/R1) (Vx – Vy) = - (Rf/R1) Vxy
therefore the voltage gain Ad=Vo/Vxy = -Rf/R1
•
Note that the gain of the difference amplifier is the same as that of the inverting
amplifier.
Input Resistance:
The input resistance Rif of the difference amplifier is the resistance determined looking into
either one of the two input terminals with the other grounded
•
Therefore with Vy = 0, the input resistance of the inverting amplifier is Rifx = R1 -----eq(2)a
•
Similarly with Vx=0, the input resistance of non-inverting amplifier is Rify =R2+R3 -eq(2)b
•
Therefore from eqs 2a and 2b, it is obvious that the input resistances seen by the signal
sources Vx and Vy are not the same.
•
Example: In the circuit of figure 4-14, R1=R2=1KΩ, Rf=R3=10KΩ, and the op-amp is a
741C, a) what are the gain and input resistance of the amplifier?
(b) Calculate the output voltage Vo if Vx=2.7 Vpp and Vy= 3 Vpp sine waves at 100Hz.
Solution: (a) Ad= -Rf/R1=-10KΩ/1KΩ = -10 Rifx = R1 = 1KΩ and Rify = R2 + R3 = 11KΩ
(b) Output voltage Vo= Ad Vxy = Ad(Vx-Vy)
to peak sine wave at 100Hz.
= -10(2.7 – 3) = -10(-0.3) = 3 V peak AC Amplifier
•
If an AC input is riding on some DC level, it is necessary to use an AC amplifier with a
coupling capacitor to block the DC amplification.
•
For example, in an audio receiver system that consists of a number of stages, because of
thermal drift, component tolerances, and variations the DC level is produced.
•
To prevent the amplification of such DC levels, the coupling capacitors must be used
between the stages.
•

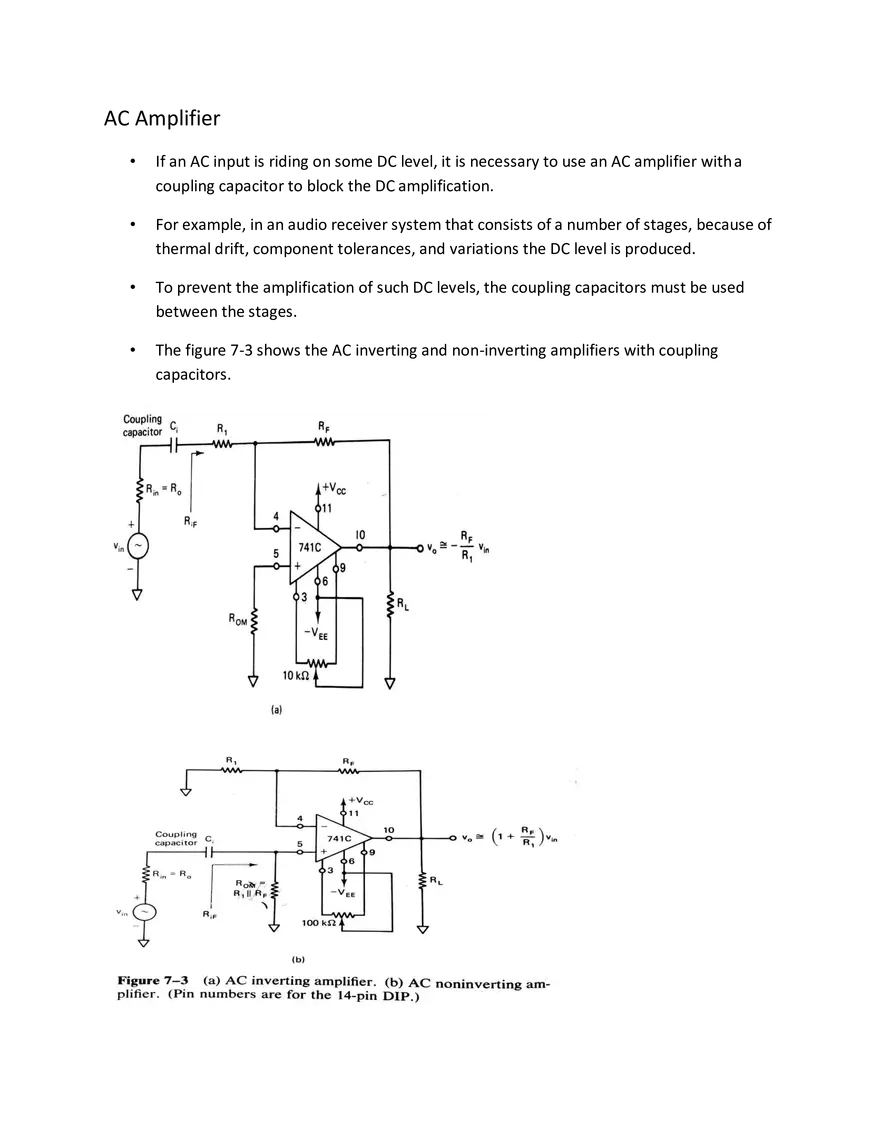

The figure 7-3 shows the AC inverting and non-inverting amplifiers with coupling
capacitors. •
The coupling capacitor not only blocks the DC voltage but also set the low frequency cut
off limit which is given by
fL = 1/2πCi(Rif+Ro)
Derivation of fL:
•

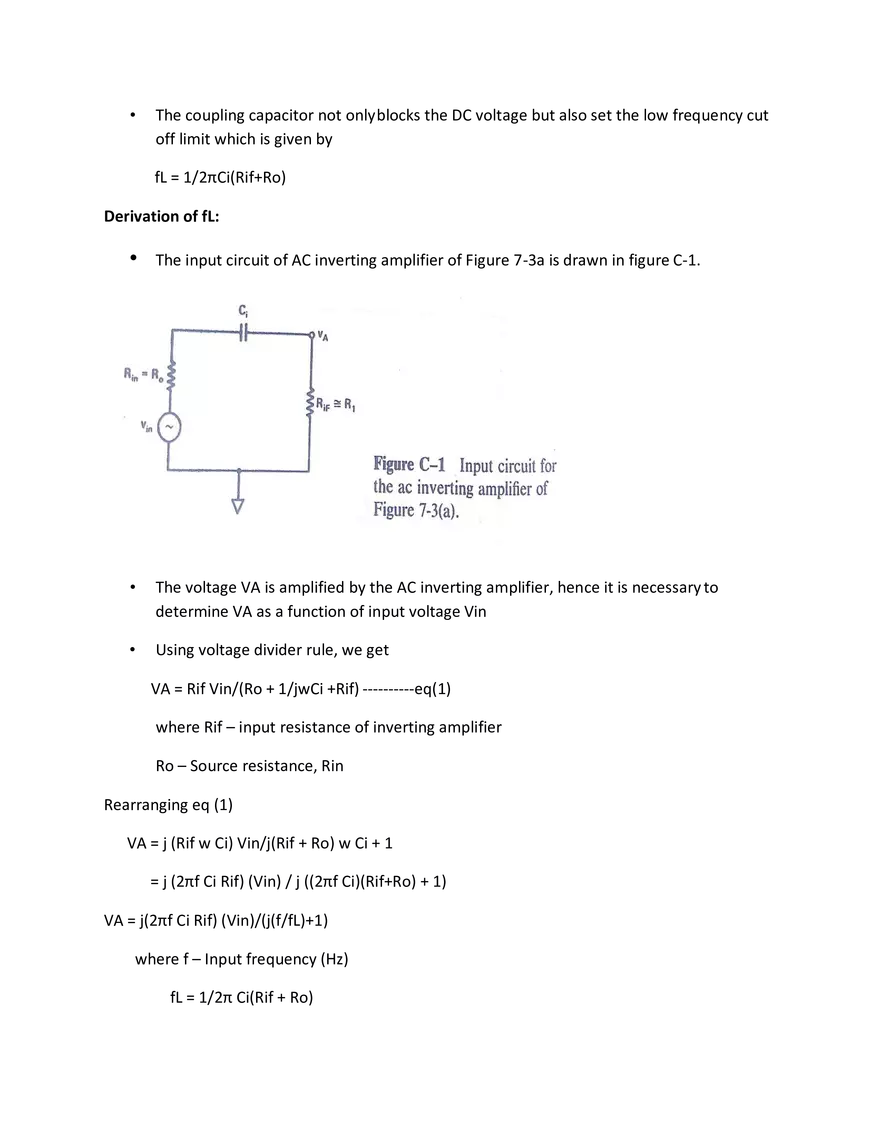

The input circuit of AC inverting amplifier of Figure 7-3a is drawn in figure C-1.
•
The voltage VA is amplified by the AC inverting amplifier, hence it is necessary to
determine VA as a function of input voltage Vin
•
Using voltage divider rule, we get
VA = Rif Vin/(Ro + 1/jwCi +Rif) ----------eq(1)
where Rif – input resistance of inverting amplifier
Ro – Source resistance, Rin
Rearranging eq (1)
VA = j (Rif w Ci) Vin/j(Rif + Ro) w Ci + 1
= j (2πf Ci Rif) (Vin) / j ((2πf Ci)(Rif+Ro) + 1)
VA = j(2πf Ci Rif) (Vin)/(j(f/fL)+1)
where f – Input frequency (Hz)
fL = 1/2π Ci(Rif + Ro) where fL = low frequency cut-off or low end of bandwidth
Ci= DC blocking capacitor
Rif = AC input resistance of second stage
Ro = AC output resistance of 1st stage or Rin
•
The high end of the bandwidth is given by
fH = UGB (K)/ |Acl|
where UGB – Unity gain bandwidth = 10^6
K = 0.909 = Constant factor
Acl = closed loop gain
Therefore bandwidth of the amplifier is
BW = fH – fL
•
The Resistor Rom is used to minimize the effect of output offset voltage
•
Since the reactance of Ci is negligible with in the bandwidth, the closed loop gain of the
AC inverting amplifier is Acl = -Rf/R1
•
And the closed loop gain of the AC non-inverting amplifier is
Acl = 1 + Rf/R1
Example : in the circuit of Fig 7.3(a) Rin=50Ω, Ci= 0.1 μF, R1=100 Ω, Rf= 1 KΩ, Rl=10KΩ and
supply voltages=+ or – 15 V. Determine the bandwidth of the amplifier
Solution: Band width = fH – fL
where fH = (UGB) (K)/|Acl|
Acl = -Rf/R1 = - 1KΩ / 100 Ω = -10
therefore fH = 10^6(0.909)/10 = 90.9 KHz and
fL= 1/2πCi(Rif+Ro)
where Rif = input resistance of the inverting amplifier with feedback Rif=R1=100Ω
Ro= Source resistance = Rin = 50 Ω
therefore
Therefore
fL= 1/2π (10^-7) (100+50) = 10.6 KHz
bandwidth = 90.9 KHz – 10.6 KHz = 80.3 KHz
Differentiator
•
A differentiator is a circuit in which the output waveform is the derivative of input
waveform. A differentiator circuit is shown in the figure 4.21(a).
Analysis:
•
The node N is at virtual ground potential ie Vn=0. The current ic through the capacitor is
ic= C1 d(Vi-Vn)/dt = C1 dVi/dt
•
The current If(not the English word if) through the feedback resistor = Vo/Rf and there
is no current into the op-amp
Therefore nodal equation at node N is
C1 dVi/dt + Vo/Rf = 0
==> Vo= -Rf C1 dVi/dt --------- eq(1)
•
The minus sign indicates a 180° phase shift of the output waveform Vo with respect to
the input signal. •
The phasor equivalent of equation (1). is
Vo(s) = - Rf C1 S Vi(s) where Vo & Vi are the phasor representation of vo & vi.
In steady state put s=jw. Now the magnitude of gain A of the differentiator is
|A| = |Vo/Vi| = |-jw Rf C1| = w Rf C1 ----- eq(2)
Eq (2) may be written as
|A| = f/fa where fa = 1/2π Rf C1
At f = fa, |A| = 1 ie = 0 dB, and the gain increases at a rate of +20dB/decade.
Thus at high frequency, a differentiator may become unstable and break into
oscillations .
•
There is one more problem in the Differentiator of figure 4.21(a).
•
The input impedance (ie 1/wC1) decreases with increase in frequency there by making
the circuit sensitive to high frequency noise.
Practical Differentiator:
•

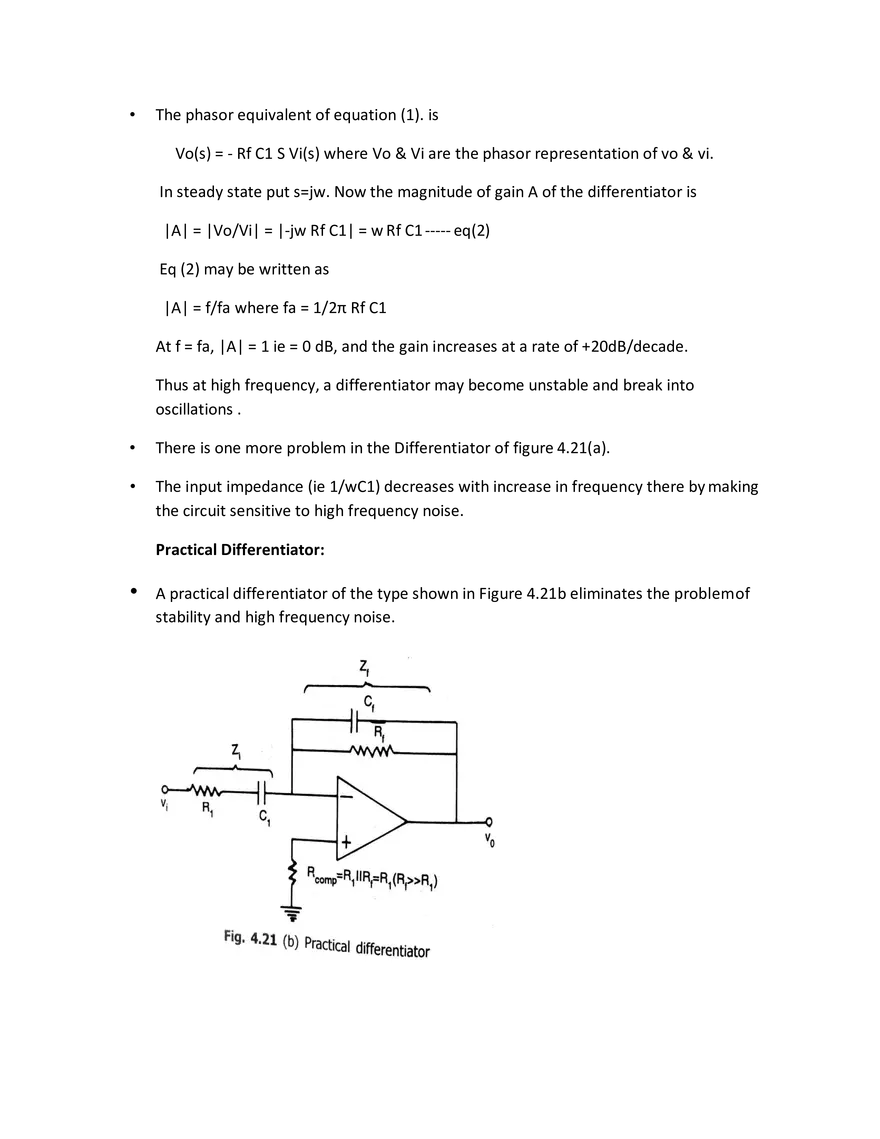

A practical differentiator of the type shown in Figure 4.21b eliminates the problem of
stability and high frequency noise. The transfer function for the circuit in Figure 4.21b is mentioned as
Vo(s)/Vi(s) = -Zf/Zi = -sRfC1/(1+ sRfCf)(1+sR1C1)
For RfCf = R1C1, we get
Vo(s)/Vi(s)= -sRfC1/(1+sR1C1)^2
=-sRfC1/(1+jf/fb)^2 ----- eq(3)
where fb=1/2πR1C1

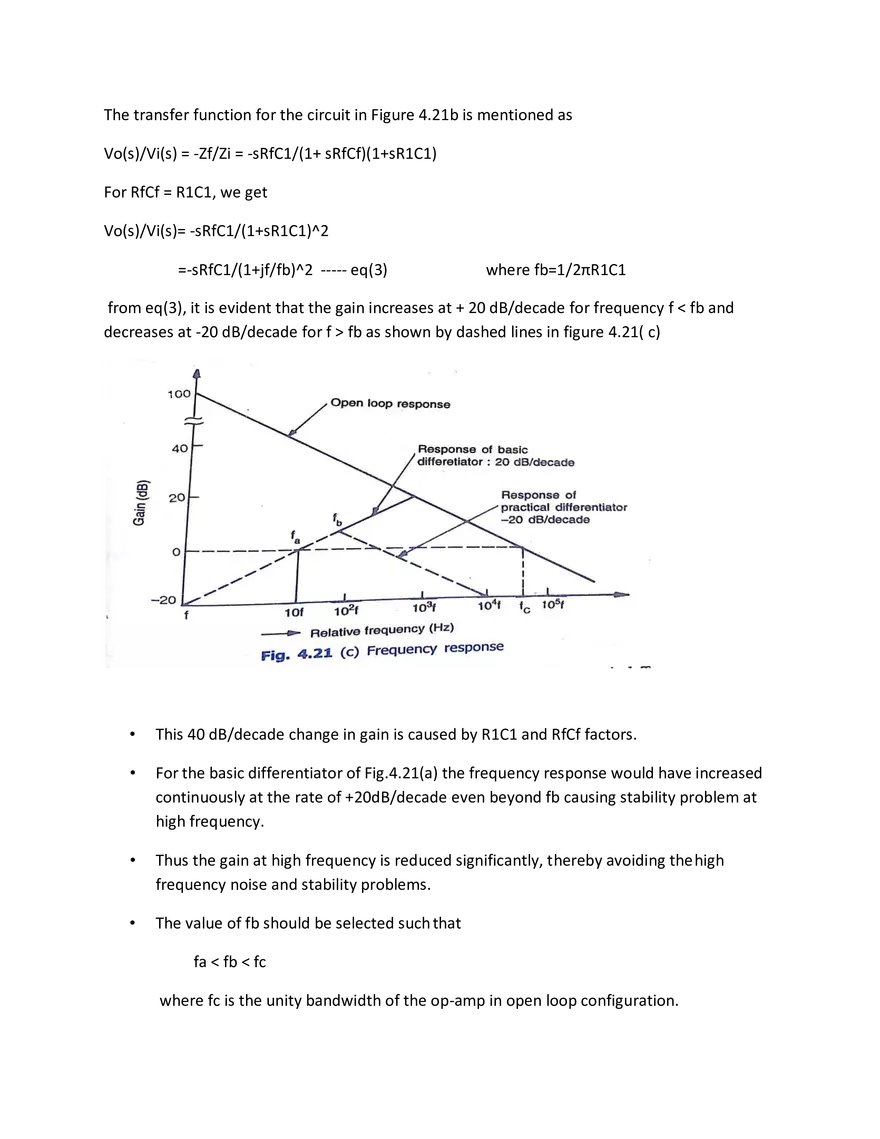

from eq(3), it is evident that the gain increases at + 20 dB/decade for frequency f < fb and
decreases at -20 dB/decade for f > fb as shown by dashed lines in figure 4.21( c)
•
This 40 dB/decade change in gain is caused by R1C1 and RfCf factors.
•
For the basic differentiator of Fig.4.21(a) the frequency response would have increased
continuously at the rate of +20dB/decade even beyond fb causing stability problem at
high frequency.
•
Thus the gain at high frequency is reduced significantly, thereby avoiding the high
frequency noise and stability problems.
•
The value of fb should be selected such that
fa < fb < fc
where fc is the unity bandwidth of the op-amp in open loop configuration. •
A resistance Rcomp is normally connected to the (+) input terminal to compensate for
the input bias current.
A good differentiator may be designed as per the following steps.
1. Choose fa equal to the highest frequency of the input signal. Assume a practical value of
C1 (< 1 μF) and then calculate Rf
fa = 1/2π Rf C1
2. Choose fb = 10 fa (say). Now calculate the value of R1 from fb = 1/2π R1 C1 and Cf so
that
R1C1 = RfCf
Example: (a) Design an op-amp differentiator that will differentiate an input signal with
fmax = 100 Hz.
(b) Draw the output waveform for a sine wave of 1V peak at 100 Hz applied to the
differentiator
(c) Repeat part (b) for a square wave input.
•
Solution:
a) Select fa = fmax = 100 Hz = 1/2π Rf C1
let C1 = 0.1 μF
Then Rf = 1/2π(10^2)(10^-7) = 15.9 KΩ
Now choose fb = 10 fa = 10 (100 Hz) = 1 KHz
= 1/2π R1 C1
Therefore R1 = 1/2π (10^3)(10^-7) = 1.59 KΩ
since Rf Cf = R1 C1
We get Cf =1.59 (10^3) (10^-7)/15.9(10^3) = 0.01μF
(b) Vi = 1 sin 2π (100) t
from eq (1), Vo = -Rf C1 dVi/dt
Vo = -(15.9 KΩ) (0.1 μF) d[1 v sin 2π (10^2) t] /dt
= -(15.9 KΩ) (0.1 μF) 2π (10^2) cos[2π(100)t] = - 0.999 cos[2π (100) t]
= - 1 cos[2π (100) t]

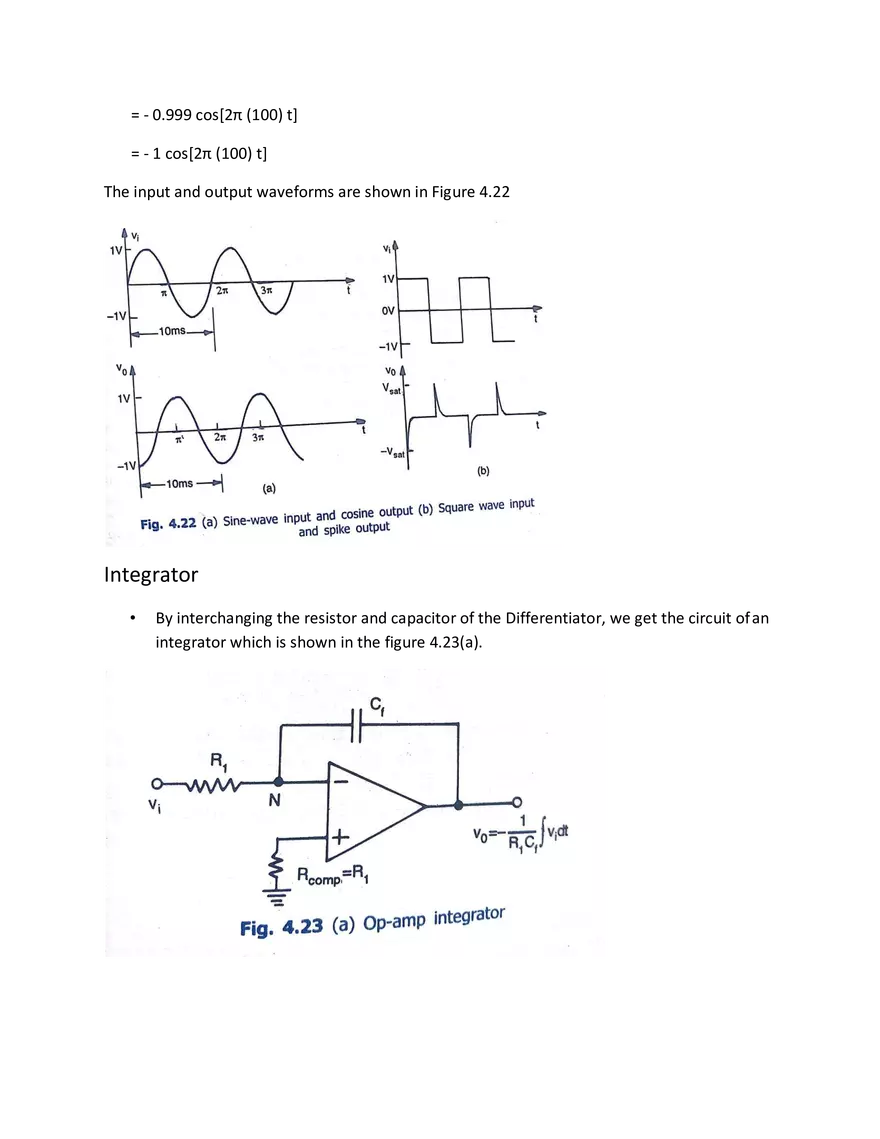

The input and output waveforms are shown in Figure 4.22
Integrator
•
By interchanging the resistor and capacitor of the Differentiator, we get the circuit of an
integrator which is shown in the figure 4.23(a). •
The nodal equation at node N is
(Vi/R1) + Cf dVo/dt = 0
dVo/dt = -(1/R1 Cf) Vi
0∫t dVo = (-1/R1Cf) 0∫t Vidt
Vo(t)= (-1/R1Cf) 0∫t Vi(t)dt + Vo(0) ------ eq(1)
where Vo(0) is the initial o/p voltage.
•
Here R1Cf is the time constant of the integrator
•
Here –ve sign is present, hence it is called inverting integrator.
•
Rcomp is the resistor to minimize the effect of input bias current.
•
The operation of the integrator can also be studied in the frequency domain. In phasor
notation the equation (1) can be written as
Vo(s) = -(1/sR1Cf) Vi(s)
In steady state, put s=jw and we get
Vo(jw) = - (1/jwR1Cf) Vi(jw)
•
So the magnitude of the gain is
|A| = |Vo(jw)/Vi(jw)| = |-1/jwR1Cf|
= 1/wR1Cf = 1/(f/fb)
Where fb = 1/2Π R1Cf

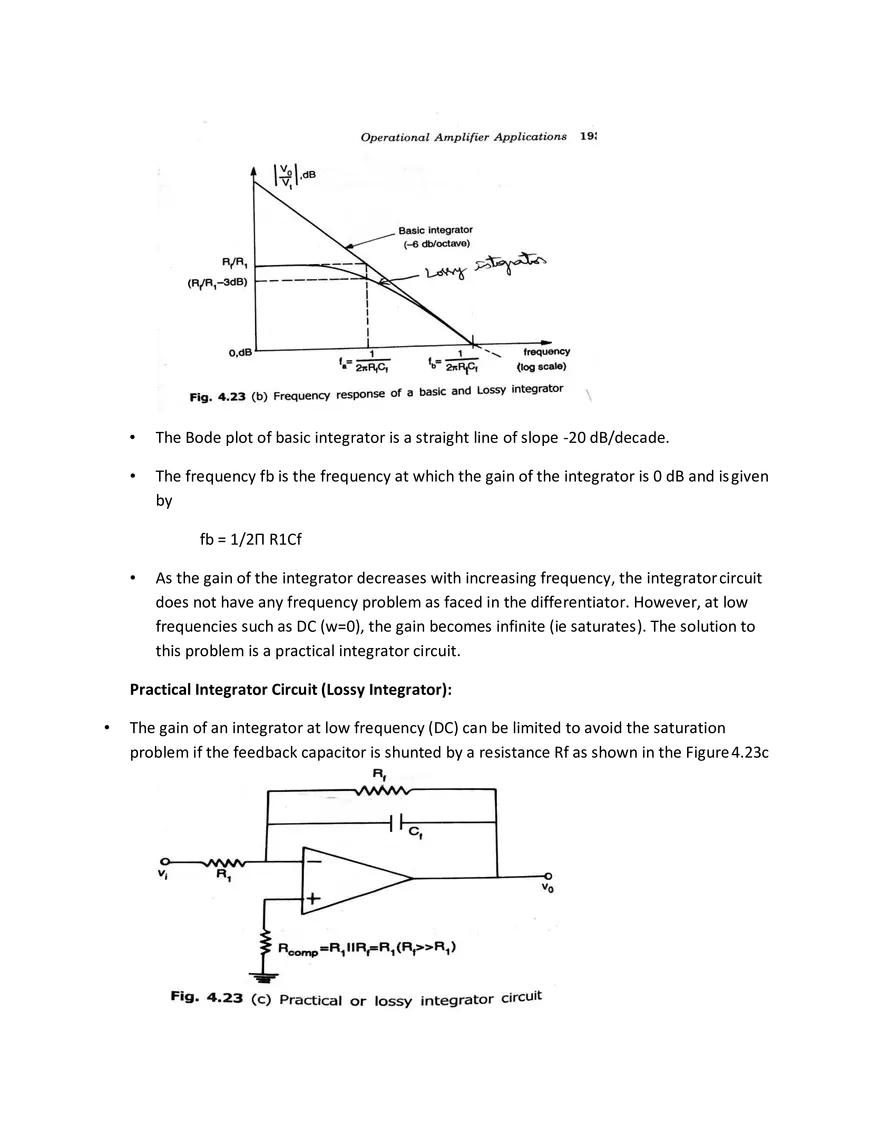

The frequency response is shown in the figure 4.23b •
The Bode plot of basic integrator is a straight line of slope -20 dB/decade.
•
The frequency fb is the frequency at which the gain of the integrator is 0 dB and is given
by
fb = 1/2Π R1Cf
•
As the gain of the integrator decreases with increasing frequency, the integrator circuit
does not have any frequency problem as faced in the differentiator. However, at low
frequencies such as DC (w=0), the gain becomes infinite (ie saturates). The solution to
this problem is a practical integrator circuit.
Practical Integrator Circuit (Lossy Integrator):
•
The gain of an integrator at low frequency (DC) can be limited to avoid the saturation
problem if the feedback capacitor is shunted by a resistance Rf as shown in the Figure 4.23c •
The parallel combination of Rf and Cf behaves like a practical capacitor which dissipates
power unlike an ideal capacitor. For this reason, this circuit is also called as a Lossy
integrator.
•
The resistor Rf limits the low frequency gain to –Rf/R1 (generally Rf = 10 R1) and thus
provides DC stabilization.
Analysis:
•
The nodal equation at the inverting input terminal of the op-amp is
(Vi(s)/R1) + sCf Vo(s) + (Vo(s)/Rf) =0
From which we have
Vo(s) = - (1/(sR1Cf + R1/Rf)) Vi(s)
•
If Rf is large, the lossy integrator approximates the ideal integrator.
•
For S=jw, the magnitude of the gain of Lossy integrator is given by
|A| = |Vo/Vi|= 1/(√w2R1^2 Cf^2 + R1^2/Rf^2)
= (Rf/R1)/(√(1+(wRf Cf)^2) --------- eq(2)
•
The Bode plot of the Lossy Integrator is also shown in the Figure 4.23b. At low
frequencies the gain is constant at Rf/R1.
•
The break frequency (f = fa) at which the gain is 0.707 (Rf/R1) is calculated from eq (2)
as
√(1+ w Rf Cf)^2 = √2
wRf Cf = 1 f = 1/2ΠRf Cf
solving for f = fa, we get fa = 1/2 ΠRf Cf
•
This frequency tells us where the useful integration range starts in Figure 4.23b
•
If the input frequency is lower than fa, the circuit acts like a simple inverting amplifier
and no integration results.
•
At the input frequency equal to fa, 50% accuracy results.
•
The practical thumb rule is that if the input frequency is 10 times fa, then 99% accuracy
can result. Comparator
•
A comparator is a circuit which compares a signal voltage applied at one input of an
op-amp with a known reference voltage at the other input.
•
There are basically two types of comparators.
1. Non-inverting comparator
2.
Inverting comparator
Non-Inverting Comparator:
The circuit of figure 5.2a is called a non-inverting comparator.
A fixed reference voltage Vref is applied to
applied to +input.
There are 3 conditions for a comparator. They are
Vi > Vref Vo = +Vsat
Vi = Vref changes the state of op-amp
– input and a time varying signal Vi is
Vi < Vref Vo = -Vsat

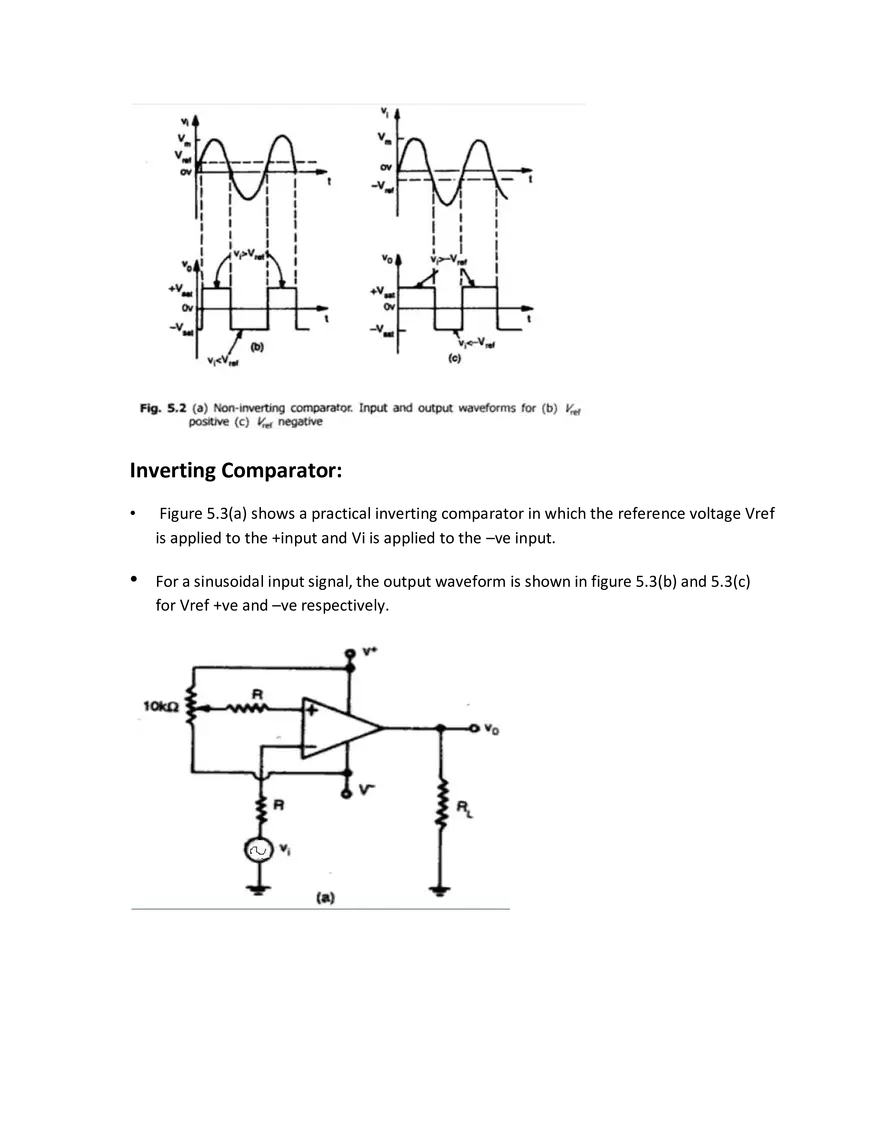

The output waveform for a sinusoidal input signal applied to the +ve input is shown in
figure 5.2 (b) and (c) for +ve and –ve Vref respectively. Inverting Comparator:
•

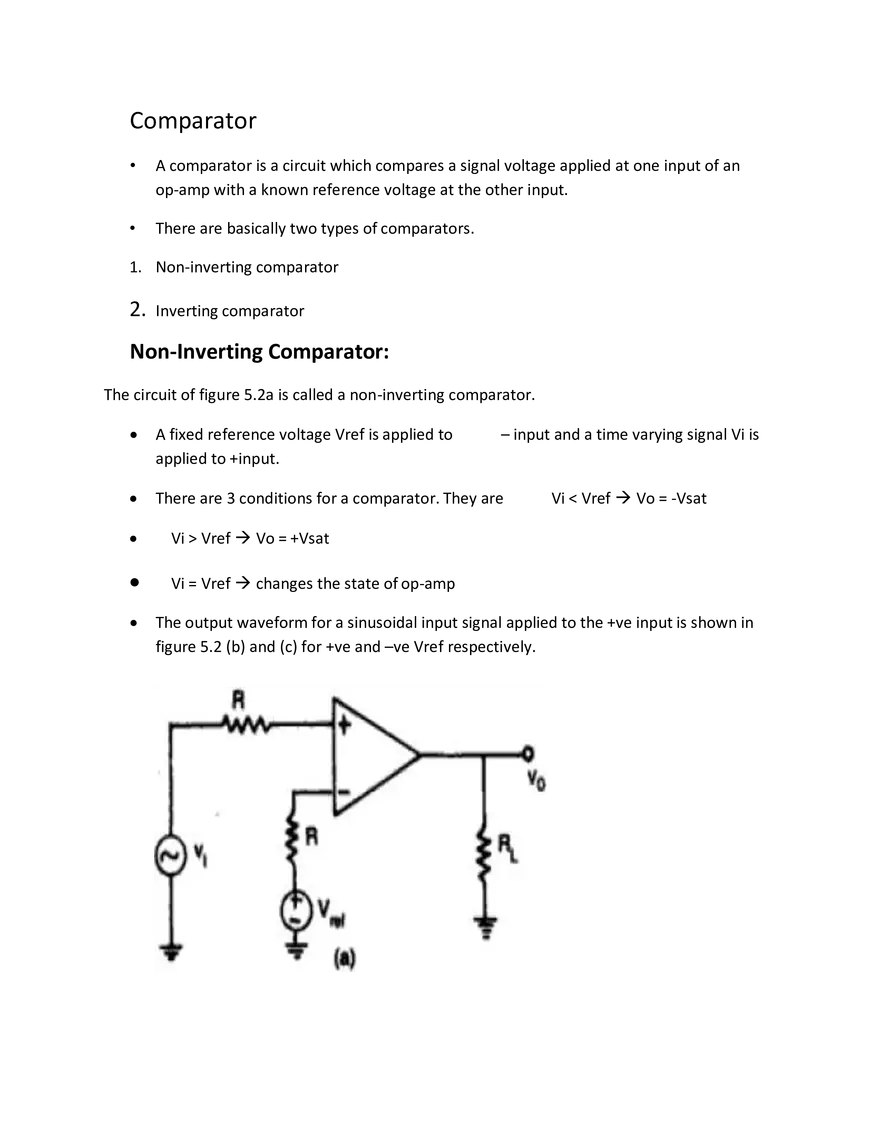

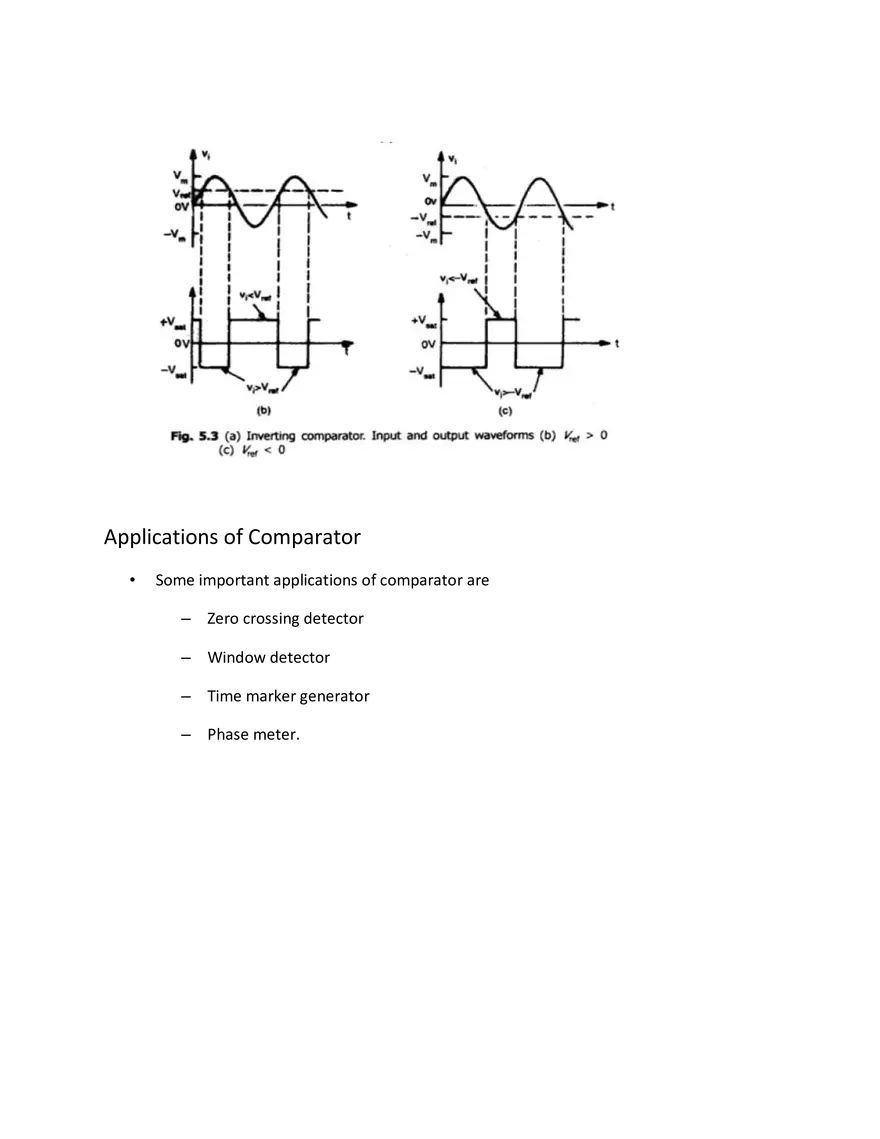

Figure 5.3(a) shows a practical inverting comparator in which the reference voltage Vref
is applied to the +input and Vi is applied to the –ve input.
•
For a sinusoidal input signal, the output waveform is shown in figure 5.3(b) and 5.3(c)
for Vref +ve and –ve respectively. Applications of Comparator
•
Some important applications of comparator are
– Zero crossing detector
– Window detector
– Time marker generator
– Phase meter. •
The basic comparators either non-inverting or inverting can be used as a zero crossing

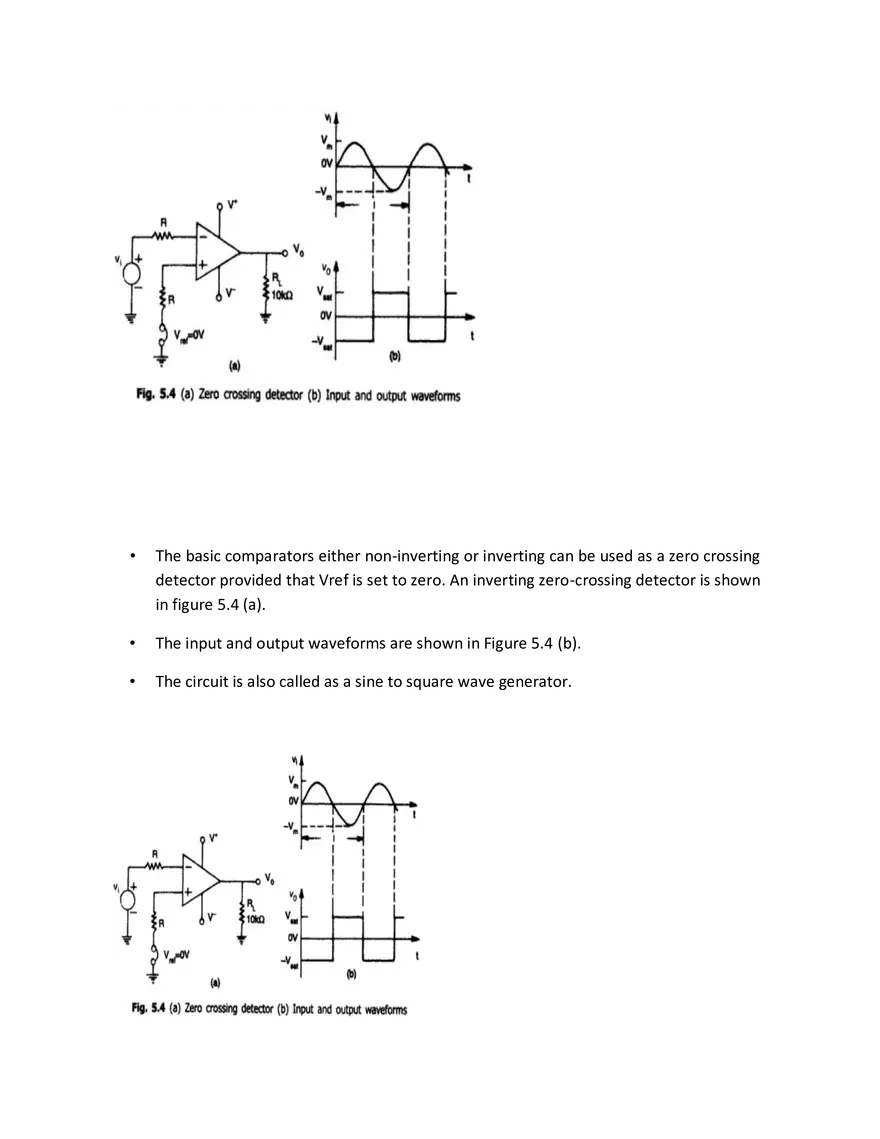

detector provided that Vref is set to zero. An inverting zero-crossing detector is shown
in figure 5.4 (a).
•
The input and output waveforms are shown in Figure 5.4 (b).
•
The circuit is also called as a sine to square wave generator. •
The basic comparators either non-inverting or inverting can be used as a zero crossing
detector provided that Vref is set to zero. An inverting zero-crossing detector is shown
in figure 5.4 (a).
•
The input and output waveforms are shown in Figure 5.4 (b).
•
The circuit is also called as a sine to square wave generator.
Regenerative Comparator (Schmitt Trigger)
•
If positive feedback is added to the comparator circuit, gain can be increased greatly.
•

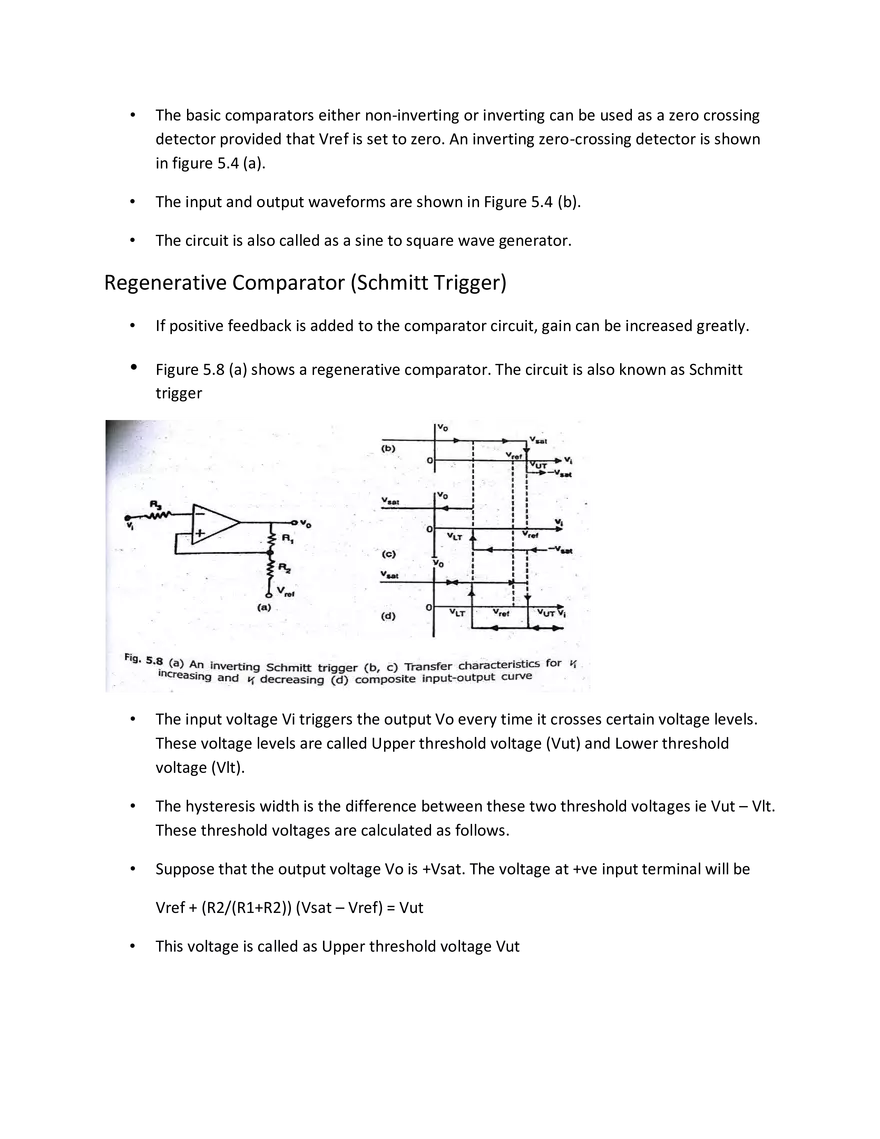

Figure 5.8 (a) shows a regenerative comparator. The circuit is also known as Schmitt
trigger
•
The input voltage Vi triggers the output Vo every time it crosses certain voltage levels.
These voltage levels are called Upper threshold voltage (Vut) and Lower threshold
voltage (Vlt).
•
The hysteresis width is the difference between these two threshold voltages ie Vut – Vlt.
These threshold voltages are calculated as follows.
•
Suppose that the output voltage Vo is +Vsat. The voltage at +ve input terminal will be
Vref + (R2/(R1+R2)) (Vsat – Vref) = Vut
•
This voltage is called as Upper threshold voltage Vut •
As long as Vi is less than Vut, the output Vo remains constant at +Vsat. When Vi is just
greater than Vut, the output regeneratively switches to – Vsat and remains at this level
as long as Vi > Vut as shown in Figure 5.8 (b).
•
For Vo = -Vsat, the voltage at +ve input terminal is
Vref + (R2/R1+R2) (-Vsat – Vref) = Vlt
Vref - (R2/R1+R2) (Vsat + Vref) = Vlt
this voltage is referred to as lower threshold voltage Vlt
•
The input voltage Vi must become lesser than Vlt in order to cause Vo to switch from –
Vsat to +Vsat. A regenerative transition takes place as shown in Figure 5.8(c) and the
output Vo returns from –Vsat to +Vsat almost instantaneously.
•
The complete transfer characteristics are shown in Figure 5.8 (d).
•
Note that Vlt < Vut and the difference between these two voltages is the hysteresis
width Vh and can be written as
Vh = Vut – Vlt = 2R2 Vsat/(R1+R2)
•
The resistor R3 in figure 5.8(a) is chosen equal to R1||R2 to compensate for the input
bias current.
•
A non-inverting Schmitt trigger is obtained if Vi and Vref are interchanged in figure
5.8(a). Voltage Regulators
•
A voltage regulator is a circuit that supplies constant voltage regardless of changes in
load currents
•
Although voltage regulators can be designed using op-amps, it is quicker and easier to
use IC voltage regulators.
•
Furthermore, IC voltage regulators are versatile and relatively inexpensive and are
available with features such as programmable output, current/voltage boosting, internal
short-circuit current limiting, thermal shutdown and floating operation for high voltage
applications.
•
IC voltage regulators are of the following types
•
Fixed output voltage regulators: +ve and/or –ve output voltage
•
Adjustable output voltage regulators: +ve or –ve output voltage
•
Switching regulators
•
Special regulators
•
Except for the switching regulators, all other types of regulators are called LINEAR
regulators.
•
The impedance of a linear regulator’s active element may be continuously varied to
supply a desired current to the load.
•
On the other hand, in the switching regulator a switch is turned on and off at a rate
such that the regulator delivers the desired average current in periodic pulses to the
load.
•
Because the switching element dissipates negligible power in either the ON or OFF state,
the switching regulator is more efficient than the linear regulator.
•
Nevertheless, in switching regulators the power dissipation is substantial during the
switching intervals (ON to OFF or OFF to ON). In addition, most loads can not accept the
average current in periodic pulses. Therefore, most practical regulators are of the linear
type.
•
Voltage regulators are commonly used for laboratory-type power supplies. •
Almost all power supplies use some type of voltage regulator IC because voltage
regulators are simple to use, reliable, low in cost, and, above all, available in a variety of
voltage and current ratings.
Performance Parameters
There are four typical performance parameters
for voltage regulators. They are LINE regulation,
LOAD regulation, temperature stability and
ripple rejection.
•
LINE or INPUT regulation: it is defined as the change in output voltage for a change in
the input voltage and is usually expressed in milli volts or as a percentage of output
voltage Vo.
•
LOAD Regulation: It is the change in output voltage for a change in load current and is
also expressed in milli volts or as a percentage of Vo
•
Temperature stability: It is the change in output voltage per unit change in the
temperature and is expressed in either milli volts/°C or parts per million (ppm)/°C
•
Ripple Rejection: it is the measure of a regulator’s ability to reject ripple voltages. It is
usually expressed in decibels.
The smaller the values of line regulation, load regulation and the temperature stability,
the better the regulator.
•
Dropout Voltage: It is the difference between input and output voltages.
Types of Voltage Regulators

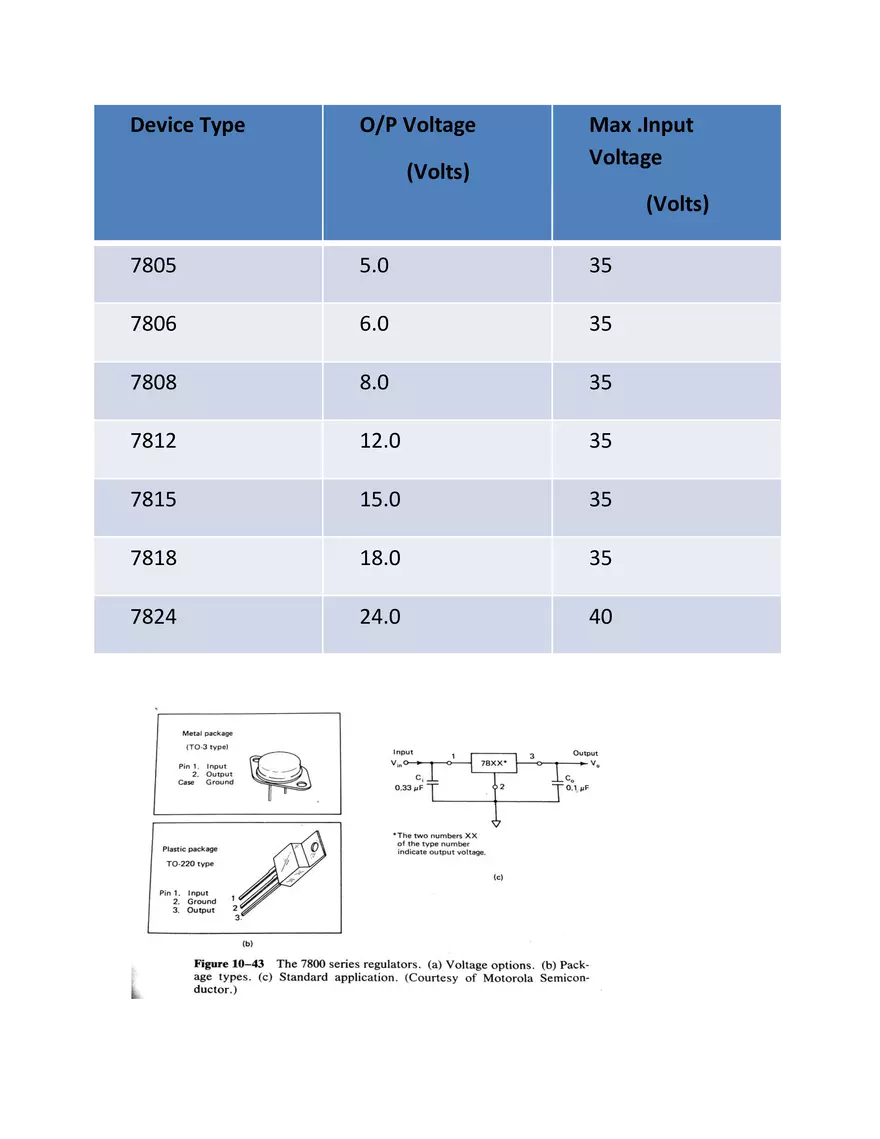

• Fixed Output Voltage Regulators:
– Positive Output voltage regulator series: Device Type
O/P Voltage
(Volts)
Max .Input
Voltage
(Volts)
7805
5.0
35
7806
6.0
35
7808
8.0
35
7812
12.0
35
7815
15.0
35
7818
18.0
35
7824
24.0

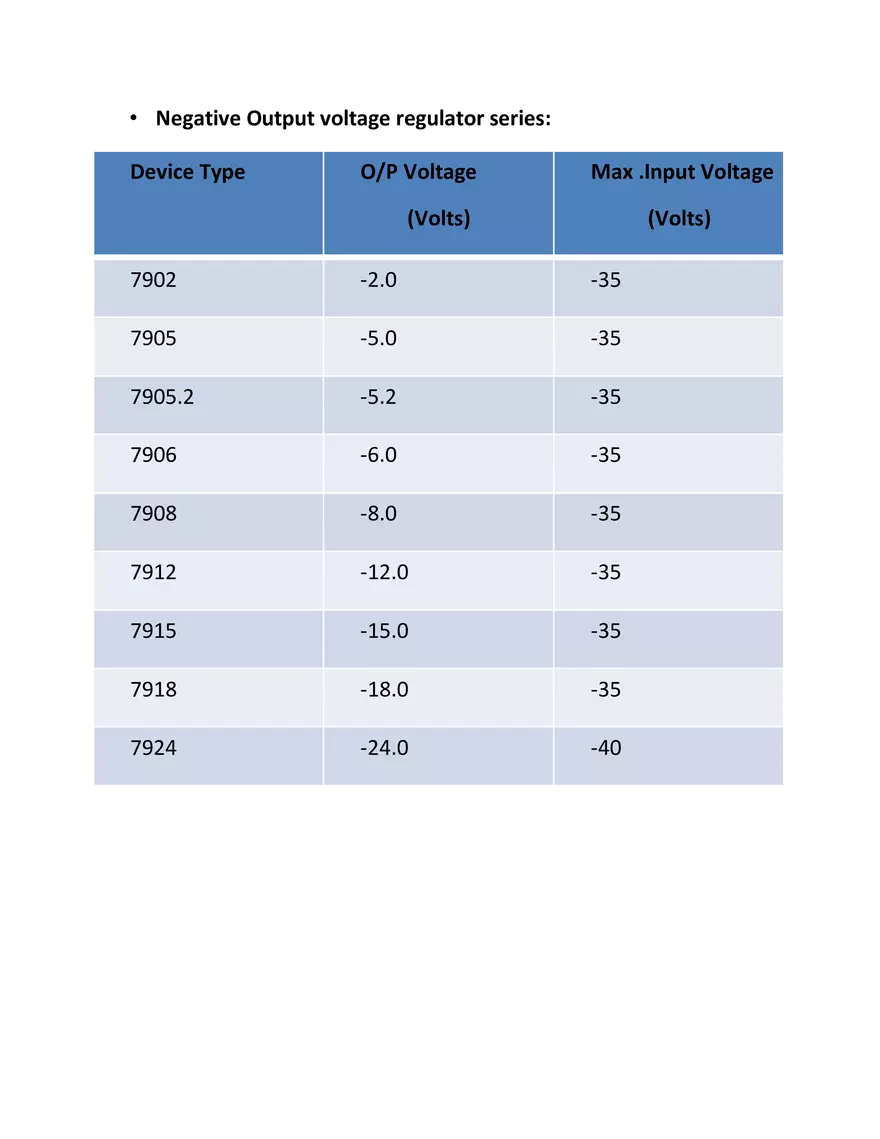

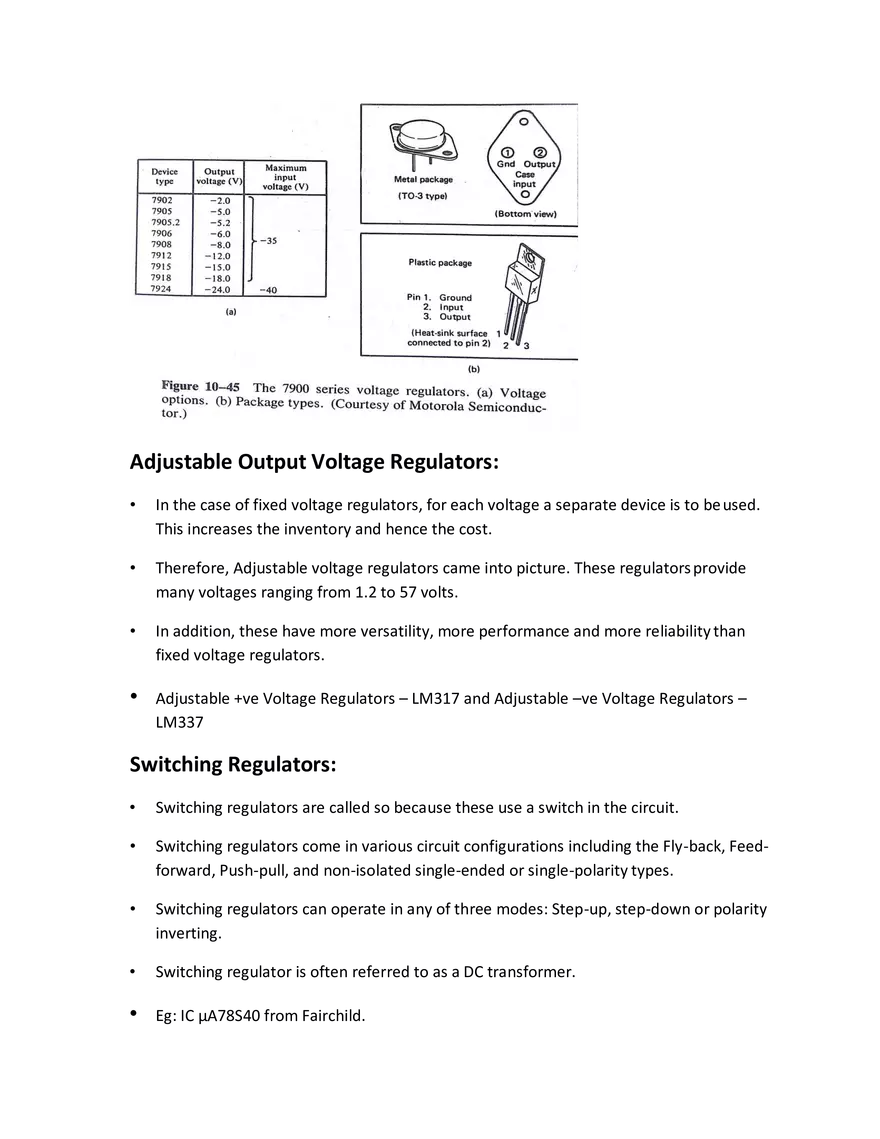

40 • Negative Output voltage regulator series:
Device Type
O/P Voltage
Max .Input Voltage
(Volts)
(Volts)
7902
-2.0
-35
7905
-5.0
-35
7905.2
-5.2
-35
7906
-6.0
-35
7908
-8.0
-35
7912
-12.0
-35
7915
-15.0
-35
7918
-18.0
-35
7924
-24.0
-40 Adjustable Output Voltage Regulators:
•
In the case of fixed voltage regulators, for each voltage a separate device is to be used.
This increases the inventory and hence the cost.
•
Therefore, Adjustable voltage regulators came into picture. These regulators provide
many voltages ranging from 1.2 to 57 volts.
•
In addition, these have more versatility, more performance and more reliability than
fixed voltage regulators.
•
Adjustable +ve Voltage Regulators – LM317 and Adjustable –ve Voltage Regulators –
LM337
Switching Regulators:
•
Switching regulators are called so because these use a switch in the circuit.
•
Switching regulators come in various circuit configurations including the Fly-back, Feedforward, Push-pull, and non-isolated single-ended or single-polarity types.
•
Switching regulators can operate in any of three modes: Step-up, step-down or polarity
inverting.
•
Switching regulator is often referred to as a DC transformer.
•
Eg: IC μA78S40 from Fairchild. Special Regulators:
•
It is used as
– Voltage References: It is used as a reference voltage in A/D and D/A converters
–
Voltage Inverter: It is used in Data Acquisition and Microprocessor-based
systems in which a +ve supply is available and an additional –ve supply is
required.
IC 723 Regulator and It’s Features
•
3 terminal voltage regulators are capable of producing only fixed +ve or –ve output
voltages. Moreover, such regulators do not have short circuit protection.
•
Therefore these 3 terminal regulators evolved into dual polarity variable voltage
regulators and further evolved into the monolithic linear voltage regulators and
monolithic switching regulators.
•
One example for monolithic linear voltage regulator is IC723.
•
IC723 general purpose regulator overcomes the limitations of 3 terminal fixed voltage
regulators
•
IC723 is a low current device.
•
150 mA o/p current without external pass transistor.
•
o/p currents in excess of 10A possible by adding external transistors
•
Input voltage 40 V maximum.
•
O/p voltage adjustable from 2V to 37 V.
•
Can be used as either a linear or a switching regulator.
Limitations: it has no built-in thermal protection.
End of Unit I Unit 2
Op-Amp, IC-555 & IC565Applications
Introduction to Filters
•
Based on the components used in the circuit the filters are divided into following
categories.
– Active filters
– Passive filters
Active Filters:
•
Active filters employ transistors or op-amps in addition to resistors and capacitors.
Passive Filters:
•
Here the type of element used dictates the operating frequency range of the filter.
Eg:
•
RC filters are used for audio or low frequency operation.
•
LC or Crystal filters are used at RF or High frequencies.
An active filter offers the following advantages over a Passive filter.
•
Gain and Frequency adjustment flexibility: Since the op-amp is capable of providing a
gain, the input signal is not attenuated as it is in a passive filter. In addition, the active
filter is easier to tune or adjust.
•
No Loading problem: Because of the high input resistance and low output resistance of
the op-amp, the active filter does not cause loading of the source or load.
•
Cost: Typically, active filters are more economical than passive filters. This is because of
the variety of cheaper op-amps and the absence of the inductors.
•
Although active filters are most extensively used in the field of Communications and
Signal processing, they are employed in one form or another in almost all sophisticated
electronic systems. •
The different systems that use Active filters are Radio, television, telephone, Radar,
Space satellites, and bio-medical equipment.
•
Based on the operating frequency the filters are classified as follows.
– Low pass filter
– High pass filter
– Band pass filter
– Band stop filter
– All pass filter
•
Each of these filters uses an op-amp as an active element and resistors and capacitors as
passive elements.
•

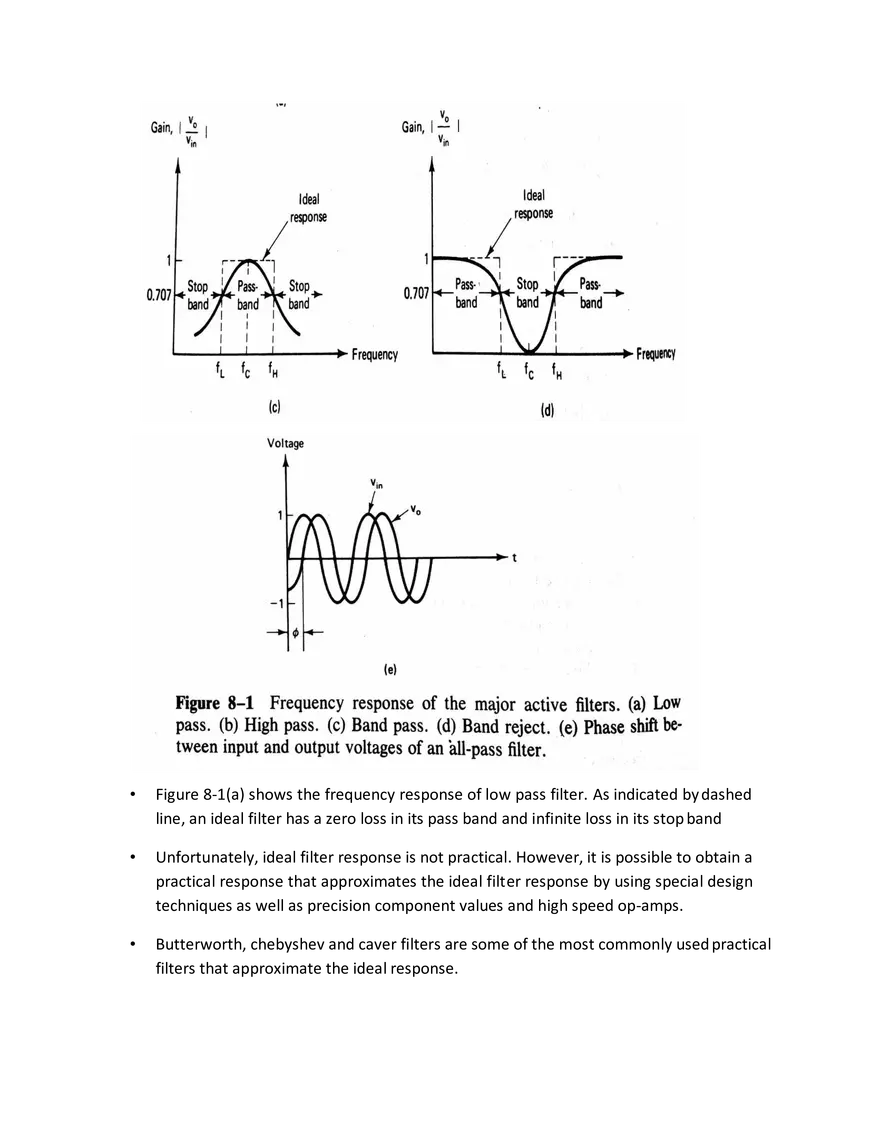

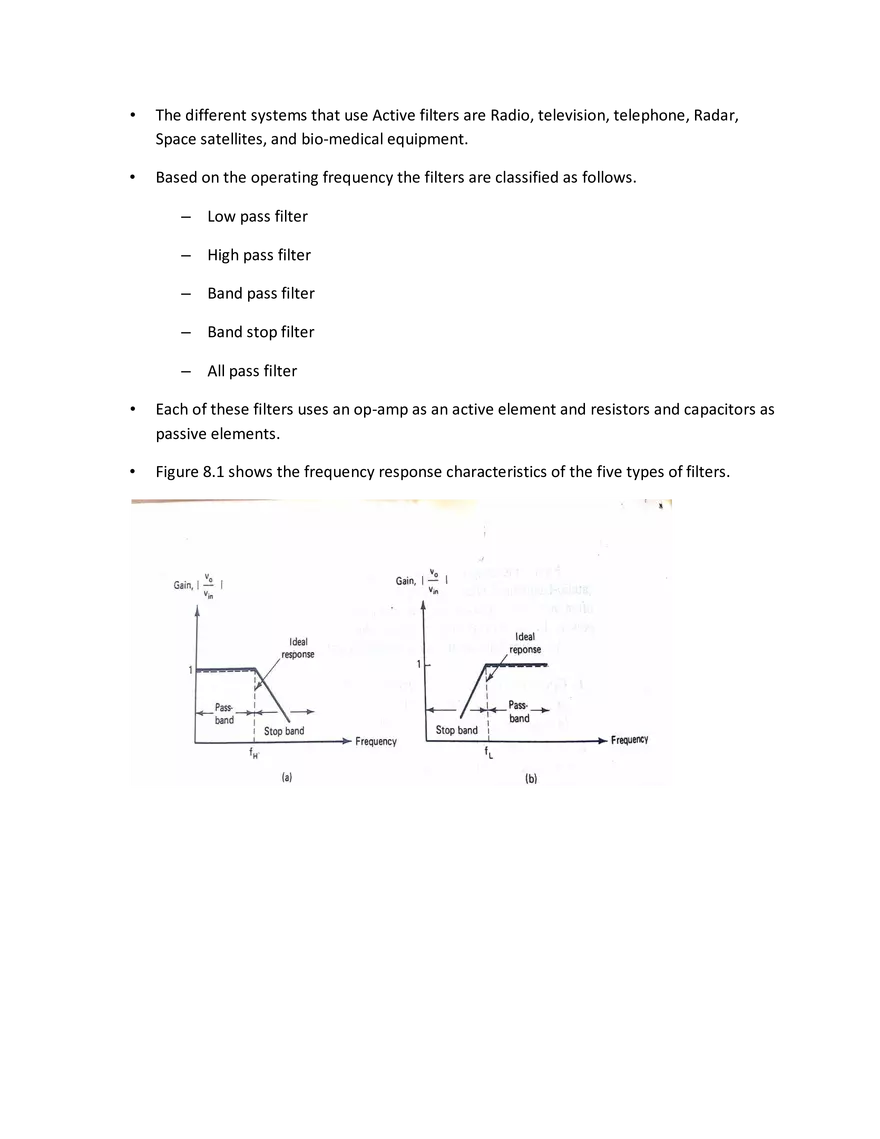

Figure 8.1 shows the frequency response characteristics of the five types of filters. •
Figure 8-1(a) shows the frequency response of low pass filter. As indicated by dashed
line, an ideal filter has a zero loss in its pass band and infinite loss in its stop band
•
Unfortunately, ideal filter response is not practical. However, it is possible to obtain a
practical response that approximates the ideal filter response by using special design
techniques as well as precision component values and high speed op-amps.
•
Butterworth, chebyshev and caver filters are some of the most commonly used practical
filters that approximate the ideal response. •
The key characteristics of Butterworth filters is that it has a flat pass band as well as stop
band. For this reason, it is sometimes called a flat-flat filter.
•
Figure 8-1(b) shows a high pass filter with a stop band 0 < f < fL and pass band f >fL.
•
A band pass filter has a pass band between two cut-off frequencies fH and fL, where
fH >fL and two stop bands 0fH.
Band width of the band pass filter – fH-fL.
•
The band reject filter performs exactly opposite to the band pass, ie it has a band stop
between two cut off frequencies fH and fL and two pass bands 0fH.
•
The band reject filter is also called as band stop or band elimination filter
•
Figure 8-1(e) shows the phase shift between input and output voltages of an all pass
filter. This filter passes all frequencies equally well ie input and output voltages are
equal in amplitude for all frequencies, with the phase shift between the two a function
of frequency.
•
As shown in figure 8-1 (a) – (d), the actual response curves of the filters in the stop band
either steadily decrease or increase or both with increase in frequency.
•
The rate at which the gain of the filter changes in the stop band is determined by the
order of the filter.
•
For first order low pass filter, gain decreases by 20 dB/decade in the stop band.
•
For second order low pass filter, gain decreases by 40 dB/decade in the stop band.
•
By contrast, for first order high pass filter, gain increases by 20 dB/decade in the stop
band.
•
For second order high pass filter, gain increases by 40 dB/decade.
First Order Low pass Butterworth filter
•

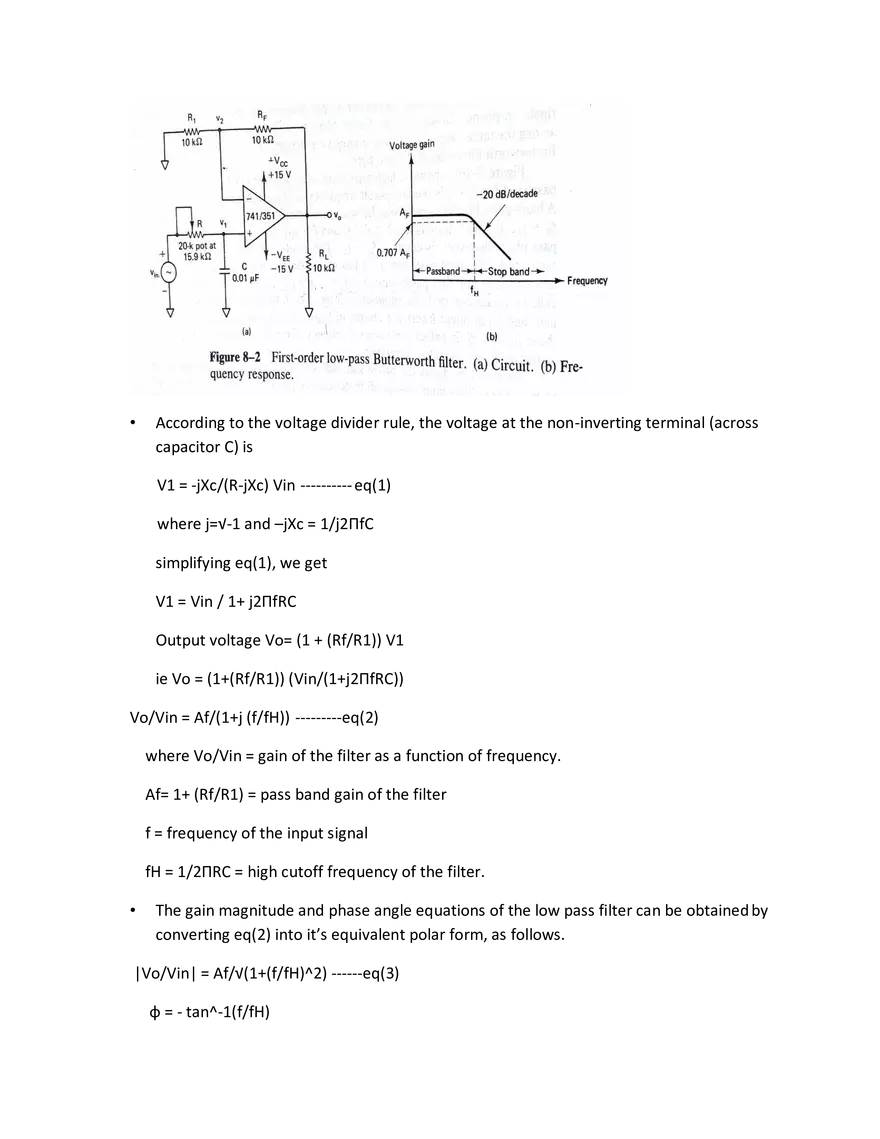

Figure 8-2 shows a first order low pass Butter worth filter that uses an RC network for
filtering. Note that the op-amp is used in the non-inverting configuration, hence it does
not load down the RC network. Resistors R1 and Rf determine the gain of the filter. •
According to the voltage divider rule, the voltage at the non-inverting terminal (across
capacitor C) is
V1 = -jXc/(R-jXc) Vin ---------- eq(1)
where j=√-1 and –jXc = 1/j2ΠfC
simplifying eq(1), we get
V1 = Vin / 1+ j2ΠfRC
Output voltage Vo= (1 + (Rf/R1)) V1
ie Vo = (1+(Rf/R1)) (Vin/(1+j2ΠfRC))
Vo/Vin = Af/(1+j (f/fH)) ---------eq(2)
where Vo/Vin = gain of the filter as a function of frequency.
Af= 1+ (Rf/R1) = pass band gain of the filter
f = frequency of the input signal
fH = 1/2ΠRC = high cutoff frequency of the filter.
•
The gain magnitude and phase angle equations of the low pass filter can be obtained by
converting eq(2) into it’s equivalent polar form, as follows.
|Vo/Vin| = Af/√(1+(f/fH)^2) ------eq(3)
φ = - tan^-1(f/fH) Where φ is the phase angle in degrees
•
The operation of the low pass filter can be verified from the gain magnitude equation
(3).
•
At very low frequencies, that is, ffH, |Vo/Vin| < Af
•
Thus the low pass filter has a constant gain Af from 0 Hz to the almost high cutoff
frequency fH
•
At fH, the gain is 0.707 Af, and after fH it decreases at a constant rate with as increase in
frequency [see fig 8-2 b]
•
The frequency f =fH is called the cutoff frequency because the gain of the filter at this
frequency is down by 3 dB from 0 Hz.
•
Other equivalent terms for cut off frequency are -3dB frequency, break frequency or
corner frequency.
Filter Design
A low pass filter can be designed by implementing the following steps
1 Choose a value of high cut off frequency fH
2 Select a value of C less than or equal to 1 µF
(Mylar or tantalum capacitors are recommended for better performance)
3 Calculate the value of R using R = 1/2Π fH C
4 Finally, select values of R1 and Rf dependant on the desired pass band gain Af using
Af = 1+ (Rf/R1)
Example 1: Design a low pass filter at a cut off frequency of 1 KHz with a pass band gain of 2
Solution:
Follow the preceding design steps 1 fH = 1 KHz
2 Let C = 0.01 µF
3 Then R = 1/2 Π (10^3) (10^-8) = 15.9 KΩ (use a 20 KΩ pot.)
4 Since the pass band gain is 2, R1 and Rf must be equal. Therefore, let R1 = Rf = 10 KΩ
The complete circuit with components values is shown in Fig 8-2 a.
•
Once a filter is designed there may sometimes be a need to change its cut off frequency.
The procedure used to convert an original cut off frequency fH to a new cut off
frequency fH1 is called frequency scaling.
•
Frequency scaling is accomplished as follows
•
To change a high cut off frequency, multiply R or C but not both, by the ratio of original
cut off frequency to new cut off frequency.
Example 2:
Using the frequency scaling technique, convert 1 KHz cut off frequency of the low pass
filter of Example 1 to a new cut off frequency of 1.6 KHz
Solution: To change a cut off frequency from 1 KHz to 1.6 KHz, we multiply the 15.9 KΩ
resistor by
Original cut off frequency/new cut off frequency = 1 KHz/1.6 KHz = 0.625
Therefore, new resistor R = 15.9 KΩ * 0.625 = 9.94 KΩ
However, 9.94 KΩ is not a standard value.
Therefore, use R= 10KΩ potentiometer and adjust it to 9.94 KΩ.
Thus the new cut off frequency is
fH1 = 1/ 2Π (0.01 µF) (9.94 KΩ) = 1.6 KHz. First Order High Pass Butterworth filter
•
High pass filters are often formed simply by interchanging the frequency-determining
resistors and capacitors in low pass filters.
•
That is, a first order high pass filter is formed from a first order low pass type by
interchanging components R & C.
•

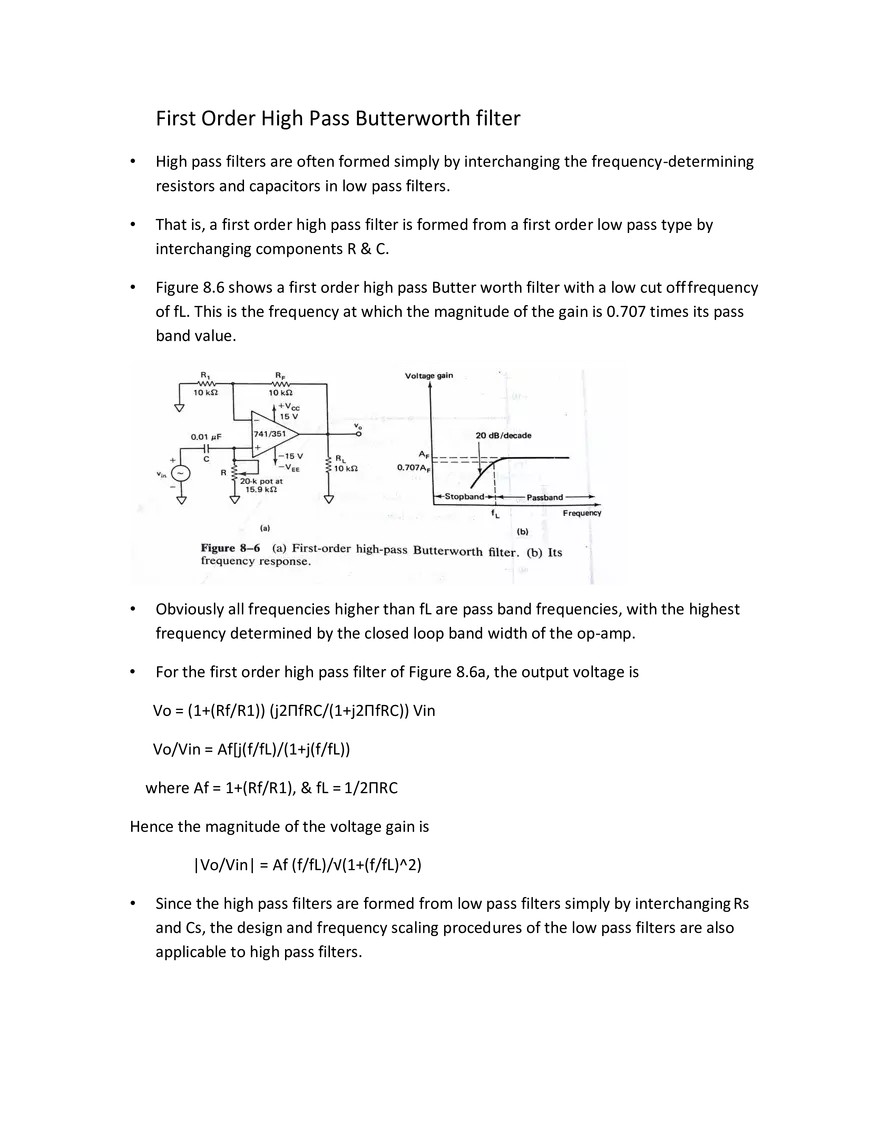

Figure 8.6 shows a first order high pass Butter worth filter with a low cut off frequency
of fL. This is the frequency at which the magnitude of the gain is 0.707 times its pass
band value.
•
Obviously all frequencies higher than fL are pass band frequencies, with the highest
frequency determined by the closed loop band width of the op-amp.
•
For the first order high pass filter of Figure 8.6a, the output voltage is
Vo = (1+(Rf/R1)) (j2ΠfRC/(1+j2ΠfRC)) Vin
Vo/Vin = Af[j(f/fL)/(1+j(f/fL))
where Af = 1+(Rf/R1), & fL = 1/2ΠRC
Hence the magnitude of the voltage gain is
|Vo/Vin| = Af (f/fL)/√(1+(f/fL)^2)
•
Since the high pass filters are formed from low pass filters simply by interchanging Rs
and Cs, the design and frequency scaling procedures of the low pass filters are also
applicable to high pass filters. Wave form Generators
There are different types of wave form generators which are given below.
1 Square wave generator
2 Triangular wave generator
3 Saw tooth wave generator
Square wave Generator (Astable Multivibrator)
•

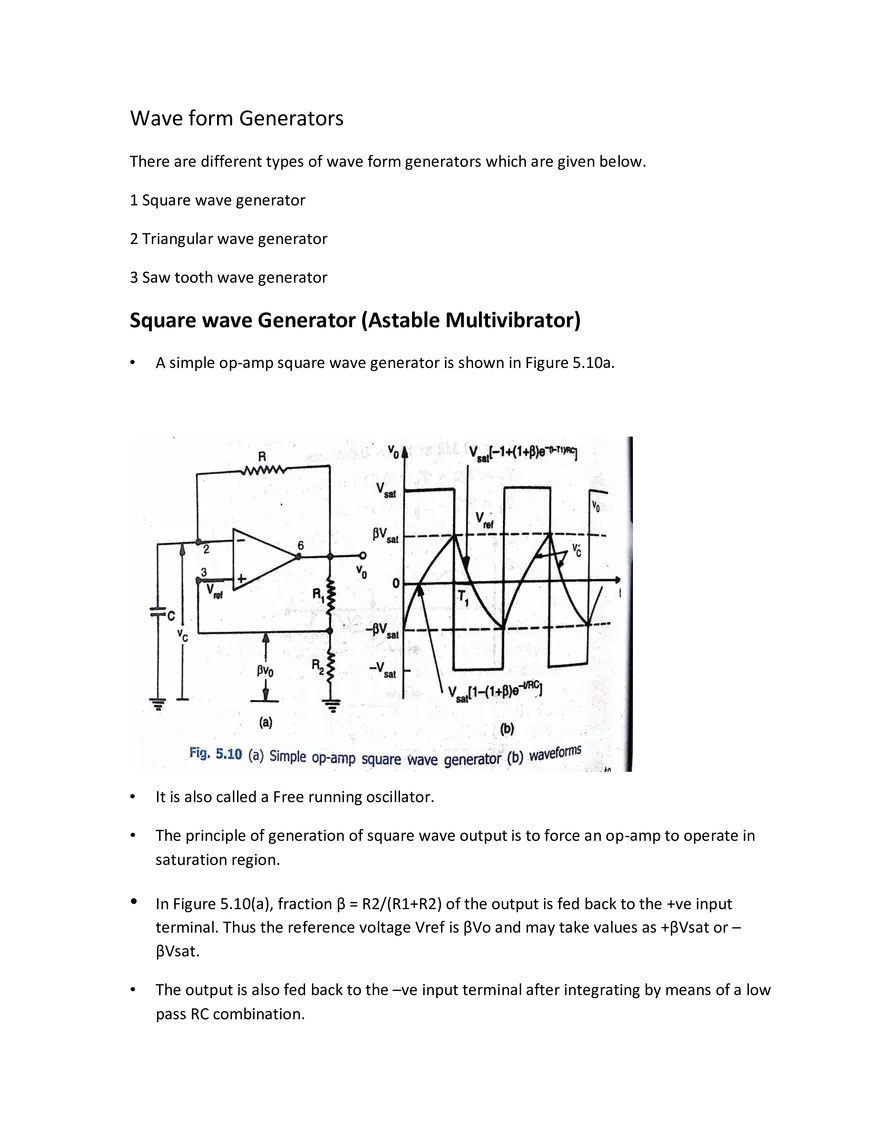

A simple op-amp square wave generator is shown in Figure 5.10a.
•
It is also called a Free running oscillator.
•
The principle of generation of square wave output is to force an op-amp to operate in
saturation region.
•
In Figure 5.10(a), fraction β = R2/(R1+R2) of the output is fed back to the +ve input
terminal. Thus the reference voltage Vref is βVo and may take values as +βVsat or –
βVsat.
•
The output is also fed back to the –ve input terminal after integrating by means of a low
pass RC combination. •
Whenever input at the –ve input terminal just exceeds Vref, switching takes place
resulting in a square wave output.
•
In Astable multivibrator, both the states are quasi stable.
Frequency Derivation
•
The frequency is determined by the time it takes the capacitor to charge from –βVsat to
+ βVsat and vice versa.
•
The voltage across the capacitor as a function of time is given by
Vc(t) = Vf + (Vi – Vf) e^-t/RC
where, the final value, Vf = +Vsat
and the initial value, Vi = –βVsat
Therefore Vc(t) = +Vsat + (–βVsat – Vsat) e^-t/RC
Vc(t) = Vsat – Vsat(1+β) e^-t/RC
At t = T1, voltage across the capacitor reaches βVsat and switching takes place.
•
Therefore
Vc(T1) = βVsat = Vsat – Vsat(1+ β) e^-T1/RC
After algebraic manipulation, we get
T1 = RC ln (1+ β)/(1- β)
This gives only one half of the period.
Therefore the total time period,
output waveform is symmetrical.
If R1 = R2, then β = 0.5 and T = 2RC ln 3 and
for R1=1.16 R2, it can be seen that
T = 2RC or fo = 1/2RC
T =2*T1 = 2RC ln (1+ β)/(1- β) and the Triangle Wave Generators
•

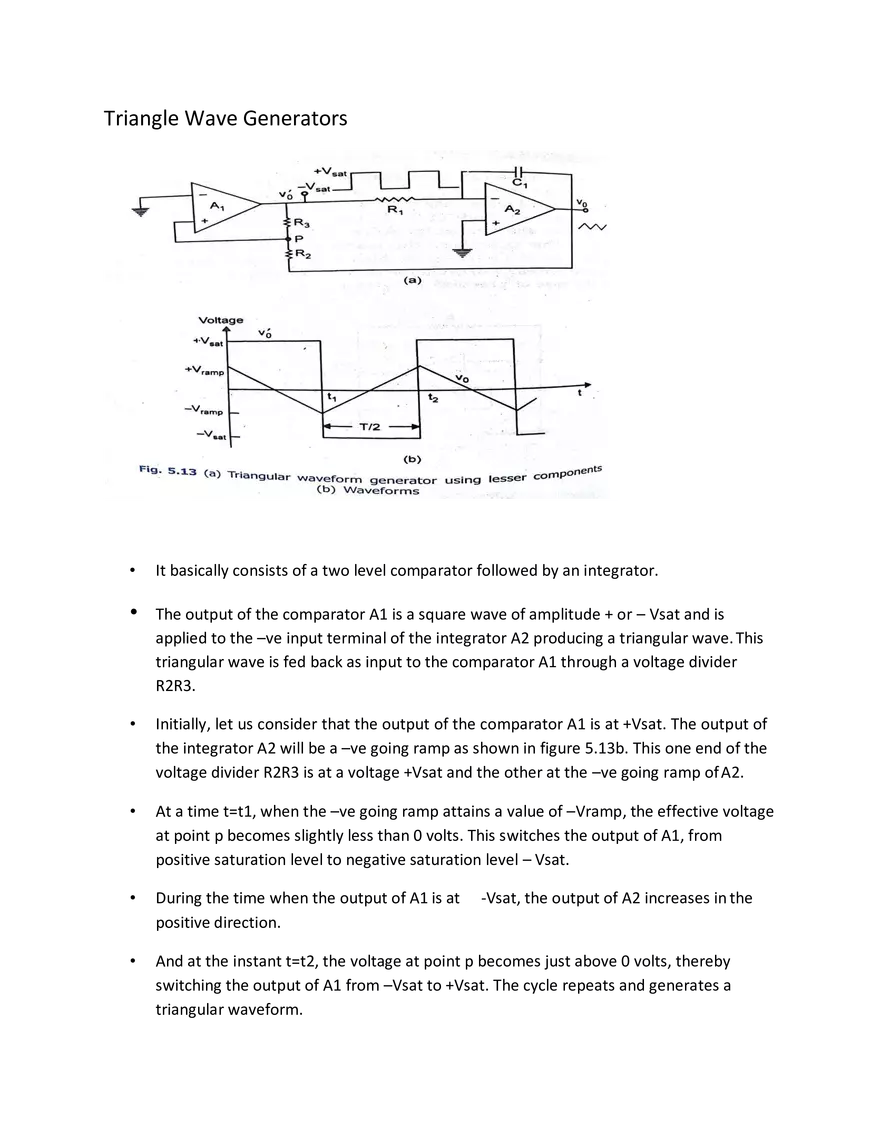

It basically consists of a two level comparator followed by an integrator.
•
The output of the comparator A1 is a square wave of amplitude + or – Vsat and is
applied to the –ve input terminal of the integrator A2 producing a triangular wave. This
triangular wave is fed back as input to the comparator A1 through a voltage divider
R2R3.
•
Initially, let us consider that the output of the comparator A1 is at +Vsat. The output of
the integrator A2 will be a –ve going ramp as shown in figure 5.13b. This one end of the
voltage divider R2R3 is at a voltage +Vsat and the other at the –ve going ramp of A2.
•
At a time t=t1, when the –ve going ramp attains a value of –Vramp, the effective voltage
at point p becomes slightly less than 0 volts. This switches the output of A1, from
positive saturation level to negative saturation level – Vsat.
•
During the time when the output of A1 is at
positive direction.
•
And at the instant t=t2, the voltage at point p becomes just above 0 volts, thereby
switching the output of A1 from –Vsat to +Vsat. The cycle repeats and generates a
triangular waveform.
-Vsat, the output of A2 increases in the •
It can be seen that the frequency of the square wave and triangular wave will be the
same.
•
However, the amplitude of the triangular wave depends upon the RC value of the
integrator A2 and output voltage level of A1.
Derivation of Frequency of Triangular Waveform
•
The effective voltage at point p during the time when output of A1 is at +Vsat level is
given by
-Vramp+(R2/(R2+R3)) [+Vsat – (-Vramp)] -- Eq(1)
At t=t1, the voltage at point p becomes approximately equal to zero. Therefore from Eq(1),
we get
-Vramp = (-R2/R3) (+Vsat)
Similarly at t=t2, when the output of A1 switches from –Vsat to +Vsat
Vramp = (-R2/R3) (-Vsat) = (R2/R3) Vsat
Therefore peak to peak amplitude of the triangular wave is
Vo (pp) = +Vramp – (-Vramp)
Vo (pp) = 2 Vramp = 2 (R2/R3) Vsat ----- Eq(2)
The output switches from –Vramp to +Vramp in half the time period T/2.
Putting the values in the basic integrator equation Vo = -(1/RC) ∫Vi dt, we get
Vo(pp)=-(1/R1C1) 0∫T/2 (-Vsat)dt =(Vsat/R1C1) (T/2)
Therefore T=2 R1C1 Vo(pp)/Vsat
Putting the value of Vo(pp) from Eq(2), we get
T = 4R1 C1 R2/R3
Hence the frequency of oscillation fo is
fo = 1/T = R3/4 R1 C1 R2 Sawtooth Wave Generator
•

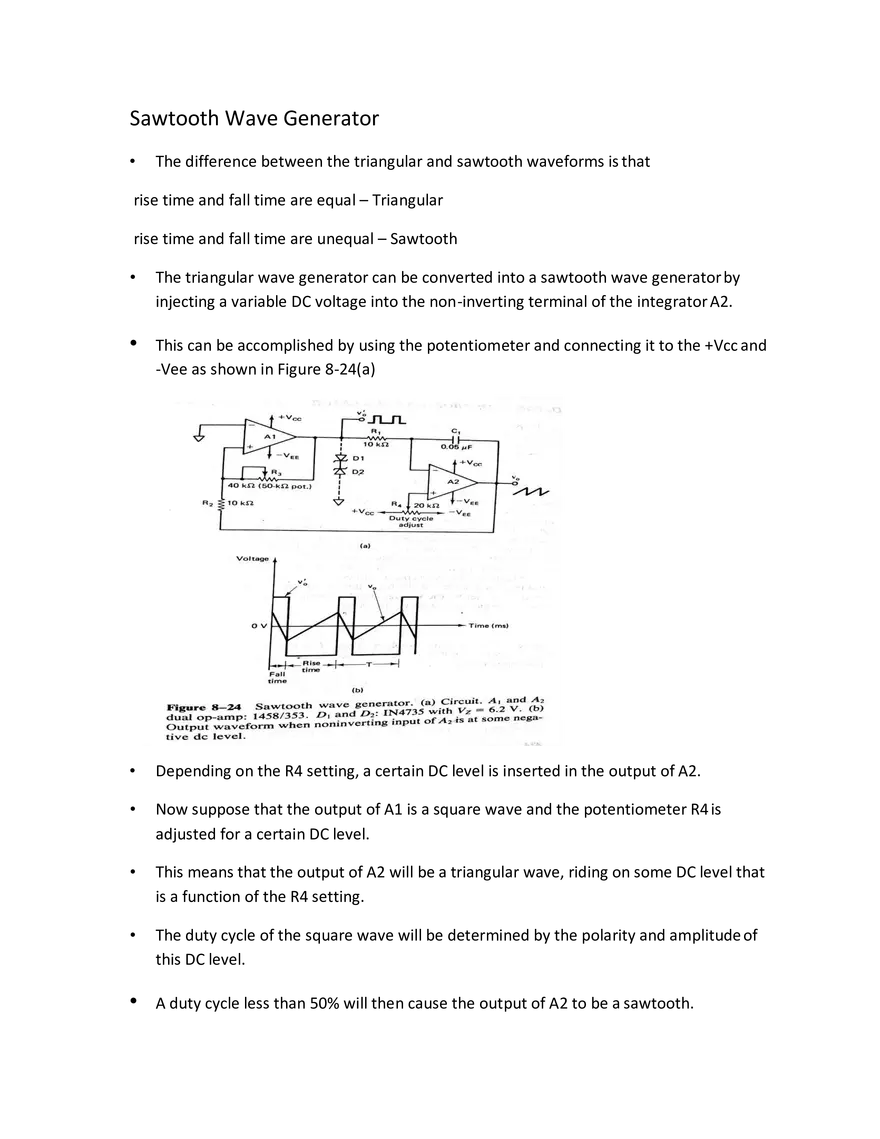

The difference between the triangular and sawtooth waveforms is that
rise time and fall time are equal – Triangular
rise time and fall time are unequal – Sawtooth
•
The triangular wave generator can be converted into a sawtooth wave generator by
injecting a variable DC voltage into the non-inverting terminal of the integrator A2.
•
This can be accomplished by using the potentiometer and connecting it to the +Vcc and
-Vee as shown in Figure 8-24(a)
•
Depending on the R4 setting, a certain DC level is inserted in the output of A2.
•
Now suppose that the output of A1 is a square wave and the potentiometer R4 is
adjusted for a certain DC level.
•
This means that the output of A2 will be a triangular wave, riding on some DC level that
is a function of the R4 setting.
•
The duty cycle of the square wave will be determined by the polarity and amplitude of
this DC level.
•
A duty cycle less than 50% will then cause the output of A2 to be a sawtooth. •
With the wiper at the center of R4, the output of A2 is a triangular wave. For any other
position of R4 wiper, the output is a sawtooth waveform.
•
R4 wiper is towards –Vee,the rise time is more
•
R4 wiper is towards +Vcc,the fall time is more

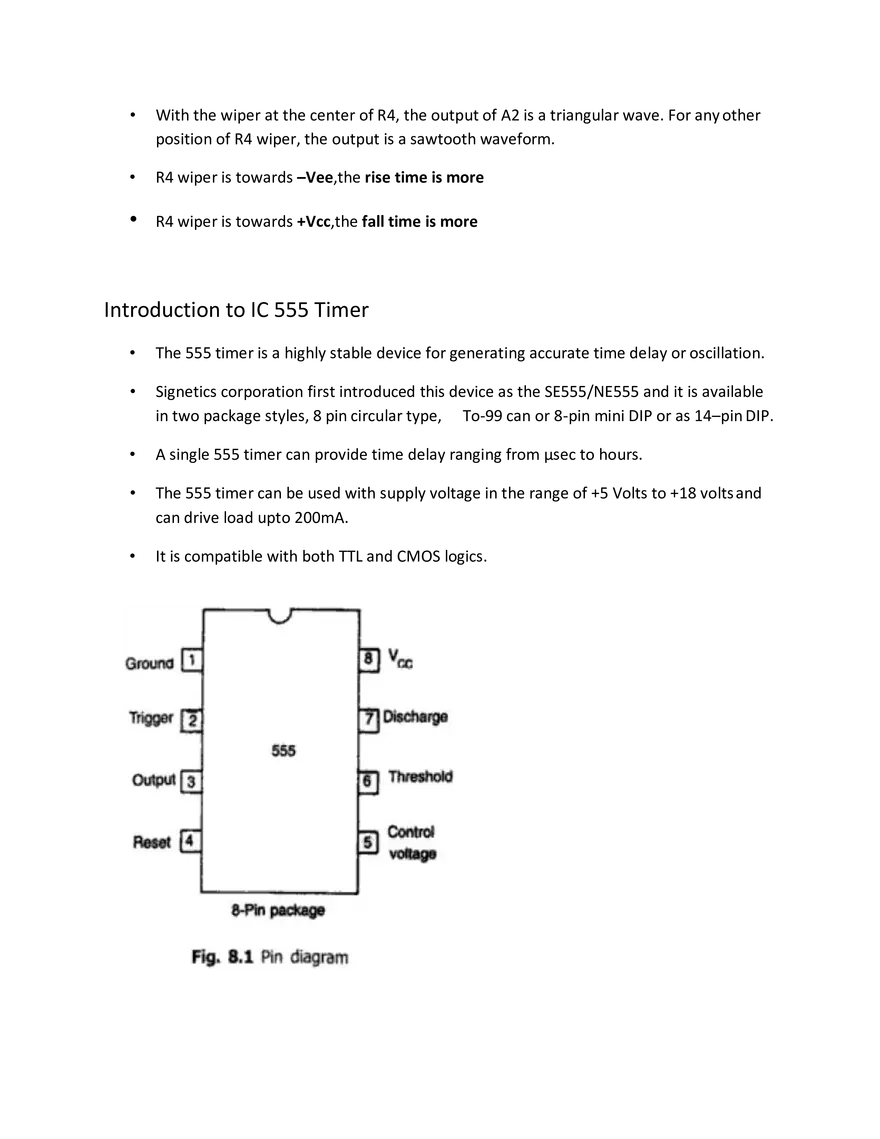

Introduction to IC 555 Timer
•
The 555 timer is a highly stable device for generating accurate time delay or oscillation.
•
Signetics corporation first introduced this device as the SE555/NE555 and it is available
in two package styles, 8 pin circular type, To-99 can or 8-pin mini DIP or as 14–pin DIP.
•
A single 555 timer can provide time delay ranging from μsec to hours.
•
The 555 timer can be used with supply voltage in the range of +5 Volts to +18 volts and
can drive load upto 200mA.
•
It is compatible with both TTL and CMOS logics. •
Because of wide range of supply voltage, the 555 timer is versatile & easy to use in
various applications.
•
Various applications include oscillators, pulse generator, ramp & square wave
generator, mono shot multivibrator, burglar alarm, traffic light control and voltage
monitor etc.
Functional Diagram of 555 Timer
•

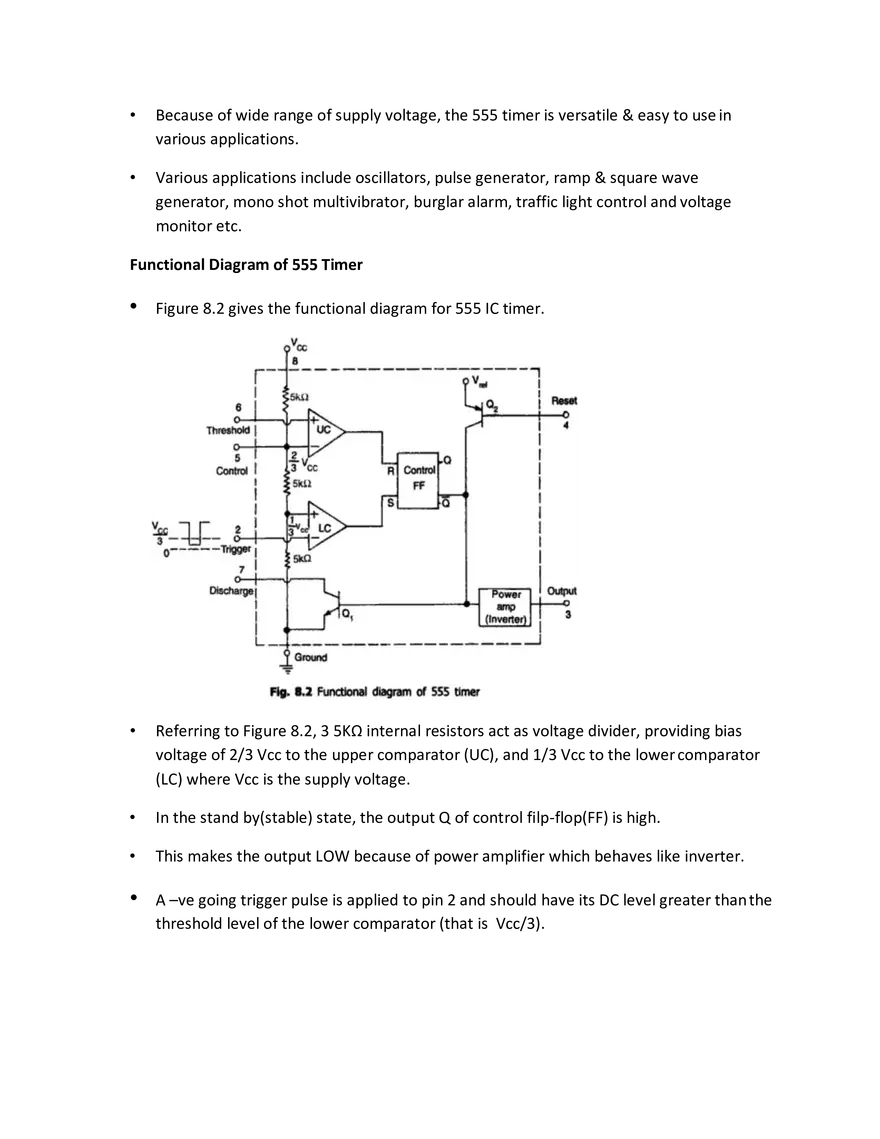

Figure 8.2 gives the functional diagram for 555 IC timer.
•
Referring to Figure 8.2, 3 5KΩ internal resistors act as voltage divider, providing bias
voltage of 2/3 Vcc to the upper comparator (UC), and 1/3 Vcc to the lower comparator
(LC) where Vcc is the supply voltage.
•
In the stand by(stable) state, the output Q of control filp-flop(FF) is high.
•
This makes the output LOW because of power amplifier which behaves like inverter.
•
A –ve going trigger pulse is applied to pin 2 and should have its DC level greater than the
threshold level of the lower comparator (that is Vcc/3). •
At the –ve going edge of the trigger, as the trigger passes through Vcc/3, the output of
the lower comparator goes HIGH and sets the FF.
•
During the positive excursion, when the threshold voltage at pin 6 passes through 2/3
Vcc, the output of the upper comparator goes HIGH and resets the FF(Q=0, Q=1).
•
The reset input (pin 4) provide a mechanism to reset the FF in a manner which over
rides the effect of any instruction coming to FF from lower comparator.
•
When this reset is not used, it is returned to Vcc
Monostable Operation
•

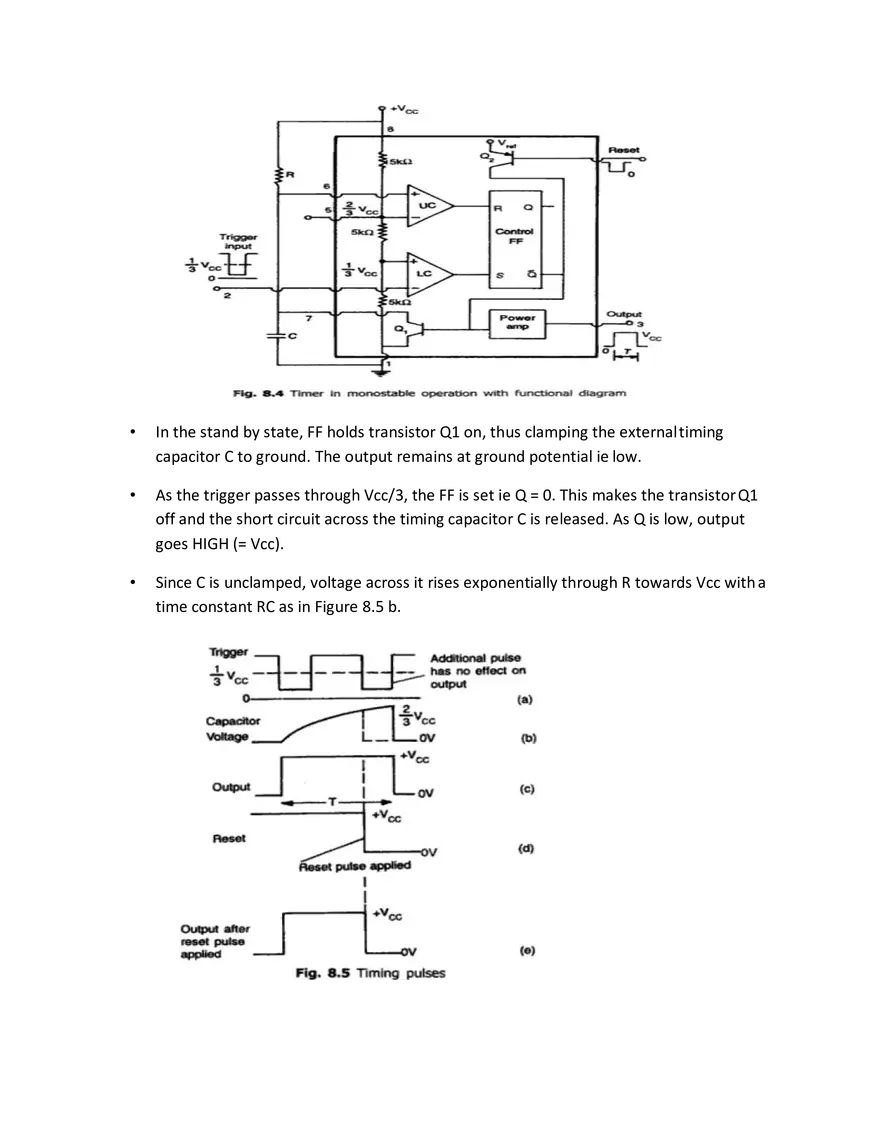

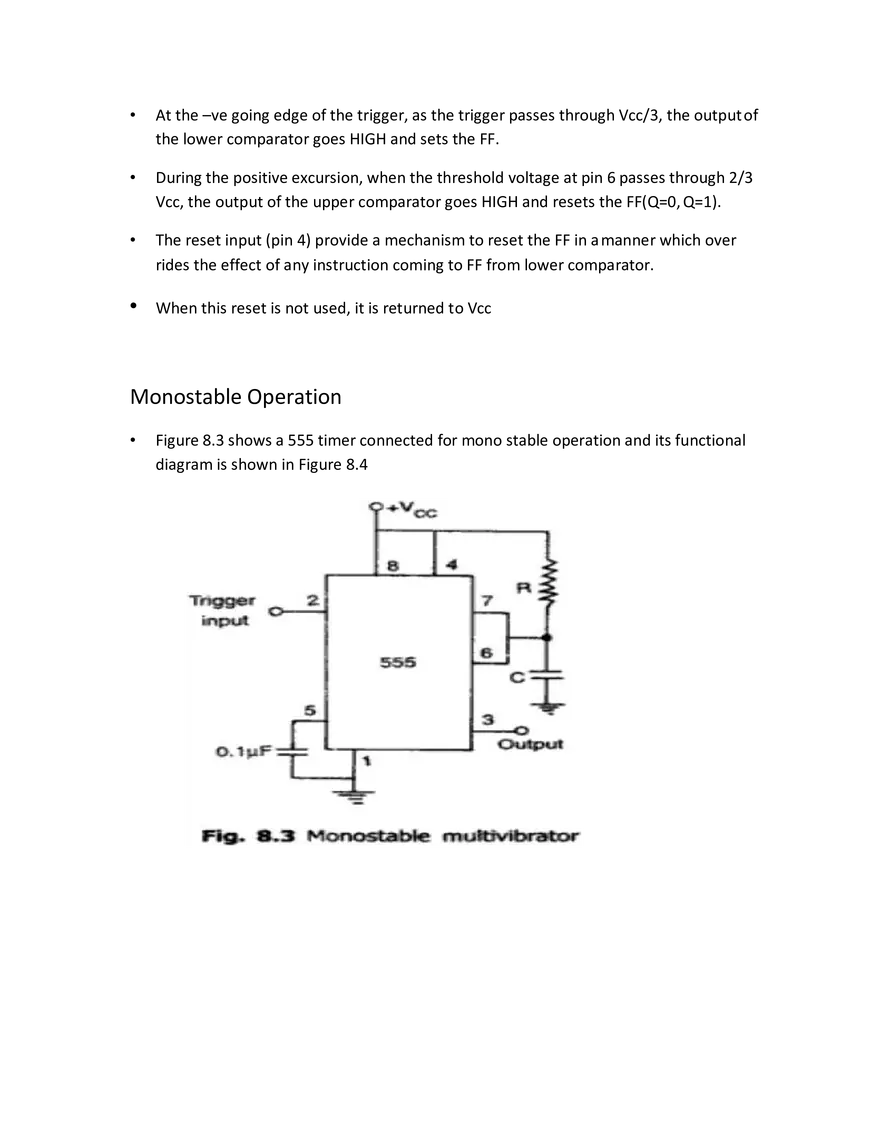

Figure 8.3 shows a 555 timer connected for mono stable operation and its functional
diagram is shown in Figure 8.4 •
In the stand by state, FF holds transistor Q1 on, thus clamping the external timing
capacitor C to ground. The output remains at ground potential ie low.
•
As the trigger passes through Vcc/3, the FF is set ie Q = 0. This makes the transistor Q1
off and the short circuit across the timing capacitor C is released. As Q is low, output
goes HIGH (= Vcc).
•
Since C is unclamped, voltage across it rises exponentially through R towards Vcc with a
time constant RC as in Figure 8.5 b. •
After a time period T the capacitor voltage is just greater than 2/3 Vcc and the upper
comparator resets the FF, that is, R =1, S=0. This makes Q = 1, transistor Q1 goes on (ie
saturates), thereby discharging the capacitor C rapidly to ground potential. The output
returns to the ground potential as shown in Figure 8.5c.
•
The voltage across the capacitor as in Figure 8.5b is given by
Vc = Vcc(1- e^-t/RC)
At t= T, Vc= 2/3 Vcc
Therefore 2/3 Vcc = Vcc(1- e^-T/RC)
e^-T/RC = 1 - 2/3 ==> e^T/RC = 3
T/RC = ln3 T = 1.1 RC --------- Eq(1)
•
It is evident from Eq(1) that the timing interval is independent of the supply voltage. It
may also be noted that once triggered, the output remains in the HIGH state until time T
elapses, which depends only upon R and C. Any additional trigger pulse coming during
this time will not change the output state.
However, if a negative going reset pulse as in Figure 8.5 d is applied to the reset
terminal during the timing cycle, transistor Q2 goes off, Q1 becomes on and the external
timing capacitor C is immediately discharged. The output now will be as in Figure 8.5 e.
Applications in Monostable Mode
•
Some applications of monostable multivibrator are
– Missing pulse detector
– Linear ramp generator
Missing Pulse Detector:
•

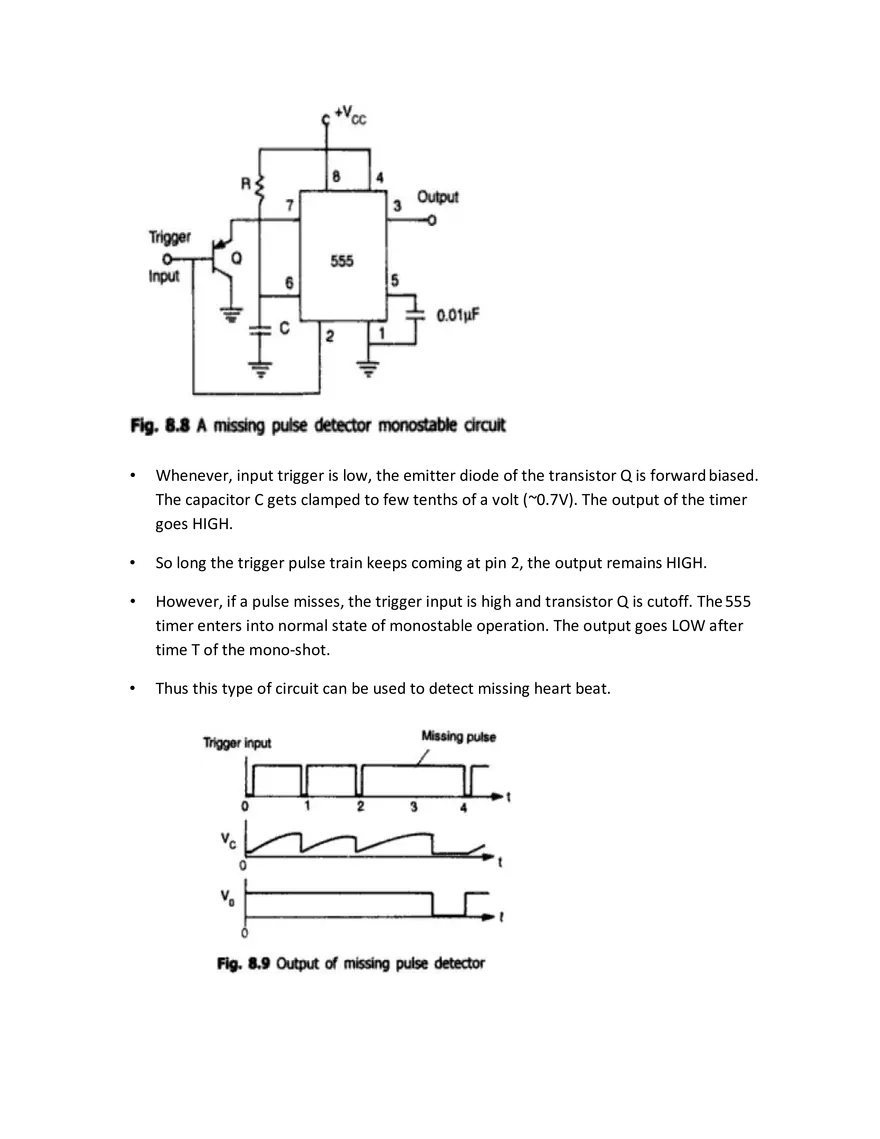

Missing pulse detector circuit using 555 timer is shown in Figure 8.8. •
Whenever, input trigger is low, the emitter diode of the transistor Q is forward biased.
The capacitor C gets clamped to few tenths of a volt (~0.7V). The output of the timer
goes HIGH.
•
So long the trigger pulse train keeps coming at pin 2, the output remains HIGH.
•
However, if a pulse misses, the trigger input is high and transistor Q is cutoff. The 555
timer enters into normal state of monostable operation. The output goes LOW after
time T of the mono-shot.
•
Thus this type of circuit can be used to detect missing heart beat. Astable Operation

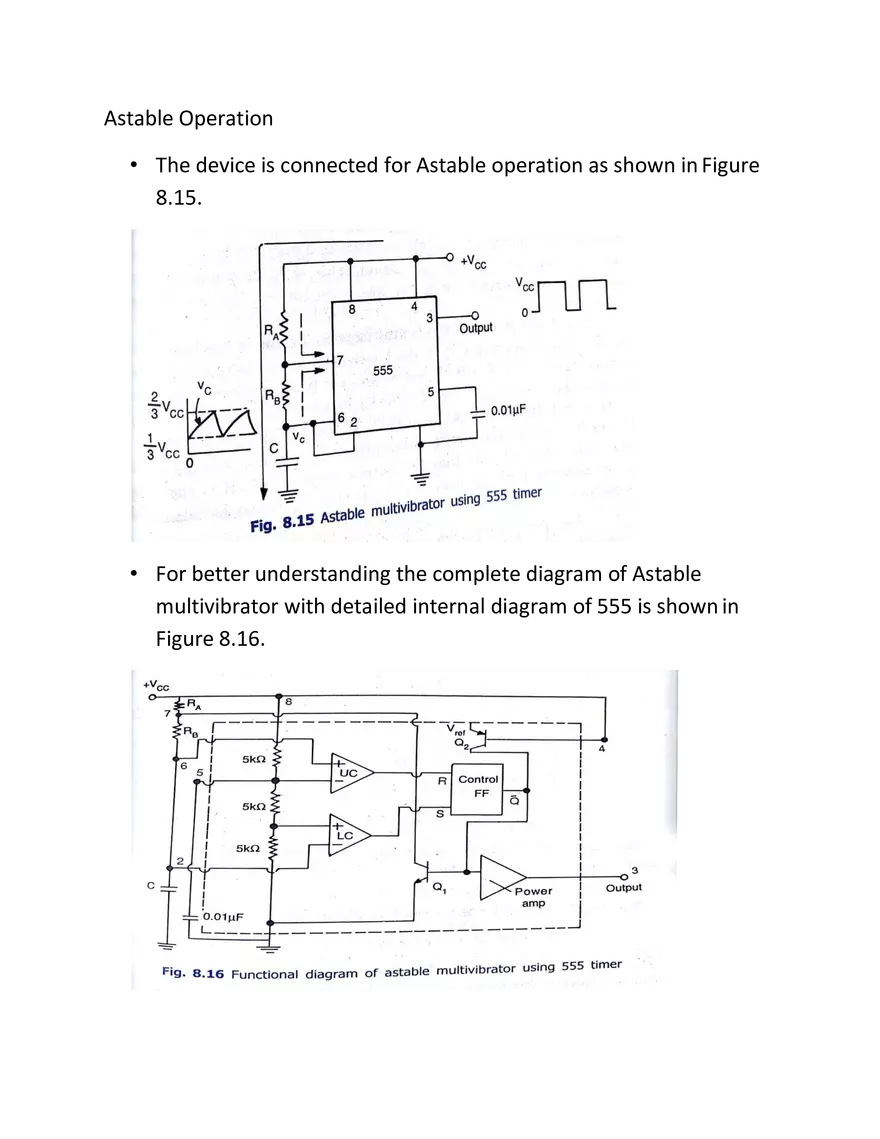

• The device is connected for Astable operation as shown in Figure
8.15.
• For better understanding the complete diagram of Astable
multivibrator with detailed internal diagram of 555 is shown in
Figure 8.16. •
Comparing with the monostable operation, the timing resistor is now split into two
sections Ra and Rb. Pin 7 of discharging transistor Q1 is connected to the junction of Ra
and Rb.
•
When the power supply Vcc is connected, the external timing capacitor C charges
towards Vcc with a time constant (Ra+Rb)C. During this time, output(pin 3) is HIGH
(equals Vcc) as RESET R=0, SET S=1 and this combination makes Q=0 which has
unclamped the timing capacitor C.
•
When the capacitor voltage equals 2/3 Vcc the upper comparator triggers the control FF
so that Q=1. This, in turn, makes the transistor Q1 on and capacitor C starts discharging
towards ground through Rb and transistor Q1 with a time constant Rb C.
•
Current also flows into transistor Q1 through Ra.
•
Resistors Ra and Rb must be large enough to limit this current and prevent damage to
the discharge transistor Q1.
•
The minimum value of Ra is approximately equal to Vcc/0.2 where 0.2 A is the maximum
current through the ON transistor Q1.
•
During the discharge of the timing capacitor C, as it reaches Vcc/3, the lower
comparator is triggered and at this stage S=1, R=0, which turns Q=0. Now Q=0 unclamps
the external timing capacitor C. The capacitor C is thus periodically charged and
discharged between 2/3 Vcc and 1/3 Vcc respectively.
•

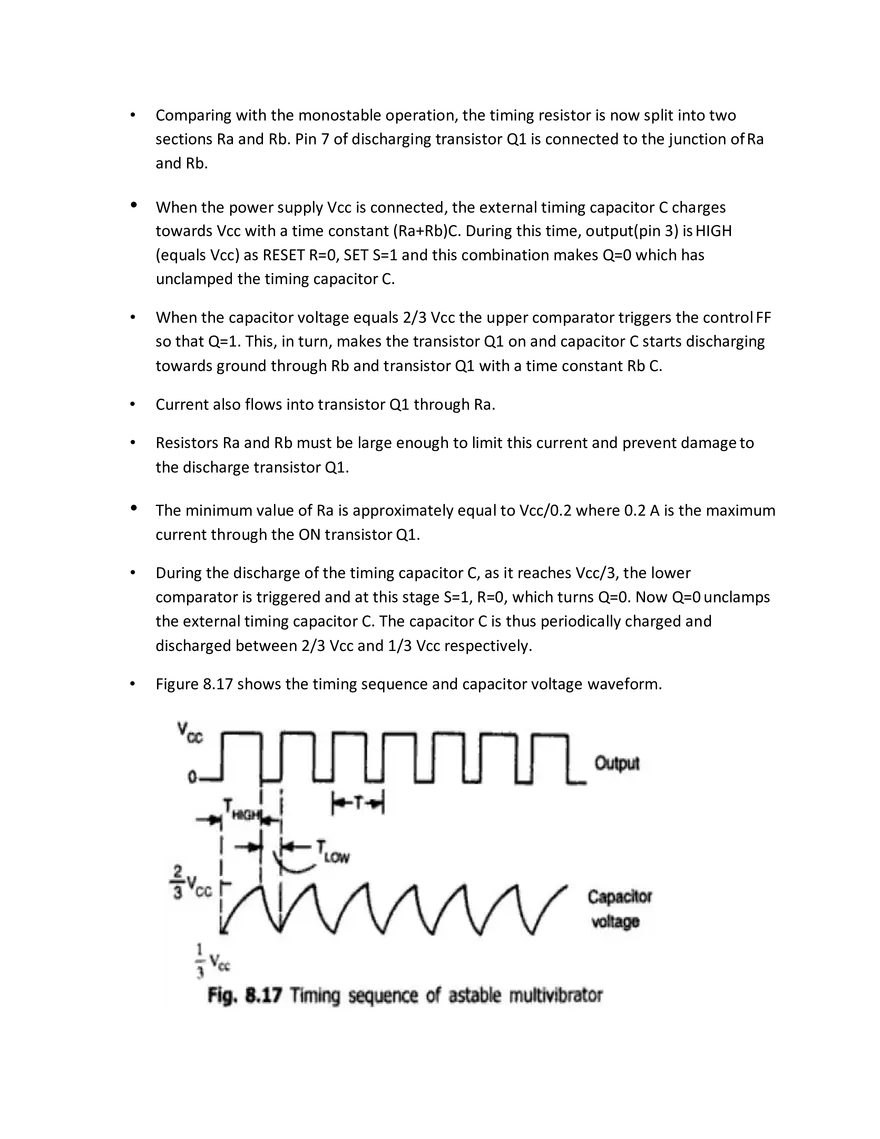

Figure 8.17 shows the timing sequence and capacitor voltage waveform. •
The length of Time that the output remains HIGH is the time for the capacitor to charge
from 1/3 Vcc to 2/3 Vcc. It may be calculated as follows.
•
The capacitor voltage for a low pass RC circuit subjected to a step input of Vcc volts is
given by Vc = Vcc (1- e^(-t/RC))
•
The time t1 taken by the circuit to charge from 0 to 2/3 Vcc is
2/3 Vcc = Vcc(1 – e^(-t1/RC)) t1= 1.09 RC
And the time t2 to charge from 0 to 1/3 Vcc is
1/3 Vcc = Vcc (1- e^(-t2/RC)) t2 = 0.405 RC
So the time to charge from 1/3 Vcc to 2/3 Vcc
tHIGH = t1 –t2 = 1.09 RC – 0.405 RC = 0.69 RC
So, for the given circuit, tHIGH = 0.69 (Ra+Rb) C
The output is low while the capacitor discharges from 2/3 Vcc to 1/3 Vcc and the voltage
across the capacitor is given by
1/3 Vcc =2/3 Vcc e^(-t/RC)
Solving, we get t =0.69 RC
So for the given circuit, tLOW = 0.69 Rb C
Notice that both Ra & Rb are in the charge path, but only Rb is in the discharge path.
Therefore, Total time T= tHIGH + tLOW
T = 0.69(Ra + 2Rb) C
So f =1/T = 1.45/((Ra + 2Rb) C)
•
The Duty cycle D of a circuit is defined as the ratio of ON time to the total time period
T = tON + tOFF.
In this circuit, when the transistor Q1 is ON, the output goes LOW. Hence
D % = (tLOW / T) * 100
= Rb/(Ra + 2Rb) *100 With the circuit configuration of Fig 8.15 it is not possible to have a duty cycle more than
50% since tHIGH = 0.69 (Ra+Rb) C will always be greater than tLOW = 0.69 Rb C
•
In order to obtain a symmetrical square wave ie D =50%, the resistance Ra must be
reduced to zero.
•
However, now Pin 7 is connected directly to Vcc and extra current will flow through Q1
when it is ON. This may damage Q1 and hence the timer
•

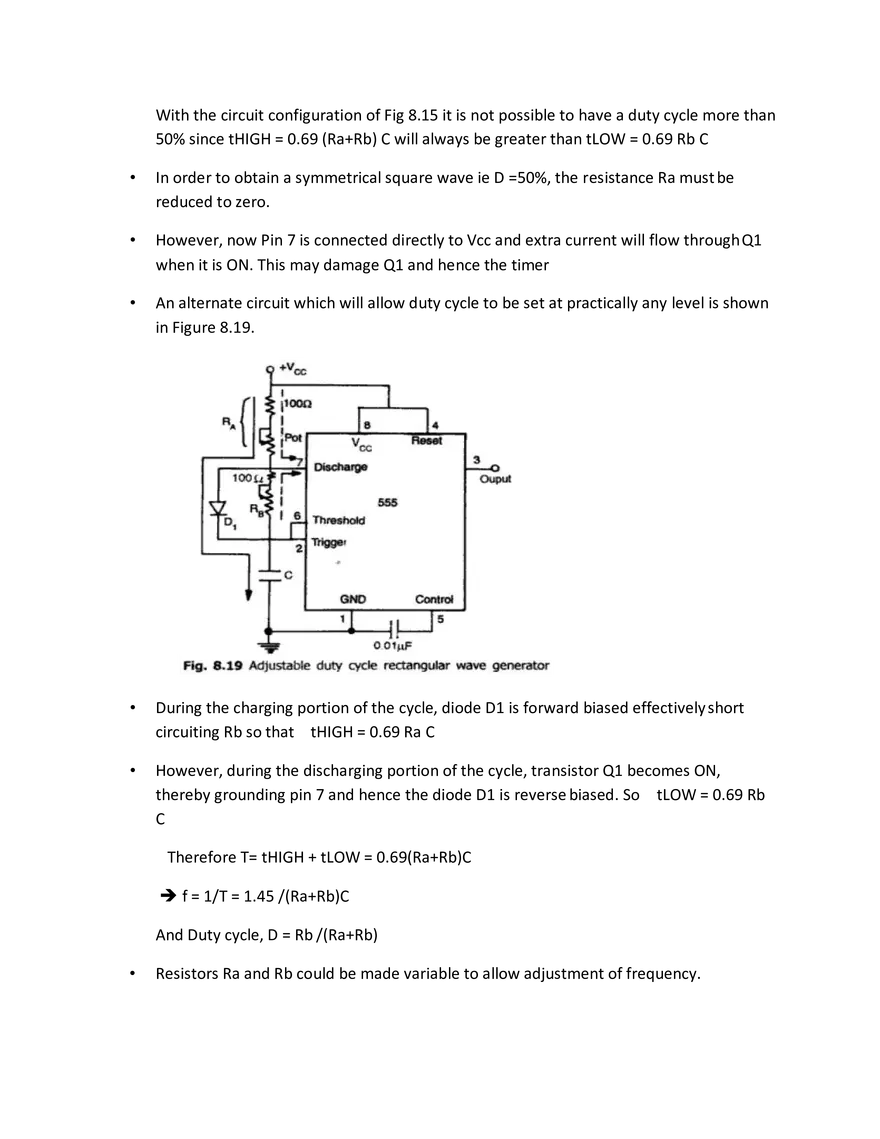

An alternate circuit which will allow duty cycle to be set at practically any level is shown
in Figure 8.19.
•
During the charging portion of the cycle, diode D1 is forward biased effectively short
circuiting Rb so that tHIGH = 0.69 Ra C
•
However, during the discharging portion of the cycle, transistor Q1 becomes ON,
thereby grounding pin 7 and hence the diode D1 is reverse biased. So tLOW = 0.69 Rb
C
Therefore T= tHIGH + tLOW = 0.69(Ra+Rb)C
f = 1/T = 1.45 /(Ra+Rb)C
And Duty cycle, D = Rb /(Ra+Rb)
•
Resistors Ra and Rb could be made variable to allow adjustment of frequency. •
However, a series resistor of at least 100Ω should be added to each Ra and Rb. This will
limit peak current to the discharge transistor Q1 when the variable resistors are at
minimum value.
•
And, if Ra is made equal to Rb, then 50% duty cycle is achieved.
Example: Refer Figure 8.15. For Ra = 6.8 KΩ, Rb = 3.3 KΩ and C=0.1 μF, calculate (a) tHIGH
(b) tLOW (c) free running frequency (d) duty cycle D.
Solution:
a) tHIGH = 0.69(Ra+Rb) C
= 0.69 (6.8 KΩ + 3.3 KΩ) 0.1 μF
= 0.7 ms
b) tLOW = 0.69 Rb C
= 0.69 (3.3KΩ) 0.1 μF
= 0.23 ms
c) f = 1.45/((Ra +2Rb) C)
= 1.45/((6.8 KΩ + 2(3.3 KΩ)) (0.1 μF))
= 1.07 KHz
d) Duty Cycle D = tLOW / T = Rb/(Ra + 2Rb)
= 3.3 KΩ /(6.8 KΩ + 2 (3.3 KΩ))
= 0.25 = 25%
Applications in Astable Mode
•
A couple of applications in Astable mode are
– Pulse position modulator
– FSK Generator Pulse Position Modulator:
•

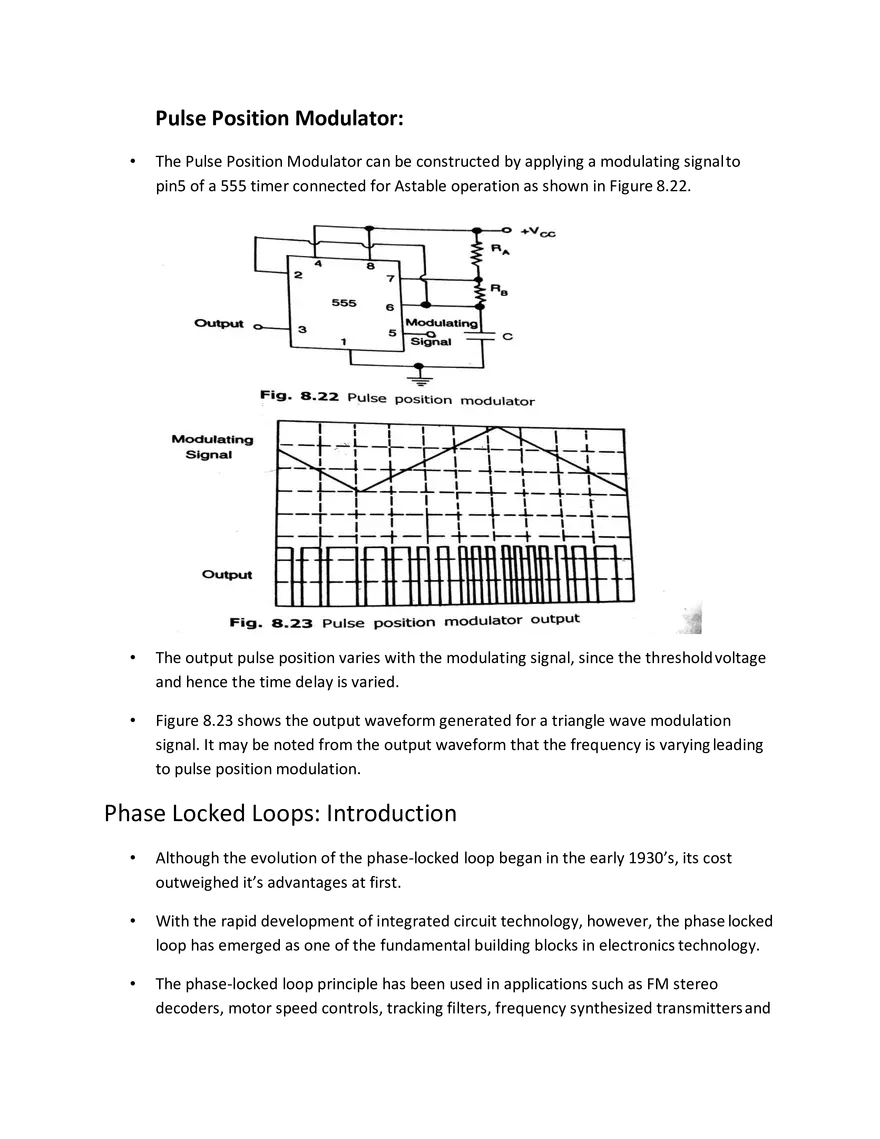

The Pulse Position Modulator can be constructed by applying a modulating signal to
pin5 of a 555 timer connected for Astable operation as shown in Figure 8.22.
•
The output pulse position varies with the modulating signal, since the threshold voltage
and hence the time delay is varied.
•
Figure 8.23 shows the output waveform generated for a triangle wave modulation
signal. It may be noted from the output waveform that the frequency is varying leading
to pulse position modulation.
Phase Locked Loops: Introduction
•
Although the evolution of the phase-locked loop began in the early 1930’s, its cost
outweighed it’s advantages at first.
•
With the rapid development of integrated circuit technology, however, the phase locked
loop has emerged as one of the fundamental building blocks in electronics technology.
•
The phase-locked loop principle has been used in applications such as FM stereo
decoders, motor speed controls, tracking filters, frequency synthesized transmitters and receivers, FM demodulators, FSK decoders, and a generation of local oscillator
frequencies and in TV and FM tuners.
Block Schematic and Operation Principle
•

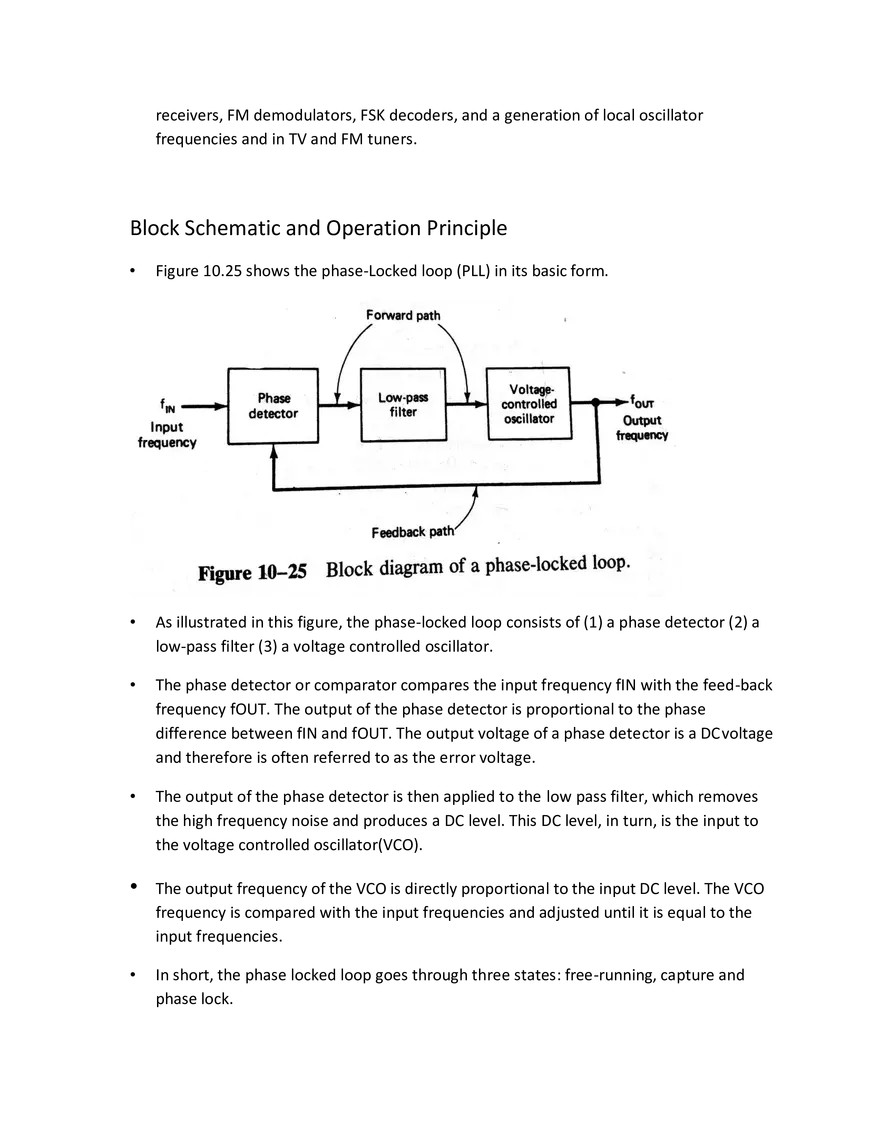

Figure 10.25 shows the phase-Locked loop (PLL) in its basic form.
•
As illustrated in this figure, the phase-locked loop consists of (1) a phase detector (2) a
low-pass filter (3) a voltage controlled oscillator.
•
The phase detector or comparator compares the input frequency fIN with the feed-back
frequency fOUT. The output of the phase detector is proportional to the phase
difference between fIN and fOUT. The output voltage of a phase detector is a DC voltage
and therefore is often referred to as the error voltage.
•
The output of the phase detector is then applied to the low pass filter, which removes
the high frequency noise and produces a DC level. This DC level, in turn, is the input to
the voltage controlled oscillator(VCO).
•
The output frequency of the VCO is directly proportional to the input DC level. The VCO
frequency is compared with the input frequencies and adjusted until it is equal to the
input frequencies.
•
In short, the phase locked loop goes through three states: free-running, capture and
phase lock. •
Before the input is applied, the phase locked loop is in the free-running state.
•
Once the input frequency is applied, the VCO frequency starts to change and the phase
locked loop is said to be in the capture mode.
•
The VCO frequency continues to change until it equals the input frequency, and the
phase-locked loop is then in the phase locked state. When phase locked, the loop tracks
any change in the input frequency through its repetitive action.
Phase Detector
•
The phase detector compares the input frequency and the VCO frequency and
generates a DC voltage that is proportional to the phase difference between the two
frequencies.
•
Depending on the analog or digital phase detector used, the PLL is either called an
analog or digital type respectively.
•
A double balanced mixer is a classic example of an analog phase detector. On the other
hand examples of digital phase detectors are these:
1 Exclusive OR phase detector
2 Edge triggered phase detector
3 Monolithic phase detector
Exclusive OR Phase Detector:
•

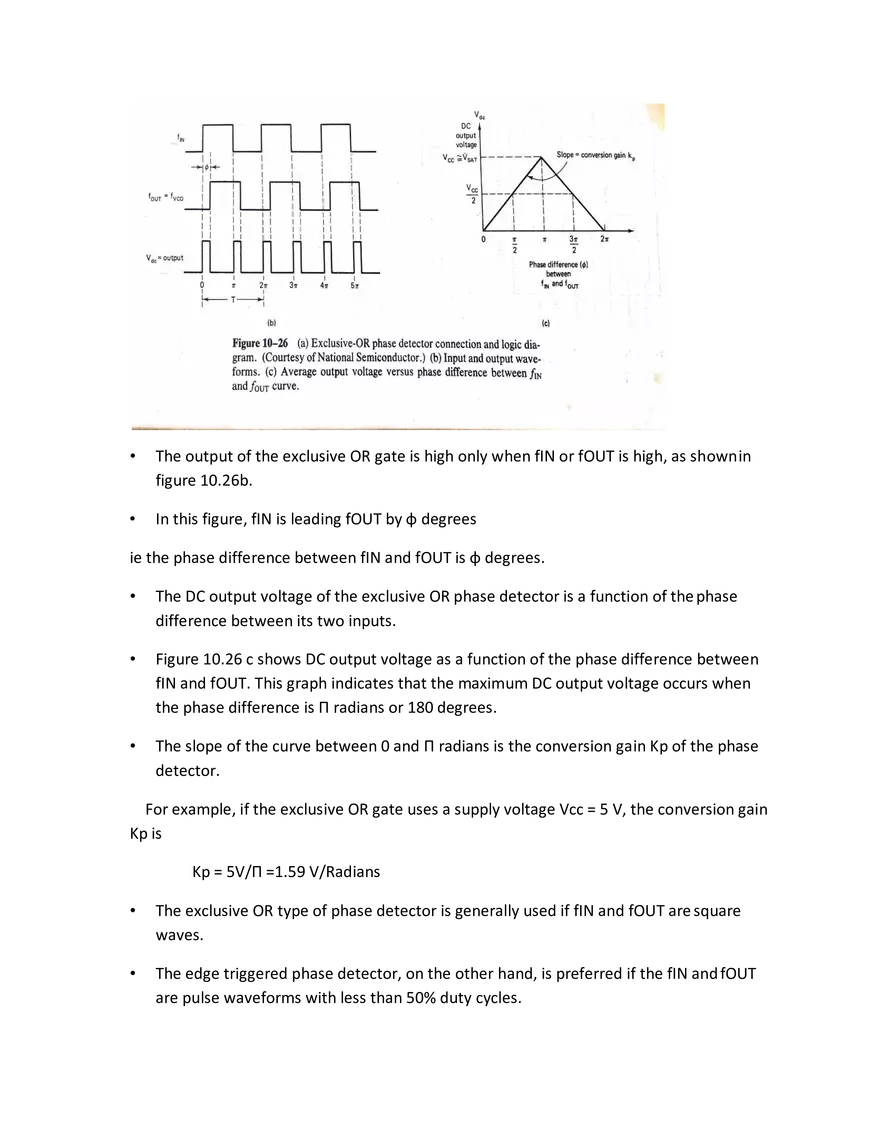

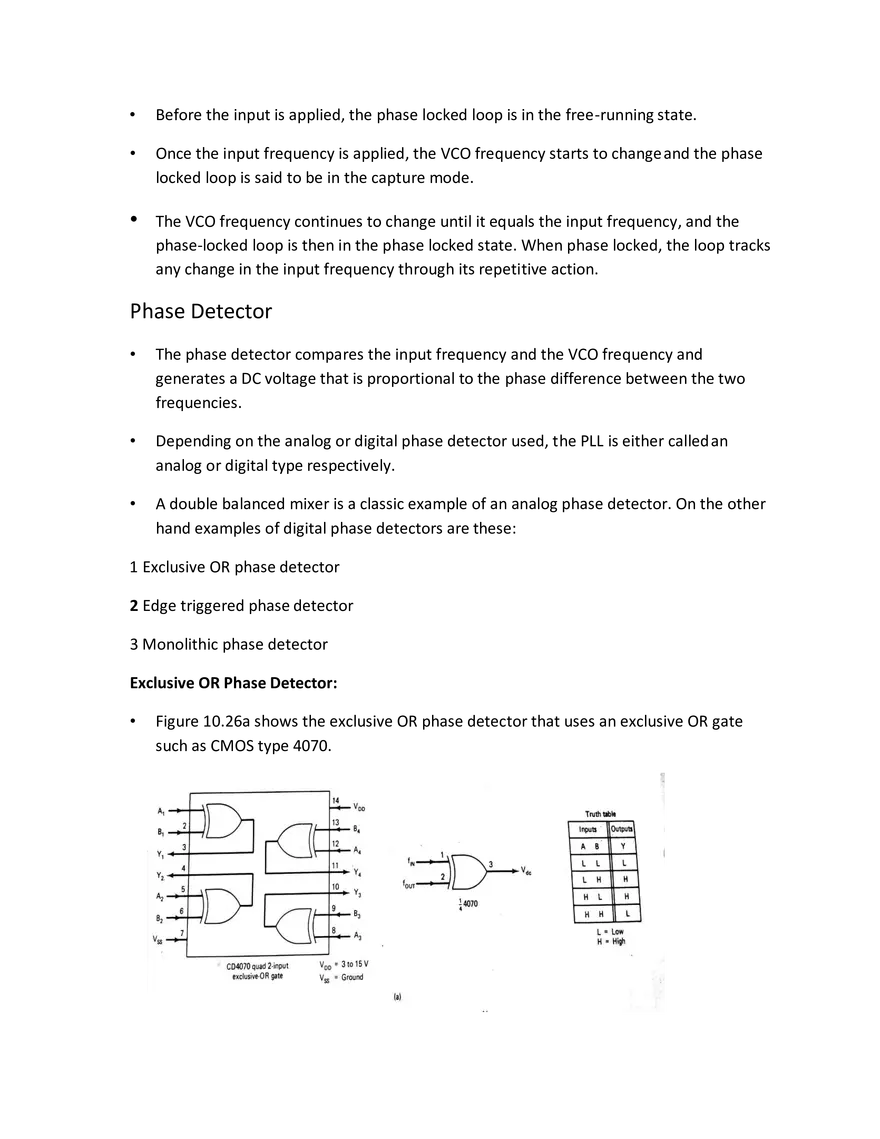

Figure 10.26a shows the exclusive OR phase detector that uses an exclusive OR gate
such as CMOS type 4070. •
The output of the exclusive OR gate is high only when fIN or fOUT is high, as shown in
figure 10.26b.
•
In this figure, fIN is leading fOUT by φ degrees
ie the phase difference between fIN and fOUT is φ degrees.
•
The DC output voltage of the exclusive OR phase detector is a function of the phase
difference between its two inputs.
•
Figure 10.26 c shows DC output voltage as a function of the phase difference between
fIN and fOUT. This graph indicates that the maximum DC output voltage occurs when
the phase difference is Π radians or 180 degrees.
•
The slope of the curve between 0 and Π radians is the conversion gain Kp of the phase
detector.
For example, if the exclusive OR gate uses a supply voltage Vcc = 5 V, the conversion gain
Kp is
Kp = 5V/Π =1.59 V/Radians
•
The exclusive OR type of phase detector is generally used if fIN and fOUT are square
waves.
•
The edge triggered phase detector, on the other hand, is preferred if the fIN and fOUT
are pulse waveforms with less than 50% duty cycles. •
These both types of phase detectors are sensitive to harmonics of the input signal and
changes in duty cycles of fIN and fOUT. In such cases Monolithic phase detector is used
Low Pass Filter
•
The second block shown in the PLL block diagram of figure 10.25 is a low-pass filter.
•
The function of the low-pass filter is to remove the high frequency components in the
output of the phase detector and to remove high frequency noise.
•
More important, the low-pass filter controls the dynamic characteristics of the phaselocked loop. These characteristics include capture and lock ranges, band width, and
transient response.
•
The lock range is defined as the range of frequencies over which the PLL system follows
the changes in the input frequency fIN. An equivalent term for lock range is the tracking
range.
•
On the other hand, the capture range is the frequency range in which the PLL acquires
phase lock. Obviously the capture range is always smaller than the lock range.
•
As the filter bandwidth is reduced, it’s response time increases. However, reduced band
width reduces the capture range of PLL.
•
Nevertheless, reduced bandwidth helps to keep the loop in lock through momentary
losses of signal and also minimizes the noise
•

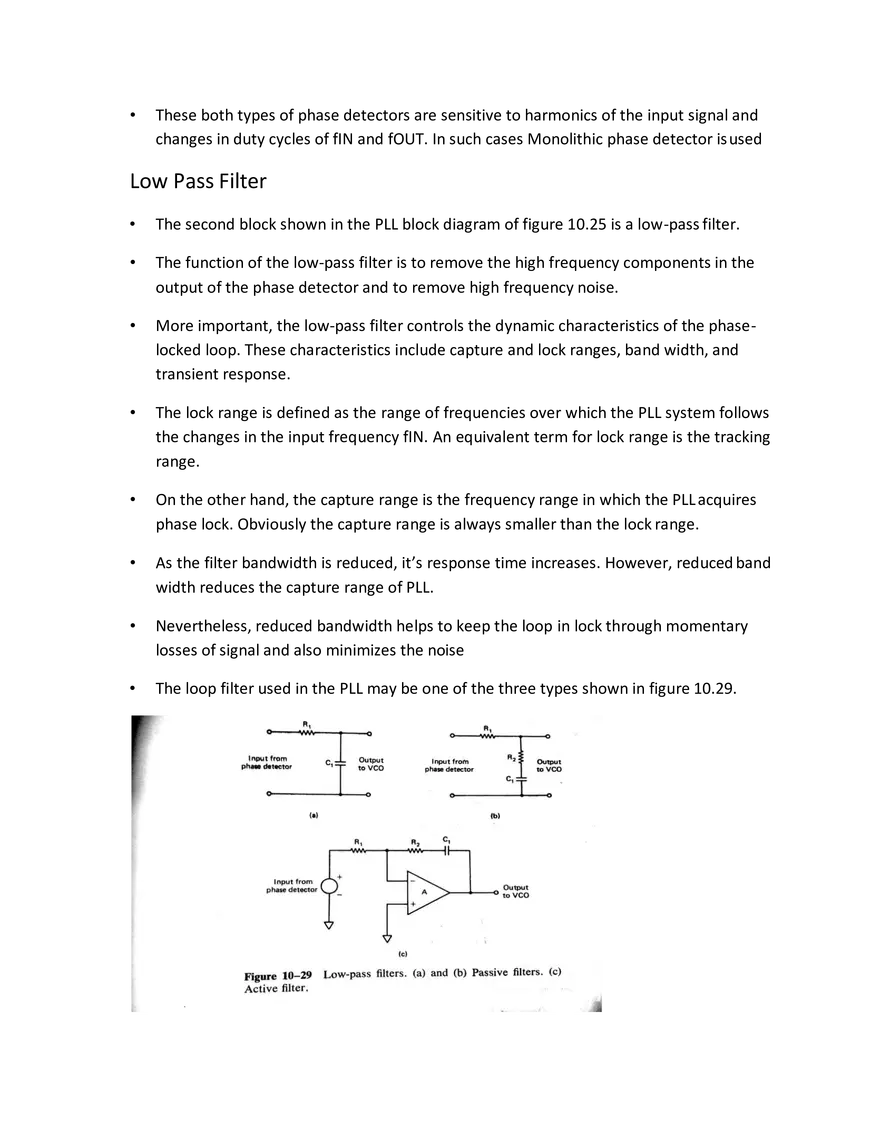

The loop filter used in the PLL may be one of the three types shown in figure 10.29. •
With the passive filters of Figure 10.29a and b, an amplifier is generally used for gain. On
the other hand, the active filter of Figure 10.29c includes the gain.
Voltage Controlled Oscillator
•
A third section of the PLL is the voltage controlled oscillator.
•

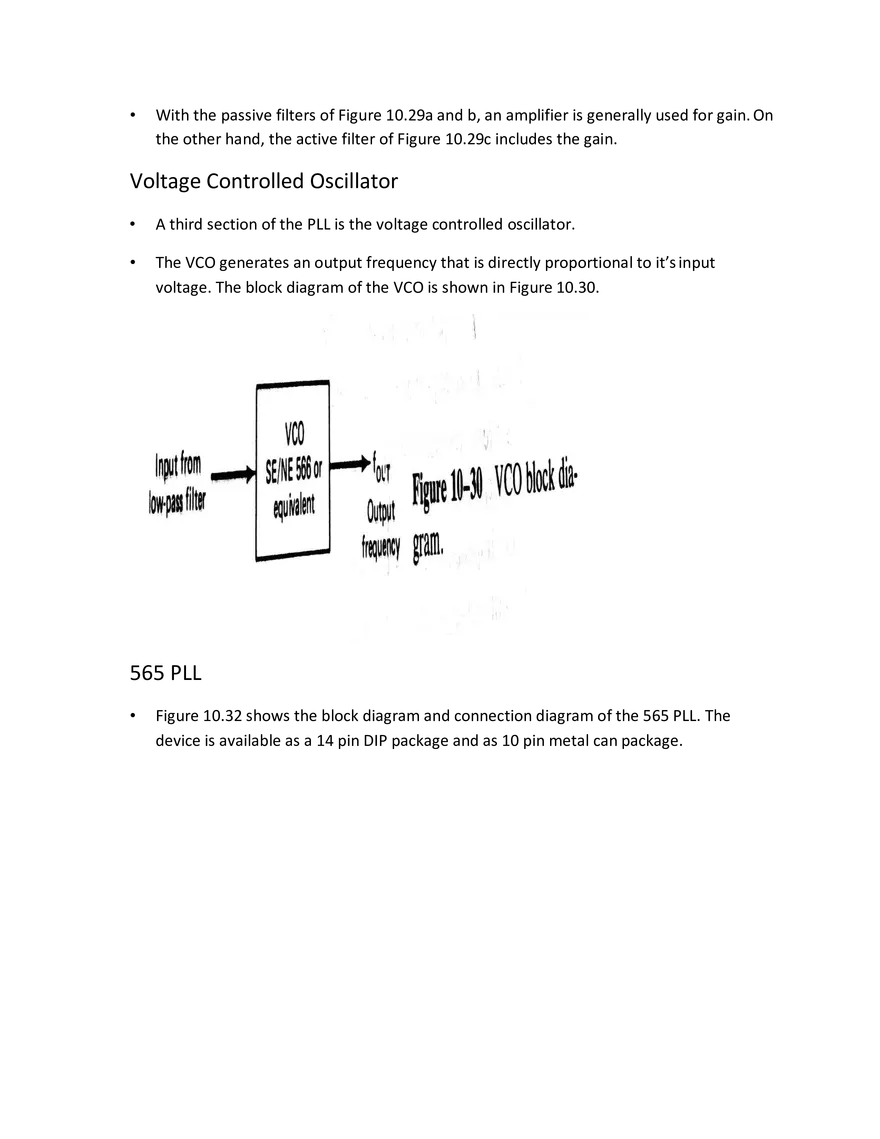

The VCO generates an output frequency that is directly proportional to it’s input
voltage. The block diagram of the VCO is shown in Figure 10.30.
565 PLL
•

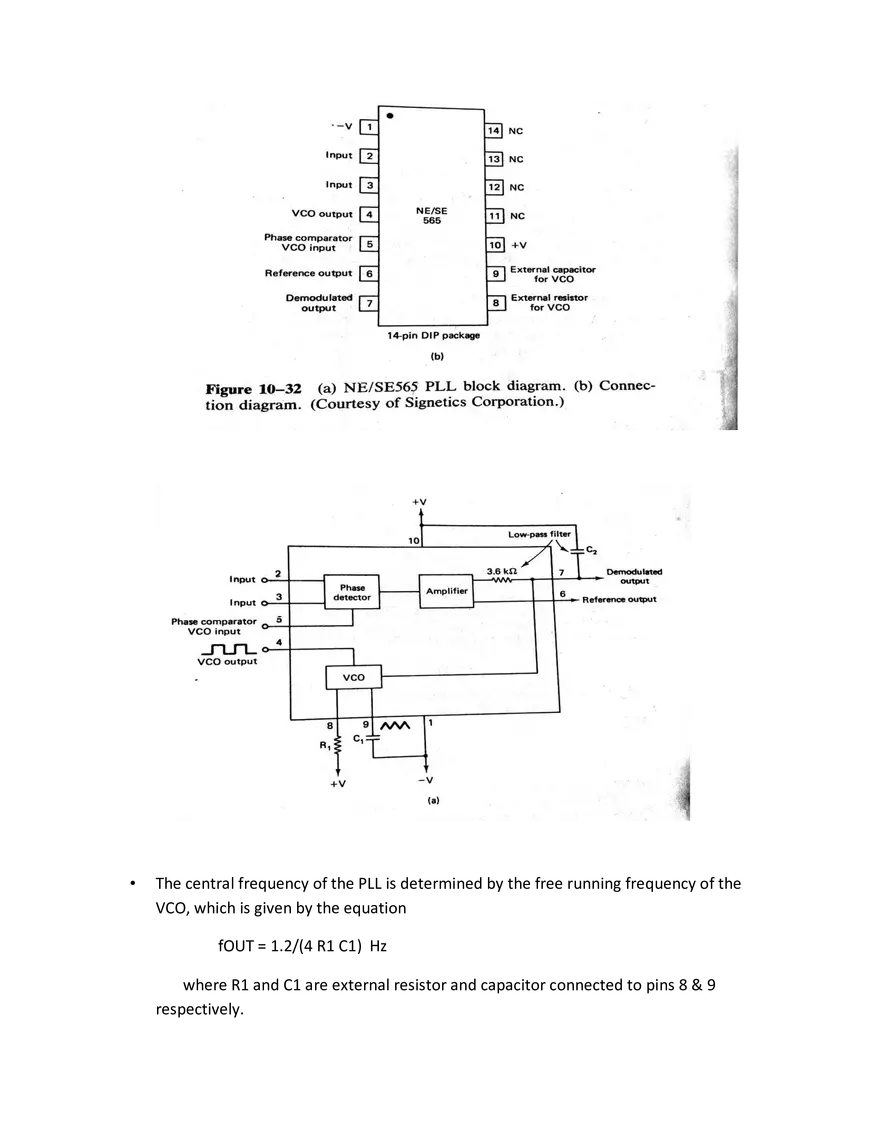

Figure 10.32 shows the block diagram and connection diagram of the 565 PLL. The
device is available as a 14 pin DIP package and as 10 pin metal can package. •
The central frequency of the PLL is determined by the free running frequency of the
VCO, which is given by the equation
fOUT = 1.2/(4 R1 C1) Hz
where R1 and C1 are external resistor and capacitor connected to pins 8 & 9
respectively. •
The VCO free running frequency fOUT is adjusted externally with R1 and C1 to be at the
center of the input frequency range.
•
Although C1 can be any value, R1 must have a value between 2 KΩ and 20 KΩ
•
A capacitor C2 connected between pin 7 and positive supply (pin 10) forms a first order
low-pass filter with an internal resistance of 3.6 KΩ.
•
The filter capacitor C2 should be large enough to eliminate variations in the
demodulated output voltage at Pin 7 in order to stabilize the VCO frequency.
•
The 565 PLL can lock to and track an input signal over typically + or – 60% bandwidth
with respect to fOUT as the center frequency.
•
The lock range fL and capture range fC of the PLL are given by the following equations:
fL = + or – 8 fOUT/ V Hz
Where fOUT=free running frequency of VCO (Hz)
V = v – (-v) volts
and fC = + or – [fL/((2π) (3.6 * 10^3) C2)]^(1/2)
Where C2 is in Farads.
•
The lock range usually increases with an increase in input voltage but decreases with an
increase in supply voltages.
•
Pins 2 & 3 are the input terminals and an input signal can be direct-coupled, provided
that there is no DC voltage difference between the pins and DC resistances seen from
pins 2 & 3 are equal.
•
A short between pins 4 & 5 connects the VCO output (fOUT) to the phase comparator
and enables the comparator to compare fOUT with the input signal fIN.
Applications of PLL
Frequency Multiplication:
•

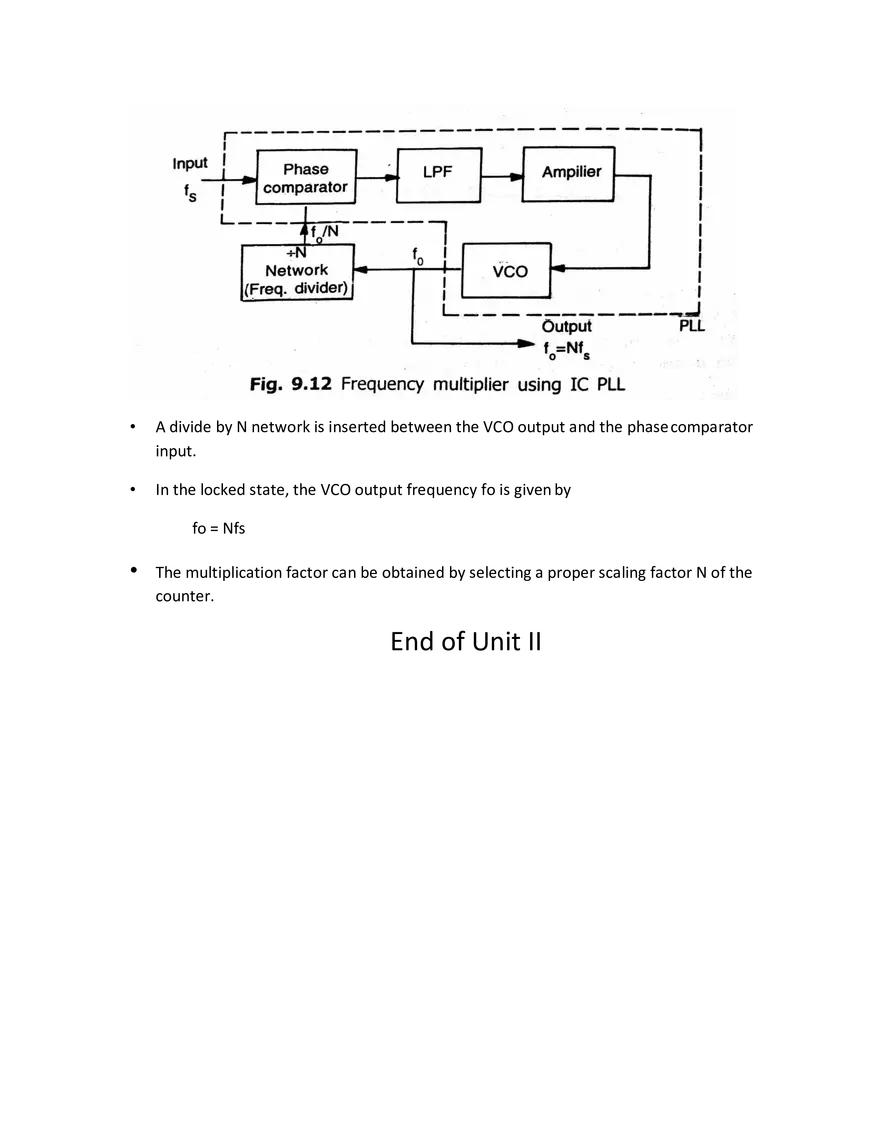

Figure 9.12 gives the block diagram of a frequency multiplier using PLL. •
A divide by N network is inserted between the VCO output and the phase comparator
input.
•
In the locked state, the VCO output frequency fo is given by
fo = Nfs
•
The multiplication factor can be obtained by selecting a proper scaling factor N of the
counter.
End of Unit II Unit III
Data Converters
Introduction
Most of the real world physical quantities such as voltage, current, temperature,
pressure and time etc are available in analog form.
Even though an analog signal represents a real physical parameter with accuracy, it is
difficult to process, store, or transmit the analog signal with out introducing
considerable error because of superimposition of noise as in the case of amplitude
modulation.
Therefore, for processing, transmission and storage purposes, it is often convenient to
express these variables in digital form. It gives better accuracy and reduces noise.
The operation of any digital communication system is based upon Analog to Digital
(A/D) and Digital to Analog (D/A) conversion.

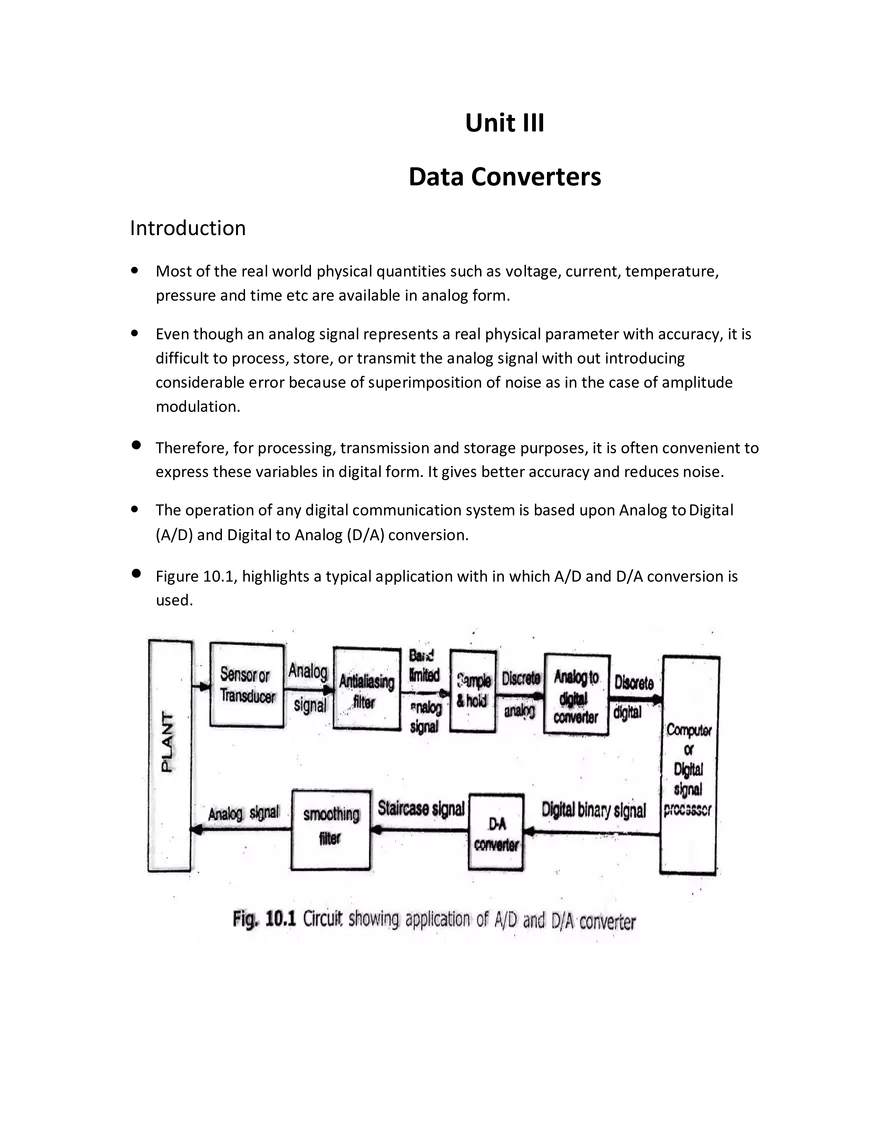

Figure 10.1, highlights a typical application with in which A/D and D/A conversion is
used. The analog signal obtained from the transducer is band limited by antialiasing filter. The
signal is then sampled at a frequency rate more than twice the maximum frequency of
the band limited signal.
The sampled signal has to be held constant while conversion is taking place in A/D
converter. This requires that ADC should be preceded by a sample and hold (S/H) circuit.
The ADC output is a sequence in binary digit. The micro-computer or Digital signal
processor performs the numerical calculations of the desired control algorithm.
The analog signal obtained from the transducer is band limited by antialiasing filter. The
signal is then sampled at a frequency rate more than twice the maximum frequency of
the band limited signal.
The sampled signal has to be held constant while conversion is taking place in A/D
converter. This requires that ADC should be preceded by a sample and hold (S/H) circuit.
The ADC output is a sequence in binary digit. The micro-computer or Digital signal
processor performs the numerical calculations of the desired control algorithm.
The D/A converter is to convert digital signal into analog and hence the function of DAC
is exactly opposite to that of ADC. The D/A converter is usually operated at the same
frequency as the ADC.
The output of a D/A converter is commonly a staircase. This staircase like output is
passed through a smoothing filter to reduce the effect of quantization noise.
Applications of A/D and D/A conversion
The scheme given in Figure 10.1 is used either in full or in part in applications such as
digital audio recording and playback, computer, music and video synthesis, pulse code
modulation transmission, data acquisition, digital multi meter, direct digital control,
digital signal processing, microprocessor based instrumentation.
Basic DAC techniques

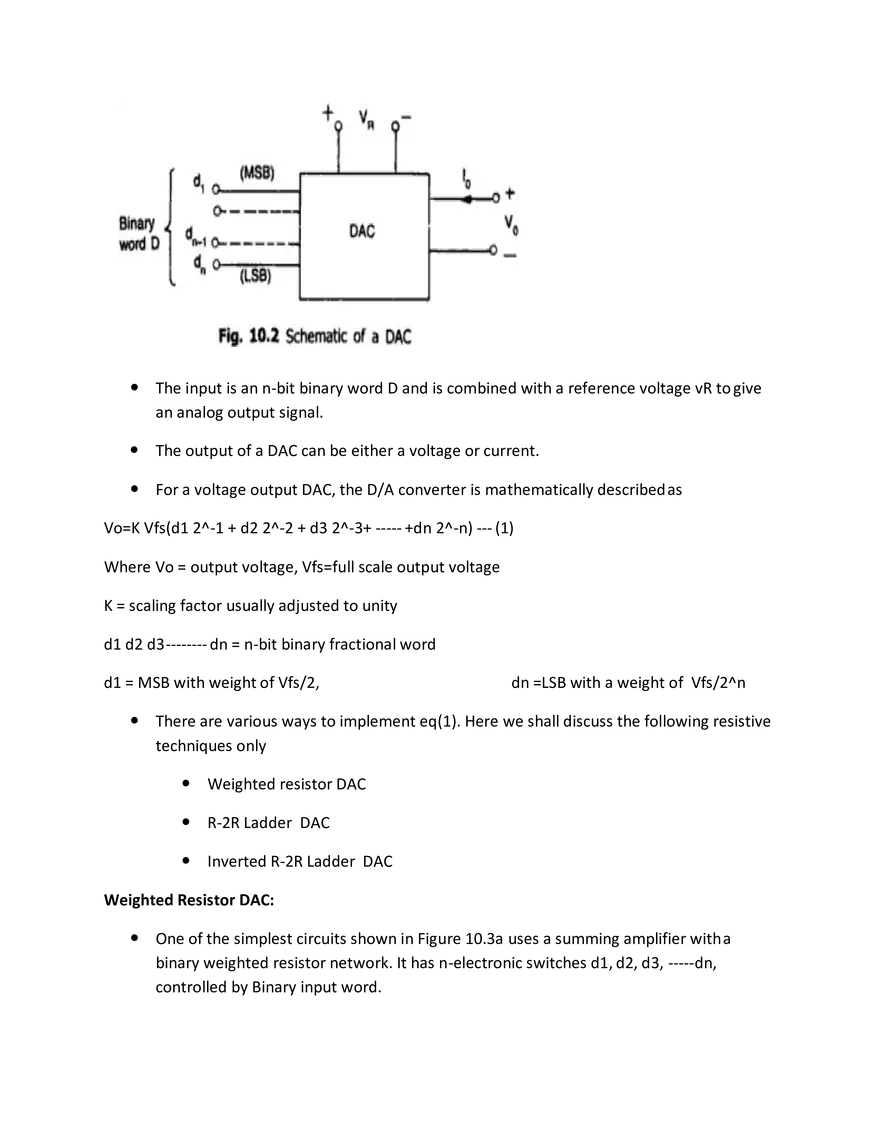

The schematic of a DAC is shown in Figure 10.2. The input is an n-bit binary word D and is combined with a reference voltage vR to give
an analog output signal.
The output of a DAC can be either a voltage or current.
For a voltage output DAC, the D/A converter is mathematically described as
Vo=K Vfs(d1 2^-1 + d2 2^-2 + d3 2^-3+ ----- +dn 2^-n) --- (1)
Where Vo = output voltage, Vfs=full scale output voltage
K = scaling factor usually adjusted to unity
d1 d2 d3 -------- dn = n-bit binary fractional word
d1 = MSB with weight of Vfs/2,
dn =LSB with a weight of Vfs/2^n
There are various ways to implement eq(1). Here we shall discuss the following resistive
techniques only
Weighted resistor DAC
R-2R Ladder DAC
Inverted R-2R Ladder DAC
Weighted Resistor DAC:

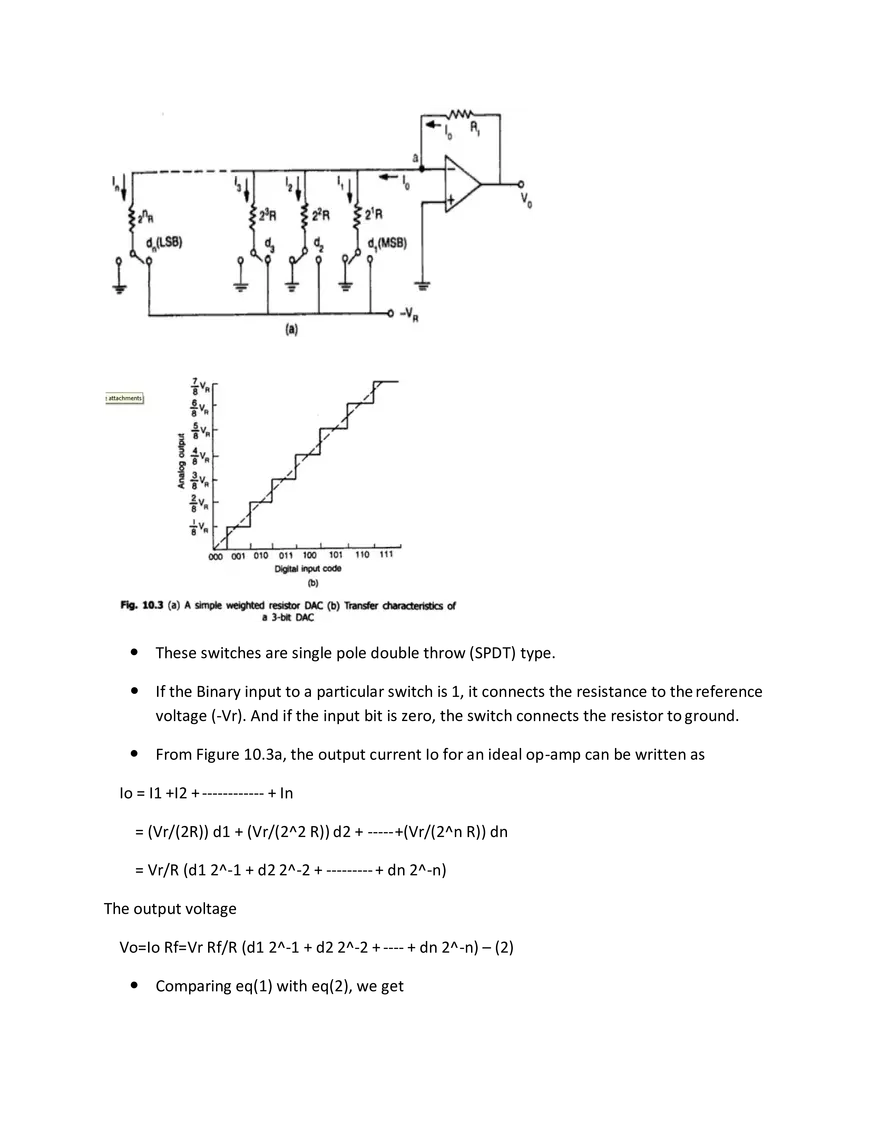

One of the simplest circuits shown in Figure 10.3a uses a summing amplifier with a
binary weighted resistor network. It has n-electronic switches d1, d2, d3, ----- dn,
controlled by Binary input word. These switches are single pole double throw (SPDT) type.
If the Binary input to a particular switch is 1, it connects the resistance to the reference
voltage (-Vr). And if the input bit is zero, the switch connects the resistor to ground.
From Figure 10.3a, the output current Io for an ideal op-amp can be written as
Io = I1 +I2 + ------------ + In
= (Vr/(2R)) d1 + (Vr/(2^2 R)) d2 + ----- +(Vr/(2^n R)) dn
= Vr/R (d1 2^-1 + d2 2^-2 + --------- + dn 2^-n)
The output voltage
Vo=Io Rf=Vr Rf/R (d1 2^-1 + d2 2^-2 + ---- + dn 2^-n) – (2)
Comparing eq(1) with eq(2), we get if Rf = R, then K=1, and Vfs = Vr
The circuit shown in Figure 10.3a uses a –ve reference voltage. The analog output
voltage is therefore +ve staircase as shown in Figure 10.3b for a 3-bit weighted resistor
DAC.
It may be noted that
Although the op-amp in Figure 10.3a is connected in inverting mode, it can also
be connected in non-inverting mode.
The op-amp is simply working as a current-to-voltage converter.
The polarity of the reference voltage is chosen in accordance with the type of
the switch used. For example, for TTL compatible switches , the reference
voltage should be +5V and the output will be –ve.
Problems with Weighted Resistor DAC
The accuracy and stability of a DAC depends up on the accuracy of the resistors and
tracking of each other with temperature.
There are, however, a number of problems associated with this type of DAC.
One of the disadvantages of Binary weighted resistor type DAC is the wide range of
resistor values required.
It may be observed that for better resolution, the input binary word length has to be
increased. Thus, as the number of bits increases, the range of resistance value increases.
For 8-bit DAC, the resistors required are 2^1 R, 2^2 R, ------ , 2^8 R. The largest resistor is
128 times the smallest one for only 8-bit DAC.
For a 12-bit DAC, the largest resistance required is 5.12 MΩ if the smallest is 2.5KΩ.
The fabrication of such a large resistance in IC is not practical. Also the voltage drop
across such a large resistor due to the bias current would also affect the accuracy.
The choice of smallest resistor value as 2.5 KΩ is reasonable, otherwise loading effect
will be there.
The difficult of achieving and maintaining accurate ratios over such a wide range
especially in monolithic form restricts the use of weighted resistor DACs to below 8 bits. R-2R Ladder DAC:
Wide range of resistors are required in Binary Weighted Resistor type DAC. This can be
avoided by using R-2R Ladder type DAC where only two values of resistors are required.
It is well suited for integrated circuit realization. The typical value of R ranges from 2.5
KΩ to 10KΩ.

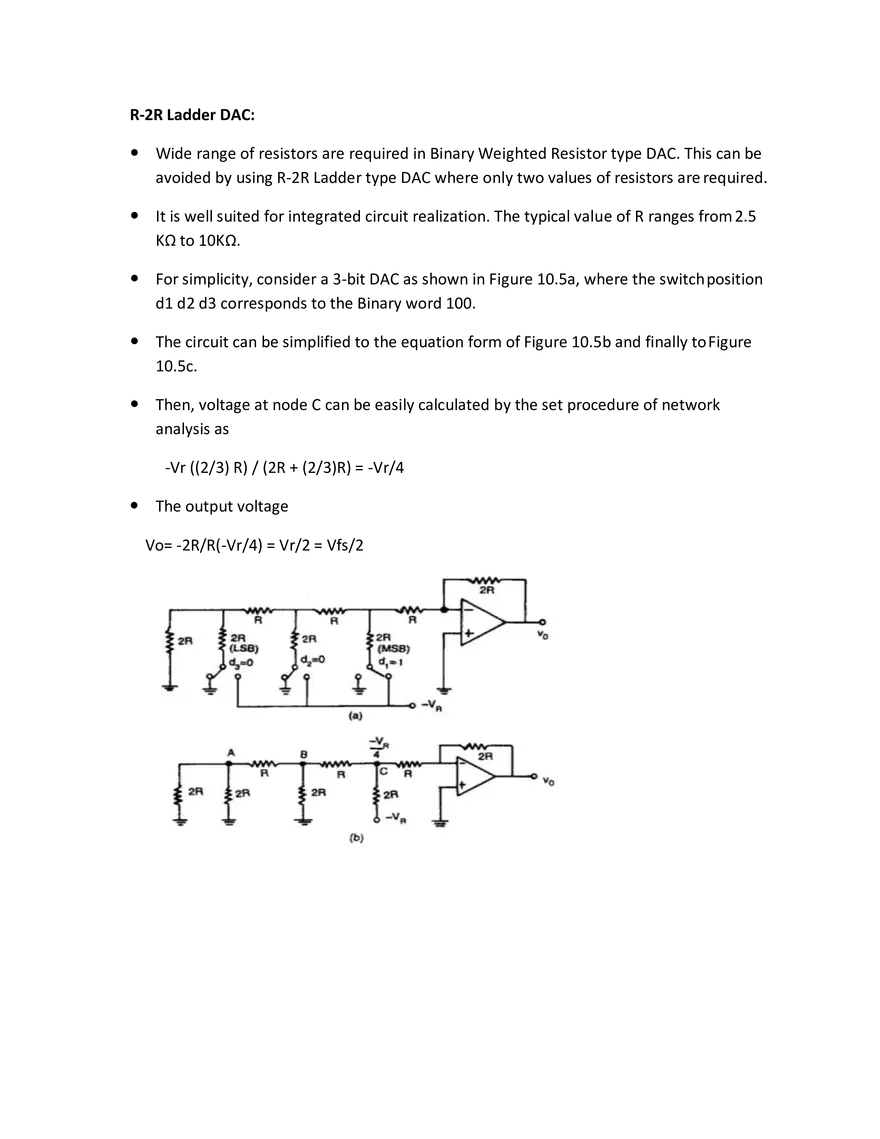

For simplicity, consider a 3-bit DAC as shown in Figure 10.5a, where the switch position
d1 d2 d3 corresponds to the Binary word 100.

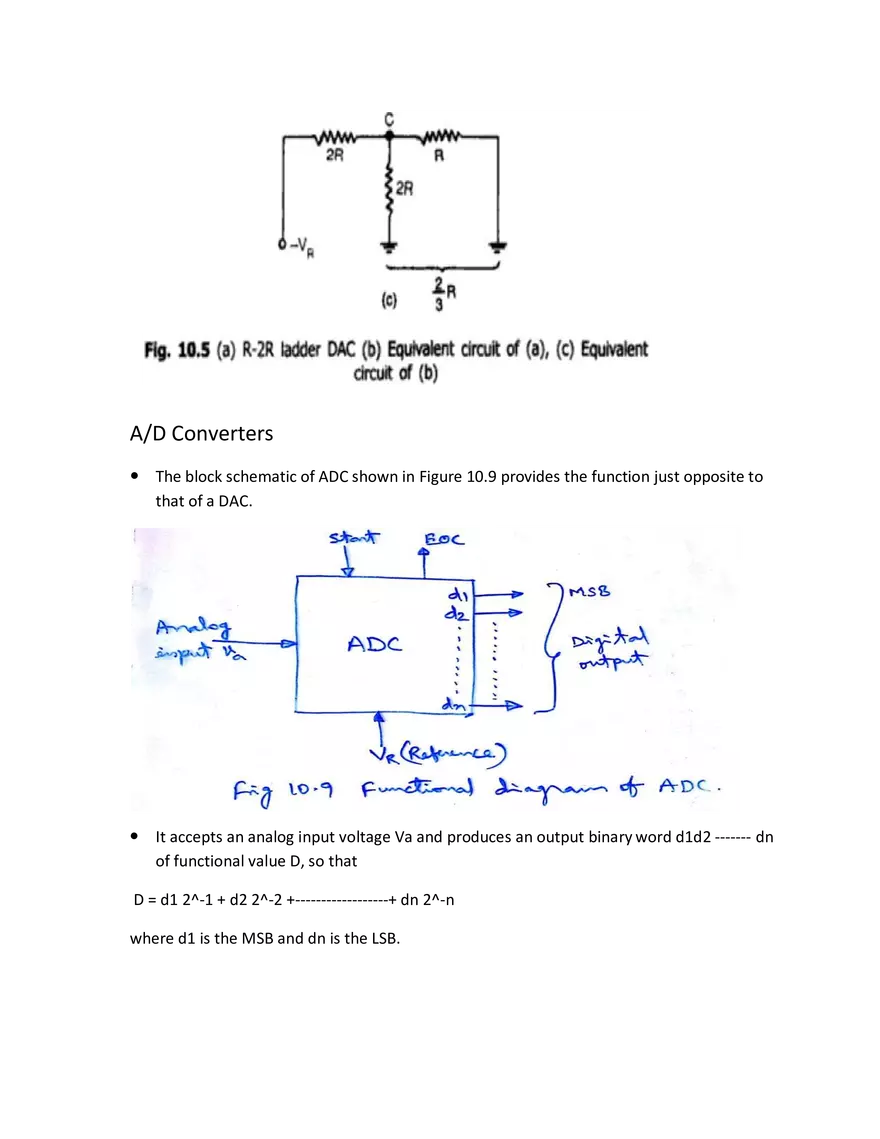

The circuit can be simplified to the equation form of Figure 10.5b and finally to Figure
10.5c.
Then, voltage at node C can be easily calculated by the set procedure of network
analysis as
-Vr ((2/3) R) / (2R + (2/3)R) = -Vr/4
The output voltage
Vo= -2R/R(-Vr/4) = Vr/2 = Vfs/2 A/D Converters
The block schematic of ADC shown in Figure 10.9 provides the function just opposite to
that of a DAC.
It accepts an analog input voltage Va and produces an output binary word d1d2 ------- dn
of functional value D, so that
D = d1 2^-1 + d2 2^-2 +------------------+ dn 2^-n
where d1 is the MSB and dn is the LSB. An ADC usually has two additional control lines: the START input to tell the ADC when to
start the conversion and EOC (end of conversion) output to announce when the
conversion is complete.
Depending upon the type of application, ADCs are designed for microprocessor
interfacing or to directly drive LCD or LED displays.
ADCs are classified broadly into two groups according to their conversion technique
Direct type ADCs
Integrating type ADCs
Direct type ADCs compare a given analog signal with the internally generated equivalent
signal. This group includes
Flash (comparator) type converter
Counter type converter
Tracking or servo conveter
Successive approximation type converter
Integrating type ADCs perform conversion in an indirect manner by first changing the
analog input signal to a linear function of time or frequency and then to a digital code.
The two most widely used integrating type converters are:
Charge balancing ADC
Dual slope ADC
Successive Approximation Converter
The successive approximation technique uses a very efficient code search strategy to
complete n-bit conversion in just n-clock periods.
For example, an 8-bit converter would require eight clock pulses to obtain a digital

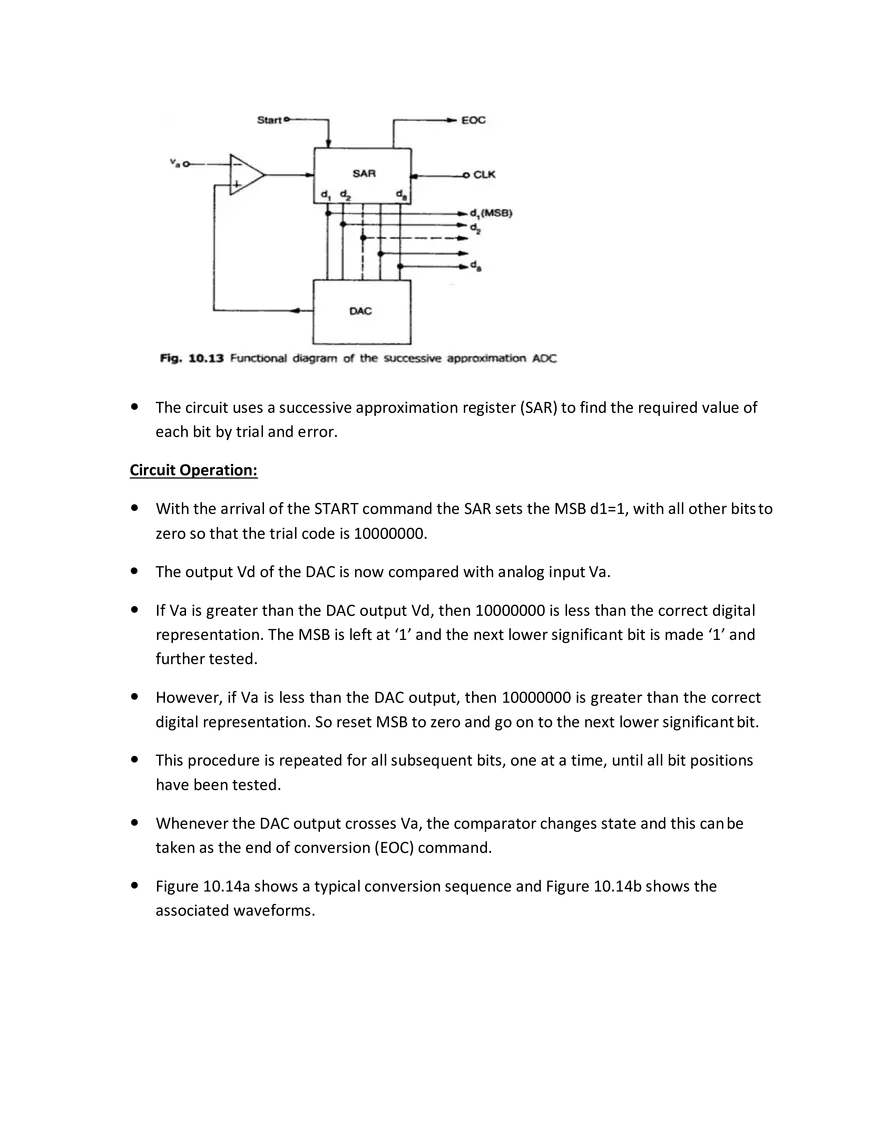

output. Figure 10.13 shows an 8-bit converter. The circuit uses a successive approximation register (SAR) to find the required value of
each bit by trial and error.
Circuit Operation:
With the arrival of the START command the SAR sets the MSB d1=1, with all other bits to
zero so that the trial code is 10000000.
The output Vd of the DAC is now compared with analog input Va.
If Va is greater than the DAC output Vd, then 10000000 is less than the correct digital
representation. The MSB is left at ‘1’ and the next lower significant bit is made ‘1’ and
further tested.
However, if Va is less than the DAC output, then 10000000 is greater than the correct
digital representation. So reset MSB to zero and go on to the next lower significant bit.
This procedure is repeated for all subsequent bits, one at a time, until all bit positions
have been tested.
Whenever the DAC output crosses Va, the comparator changes state and this can be
taken as the end of conversion (EOC) command.

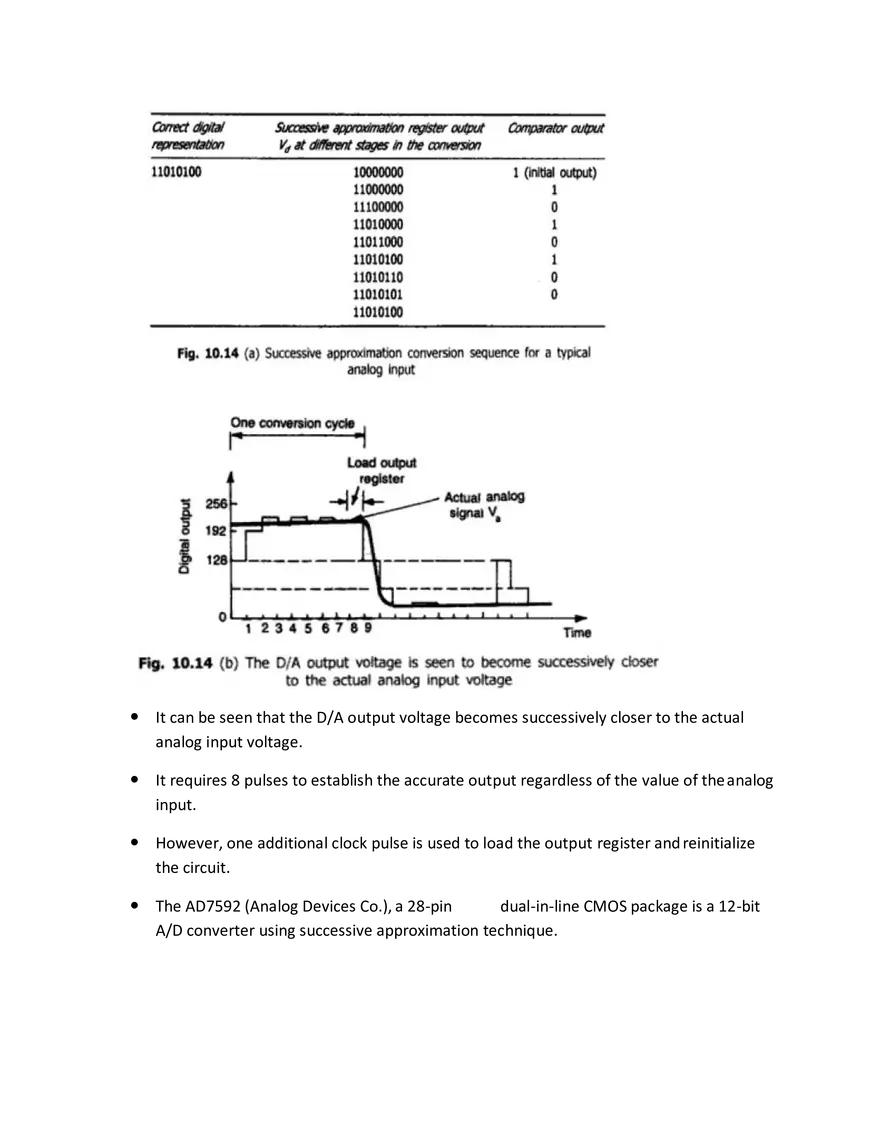

Figure 10.14a shows a typical conversion sequence and Figure 10.14b shows the
associated waveforms. It can be seen that the D/A output voltage becomes successively closer to the actual
analog input voltage.
It requires 8 pulses to establish the accurate output regardless of the value of the analog
input.
However, one additional clock pulse is used to load the output register and reinitialize
the circuit.
The AD7592 (Analog Devices Co.), a 28-pin
dual-in-line CMOS package is a 12-bit
A/D converter using successive approximation technique. Charge Balancing ADC
The figure showing this type of conversion is shown below.

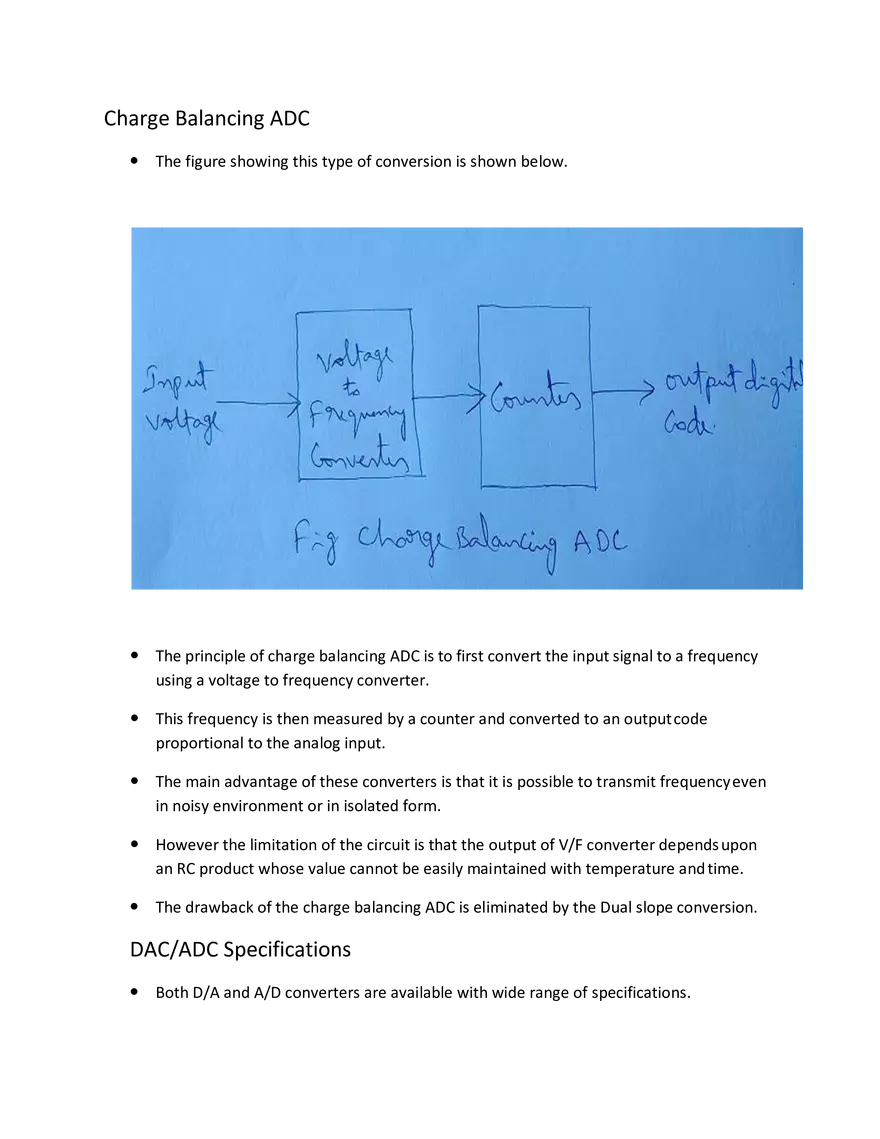

The principle of charge balancing ADC is to first convert the input signal to a frequency
using a voltage to frequency converter.
This frequency is then measured by a counter and converted to an output code
proportional to the analog input.
The main advantage of these converters is that it is possible to transmit frequency even
in noisy environment or in isolated form.
However the limitation of the circuit is that the output of V/F converter depends upon
an RC product whose value cannot be easily maintained with temperature and time.
The drawback of the charge balancing ADC is eliminated by the Dual slope conversion.
DAC/ADC Specifications
Both D/A and A/D converters are available with wide range of specifications. The various important specifications of converters generally specified by the
manufacturers are analyzed
The specifications are Resolution, Linearity, Accuracy, Monotonicity, settling time and
stability.
Resolution:
The resolution of a converter is the smallest change in voltage which may be produced
at the output (or input) of the converter.
For example, an 8-bit D/A converter has 2^8 -1 =255 equal intervals. Hence the smallest
change in output voltage is 1/255 of the full scale output range. In short, the resolution
is the value of the LSB.
Resolution (in volts) = Vfs/((2^n) – 1)
Linearity:
The linearity of an A/D or D/A converter is an important measure of its accuracy and
tells us how close the converter output is to its ideal transfer characteristics.
In an ideal DAC, equal increment in the digital input should produce equal increment in
the analog output and the transfer curve should be linear.
Accuracy:
Absolute accuracy is the maximum deviation between the actual converter output and
the ideal converter output.
Relative accuracy is the maximum deviation after gain and offset errors have been
removed.
Monotonicity:
A monotonic DAC is the one whose analog output increases for an increase in digital
input.
A monotonic characteristic is essential in control applications, otherwise oscillations can
result.
Settling time: The most important dynamic parameter is the settling time.
It represents the time it takes for the output to settle with in a specified band + or – ½
LSB of its final value following a code change at the input (usually a full scale change).
Settling time ranges from 100 ns to 10 μs depending on word length and type of circuit
used.
Stability:
The performance of converter changes with temperature, age and power supply
variations.
So all the relevant parameters such as offset, gain, linearity error and monotonicity must
be specified over the full temperature and power supply ranges.
End of Unit III Unit 4

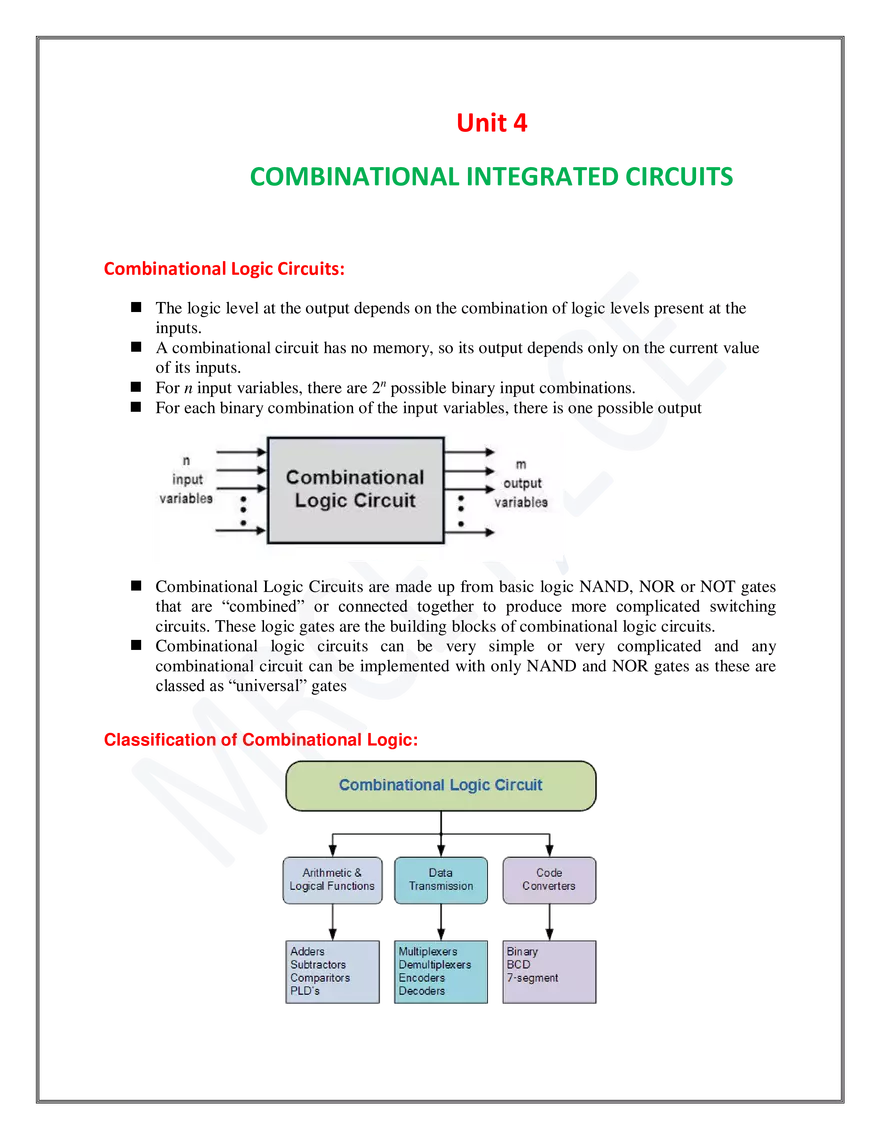

COMBINATIONAL INTEGRATED CIRCUITS
Combinational Logic Circuits:
The logic level at the output depends on the combination of logic levels present at the
inputs.
A combinational circuit has no memory, so its output depends only on the current value
of its inputs.
For n input variables, there are 2n possible binary input combinations.
For each binary combination of the input variables, there is one possible output
Combinational Logic Circuits are made up from basic logic NAND, NOR or NOT gates
that are “combined” or connected together to produce more complicated switching
circuits. These logic gates are the building blocks of combinational logic circuits.
Combinational logic circuits can be very simple or very complicated and any
combinational circuit can be implemented with only NAND and NOR gates as these are
classed as “universal” gates
Classification of Combinational Logic: The combinational logic circuits can be classified into various types based on the purpose of
usage, such as arithmetic & logical functions, data transmission, and code converters. To solve
the arithmetic and logical functions we generally use adders, subtractors, and comparators which
are generally realized by combining various logic gates called as combinational logic circuits.
Similarly, for data transmission, we use multiplexers, demultiplexers, encoders, and decoders
which are also realized using combinational logic. The code converters such as binary, BCD, and
7-segment are designed using various logic circuits.

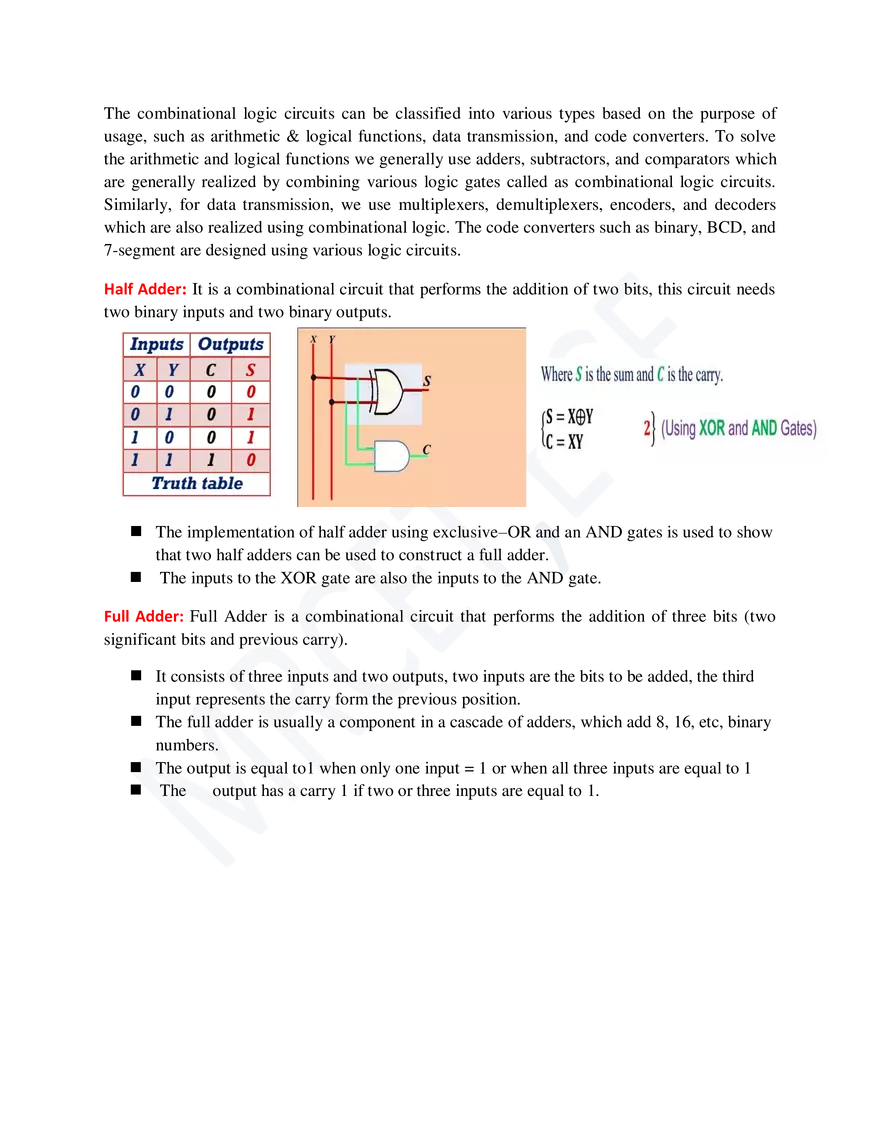

Half Adder: It is a combinational circuit that performs the addition of two bits, this circuit needs
two binary inputs and two binary outputs.
The implementation of half adder using exclusive–OR and an AND gates is used to show
that two half adders can be used to construct a full adder.
The inputs to the XOR gate are also the inputs to the AND gate.

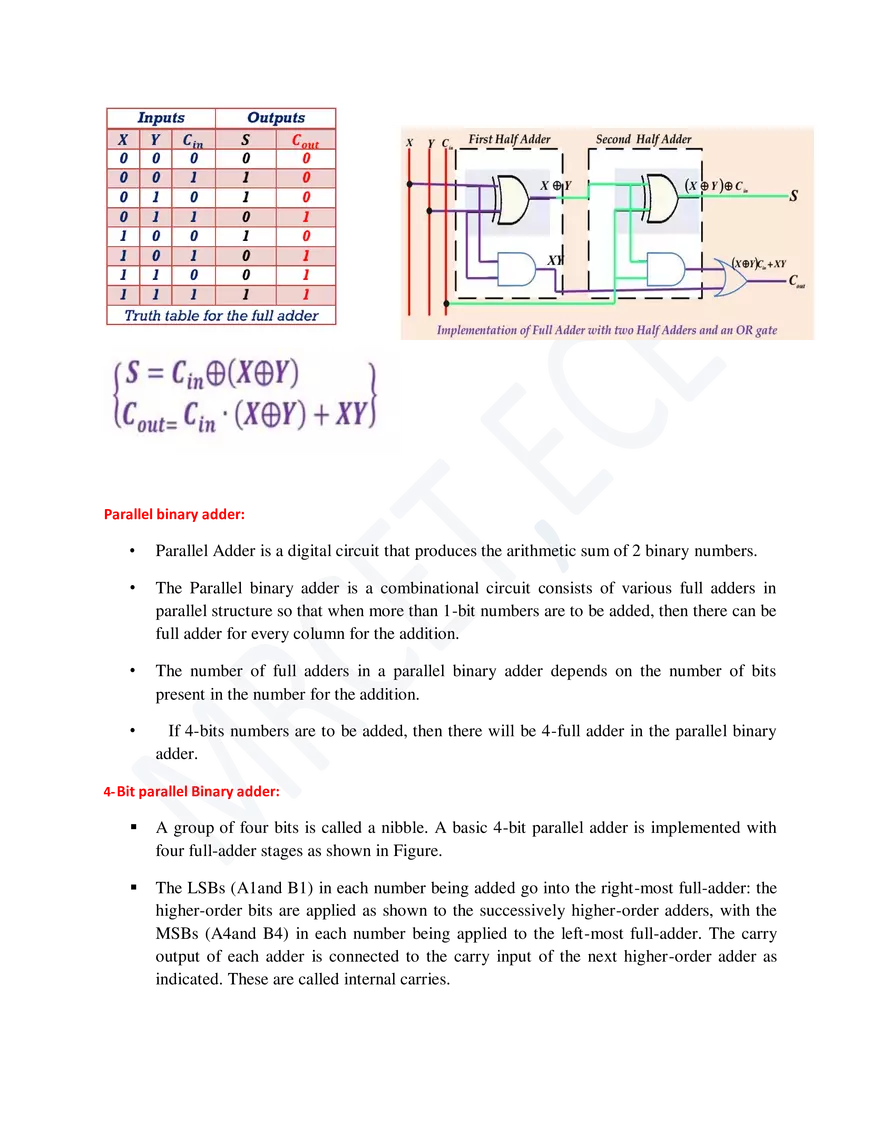

Full Adder: Full Adder is a combinational circuit that performs the addition of three bits (two
significant bits and previous carry).
It consists of three inputs and two outputs, two inputs are the bits to be added, the third
input represents the carry form the previous position.
The full adder is usually a component in a cascade of adders, which add 8, 16, etc, binary
numbers.
The output is equal to1 when only one input = 1 or when all three inputs are equal to 1
The
output has a carry 1 if two or three inputs are equal to 1. Parallel binary adder:
•
Parallel Adder is a digital circuit that produces the arithmetic sum of 2 binary numbers.
•
The Parallel binary adder is a combinational circuit consists of various full adders in
parallel structure so that when more than 1-bit numbers are to be added, then there can be
full adder for every column for the addition.
•
The number of full adders in a parallel binary adder depends on the number of bits
present in the number for the addition.
•
If 4-bits numbers are to be added, then there will be 4-full adder in the parallel binary
adder.
4- Bit parallel Binary adder:
A group of four bits is called a nibble. A basic 4-bit parallel adder is implemented with
four full-adder stages as shown in Figure.
The LSBs (A1and B1) in each number being added go into the right-most full-adder: the
higher-order bits are applied as shown to the successively higher-order adders, with the
MSBs (A4and B4) in each number being applied to the left-most full-adder. The carry
output of each adder is connected to the carry input of the next higher-order adder as

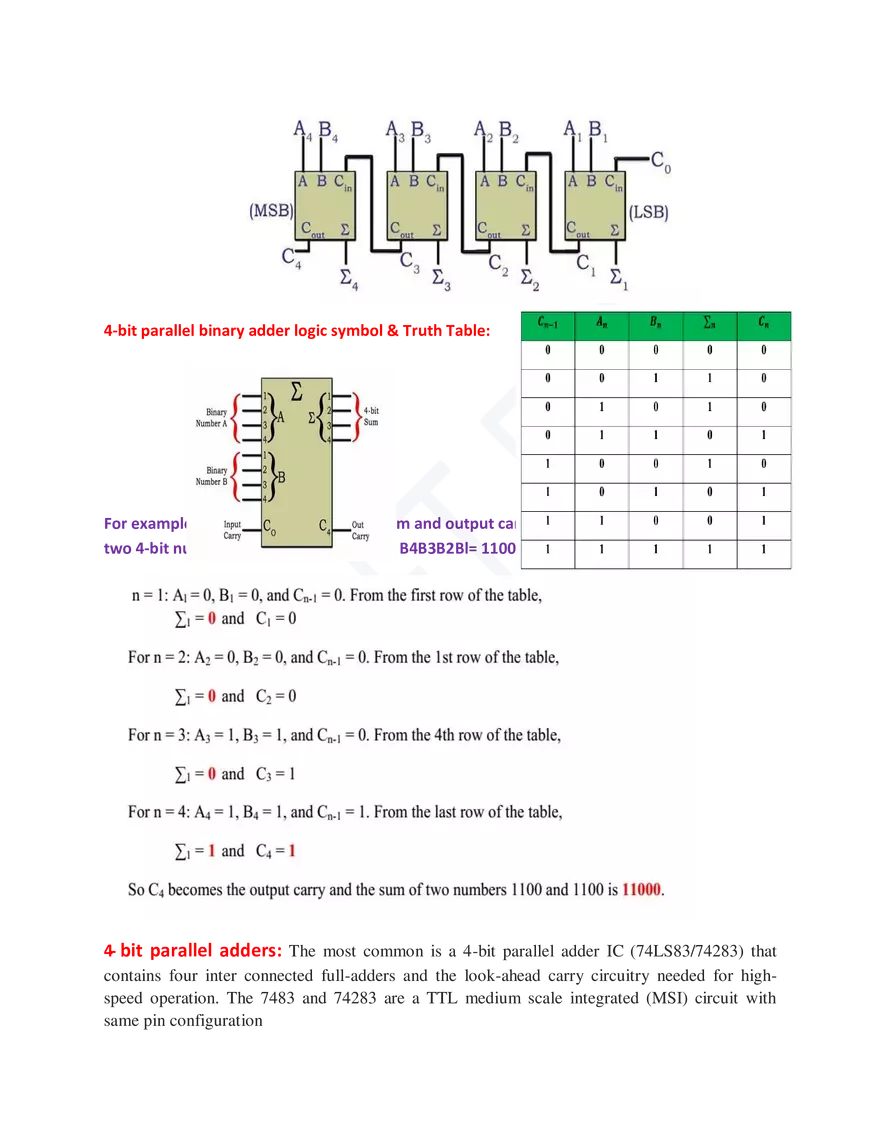

indicated. These are called internal carries. 4-bit parallel binary adder logic symbol & Truth Table:
For example, here we will find out the sum and output carry for the addition of the following
two 4-bit numbers A4A3A2A1= 1100 and B4B3B2Bl= 1100.

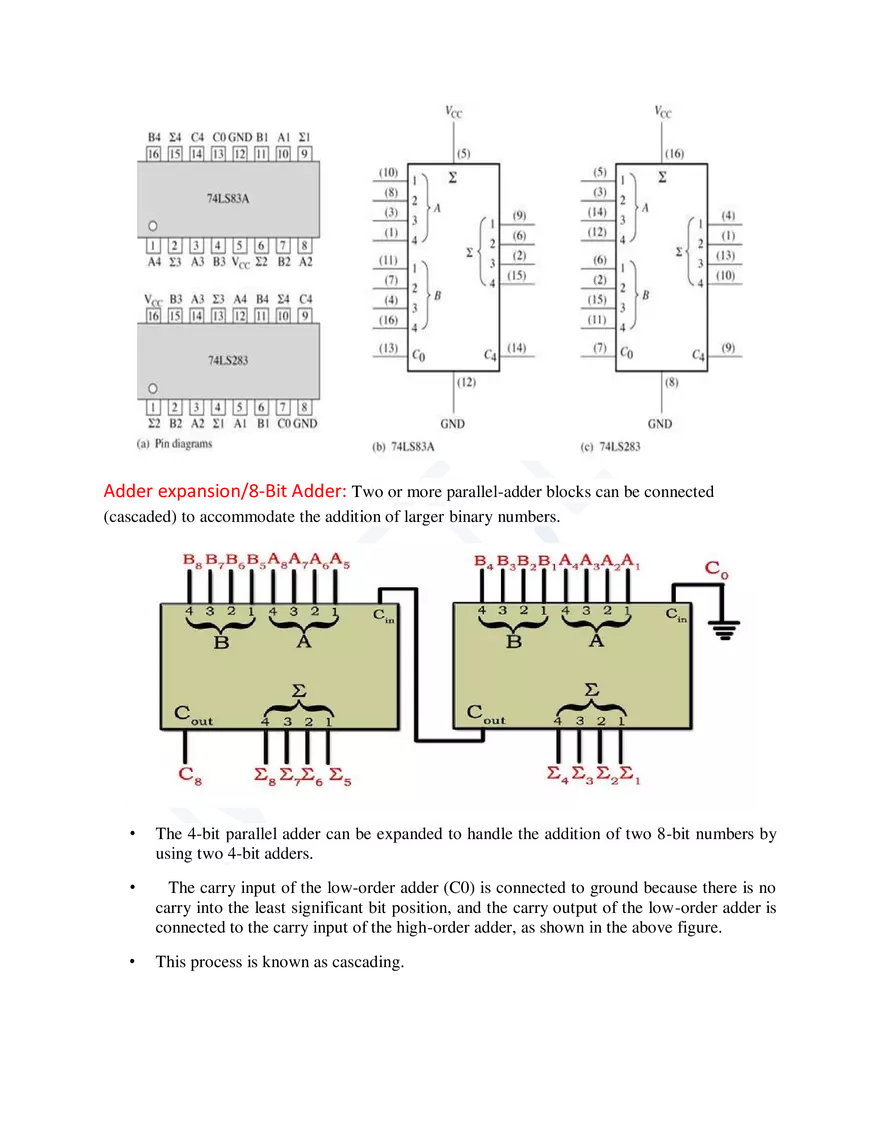

4- bit parallel adders: The most common is a 4-bit parallel adder IC (74LS83/74283) that
contains four inter connected full-adders and the look-ahead carry circuitry needed for highspeed operation. The 7483 and 74283 are a TTL medium scale integrated (MSI) circuit with
same pin configuration Adder expansion/8-Bit Adder: Two or more parallel-adder blocks can be connected
(cascaded) to accommodate the addition of larger binary numbers.
•
The 4-bit parallel adder can be expanded to handle the addition of two 8-bit numbers by
using two 4-bit adders.
•
The carry input of the low-order adder (C0) is connected to ground because there is no
carry into the least significant bit position, and the carry output of the low-order adder is
connected to the carry input of the high-order adder, as shown in the above figure.
•
This process is known as cascading. •
The low-order adder is the one that adds the lower or less significant four bits in the
numbers, and the high-order adder is the one that adds the higher or more significant four
bits in the 8-bit numbers

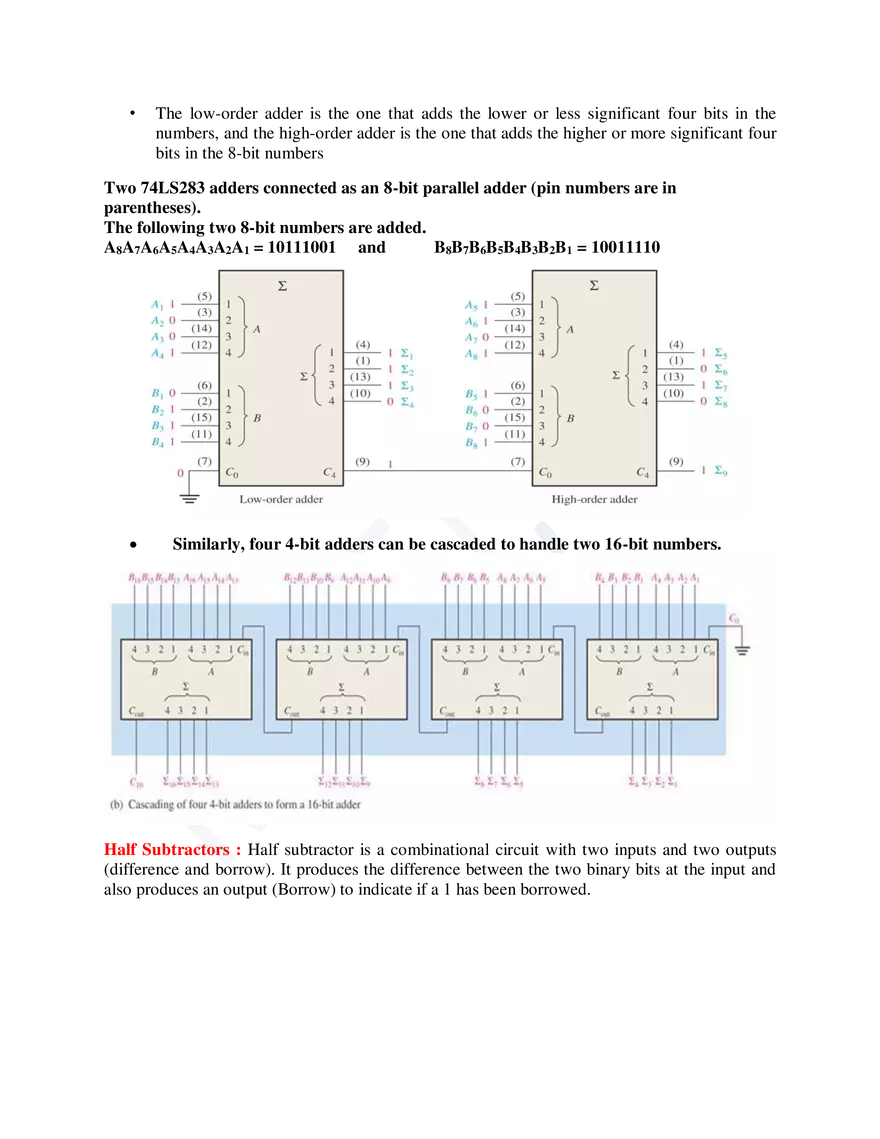

Two 74LS283 adders connected as an 8-bit parallel adder (pin numbers are in
parentheses).
The following two 8-bit numbers are added.
A8A7A6A5A4A3A2A1 = 10111001 and
B8B7B6B5B4B3B2B1 = 10011110
Similarly, four 4-bit adders can be cascaded to handle two 16-bit numbers.

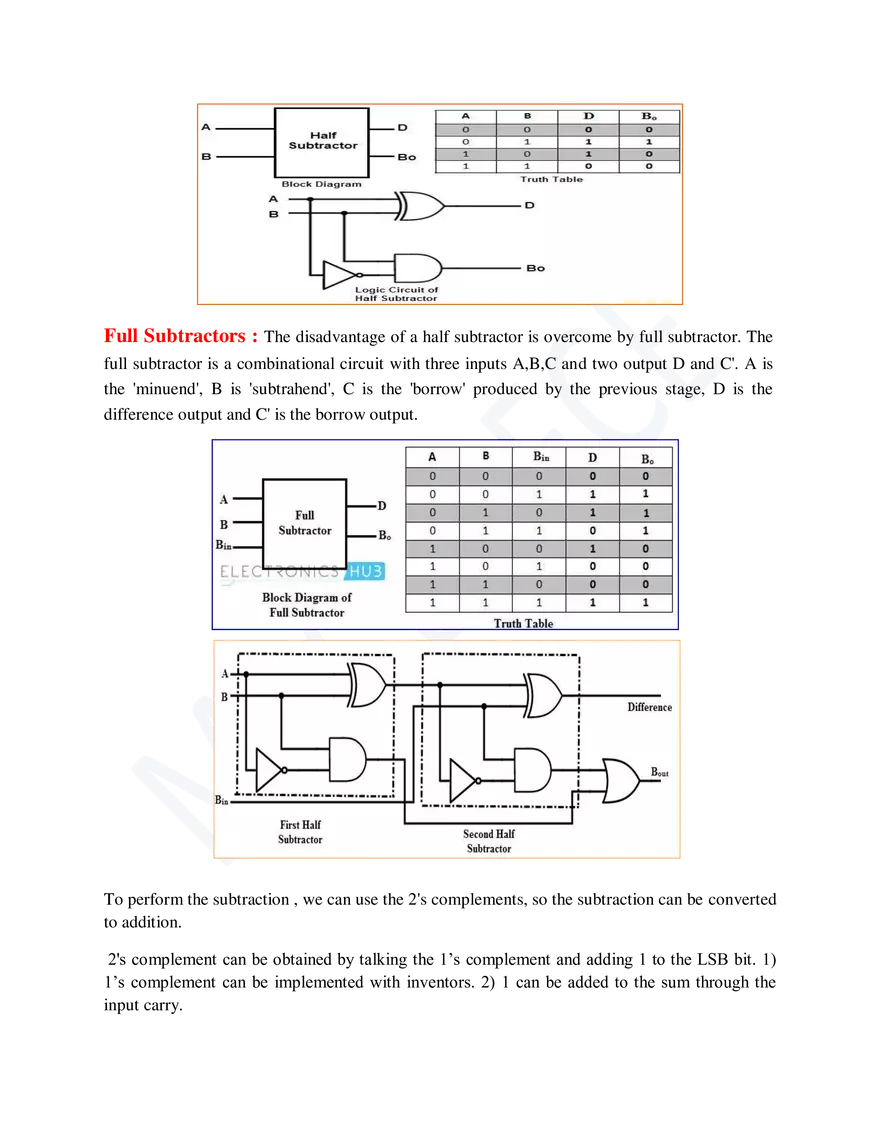

Half Subtractors : Half subtractor is a combinational circuit with two inputs and two outputs
(difference and borrow). It produces the difference between the two binary bits at the input and
also produces an output (Borrow) to indicate if a 1 has been borrowed. Full Subtractors : The disadvantage of a half subtractor is overcome by full subtractor. The
full subtractor is a combinational circuit with three inputs A,B,C and two output D and C'. A is
the 'minuend', B is 'subtrahend', C is the 'borrow' produced by the previous stage, D is the
difference output and C' is the borrow output.
To perform the subtraction , we can use the 2's complements, so the subtraction can be converted
to addition.
2's complement can be obtained by talking the 1’s complement and adding 1 to the LSB bit. 1)
1’s complement can be implemented with inventors. 2) 1 can be added to the sum through the

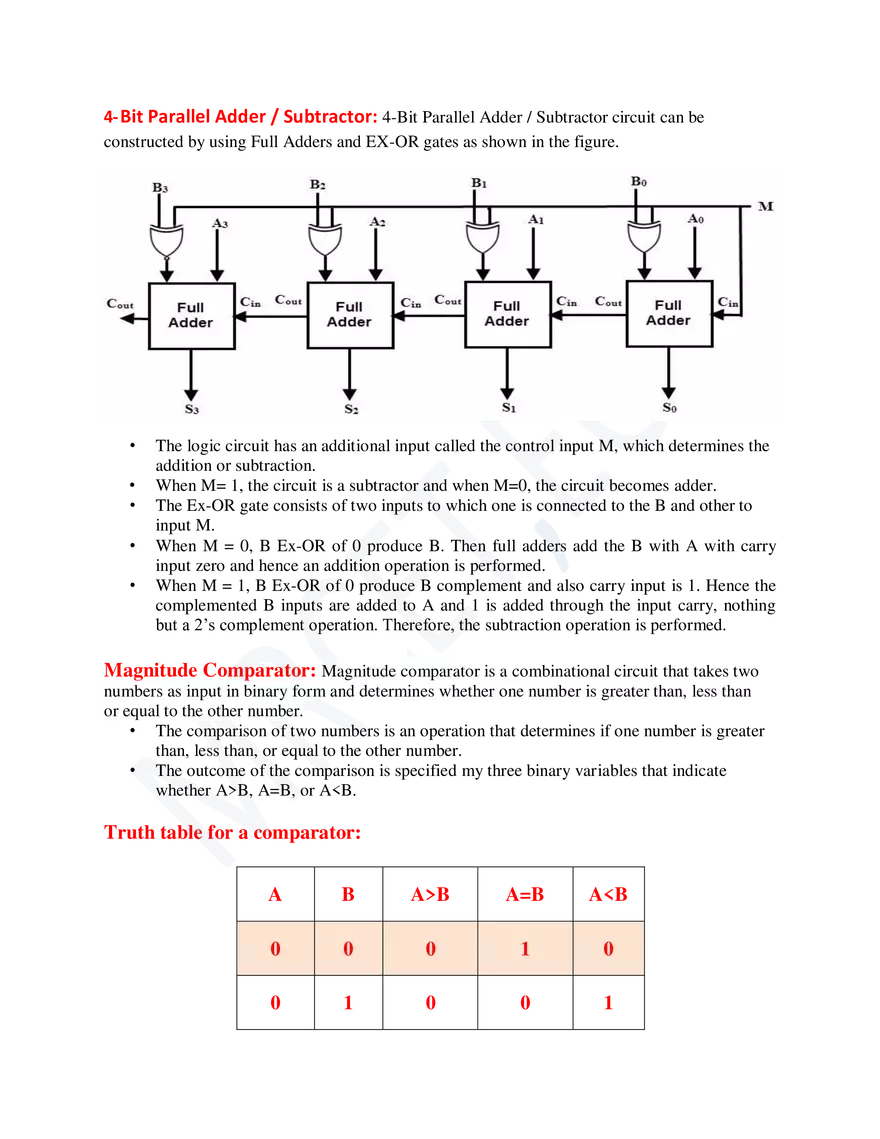

input carry. 4- Bit Parallel Adder / Subtractor: 4-Bit Parallel Adder / Subtractor circuit can be
constructed by using Full Adders and EX-OR gates as shown in the figure.
•
•
•
•
•
The logic circuit has an additional input called the control input M, which determines the
addition or subtraction.
When M= 1, the circuit is a subtractor and when M=0, the circuit becomes adder.
The Ex-OR gate consists of two inputs to which one is connected to the B and other to
input M.
When M = 0, B Ex-OR of 0 produce B. Then full adders add the B with A with carry
input zero and hence an addition operation is performed.
When M = 1, B Ex-OR of 0 produce B complement and also carry input is 1. Hence the
complemented B inputs are added to A and 1 is added through the input carry, nothing
but a 2’s complement operation. Therefore, the subtraction operation is performed.

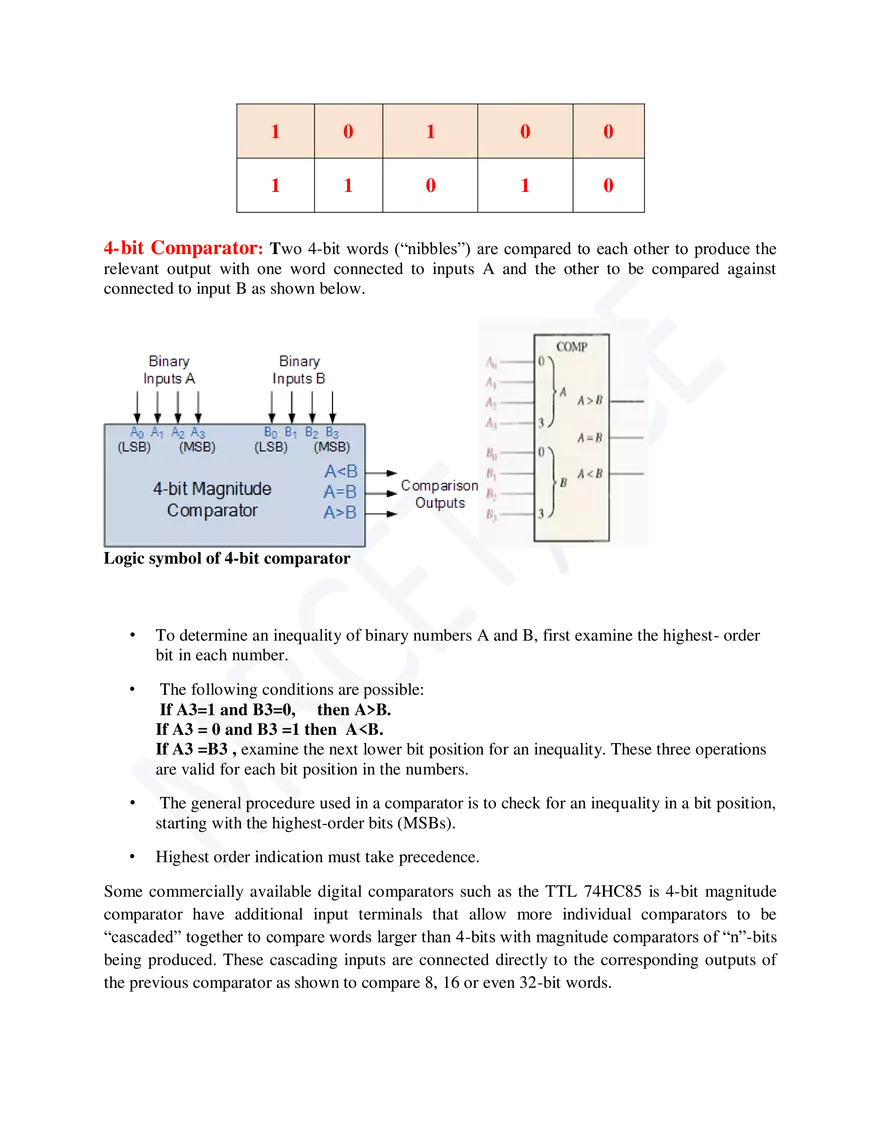

Magnitude Comparator: Magnitude comparator is a combinational circuit that takes two
numbers as input in binary form and determines whether one number is greater than, less than
or equal to the other number.
• The comparison of two numbers is an operation that determines if one number is greater
than, less than, or equal to the other number.
• The outcome of the comparison is specified my three binary variables that indicate
whether A>B, A=B, or AB
A=B
AB.

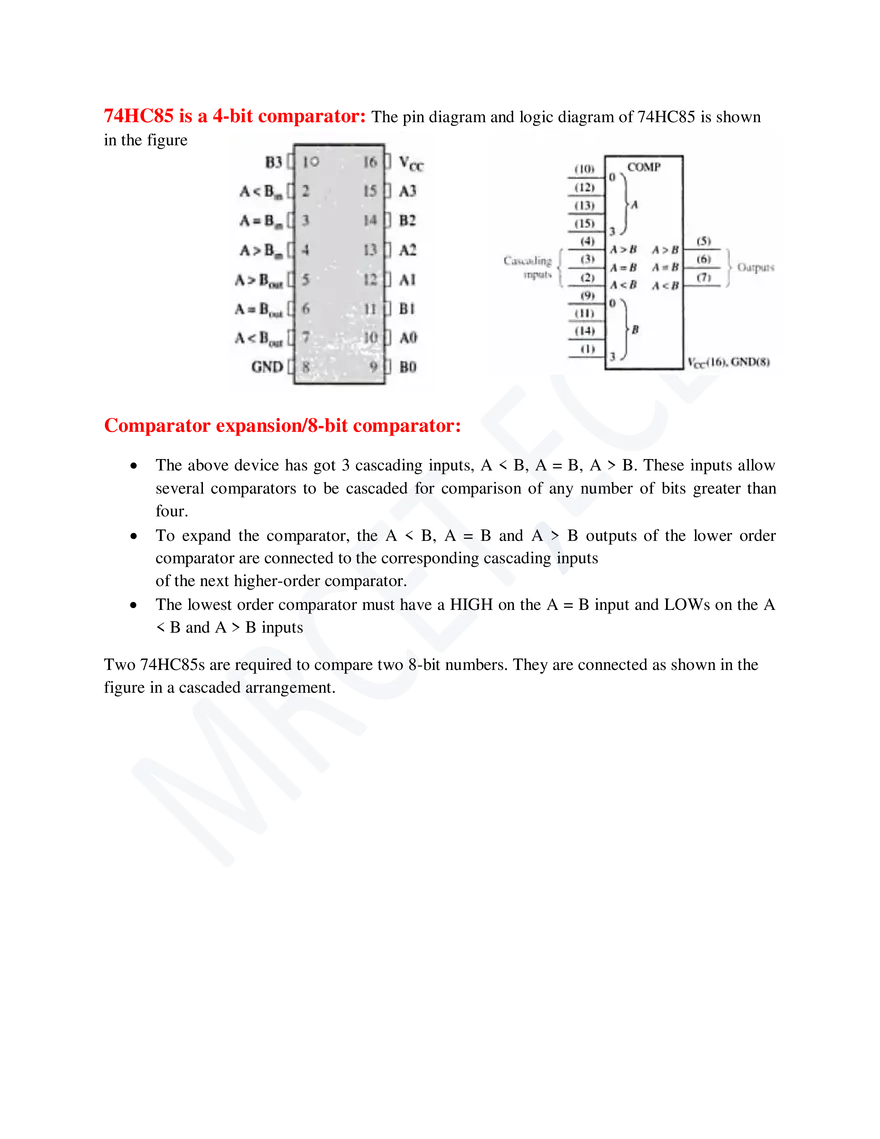

If A3 = 0 and B3 =1 then A B. These inputs allow
several comparators to be cascaded for comparison of any number of bits greater than
four.
To expand the comparator, the A < B, A = B and A > B outputs of the lower order
comparator are connected to the corresponding cascading inputs
of the next higher-order comparator.
The lowest order comparator must have a HIGH on the A = B input and LOWs on the A
< B and A > B inputs

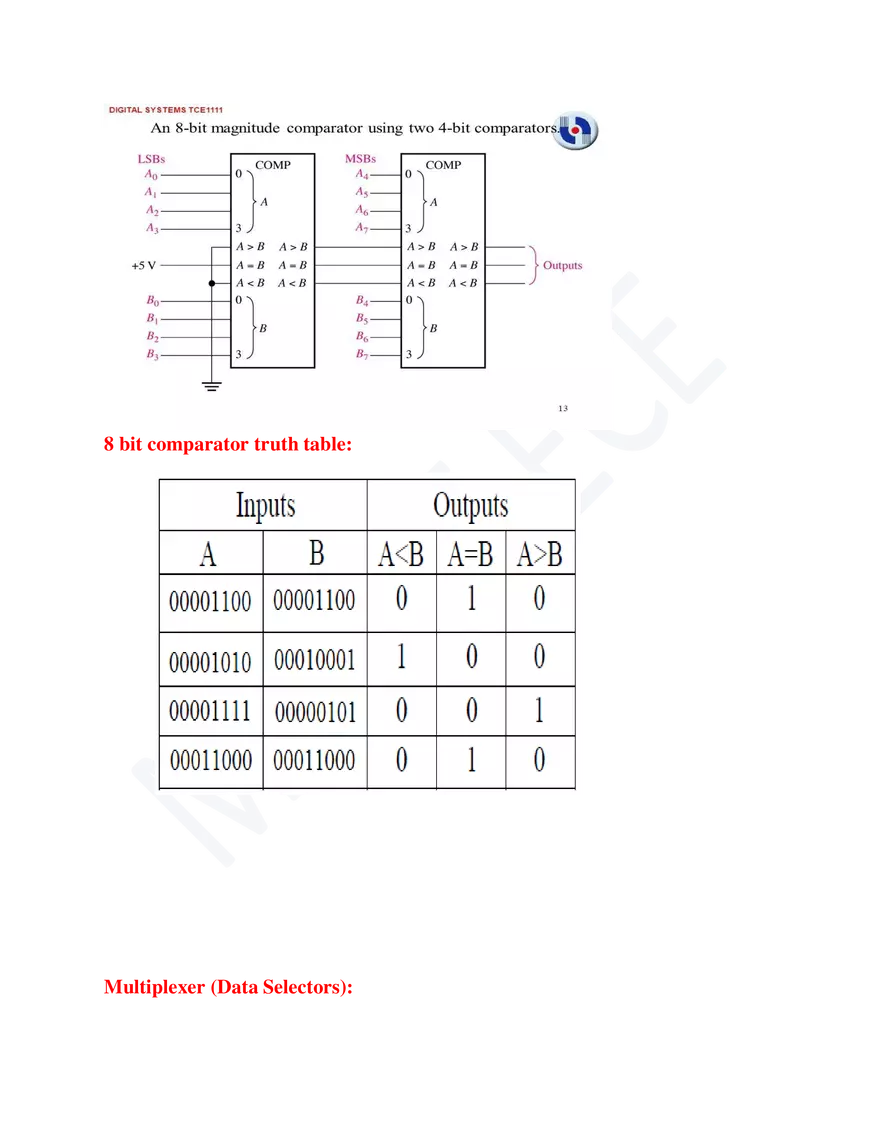

Two 74HC85s are required to compare two 8-bit numbers. They are connected as shown in the
figure in a cascaded arrangement. 8 bit comparator truth table:

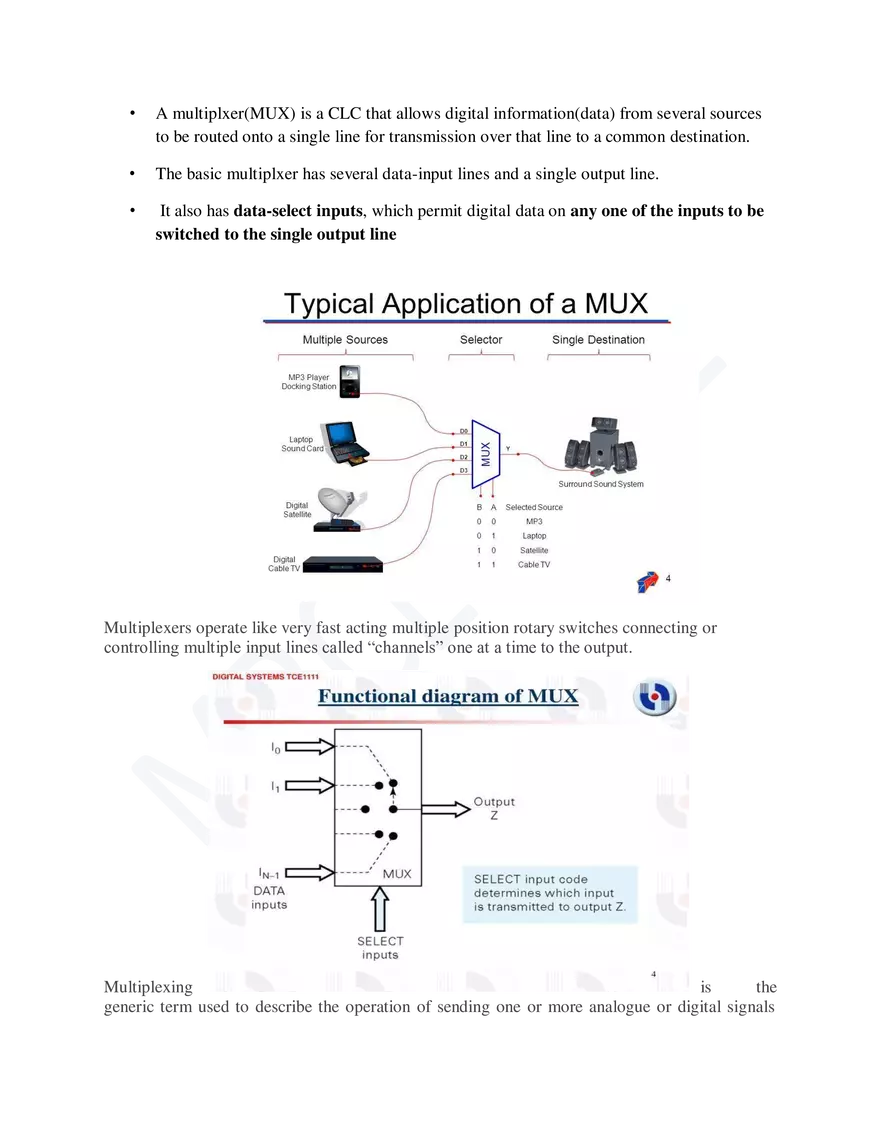

Multiplexer (Data Selectors): •
A multiplxer(MUX) is a CLC that allows digital information(data) from several sources
to be routed onto a single line for transmission over that line to a common destination.
•
The basic multiplxer has several data-input lines and a single output line.
•
It also has data-select inputs, which permit digital data on any one of the inputs to be
switched to the single output line
Multiplexers operate like very fast acting multiple position rotary switches connecting or
controlling multiple input lines called “channels” one at a time to the output.
Multiplexing
is
the
generic term used to describe the operation of sending one or more analogue or digital signals over a common transmission line at different times or speeds and as such, the device we use to
do just that is called a Multiplexer.

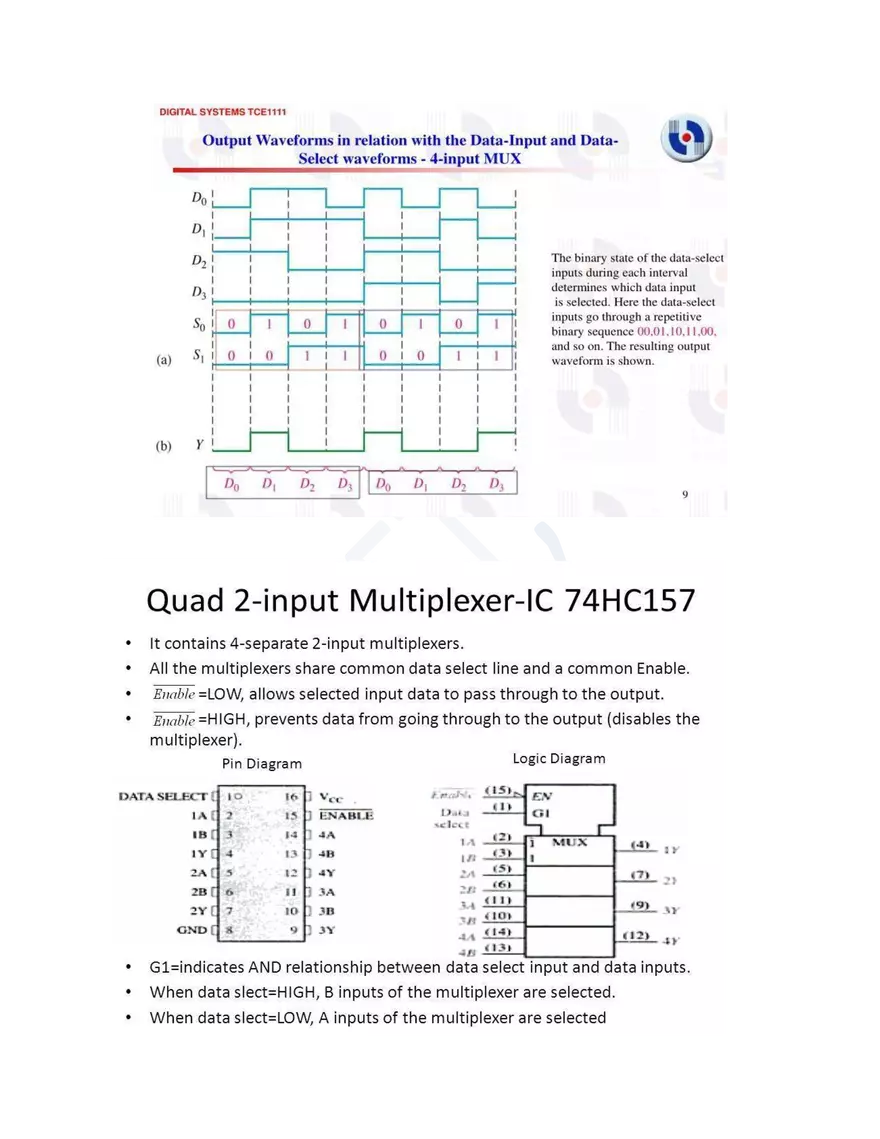

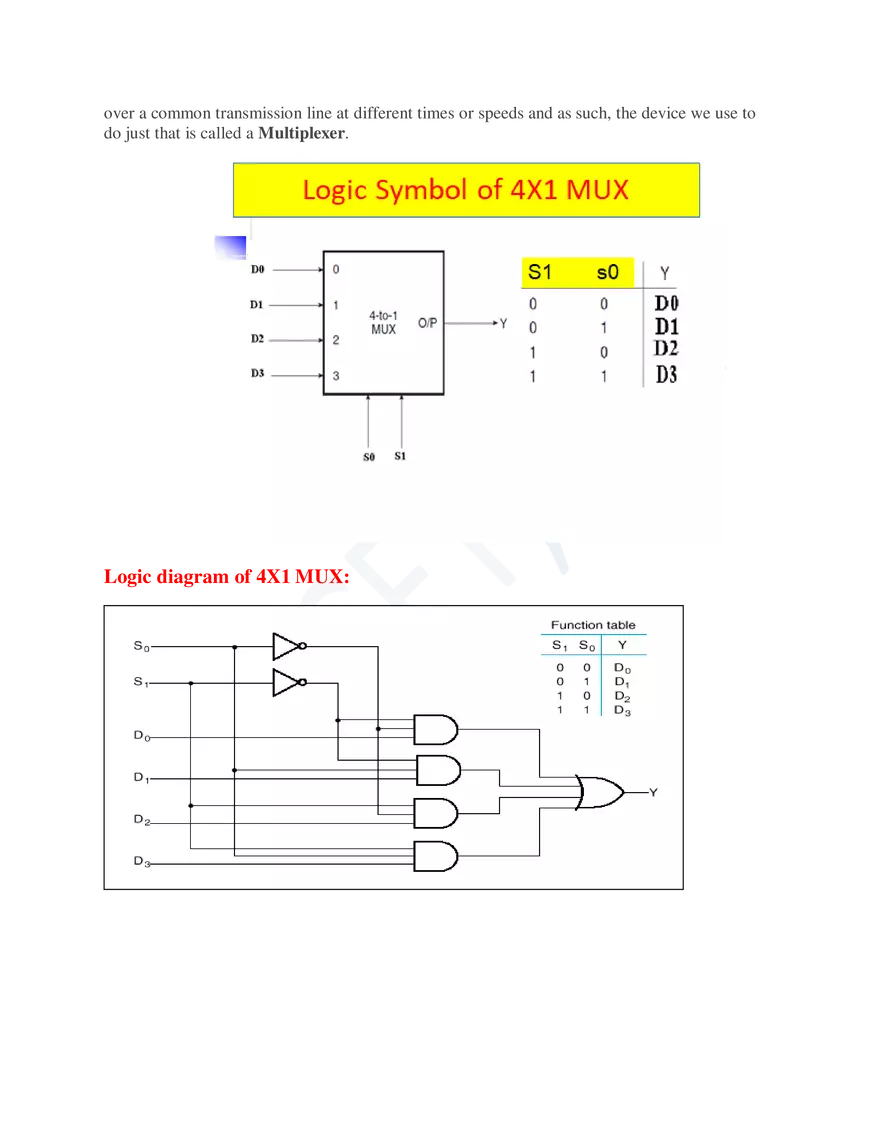

Logic diagram of 4X1 MUX: 74LS151

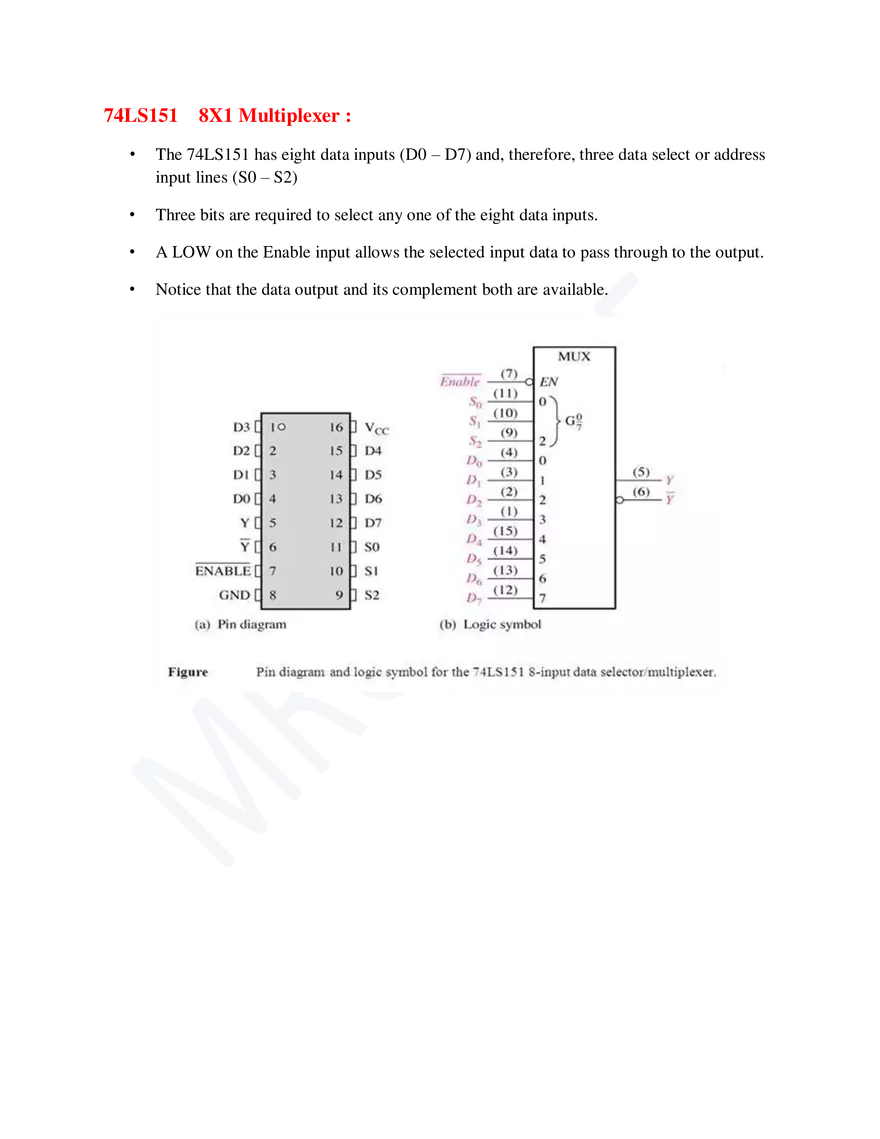

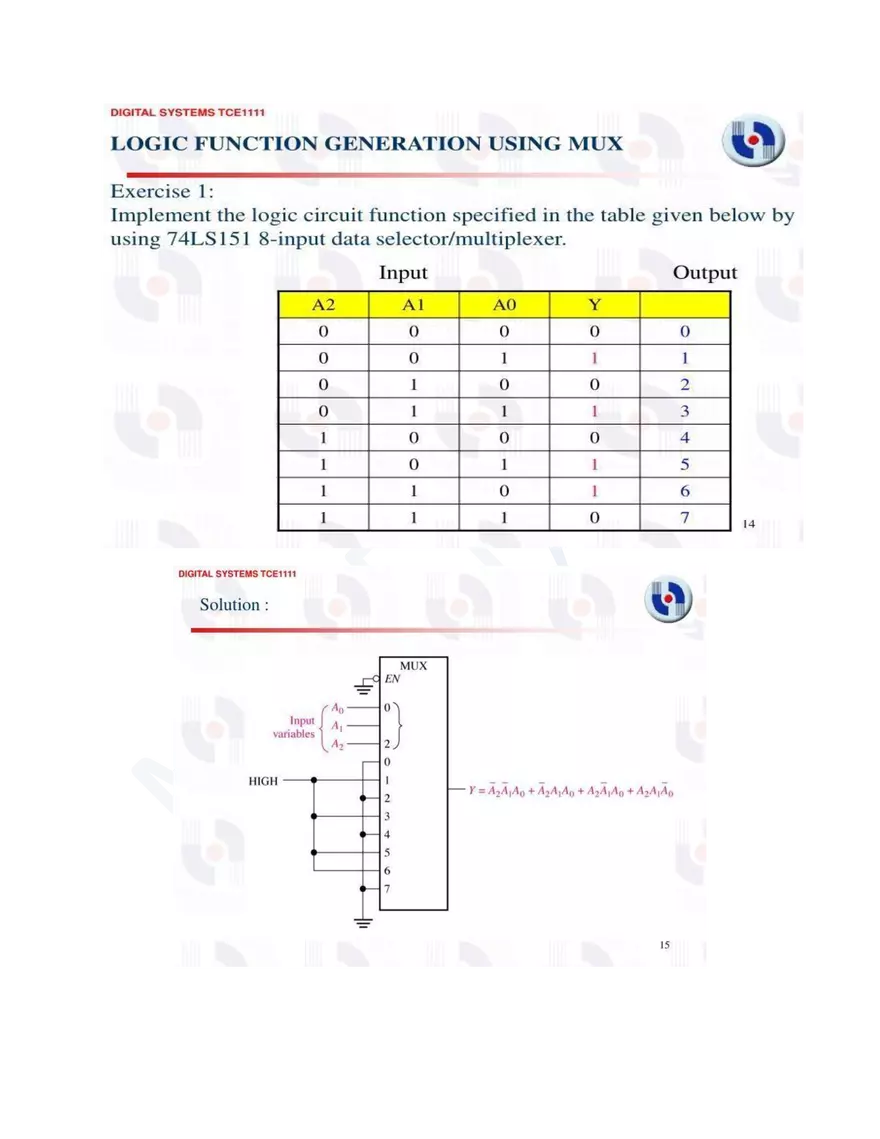

8X1 Multiplexer :
•
The 74LS151 has eight data inputs (D0 – D7) and, therefore, three data select or address
input lines (S0 – S2)
•
Three bits are required to select any one of the eight data inputs.
•
A LOW on the Enable input allows the selected input data to pass through to the output.
•
Notice that the data output and its complement both are available. Demultiplexer(DEMUX) :
•

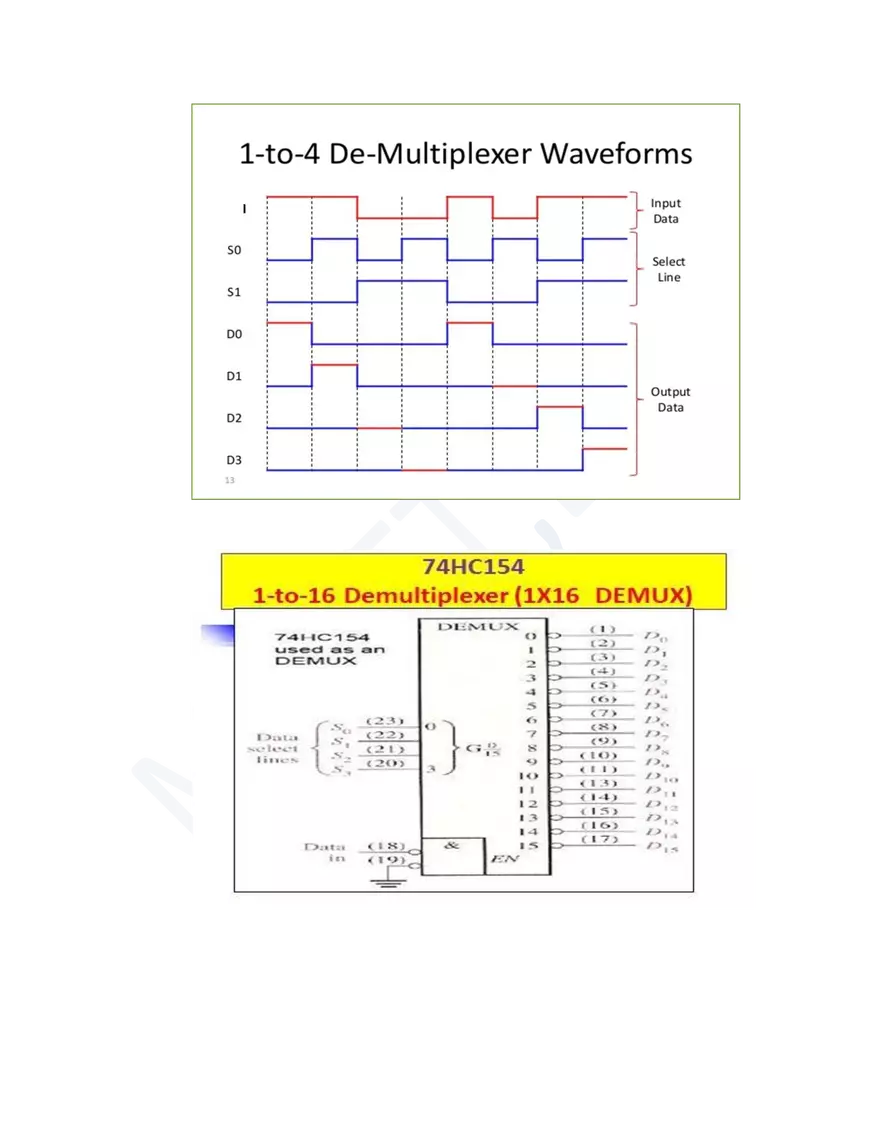

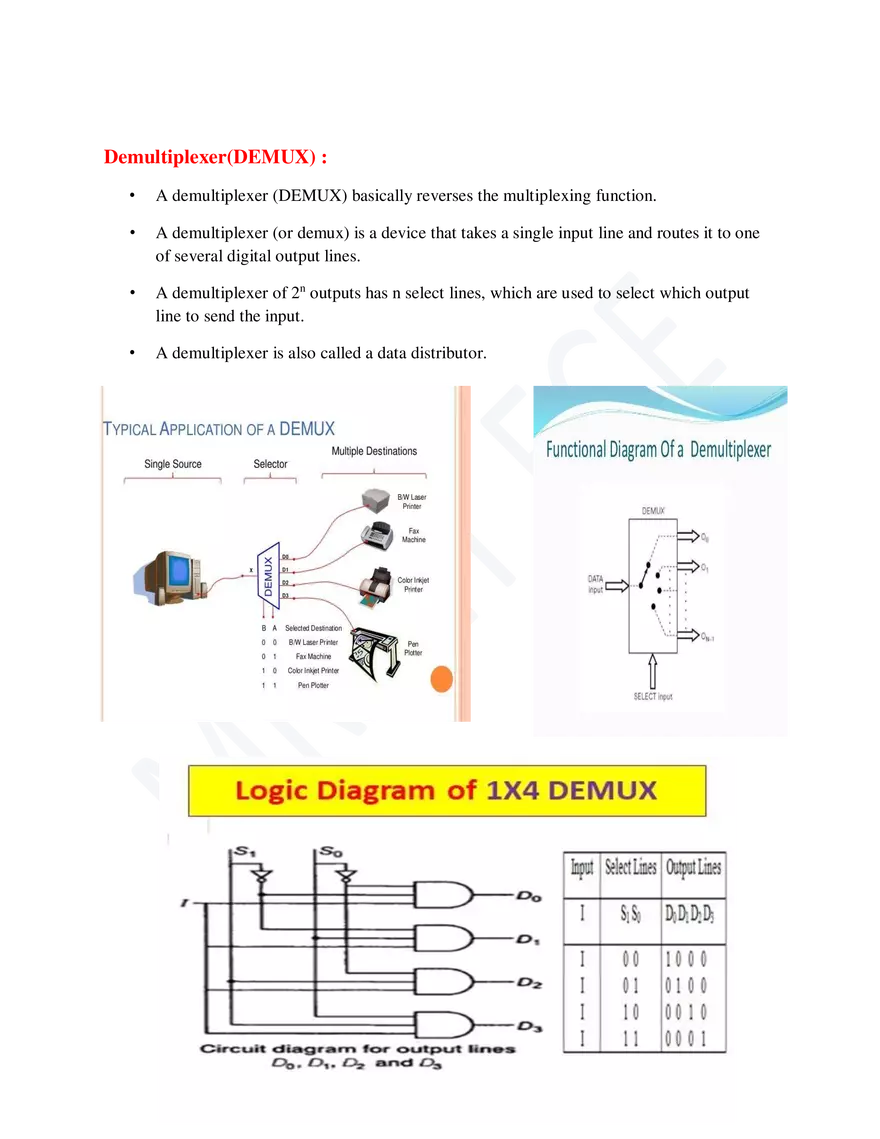

A demultiplexer (DEMUX) basically reverses the multiplexing function.
•
A demultiplexer (or demux) is a device that takes a single input line and routes it to one
of several digital output lines.
•
A demultiplexer of 2n outputs has n select lines, which are used to select which output
line to send the input.
•
A demultiplexer is also called a data distributor. Decoders: Decoder is a combinational logic circuit that converts binary information from
the n coded inputs to a maximum of 2n unique outputs.
•
The basic function of a decoder is to detect the presence of a specified combination of
bits (code) on its inputs and to indicate the presence of that code by a specified output
level.
•
In its general form, a decoder has n input lines to handle n bits and from one to 2^n
output lines to indicate the presence of one or more n-bit combinations.

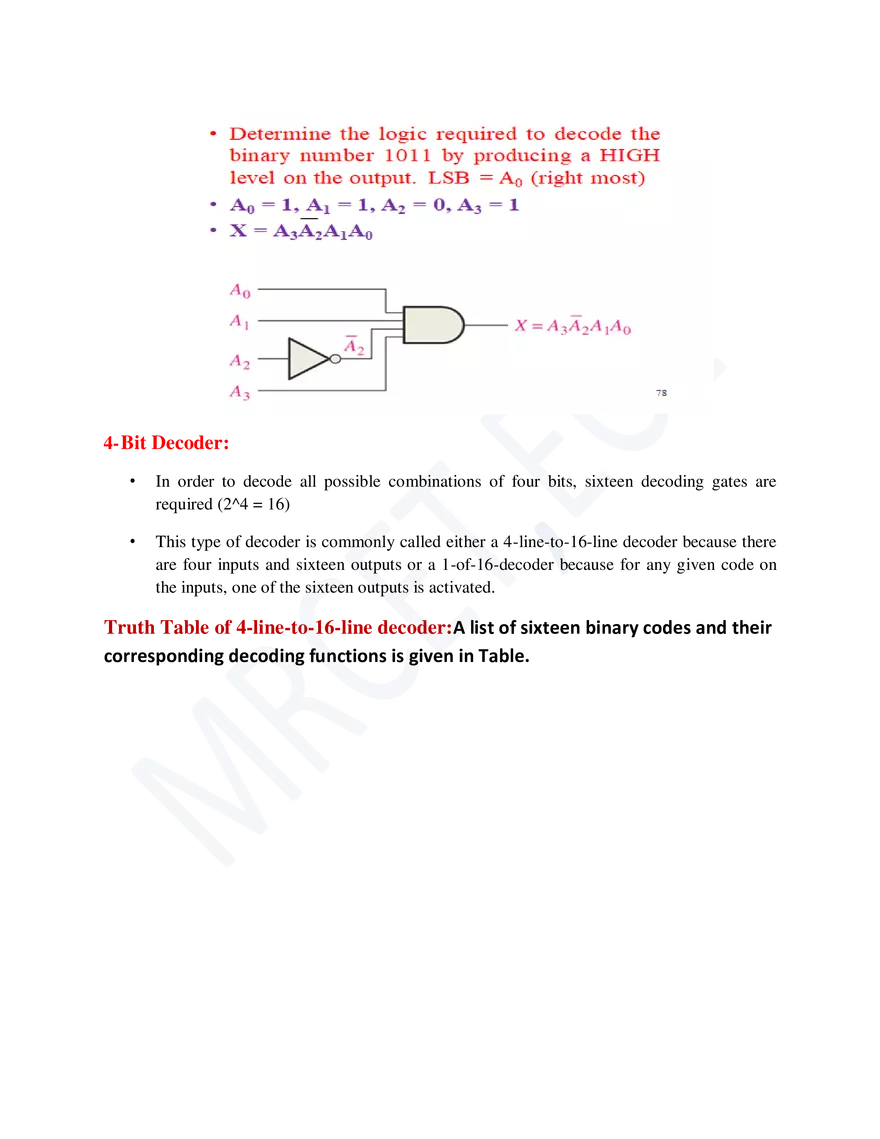

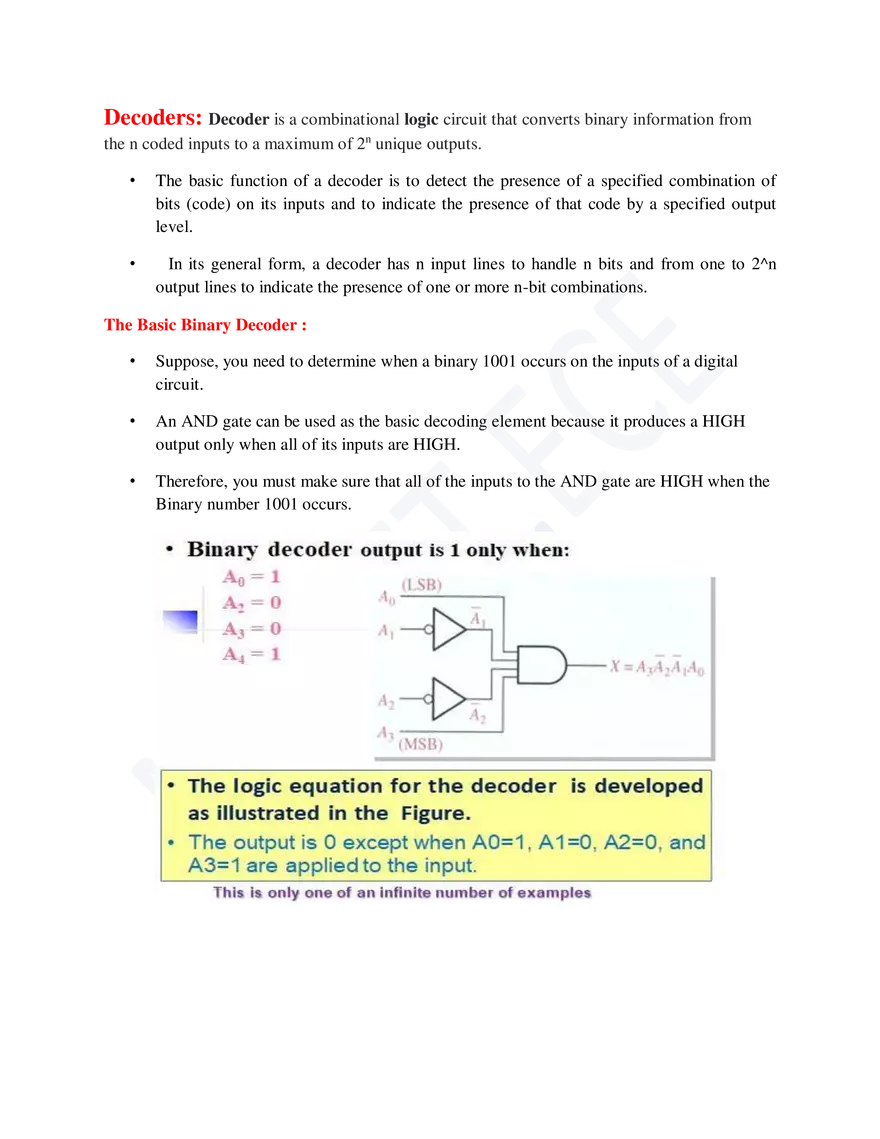

The Basic Binary Decoder :
•
Suppose, you need to determine when a binary 1001 occurs on the inputs of a digital
circuit.
•
An AND gate can be used as the basic decoding element because it produces a HIGH
output only when all of its inputs are HIGH.
•
Therefore, you must make sure that all of the inputs to the AND gate are HIGH when the

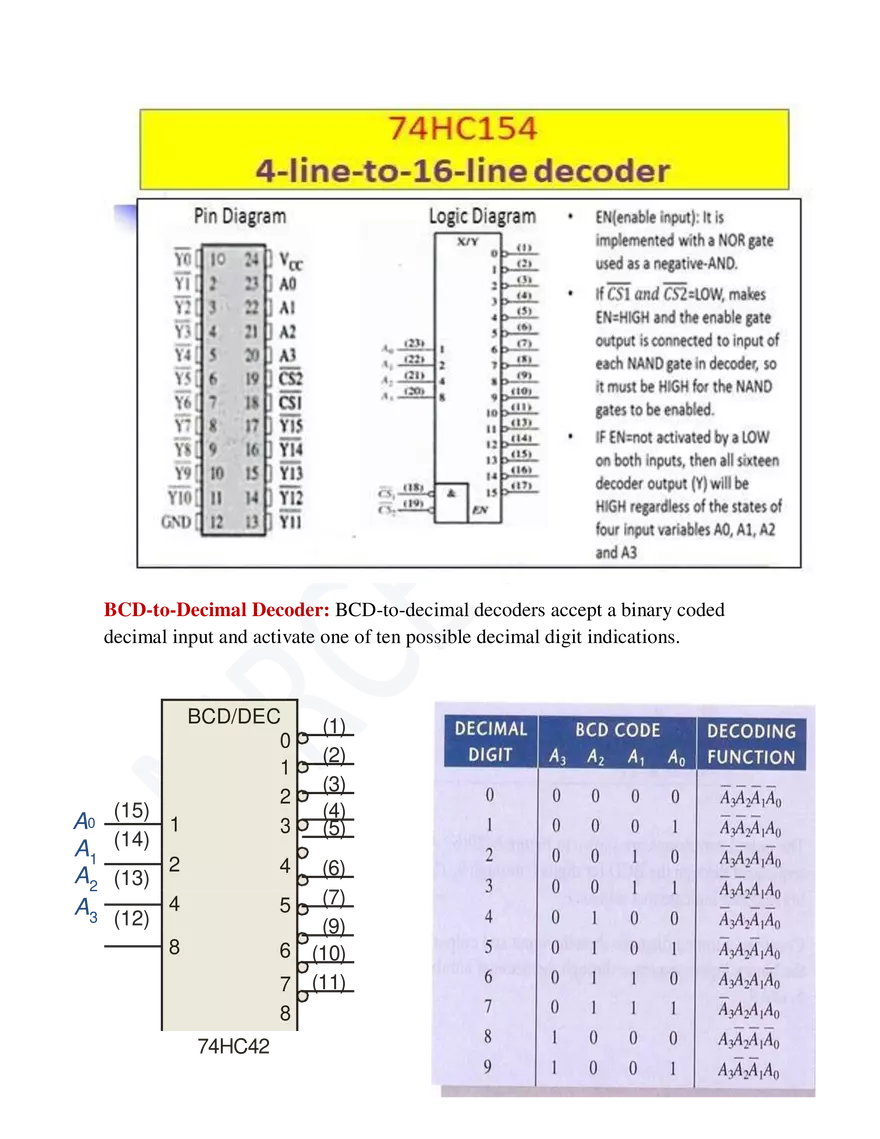

Binary number 1001 occurs. 4- Bit Decoder:
•
In order to decode all possible combinations of four bits, sixteen decoding gates are
required (2^4 = 16)
•
This type of decoder is commonly called either a 4-line-to-16-line decoder because there
are four inputs and sixteen outputs or a 1-of-16-decoder because for any given code on
the inputs, one of the sixteen outputs is activated.

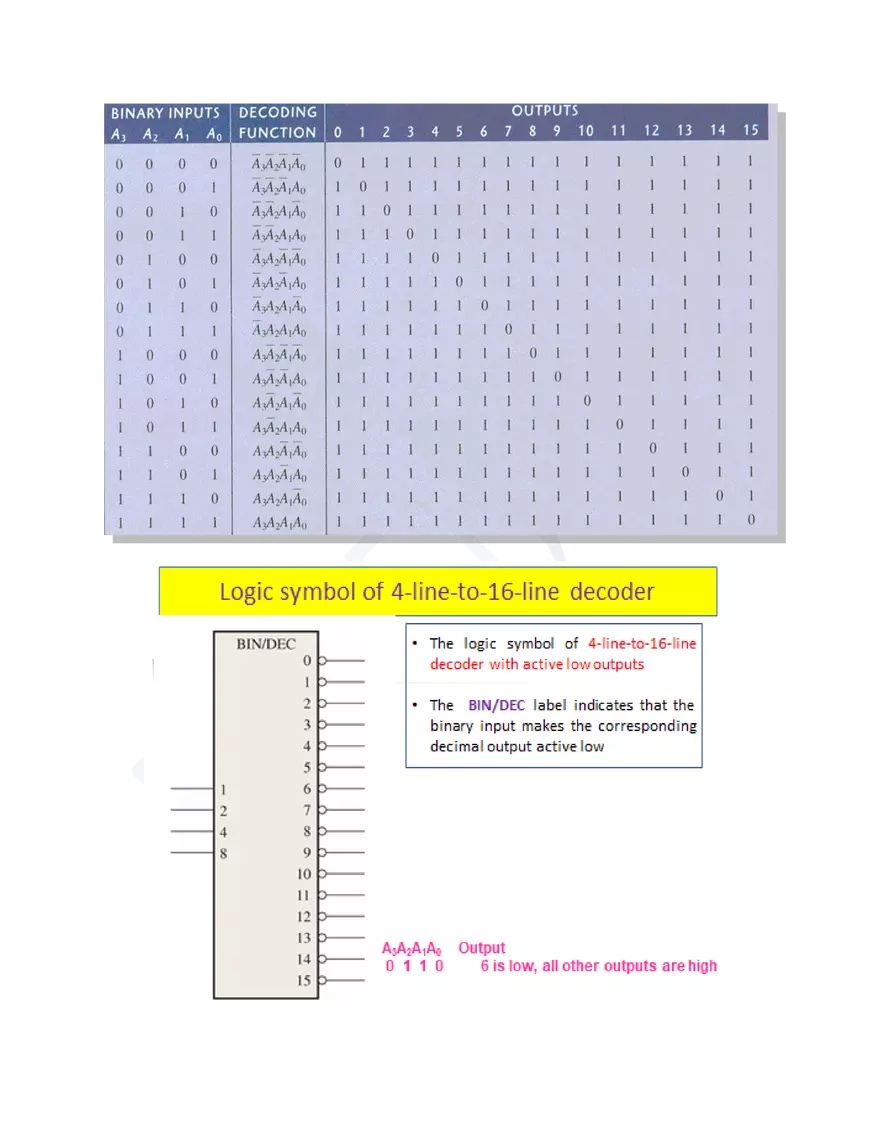

Truth Table of 4-line-to-16-line decoder:A list of sixteen binary codes and their
corresponding decoding functions is given in Table. BCD-to-Decimal Decoder: BCD-to-decimal decoders accept a binary coded
decimal input and activate one of ten possible decimal digit indications.
A0
A1
A2
A3
BCD/DEC
(1)
0
(2)
1
(3)
2
(15)
(4)
1
3
(5)
(14)
2
4 (6)
(13)
4
5 (7)
(12)
(9)
8
6 (10)
7 (11)
8
74HC42 9 BCD-to-7-segement decoder: BCD to Seven Segment decoder is a combinational
logic circuit that accepts a decimal digit in BCD (input) and generates appropriate
outputs for the 7-segments to display the input decimal digit.

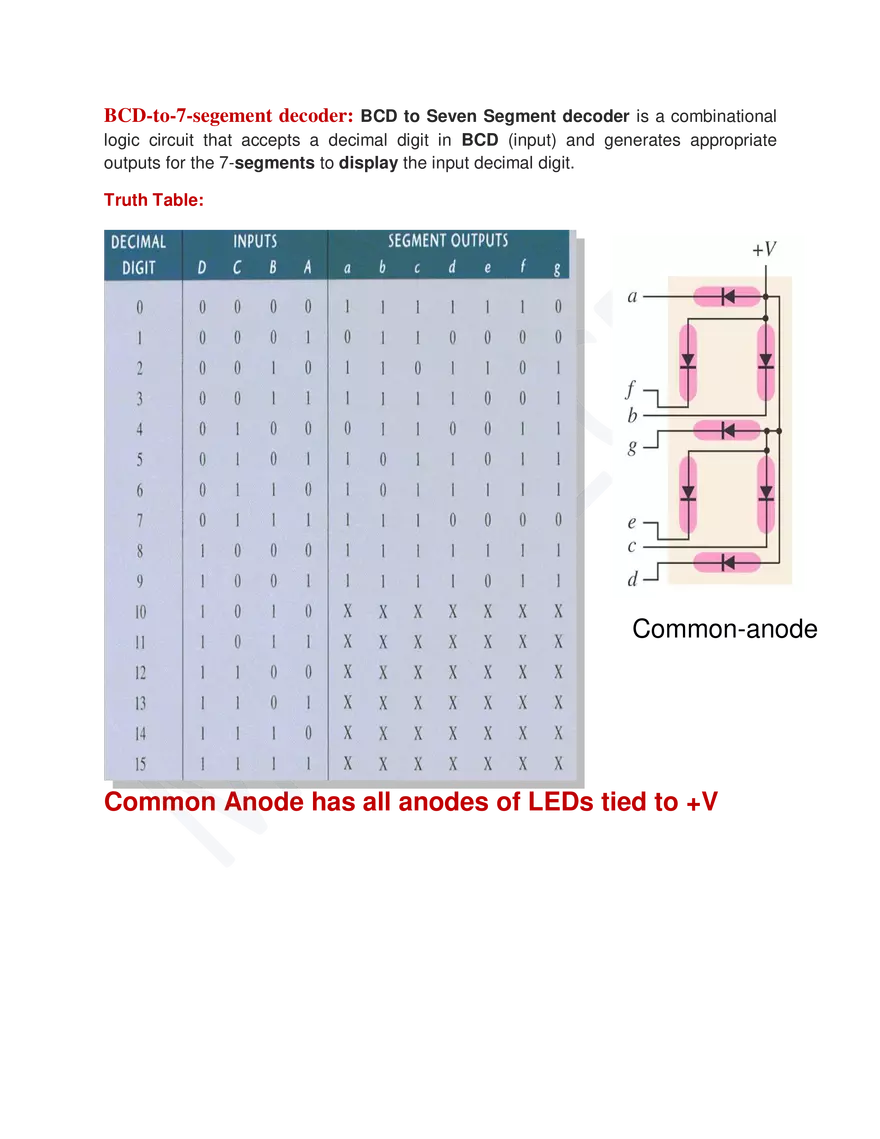

Truth Table:
Common-anode

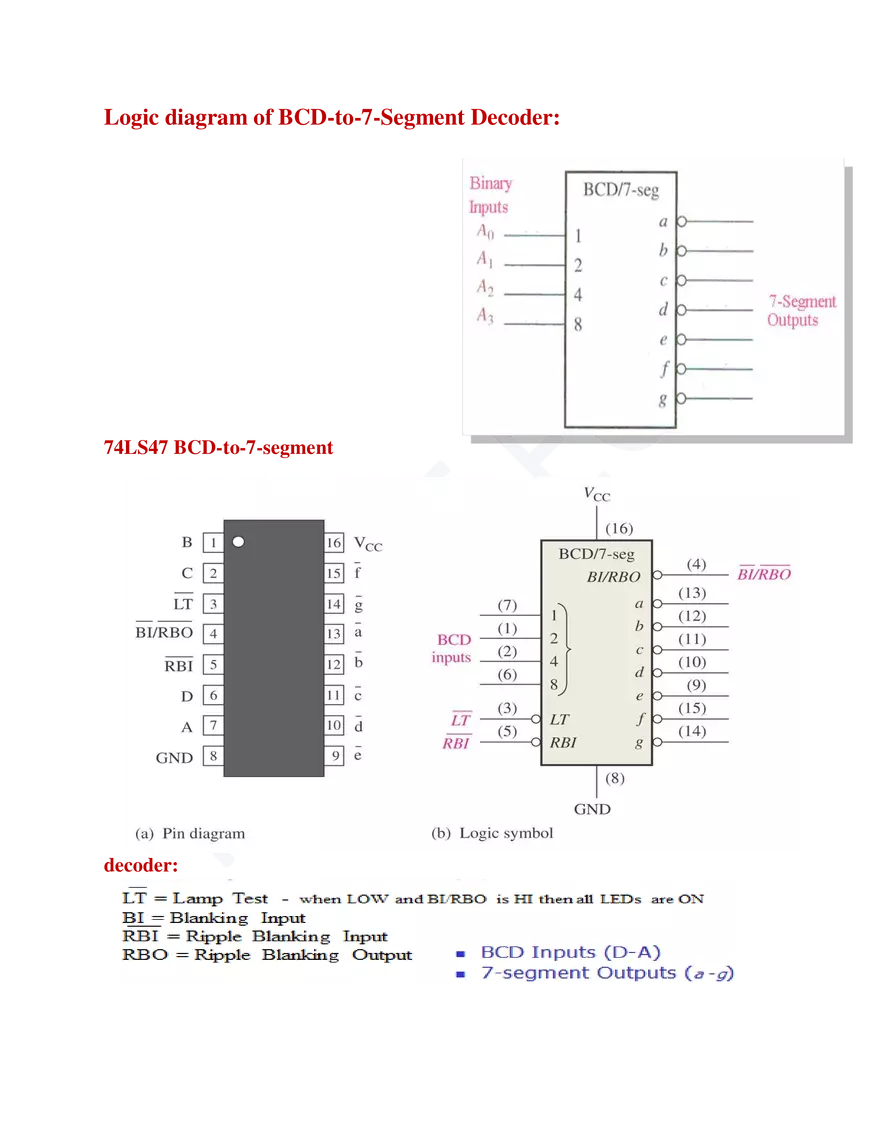

Common Anode has all anodes of LEDs tied to +V Logic diagram of BCD-to-7-Segment Decoder:
74LS47 BCD-to-7-segment
decoder: Encoders:
•
An encoder is a combinational logic circuit that essentially performs a “reverse” decoder
function.
• An encoder is a device or a combinational circuit that converts information from one
format or code to another.
• Digital Encoder are more commonly called a Binary Encoder takes all its data inputs one
at a time and then converts them into a single encoded output.
• An "n-bit" binary encoder has 2n input lines and n-bit output lines
• An encoder accepts an active level on one of its inputs representing a digit, such as a
decimal or octal digit, and converts it to a coded output such as BCD or binary.
• Encoders can also be devised to encode various symbols and alphabetic characters.
• The process of converting from familiar symbols or numbers to a coded format is called
encoding
Decimal-to-BCD encoder ( 10 inputs, 4 outputs) : This type of encoder has ten inputs
– one for each decimal digit and four outputs corresponding to the BCD code, as shown in

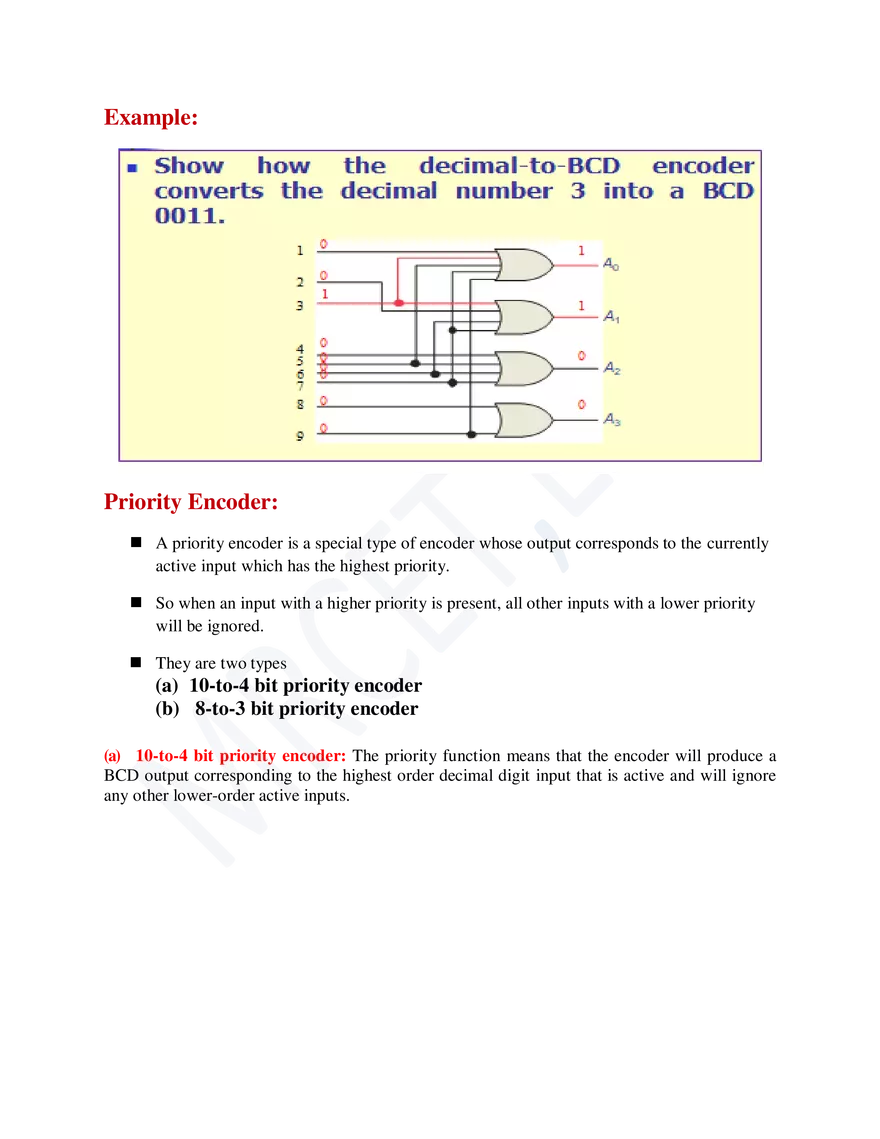

figure. This is a 10-line-to-4-line encoder. Example:
Priority Encoder:
A priority encoder is a special type of encoder whose output corresponds to the currently
active input which has the highest priority.
So when an input with a higher priority is present, all other inputs with a lower priority
will be ignored.
They are two types
(a) 10-to-4 bit priority encoder
(b) 8-to-3 bit priority encoder

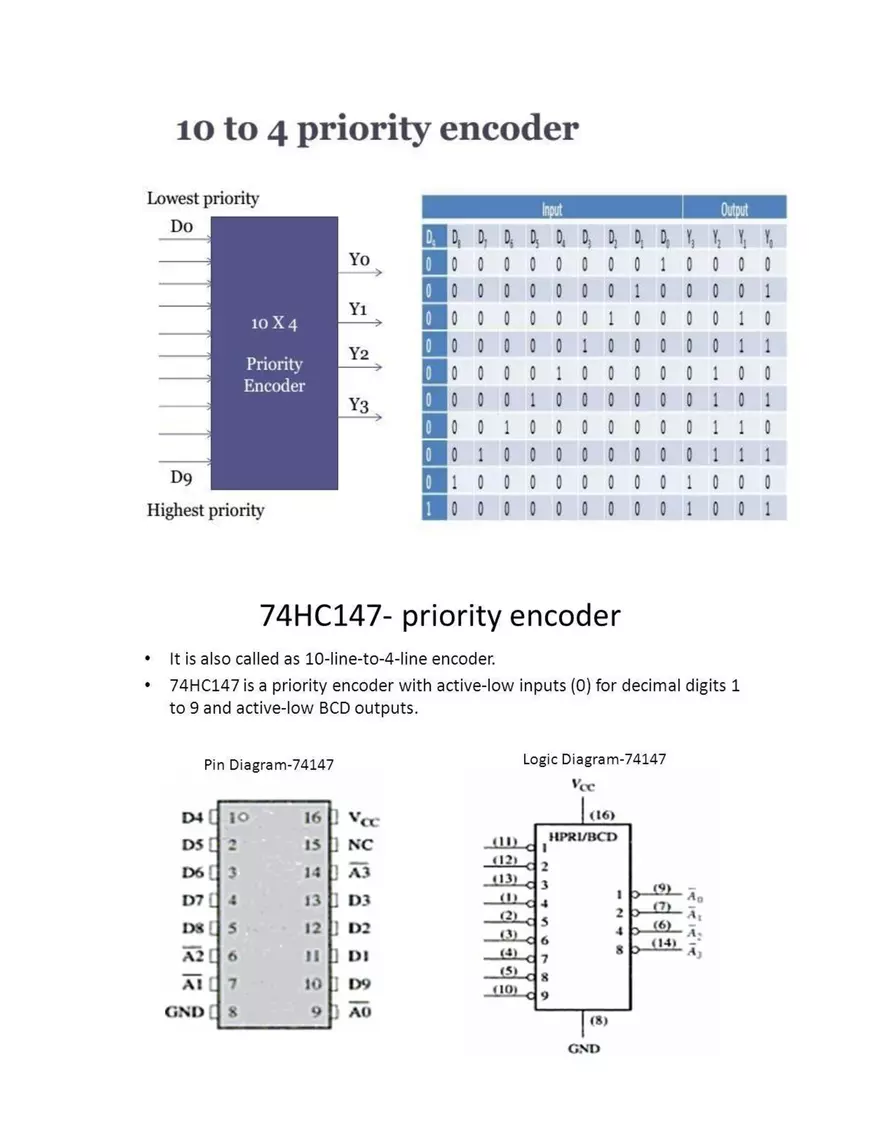

(a) 10-to-4 bit priority encoder: The priority function means that the encoder will produce a
BCD output corresponding to the highest order decimal digit input that is active and will ignore

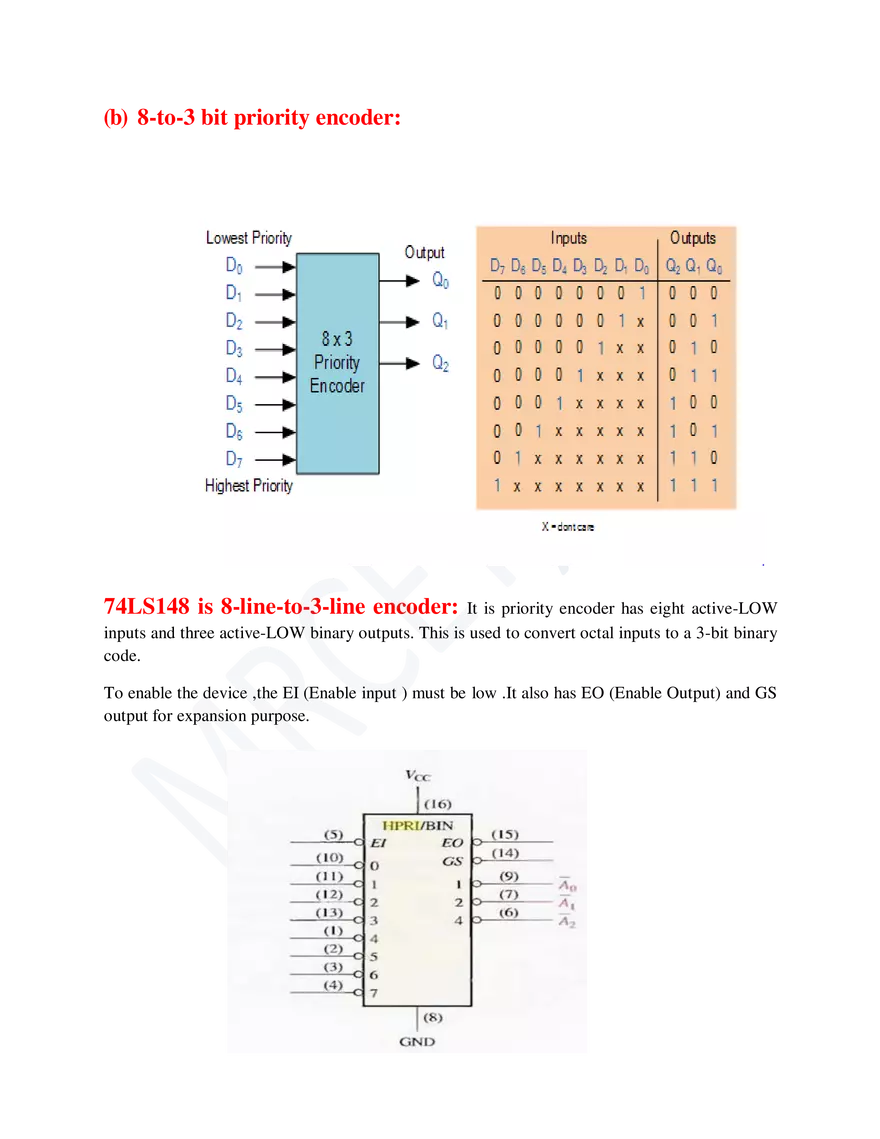

any other lower-order active inputs. (b) 8-to-3 bit priority encoder:
74LS148 is 8-line-to-3-line encoder:
It is priority encoder has eight active-LOW
inputs and three active-LOW binary outputs. This is used to convert octal inputs to a 3-bit binary
code.
To enable the device ,the EI (Enable input ) must be low .It also has EO (Enable Output) and GS
output for expansion purpose. Code Converters:
•
•
Binary-Gray and Gray-Binary conversion
BCD-to-binary conversion

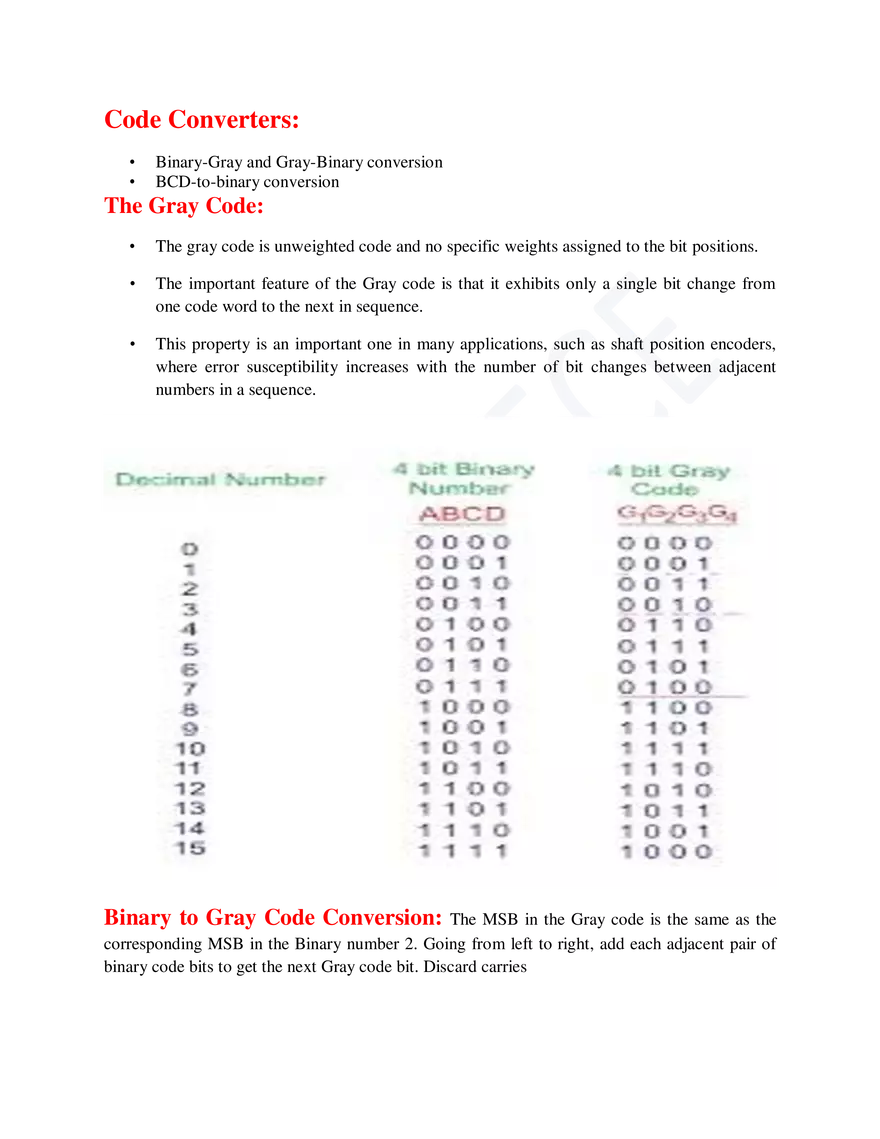

The Gray Code:
•
The gray code is unweighted code and no specific weights assigned to the bit positions.
•
The important feature of the Gray code is that it exhibits only a single bit change from
one code word to the next in sequence.
•
This property is an important one in many applications, such as shaft position encoders,
where error susceptibility increases with the number of bit changes between adjacent
numbers in a sequence.

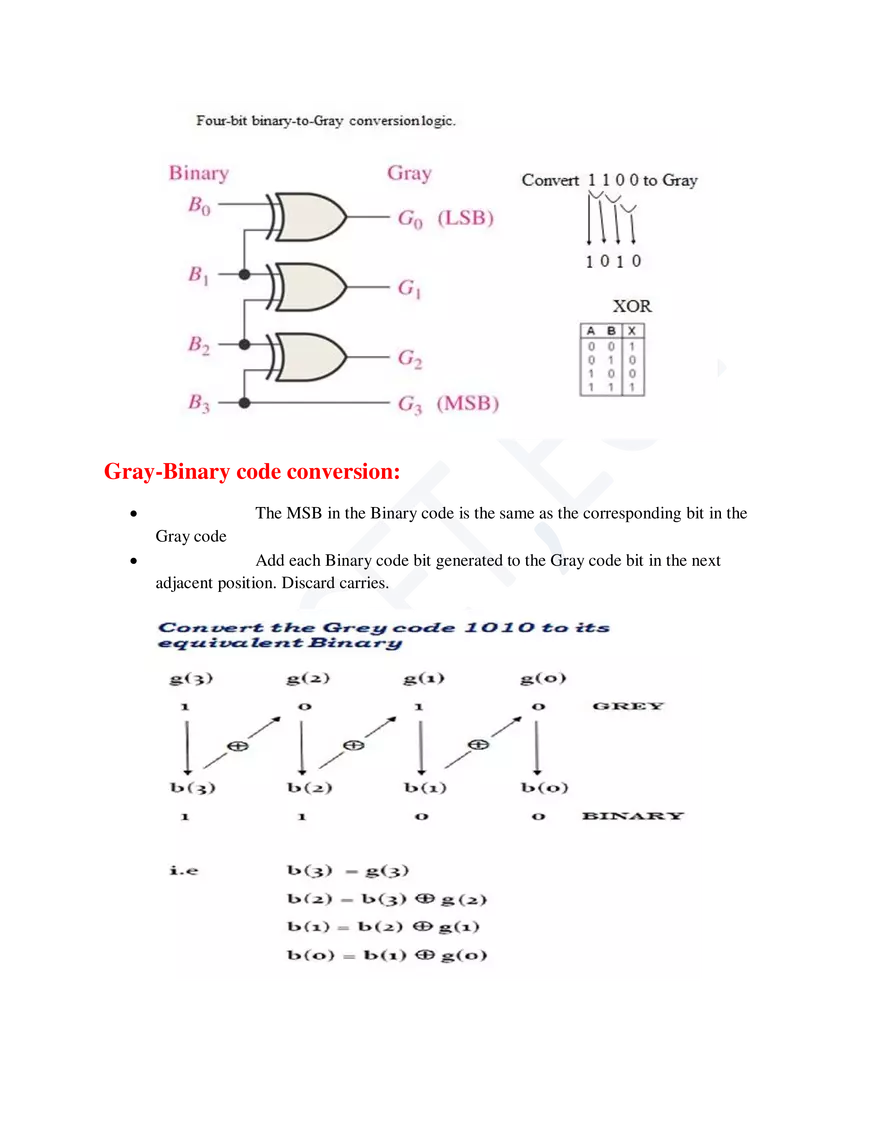

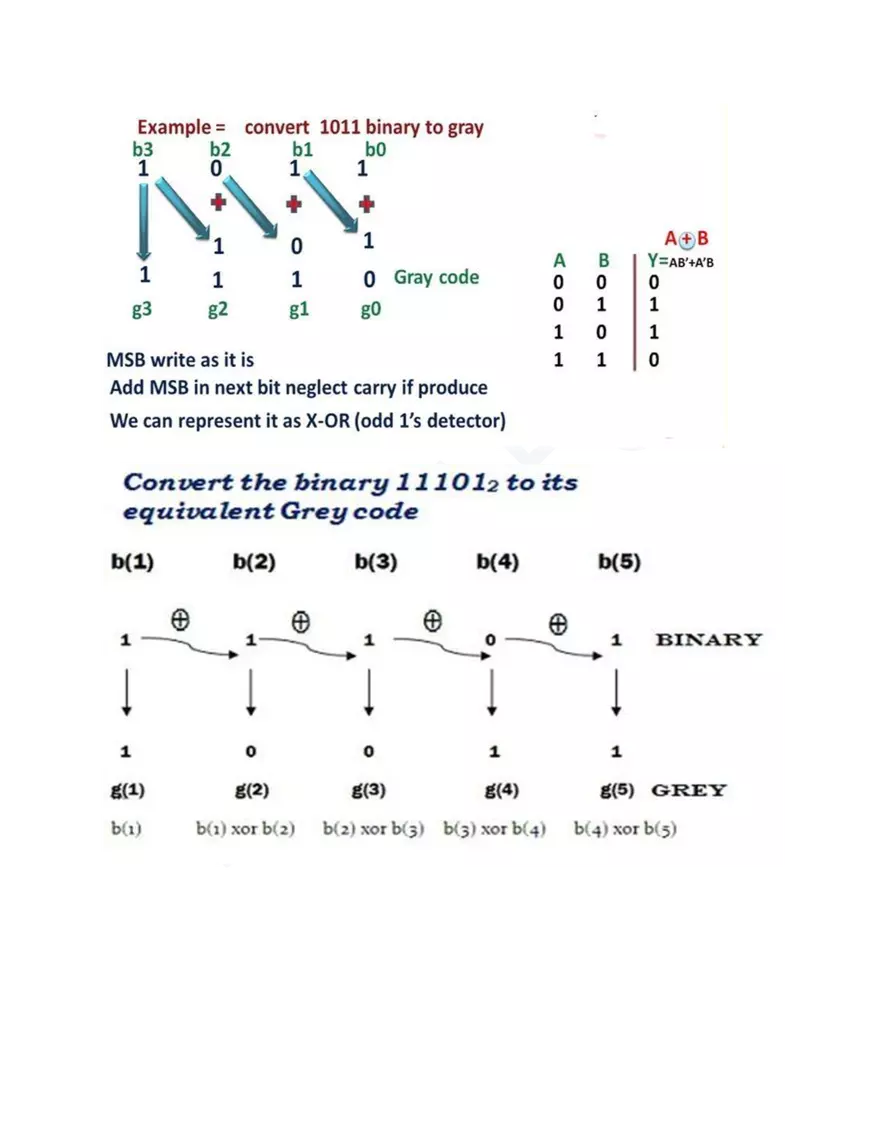

Binary to Gray Code Conversion:
The MSB in the Gray code is the same as the
corresponding MSB in the Binary number 2. Going from left to right, add each adjacent pair of

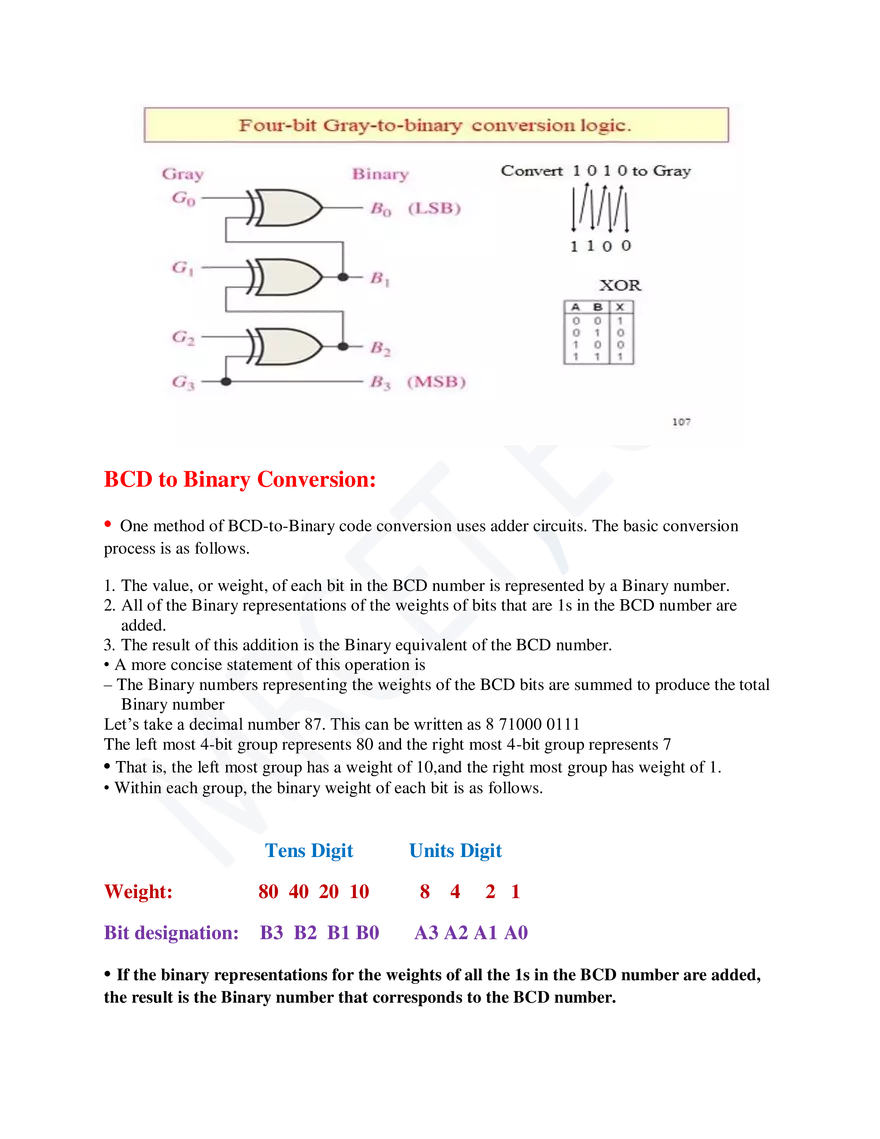

binary code bits to get the next Gray code bit. Discard carries Gray-Binary code conversion:
The MSB in the Binary code is the same as the corresponding bit in the
Gray code
Add each Binary code bit generated to the Gray code bit in the next
adjacent position. Discard carries. BCD to Binary Conversion:
•
One method of BCD-to-Binary code conversion uses adder circuits. The basic conversion
process is as follows.
1. The value, or weight, of each bit in the BCD number is represented by a Binary number.
2. All of the Binary representations of the weights of bits that are 1s in the BCD number are
added.
3. The result of this addition is the Binary equivalent of the BCD number.
• A more concise statement of this operation is
– The Binary numbers representing the weights of the BCD bits are summed to produce the total
Binary number
Let’s take a decimal number 87. This can be written as 8 71000 0111
The left most 4-bit group represents 80 and the right most 4-bit group represents 7
• That is, the left most group has a weight of 10,and the right most group has weight of 1.
• Within each group, the binary weight of each bit is as follows.
Tens Digit
Units Digit
Weight:
80 40 20 10
8
4
2 1
Bit designation:
B3 B2 B1 B0
A3 A2 A1 A0
• If the binary representations for the weights of all the 1s in the BCD number are added,
the result is the Binary number that corresponds to the BCD number. Example: Convert the BCD number 0001 0101 (decimal 15) and 1001 0110
(decimal 96) to Binary.
Solution: Write the Binary representations of the weights of all 1s appearing in the numbers,
and then add them together
80 40 20 10 8 4 2 1
Decimal 15
Decimal 96
0 0 0 1
0 1 0 1
1 0 0 1 011 0
Binary number for Decimal 15 is 00000001 for 96 is 00000010
00000100
00000100
00001010
00001010
--------------
01010000
00001111
-------------
--------------
01100000
--------------
Parity Generators/Checkers:
•
Errors can occur as digital codes are being transferred from one point to another with in
a digital system.
•
The errors take the form of undesired changes in the bits that make up the coded
information; that is, a 1 can change to a 0, or a 0 to a 1, because of component
malfunctions or electrical noise.
•
In most digital systems, the probability that even a single bit error will occur is very
small, and the likelihood that more than one will occur is even smaller. Nevertheless,
when an error occurs undetected, it can cause serious problems in a digital system.
•

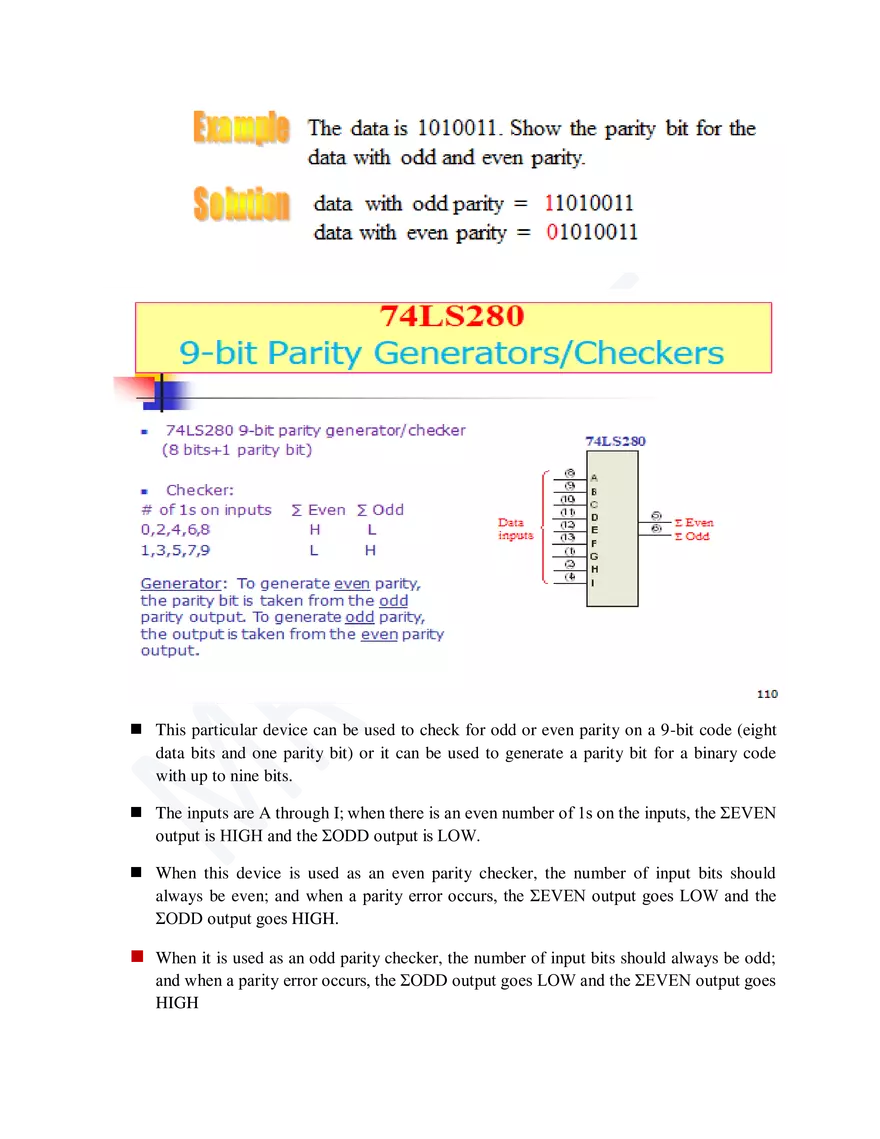

One method of error detections is to use parity.
•
A parity bit is attached to a group of data in order to make the total number of 1s either
even or odd. This particular device can be used to check for odd or even parity on a 9-bit code (eight
data bits and one parity bit) or it can be used to generate a parity bit for a binary code
with up to nine bits.
The inputs are A through I; when there is an even number of 1s on the inputs, the ΣEVEN
output is HIGH and the ΣODD output is LOW.
When this device is used as an even parity checker, the number of input bits should
always be even; and when a parity error occurs, the ΣEVEN output goes LOW and the
ΣODD output goes HIGH.
When it is used as an odd parity checker, the number of input bits should always be odd;
and when a parity error occurs, the ΣODD output goes LOW and the ΣEVEN output goes
HIGH Parity Generator:
If this device is used as an even parity generator, the parity bit is taken as the ΣODD
output because this output is a 0 if there is an even number of input bits and it is a 1 if
there is an odd number.
When used as an odd parity generator, the parity bit is taken as the ΣEVEN output,
because it is a 0 when the number of input bits is odd. Unit 5
Sequential logic ICs and Memories

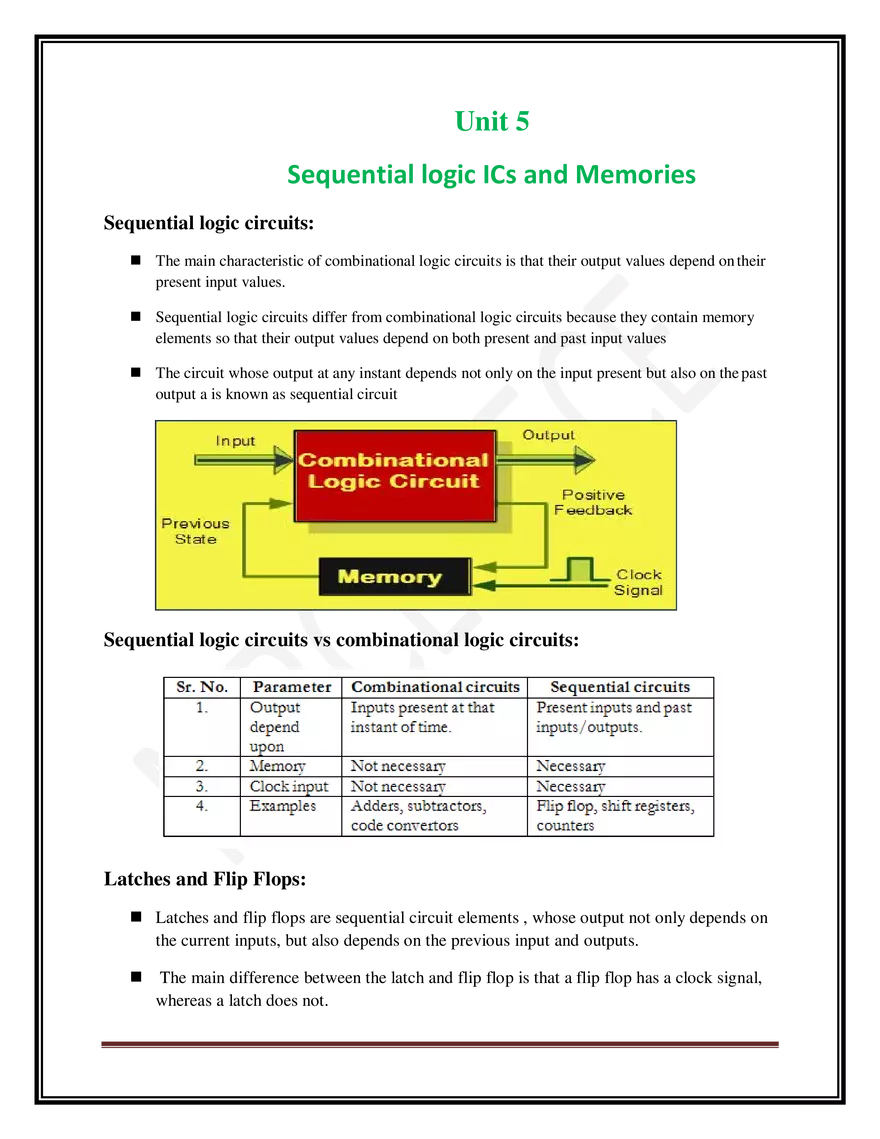

Sequential logic circuits:
The main characteristic of combinational logic circuits is that their output values depend on their
present input values.
Sequential logic circuits differ from combinational logic circuits because they contain memory
elements so that their output values depend on both present and past input values
The circuit whose output at any instant depends not only on the input present but also on the past
output a is known as sequential circuit
Sequential logic circuits vs combinational logic circuits:
Latches and Flip Flops:
Latches and flip flops are sequential circuit elements , whose output not only depends on
the current inputs, but also depends on the previous input and outputs.
The main difference between the latch and flip flop is that a flip flop has a clock signal,
whereas a latch does not. Basically, there are four types of latches and flip flops: SR, D, JK and T.
The major differences between these types of flip flops and latches are the number of i/ps
they have and how they change the states.

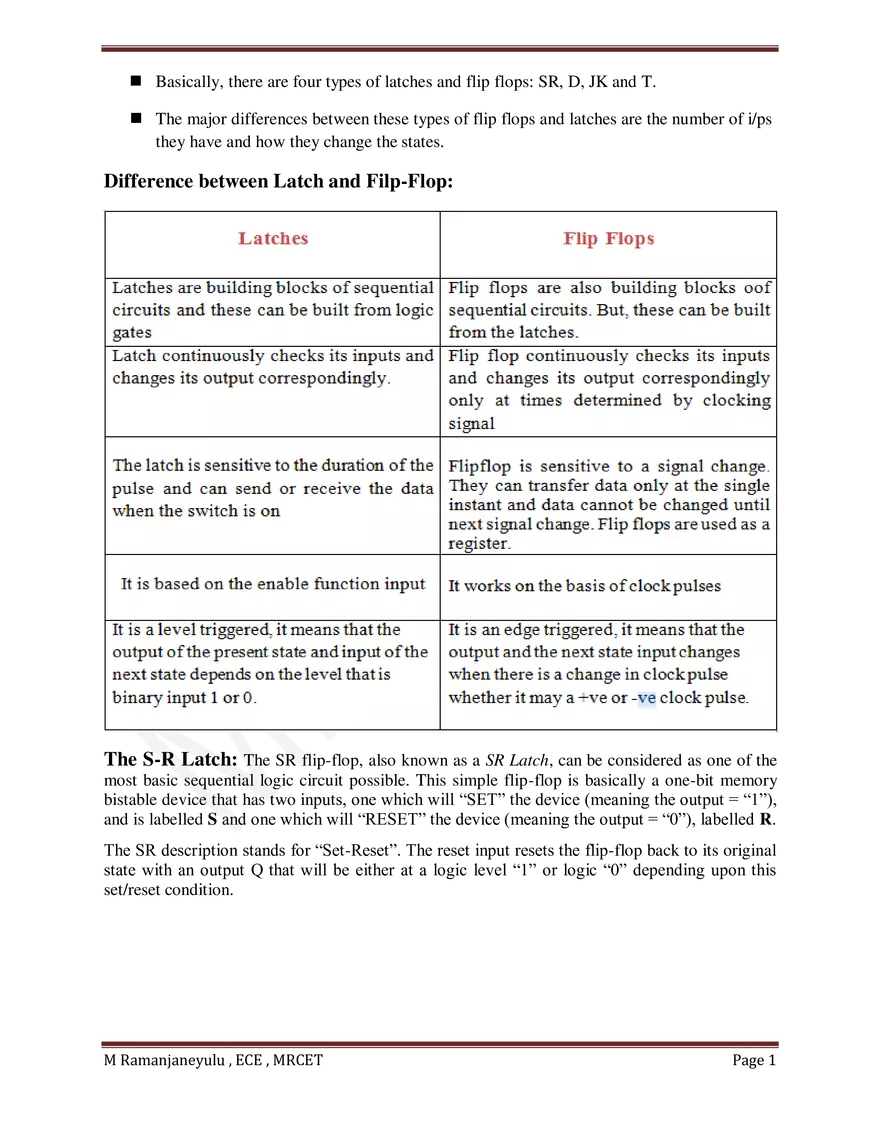

Difference between Latch and Filp-Flop:
The S-R Latch: The SR flip-flop, also known as a SR Latch, can be considered as one of the
most basic sequential logic circuit possible. This simple flip-flop is basically a one-bit memory
bistable device that has two inputs, one which will “SET” the device (meaning the output = “1”),
and is labelled S and one which will “RESET” the device (meaning the output = “0”), labelled R.
The SR description stands for “Set-Reset”. The reset input resets the flip-flop back to its original
state with an output Q that will be either at a logic level “1” or logic “0” depending upon this
set/reset condition.
M Ramanjaneyulu , ECE , MRCET

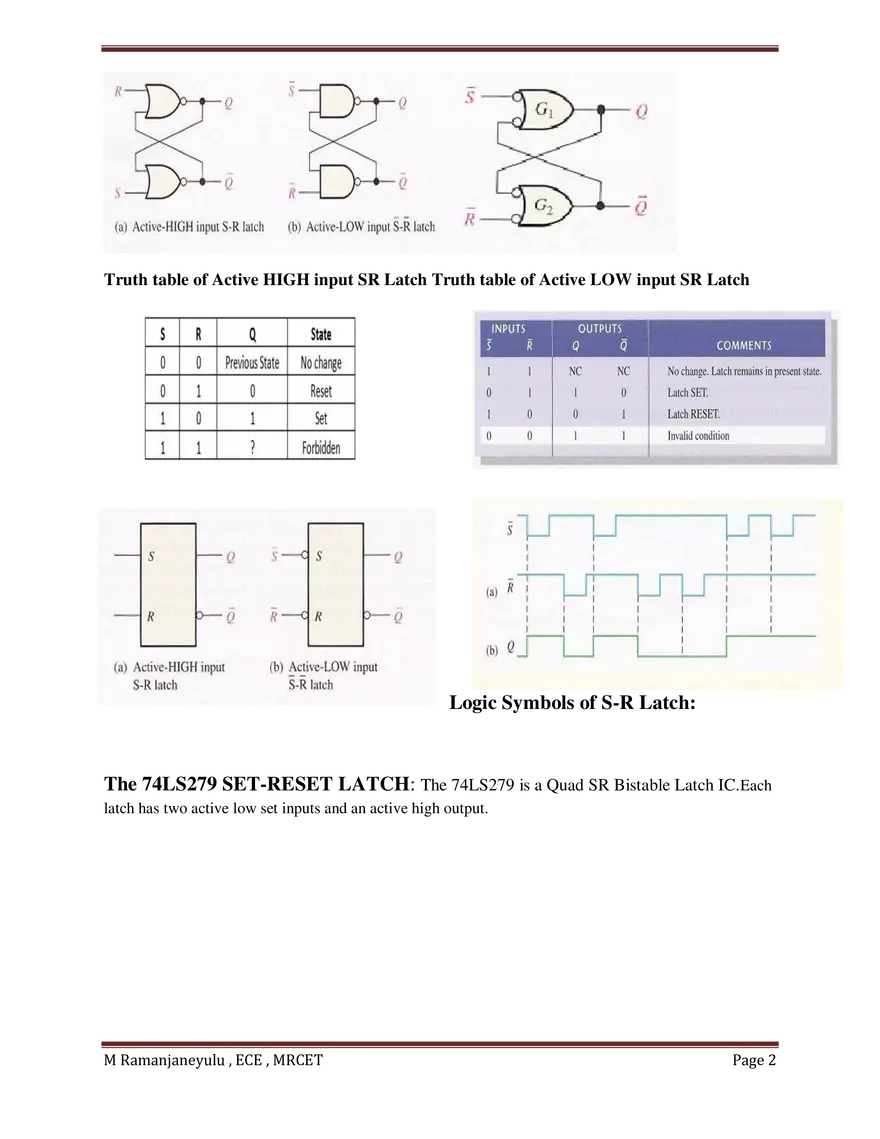

Page 1 Truth table of Active HIGH input SR Latch Truth table of Active LOW input SR Latch
Logic Symbols of S-R Latch:

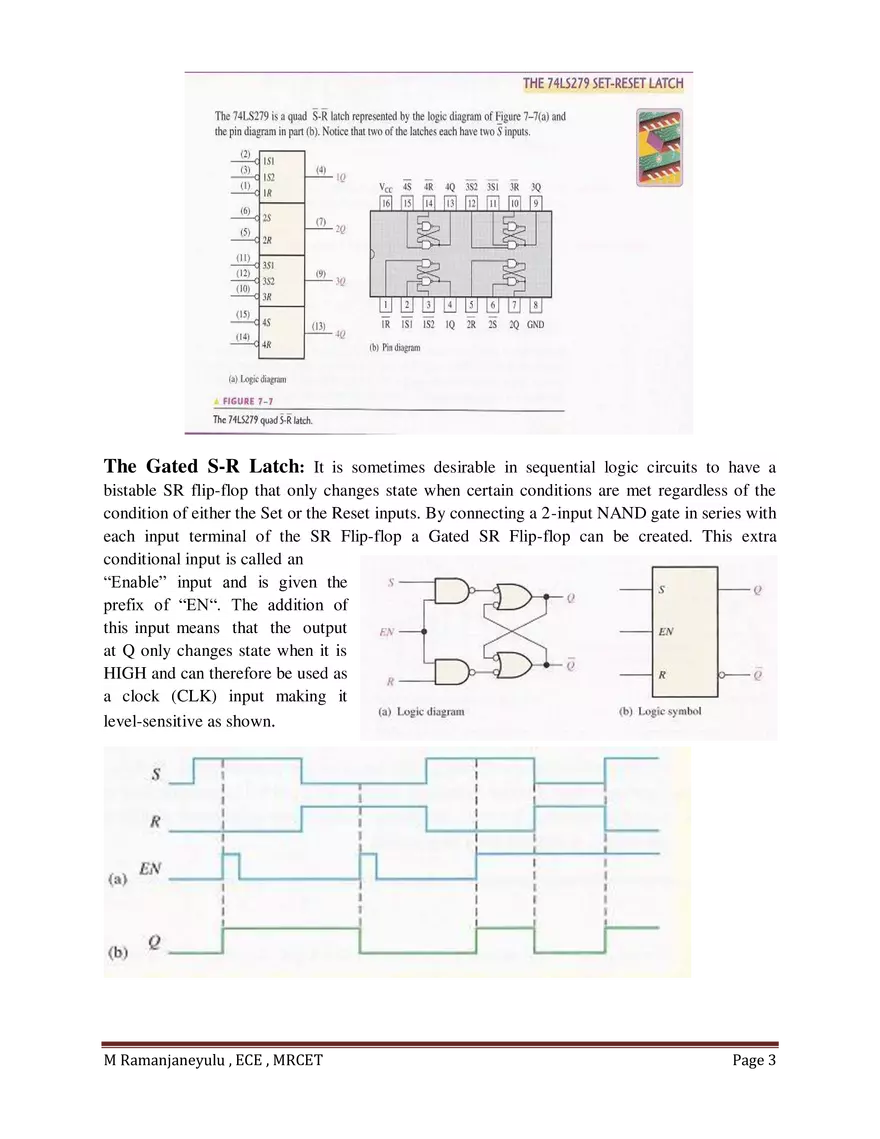

The 74LS279 SET-RESET LATCH: The 74LS279 is a Quad SR Bistable Latch IC.Each
latch has two active low set inputs and an active high output.
M Ramanjaneyulu , ECE , MRCET
Page 2 The Gated S-R Latch: It is sometimes desirable in sequential logic circuits to have a
bistable SR flip-flop that only changes state when certain conditions are met regardless of the
condition of either the Set or the Reset inputs. By connecting a 2-input NAND gate in series with
each input terminal of the SR Flip-flop a Gated SR Flip-flop can be created. This extra
conditional input is called an
“Enable” input and is given the
prefix of “EN“. The addition of
this input means that the output
at Q only changes state when it is
HIGH and can therefore be used as
a clock (CLK) input making it
level-sensitive as shown.
M Ramanjaneyulu , ECE , MRCET

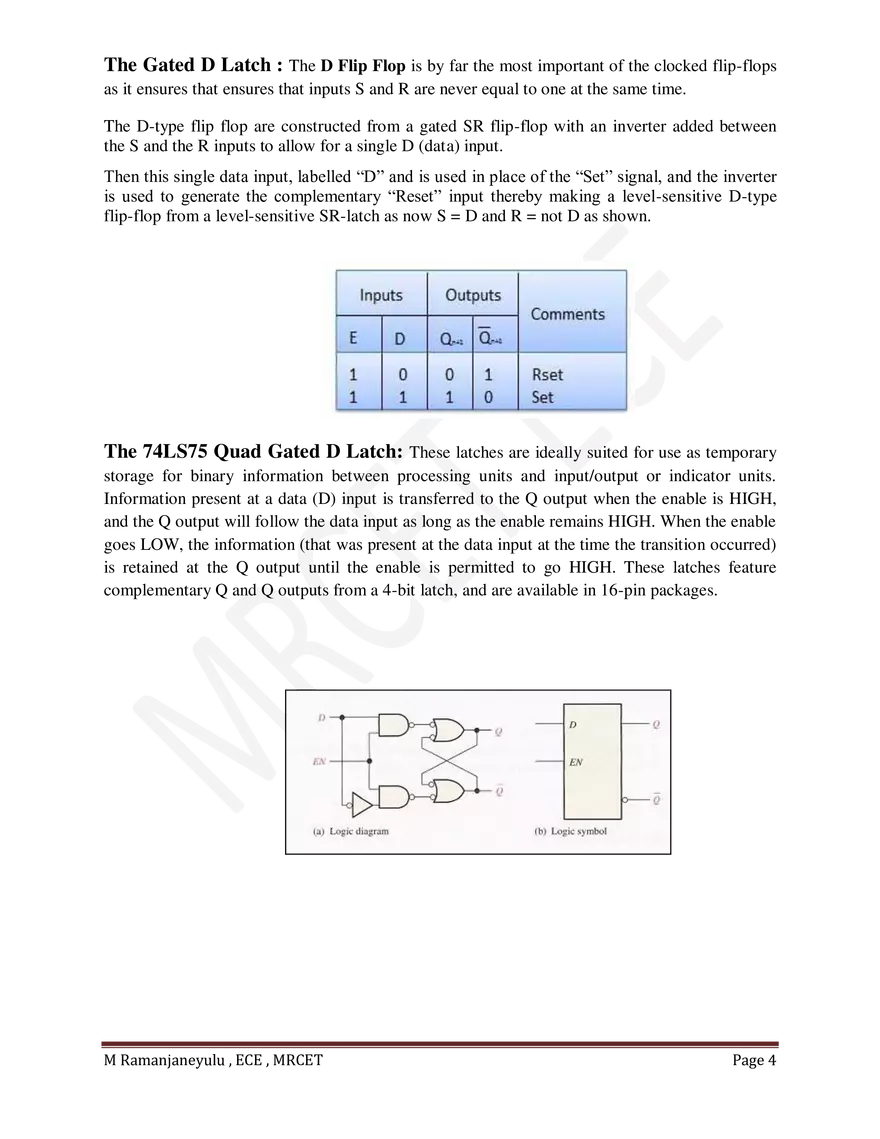

Page 3 The Gated D Latch : The D Flip Flop is by far the most important of the clocked flip-flops
as it ensures that ensures that inputs S and R are never equal to one at the same time.
The D-type flip flop are constructed from a gated SR flip-flop with an inverter added between
the S and the R inputs to allow for a single D (data) input.
Then this single data input, labelled “D” and is used in place of the “Set” signal, and the inverter
is used to generate the complementary “Reset” input thereby making a level-sensitive D-type
flip-flop from a level-sensitive SR-latch as now S = D and R = not D as shown.

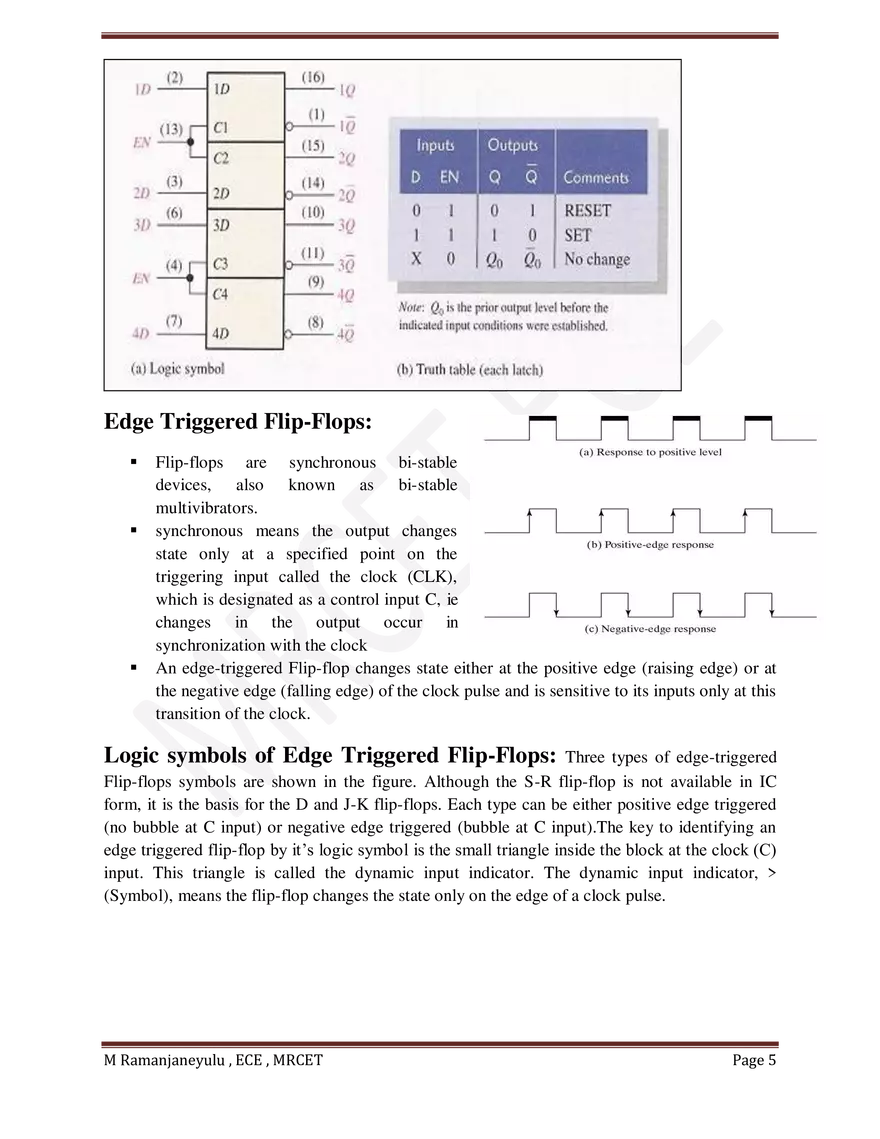

The 74LS75 Quad Gated D Latch: These latches are ideally suited for use as temporary
storage for binary information between processing units and input/output or indicator units.
Information present at a data (D) input is transferred to the Q output when the enable is HIGH,
and the Q output will follow the data input as long as the enable remains HIGH. When the enable
goes LOW, the information (that was present at the data input at the time the transition occurred)
is retained at the Q output until the enable is permitted to go HIGH. These latches feature
complementary Q and Q outputs from a 4-bit latch, and are available in 16-pin packages.
ICA Notes
M Ramanjaneyulu , ECE , MRCET
Page 4 Edge Triggered Flip-Flops:
Flip-flops are synchronous bi-stable
devices, also known as bi-stable
multivibrators.
synchronous means the output changes
state only at a specified point on the
triggering input called the clock (CLK),
which is designated as a control input C, ie
changes in the output occur in
synchronization with the clock
An edge-triggered Flip-flop changes state either at the positive edge (raising edge) or at
the negative edge (falling edge) of the clock pulse and is sensitive to its inputs only at this
transition of the clock.
Logic symbols of Edge Triggered Flip-Flops:
Three types of edge-triggered
Flip-flops symbols are shown in the figure. Although the S-R flip-flop is not available in IC
form, it is the basis for the D and J-K flip-flops. Each type can be either positive edge triggered
(no bubble at C input) or negative edge triggered (bubble at C input).The key to identifying an
edge triggered flip-flop by it’s logic symbol is the small triangle inside the block at the clock (C)
input. This triangle is called the dynamic input indicator. The dynamic input indicator, >
(Symbol), means the flip-flop changes the state only on the edge of a clock pulse.
M Ramanjaneyulu , ECE , MRCET

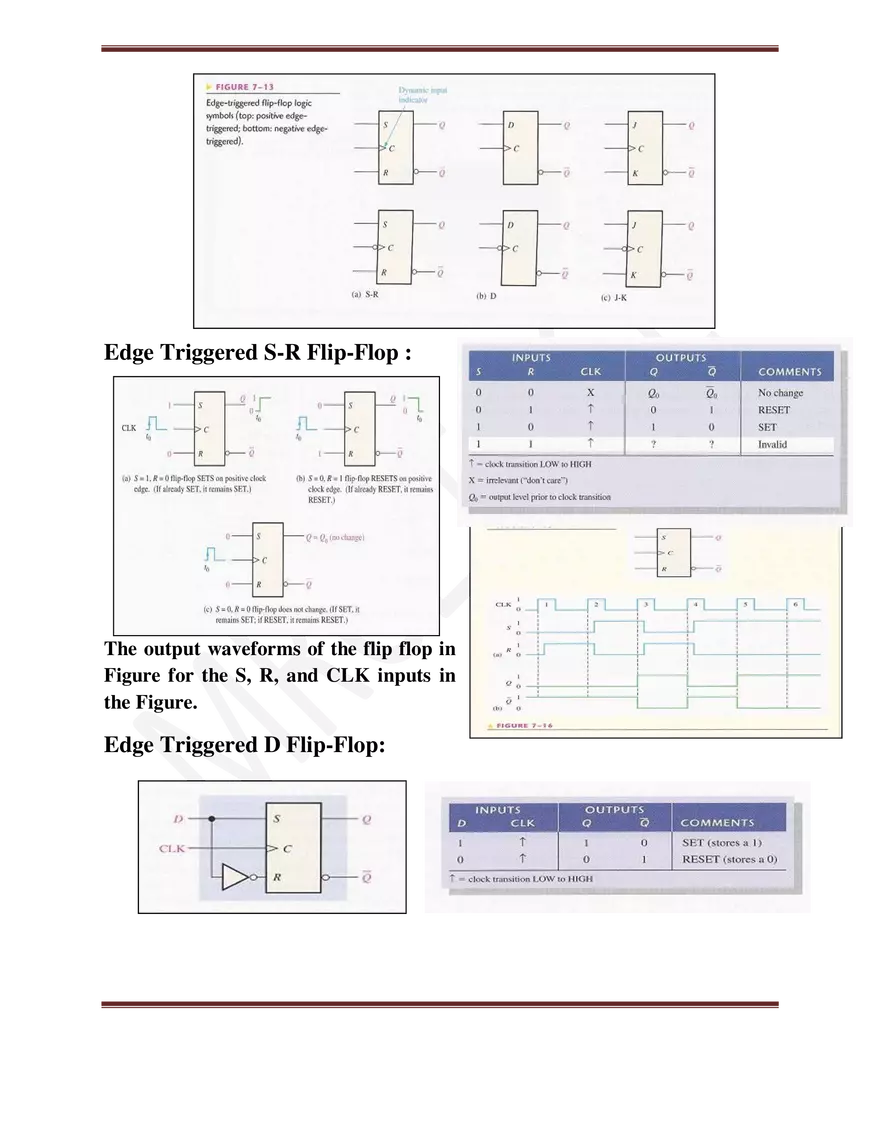

Page 5 Edge Triggered S-R Flip-Flop :
The output waveforms of the flip flop in
Figure for the S, R, and CLK inputs in
the Figure.

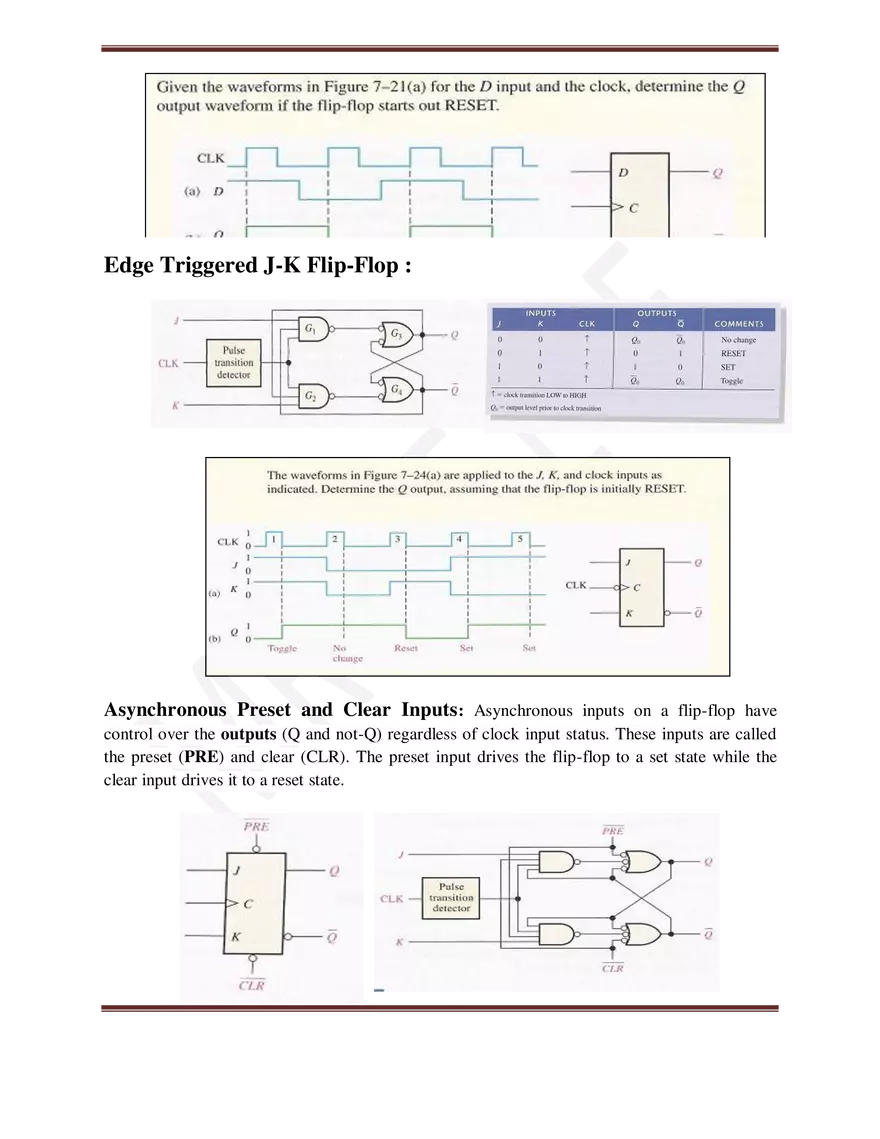

Edge Triggered D Flip-Flop: Edge Triggered J-K Flip-Flop :
Asynchronous Preset and Clear Inputs : Asynchronous inputs on a flip-flop have
control over the outputs (Q and not-Q) regardless of clock input status. These inputs are called
the preset (PRE) and clear (CLR). The preset input drives the flip-flop to a set state while the

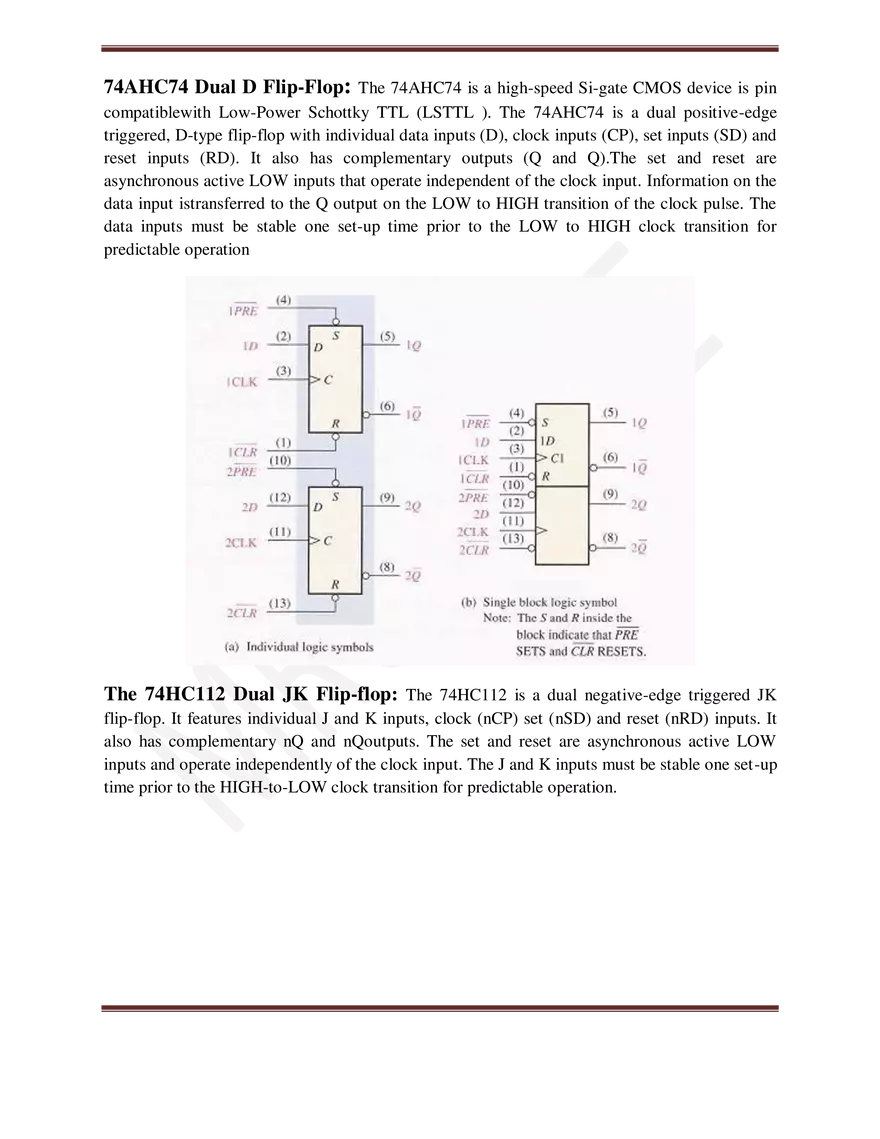

clear input drives it to a reset state. 74AHC74 Dual D Flip-Flop: The 74AHC74 is a high-speed Si-gate CMOS device is pin
compatiblewith Low-Power Schottky TTL (LSTTL ). The 74AHC74 is a dual positive-edge
triggered, D-type flip-flop with individual data inputs (D), clock inputs (CP), set inputs (SD) and
reset inputs (RD). It also has complementary outputs (Q and Q).The set and reset are
asynchronous active LOW inputs that operate independent of the clock input. Information on the
data input istransferred to the Q output on the LOW to HIGH transition of the clock pulse. The
data inputs must be stable one set-up time prior to the LOW to HIGH clock transition for
predictable operation
The 74HC112 Dual JK Flip-flop: The 74HC112 is a dual negative-edge triggered JK
flip-flop. It features individual J and K inputs, clock (nCP) set (nSD) and reset (nRD) inputs. It
also has complementary nQ and nQoutputs. The set and reset are asynchronous active LOW
inputs and operate independently of the clock input. The J and K inputs must be stable one set-up
time prior to the HIGH-to-LOW clock transition for predictable operation. Conversion of Flip-Flops : The conversion of one flip flop to another, a combinational
circuit has to be designed first. If a JK Flip Flop is required, the inputs are given to the
combinational circuit and the output of the combinational circuit is connected to the inputs of the
actual flip flop. Thus, the output of the actual flip flop is the output of the required flip flop. In
this post, the following flip flop conversions will be explained.
SR Flip Flop to JK Flip Flop
JK Flip Flop to SR Flip Flop
SR Flip Flop to D Flip Flop
D Flip Flop to SR Flip Flop
JK Flip Flop to T Flip Flop
JK Flip Flop to D Flip Flop
D Flip Flop to JK Flip Flop
The following steps indicate the procedure to be followed to convert a flip-flop into another flipflop.
Steps:
1. Identify available and required flip-flops.
2. Make characteristics table for the required flip-flop.
3. Make excitation table for available flip-flop.
4. Write boolean expression for available flip-flop.
5. Draw the circuit.

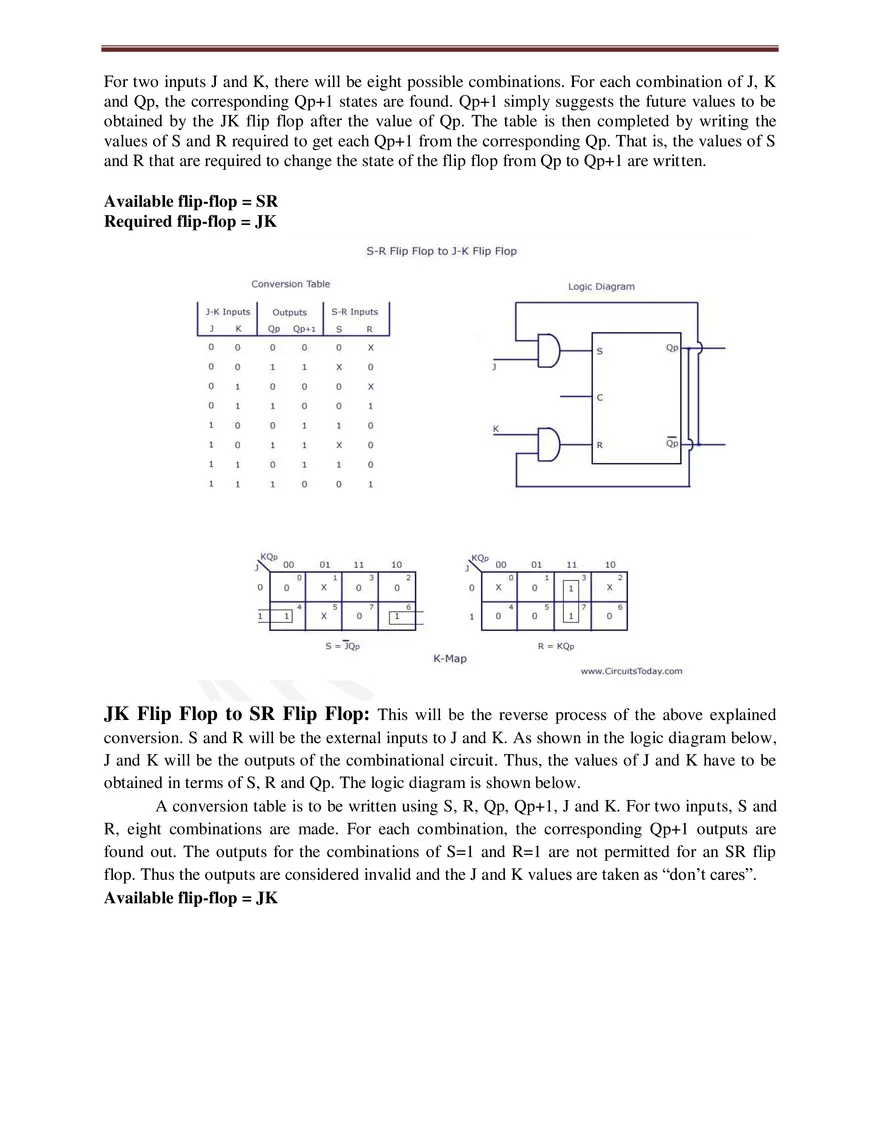

SR Flip Flop to JK Flip-Flop: J and K will be given as external inputs to S and R. As
shown in the logic diagram below, S and R will be the outputs of the combinational circuit.
The truth tables for the flip flop conversion are given below. The present state is represented by
Qp and Qp+1 is the next state to be obtained when the J and K inputs are applied. For two inputs J and K, there will be eight possible combinations. For each combination of J, K
and Qp, the corresponding Qp+1 states are found. Qp+1 simply suggests the future values to be
obtained by the JK flip flop after the value of Qp. The table is then completed by writing the
values of S and R required to get each Qp+1 from the corresponding Qp. That is, the values of S
and R that are required to change the state of the flip flop from Qp to Qp+1 are written.
Available flip-flop = SR
Required flip-flop = JK

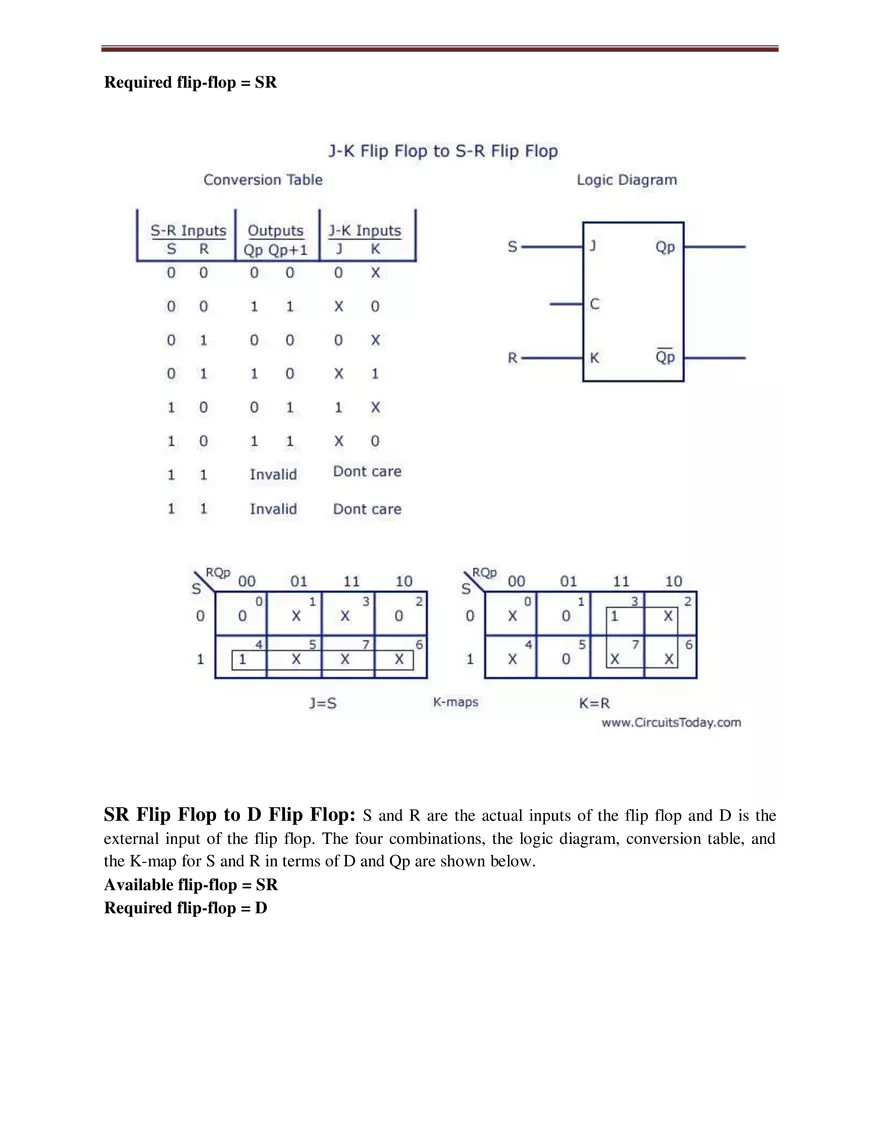

JK Flip Flop to SR Flip Flop: This will be the reverse process of the above explained
conversion. S and R will be the external inputs to J and K. As shown in the logic diagram below,
J and K will be the outputs of the combinational circuit. Thus, the values of J and K have to be
obtained in terms of S, R and Qp. The logic diagram is shown below.
A conversion table is to be written using S, R, Qp, Qp+1, J and K. For two inputs, S and
R, eight combinations are made. For each combination, the corresponding Qp+1 outputs are
found out. The outputs for the combinations of S=1 and R=1 are not permitted for an SR flip
flop. Thus the outputs are considered invalid and the J and K values are taken as “don’t cares”.
Available flip-flop = JK Required flip-flop = SR

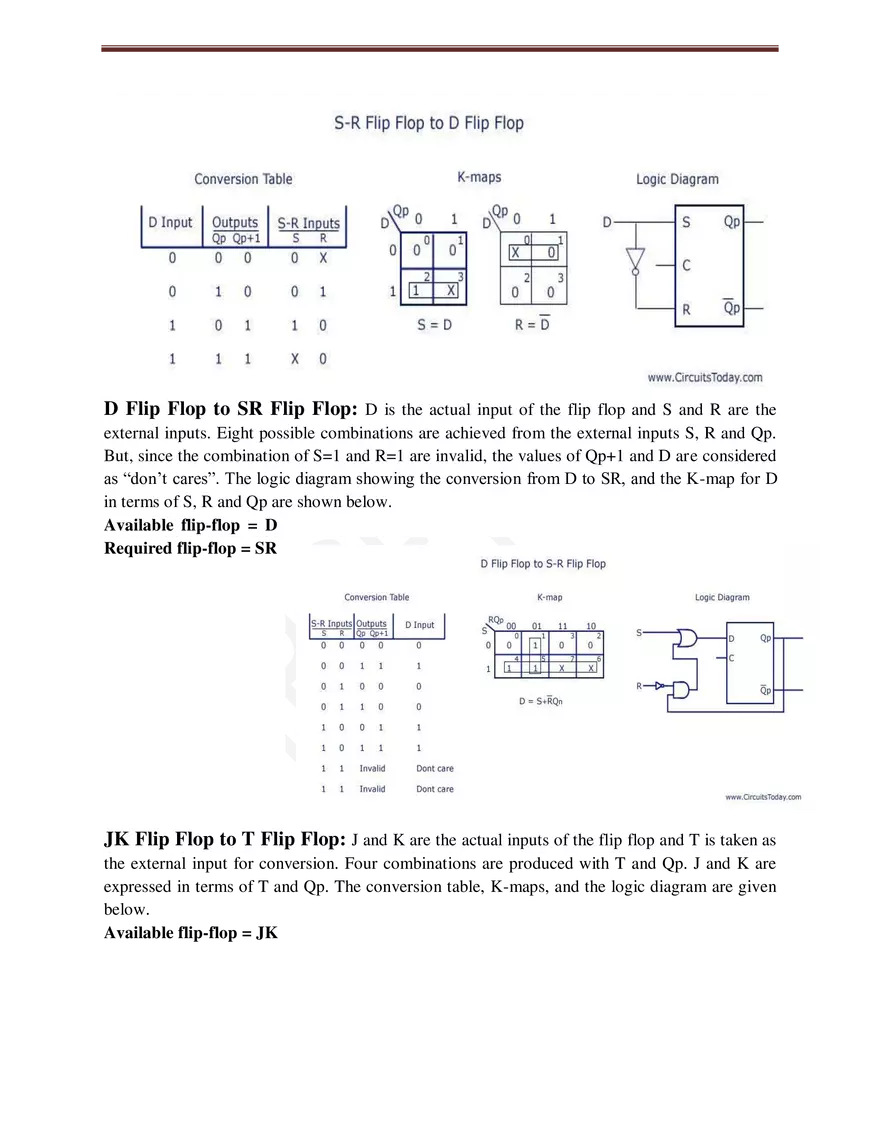

SR Flip Flop to D Flip Flop: S and R are the actual inputs of the flip flop and D is the
external input of the flip flop. The four combinations, the logic diagram, conversion table, and
the K-map for S and R in terms of D and Qp are shown below.
Available flip-flop = SR
Required flip-flop = D D Flip Flop to SR Flip Flop: D is the actual input of the flip flop and S and R are the
external inputs. Eight possible combinations are achieved from the external inputs S, R and Qp.
But, since the combination of S=1 and R=1 are invalid, the values of Qp+1 and D are considered
as “don’t cares”. The logic diagram showing the conversion from D to SR, and the K-map for D
in terms of S, R and Qp are shown below.
Available flip-flop = D
Required flip-flop = SR

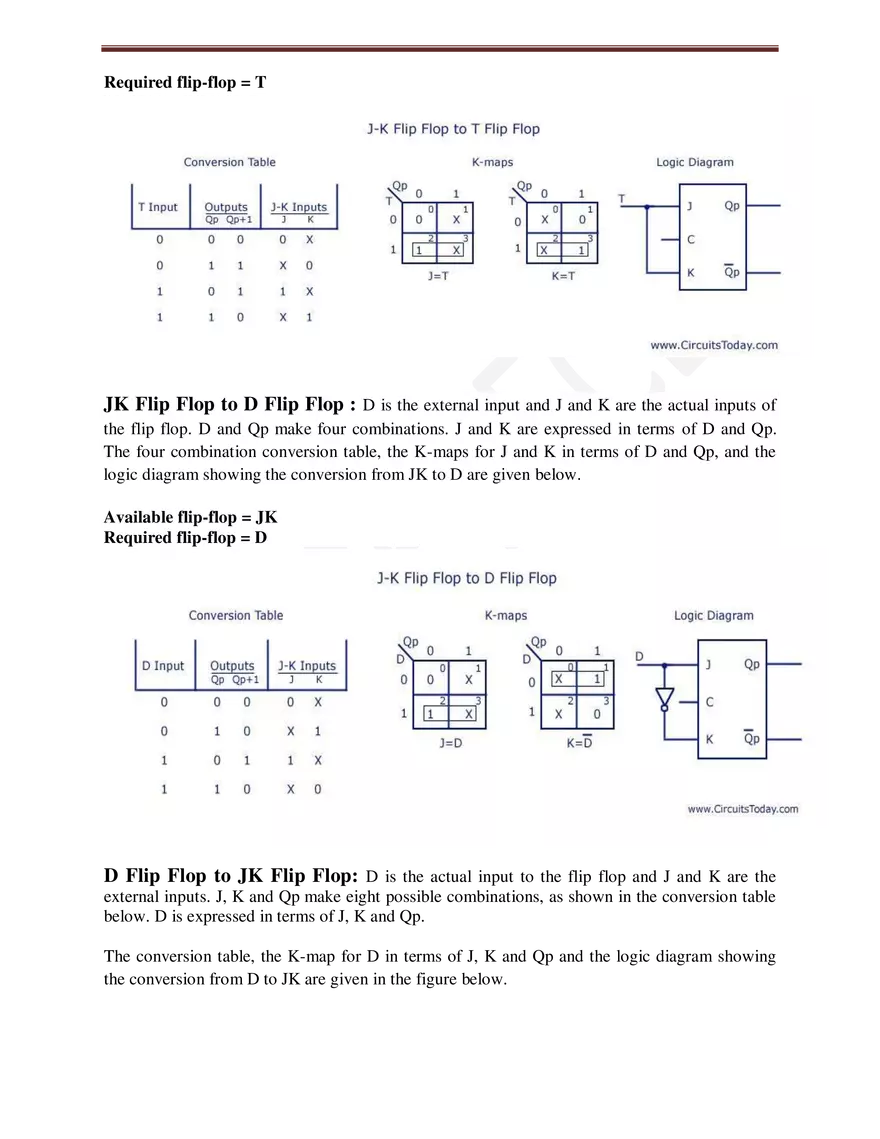

JK Flip Flop to T Flip Flop: J and K are the actual inputs of the flip flop and T is taken as
the external input for conversion. Four combinations are produced with T and Qp. J and K are
expressed in terms of T and Qp. The conversion table, K-maps, and the logic diagram are given
below.
Available flip-flop = JK Required flip-flop = T
JK Flip Flop to D Flip Flop : D is the external input and J and K are the actual inputs of
the flip flop. D and Qp make four combinations. J and K are expressed in terms of D and Qp.
The four combination conversion table, the K-maps for J and K in terms of D and Qp, and the
logic diagram showing the conversion from JK to D are given below.
Available flip-flop = JK
Required flip-flop = D

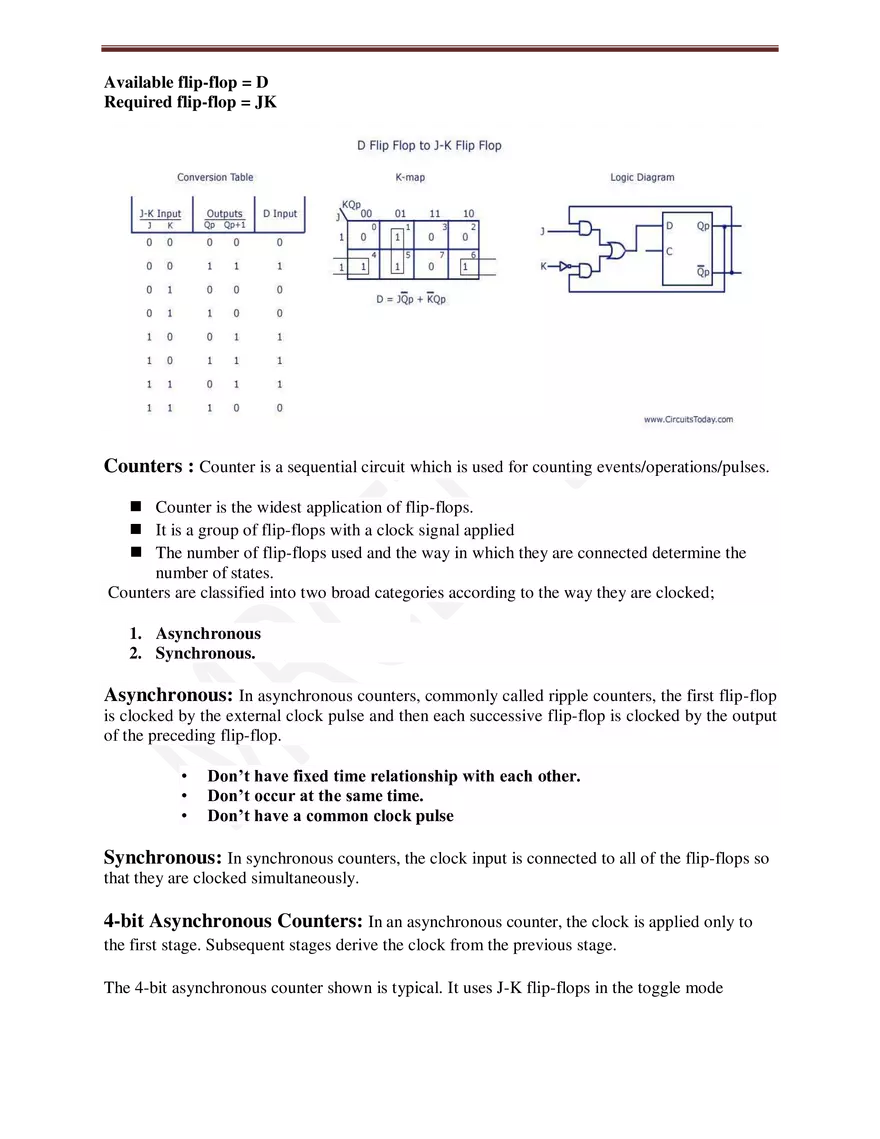

D Flip Flop to JK Flip Flop: D is the actual input to the flip flop and J and K are the
external inputs. J, K and Qp make eight possible combinations, as shown in the conversion table
below. D is expressed in terms of J, K and Qp.
The conversion table, the K-map for D in terms of J, K and Qp and the logic diagram showing
the conversion from D to JK are given in the figure below. Available flip-flop = D
Required flip-flop = JK
Counters : Counter is a sequential circuit which is used for counting events/operations/pulses.
Counter is the widest application of flip-flops.
It is a group of flip-flops with a clock signal applied
The number of flip-flops used and the way in which they are connected determine the
number of states.
Counters are classified into two broad categories according to the way they are clocked;
1. Asynchronous
2. Synchronous.
Asynchronous: In asynchronous counters, commonly called ripple counters, the first flip-flop
is clocked by the external clock pulse and then each successive flip-flop is clocked by the output
of the preceding flip-flop.
•
•
•
Don’t have fixed time relationship with each other.
Don’t occur at the same time.
Don’t have a common clock pulse
Synchronous: In synchronous counters, the clock input is connected to all of the flip-flops so
that they are clocked simultaneously.

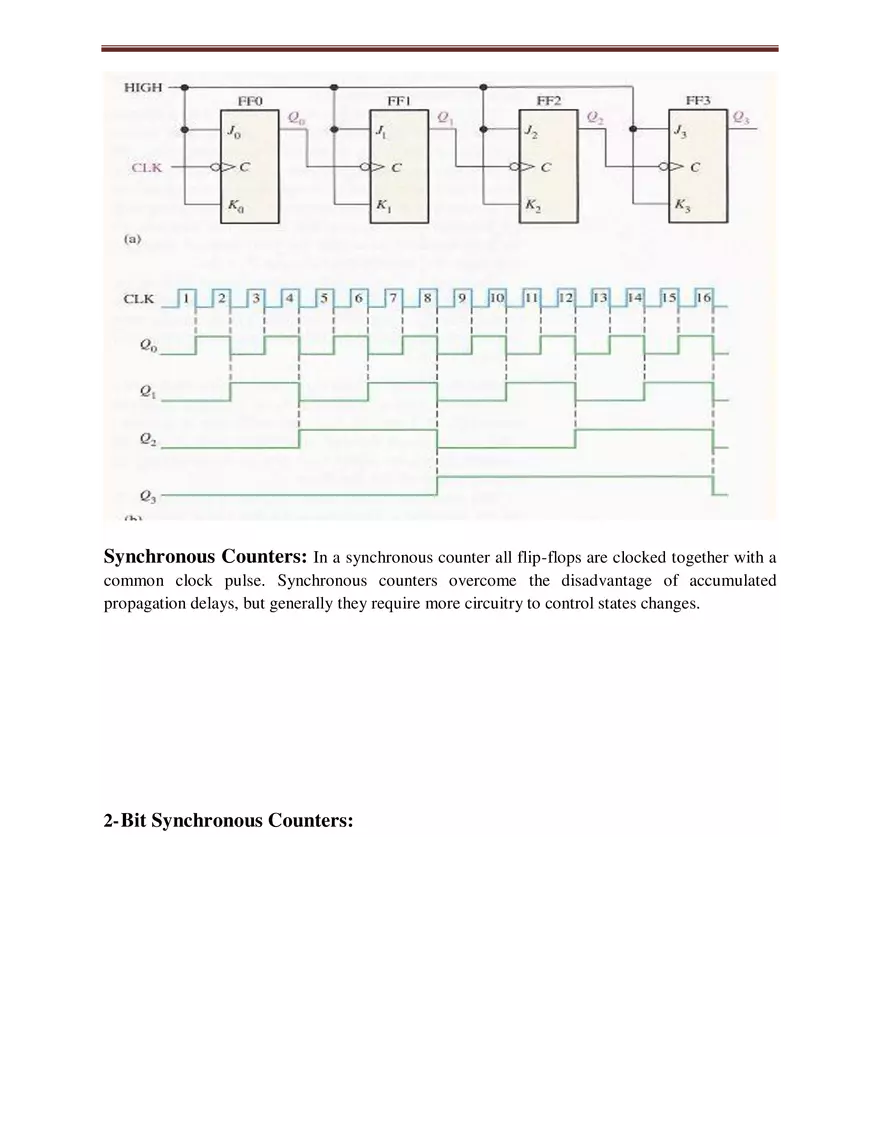

4-bit Asynchronous Counters: In an asynchronous counter, the clock is applied only to
the first stage. Subsequent stages derive the clock from the previous stage.
The 4-bit asynchronous counter shown is typical. It uses J-K flip-flops in the toggle mode Synchronous Counters: In a synchronous counter all flip-flops are clocked together with a
common clock pulse. Synchronous counters overcome the disadvantage of accumulated
propagation delays, but generally they require more circuitry to control states changes.

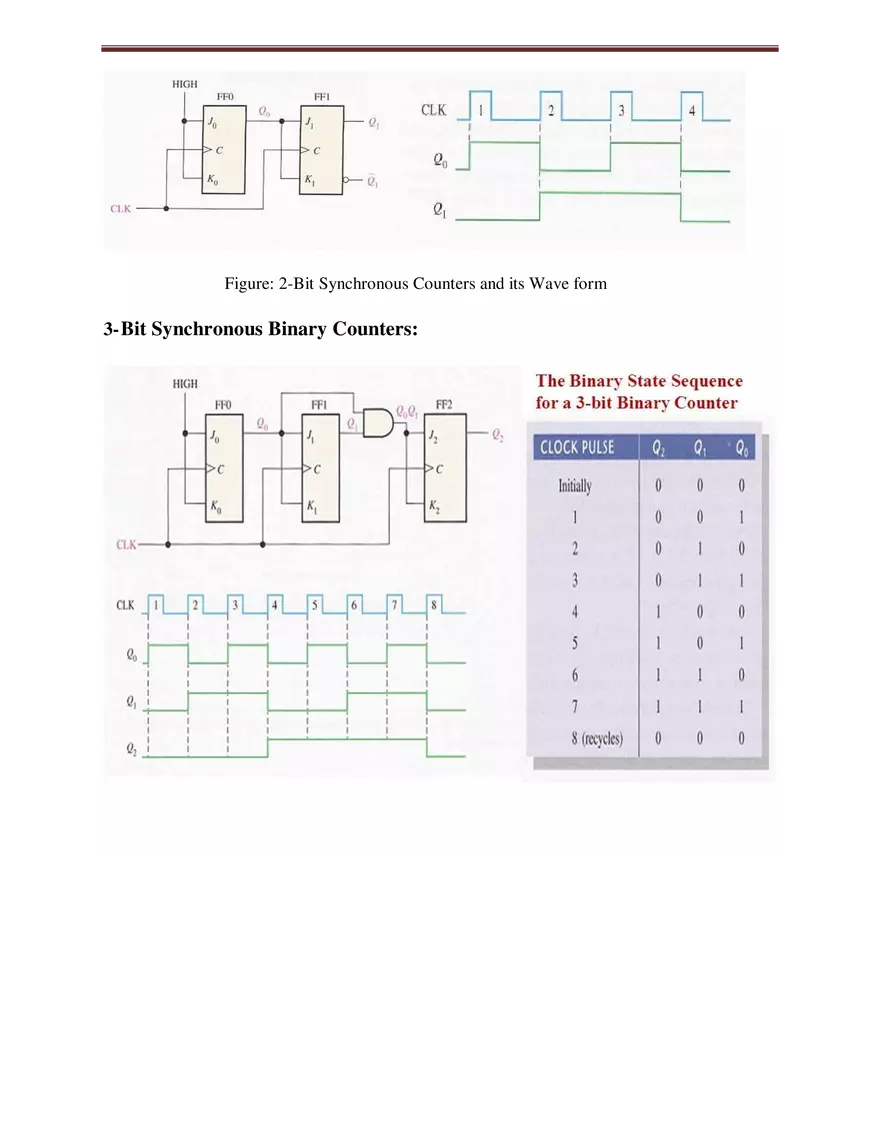

2- Bit Synchronous Counters: Figure: 2-Bit Synchronous Counters and its Wave form

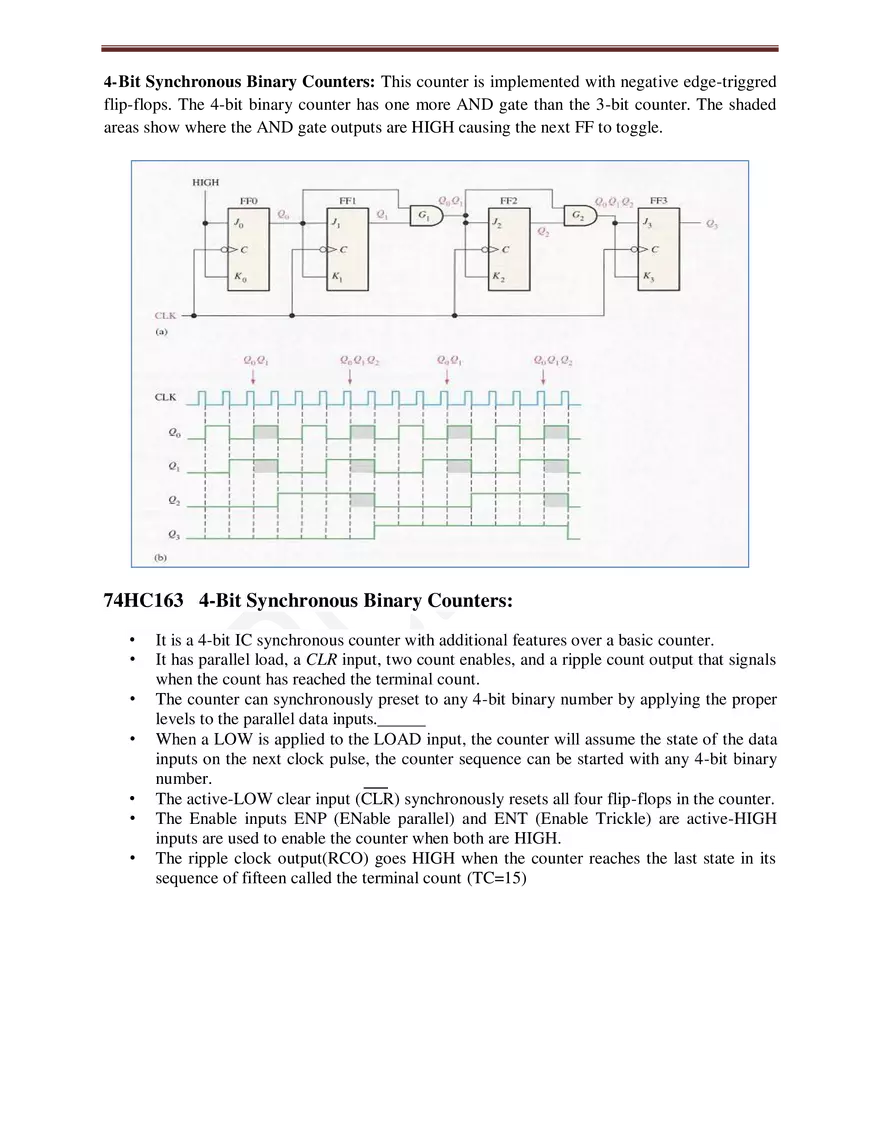

3- Bit Synchronous Binary Counters: 4- Bit Synchronous Binary Counters: This counter is implemented with negative edge-triggred
flip-flops. The 4-bit binary counter has one more AND gate than the 3-bit counter. The shaded
areas show where the AND gate outputs are HIGH causing the next FF to toggle.

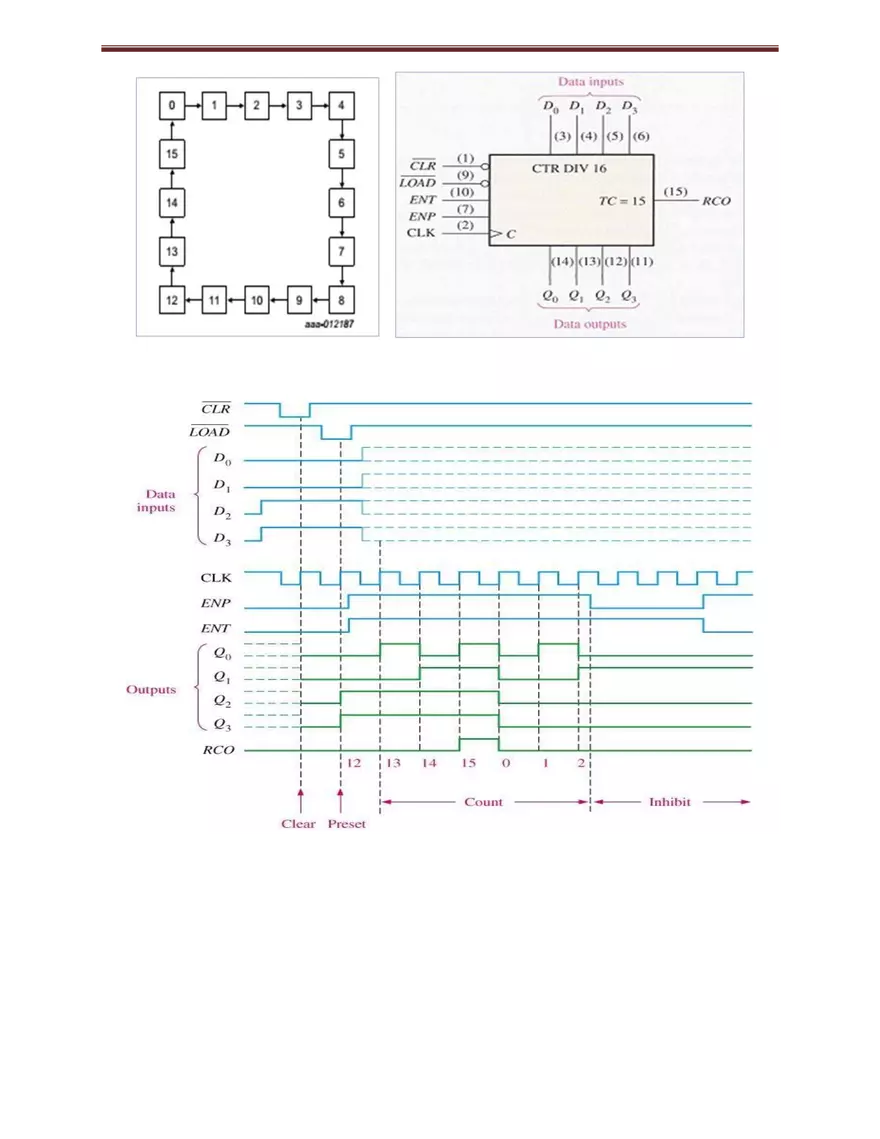

74HC163 4-Bit Synchronous Binary Counters:
•
•
•
•
•
•
•
It is a 4-bit IC synchronous counter with additional features over a basic counter.
It has parallel load, a CLR input, two count enables, and a ripple count output that signals
when the count has reached the terminal count.
The counter can synchronously preset to any 4-bit binary number by applying the proper
levels to the parallel data inputs.
When a LOW is applied to the LOAD input, the counter will assume the state of the data
inputs on the next clock pulse, the counter sequence can be started with any 4-bit binary
number.
The active-LOW clear input (CLR) synchronously resets all four flip-flops in the counter.
The Enable inputs ENP (ENable parallel) and ENT (Enable Trickle) are active-HIGH
inputs are used to enable the counter when both are HIGH.
The ripple clock output(RCO) goes HIGH when the counter reaches the last state in its

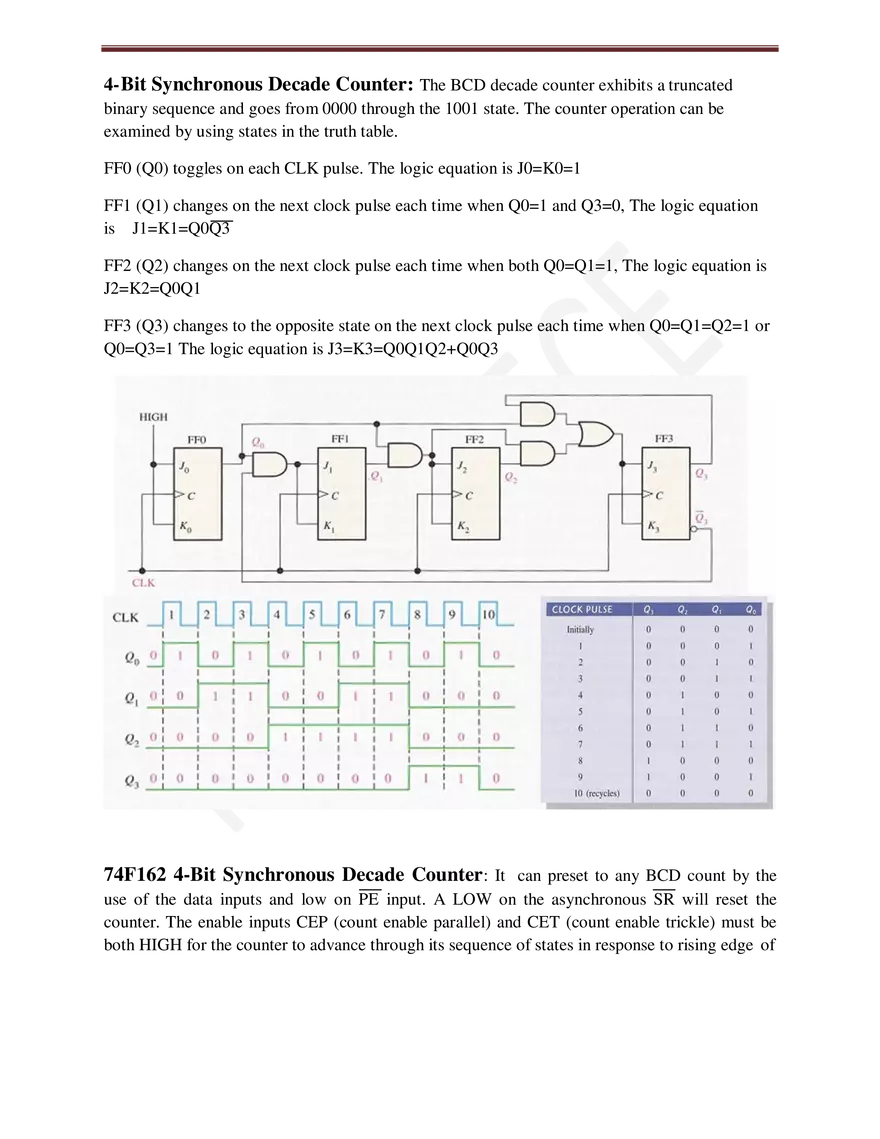

sequence of fifteen called the terminal count (TC=15) 4- Bit Synchronous Decade Counter: The BCD decade counter exhibits a truncated
binary sequence and goes from 0000 through the 1001 state. The counter operation can be
examined by using states in the truth table.
FF0 (Q0) toggles on each CLK pulse. The logic equation is J0=K0=1
FF1 (Q1) changes on the next clock pulse each time when Q0=1 and Q3=0, The logic equation
is J1=K1=Q0Q3
FF2 (Q2) changes on the next clock pulse each time when both Q0=Q1=1, The logic equation is
J2=K2=Q0Q1
FF3 (Q3) changes to the opposite state on the next clock pulse each time when Q0=Q1=Q2=1 or
Q0=Q3=1 The logic equation is J3=K3=Q0Q1Q2+Q0Q3

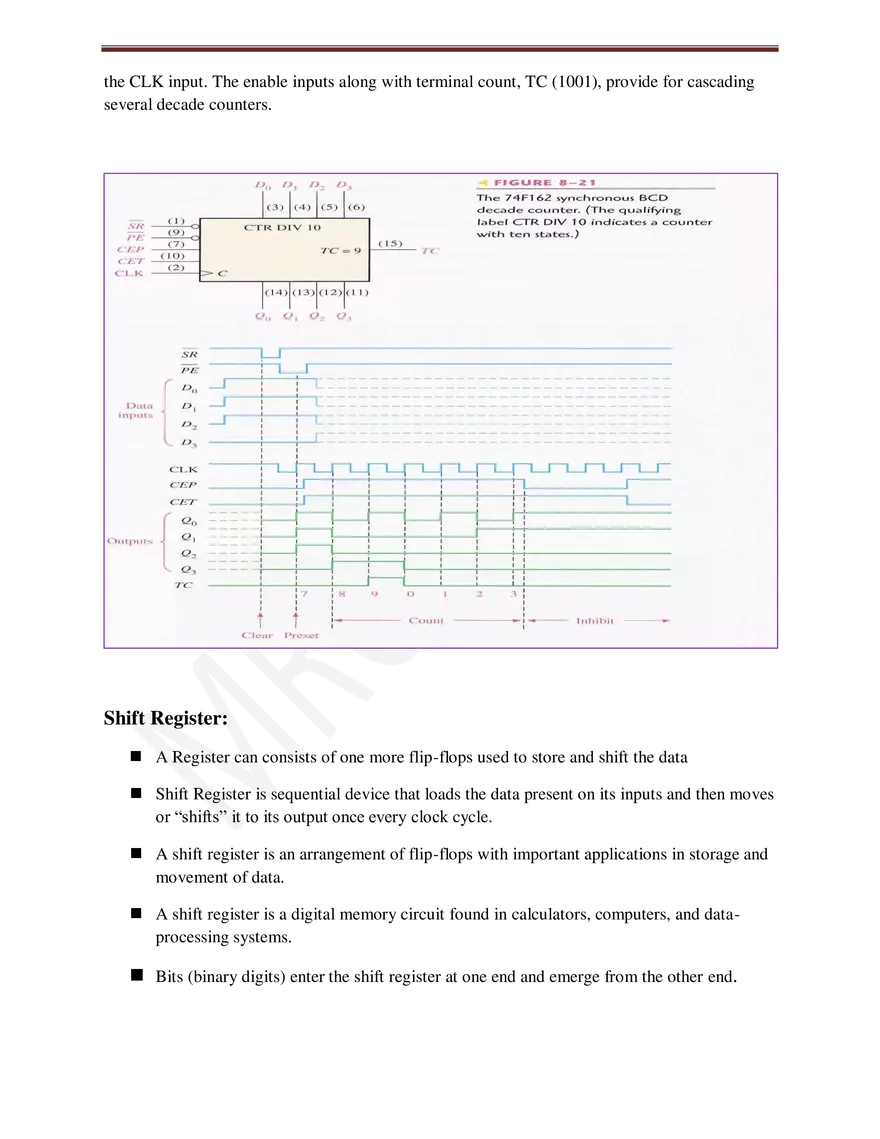

74F162 4-Bit Synchronous Decade Counter: It can preset to any BCD count by the
use of the data inputs and low on PE input. A LOW on the asynchronous SR will reset the
counter. The enable inputs CEP (count enable parallel) and CET (count enable trickle) must be
both HIGH for the counter to advance through its sequence of states in response to rising edge of the CLK input. The enable inputs along with terminal count, TC (1001), provide for cascading
several decade counters.
Shift Register:
A Register can consists of one more flip-flops used to store and shift the data
Shift Register is sequential device that loads the data present on its inputs and then moves
or “shifts” it to its output once every clock cycle.
A shift register is an arrangement of flip-flops with important applications in storage and
movement of data.
A shift register is a digital memory circuit found in calculators, computers, and dataprocessing systems.
Bits (binary digits) enter the shift register at one end and emerge from the other end. Applications of shift registers :
Computer and Data Communications
Serial and Parallel Communications
Multi-bit number storage
Basic arithmetic such as scaling (a serial shift to the left or right will change the
value of a binary number a power of 2)
Logical operations
Types of Shift Registers: They are basically classified into four types
1. Serial-in to Serial-out (SISO)
2. Serial-in to Parallel-out (SIPO)
3. Parallel-in to Serial-out (PISO).
4. Parallel-in to Parallel-out (PIPO)

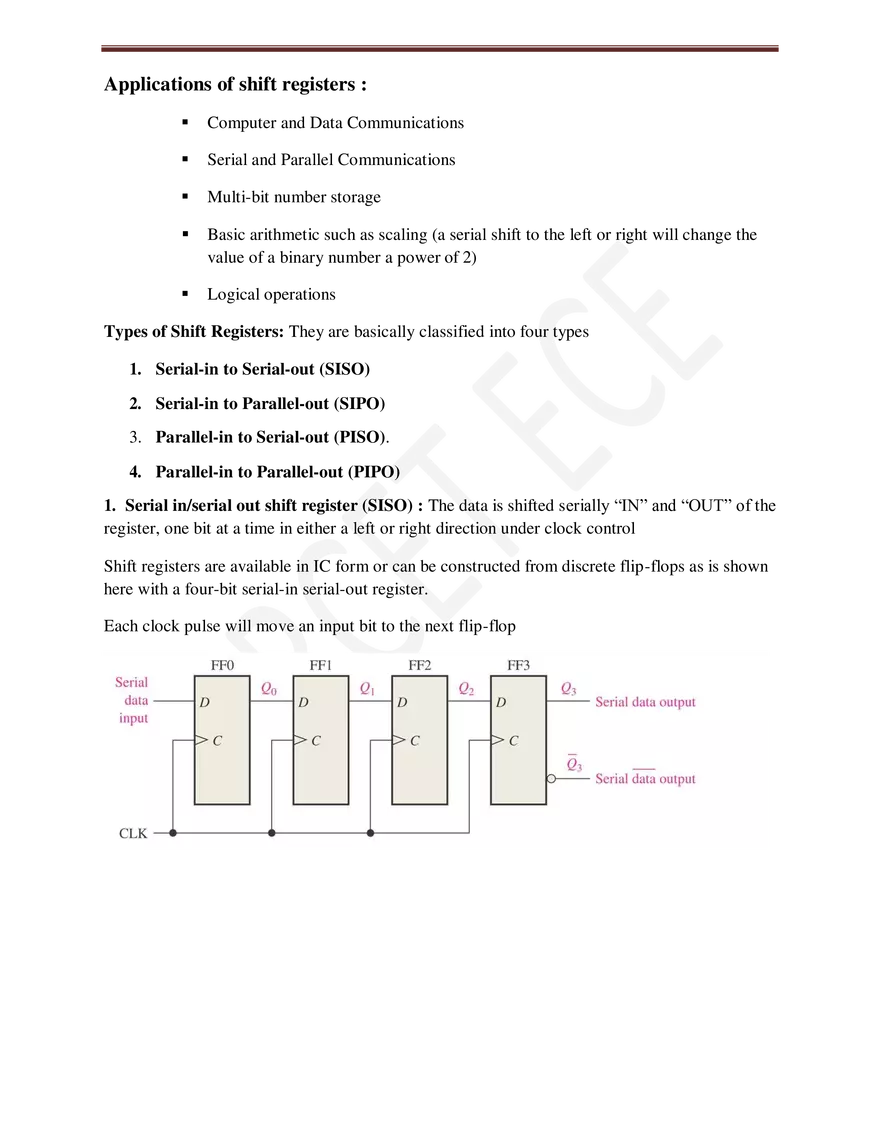

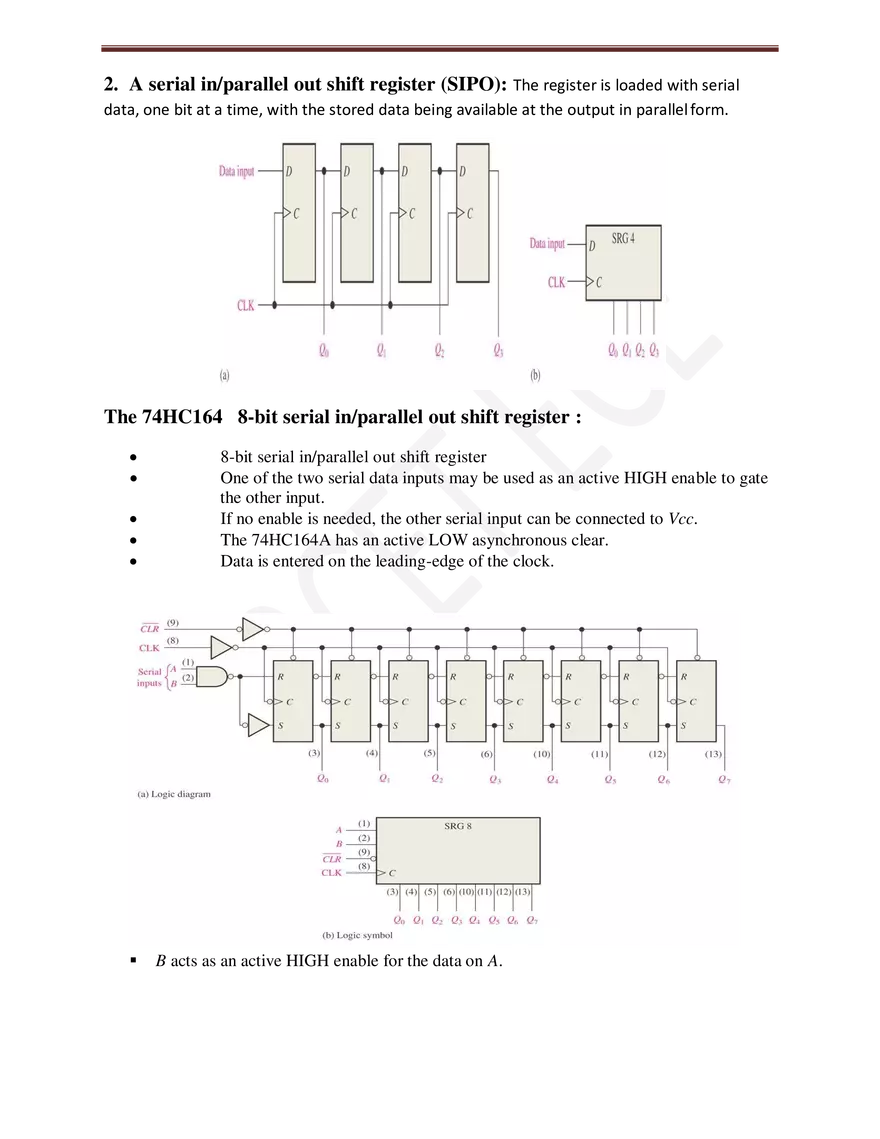

1. Serial in/serial out shift register (SISO) : The data is shifted serially “IN” and “OUT” of the
register, one bit at a time in either a left or right direction under clock control
Shift registers are available in IC form or can be constructed from discrete flip-flops as is shown
here with a four-bit serial-in serial-out register.

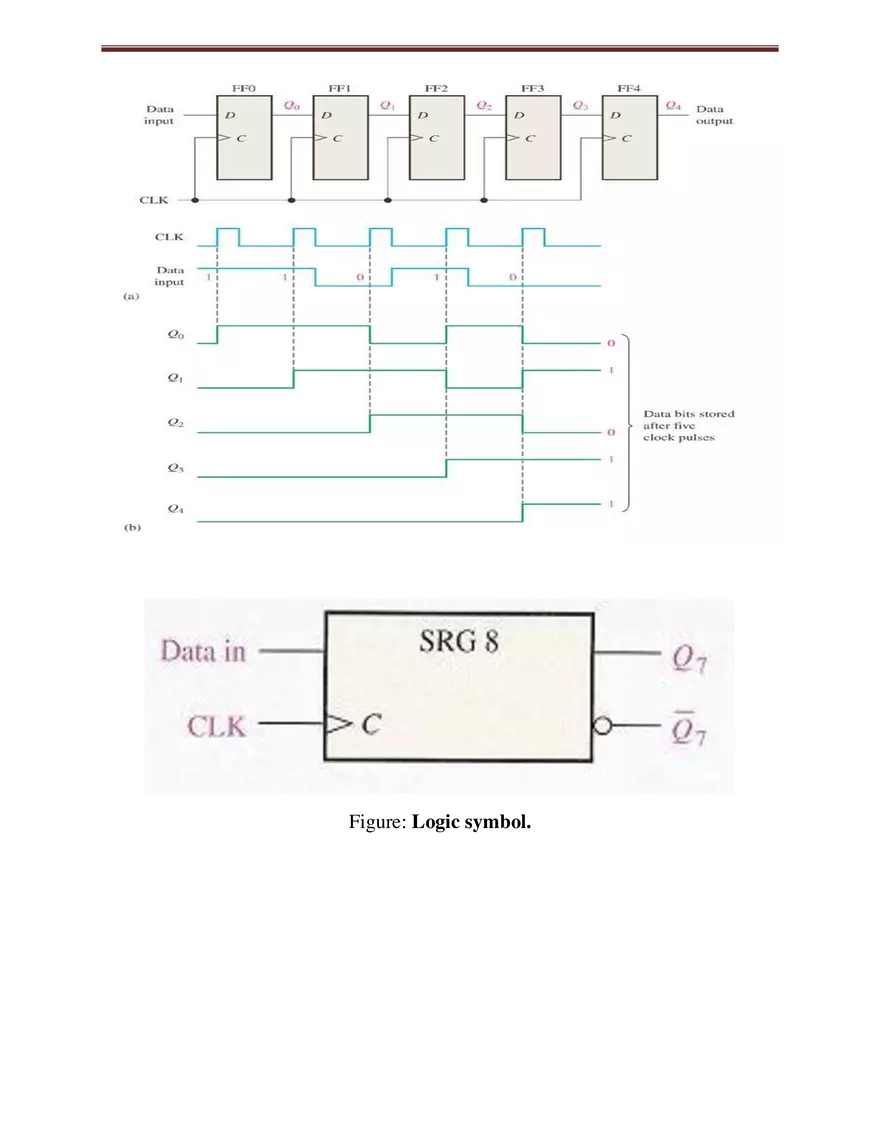

Each clock pulse will move an input bit to the next flip-flop Figure: Logic symbol. 2. A serial in/parallel out shift register (SIPO): The register is loaded with serial
data, one bit at a time, with the stored data being available at the output in parallel form.
The 74HC164 8-bit serial in/parallel out shift register :
8-bit serial in/parallel out shift register
One of the two serial data inputs may be used as an active HIGH enable to gate
the other input.
If no enable is needed, the other serial input can be connected to Vcc.
The 74HC164A has an active LOW asynchronous clear.
Data is entered on the leading-edge of the clock.
B acts as an active HIGH enable for the data on A.
As with CMOS devices, unused inputs should always be connected to a logic level;
unused outputs should be left open.

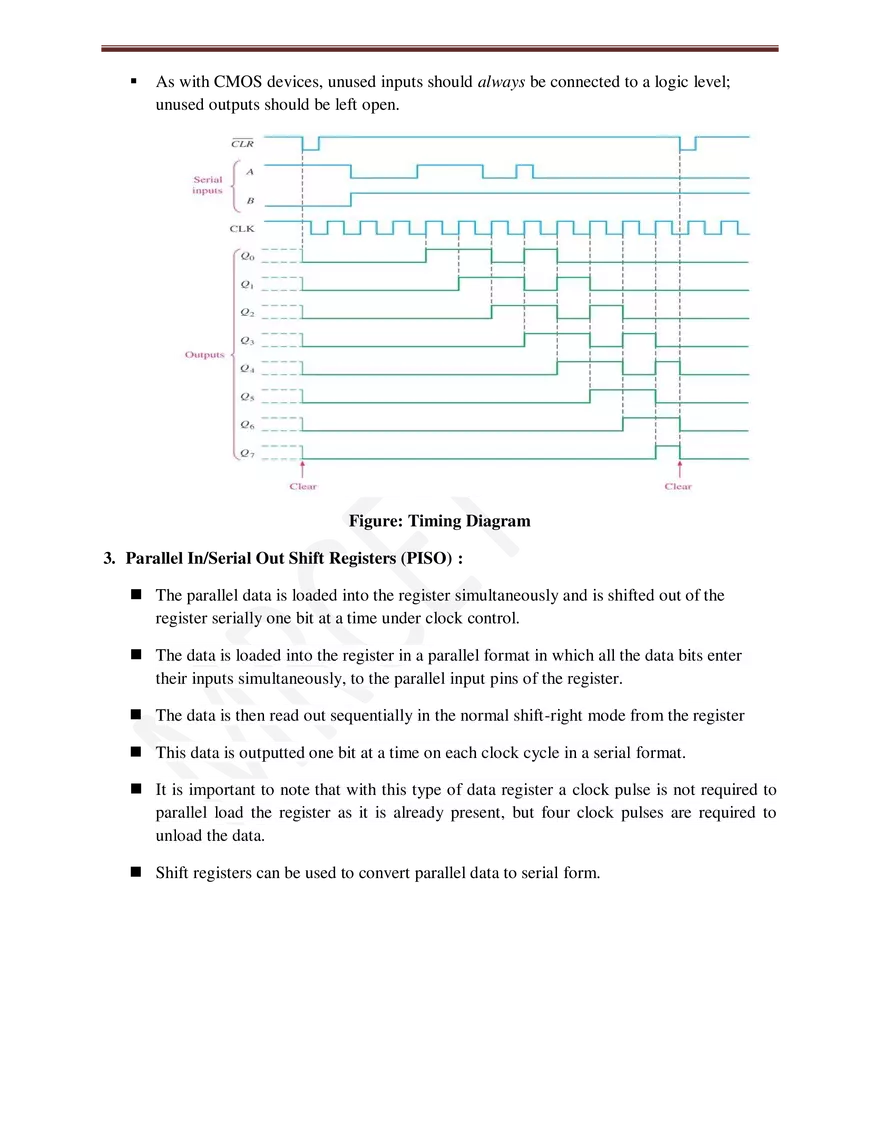

Figure: Timing Diagram
3. Parallel In/Serial Out Shift Registers (PISO) :
The parallel data is loaded into the register simultaneously and is shifted out of the
register serially one bit at a time under clock control.
The data is loaded into the register in a parallel format in which all the data bits enter
their inputs simultaneously, to the parallel input pins of the register.
The data is then read out sequentially in the normal shift-right mode from the register
This data is outputted one bit at a time on each clock cycle in a serial format.
It is important to note that with this type of data register a clock pulse is not required to
parallel load the register as it is already present, but four clock pulses are required to
unload the data.
Shift registers can be used to convert parallel data to serial form. 74HC165 Shift Register:
8-bit parallel in/serial out shift register
The clock (CLK) and clock inhibit (CLK INH) lines are connected to a common OR gate,
so either of these inputs can be used as an active-LOW clock enable with the other as the
clock input.
Data is loaded asynchronously when SH/LD is LOW and moved through the register
synchronously when SH/LD is HIGH and a rising clock pulse occurs. Figure: Timing Diagram

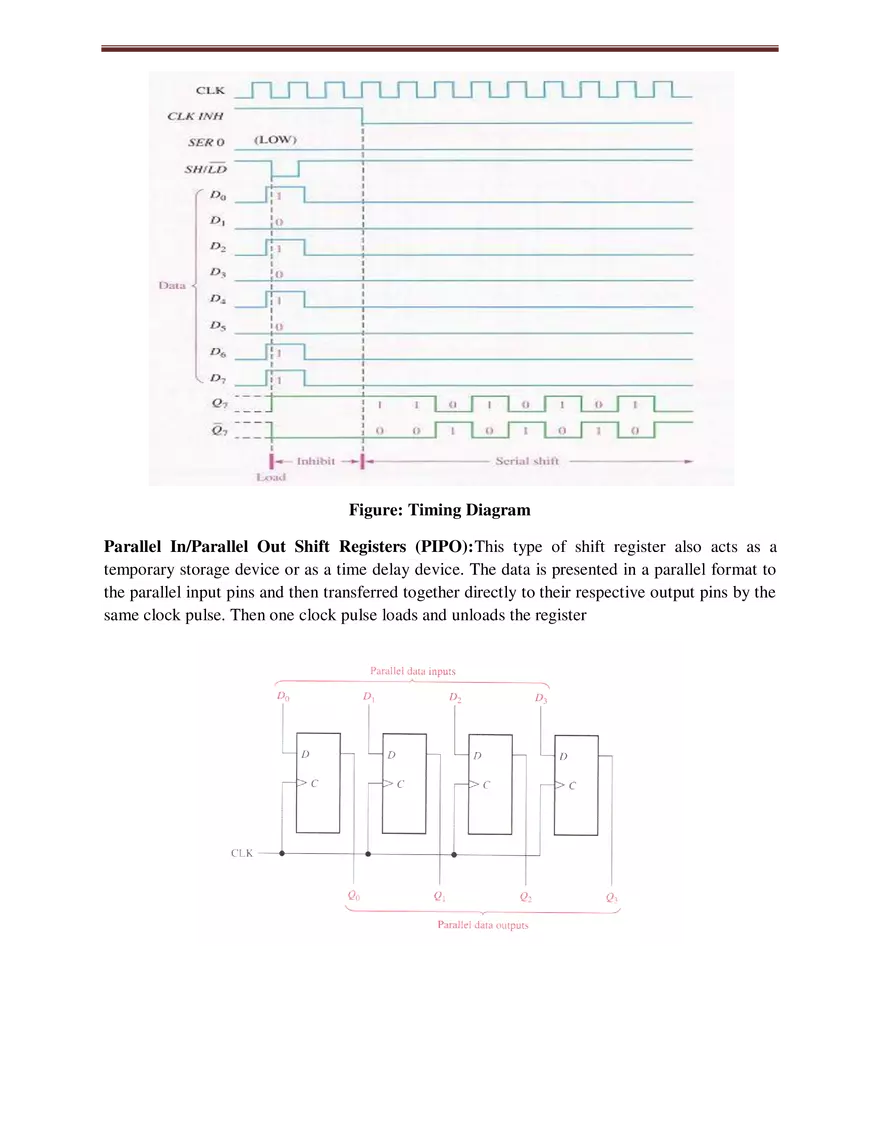

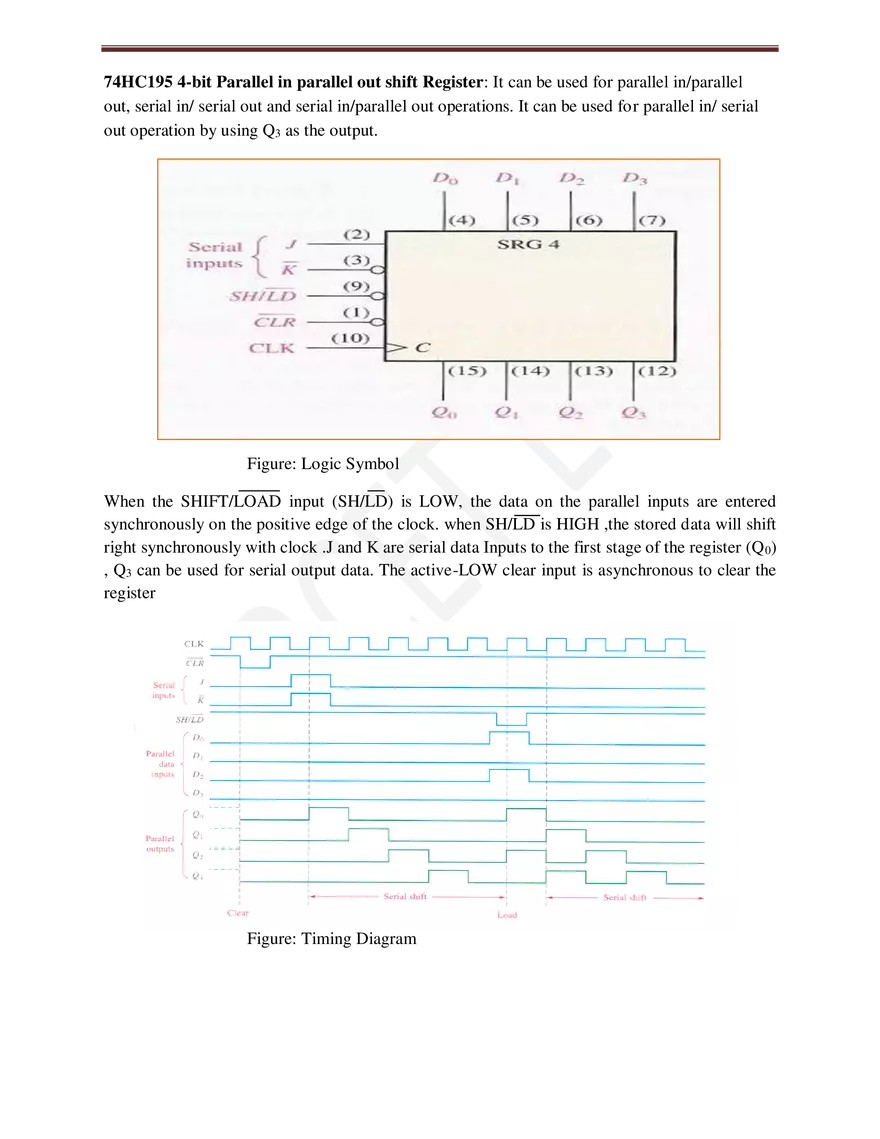

Parallel In/Parallel Out Shift Registers (PIPO):This type of shift register also acts as a
temporary storage device or as a time delay device. The data is presented in a parallel format to
the parallel input pins and then transferred together directly to their respective output pins by the
same clock pulse. Then one clock pulse loads and unloads the register 74HC195 4-bit Parallel in parallel out shift Register: It can be used for parallel in/parallel
out, serial in/ serial out and serial in/parallel out operations. It can be used for parallel in/ serial
out operation by using Q3 as the output.
Figure: Logic Symbol
When the SHIFT/LOAD input (SH/LD) is LOW, the data on the parallel inputs are entered
synchronously on the positive edge of the clock. when SH/LD is HIGH ,the stored data will shift
right synchronously with clock .J and K are serial data Inputs to the first stage of the register (Q 0)
, Q3 can be used for serial output data. The active-LOW clear input is asynchronous to clear the
register
Figure: Timing Diagram
Related Documents
Linear Digital Integrated Circuits
of 154
Recommended Documents
⏰ Deadline pressure?
Get your assignment done in just 3 hours. Quick, easy, and available 24/7.
New Documents from this Course
Report
Tell us what’s wrong with it:
Thanks, got it!
We will moderate it soon!
Report
Tell us what’s wrong with it:
Free up your schedule!
Our EduBirdie Experts Are Here for You 24/7! Just fill out a form and let us know how we can assist you.
Take 5 seconds to unlock
Enter your email below and get instant access to your document
