Chapter 12 Mass Storage Structure

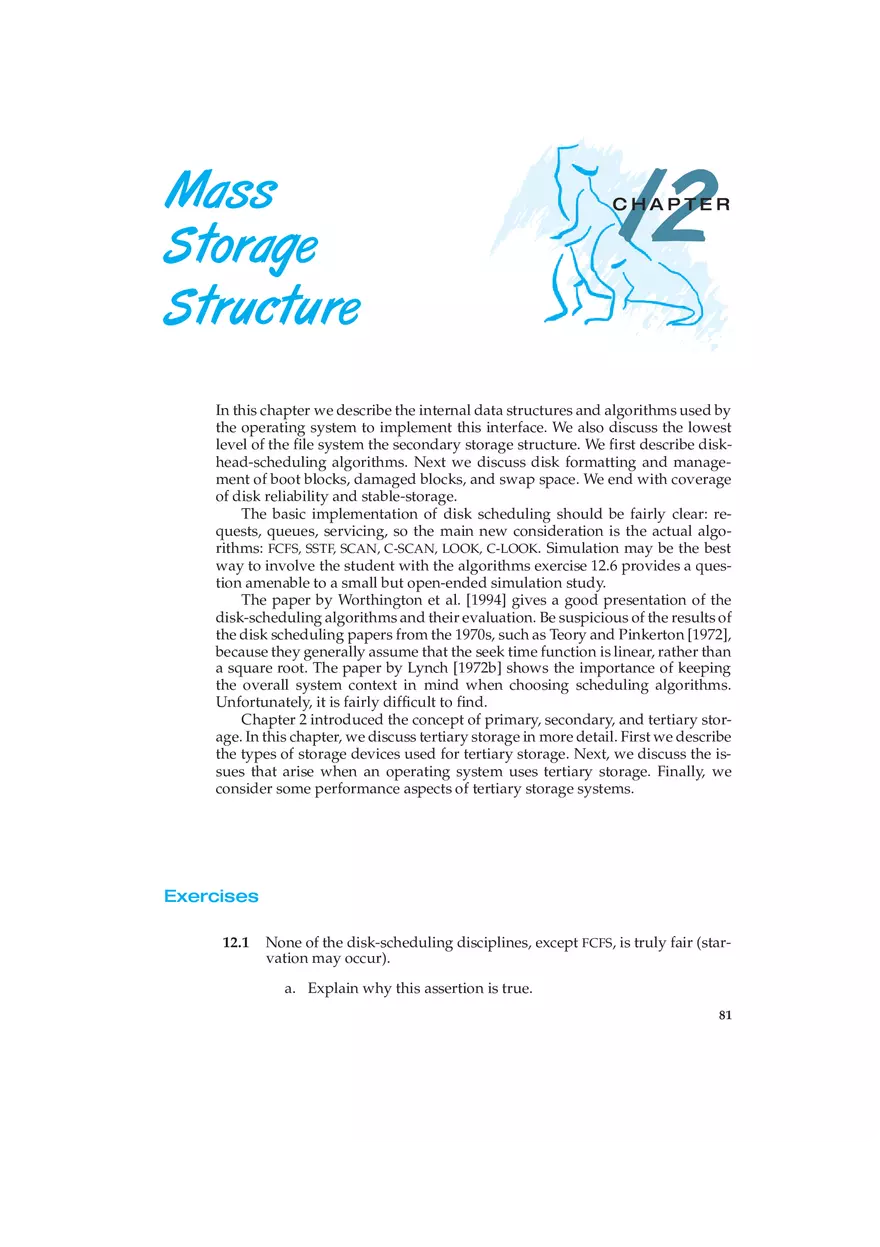

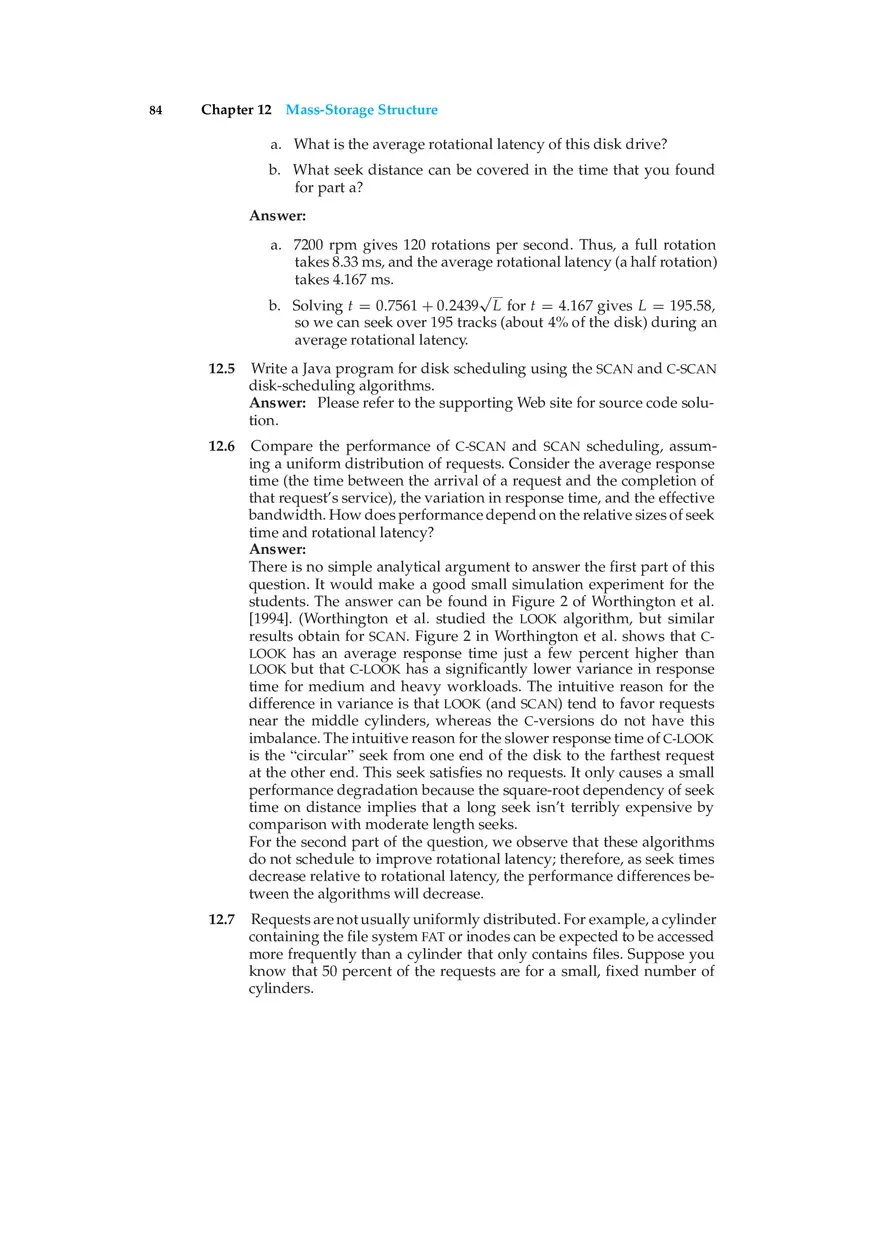

Mass Storage Structure 12 CHAPTER In this chapter we describe the internal data structures and algorithms used by the operating system to implement this interface. We also discuss the lowest level of the file system the secondary storage structure. We first describe diskhead-scheduling algorithms. Next we discuss disk formatting and management of boot blocks, damaged blocks, and swap space. We end with coverage of disk reliability and stable-storage. The basic implementation of disk scheduling should be fairly clear: requests, queues, servicing, so the main new consideration is the actual algorithms: FCFS, SSTF, SCAN, C-SCAN, LOOK, C-LOOK. Simulation may be the best way to involve the student with the algorithms exercise 12.6 provides a question amenable to a small but open-ended simulation study. The paper by Worthington et al. [1994] gives a good presentation of the disk-scheduling algorithms and their evaluation. Be suspicious of the results of the disk scheduling papers from the 1970s, such as Teory and Pinkerton [1972], because they generally assume that the seek time function is linear, rather than a square root. The paper by Lynch [1972b] shows the importance of keeping the overall system context in mind when choosing scheduling algorithms. Unfortunately, it is fairly difficult to find. Chapter 2 introduced the concept of primary, secondary, and tertiary storage. In this chapter, we discuss tertiary storage in more detail. First we describe the types of storage devices used for tertiary storage. Next, we discuss the issues that arise when an operating system uses tertiary storage. Finally, we consider some performance aspects of tertiary storage systems. Exercises 12.1 None of the disk-scheduling disciplines, except FCFS, is truly fair (starvation may occur). a. Explain why this assertion is true. 81 82 Chapter 12 Mass-Storage Structure b. Describe a way to modify algorithms such as SCAN to ensure fairness. c. Explain why fairness is an important goal in a time-sharing system. d. Give three or more examples of circumstances in which it is important that the operating system be unfair in serving I/O requests. Answer: a. New requests for the track over which the head currently resides can theoretically arrive as quickly as these requests are being serviced. b. All requests older than some predetermined age could be “forced” to the top of the queue, and an associated bit for each could be set to indicate that no new request could be moved ahead of these requests. For SSTF, the rest of the queue would have to be reorganized with respect to the last of these “old” requests. c. To prevent unusually long response times. d. Paging and swapping should take priority over user requests. It may be desirable for other kernel-initiated I/O, such as the writing of file system metadata, to take precedence over user I/O. If the kernel supports real-time process priorities, the I/O requests of those processes should be favored. 12.2 Suppose that a disk drive has 5000 cylinders, numbered 0 to 4999. The drive is currently serving a request at cylinder 143, and the previous request was at cylinder 125. The queue of pending requests, in FIFO order, is 86, 1470, 913, 1774, 948, 1509, 1022, 1750, 130 Starting from the current head position, what is the total distance (in cylinders) that the disk arm moves to satisfy all the pending requests, for each of the following disk-scheduling algorithms? a. FCFS b. SSTF c. SCAN d. LOOK e. C-SCAN Answer: a. The FCFS schedule is 143, 86, 1470, 913, 1774, 948, 1509, 1022, 1750, 130. The total seek distance is 7081. b. The SSTF schedule is 143, 130, 86, 913, 948, 1022, 1470, 1509, 1750, 1774. The total seek distance is 1745. Exercises 83 c. The SCAN schedule is 143, 913, 948, 1022, 1470, 1509, 1750, 1774, 4999, 130, 86. The total seek distance is 9769. d. The LOOK schedule is 143, 913, 948, 1022, 1470, 1509, 1750, 1774, 130, 86. The total seek distance is 3319. e. The C-SCAN schedule is 143, 913, 948, 1022, 1470, 1509, 1750, 1774, 4999, 86, 130. The total seek distance is 9813. f. (Bonus.) The C-LOOK schedule is 143, 913, 948, 1022, 1470, 1509, 1750, 1774, 86, 130. The total seek distance is 3363. 12.3 From elementary physics, we know that when an object is subjected to a constant acceleration a , the relationship between distance d and time t is given by d = 12 a t2 . Suppose that, during a seek, the disk in Exercise 12.2 accelerates the disk arm at a constant rate for the first half of the seek, then decelerates the disk arm at the same rate for the second half of the seek. Assume that the disk can perform a seek to an adjacent cylinder in 1 millisecond and a full-stroke seek over all 5000 cylinders in 18 milliseconds. a. The distance of a seek is the number of cylinders that the head moves. Explain why the seek time is proportional to the square root of the seek distance. b. Write an equation for the seek time as a function of the seek √ distance. This equation should be of the form t = x + y L, where t is the time in milliseconds and L is the seek distance in cylinders. c. Calculate the total seek time for each of the schedules in Exercise 12.2. Determine which schedule is the fastest (has the smallest total seek time). d. The percentage speedup is the time saved divided by the original time. What is the percentage speedup of the fastest schedule over FCFS? Answer: a. Solving d = 12 a t2 for t gives t =  (2d/a ). √ b. Solve the simultaneous equations t = x + y L that result from (t = 1√ , L = 1) and (t = 18, L = 4999) to obtain t = 0.7561 + 0.2439 L. c. The total seek times are: FCFS 65.20; SSTF 31.52; SCAN 62.02; LOOK 40.29; C-SCAN 62.10; (and C-LOOK 40.42). Thus, SSTF is fastest here. d. (65.20 − 31.52)/65.20 = 0.52 The percentage speedup of SSTF over FCFS is 52%, with respect to the seek time. If we include the overhead of rotational latency and data transfer, the percentage speedup will be less. 12.4 Suppose that the disk in Exercise 12.3 rotates at 7200 RPM. 84 Chapter 12 Mass-Storage Structure a. What is the average rotational latency of this disk drive? b. What seek distance can be covered in the time that you found for part a? Answer: a. 7200 rpm gives 120 rotations per second. Thus, a full rotation takes 8.33 ms, and the average rotational latency (a half rotation) takes 4.167 ms. √ b. Solving t = 0.7561 + 0.2439 L for t = 4.167 gives L = 195.58, so we can seek over 195 tracks (about 4% of the disk) during an average rotational latency. 12.5 Write a Java program for disk scheduling using the SCAN and C-SCAN disk-scheduling algorithms. Answer: Please refer to the supporting Web site for source code solution. 12.6 Compare the performance of C-SCAN and SCAN scheduling, assuming a uniform distribution of requests. Consider the average response time (the time between the arrival of a request and the completion of that request’s service), the variation in response time, and the effective bandwidth. How does performance depend on the relative sizes of seek time and rotational latency? Answer: There is no simple analytical argument to answer the first part of this question. It would make a good small simulation experiment for the students. The answer can be found in Figure 2 of Worthington et al. [1994]. (Worthington et al. studied the LOOK algorithm, but similar results obtain for SCAN. Figure 2 in Worthington et al. shows that CLOOK has an average response time just a few percent higher than LOOK but that C-LOOK has a significantly lower variance in response time for medium and heavy workloads. The intuitive reason for the difference in variance is that LOOK (and SCAN) tend to favor requests near the middle cylinders, whereas the C-versions do not have this imbalance. The intuitive reason for the slower response time of C-LOOK is the “circular” seek from one end of the disk to the farthest request at the other end. This seek satisfies no requests. It only causes a small performance degradation because the square-root dependency of seek time on distance implies that a long seek isn’t terribly expensive by comparison with moderate length seeks. For the second part of the question, we observe that these algorithms do not schedule to improve rotational latency; therefore, as seek times decrease relative to rotational latency, the performance differences between the algorithms will decrease. 12.7 Requests are not usually uniformly distributed. For example, a cylinder containing the file system FAT or inodes can be expected to be accessed more frequently than a cylinder that only contains files. Suppose you know that 50 percent of the requests are for a small, fixed number of cylinders. Exercises 85 a. Would any of the scheduling algorithms discussed in this chapter be particularly good for this case? Explain your answer. b. Propose a disk-scheduling algorithm that gives even better performance by taking advantage of this “hot spot” on the disk. c. File systems typically find data blocks via an indirection table, such as a FAT in DOS or inodes in UNIX. Describe one or more ways to take advantage of this indirection to improve the disk performance. Answer: a. SSTF would take greatest advantage of the situation. FCFS could cause unnecessary head movement if references to the “highdemand” cylinders were interspersed with references to cylinders far away. b. Here are some ideas. Place the hot data near the middle of the disk. Modify SSTF to prevent starvation. Add the policy that if the disk becomes idle for more than, say, 50 ms, the operating system generates an anticipatory seek to the hot region, since the next request is more likely to be there. c. Cache the metadata in primary memory, and locate a file’s data and metadata in close physical proximity on the disk. (UNIX accomplishes the latter goal by allocating data and metadata in regions called cylinder groups.) 12.8 Could a RAID Level 1 organization achieve better performance for read requests than a RAID Level 0 organization (with nonredundant striping of data)? If so, how? Answer: Yes, a RAID Level 1 organization could achieve better performance for read requests. When a read operation is performed, a RAID Level 1 system can decide which of the two copies of the block should be accessed to satisfy the request. This choice could be based on the current location of the disk head and could therefore result in performance optimizations by choosing a disk head which is closer to the target data. 12.9 Consider a RAID Level 5 organization comprising five disks, with the parity for sets of four blocks on four disks stored on the fifth disk. How many blocks are accessed in order to perform the following? a. A write of one block of data b. A write of seven continuous blocks of data Answer: 1) A write of one block of data requires the following: read of the parity block, read of the old data stored in the target block, computation of the new parity based on the differences between the new and old contents of the target block, and the write of the parity block and the target block. 2) Assume that the seven contiguous blocks begin at a four-block boundary. A write of seven contiguous blocks of data could be performed by writing the seven contiguous blocks, 86 Chapter 12 Mass-Storage Structure writing the parity block of the first four blocks, reading the eight block, computing the parity for the next set of four blocks and writing the corresponding parity block onto disk. 12.10 Compare the throughput achieved by a RAID Level 5 organization with that achieved by a RAID Level 1 organization for the following: a. Read operations on single blocks b. Read operations on multiple contiguous blocks Answer: 1) The amount of throughput depends on the number of disks in the RAID system. A RAID Level 5 comprising of a parity block for every set of four blocks spread over five disks can support four to five operations simultaneously. A RAID Level 1 comprising of two disks can support two simultaneous operations. Of course, there is greater flexibility in RAID Level 1 as to which copy of a block could be accessed and that could provide performance benefits by taking into account position of disk head. 2) RAID Level 5 organization achieves greater bandwidth for accesses to multiple contiguous blocks since the adjacent blocks could be simultaneously accessed. Such bandwidth improvements are not possible in RAID Level 1. 12.11 Compare the performance of write operations achieved by a RAID Level 5 organization with that achieved by a RAID Level 1 organization. Answer: RAID Level 1 organization can perform writes by simply issuing the writes to mirrored data concurrently. RAID Level 5, on the other hand, would require the old contents of the parity block to be read before it is updated based on the new contents of the target block. This results in more overhead for the write operations on a RAID Level 5 system. 12.12 Assume that you have a mixed configuration comprising disks organized as RAID Level 1 and as RAID Level 5 disks. Assume that the system has flexibility in deciding which disk organization to use for storing a particular file. Which files should be stored in the RAID Level 1 disks and which in the RAID Level 5 disks in order to optimize performance? Answer: Frequently updated data need to be stored on RAID Level 1 disks while data which is more frequently read as opposed to being written should be stored in RAID Level 5 disks. 12.13 Is there any way to implement truly stable storage? Explain your answer. Answer: Truly stable storage would never lose data. The fundamental technique for stable storage is to maintain multiple copies of the data, so that if one copy is destroyed, some other copy is still available for use. But for any scheme, we can imagine a large enough disaster that all copies are destroyed. 12.14 The reliability of a hard-disk drive is typically described in terms of a quantity called mean time between failures (MTBF). Although this quantity is called a “time,” the MTBF actually is measured in drive-hours per failure. Exercises 87 a. If a disk farm contains 1000 drives, each of which has a 750,000 hour MTBF, which of the following best describes how often a drive failure will occur in that disk farm: once per thousand years, once per century, once per decade, once per year, once per month, once per week, once per day, once per hour, once per minute, or once per second? b. Mortality statistics indicate that, on the average, a U.S. resident has about 1 chance in 1000 of dying between ages 20 and 21 years. Deduce the MTBF hours for 20 year olds. Convert this figure from hours to years. What does this MTBF tell you about the expected lifetime of a 20 year old? c. The manufacturer claims a 1-million hour MTBF for a certain model of disk drive. What can you say about the number of years that one of those drives can be expected to last? Answer: a. 750,000 drive-hours per failure divided by 1000 drives gives 750 hours per failure—about 31 days or once per month. b. The human-hours per failure is 8760 (hours in a year) divided by 0.001 failure, giving a value of 8,760,000 “hours” for the MTBF. 8760,000 hours equals 1000 years. This tells us nothing about the expected lifetime of a person of age 20. c. The MTBF tells nothing about the expected lifetime. Hard disk drives are generally designed to have a lifetime of 5 years. If such a drive truly has a million-hour MTBF, it is very unlikely that the drive will fail during its expected lifetime. 12.15 Discuss the relative advantages and disadvantages of sector sparing and sector slipping. Answer: Sector sparing can cause an extra track switch and rotational latency, causing an unlucky request to require an extra 8 ms of time. Sector slipping has less impact during future reading, but at sector remapping time it can require the reading and writing of an entire track’s worth of data to slip the sectors past the bad spot. 12.16 Discuss the reasons why the operating system might require accurate information on how blocks are stored on a disk. How could the operating system improve file system performance with this knowledge? Answer: While allocating blocks for a file, the operating system could allocate blocks that are geometrically close by on the disk if it had more information regarding the physical location of the blocks on the disk. In particular, it could allocate a block of data and then allocate the second block of data in the same cylinder but on a different surface at a rotationally optimal place so that the access to the next block could be made with minimal cost. 12.17 The operating system generally treats removable disks as shared file systems but assigns a tape drive to only one application at a time. 88 Chapter 12 Mass-Storage Structure Give three reasons that could explain this difference in treatment of disks and tapes. Describe additional features that would be required of the operating system to support shared file-system access to a tape jukebox. Would the applications sharing the tape jukebox need any special properties, or could they use the files as though the files were disk-resident? Explain your answer. Answer: a. Disks have fast random-access times, so they give good performance for interleaved access streams. By contrast, tapes have high positioning times. Consequently, if two users attempt to share a tape drive for reading, the drive will spend most of its time switching tapes and positioning to the desired data, and relatively little time performing data transfers. This performance problem is similar to the thrashing of a virtual memory system that has insufficient physical memory. b. Tape cartridges are removable. The owner of the data may wish to store the cartridge off-site (far away from the computer) to keep a copy of the data safe from a fire at the location of the computer. c. Tape cartridges are often used to send large volumes of data from a producer of data to the consumer. Such a tape cartridge is reserved for that particular data transfer and cannot be used for general-purpose shared storage space. To support shared file-system access to a tape jukebox, the operating system would need to perform the usual file-system duties, including • Manage a file-system name space over the collection of tapes • Perform space allocation • Schedule the I/O operations The applications that access a tape-resident file system would need to be tolerant of lengthy delays. For improved performance, it would be desirable for the applications to be able to disclose a large number of I/O operations so that the tape-scheduling algorithms could generate efficient schedules. 12.18 What would be the effect on cost and performance if tape storage were to achieve the same areal density as disk storage? (Areal density is the number of gigabits per square inch.) Answer: To achieve the same areal density as a magnetic disk, the areal density of a tape would need to improve by two orders of magnitude. This would cause tape storage to be much cheaper than disk storage. The storage capacity of a tape would increase to more than 1 terabyte, which could enable a single tape to replace a jukebox of tapes in today’s technology, further reducing the cost. The areal density has no direct bearing on the data transfer rate, but the higher capacity per tape might reduce the overhead of tape switching. Exercises 12.19 89 You can use simple estimates to compare the cost and performance of a terabyte storage system made entirely from disks with one that incorporates tertiary storage. Suppose that magnetic disks each hold 10 gigabytes, cost $1000, transfer 5 megabytes per second, and have an average access latency of 15 milliseconds. Suppose that a tape library costs $10 per gigabyte, transfers 10 megabytes per second, and has an average access latency of 20 seconds. Compute the total cost, the maximum total data rate, and the average waiting time for a pure disk system. If you make any assumptions about the workload, describe and justify them. Now, suppose that 5 percent of the data are frequently used, so they must reside on disk, but the other 95 percent are archived in the tape library. Further suppose that 95 percent of the requests are handled by the disk system and the other 5 percent are handled by the library. What are the total cost, the maximum total data rate, and the average waiting time for this hierarchical storage system? Answer: First let’s consider the pure disk system. One terabyte is 1024 GB. To be correct, we need 103 disks at 10 GB each. But since this question is about approximations, we will simplify the arithmetic by rounding off the numbers. The pure disk system will have 100 drives. The cost of the disk drives would be $100,000, plus about 20% for cables, power supplies, and enclosures, i.e., around $120,000. The aggregate data rate would be 100 × 5 MB/s, or 500 MB/s. The average waiting time depends on the workload. Suppose that the requests are for transfers of size 8 KB, and suppose that the requests are randomly distributed over the disk drives. If the system is lightly loaded, a typical request will arrive at an idle disk, so the response time will be 15 ms access time plus about 2 ms transfer time. If the system is heavily loaded, the delay will increase, roughly in proportion to the queue length. Now let’s consider the hierarchical storage system. The total disk space required is 5% of 1 TB, which is 50 GB. Consequently, we need 5 disks, so the cost of the disk storage is $5,000 (plus 20%, i.e., $6,000). The cost of the 950 GB tape library is $9500. Thus the total storage cost is $15,500. The maximum total data rate depends on the number of drives in the tape library. We suppose there is only 1 drive. Then the aggregate data rate is 6 × 10 MB/s, i.e., 60 MB/s. For a lightly loaded system, 95% of the requests will be satisfied by the disks with a delay of about 17 ms. The other 5% of the requests will be satisfied by the tape library, with a delay of slightly more than 20 seconds. Thus the average delay will be (95 × 0.017 +5× 20)/100, or about 1 second. Even with an empty request queue at the tape library, the latency of the tape drive is responsible for almost all of the system’s response latency, because 1/20th of the workload is sent to a device that has a 20 second latency. If the system is more heavily loaded, the average delay will increase in proportion to the length of the queue of requests waiting for service from the tape drive. The hierarchical system is much cheaper. For the 95% of the requests that are served by the disks, the performance is as good as a pure-disk system. But the maximum data rate of the hierarchical system is much worse than for the pure-disk system, as is the average response time. 90 Chapter 12 Mass-Storage Structure 12.20 Imagine that a holographic storage drive has been invented. Suppose that a holographic drive costs $10,000 and has an average access time of 40 milliseconds. Suppose that it uses a $100 cartridge the size of a CD. This cartridge holds 40,000 images, and each image is a square black-and-white picture with resolution 6000 × 6000 pixels (each pixel stores 1 bit). Suppose that the drive can read or write 1 picture in 1 millisecond. Answer the following questions. a. What would be some good uses for this device? b. How would this device affect the I/O performance of a computing system? c. Which other kinds of storage devices, if any, would become obsolete as a result of this device being invented? Answer: First, calculate performance of the device. 6000×6000 bits per millisecond = 4394KB per millisecond = 4291 MB/sec(!). Clearly this is orders of magnitude greater than current hard disk technology, as the best production hard drives do less than 40MB/sec. The following answers assume that the device cannot store data in smaller chunks than 4MB. a. This device would find great demand in the storage of images, audio files, and other digital media. b. Assuming that interconnection speed to this device would equal its throughput ability (that is, the other components of the system could keep it fed), large-scale digital load and store performance would be greaty enchanced. Manipulation time of the digital object would stay the same of course. The result would be greatly enhanced overall performance. c. Currently, objects of that size are stored on optical media, tape media, and disk media. Presumably, demand for those would decrease as the holographic storage became available. There are likely to be uses for all of those media even in the presence of holographic storage, so it is unlikely that any would become obsolete. Hard disks would still be used for random access to smaller items (such as user files). Tapes would still be used for off-site, archiving, and disaster recovery uses, and optical disks (CDRW for instance) for easy interchange with other computers, and low cost bulk storage. Depending on the size of the holographic device, and its power requirements, it would also find use in replacing solid state memory for digital cameras, MP3 players, and hand-held computers. 12.21 Suppose that a one-sided 5.25-inch optical-disk cartridge has an areal density of 1 gigabit per square inch. Suppose that a magnetic tape has an areal density of 20 megabits per square inch, and is 1/2 inch wide and 1800 feet long. Calculate an estimate of the storage capacities of these two kinds of storage cartridges. Suppose that an optical tape exists that has the same physical size as the tape, but the same storage density as the optical disk. What volume of data could the optical tape hold? Exercises 91 What would be a marketable price for the optical tape if the magnetic tape cost $25? Answer: The area of a 5.25 inch disk is about 19.625 square inches. If we suppose that the diameter of the spindle hub is 1.5 inches, the hub occupies an area of about 1.77 square inches, leaving 17.86 square inches for data storage. Therefore, we estimate the storage capacity of the optical disk to be 2.2 gigabytes. The surface area of the tape is 10,800 square inches, so its storage capacity is about 26 gigabytes. If the 10,800 square inches of tape had a storage density of 1 gigabit per square inch, the capacity of the tape would be about 1,350 gigabytes, or 1.3 terabytes. If we charge the same price per gigabyte for the optical tape as for magnetic tape, the optical tape cartridge would cost about 50 times more than the magnetic tape, i.e., $1,250. 12.22 Discuss how an operating system could maintain a free-space list for a tape-resident file system. Assume that the tape technology is appendonly, and that it uses the EOT mark and locate, space, and read position commands as described in Section 12.9.2.1. Answer: Since this tape technology is append-only, all the free space is at the end of the tape. The location of this free space does not need to be stored at all, because the space command can be used to position to the EOT mark. The amount of available free space after the EOT mark can be represented by a single number. It may be desirable to maintain a second number to represent the amount of space occupied by files that have been logically deleted (but their space has not been reclaimed since the tape is append-only) so that we can decide when it would pay to copy the nondeleted files to a new tape in order to reclaim the old tape for reuse. We can store the free and deleted space numbers on disk for easy access. Another copy of these numbers can be stored at the end of the tape as the last data block. We can overwrite this last data block when we allocate new storage on the tape.
