Dittus-Boelter Equation Applicability

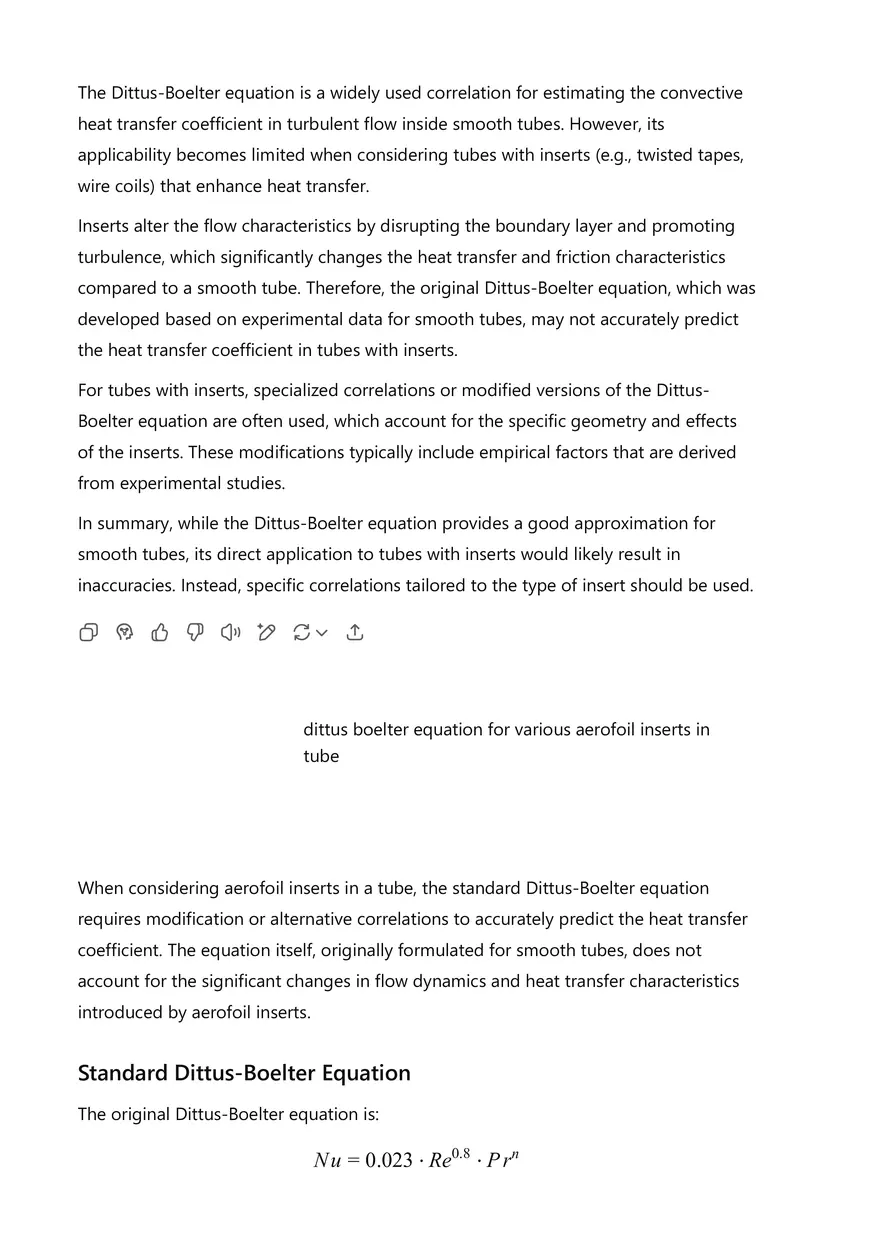

The Dittus-Boelter equation is a widely used correlation for estimating the convective heat transfer coefficient in turbulent flow inside smooth tubes. However, its applicability becomes limited when considering tubes with inserts (e.g., twisted tapes, wire coils) that enhance heat transfer. Inserts alter the flow characteristics by disrupting the boundary layer and promoting turbulence, which significantly changes the heat transfer and friction characteristics compared to a smooth tube. Therefore, the original Dittus-Boelter equation, which was developed based on experimental data for smooth tubes, may not accurately predict the heat transfer coefficient in tubes with inserts. For tubes with inserts, specialized correlations or modified versions of the DittusBoelter equation are often used, which account for the specific geometry and effects of the inserts. These modifications typically include empirical factors that are derived from experimental studies. In summary, while the Dittus-Boelter equation provides a good approximation for smooth tubes, its direct application to tubes with inserts would likely result in inaccuracies. Instead, specific correlations tailored to the type of insert should be used. dittus boelter equation for various aerofoil inserts in tube When considering aerofoil inserts in a tube, the standard Dittus-Boelter equation requires modification or alternative correlations to accurately predict the heat transfer coefficient. The equation itself, originally formulated for smooth tubes, does not account for the significant changes in flow dynamics and heat transfer characteristics introduced by aerofoil inserts. Standard Dittus-Boelter Equation The original Dittus-Boelter equation is: N u = 0.023 ⋅ Re0.8 ⋅ P rn N u is the Nusselt number (dimensionless heat transfer coefficient), Re is the Reynolds number, P r is the Prandtl number, n is 0.4 for heating and 0.3 for cooling. Modifications for Aerofoil Inserts Aerofoil inserts typically enhance turbulence and mixing, leading to an increase in heat transfer. To account for these effects, researchers often modify the Dittus-Boelter equation or develop entirely new correlations based on experimental data. The modified form might look like: N u = C ⋅ Rem ⋅ P rn ⋅ ϕ Where: C , m, and n are constants determined experimentally, ϕ is an empirical factor that accounts for the effects of the aerofoil insert, which may depend on the geometry, pitch, and orientation of the inserts. Empirical Correlations Experimental studies are often conducted to derive specific correlations for different types of aerofoil inserts. These correlations typically involve: Geometrical parameters of the insert (e.g., chord length, angle of attack), Flow parameters (e.g., Reynolds number, Prandtl number), The effect of the insert on pressure drop. These correlations are often published in research papers or technical reports and can vary widely depending on the specific design of the aerofoil inserts. Practical Application For practical use, if a specific correlation for the aerofoil insert is unavailable, one might conduct experiments or simulations to determine the appropriate empirical constants and factors that modify the Dittus-Boelter equation for the specific case. Conclusion In summary, while the Dittus-Boelter equation provides a baseline, its direct use for tubes with aerofoil inserts is generally not appropriate. Instead, modified equations or specific empirical correlations should be used to accurately predict the heat transfer coefficient in such cases. dittus boelter equation for NACA0010 aerofoil inserts in tube For tubes with NACA 0010 aerofoil inserts, the Dittus-Boelter equation needs to be modified to account for the specific effects of these inserts on heat transfer. NACA 0010 aerofoils are commonly used due to their symmetric airfoil shape, which can significantly influence the flow and heat transfer characteristics inside a tube. General Approach to Modification To adapt the Dittus-Boelter equation for NACA 0010 aerofoil inserts, follow these general steps: 1. Determine Empirical Factors: Experimental studies or detailed simulations are usually required to find empirical factors specific to the NACA 0010 aerofoil inserts. These factors account for how the inserts affect the flow and heat transfer compared to a smooth tube. 2. Adjust the Nusselt Number Correlation: The modified Nusselt number correlation may take the form: N u = C ⋅ Rem ⋅ P rn ⋅ ϕ Where: C , m, and n are constants determined from experimental data. ϕ is an empirical factor or correction term specific to NACA 0010 inserts. 3. Consult Literature: Look for published research or engineering handbooks that provide specific correlations for NACA 0010 aerofoil inserts. These sources might include experimental data or simulation results that have derived empirical relationships for heat transfer enhancement in tubes with these inserts. Example Modification (Hypothetical) A hypothetical modified form for NACA 0010 aerofoil inserts might look like this: N u = 0.023 ⋅ Re0.8 ⋅ P r0.3 ⋅ (1 + k ⋅ insert effect) Here: k is a constant determined from experiments or simulations. insert effect represents a factor that accounts for the influence of the NACA 0010 aerofoil shape on heat transfer. Practical Considerations 1. Experimental Validation: For accurate design and analysis, experimental validation is essential. Conduct experiments with NACA 0010 inserts to gather data on the heat transfer performance and derive accurate empirical constants. 2. Simulation Tools: Use computational fluid dynamics (CFD) tools to simulate the flow and heat transfer with NACA 0010 inserts. This can provide detailed insights and help refine the empirical factors used in the modified correlations. 3. Consulting Resources: Refer to specialized literature, such as research papers and technical reports, for specific correlations and empirical data relevant to NACA 0010 aerofoil inserts. Conclusion The Dittus-Boelter equation can serve as a base, but for tubes with NACA 0010 aerofoil inserts, it must be modified using empirical data or specialized correlations that account for the specific impact of these inserts. Experimental studies or simulation data are crucial for deriving accurate heat transfer predictions. Dittus Boelter equation for Symmetrical aerofoil inserts in 1 m tube for 50 mm aerofoil chord length , zero angle of attack and 50000 RE Range When adapting the Dittus-Boelter equation for a tube with symmetrical aerofoil inserts, such as NACA 0010 with a 50 mm chord length, and operating in a flow with a Reynolds number of around 50,000, you need to account for the enhanced turbulence and heat transfer caused by the inserts. Steps for Estimation: 1. Base Dittus-Boelter Equation: The base Dittus-Boelter equation is: N u = 0.023 ⋅ Re0.8 ⋅ P r0.3 Here: N u is the Nusselt number. Re is the Reynolds number. P r is the Prandtl number. 2. Empirical Correction Factor for Inserts: The addition of symmetrical aerofoils will typically increase the heat transfer coefficient due to enhanced turbulence. For specific modifications: Empirical Factor (ϕ): This factor is needed to account for the effect of the aerofoils. The exact value depends on experimental or simulation data. Commonly, this is determined through experimentation or detailed CFD analysis. If empirical data is not available, a generic approach might be to use correlations from literature or engineering handbooks where similar inserts have been tested. As a rough approximation, you might use a generic enhancement factor based on literature, though this won't be as accurate as specific experimental data. 3. Example Correlation: Let's assume a hypothetical enhancement factor, ϕ, based on similar studies. For symmetrical aerofoils, this could be approximated from literature values or experimental data. Suppose the empirical enhancement factor is 1.5 (a typical value for enhanced turbulence), then: N u = 0.023 ⋅ Re0.8 ⋅ P r0.3 ⋅ ϕ Where ϕ = 1.5 is used as a placeholder. Application for Given Parameters: Reynolds Number (Re): 50,000 Prandtl Number (P r ): Assume a value (e.g., 0.7) based on fluid properties. Let's compute the Nusselt number with the base Dittus-Boelter equation first: N ubase = 0.023 ⋅ 500000.8 ⋅ 0.70.3 ​ Calculating this: 1. 500000.8 ≈ 100000 2. 0.70.3 ≈ 0.827 So: N ubase ≈ 0.023 ⋅ 100000 ⋅ 0.827 ≈ 19, 036 ​ With the enhancement factor: N u = 19, 036 ⋅ 1.5 ≈ 28, 554 Conclusion The modified Nusselt number with the empirical enhancement factor for symmetrical aerofoil inserts is approximately 28,554. For accurate results, you should ideally use experimental data or validated empirical correlations specific to NACA 0010 aerofoils or similar inserts. The value of the enhancement factor (ϕ) should be refined based on specific tests or simulations.
