Registers vs. Memory

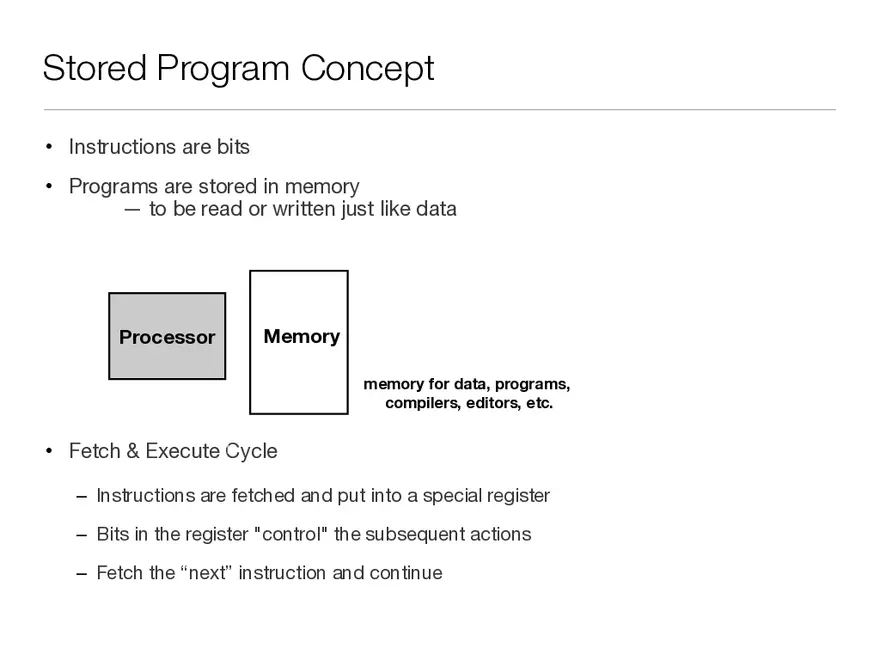

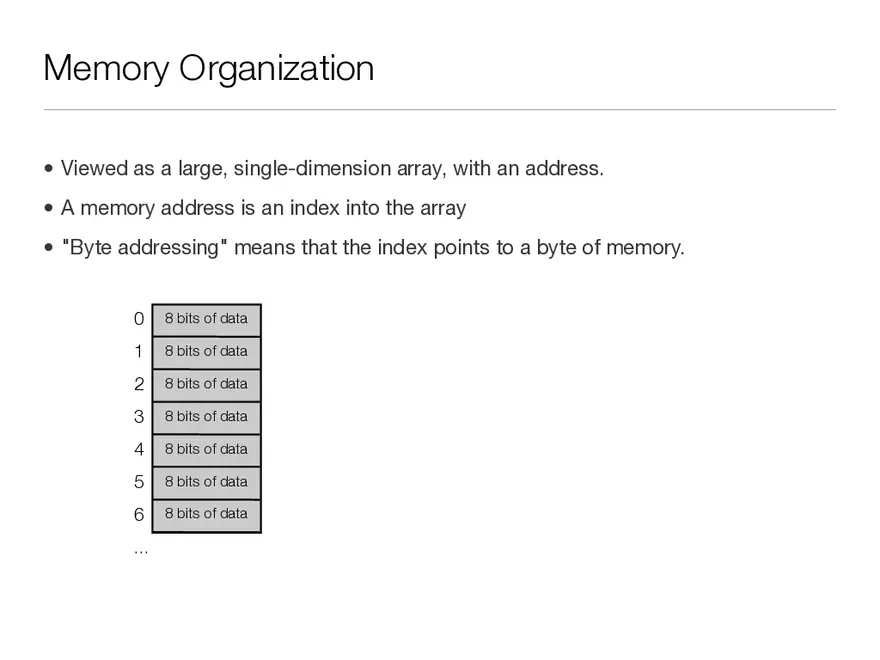

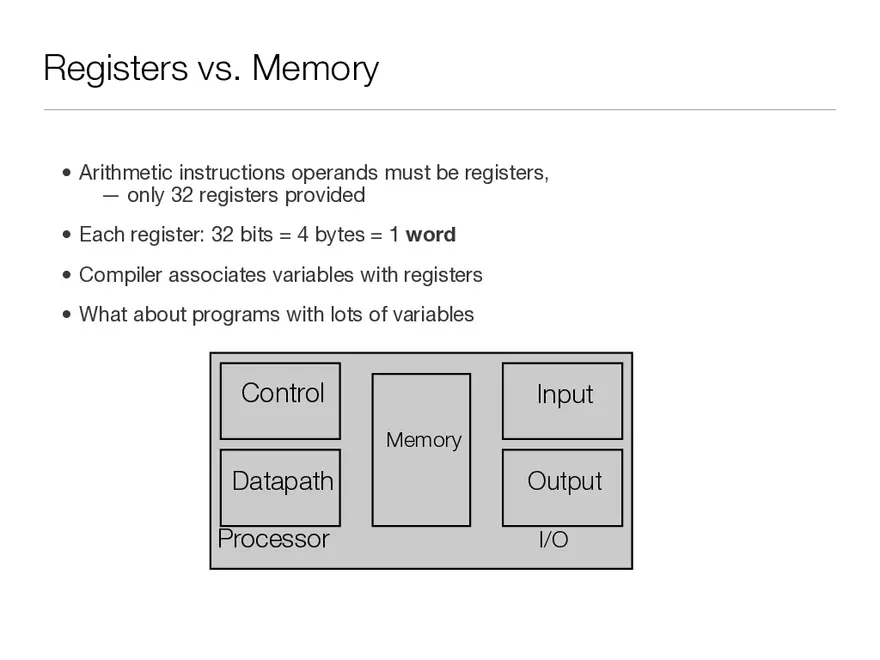

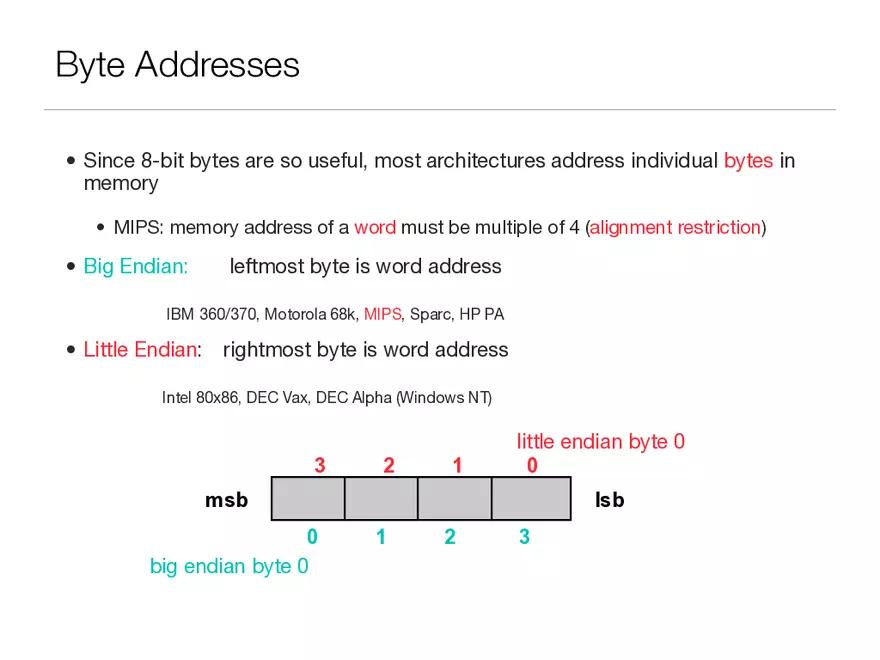

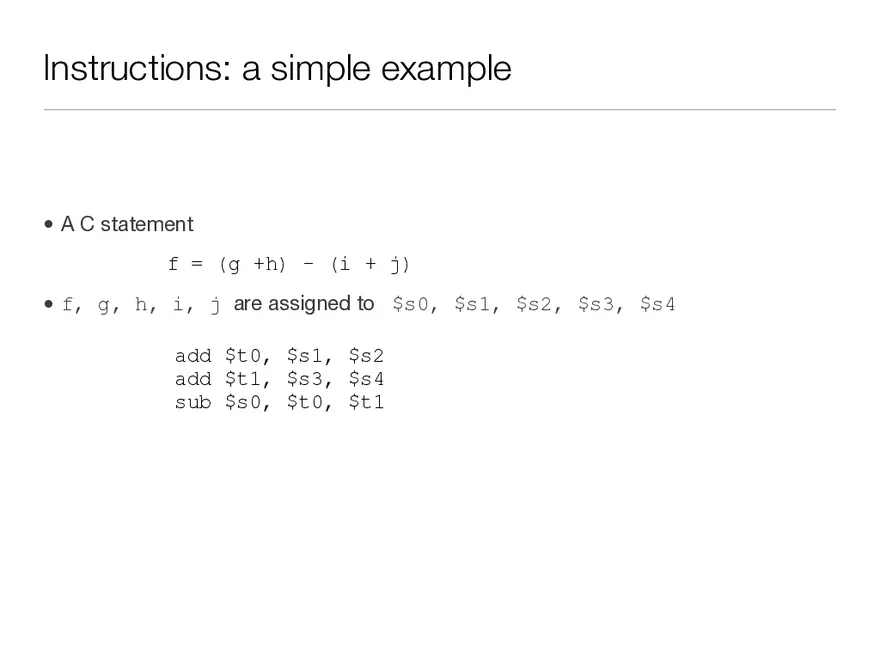

Registers vs. Memory • Arithmetic instructions operands must be registers, ! — only 32 registers provided • Each register: 32 bits = 4 bytes = 1 word • Compiler associates variables with registers • What about programs with lots of variables Control Input Memory Datapath Processor Output I/O Memory Organization • Viewed as a large, single-dimension array, with an address. • A memory address is an index into the array • "Byte addressing" means that the index points to a byte of memory. 0 8 bits of data 1 8 bits of data 2 8 bits of data 3 8 bits of data 4 8 bits of data 5 8 bits of data 6 8 bits of data ... Byte Addresses • Since 8-bit bytes are so useful, most architectures address individual bytes in memory • MIPS: memory address of a word must be multiple of 4 (alignment restriction) • Big Endian:" leftmost byte is word address IBM 360/370, Motorola 68k, MIPS, Sparc, HP PA • Little Endian:" rightmost byte is word address Intel 80x86, DEC Vax, DEC Alpha (Windows NT) 3 2 1 little endian byte 0 0 msb 0 big endian byte 0 lsb 1 2 3 Instructions: a simple example • A C statement f = (g +h) - (i + j) • f, g, h, i, j are assigned to $s0, $s1, $s2, $s3, $s4 add $t0, $s1, $s2 add $t1, $s3, $s4 sub $s0, $t0, $t1 Load and store instructions • Load and store instructions • lw $tn, c_off($S_base) • sw $tn, c_off($S_base) $tn : destination register $S_base : register with base address c_off : offset from base • Example: ! C code:!! ! MIPS code:! lw $t0, 32($s3) add $s1, $s2, $t0 g = h + A[8]; g : $s1 h : $s2 base address of A : $s3 • Spilling registers • doubly slow 11 Load and store instructions • Example: ! C code:!! ! MIPS code:! A[12] = h + A[8]; lw $t0, 32($s3) add $t0, $s2, $t0 sw $t0, 48($s3) • Store word has destination last • Remember: arithmetic operands are registers, not memory! ! Can’t write: !add 48($s3), $s2, 32($s3) So far we’ve learned: • MIPS ! — loading words but addressing bytes ! — arithmetic on registers only • Instruction! ! ! add $s1, $s2, $s3 sub $s1, $s2, $s3 lw $s1, 100($s2) sw $s1, 100($s2) Meaning $s1 = $s2 + $s3 $s1 = $s2 – $s3 $s1 = Memory[$s2+100] Memory[$s2+100] = $s1 Constants • To use a constant, have to use memory, just like for variables • Example: add 4 to register $s3 lw $t0, AddrConstant4($s1) # t0 is the constant 4 add $s3, $s3, $t0 • Quick add instruction: addi addi $s3, $s3, 4 • Design principle: make the common case fast Representing Instructions in the Computer Machine Language • Instructions, like registers and words of data, are also 32 bits long – Example: add $t0, $s1, $s2 – registers must have numbers (why?) $t0=8, $s1=17, $s2=18 • Instruction Format: 0 ! 000000 ! op! op rs rt rd shamt funct 6-bits 5-bits 5-bits 5-bits 5-bits 6-bits 17 18 10001 10010! 01000! 00000! rs! rt! rd! shamt! 8 0 32 100000 funct opcode that specifies the operation register file address of the first source operand register file address of the second source operand register file address of the result’s destination shift amount (for shift instructions) function code augmenting the opcode Aside: MIPS Register Convention Name Register Number Usage Preserve on call? $zero 0 constant 0 (hardware) n.a. $at 1 reserved for assembler n.a. $v0 - $v1 2-3 returned values no $a0 - $a3 4-7 arguments yes $t0 - $t7 8-15 temporaries no $s0 - $s7 16-23 saved values yes $t8 - $t9 24-25 temporaries no $gp 28 global pointer yes $sp 29 stack pointer yes $fp 30 frame pointer yes $ra 31 return addr (hardware) yes Machine Language • What if an instruction needs longer fields • e.g.: in lw, address of constant may be more than 32 (25) • conflict: keep instruction length same vs. have a single instruction format • New principle: Good design demands a compromise • Here: different formats for different instructions (keep length same) • Introduce a new type of instruction format – I-format for data transfer instructions and immediate instructions – other format was R-format for register • Example: lw $t0, 32($s3) ! 35! 19! 9! 32 ! op! rs! rt! 16 bit number Stored Program Concept • Instructions are bits • Programs are stored in memory ! — to be read or written just like data Processor Memory memory for data, programs, compilers, editors, etc. • Fetch & Execute Cycle – Instructions are fetched and put into a special register – Bits in the register "control" the subsequent actions – Fetch the “next” instruction and continue
