Role of the Stack Pointer

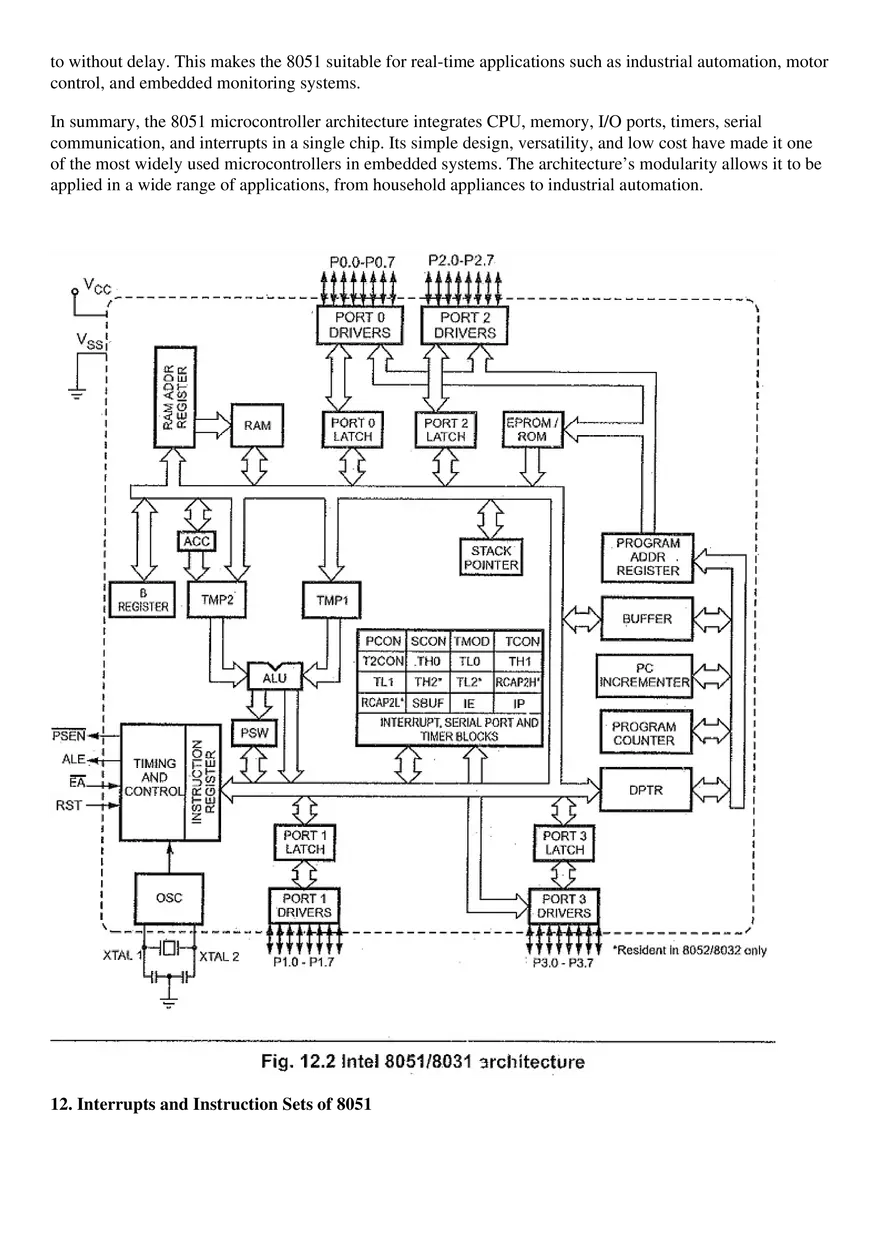

PART A (10 × 2 = 20 Marks) Role of the Stack Pointer The Stack Pointer holds the address of the top of the stack in RAM. It is automatically updated during PUSH and POP operations. It ensures proper storage and retrieval of temporary data in subroutines. Instruction Set of 8051 The 8051 supports data transfer, arithmetic, logical, branch, and bit manipulation instructions. Example: MOV A, #25H (data transfer), ADD A, R1 (arithmetic). These instructions allow the microcontroller to execute diverse tasks. Task Switching vs Context Switching Task switching changes from one task to another without saving the state. Context switching saves the entire CPU state of the current task. Context switching is more complex and ensures multitasking correctness. Pre-emptive Scheduling In pre-emptive scheduling, higher-priority tasks interrupt lower-priority ones. The RTOS ensures fair CPU usage by forcing context switches. Example: A real-time alarm interrupting a background sensor read. Basic Components of IoT Sensors collect data from the environment. Actuators perform control actions. Communication modules transmit data to cloud or devices. Arduino Sketch and Shields An Arduino sketch is a simple C/C++ program uploaded to the board. Arduino shields are plug-in boards like Wi-Fi or Motor Driver modules. Example: Ultrasonic sensor sketch with Motor Driver shield. Bluetooth vs ZigBee Bluetooth offers higher data rates (1–3 Mbps) but shorter range (10m). ZigBee has low data rate (250 kbps) but longer range (up to 100m). ZigBee consumes less power, ideal for IoT. Role of Communication Protocols Protocols ensure reliable and structured data transfer. MQTT is widely used in IoT for lightweight communication. They standardize communication between heterogeneous devices. Design Process of Embedded System Identify requirements and select microcontroller. Choose memory, I/O, and communication interfaces. Integrate hardware and software to meet performance goals. IoT Applications Smart healthcare improves patient monitoring. Smart agriculture boosts crop yield with automation. Smart cities enhance traffic and energy management. PART B (5 × 8 = 40 Marks) 11. 8051 Microcontroller Architecture The 8051 microcontroller is an 8-bit microcontroller developed by Intel. It is widely used in embedded systems because of its simple architecture and versatile set of peripherals. The architecture consists of the CPU, memory, input/output ports, and various special function registers. At the core lies the CPU which handles arithmetic, logic, and control operations. The program counter ensures the sequential execution of instructions, while the accumulator stores temporary results during computation. Registers such as B, R0–R7 provide additional temporary storage. The memory architecture is divided into program memory (ROM) and data memory (RAM). The program memory stores instructions, whereas data memory is used for variables and stack operations. Additionally, special function registers (SFRs) control timers, serial communication, and I/O. Peripheral components such as timers and counters enable time-based operations, while serial communication allows data transfer with external devices. Input/output ports make it possible to interface the microcontroller with sensors, actuators, and displays. The block diagram illustrates the interaction between all these components. The 8051 microcontroller, developed by Intel in 1980, is one of the most popular 8-bit microcontrollers widely used in embedded systems. Its architecture is simple, efficient, and highly suitable for control-based applications. The 8051 consists of essential components such as the Central Processing Unit (CPU), memory (RAM and ROM), input/output ports, timers, serial communication interface, and an interrupt system. These components are integrated into a single chip, making the 8051 a compact and cost-effective solution for embedded designs. At the core lies the CPU, which executes instructions, performs arithmetic and logical operations, and controls the overall functioning of the system. It works with an Accumulator (ACC), B register, and other general-purpose registers to perform computations. The CPU uses the Program Counter (PC) to keep track of instruction execution and the Stack Pointer (SP) to manage subroutines and function calls. Together, these elements ensure smooth sequential execution and quick response to program requirements. The memory organization of the 8051 is divided into Program Memory (ROM) and Data Memory (RAM). Typically, the 8051 has 4 KB of ROM for storing instructions and 128 bytes of RAM for temporary data storage. It also includes Special Function Registers (SFRs), which control hardware functions like timers, serial ports, and I/O operations. The separation of memory ensures efficient handling of both program instructions and runtime data. The microcontroller has four parallel I/O ports (Port 0, Port 1, Port 2, and Port 3), each 8 bits wide, allowing direct interfacing with external devices like sensors, displays, and actuators. In addition, the 8051 includes two 16-bit timers/counters, which can be used for event counting, delay generation, and pulse-width modulation. The serial communication port enables data exchange with external systems using UART protocol. Another key feature of the 8051 is its interrupt handling system, which provides fast response to external or internal events. It supports five interrupt sources with priority levels, ensuring that urgent tasks are attended to without delay. This makes the 8051 suitable for real-time applications such as industrial automation, motor control, and embedded monitoring systems. In summary, the 8051 microcontroller architecture integrates CPU, memory, I/O ports, timers, serial communication, and interrupts in a single chip. Its simple design, versatility, and low cost have made it one of the most widely used microcontrollers in embedded systems. The architecture’s modularity allows it to be applied in a wide range of applications, from household appliances to industrial automation. 12. Interrupts and Instruction Sets of 8051 Interrupts in the 8051 provide a mechanism to handle asynchronous events. There are five interrupts: two external, two timer, and one serial interrupt. They allow the CPU to respond immediately to critical events such as input signals or timing overflow without constantly polling. The instruction set of 8051 can be categorized into data transfer, arithmetic, logical, control, and bit manipulation instructions. Data transfer instructions like MOV are used to transfer data between registers and memory. Arithmetic instructions such as ADD, SUBB are for basic math operations. Logical instructions like ANL, ORL, and XRL enable Boolean operations. Branch control instructions (SJMP, LJMP, CALL) support program control flow. Bit manipulation instructions allow efficient control of individual bits for real-time systems. Together, interrupts and instruction sets make the 8051 highly suitable for embedded control, providing both flexibility and responsiveness. The 8051 microcontroller supports a powerful interrupt system that allows the CPU to respond quickly to urgent events. An interrupt is a mechanism by which the normal execution of a program is temporarily halted so that a special routine, called the Interrupt Service Routine (ISR), can be executed. Once the ISR finishes, the microcontroller resumes the original program. The 8051 supports five interrupt sources: external hardware interrupts (INT0 and INT1), timer interrupts (Timer 0 and Timer 1), and a serial communication interrupt. Each interrupt is associated with a specific vector address where the ISR begins. The interrupt system in 8051 is prioritized, meaning that some interrupts have higher priority than others. By default, the order of priority is: External 0 (highest), Timer 0, External 1, Timer 1, and Serial Communication (lowest). However, users can configure interrupt priority using special function registers. This feature allows critical tasks such as motor control or sensor monitoring to be given higher precedence over less urgent processes like data transmission. The IE (Interrupt Enable) and IP (Interrupt Priority) registers are used to enable, disable, and prioritize interrupts, giving designers flexibility in system design. Alongside interrupts, the instruction set of the 8051 is another fundamental part of its architecture. The 8051 instruction set is classified into three main groups: Data Transfer Instructions, Arithmetic Instructions, and Logical Instructions. Data transfer instructions include operations like MOV, PUSH, and POP, which are used to transfer data between registers, memory, and the accumulator. Arithmetic instructions include ADD, SUBB, INC, and DEC, which allow basic mathematical operations. Logical instructions like ANL, ORL, and XRL enable bitwise operations that are essential in embedded applications. The 8051 also supports branching and control instructions. These include unconditional jumps (SJMP, LJMP), conditional jumps (JZ, JNZ, JC, JNC), and subroutine calls (ACALL, LCALL, RET). These instructions make it possible to implement loops, conditional execution, and modular program design. Another unique feature of the 8051 instruction set is the presence of bit manipulation instructions such as SETB and CLR, which allow direct control of individual bits in registers or memory locations. This is particularly useful in I/O operations, where controlling a single pin is often required. In summary, the 8051 interrupt system enhances real-time performance by allowing the microcontroller to respond immediately to important events, while the instruction set provides flexibility and control in programming. Together, they make the 8051 a versatile and efficient microcontroller for embedded applications ranging from simple automation to complex industrial systems. The combination of interrupts for responsiveness and a rich instruction set for programmability is one of the key reasons for the long-lasting popularity of the 8051 in embedded system design. 13. RTOS and Priority-Based Scheduling A Real-Time Operating System (RTOS) is designed to handle tasks within strict timing constraints. It manages multiple tasks, allocating CPU time fairly and ensuring deadlines are met. Priority-based scheduling is a common mechanism in RTOS to decide which task runs next. In priority-based scheduling, each task is assigned a priority. The task with the highest priority pre-empts others and gets executed first. This ensures that critical operations, such as sensor monitoring, are never delayed by less important tasks. For example, in an automotive system, engine control (high priority) pre-empts dashboard updates (lower priority). This allows safety-critical tasks to execute reliably without failure. However, priority inversion can occur when a low-priority task holds a resource required by a high-priority task. To handle this, priority inheritance is used. RTOS design ensures robust handling of multiple tasks simultaneously. A Real-Time Operating System (RTOS) is designed to manage hardware resources and execute tasks within precise timing constraints. Unlike general-purpose operating systems, an RTOS guarantees that high-priority tasks are executed within a specific time frame. This makes it ideal for applications where timing is critical, such as automotive systems, industrial automation, robotics, and medical devices. An RTOS provides essential services like task scheduling, inter-task communication, synchronization, and interrupt handling. Task scheduling in RTOS determines the order in which multiple tasks share the CPU. In priority-based scheduling, each task is assigned a priority level. The CPU always executes the highest-priority task that is ready to run. If a higher-priority task becomes ready while a lower-priority task is executing, the RTOS preempts the running task and switches to the higher-priority task. This ensures that critical tasks are completed on time. For example, in a real-time temperature monitoring system, a task detecting an overheating sensor (high priority) will pre-empt a background data logging task (low priority). This prevents delays in responding to critical events and ensures system safety. RTOS can implement static priorities (fixed at design time) or dynamic priorities (adjusted during runtime based on system conditions). A challenge in priority-based scheduling is priority inversion, where a high-priority task is blocked because a low-priority task holds a resource it needs. RTOS handles this using priority inheritance, temporarily elevating the low-priority task’s priority to allow it to release the resource quickly. This ensures timely execution and prevents missed deadlines. In summary, an RTOS with priority-based scheduling guarantees that time-critical tasks are executed in a predictable and efficient manner. By assigning priorities, pre-empting tasks, and handling issues like priority inversion, RTOS provides a robust environment for embedded systems requiring real-time performance. It is widely used in industrial, automotive, and IoT applications to ensure reliability, safety, and responsiveness. 14. Embedded C Program for LED Blinking on 8051 Embedded C provides an efficient way to program microcontrollers like the 8051. An LED blinking program demonstrates the use of I/O ports and delay functions in embedded programming. The LED is connected to Port 1, and by continuously writing high and low values, the LED toggles its state. A delay function ensures a visible blinking effect. The basic structure includes #include , defining ports, and main() with an infinite loop. Sample Program: #include void delay() { unsigned int i, j; for(i=0;i<1000;i++) for(j=0;j<100;j++); } void main() { while(1) { P1 = 0xFF; // LED ON delay(); P1 = 0x00; // LED OFF delay(); } } This program demonstrates port manipulation, infinite looping, and delay creation, which are fundamental in embedded system applications. 15. Arduino Boards and Programming Basics Arduino is an open-source platform that simplifies embedded system development. It includes both hardware (Arduino boards) and software (Arduino IDE). The key features include ease of use, cross-platform compatibility, and support for multiple sensors and shields. Different types of Arduino boards include Arduino Uno, Arduino Mega, Arduino Nano, and Arduino Due. Each board differs in microcontroller, number of pins, memory, and processing power. For example, Uno uses ATmega328P while Mega uses ATmega2560 with more I/O. Programming in Arduino is done using sketches written in simplified C/C++. The basic structure includes two functions: setup() for initialization and loop() for repeated execution. Uploading the code is done through the Arduino IDE. Pin configurations vary among boards, with digital pins, analog input pins, PWM pins, and power pins. These allow interfacing with LEDs, motors, and sensors. This modularity makes Arduino highly suitable for rapid IoT prototyping. Arduino is an open-source electronics platform that combines both hardware and software for rapid prototyping of embedded systems and IoT projects. The Arduino ecosystem consists of microcontrollerbased boards and the Arduino Integrated Development Environment (IDE), which allows users to write, compile, and upload programs called sketches. Arduino is designed to be beginner-friendly, with simplified programming and extensive community support, making it suitable for both hobbyists and professional developers. There are several types of Arduino boards, each tailored for specific applications. The Arduino Uno is the most popular board, based on the ATmega328P microcontroller, offering 14 digital I/O pins, 6 analog inputs, and a USB interface for programming. The Arduino Mega has more pins and memory (ATmega2560), making it ideal for complex projects that require multiple sensors and actuators. The Arduino Nano is a compact version suitable for space-constrained applications, while Arduino Due offers higher processing power with a 32-bit ARM Cortex-M3 processor. Programming basics in Arduino involve two essential functions: setup() and loop(). The setup() function runs once at startup to initialize pins, communication interfaces, and other peripherals. The loop() function runs repeatedly, executing the main program logic. Arduino programs are written in a simplified version of C/C++ and can interact with hardware components like LEDs, sensors, motors, and shields. The Arduino IDE allows direct uploading of code via USB to the board. Pin configurations and functionalities vary across different boards but generally include digital I/O pins, analog input pins, PWM pins, and communication interfaces such as UART, I2C, and SPI. Digital pins can be used for reading or writing HIGH/LOW signals, analog pins measure sensor voltages, and PWM pins generate variable output signals. This flexibility enables Arduino boards to interface easily with a wide range of external devices. In summary, Arduino provides a versatile and user-friendly platform for embedded system development. Its variety of boards, simple programming environment, and modular pin configurations make it ideal for prototyping IoT applications, robotics, home automation, and educational projects. By understanding the board types, programming basics, and pin functionalities, developers can design efficient and innovative embedded solutions. 16. Integration of Sensor and Actuator with Arduino Arduino serves as a bridge between sensors and actuators in IoT systems. A sensor measures environmental conditions, while an actuator performs actions. Together, they form the perception and control layer of IoT. For example, a temperature sensor (LM35) can be connected to an analog input pin. Arduino reads the voltage, converts it into temperature, and processes the data. Based on this input, it can drive an actuator such as a fan or motor. The coding involves reading from analogRead() for the sensor and using digitalWrite() or analogWrite() to control the actuator. Shields and libraries simplify integration. This integration demonstrates the feedback loop in embedded systems, where sensor data drives actuator responses in real time. Arduino acts as a bridge between sensors and actuators in embedded systems and IoT applications. Sensors are used to detect physical or environmental conditions, such as temperature, light, or motion, and convert them into electrical signals. The Arduino microcontroller reads these signals through its analog or digital input pins and processes the data according to the programmed logic. This integration allows the system to monitor the environment in real time. Once the sensor data is processed, actuators perform actions based on the conditions detected. Actuators can be motors, relays, LEDs, or solenoids that carry out physical tasks. For example, a temperature sensor can trigger a fan actuator when a threshold temperature is exceeded. The Arduino controls the actuator by sending digital or PWM signals through its output pins, effectively creating a feedback loop between detection and response. Programming this integration involves writing an Arduino sketch, typically with a setup() function to initialize pins and communication, and a loop() function to continuously read sensor values and control actuators. Libraries are often used to simplify sensor interfacing, such as the DHT library for temperature and humidity sensors. Conditional statements (if-else) and loops are used to make real-time decisions based on sensor inputs. Arduino shields can enhance integration by providing additional functionality, such as motor driver shields for high-current actuators or wireless communication shields for IoT applications. This modularity allows developers to add multiple sensors and actuators to a single Arduino board, enabling complex automation and control systems without extensive wiring or additional hardware. In summary, integrating sensors and actuators with Arduino enables intelligent monitoring and automated control in embedded systems and IoT devices. By combining real-time data acquisition from sensors with precise control of actuators, Arduino provides a flexible and efficient platform for applications such as home automation, smart agriculture, robotics, and environmental monitoring. This integration demonstrates the essential feedback loop central to most IoT and embedded systems. 17. Wi-Fi vs GSM in IoT Wi-Fi and GSM are two important communication technologies in IoT applications. Wi-Fi provides highspeed data transmission and is best suited for short-range, high-bandwidth applications like smart homes. GSM, on the other hand, provides long-range communication using cellular networks. Wi-Fi modules like ESP8266 connect devices to the internet within a local network. GSM modules like SIM900 allow global connectivity via mobile towers, making them suitable for remote applications. Wi-Fi consumes more power and is less efficient for battery-based devices, while GSM can work efficiently but incurs operational costs due to SIM charges. Use cases include Wi-Fi for smart appliances and GSM for remote monitoring of vehicles or agriculture systems. The choice depends on range, bandwidth, and cost requirements. Wi-Fi and GSM are two widely used communication technologies in IoT, each with distinct characteristics, advantages, and applications. Wi-Fi is a wireless local area network (WLAN) technology that enables highspeed data communication over short to medium distances, typically up to 100 meters indoors. It is ideal for applications where devices are located within a local network, such as smart homes, office automation, and industrial monitoring systems. GSM (Global System for Mobile Communications) is a cellular communication technology that allows devices to connect over long distances using mobile networks. Unlike Wi-Fi, GSM provides wide-area coverage and is suitable for remote monitoring and IoT applications where internet access is not available through a local network. GSM modules, such as SIM900 or SIM800, allow IoT devices to send and receive data via SMS or mobile internet. In terms of data rate and power consumption, Wi-Fi offers high-speed data transfer (up to several Mbps), making it suitable for applications that require real-time streaming or large data transmission. However, WiFi consumes more power, which may not be ideal for battery-powered IoT devices. GSM, on the other hand, has moderate data rates (typically up to 250 kbps for standard GPRS) but is more power-efficient for intermittent transmissions, making it suitable for devices that send small packets of data periodically. Use cases for Wi-Fi include smart home devices, such as smart thermostats, security cameras, and lighting control systems, where high-speed local network communication is required. GSM is widely used in applications like vehicle tracking, remote agriculture monitoring, smart metering, and healthcare devices in rural or remote areas where local Wi-Fi networks are unavailable. In summary, both Wi-Fi and GSM have their unique advantages in IoT. Wi-Fi is preferred for high-speed, short-range, local applications, whereas GSM is suitable for long-range, low-data-rate applications requiring mobile network connectivity. Choosing between the two depends on factors like range, data rate, power consumption, cost, and the specific requirements of the IoT system. 18. Raspberry Pi Architecture and Interfacing The Raspberry Pi is a low-cost single-board computer designed for embedded applications. Its architecture is based on ARM processors and includes CPU, GPU, memory, USB, HDMI, GPIO pins, and networking modules. Its programming environment includes Raspberry Pi OS (Linux-based) and languages like Python and C/C++. Developers can write code using the terminal or graphical IDEs like Thonny. The Pi supports libraries like GPIO Zero for interfacing sensors. Interfacing techniques involve using GPIO pins for digital I/O, SPI/I2C for communication with peripherals, and HDMI for display. Raspberry Pi supports both low-level and high-level interfacing with external modules. This versatility makes Raspberry Pi useful for advanced IoT and AI projects, robotics, and real-time control systems. The Raspberry Pi is a small, single-board computer based on ARM architecture, designed for embedded systems, IoT projects, and educational purposes. Unlike microcontrollers, it runs a full operating system (typically Raspberry Pi OS, a Linux-based OS) and can perform complex computing tasks. The main components of Raspberry Pi include the CPU, GPU, RAM, power management circuitry, USB ports, HDMI output, Ethernet, GPIO pins, and storage via an SD card. These components make the Raspberry Pi a versatile platform for both hardware and software experimentation. The CPU (ARM-based) executes program instructions and manages overall system operation, while the GPU handles graphics and multimedia processing. The RAM provides temporary storage for running applications, and the SD card acts as the main storage for the operating system and files. USB ports enable peripheral connections such as keyboards, mice, and cameras, while HDMI allows display output to monitors or TVs. Ethernet and Wi-Fi modules provide network connectivity for IoT and online applications. The GPIO (General Purpose Input/Output) pins allow direct interfacing with external sensors, actuators, and other electronic modules. GPIO pins support digital input/output, PWM, SPI, I2C, and UART communication, enabling interaction with a wide range of devices. Using programming libraries like RPi.GPIO or GPIO Zero in Python, users can control hardware components easily, creating projects like home automation, robotics, and sensor-based monitoring systems. Interfacing techniques include connecting LEDs, motors, relays, sensors, and displays to GPIO pins. For example, a temperature sensor can provide input data to the Raspberry Pi, which processes it and controls an actuator such as a fan. Additionally, Raspberry Pi supports camera modules, touchscreen displays, and wireless modules, making it a highly adaptable platform for embedded and IoT projects. In summary, the Raspberry Pi combines computing power, versatile interfacing options, and network connectivity in a compact form factor. Its architecture allows it to run complex applications while interfacing easily with sensors and actuators. This makes it an ideal choice for IoT, robotics, home automation, and educational projects, bridging the gap between embedded systems and full-fledged computers. 19. Design of an Embedded System The design process of an embedded system starts with identifying system requirements. These include performance, power consumption, cost, and size. Based on this, hardware and software components are selected. The hardware includes a microcontroller or microprocessor, memory units, communication modules, and input/output interfaces. Each component is carefully chosen to balance efficiency and cost. The software involves developing firmware in languages like C or Python, integrating drivers, and ensuring real-time operation. Simulation tools can be used before implementation to verify design correctness. The interconnection involves linking sensors, actuators, and controllers using communication buses. The final system is tested to ensure it meets application-specific needs. Designing an embedded system involves a systematic approach that integrates hardware and software to perform a specific function efficiently. The first step in the design process is requirement analysis, where the system’s purpose, performance criteria, power constraints, and environmental conditions are defined. For example, a temperature monitoring system would require sensors, a processing unit, and an actuator to control a fan based on temperature readings. The next step is hardware selection, which involves choosing a suitable microcontroller or microprocessor, memory units, input/output interfaces, and power supply. Microcontrollers such as the 8051, Arduino, or ARM Cortex series are selected based on processing requirements, I/O needs, and cost considerations. Sensors and actuators are chosen depending on the type of data to be collected and the actions to be performed. Once the hardware is defined, the software design phase begins. This includes programming the microcontroller using embedded C, Python (for platforms like Raspberry Pi), or Arduino sketches. The software handles data acquisition from sensors, decision-making based on programmed logic, and controlling actuators. Real-time requirements are addressed using scheduling techniques like polling or RTOS-based priority scheduling. After hardware and software are prepared, system integration is performed, connecting sensors, actuators, communication modules, and processing units into a unified system. Testing and debugging ensure that all components work correctly and the system meets design specifications. Tools such as simulation software, logic analyzers, and oscilloscopes are used to verify functionality. In summary, the design of an embedded system requires careful planning, hardware selection, software development, and integration. By systematically combining sensors, processors, actuators, and software logic, an efficient, reliable, and application-specific embedded system can be built. This approach ensures the system is optimized for performance, power consumption, and real-world applicability, such as in smart homes, industrial automation, or IoT solutions. 20. IoT in Smart Healthcare and Smart Cities IoT applications in healthcare include wearable devices, patient monitoring, and smart medical equipment. These improve efficiency by enabling remote monitoring, reducing hospital visits, and improving diagnosis accuracy. In smart cities, IoT applications include smart traffic management, waste collection, and smart grids. These improve efficiency in energy consumption, reduce congestion, and enhance citizen services. For example, wearable devices track vital signs and send real-time alerts to doctors, while smart traffic signals optimize vehicle flow using sensor data. Thus, IoT transforms traditional systems into intelligent, automated networks that improve efficiency, reduce costs, and enhance quality of life. Smart healthcare leverages IoT to provide real-time monitoring, diagnosis, and treatment of patients. Wearable devices like smartwatches, glucose monitors, and heart rate sensors collect continuous health data and transmit it to healthcare providers via IoT networks. This enables doctors to monitor patients remotely, detect anomalies early, and provide timely interventions, improving overall healthcare efficiency and reducing hospital visits. IoT devices in healthcare also support chronic disease management. For instance, connected insulin pumps, smart inhalers, and telemedicine platforms allow patients to manage conditions like diabetes, asthma, and cardiovascular diseases from home. Automated alerts notify caregivers of abnormal readings, ensuring rapid response to emergencies. Data collected can also be analyzed using cloud platforms for predictive healthcare insights and personalized treatment plans. In smart cities, IoT enhances urban infrastructure by optimizing resource usage, improving public services, and increasing safety. Applications include intelligent traffic management, smart street lighting, waste management, and environmental monitoring. Sensors collect real-time data, and connected systems automatically adjust operations—traffic lights optimize vehicle flow, streetlights reduce energy consumption, and air quality monitors alert authorities to pollution levels. IoT in smart cities also improves public safety and governance. Surveillance cameras, connected alarm systems, and emergency alert networks enable faster response to accidents, crimes, or natural disasters. Smart parking and water management systems enhance convenience and sustainability, while energy monitoring reduces wastage in public buildings. This interconnected ecosystem leads to more efficient, responsive, and sustainable urban living. In summary, IoT transforms healthcare and urban living by enabling real-time monitoring, automation, and data-driven decision-making. In healthcare, it enhances patient care and chronic disease management, while in smart cities, it optimizes resource usage, improves safety, and ensures sustainable development. These applications highlight the transformative power of IoT in improving quality of life and operational efficiency across critical domains.
