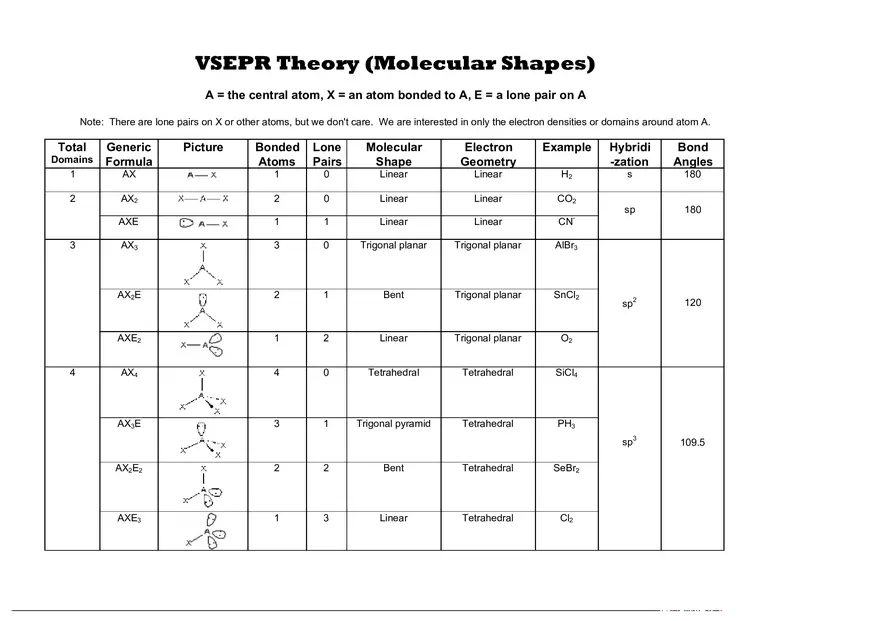

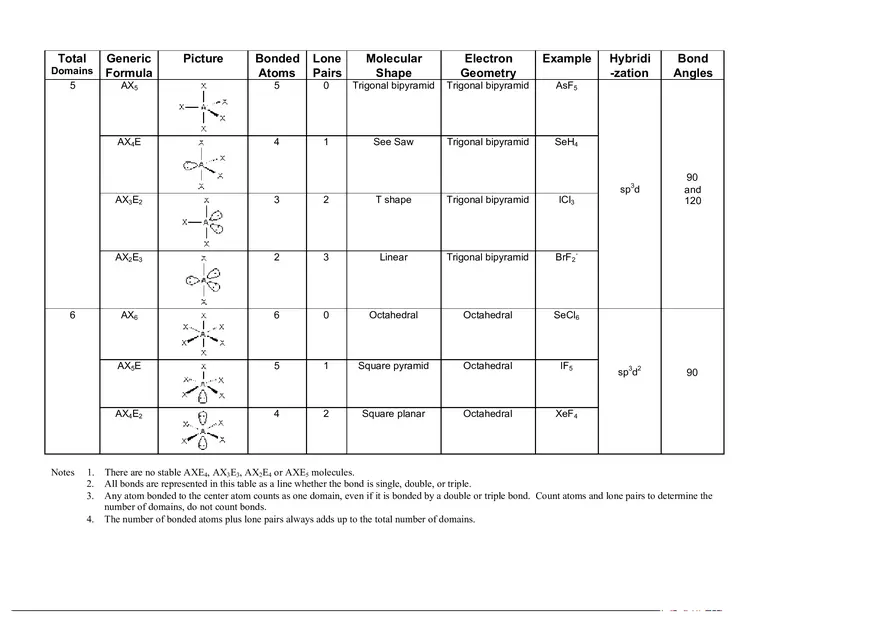

VSEPR Theory (Molecular Shapes) A = the central atom, X = an atom bonded to A, E = a lone pair on A Note: There are lone pairs on X or other atoms, but we don't care. We are interested in only the electron densities or domains around atom A. Total Domains 1 2 3 4 Generic Formula Picture Bonded Atoms Lone Pairs Molecular Shape Electron Geometry Example Hybridi -zation Bond Angles AX 1 0 Linear Linear H2 s 180 AX2 2 0 Linear Linear CO2 sp 180 AXE 1 1 Linear Linear CN- AX3 3 0 Trigonal planar Trigonal planar AlBr3 AX2E 2 1 Bent Trigonal planar SnCl2 sp2 120 AXE2 1 2 Linear Trigonal planar O2 AX4 4 0 Tetrahedral Tetrahedral SiCl4 AX3E 3 1 Trigonal pyramid Tetrahedral PH3 sp3 109.5 AX2E2 2 2 Bent Tetrahedral SeBr2 AXE3 1 3 Linear Tetrahedral Cl2 Total Domains 5 6 Notes 1. 2. 3. 4. Generic Formula Picture Bonded Atoms Lone Pairs Molecular Shape Electron Geometry Example AX5 5 0 Trigonal bipyramid Trigonal bipyramid AsF5 AX4E 4 1 See Saw Trigonal bipyramid SeH4 AX3E2 3 2 T shape Trigonal bipyramid ICl3 AX2E3 2 3 Linear Trigonal bipyramid BrF2 - AX6 6 0 Octahedral Octahedral SeCl6 AX5E 5 1 Square pyramid Octahedral IF5 AX4E2 4 2 Square planar Octahedral XeF4 Hybridi -zation Bond Angles sp3d 90 and 120 sp3d2 90 There are no stable AXE4, AX3E3, AX2E4 or AXE5 molecules. All bonds are represented in this table as a line whether the bond is single, double, or triple. Any atom bonded to the center atom counts as one domain, even if it is bonded by a double or triple bond. Count atoms and lone pairs to determine the number of domains, do not count bonds. The number of bonded atoms plus lone pairs always adds up to the total number of domains.
