Seatwork on Shapes of Bacteria

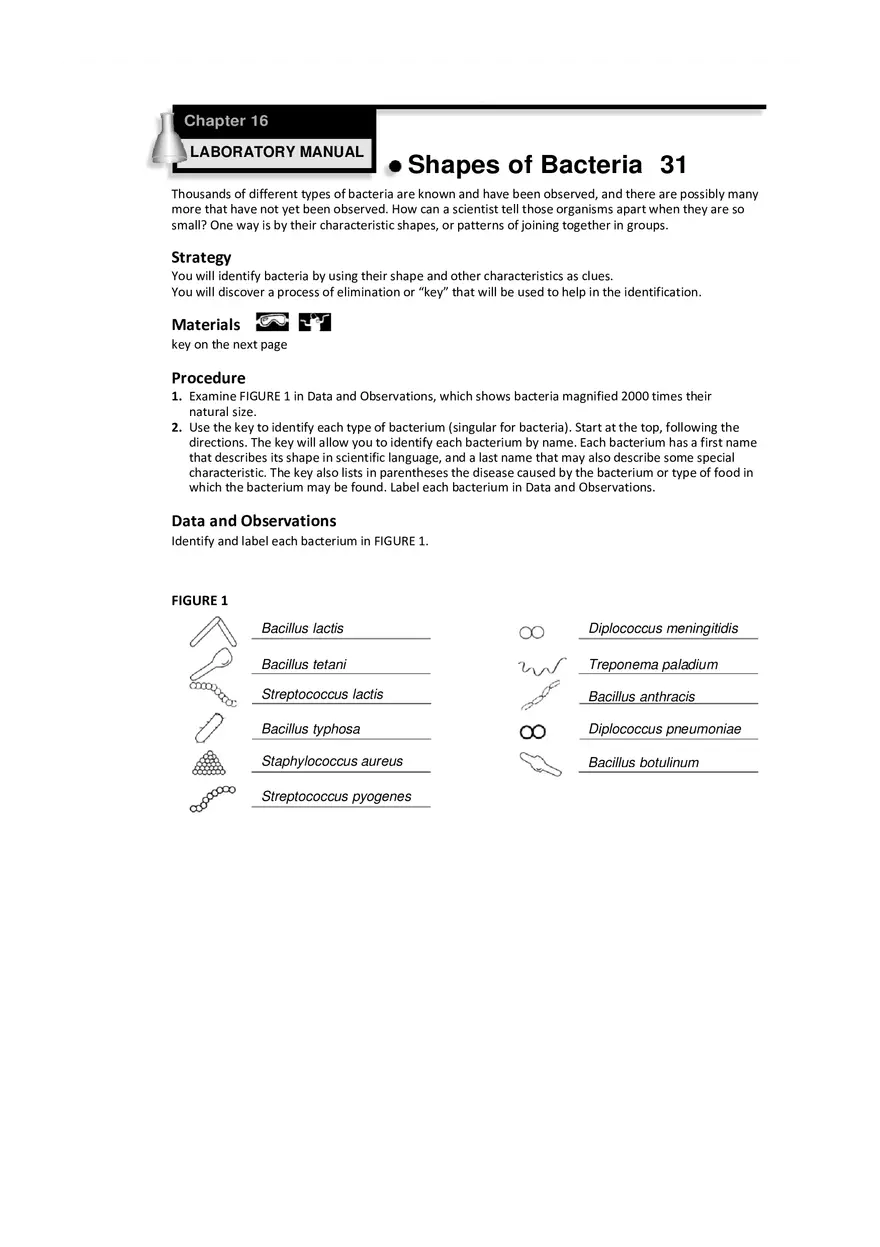

Chapter 16 LABORATORY MANUAL Shapes of Bacteria 31 Thousands of different types of bacteria are known and have been observed, and there are possibly many more that have not yet been observed. How can a scientist tell those organisms apart when they are so small? One way is by their characteristic shapes, or patterns of joining together in groups. Strategy You will identify bacteria by using their shape and other characteristics as clues. You will discover a process of elimination or “key” that will be used to help in the identification. Materials key on the next page Procedure 1. Examine FIGURE 1 in Data and Observations, which shows bacteria magnified 2000 times their natural size. 2. Use the key to identify each type of bacterium (singular for bacteria). Start at the top, following the directions. The key will allow you to identify each bacterium by name. Each bacterium has a first name that describes its shape in scientific language, and a last name that may also describe some special characteristic. The key also lists in parentheses the disease caused by the bacterium or type of food in which the bacterium may be found. Label each bacterium in Data and Observations. Data and Observations Identify and label each bacterium in FIGURE 1. FIGURE 1 Bacillus lactis Diplococcus meningitidis Bacillus tetani Treponema paladium Streptococcus lactis Bacillus anthracis Bacillus typhosa Diplococcus pneumoniae Staphylococcus aureus Bacillus botulinum Streptococcus pyogenes KEY If the general shape of a bacterium is round, go to I, skip II and III. If the general shape of a bacterium is rod (long and straight), go to II, skip I and III. If the general shape of a bacterium is spiral, go to III, skip II and I. Section I If in pairs, go to a or a’ only. If in chains, go to b or b’ only. If in clumps, go to c only. a—without a heavy cover-Diplococcus meningitidis (spinal meningitis) a’— with a heavy cover (capsule)-Diplococcus pneumoniae (Pneumonia) b— large in size-Streptococcus pyogenes (Tonsillitis) b’—small in size-Streptococcus lactis-(Buttermilk) c—Staphylococcus aureus (Boils) Section II If in chains, go to d only. If in pairs, go to e only. If single, go to f or f’ or f”. d— Bacillus anthracis (Anthrax) e— Bacillus lactis (Sauerkraut) f—with hairs (flagella)-Bacillus typhosa (Typhoid fever) f’—with a bulge (spore) in the middle-Bacillus botulinum (Botulism poisoning) f”—with a bulge at the end-Bacillus tetani (Tetanus) Section III Treponema palladium (Syphilis) Questions and Conclusions 1. What part of the word is the same for all bacteria found in Section I? coccus This word refers to the shape of a bacterium. The shape is circular / spherical 2. The word “diplo-” when placed in front of a bacterium name must mean In pairs (doubled or twice) 3. The word “strepto-” when placed in front of a bacterium name must mean arranged in chains / twisted chain 4. The word “staphylo-” when placed in front of a bacterium name must mean 5. What word is the same for all bacteria found in Section II? Bacillus This word refers to the shape of a bacterium. The shape is rod-like arranged in clumps 6. Some bacteria produce chemicals that provide food with a certain taste. Name two such foods. The foods such as sauerkraut which is fermented by Bacillus lactis and buttermilk which is fermented by Bacillus lactis are the examples of such foods fermented by some bacteria. Strategy Check ✓ Can you use the key to identify bacteria by their shape and other characteristics? ✓ Can you understand how the use of scientific names helps to describe certain features of bacteria?
