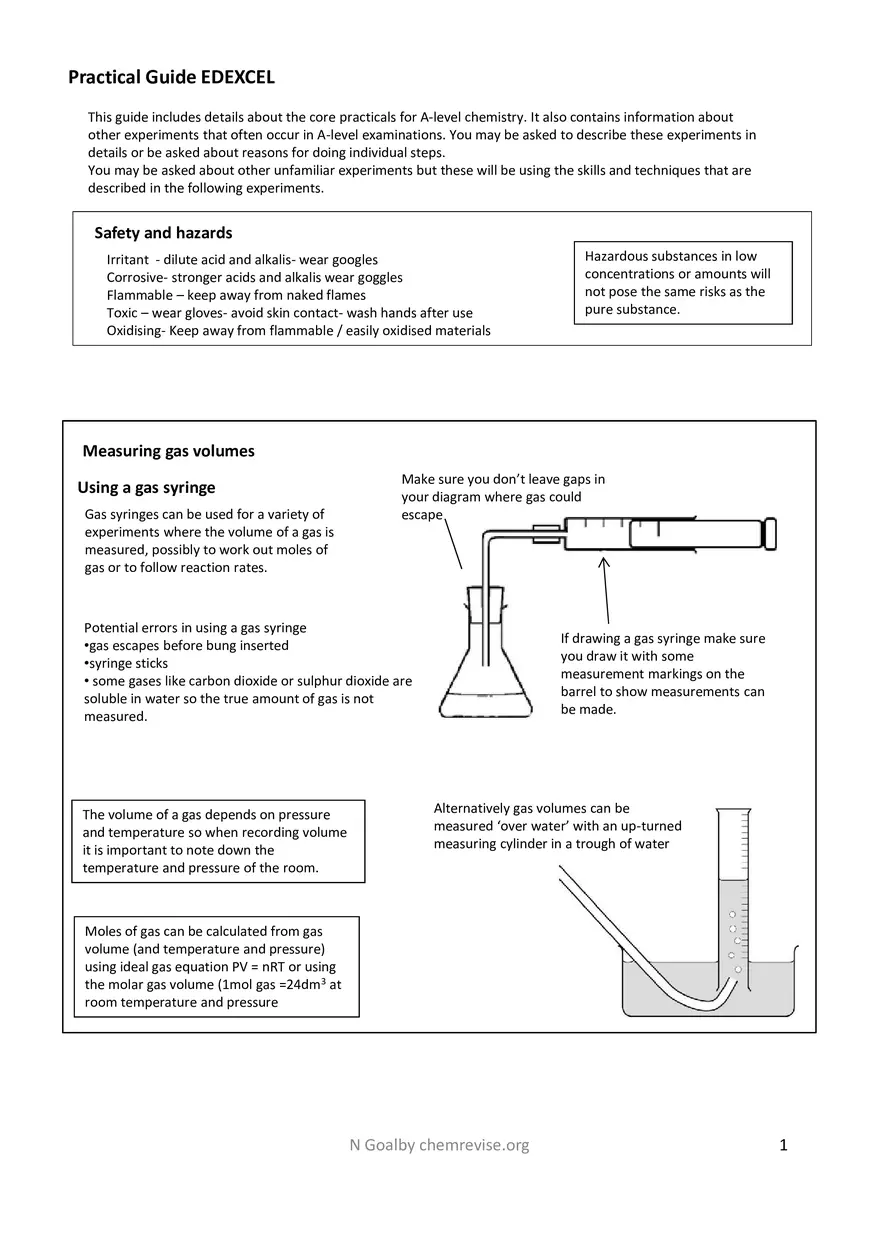

Practical Guide EDEXCEL This guide includes details about the core practicals for A-level chemistry. It also contains information about other experiments that often occur in A-level examinations. You may be asked to describe these experiments in details or be asked about reasons for doing individual steps. You may be asked about other unfamiliar experiments but these will be using the skills and techniques that are described in the following experiments. Safety and hazards Irritant - dilute acid and alkalis- wear googles Corrosive- stronger acids and alkalis wear goggles Flammable – keep away from naked flames Toxic – wear gloves- avoid skin contact- wash hands after use Oxidising- Keep away from flammable / easily oxidised materials Hazardous substances in low concentrations or amounts will not pose the same risks as the pure substance. Measuring gas volumes Using a gas syringe Gas syringes can be used for a variety of experiments where the volume of a gas is measured, possibly to work out moles of gas or to follow reaction rates. Make sure you don’t leave gaps in your diagram where gas could escape Potential errors in using a gas syringe •gas escapes before bung inserted •syringe sticks • some gases like carbon dioxide or sulphur dioxide are soluble in water so the true amount of gas is not measured. The volume of a gas depends on pressure and temperature so when recording volume it is important to note down the temperature and pressure of the room. If drawing a gas syringe make sure you draw it with some measurement markings on the barrel to show measurements can be made. Alternatively gas volumes can be measured ‘over water’ with an up-turned measuring cylinder in a trough of water Moles of gas can be calculated from gas volume (and temperature and pressure) using ideal gas equation PV = nRT or using the molar gas volume (1mol gas =24dm3 at room temperature and pressure N Goalby chemrevise.org 1 Detailed method 1. Measure 30 cm3 of 1 mol dm⁻3 ethanoic acid and transfer to a conical flask. 2. Attach conical flask to gas syringe or use collection over water method (see previous page) 3. Measure the mass of a weighing bottle with approximately 0.05 g of calcium carbonate 4. Add the calcium carbonate to the conical flask- quickly resealing the bung so no gas escapes 5. Measure the final total volume of gas 6. Reweigh the empty weighing bottle test tube from step 3 7. Repeat the experiment several more times, increasing the mass of calcium carbonate by about 0.05 g each time. Volume of CO2 in cm3 Core Practical 1:Measure the molar volume of a gas Mass of CaCO3 in g Analysis From the graph read the volume of CO2 given off with 0.25 g CaCO3 Work out the moles of CaCO3 in 0.25g = 0.25/100.1 = 2.5 x 10-3 Assume the moles of CO2 = moles of CaCO3 Work out molar volume of CO2 = volume of CO2/ moles of CO2 Method for using a gas syringe to calculate the Mr of propanone 1. Extract 0.20 cm3 of propanone into a hypodermic syringe and then measure the mass of this syringe 2. using hand protection, remove a gas syringe from the oven and note the volume of air already in the barrel – about 5 cm3. 3. inject the propanone through the self-seal cap into the barrel. The plunger will move straight away. 4. Put the gas syringe back into the oven. 5. Measure the mass of the empty hypodermic syringe immediately. 6. After a few minutes measure the volume of the gas in the gas syringe, record the temperature of the oven shelf and the pressure of the room. Example 1 : 0.150g of a volatile liquid was injected into a sealed gas syringe. The gas syringe was placed in an oven at 70oC at a pressure of 100kPa and a volume of 80cm3 was measured. What is the Mr of the volatile liquid ? (R = 8.31) moles = PV/RT = 100 000 x 0.00008 / (8.31 x 343) 100 kPa = 100 000 Pa 80 cm3 = 0.00008 m3 = 0.00281 mol Mr = mass/moles = 0.15 / 0.00281 = 53.4 g mol-1 N Goalby chemrevise.org 2 This method could be used for measuring mass loss in various thermal decomposition reactions and also for mass gain when reacting magnesium in oxygen. Heating in a crucible The water of crystallisation in calcium sulphate crystals can be removed as water vapour by heating as shown in the following equation. CaSO4.xH2O(s) → CaSO4(s) + xH2O(g) Method. •Weigh an empty clean dry crucible and lid . •Add 2g of hydrated calcium sulphate to the crucible and weigh again •Heat strongly with a Bunsen for a couple of minutes •Allow to cool •Weigh the crucible and contents again •Heat crucible again and reweigh until you reach a constant mass ( do this to ensure reaction is complete). Large amounts of hydrated calcium sulphate, such as 50g, should not be used in this experiment as the decomposition is likely to be incomplete. The crucible needs to be dry otherwise a wet crucible would give an inaccurate result. It would cause mass loss to be too large as the water would be lost when heating. The lid improves the accuracy of the experiment as it prevents loss of solid from the crucible but should be loose fitting to allow gas to escape. Small amounts of the solid , such as 0.100 g, should not be used in this experiment as the percentage uncertainties in weighing will be too high. Example 2. 3.51 g of hydrated zinc sulphate were heated and 1.97 g of anhydrous zinc sulphate were obtained. Use these data to calculate the value of the integer x in ZnSO4.xH2O Calculate the mass of H2O = 3.51 – 1.97 = 1.54g Calculate moles of = 1.97 ZnSO4 161.5 Calculate moles of = 1.54 H2O 18 =0.085 = 0.0122 Calculate ratio of mole of 0.0122 = ZnSO4 to H2O 0.0122 =1 = 0.085 0.0122 =7 X=7 N Goalby chemrevise.org 3 Core practical 2. Make up a volumetric solution and carry out a simple acid–base titration Making a solution • • • • Weigh the sample bottle containing the required mass of solid on a 2 dp balance Transfer to beaker Reweigh empty sample bottle Record the difference in mass Alternatively the known mass of solid in the weighing bottle could be transferred to beaker, washed and washings added to the beaker. • Add 100cm3 of distilled water to the beaker. Use a glass rod to stir to help dissolve the solid. •Sometimes the substance may not dissolve well in cold water so the beaker and its contents could be heated gently until all the solid had dissolved. Pour solution into a 250cm3 graduated flask via a funnel. Rinse beaker and funnel and add washings from the beaker and glass rod to the volumetric flask. • make up to the mark with distilled water using a dropping pipette for last few drops. • Invert flask several times to ensure uniform solution. • • Remember to fill so the bottom of the meniscus sits on the line on the neck of the flask. With dark liquids like potassium manganate it can be difficult to see the meniscus. Shake the volumetric flask thoroughly to ensure a uniform concentration A graduated flask has one mark on the neck which the level to fill to get the accurate volume. Do not heat or put hot solutions in the volumetric flask because the heat would cause the flask to expand and the volume would then be incorrect. Graduated/volumetric flask Measuring mass accurately: In many experiments the best method for measuring mass is 1. Measure mass on 2 or 3d.p. balance of a weighing bottle with the required quantity of solid in it 2. Empty mass into reaction vessel/flask 3. Reweigh the now empty weighing bottle 4. Subtract the mass of the empty weighing bottle from the first reading to give exact of mass actually added. Dilutions Diluting a solution •Pipette 25cm3 of original solution into a 250cm3 volumetric flask •make up to the mark with distilled water using a dropping pipette for last few drops. • Invert flask several times to ensure uniform solution. Using a volumetric pipette is more accurate than a measuring cylinder because it has a smaller uncertainty Use a teat pipette to make up to the mark in volumetric flask to ensure volume of solution accurately measured and one doesn’t go over the line N Goalby chemrevise.org 4 Titrations Core Practical 3: Make up a volumetric solution and carry out a simple acid–base titration General Method •rinse equipment (burette with acid, pipette with alkali, conical flask with distilled water) •pipette 25 cm3 of alkali into conical flask •touch surface of alkali with pipette ( to ensure correct amount is added) •adds acid solution from burette •make sure the jet space in the burette is filled with acid •add a few drops of indicator and refer to colour change at end point •phenolphthalein [pink (alkali) to colourless (acid): end point pink colour just disappears] [use if NaOH is used] •methyl orange [yellow (alkali) to red (acid): end point orange] [use if HCl is used] •use a white tile underneath the flask to help observe the colour change •add acid to alkali whilst swirling the mixture and add acid drop wise at end point •note burette reading before and after addition of acid •repeats titration until at least 2 concordant results are obtained- two readings within 0.1 of each other Titrations are done often to find out the concentration of one substance by reacting it with another substance of known concentration. They are often done with neutralisation reactions, but can be done with redox reactions. burette One substance (generally the one we don’t know the concentration) is put in the conical flask. It is measured using a volumetric pipette. The other substance is placed in the burette conical flask However, the standard phrase: titrate solution A with solution B means that A should be in the conical flask and B should be in the burette. A conical flask is used in preference to a beaker because it is easier to swirl the mixture in a conical flask without spilling the contents. Detailed Method for Titration pipette Make sure bottom of meniscus is on line on neck of pipette Using the pipette •rinse pipette with substance to go in it (often alkali). •pipette 25 cm3 of solution A into conical flask. The volumetric pipette will have a mark on its neck to show the level to fill to. The bottom of the meniscus should sit on this line. •touch surface of solution with pipette ( to ensure correct amount is added). A small amount of solution will be left in the pipette at this stage. The calibration of the pipette will take into account this effect. It should not be forced out. N Goalby chemrevise.org 5 Using the burette The burette should be rinsed out with substance that will be put in it. If it is not rinsed out the acid or alkali added may be diluted by residual water in the burette or may react with substances left from a previous titration. This would lead to the concentration of the substance being lowered and a larger titre being delivered. Don’t leave the funnel in the burette because small drops of liquid may fall from the funnel during the titration leading to a false burette reading (would give a lower titre volume) make sure the jet space in the burette is filled with the solution and air bubbles are removed. If the jet space in the burette is not filled properly prior to commencing the titration it will lead to errors if it then fills during the titration, leading to a larger than expected titre reading. Read the bottom of the meniscus on the burette This is reading 9.00cm3 Even though a burette has marking reading to 0.1cm 3, the burette readings should always be given to 2dp either ending in 0.00 or 0.05. 0.05cm3 is the volume of 1 drop of solution delivered from a burette and so this is the smallest difference in readings that can be measured. If the bottom of the meniscus sits on a line it should end with a 0.00 as in the above example 9.00cm3. If the meniscus sits between two lines it should end 0.05. e.g. if the bottom of the meniscus sits between the lines marked 9.1 and 9.2, you should record 9.15 Adding indicator Add a few drops of indicator and refer to colour change at end point phenolphthalein If acid is added from the burette the colour change would be pink (alkali) to colourless (acid): end point pink colour just disappears [use with titrations using strong alkalis e.g. NaOH ] Indicators are generally weak acids so only add a few drops of them. If too much is added they will affect the titration result Methyl orange Methyl orange is a suitable indicator for neutralisation reactions where strong acids are used. It is red in acid and yellow in alkali. It is orange at the end point. Methyl orange Alkali colour phenolphthalein Alkali colour phenolphthalein acid colour N Goalby Methyl orange end point Methyl orange acid colour Use a white tile underneath the flask to help observe the colour change chemrevise.org 6 Add solution from burette whilst swirling the mixture and add drop-wise at end point Distilled water can be added to the conical flask during a titration to wash the sides of the flask so that all the acid on the side is washed into the reaction mixture to react with the alkali. It does not affect the titration reading as water does not react with the reagents or change the number of moles of acid added. note burette reading before and after addition of solution repeats titration until at least 2 concordant results are obtained- two readings within 0.1 of each other Only distilled water should be used to wash out conical flasks between titrations because it does not add any extra moles of reagents A single titration could be flawed. Repeating allows for anomalous titres to be spotted and discounted Recording results •Results should be clearly recorded in a table •Result should be recorded in full (i.e. both initial and final readings) •Record titre volumes to 2dp (0.05 cm3) Titration number 1 2 3 Initial burette reading (cm3 ) 0.50 2.50 1.55 Final burette reading (cm3 ) 24.50 27.00 25.95 Titre (cm3 ) 24.00 24.50 24.40 lf 2 or 3 values are within 0.10cm3 and therefore concordant or close then we can say results are accurate and repeatable and the titration technique is good and consistent Working out average titre results Only make an average of the concordant titre results Average titre = (24.50+ 24.40)/2 = 24.45 Safety precautions Common Titration Equations CH3CO2H + NaOH  CH3CO2-Na+ + H2O Acids and alkalis are corrosive (at low concentrations acids are irritants) Wear eye protection and gloves If spilled immediately wash affected parts after spillage H2SO4 + 2NaOH  Na2SO4 +2H2O HCl + NaOH  NaCl +H2O NaHCO3 + HCl  NaCl + CO2 + H2O If substance is unknown treat it as potentially toxic and wear gloves. Testing batches In quality control it will be necessary to do titrations/testing on several samples as the amount/concentration of the chemical being tested may vary between samples. N Goalby Na2CO3 + 2HCl 2NaCl + CO2 + H2O Titrating mixtures If titrating a mixture to work out the concentration of an active ingredient it is necessary to consider if the mixture contains other substances that have acid base properties. If they don’t have acid base properties we can titrate with confidence. chemrevise.org 7 Uncertainty Readings and Measurements Readings the values found from a single judgement when using a piece of equipment Measurements the values taken as the difference between the judgements of two values (e.g. using a burette in a titration) In general, if uncertainty is not indicated on apparatus, the following assumptions are made: For an analogue scaleThe uncertainty of a reading (one judgement) is at least ±0.5 of the smallest scale reading. The uncertainty of a measurement (two judgements) is at least ±1 of the smallest scale reading. - If the apparatus has a digital scale, the uncertainty is  the resolution of the apparatus in each measurement Calculating Apparatus Uncertainties Each type of apparatus has a sensitivity uncertainty •balance  0.001 g (if using a 3 d.p. balance) •volumetric flask  0.1 cm3 •25 cm3 pipette  0.1 cm3 •burette (start & end readings and end point )  0.15 cm3 Calculate the percentage error for each piece of equipment used by % uncertainty =  uncertainty x 100 Measurement made on apparatus e.g. for burette % uncertainty = 0.15/average titre result x100 To calculate the maximum total percentage apparatus uncertainty in the final result add all the individual equipment uncertainties together. Reducing uncertainties in a titration Replacing measuring cylinders with pipettes or burettes which have lower apparatus uncertainty will lower the error. To reduce the uncertainty in a burette reading it is necessary to make the titre a larger volume. This could be done by: increasing the volume and concentration of the substance in the conical flask or by decreasing the concentration of the substance in the burette. Reducing uncertainties in measuring mass Using a more accurate balance or a larger mass will reduce the uncertainty in weighing a solid Weighing sample before and after addition and then calculating difference will ensure a more accurate measurement of the mass added. Calculating the percentage difference between the actual value and the calculated value If we calculated an Mr of 203 and the real value is 214, then the calculation is as follows: Calculate difference 214-203 = 11 % = 11/214 x100 =5.41% Uncertainty of a measurement using a burette. If the burette used in the titration had an uncertainty for each reading of +/– 0.05 cm3 then during a titration two readings would be taken so the uncertainty on the titre volume would be +/– 0.10 cm3 . To decrease the apparatus uncertainties you can either decrease the sensitivity uncertainty by using apparatus with a greater resolution (finer scale divisions ) or you can increase the size of the measurement made. If looking at a series of measurements in an investigation, the experiments with the smallest readings will have the highest experimental uncertainties. If the %uncertainty due to the apparatus < percentage difference between the actual value and the calculated value then there is a discrepancy in the result due to other errors. If the %uncertainty due to the apparatus > percentage difference between the actual value and the calculated value then there is no discrepancy and all errors in the results can be explained by the sensitivity of the equipment. N Goalby chemrevise.org 8 Core practical 4: Investigation of the rates of hydrolysis of some halogenoalkanes Testing for halogenoalkanes method • Arrange three test tubes in a row and add three drops of halogenoalkane in the sequence 1-chlorobutane, 1bromobutane, 1-iodobutane. • Add 4 cm3 of 0.02 M silver nitrate to each halogenoalkane. • Without delay, put all three test tubes simultaneously in a hot water bath. • Note the order in which precipitates appear Comparing the rate of hydrolysis of halogenoalkanes reaction Hydrolysis is defined as the splitting of a molecule ( in this case a haloalkane) by a reaction with water Water is a poor nucleophile but it can react slowly with haloalkanes in a substitution reaction CH3CH2X + H2O  CH3CH2OH + X- + H+ Aqueous silver nitrate is added to a haloalkane and the halide leaving group combines with a silver ion to form a SILVER HALIDE PRECIPITATE. The precipitate only forms when the halide ion has left the haloalkane and so the rate of formation of the precipitate can be used to compare the reactivity of the different haloalkanes. The quicker the precipitate is formed, the faster the substitution reaction and the more reactive the haloalkane The rate of these substitution reactions depends on the strength of the C-X bond . The weaker the bond, the easier it is to break and the faster the reaction. N Goalby CH3CH2I + H2O  CH3CH2OH + I- + H+ Ag+ (aq) + I-(aq)  AgI (s) - yellow precipitate The iodoalkane forms a precipitate with the silver nitrate first as the C-I bond is weakest and so it hydrolyses the quickest AgI (s) - yellow precipitate AgBr(s) – cream precipitate AgCl(s) – white precipitate chemrevise.org forms faster 9 Core practical 5. Oxidation of an alcohol Partial Oxidation of Primary Alcohols H Reaction: primary alcohol  aldehyde Reagent: potassium dichromate (VI) solution and dilute sulphuric acid. Conditions: (use a limited amount of dichromate) warm gently and distil out the aldehyde as it forms: H H H H C C C H H H O OH CH3CH2CH2OH + [O] propan-1-ol H + [O] H H H C C H H  H + H2O CH3CH2CHO + H2O propanal C H Ethanal Observation: the orange dichromate ion (Cr2O72-) reduces to the green Cr 3+ ion + H2O C C H O O + [O] H O SAFETY You must wear gloves when handling solid potassium dichromate(Vl) since it is highly toxic and a category 2 carcinogen; it is also an irritant. Avoid inhaling any dust. Concentrated sulphuric acid is corrosive. Detailed Method: The partial oxidation of propan-1-ol This experiment uses a limited quantity of oxidising agent (0.01 mol) and the product is distilled from the reaction mixture immediately it is formed. In this way we hope to achieve a partial oxidation of propan-1-ol.    Place about 10 cm3 of dilute sulphuric acid in a flask and add about 3g of potassium dichromate(VI) and 2 or 3 anti-bumping granules. Shake the contents of the flask until solution is complete (do not warm). Add 1.5 cm3 of propan-1-ol in drops from a dropping pipette, shaking the flask so as to mix the contents, and then assemble distillation apparatus as shown below Gently heat and slowly distil 2 cm3 of liquid into a test tube, taking care that none of the reaction mixture splashes over. Distillation In general used as separation technique to separate an organic product from its reacting mixture. Need to collect the distillate of the approximate boiling point range of the desired liquid. thermometer Note the bulb of the thermometer should be at the T junction connecting to the condenser to measure the correct boiling point Liebig condenser Note the water goes in the bottom of the condenser to go against gravity. This allows more efficient cooling and prevents back flow of water. Electric heaters are often used to heat organic chemicals. This is because organic chemicals are normally highly flammable and could set on fire with a naked flame. It’s important to be able to draw and label this apparatus accurately. Don’t draw lines between flask, adaptor and condenser. Water out Heat Round bottomed flask N Goalby chemrevise.org Water in 10 Reflux: Full Oxidation of Primary Alcohols Reaction: primary alcohol  carboxylic acid Reagent: potassium/sodium dichromate(VI) solution and sulphuric acid Conditions: use an excess of dichromate, and heat under reflux: (distil off product after the reaction has finished) OH H H H C C H H OH + H2O propan-1-ol O H Observation: the orange dichromate ion (Cr2O72-) reduces to the green Cr 3+ ion O  C Propanoic acid + 2[O] CH3CH2CH2OH + 2[O] O CH3CH2COOH + H2O Propanoic acid Detailed method  Measure 5 cm3 of water into a boiling tube. Add 6 g of sodium dichromate(VI), shake and set aside to dissolve.  Put about 1.5 cm3 propan-1-ol into a 50 cm3 round bottomed flask and add about 5 cm3 of water and two or three anti-bumping granules. Put a condenser on the flask for reflux, as shown in figure below.  Add 2 cm3 of concentrated sulphuric acid down the condenser in drops from a dropping pipette. While the mixture is still warm, start to add your sodium dichromate(VI) solution down the condenser in drops from a dropping pipette. The energy released from the reaction should make the mixture boil. Add the solution a drop at a time so that the mixture continues to boil without any external heating.  When all the sodium dichromate(VI) solution has been added, use a low Bunsen burner flame to keep the mixture boiling for 10 minutes, not allowing any vapour to escape.  At the end of that time remove the Bunsen burner and arrange the apparatus for distillation. Gently distil 2-3 cm3 of liquid into a test tube. Reflux Reflux is used when heating organic reaction mixtures for long periods. The condenser prevents organic vapours from escaping by condensing them back to liquids. The reactant vapours of volatile compound are condensed and returned to the reaction mixture. Water out condenser Never seal the end of the condenser as the build up of gas pressure could cause the apparatus to explode. This is true of any apparatus where volatile liquids are heated including the distillation set up Anti-bumping granules are added to the flask in both distillation and reflux to prevent vigorous, uneven boiling by making small bubbles form instead of large bubbles It’s important to be able to draw and label this apparatus accurately. • Don’t draw lines between flask and condenser. • Don’t have top of condenser sealed • Condenser must have outer tube for water that is sealed at top and bottom • Condenser must have two openings for water in and out that are open N Goalby chemrevise.org Water in Round bottomed flask Heat 11 Fractional Distillation: In the laboratory • • • • • • • • Fractional distillation is used to separate liquids with different boiling points Heat the flask, with a Bunsen burner or electric mantle This causes vapours of all the components in the mixture to be produced. Vapours pass up the fractionating column. The vapour of the substance with the lower boiling point reaches the top of the fractionating column first. The thermometer should be at or below the boiling point of the most volatile substance. The vapours with higher boiling points condense back into the flask. Only the most volatile vapour passes into the condenser. The condenser cools the vapours and condenses to a liquid and is collected. condenser fractionating column flask N Goalby chemrevise.org 12 Purifying an organic liquid General method • Put the distillate of impure product into a separating funnel • Sodium hydrogencarbonate will neutralise any remaining reactant acid. wash product by adding either • sodium hydrogencarbonate solution , shaking and releasing the pressure from CO2 produced. • Saturated sodium chloride solution Sodium chloride will help separate the organic layer from the aqueous layer •Allow the layers to separate in the funnel, and then run and discard the aqueous layer. •Run the organic layer into a clean, dry conical flask and add three spatula loads of drying agent (e.g. anhydrous sodium sulphate, calcium chloride) to dry the organic liquid. When dry the organic liquid should appear clear. • Carefully decant the liquid into the distillation flask The layer with lower density will be the upper layer. This is usually the organic layer The drying agent should •be insoluble in the organic liquid • not react with the organic liquid Decant means carefully pour off organic liquid leaving the drying agent in the conical flask •Distill to collect pure product Separating funnel Distillation In general used as separation technique to separate an organic product from its reacting mixture. Need to collect the distillate of the approximate boiling point range of the desired liquid. thermometer Note the bulb of the thermometer should be at the T junction connecting to the condenser to measure the correct boiling point Liebig condenser Note the water goes in the bottom of the condenser to go against gravity. This allows more efficient cooling and prevents back flow of water. Electric heaters are often used to heat organic chemicals. This is because organic chemicals are normally highly flammable and could set on fire with a naked flame. It’s important to be able to draw and label this apparatus accurately. Don’t draw lines between flask, adaptor and condenser. Water out Heat Round bottomed flask N Goalby chemrevise.org Water in 13 CORE PRACTICAL 6: Chlorination of 2-methylpropan-2-ol using concentrated hydrochloric acid Detailed method for preparing and purifying a halogenoalkane from an alcohol 1. 2. Measure 8 cm3 of 2-methylpropan-2-ol in a measuring cylinder and measure its mass. Pour the 2-methylpropan-2-ol into a separating funnel, and reweigh the measuring cylinder to find the mass of the 2-methylpropan-2-ol used. 3. In a fume cupboard, add 20 cm3 of concentrated hydrochloric acid to the separating funnel, in portions of 3cm3. After each portion, stopper the flask and invert it several times . Open the tap when doing this to release the pressure. 4. Allow the separating funnel to stand in the fume cupboard for about 20 minutes. Gently shake it at intervals. 5. After 20 minutes, allow the layers to separate in the funnel. Open the tap and remove the lower aqueous layer. Dispose of this layer. 6. Add sodium hydrogencarbonate solution in 2 cm3 portions to the separating funnel. This neutralises any remaining acid. Shake the funnel after each addition, and release the pressure. Continue until no more bubbles of CO2 are seen. 7. Allow the layers to separate in the funnel. Again remove and pour away the lower aqueous layer. Run off the organic layer into a clean conical flask and add two spatulas of anhydrous sodium sulfate. Stopper the flask, shake the contents and allow this to stand until the liquid becomes clear. This step dries the organic liquid. 8. Decant the liquid into a weighed clean distillation flask. 9. Distil the liquid by holding a 250ml beaker half-full of boiled water around the flask using standard distillation set up. Collect the liquid that distils in the range 47-53oC. 10. Measure the mass of the 2-chloro-2-methylpropane collected. Detailed method for preparing and purifying Cyclohexene from cyclohexanol OH Conc H3PO4 +H2O a) Pour about 20 cm3 of cyclohexanol into a weighed 50 cm3 pear-shaped flask. Reweigh the flask and record the mass of cyclohexanol. b) Using a plastic graduated dropping pipette, carefully and with frequent shaking, add to the flask approximately 8 cm3 of concentrated phosphoric acid. c ) Add a few anti-bumping granules to the flask and assemble the distillation apparatus, so that the contents of the flask may be distilled. Heat the flask gently, distilling over any liquid which boils below 100 °C. d) Pour the distillate into a separating funnel and add 50 cm 3 of saturated sodium chloride solution. Shake the mixture and allow the two layers to separate. e) run off the lower layer into a beaker and then transfer the upper layer, which contains the crude cyclohexene, into a small conical flask. f) Add a few lumps of anhydrous calcium chloride or anhydrous sodium sulfate(VI) or anhydrous magnesium sulfate to the crude cyclohexene to remove water. Stopper the flask, shake the contents and allow this to stand until the liquid becomes clear. g) Decant the liquid into a clean, dry, weighed sample container. h) Reweigh the container, calculate the mass of dry cyclohexene produced N Goalby chemrevise.org 14 Detailed Method for Preparing and Purifying an Ester Propyl ethanoate can be made in the laboratory from propan1-ol and ethanoic acid. The equation for the reaction is CH3COOH + CH3CH2CH2OH  CH3COOCH2CH2CH3 + H2O Procedure 1. Propan-1-ol (50 cm3) and ethanoic acid (50 cm3) are mixed thoroughly in a 250 cm3 round-bottomed flask. 2. Concentrated sulfuric acid (10 cm3) is added drop by drop to the mixture, keeping the contents of the flask well-shaken and cooled in an ice-water bath. 3. When the acid has all been added, a reflux condenser is fitted to the flask and the mixture gently boiled over an electric heating mantle for about 30 minutes. 4. The mixture is cooled, and the apparatus rearranged for distillation. The crude ester (about 60 cm3) is distilled off. 5. The distillate is placed in a separating funnel and shaken with about half its volume of 30% sodium carbonate solution, with the pressure being released at intervals. The lower aqueous layer is then discarded. Sulfuric acid is a catalyst Adding conc H2SO4 is an exothermic reaction- to prevent uncontrolled boiling over add drop by drop and cool In reflux the reactant vapours of volatile compound are condensed and returned to the reaction mixture. The reaction is slow so it is heated for 30 minutes The electric heating mantle allows for controlled heating and stops flammable vapour lighting Sodium carbonate reacts with unreacted acid and remaining catalyst still present after distillation. The reaction produces CO2 so the pressure of gas needs to be released. The upper layer is organic because it has a lower density than water 6. The crude ester is shaken in a separating funnel with about half its volume of 50% calcium chloride solution, which removes unreacted alcohol. The lower layer is discarded. 7. The ester is run into a clean, dry flask containing some anhydrous calcium chloride and swirled. 8. The ester is filtered into a clean, dry flask, with a few antibumping granules, and distilled. The fraction boiling between 100°C and 103°C is collected. Calcium chloride is a drying agent. The liquid will appear clear when dry. Anti-bumping granules are added to the prevent vigorous, uneven boiling by making small bubbles form instead of large bubbles Measuring boiling point Purity of liquid can be determined by measuring a boiling point. This can be done in a distillation set up or by simply boiling a tube of the sample in an heating oil bath. If the liquid is pure it will have the boiling point referred to in data books. If impure the boiling point tends to be higher than the pure liquid Pressure should be noted as changing pressure can change the boiling point of a liquid To get a correct measure of boiling point the thermometer should be above the level of the surface of the boiling liquid and be measuring the temperature of the saturated vapour. Measuring boiling point is not the most accurate method of identifying a substance as several substances may have the same boiling point. N Goalby chemrevise.org 15 CORE PRACTICAL 7 + 15: Analysis of some inorganic unknowns Testing for cations Flame tests Lithium : Scarlet red Sodium : Yellow Potassium : lilac Rubidium : red Caesium: blue Magnesium: no flame colour (energy emitted of a wavelength outside visible spectrum) Calcium: brick red Strontium: red Barium: apple green Method Use a nichrome wire ( nichrome is an unreactive metal and will not give out any flame colour) Clean the wire by dipping in concentrated hydrochloric acid and then heating in Bunsen flame If the sample is not powdered then grind it up. Dip wire in solid and put in Bunsen flame and observe flame Method: adding dilute sodium hydroxide a) Place about 10 drops of 0.1 mol dm–3 metal ion solution in a test tube. b) Add about 10 drops of 0.6 mol dm–3 sodium hydroxide solution, mixing well. c) Continue to add sodium hydroxide solution, dropwise with gentle shaking, until in excess This test can be used on group 2 metal ions and transition metal ions. Results for Group 2 The results in this test are an application of the trend that group II hydroxides become more soluble down the group. Magnesium hydroxide is classed as insoluble in water and will appear as a white precipitate. A suspension of magnesium hydroxide in water will appear slightly alkaline (pH 9) so some hydroxide ions must therefore have been produced by a very slight dissolving. Simplest Ionic Equation for formation of Mg(OH)2 (s) Mg2+ (aq) + 2OH-(aq)  Mg(OH)2 (s). Calcium hydroxide is classed as partially soluble in water and will appear as a white precipitate (it may need more sodium hydroxide to be added before it appears compared to a magnesium solution.) Simplest Ionic Equation for formation of Ca(OH)2 (s) A suspension of calcium hydroxide in water will appear more alkaline (pH 11) than magnesium hydroxide as it is more soluble so there will be more hydroxide ions present in solution. Ca2+ (aq) + 2OH-(aq)  Ca(OH)2 (s). Strontium and barium salts will not form a hydroxide precipitate on addition of sodium hydroxide due to their high solubility. The solutions will be highly alkaline Results for transition metals Copper(II) solutions form a blue ppt, Cobalt(II) solutions form a blue ppt, iron (II) solutions form a green ppt iron (III) solutions form a brown ppt Chromium (III) solutions form a green ppt which dissolves in excess to form a green solution [Cu(H2O)6]2+ (aq) + 2OH- (aq)  Cu(H2O)4(OH)2 (s) + 2H2O (l) [Co(H2O)6]2+ (aq) + 2OH- (aq)  Co(H2O)4(OH)2 (s) + 2H2O (l) [Fe(H2O)6]2+ (aq) + 2OH- (aq)  Fe(H2O)4(OH)2 (s) + 2H2O (l) [Fe(H2O)6]3+ (aq) + 3OH- (aq)  Fe(H2O)3(OH)3 (s) + 3H2O (l) [Cr(H2O)6]3+(aq) + 3OH- (aq)  Cr(H2O)3(OH)3 (s) + 3H2O (l) Cr(H2O)3(OH)3 (s) + 3OH- (aq ) [Cr(OH)6]3- (aq) + 3H2O(l) Testing for Ammonium ions (NH4+) a) Place about 10 drops of 0.1 mol dm–3 ammonium chloride in a test tube. b) Add about 10 drops of 0.4 mol dm–3 sodium hydroxide solution. Shake the mixture. c) Warm the mixture in the test tube gently using a water bath. d) Test the fumes released from the mixture by holding a piece of damp red litmus paper in the mouth of the test tube. N Goalby chemrevise.org Results: alkaline ammonia gas is released which turns the red litmus paper blue 16 CORE PRACTICAL 7+15: Analysis of some inorganic unknowns Testing for anions: – Group 7 (halide ions), OH– , CO32– , SO42– Testing for presence of a sulfate ion BaCl2 solution acidified with hydrochloric acid is used as a reagent to test for sulphate ions. If acidified Barium Chloride is added to a solution that contains sulfate ions a white precipitate of Barium Sulfate forms. Other anions should give a negative result which is no precipitate forming. Simplest ionic equation Ba2+ (aq) + SO42-(aq)  BaSO4 (s). The hydrochloric acid is needed to react with carbonate impurities that are often found in salts which would form a white Barium carbonate precipitate and so give a false result. You could not used sulphuric acid because it contains sulphate ions and so would give a false positive result. Fizzing due to CO2 would be observed if a carbonate was present. 2HCl + Na2CO3  2NaCl + H2O + CO2 Testing for presence of halide ions with silver nitrate. This reaction is used as a test to identify which halide ion is present. The test solution is made acidic with nitric acid, and then Silver nitrate solution is added dropwise. The role of nitric acid is to react with any carbonates present to prevent formation of the precipitate Ag2CO3. This would mask the desired observations 2 HNO3 + Na2CO3  2 NaNO3 + H2O + CO2 Fluorides produce no precipitate Chlorides produce a white precipitate Ag+(aq) + Cl- (aq)  AgCl(s) Bromides produce a cream precipitate Ag+(aq) + Br- (aq)  AgBr(s) Iodides produce a pale yellow precipitate Ag+(aq) + I- (aq)  AgI(s) The silver halide precipitates can be treated with ammonia solution to help differentiate between them if the colours look similar: Silver chloride dissolves in dilute ammonia to form a complex ion AgCl(s) + 2NH3(aq) [Ag(NH3)2]+ (aq) + Cl- (aq) Colourless solution Silver bromide dissolves in concentrated ammonia to form a complex ion AgBr(s) + 2NH3(aq) [Ag(NH3)2]+ (aq) + Br - (aq) Colourless solution Silver iodide does not react with ammonia – it is too insoluble. Testing for presence of carbonate ions Add any dilute acid and observe effervescence. Bubble gas through limewater to test for CO2 – will turn limewater cloudy 2HCl + Na2CO3  2NaCl + H2O + CO2 Fizzing due to CO2 would be observed if a carbonate was present Testing for presence of a hydroxide ions Alkaline hydroxide ions will turn red litmus paper blue N Goalby chemrevise.org 17 Reactions of halide salts with concentrated sulphuric acid. The Halides show increasing power as reducing agents as one goes down the group. This can be clearly demonstrated in the various reactions of the solid halides with concentrated sulphuric acid. Explanation of differing reducing power of halides A reducing agent donates electrons. The reducing power of the halides increases down group 7 They have a greater tendency to donate electrons. This is because as the ions get bigger it is easier for the outer electrons to be given away as the pull from the nucleus on them becomes smaller. Know the equations and observations of these reactions very well. Fluoride and Chloride F- and Cl- ions are not strong enough reducing agents to reduce the S in H 2SO4. No redox reactions occur. Only acid-base reactions occur. NaF(s) + H2SO4(l) NaHSO4(s) + HF(g) Observations: White steamy fumes of HF are evolved. NaCl(s) + H2SO4(l)  NaHSO4(s) + HCl(g) These are acid –base reactions and not redox reactions. H2SO4 plays the role of an acid (proton donor). Observations: White steamy fumes of HCl are evolved. Bromide Br- ions are stronger reducing agents than Cl- and F- and after the initial acid-base reaction reduce the Sulphur in H2SO4 from +6 to + 4 in SO2 Observations: White steamy fumes of HBr are evolved. Acid- base step: NaBr(s) + H SO (l)  NaHSO (s) + HBr(g) 2 4 4 Red fumes of Bromine are also evolved and a colourless, acidic gas SO2 Redox step: 2HBr + H2SO4  Br2(g) + SO2(g) + 2H2O(l) Ox ½ equation 2Br -  Br2 + 2eRe ½ equation H2SO4 + 2 H+ + 2 e-  SO2 + 2 H2O Reduction product = sulphur dioxide Note the H2SO4 plays the role of acid in the first step producing HBr and then acts as an oxidising agent in the second redox step. Iodide I- ions are the strongest halide reducing agents. They can reduce the Sulphur from +6 in H2SO4 to + 4 in SO2, to 0 in S and -2 in H2S. NaI(s) + H2SO4(l)  NaHSO4(s) + HI(g) 2HI + H2SO4  I2(s) + SO2(g) + 2H2O(l) 6HI + H2SO4  3 I2 + S (s) + 4 H2O (l) 8HI + H2SO4 4I2(s) + H2S(g) + 4H2O(l) Ox ½ equation 2I -  I2 + 2eRe ½ equation H2SO4 + 2 H+ + 2 e-  SO2 + 2 H2O Re ½ equation H2SO4 + 6 H+ + 6 e-  S + 4 H2O Re ½ equation H2SO4 + 8 H+ + 8 e-  H2S + 4 H2O Observations: White steamy fumes of HI are evolved. Black solid and purple fumes of Iodine are also evolved A colourless, acidic gas SO2 A yellow solid of Sulphur H2S (Hydrogen Sulphide), a gas with a bad egg smell, Reduction products = sulphur dioxide, sulphur and hydrogen sulphide Note the H2SO4 plays the role of acid in the first step producing HI and then acts as an oxidising agent in the three redox steps Often in exam questions these redox reactions are worked out after first making the half-equations N Goalby chemrevise.org 18 More on Insoluble salts and Precipitation reactions Insoluble salts can be made by mixing appropriate solutions of ions so that a precipitate is formed Barium nitrate (aq) + sodium sulfate (aq)  Barium Sulfate (s) + sodium nitrate (aq) These are called precipitation reactions. A precipitate is a solid There are some common rules for solubility of salts. No syllabus requires these to be learnt but a good chemist does know them. Soluble salts All sodium, potassium and ammonium salts All nitrates Most chlorides, bromides, iodides Most sulfates Sodium, potassium and ammonium carbonates Sodium, potassium and ammonium hydroxides Insoluble salts Silver, lead chlorides, bromides iodides Lead sulfate strontium and barium sulfate Most other carbonates Most other hydroxides When making an insoluble salt, normally the salt would be removed by filtration, washed with distilled water to remove soluble impurities and then dried on filter paper Filtration Filter paper residue Buchner funnel Filter funnel Filter paper Buchner flask (has thicker glass walls than a normal flask to cope with the vacuum ) filtrate Air outlet to water pump This is vacuum filtration. The apparatus is connected to a water pump which will produce a vacuum. Use if larger amounts of solid are formed. This is gravitational filtration. Use if small amounts of solid are formed. For both types of filtration apparatus AQA expect filter paper to be drawn on the diagram Writing Ionic equations for precipitation reactions We usually write ionic equations to show precipitation reactions. Ionic equations only show the ions that are reacting and leave out spectator ions. Take full equation Separate (aq) solutions into ions Cancel out spectator ions leaving the simplest ionic equation Spectator ions are ions that are • Not changing state • Not changing oxidation number Ba(NO3)2 (aq) + Na2SO4 (aq)  BaSO4 (s) + 2 NaNO3 (aq) Ba2+(aq) + 2NO3-(aq) + 2Na+ (aq)+ SO42-(aq)  BaSO4(s) + 2 Na+(aq)+ 2NO3- (aq) Ba2+ (aq) + SO42-(aq)  BaSO4 (s). N Goalby chemrevise.org 19 CORE PRACTICAL 7+15: Analysis of some organic unknowns Tests for alcohol, aldehyde, alkene and carboxylic acid Functional group test for an Alkene To 0.5 cm3 of bromine water in a test tube add a few drops of the unknown and shake. Observation: alkenes should decolourise bromine water Reaction with 2,4-dinitro phenylhydrazine 2,4-DNP reacts with both aldehydes and ketones. The product is an orange precipitate, It can be used as a test for a carbonyl group in a compound. Use 2,4-DNP to identify if the compound is a carbonyl. Then to differentiate an aldehyde from a ketone use Tollen’s reagent. The melting point of the crystal formed can be used to help identify which carbonyl was used. Take the melting point of orange crystals product from 2,4-DNP. Compare melting point with known values in database Functional group tests for an Aldehyde Tollen’s Reagent Reagent: Tollen’s Reagent formed by mixing aqueous ammonia and silver nitrate. The active substance is the complex ion of [Ag(NH 3)2]+ . Conditions: heat gently Reaction: aldehydes only are oxidised by Tollen’s reagent into a carboxylic acid and the silver(I) ions are reduced to silver atoms Observation: with aldehydes, a silver mirror forms coating the inside of the test tube. Ketones result in no change. CH3CHO + 2Ag+ + H2O  CH3COOH + 2Ag + 2H+ Tollen's reagent method Place 1 cm3 of silver nitrate solution in each of two clean boiling tubes. Then add one drop of sodium hydroxide solution to form a precipitate of silver oxide. Add ammonia solution dropwise until a clear, colourless solution is formed. Add a few drops of the unknown and leave in the water bath for a few minutes. Fehling’s solution Reagent: Fehling’s Solution containing blue Cu 2+ ions. Conditions: heat gently Reaction: aldehydes only are oxidised by Fehling’s Solution into a carboxylic acid and the copper (II) ions are reduced to copper(I) oxide . Observation: Aldehydes :Blue Cu 2+ ions in solution change to a red precipitate of Cu2O. Ketones do not react Fehling's solution method Place 1 cm3 of Fehling's A into each of two boiling tubes, and then add Fehling's B until the blue precipitate redissolves. Add a few drops of the unknown and leave in the water bath for a few minutes. CH3CHO + 2Cu2+ + 2H2O  CH3COOH + Cu2O + 4H+ N Goalby chemrevise.org 20 Reaction of carbonyls with iodine in presence of alkali Reagents: Iodine and sodium hydroxide Only carbonyls with a methyl group next to the C=O bond will do this reaction. Ethanal is the only aldehyde that reacts. More commonly is H3C methyl ketones. Conditions: warm very gently The product CHI3 is a yellow crystalline precipitate with an antiseptic smell O C H This reaction is called the Iodoform test Functional group test for a Carboxylic acid To 0.5 cm3 of your unknown solution in a test tube add a small amount of sodium carbonate solid and observe. Result carboxylic acids will fizz with sodium carbonate due to CO2 produced The presence of a carboxylic acid can be tested by addition of sodium carbonate. It will fizz and produce carbon dioxide 2CH3CO2H + Na2CO3  2CH3CO2-Na+ + H2O + CO2 Summary of Identification of Functional Groups by test-tube reactions Functional group Reagent Result Alkene Bromine water Orange colour decolourises Alcohols + carboxylic acids PCl5 Misty fumes of HCl produced Alcohols, phenols, carboxylic acids Sodium metal Efferevesence due to H2 gas Carbonyls 2,4,DNP Orange/red crystals produced Aldehyde Fehlings solution Blue solution to red precipitate Aldehyde Tollens Reagent Silver mirror formed Carboxylic acid Sodium carbonate Effervescence of CO2 evolved 1o 2o alcohol and aldehyde Sodium dichromate and sulphuric acid Orange to green colour change chloroalkane Warm with silver nitrate Slow formation of white precipitate of AgCl Acyl chloride Silver nitrate Vigorous reaction- steamy fumes of HCl- rapid white precipitate of AgCl N Goalby chemrevise.org 21 CORE PRACTICAL 8: To determine the enthalpy change of a reaction using Hess’s Law Measuring the Enthalpy Change for a Reaction Experimentally Calorimetric method For a reaction in solution we use the following equation energy change = mass of solution x heat capacity x temperature change Q (J) = m (g) x cp (J g-1K-1) x T ( K) This equation will only give the energy for the actual quantities used. Normally this value is converted into the energy change per mole of one of the reactants. (The enthalpy change of reaction, H) Calorimetric method One type of experiment is one in which substances are mixed in an insulated container and the temperature rise measured. This could be a solid dissolving or reacting in a solution or it could be two solutions reacting together General method  washes the equipment (cup and pipettes etc) with the solutions to be used  dry the cup after washing  put polystyrene cup in a beaker for insulation and support  Measure out desired volumes of solutions with volumetric pipettes and transfer to insulated cup  clamp thermometer into place making sure the thermometer bulb is immersed in solution  measure the initial temperatures of the solution or both solutions if 2 are used. Do this every minute for 2-3 minutes  At minute 3 transfer second reagent to cup. If a solid reagent is used then add the solution to the cup first and then add the solid weighed out on a balance.  If using a solid reagent then use ‘before and after’ weighing method  stirs mixture (ensures that all of the solution is at the same temperature)  Record temperature every minute after addition for several minutes If the reaction is slow then the exact temperature rise can be difficult to obtain as cooling occurs simultaneously with the reaction To counteract this we take readings at regular time intervals and extrapolate the temperature curve/line back to the time the reactants were added together. We also take the temperature of the reactants for a few minutes before they are added together to get a better average temperature. If the two reactants are solutions then the temperature of both solutions need to be measured before addition and an average temperature is used. Errors in this method • energy transfer from surroundings (usually loss) • approximation in specific heat capacity of solution. The method assumes all solutions have the heat capacity of water. • neglecting the specific heat capacity of the calorimeter- we ignore any energy absorbed by the apparatus. • reaction or dissolving may be incomplete or slow. • Density of solution is taken to be the same as water. N Goalby chemrevise.org Read question carefully. It may be necessary to describe: • Method • Drawing of graph with extrapolation • Description of the calculation 22 Calculating the enthalpy change of reaction, Hr from experimental data General method 1. Using q= m x cp x T calculate energy change for quantities used 2. Work out the moles of the reactants used 3. Divide q by the number of moles of the reactant not in excess to give H 4. Add a sign and unit (divide by a thousand to convert Jmol -1 to kJmol-1 The heat capacity of water is 4.18 J g-1K-1. In any reaction where the reactants are dissolved in water we assume that the heat capacity is the same as pure water. Also assume that the solutions have the density of water, which is 1g cm-3. Eg 25cm3 will weigh 25 g Example 3. Calculate the enthalpy change of reaction for the reaction where 25.0cm3 of 0.20M copper sulphate was reacted with 0.01mol (excess of zinc). The temperature increased 7.0oC . Step 1: Calculate the energy change for the amount of reactants in the test tube. Q = m x cp x T Q = 25 x 4.18 x 7 Note the mass is the mass of the copper sulphate solution only. Do not include mass of zinc powder. Q = 731.5 J Step 2 : calculate the number of moles of the reactant not in excess. moles of CuSO4 = conc x vol = 0.2 x 25/1000 = 0.005 mol If you are not told what is in excess, then you need to work out the moles of both reactants and work out using the balanced equation which one is in excess. Step 3 : calculate the enthalpy change per mole which is often called H (the enthalpy change of reaction) H = Q/ no of moles = 731.5/0.005 = 146300 J mol-1 = 146 kJ mol-1 to 3 sf Finally add in the sign to represent the energy change: if temp increases the reaction is exothermic and is given a minus sign e.g. –146 kJ mol-1 Remember in these questions: sign, unit Example 4. 25.0cm3 of 2.0M HCl was neutralised by 25.0cm3 of 2.0M NaOH. The Temperature increased 13.5oC What was the energy change per mole of HCl? Step 1: Calculate the energy change for the amount of reactants in the test tube. Q = m x cp x T Note the mass equals the mass of acid + the mass of alkali, as they are both solutions. Q = 50 x 4.18 x13.5 Q = 2821.5 J Step 2 : calculate the number of moles of the HCl. moles of HCl = conc x vol = 2 x 25/1000 = 0. 05 mol Step 3 : calculate H the enthalpy change per mole which might be called the enthalpy change of neutralisation H = Q/ no of moles = 2821.5/0.05 = 564300 J mol-1 = -56.4 kJ mol-1 to 3 sf Exothermic and so is given a minus sign Remember in these questions: sign, unit, N Goalby chemrevise.org 23 Often Hess’s law cycles are used to measure the enthalpy change for a reaction that cannot be measured directly by experiments. Instead alternative reactions are carried out that can be measured experimentally. H reaction CuSO4 (s) + 5H2O (l) -66.1 kJ mol-1 CuSO4.5H2O (s) + aq + aq +11kJ mol-1 CuSO4 (aq) H reaction + 11kJmol-1 = -66.1 kJ mol-1 H reaction= -66.1 - 11 = -77.1 kJ mol-1 This Hess’s law is used to work out the enthalpy change to form a hydrated salt from an anhydrous salt. This cannot be done experimentally because it is impossible to add the exact amount of water without the solid dissolving and it is not easy to measure the temperature change of a solid. Instead both salts are dissolved in excess water to form a solution of copper sulphate. The temperature changes can be measured for these reactions. Detailed method for measuring enthalpy change of solution of anhydrous copper(II) sulfate 1. Weigh out between 3.90 g and 4.10 g of anhydrous copper(II) sulfate in a dry weighing bottle. The precise mass should be recorded. 2. Using a volumetric pipette, place 25 cm3 of deionised water into a polystyrene cup and record its temperature at the beginning (t=0), start the timer and then record the temperature again every minute, stirring the liquid continuously. 3. At the fourth minute, add the powdered anhydrous copper(II) sulfate rapidly to the water in the polystyrene cup and continue to stir, but do not record the temperature. 4. Reweigh the empty weighing bottle 5. At the fifth minute and for every minute up to 15 minutes, stir and record the temperature of the solution in the polystyrene cup. 6. Plot a graph of temperature (on the y-axis) against time. Draw two separate best fit lines; one, which joins the points before the addition, and one, which joins the points after the addition, extrapolating both lines to the fourth minute. 7. Use your graph to determine the temperature change at the fourth minute, which theoretically should have occurred immediately on addition of the solid. 8. Using q= m x cp x T calculate energy change = 20 x 4.18 x T 9. Calculate Hsolution by dividing q by number of moles of anhydrous copper(II) sulfate in mass added The above method is then repeated using hydrated copper sulfate. The two Hsolution can then be used to calculate the H for the enthalpy change of forming a hydrated salt as in the example above N Goalby chemrevise.org 24 Measuring Enthalpies of Combustion using Flame Calorimetry Enthalpies of combustion can be calculated by using calorimetry. Generally the fuel is burnt and the flame is used to heat up water in a metal cup. Need to measure • mass of spirit burner before and after • Temperature change of water • Volume of water in cup Errors in this method • energy losses from calorimeter • Incomplete combustion of fuel • Incomplete transfer of energy • Evaporation of fuel after weighing • Heat capacity of calorimeter not included • Measurements not carried out under standard conditions as H2O is gas, not liquid, in this experiment Example 5. Calculate the enthalpy change of combustion for the reaction where 0.65g of propan-1-ol was completely combusted and used to heat up 150g of water from 20.1 to 45.5 oC Step 1: Calculate the energy change used to heat up the water. Q = m x cp x T Q = 150 x 4.18 x 25.4 Q = 15925.8 J Note the mass in this equation is the mass of water in the calorimeter and not the alcohol Step 2 : calculate the number of moles of alcohol combusted. moles of propan-1-ol = mass/ Mr = 0.65 / 60 = 0.01083 mol Step 3 : calculate the enthalpy change per mole which is called Hc (the enthalpy change of combustion) H = Q/ no of moles = 15925.8/0.01083 = 1470073 J mol-1 = 1470 kJ mol-1 to 3 sf Finally add in the sign to represent the energy change: if temp increases the reaction is exothermic and is given a minus sign eg –1470 kJ mol-1 N Goalby chemrevise.org Remember in these questions: sign, unit 25 CORE PRACTICAL 9: Finding the Ka value for a weak acid – titration curves Constructing a pH curve 1. Transfer 25cm3 of acid to a conical flask with a volumetric pipette Measure initial pH of the acid with a pH meter Add alkali in small amounts (2cm3) noting the volume added Stir mixture to equalise the pH Measure and record the pH to 1 d.p. Repeat steps 3-5 but when approaching endpoint add in smaller volumes of alkali Add until alkali in excess 2. 3. 4. 5. 6. 7. Strong acid – Strong base Calibrate meter first by measuring known pH of a buffer solution. This is necessary because pH meters can lose accuracy on storage. Most pH probes are calibrated by putting probe in a set buffer (often pH 4) and pressing a calibration button/setting for that pH. Sometimes this is repeated with a second buffer at a different pH Can also improve accuracy by maintaining constant temperature e.g. HCl and NaOH pH 13 Long steep part from around 3 to 9 7 The equivalence point lies at the mid point of the extrapolated vertical portion of the curve. pH at equivalence point = 7 1 cm3 of base 25 Weak acid – Strong base Half neutralisation volume e.g. CH3CO2H and NaOH For weak acids At the start the pH rises quickly and then levels off. The flattened part is called the buffer region and is formed because a buffer solution is made Ka= [HA (aq)] At ½ the neutralisation volume the [HA] = [A-] pH 13 So Ka= [H+] and pKa = pH Equivalence point >7 7 Steep part of curve >7 (around 7 to 9) pH starts near 3 1 ½V If we know the Ka we can then work out the pH at ½ V or vice versa. If a pH curve is plotted then the pH of a weak acid at half neutralisation (½ V) will equal the pKa cm3 of base V Weak acid – Weak base Strong acid – Weak base pH [H+ (aq)][A- (aq)] e.g. HCl and NH3 13 e.g. CH3CO2H and NH3 pH 13 Steep part of curve <7 (around 4 to 7) 7 No Steep part of the curve 7 Equivalence point < 7 1 1 25 25 cm3 of base 3 cm of base N Goalby chemrevise.org 26 CORE PRACTICAL 10: Investigating some electrochemical cells Method • Clean the zinc and copper foils with emery before use. Degrease the metal using some cotton wool and propanone. • Place the copper strip into a 100 cm3 beaker with about 50 cm3 of 1 mol dm–3 CuSO4 solution. • Place the zinc strip into a 100 cm3 beaker with about 50 cm3 of 1 mol dm–3 ZnSO4 solution. • Use a strip of filter paper soaked in saturated potassium nitrate solution for the salt bridge • Connect the Cu(s)|Cu2+ (aq) and Zn(s)|Zn2+ (aq) halfcells by connecting the metals using the crocodile clips and leads provided to the voltmeter Electron flow Salt bridge copper electrode Zinc electrode 1M copper sulphate solution 1M zinc sulphate solution Salt Bridge The salt bridge is used to connect up the circuit. The free moving ions conduct the charge. A salt bridge is usually made from a piece of filter paper (or material) soaked in a salt solution, usually Potassium Nitrate. It can also be a glass U tube containing a salt solution plugged with cotton wool The salt should be unreactive with the electrodes and electrode solutions.. E.g. potassium chloride would not be suitable for copper systems because chloride ions can form complexes with copper ions. A wire is not used because the metal wire would set up its own electrode system with the solutions. Method If one or both of the half cells do not contain a conducting metal, we must use an inert platinum electrode. Set up a copper half cell using a similar arrangement to the previous one. Combine it with a Fe2+/Fe3+ half-cell with a platinum electrode. The half cell should have a mixture of acidified 1.0M iron(II) sulphate solution and an equal volume of 0.5M iron(III) sulphate solution as the electrolyte. Use a fresh salt bridge. A platinum electrode is used because it is unreactive and can conduct electricity copper electrode Salt bridge KNO3 (aq) Pt electrode 1M copper sulphate solution 1M FeSO4 and 0.5 M Fe2(SO4)3 Note: in the electrode system containing two solutions it is necessary to use a platinum electrode and both ion solutions must be of a 1M concentration so [Fe2+] = 1M and [Fe3+] = 1M . N Goalby chemrevise.org 27 CORE PRACTICAL 11: Redox titration Manganate Redox Titrations The purple colour of manganate can make it The redox titration between Fe2+ with MnO4– (purple) is a very common difficult to see the bottom of meniscus in exercise. This titration is self indicating because of the significant colour the burette. change from reactant to product. If the manganate is in the burette then the end point of the titration will be the first permanent MnO4-(aq) + 8H+ (aq) + 5Fe2+ (aq)  Mn2+ (aq) + 4H2O (l) + 5Fe3+ (aq) pink colour. Purple colourless Colourless  purple . Detailed Procedure : how much iron in iron tablets • • • • • Weigh accurately two 'ferrous sulphate' tablets. Grind up the tablets with a little 1M sulphuric acid, using a pestle and mortar. Through a funnel, transfer the resulting paste into a 100cm3 volumetric flask. Use further small volumes of 1 M sulphuric acid to rinse the ground-up tablets into the flask. Then add sufficient 1M sulphuric acid to make up the solution to exactly 100cm 3. Stopper the flask and shake it to make sure that all the contents are thoroughly mixed. They will not all be in solution although the Fe 2+ ions which were present in the tablets will be dissolved. Titrate 10.0 cm3 portions of the solution with 0.0050 M potassium manganate(VII). The end-point is marked by the first permanent purple colour. Choosing correct acid for manganate titrations. The acid is needed to supply the 8H+ ions. Some acids are not suitable as they set up alternative redox reactions and hence make the titration readings inaccurate. Only use dilute sulphuric acid for manganate titrations. Insufficient volumes of sulphuric acid will mean the solution is not acidic enough and MnO 2 will be produced instead of Mn2+. MnO4-(aq) + 4H+(aq) + 3e-  MnO2 (s) + 2H2O The brown MnO2 will mask the colour change and lead to a greater (inaccurate) volume of Manganate being used in the titration. Using a weak acid like ethanoic acid would have the same effect as it cannot supply the large amount of hydrogen ions needed (8H+). It cannot be conc HCl as the Cl- ions would be oxidised to Cl2 by MnO4- as the Eo MnO4-/Mn2+ > Eo Cl2/ClMnO4-(aq) + 8H+(aq) + 5e–  Mn2+ (aq) + 4H2O(l) E+1.51V Cl2(aq) +2e–  2Cl–(aq) E +1.36V This would lead to a greater volume of manganate being used and poisonous Cl 2 being produced. It cannot be nitric acid as it is an oxidising agent. It oxidises Fe 2+ to Fe3+ as Eo NO3-/HNO2> Eo Fe3+/Fe2+ NO3- (aq) + 3H+(aq) + 2e–  HNO2(aq) + H2O(l) Eo +0.94V Fe3+ (aq)+e–  Fe2+ (aq) Eo +0.77 V This would lead to a smaller volume of manganate being used. Example 6 Manganate titration A 2.41g nail made from an alloy containing iron is dissolved in 100cm3 acid. The solution formed contains Fe(II) ions. 10cm3 portions of this solution are titrated with potassium manganate (VII) solution of 0.02M. 9.80cm3 of KMnO4 were needed to react with the solution containing the iron. What is the percentage of Iron by mass in the nail? MnO4-(aq) + 8H+(aq) + 5Fe2+  Mn2+(aq) + 4H2O + 5Fe3+ Step1 : find moles of KMnO4 moles = conc x vol 0.02 x 9.8/1000 = 1.96x10-4 mol Step 2 : using balanced equation find moles Fe2+ in 10cm3 = moles of KMnO4 x 5 = 9.8x10-4 mol Step 3 : find moles Fe2+ in 100cm3 = 9.8x10-4 mol x 10 = 9.8x10-3 mol Step 4 : find mass of Fe in 9.8x10-3 mol mass= moles x RAM = 9.8x10-3 x 55.8 = 0.547g Step 5 : find % mass %mass = 0.547/2.41 x100 = 22.6% N Goalby chemrevise.org 28 Other useful manganate titrations With hydrogen peroxide Ox H2O2  O2 + 2H+ + 2eRed MnO4-(aq) + 8H+(aq) + 5e-  Mn2+ (aq) + 4H2O Overall 2MnO4-(aq) + 6H+(aq) + 5H2O2  5O2 + 2Mn2+ (aq) + 8H2O With ethanedioate Ox C2O42-  2CO2 + 2eRed MnO4-(aq) + 8H+(aq) + 5e-  Mn2+ (aq) + 4H2O Overall 2MnO4-(aq) + 16H+(aq) + 5C2O42-(aq)  10CO2(g) + 2Mn2+(aq) + 8H2O(l) The reaction between MnO4- and C2O42- is slow to begin with (as the reaction is between two negative ions). To do as a titration the conical flask can be heated to 60o C to speed up the initial reaction. With Iron (II) ethanedioate both the Fe2+ and the C2O42- react with the MnO41MnO4- reacts with 5Fe2+ and 2 MnO4- reacts with 5C2O42MnO4-(aq) + 8H+(aq) + 5Fe2+  Mn2+ (aq) + 4H2O + 5Fe3+ 2MnO4-(aq) + 16H+(aq) + 5C2O42-  10CO2 + 2Mn2+ (aq) + 8H2O So overall 3MnO4-(aq) + 24H+(aq) + 5FeC2O4  10CO2 + 3Mn2+ (aq) + 5Fe3+ + 12H2O So overall the ratio is 3 MnO4- to 5 FeC2O4 Example 7 A 1.412 g sample of impure FeC2O4.2H2O was dissolved in an excess of dilute sulphuric acid and made up to 250 cm3 of solution. 25.0 cm3 of this solution decolourised 23.45 cm3 of a 0.0189 mol dm–3 solution of potassium manganate(VII). What is the percentage by mass of FeC2O4.2H2O in the original sample? Step1 : find moles of KMnO4 moles = conc x vol 0.0189 x 23.45/1000 = 4.43x10-4 mol Step 2 : using balanced equation find moles FeC2O4.2H2O in 25cm3 = moles of KMnO4 x 5/3 (see above for ratio) = 7.39x10-4 mol Step 3 : find moles FeC2O4.2H2O in 250 cm3 = 7.39x10-4 mol x 10 = 7.39x10-3 mol Step 4 : find mass of FeC2O4.2H2O in 7.39x10-3 mol mass= moles x Mr = 7.39x10-3 x 179.8 = 1.33g Step 5 ; find % mass %mass = 1.33/1.412 x100 = 94.1% EDTA titrations The formation of the stable EDTA complex with metal ions can with the choice of suitable indicator be done in a quantitative titration. [Cu(H2O)6]2+ + EDTA4-  [Cu(EDTA)]2- + 6H2O Example 8 A river was polluted with copper(II) ions. 25.0 cm3 sample of the river water was titrated with a 0.0150 mol dm–3 solution of EDTA4– , 6.45 cm3 were required for complete reaction. Calculate the concentration, in mol dm–3, of copper(II) ions in the river water. Always the same 1:1 ratio with any metal ion Step1 : find moles of EDTA4moles = conc x vol = 0.0150 x 6.45/1000 = 9.68x10-5 mol Step 2 : using balanced equation find moles Cu2+ 1:1 ratio = 9.68x10-5 mol Step 3 : find conc Cu2+ in 25cm3 = 9.68x10-5 /0.025 = 0.00387 moldm-3 N Goalby chemrevise.org 29 Core practical 12: Prepare a transition metal complex 1. Add 1.5 g of hydrated copper(II) sulfate to weighing The mass of the copper(II) sulfate is the bottle and measure the combined mass. difference between the two masses. 2. Transfer the copper (II) sulfate to a test tube and measure the mass of the empty weighing bottle. 3. Add 4 cm3 of water to the test tube 4. Place the test tube in the water bath (a beaker with freshly boiled water). 5. Stir gently to dissolve the copper(II) sulfate. 6. Remove the test tube containing copper(II) sulfate solution from the water bath 7. In a fume cupboard, add 2 cm3 of concentrated ammonia solution to the copper(II) sulfate solution Concentrated ammonia is corrosive. 8. Pour the contents of the test tube into a beaker Use in a fume cupboard and wear containing 6 cm3 of ethanol. Stir well and cool the gloves mixture in an ice bath. 9. Using a Buchner funnel and flask, filter the crystals. Wash the test tube with some cold ethanol and add the washings to the Buchner funnel. Finally, rinse the crystals with a little cold ethanol. 10. Scrape the crystals onto a fresh piece of filter paper and cover with a second piece of filter paper and Buchner press to dry the crystals. funnel 11. Measure the mass of the dry crystals Filter paper Buchner flask (has thicker glass walls than a normal flask to cope with the vacuum ) Air outlet to water pump This is vacuum filtration. The apparatus is connected to a water pump which will produce a vacuum. Use if larger amounts of solid are formed. Equation for reaction CuSO4•5H2O + 4NH3 → Cu(NH3)4SO4•H2O + 4H2O Loss of yield in this process • Crystals lost when filtering or washing • Some product stays in solution after recrystallisation • other side reactions occurring If the crystals are not dried properly the mass will be larger than expected which can lead to a percentage yield >100% N Goalby chemrevise.org 30 Investigating rates of reaction Techniques to investigate rates of reaction There are several different methods for measuring reactions rates. Some reactions can be measured in several ways measurement of the change in volume of a gas This works if there is a change in the number of moles of gas in the reaction. Using a gas syringe is a common way of following this. (CH3)2C=CH2(g) + HI(g) (CH3)3CI(g) HCOOH(aq) + Br2(aq)  2H+(aq) + 2Br - (aq) + CO2(g) Measurement of change of mass This works if there is a gas produced which is allowed to escape. Works better with heavy gases such as CO2 HCOOH(aq) + Br2(aq)  2H+(aq) + 2Br - (aq) + CO2(g) Titrating samples of reaction mixture with acid, alkali, sodium thiosulphate etc Small samples are removed from the reaction mixture, quenched (which stops the reaction) and the titrated with a suitable reagent. HCOOCH3(aq) + NaOH(aq)  HCOONa(aq) + CH3OH(aq) The NaOH could be titrated with an acid BrO3 –(aq) + 5Br –(aq) + 6H+(aq)  3Br2(aq) + 3H2O(l) The H+ could be titrated with an alkali CH3COCH3(aq) + I2(aq) → CH3COCH2I(aq) + H+(aq) + I–(aq) The I2 could be titrated with sodium thiosulphate Colorimetry. If one of the reactants or products is coloured then colorimetry can be used to measure the change in colour of the reacting mixtures H2O2(aq) + 2I- (aq) + 2H+(aq)  2H2O(l) + I2(aq) The I2 produced is a brown solution Measuring change in electrical conductivity Can be used if there is a change in the number of ions in the reaction mixture HCOOH(aq) + Br2(aq)  2H+(aq) + 2Br - (aq) + CO2(g) Measurement of optical activity. If there is a change in the optical activity through CH3CHBrCH3 (l) + OH−(aq)  CH3CH(OH)CH3 (l) + Br−(aq) the reaction this could be followed in a polarimeter N Goalby chemrevise.org 31 When we follow one experiment over time recording the change in concentration it is the continuous rate method. The gradient represents the rate of reaction. The reaction is fastest at the start where the gradient is steepest. The rate drops as the reactants start to get used up and their concentration drops. The graph will eventual become horizontal and the gradient becomes zero which represents the reaction having stopped. concentration General: Measuring the rate of reaction: by an continuous monitoring method time Measurement of the change in volume of a gas This works if there is a change in the number of moles of gas in the reaction. Using a gas syringe is a common way of following this. It works quite well for measuring continuous rate but a typical gas syringe only measures 100ml of gas so you don’t want at reaction to produce more than this volume. Quantities of reactants need to be calculated carefully. gas syringe Mg + HCl  MgCl2 +H2 The initial rate is the rate at the start of the reaction, where it is fastest. It is obtained by taking the gradient of a continuous monitoring conc vs time graph at time = zero. A measure of initial rate is preferable as we know the concentrations at the start of the reaction Typical Method • Measure 50 cm3 of the 1.0 mol dm–3 hydrochloric acid and add to conical flask. • Set up the gas syringe in the stand • Weigh 0.20 g of magnesium. • Add the magnesium ribbon to the conical flask, place the bung firmly into the top of the flask and start the timer. • Record the volume of hydrogen gas collected every 15 seconds for 3 minutes. Large Excess of reactants In reactions where there are several reactants, if the concentration of one of the reactant is kept in a large excess then that reactant will appear not to affect rate and will be pseudo-zero order . This is because its concentration stays virtually constant and does not affect rate. Continuous rate experiments Continuous rate data 0.060 [A] If half-lives are constant then the order is 1st order 0.030 This is data from one experiment where the concentration of a substance is followed throughout the experiment. This data is processed by plotting the data and calculating successive half-lives. The half-life of a first-order reaction is independent of the concentration and is constant 0.015 0.0075 t½ t½ Time (min) t½ If half-lives rapidly increase then the order is 2nd order N Goalby chemrevise.org 32 CORE PRACTICAL 13a: Rates of reaction: Following the rate of the iodine propanone reaction by a titrimetric method Propanone reacts with iodine in acidic solution (the acid is a catalyst) as shown in the equation below. CH3COCH3(aq) + I2(aq) → CH3COCH2I(aq) + H+(aq) + I–(aq) This reaction can be followed by removing small samples from the reaction mixture with a volumetric pipette. The sample is then quenched by adding excess sodium hydrogencarbonate to neutralize acid catalyst which stops the reaction. Then the sample can be titrated with sodium thiosulphate using a starch catalyst 2S2O32-(aq) + I2 (aq)  2I- (aq) + yellow/brown sol colourless sol [I2] S4O62-(aq) This reaction is zero order with respect to I2 but 1st order with respect to the propanone and acid catalyst The rate equation for the reaction is Rate = k[CH3COCH3(aq)][H+(aq)] If there is a zero order reactant there must be at least two steps in the mechanism because the rate determining step will not involve the zero order reactant Time (min) The rate determining step of this reaction must therefore contain one propanone molecule and one H+ ion forming an intermediate. The iodine will be involved in a subsequent faster step. Detailed Method 1. To a beaker add 25 cm3 of 1 mol dm−3 aqueous propanone and 25 cm3 of 1 mol dm−3 sulfuric acid. 2. Add 50 cm3 of 0.02 mol dm− 3 iodine solution. Start the clock swirl the beaker well to mix. 3. Using a 10cm3 pipette, withdraw a sample of the mixture and transfer it to a conical flask. 4. Add a spatula measure of sodium hydrogencarbonate (This stops the reaction). Record the time at which the sodium hydrogencarbonate is added. 5. Titrate the iodine present in the conical flask with 0.01 mol dm − 3 sodium thiosulfate solution. When the colour turns a pale yellow add the starch indicator. The end point is then when the mixture goes from blue to colourless. 6 Every 5 minutes withdraw another 10 cm3 sample and repeat steps 4 and 5 This method allows the order with respect to Iodine to be calculated because the propanone and acid are in large excess so their concentrations do not change during the reaction N Goalby chemrevise.org 33 CORE PRACTICAL 13b: Rates of reaction: clock Reaction The initial rate can be calculated from taking the gradient of a continuous monitoring conc vs time graph at time = zero Initial rate can also be calculated from clock reactions where the time taken to reach a fixed concentration is measured. A Common Clock Reaction (no need to learn details) Hydrogen peroxide reacts with iodide ions to form iodine. The thiosulfate ion then immediately reacts with iodine formed in the second reaction as shown below. In clock reactions there are often two successive reactions and an end point is achieved when one limited reactant runs out, resulting in a sudden colour change H2O2(aq) + 2H+(aq) + 2I–(aq) → I2(aq) + 2H2O(l) By repeating the experiment several times, varying the concentration of a reactant e.g. I–, ( keeping the other reactants at constant concentration )you can determine the order of reaction with respect to that reactant 2S2O32–(aq) + I2(aq) → 2I–(aq) + S4O62–(aq) When the I2 produced has reacted with all of the limited amount of thiosulfate ions present, excess I2 remains in solution. Reaction with the starch then suddenly forms a dark blue-black colour. A series of experiments is carried out, in which the concentration of iodide ions is varied, while keeping the concentrations of all of the other reagents the same. In each experiment the time taken (t) for the reaction mixture to turn blue is measured. The initial rate of the reaction can be represented as (1/t ) Detailed method • Put each of the chemicals in the table in separate burettes. • In each experiment, measure out required volumes of the potassium iodide, sodium thiosulphate, starch and water into a small conical flask from the burettes • Measure the hydrogen peroxide into a test tube • Pour the hydrogen peroxide from the test tube into the conical flaks and immediately start the timer. Stir the mixture. • Time until the first hint of blue/ black colour appears Experiment Sulfuric acid (H+) ml Starch ml 1 25 2 Hydrogen peroxide ml Water ml Potassium iodide(I-) ml Sodium Thiosulfate S2O32- ml 1 20 5 5 25 1 15 10 5 3 25 1 10 15 5 10 4 25 1 5 20 5 10 5 25 1 0 25 5 10 10 10 Normally to work out the rate equation we do a series of experiments where the initial concentrations of reactants are changed (one at a time) and measure the initial rate each time. Working out rate order graphically log (rate) In an experiment where the concentration of one of the reagents is changed and the reaction rate measured it is possible to calculate the order graphically gradient = n Taking rate equation Rate = k [I- ]n = change in y change in x y intercept = log K Log both sides of equation Log rate = log k + n log [Y] log [I- ] Y= c + mx A graph of log rate vs log [I- ] will yield a straight line where the gradient is equal to the order n In this experiment high concentrations with quick times will have the biggest percentage errors. N Goalby chemrevise.org 34 CORE PRACTICAL 14: Finding the activation energy of a reaction Experiment Determine the activation energy for the reaction between bromide ions and bromate(V) ions BrO3– + 5Br– + 6H+  3Br2 + 3H2O C6H5OH + 3Br2 → C6H2Br3OH + 3HBr The Bromine produced in the first reaction reacts with the phenol. When the phenol is used up, the bromine is no longer removed. The bromine then bleaches the methyl red indicator at the ‘end of the reaction’ Detailed Method 1. Pipette 10 cm3 of phenol solution and 10 cm3 of bromide/bromate solution into a boiling tube. 2. Add a few drops of methyl red indicator to the mixture. 3. Into a second boiling tube pipette 5 cm3 of sulfuric acid. 4. Place the two boiling tubes in a water bath at temperature 20oC. 5. When the substances have reached the water temperature, mix the contents into one of the boiling tubes and swirl. Start the stop clock. 6. Place the boiling tube containing the reaction mixture in the water bath. 7. Stop the clock when the methyl red indicator disappears. 8. Repeat the experiment at 30,40 50 60oC In this experiment rate is 1/time where the time is the time taken for the indicator to change colour. This is an approximation for initial rate of reaction as it does not include the change in concentration term. We can use this because we can assume the amount of phenol used in each experiment is the same and constant. The change in concentration is therefore the same for each experiment so only the time taken to reach this concentration is relevant. Analysis of results to calculate Activation Energy 1/T The Arrhenius equation can be rearranged ln (Rate) ln k = constant – Ea/(RT) k is proportional to the rate of reaction so ln k can be replaced by ln(rate) Gradient = - Ea/ R Ea = - gradient x R From plotting a graph of ln(rate) or ln k against 1/T the activation energy can be calculated from measuring the gradient of the line 1/T Example 9 Temperature T (K) 1/t Ln (1/t) 297.3 0.003364 53 0.018868 -3.9703 310.6 0.00322 24 0.041667 -3.1781 317.2 0.003153 16 0.0625 -2.7726 323.9 0.003087 12 0.083333 -2.4849 335.6 0.00298 6 0.166667 -1.7918 0.0029 -1.6 0.003 0.0031 0.0032 0.0033 x1,y1 -2.6 -3.1 -3.6 gradient = y2-y1 x2-x1 The gradient should always be -ve 0.0034 -2.1 ln (Rate) 1/T time t (s) x2,y2 -4.1 In above example gradient =-5680 Ea = - gradient x R (8.31) = - -5680 x8.31 = 47200 J mol-1 use a line of best fit use all graph paper choose points far apart on the graph to calculate the gradient The unit of Ea using this equation will be J mol-1 . Convert into kJ mol-1 by dividing 1000 Ea = +47.2 kJ mol-1 N Goalby chemrevise.org 35 Preparation of a pure organic solid and test of its purity Purifying an organic solid: Recrystallisation Used for purifying aspirin Step Reason 1. Dissolve the impure compound in a minimum volume of hot (near boiling) solvent. An appropriate solvent is one which will dissolve both compound and impurities when hot and one in which the compound itself does not dissolve well when cold. The minimum volume is used to obtain saturated solution and to enable crystallisation on cooling 2. Hot filter solution through (fluted) filter paper quickly. This step will remove any insoluble impurities and heat will prevent crystals reforming during filtration 3. Cool the filtered solution by inserting beaker in ice Crystals will reform but soluble impurities will remain in solution form because they are present in small quantities so solution is not saturated. Ice will increase the yield of crystals 4. Suction filtrate with a Buchner flask to separate out crystals The water pump connected to the Buchner flask reduces the pressure and speeds up the filtration. 5 Wash the crystals with distilled water To remove soluble impurities 6. Dry the crystals between absorbent paper Loss of yield in this process • Crystals lost when filtering or washing • Some product stays in solution after recrystallisation • other side reactions occurring If the crystals are not dried properly the mass will be larger than expected which can lead to a percentage yield >100% buchner flask N Goalby chemrevise.org 36 16. Core activity: The preparation of aspirin Detailed method for Preparation of Aspirin O CO2H CH3 C + OH O CH3 CO2H  C O O C CH3 + CH CO H 3 2 Aspirin Add to a 50 pear-shaped flask 2.0 g of 2-hydroxybenzoic acid and 4 cm3 of ethanoic anhydride. To this mixture add 5 drops of 85% phosphoric(v) acid and swirl to mix, Fit the flask with a reflux condenser and heat the mixture on a boiling water bath for about 5 minutes. Without cooling the mixture, carefully add 2 cm3 of water in one portion down the condenser. cm3 O Aspirin is made from 2-hydroxybenzoic acid which contains a phenol group. In the reaction the phenol group is turned into an ester by reacting it with the reactive ethanoic anhydride Ethanoic anhydride is used instead of acid chlorides because it is cheaper, less corrosive, less vulnerable to hydrolysis, and less dangerous to use. The excess ethanoic anhydride will hydrolyse and the contents of the flask will boil. When the vigorous reaction has ended, pour the mixture into 40 cm 3 of cold water in a 100 cm3 beaker, stir and rub the sides of the beaker with a stirring rod necessary to induce crystallisation and, finally, allow the mixture to stand in ice bath to complete crystallisation. Collect the product by suction filtration and wash it with a little water. Purification stage: recrystallisation Using a measuring cylinder, measure out 15 cm3 of ethanol into a boiling tube. Prepare a beaker half-filled with hot water from a kettle at a temperature of approximately 75 °C. Use a spatula to add the crude aspirin to the boiling tube with ethanol and place the tube in the beaker of hot water. Stir the contents of the boiling tube until all of the aspirin dissolves into the ethanol. Pour the hot solution containing dissolved aspirin through a warmed filter funnel and fluted filter paper to hot filter Then pour filtrate into 40 cm3 of water in a conical flask. Allow the conical flask to cool slowly and white needles of aspirin should separate. Cool the whole mixture in an ice bath. Filter off the purified solid under reduced pressure and allow it to dry on filter paper. Record the mass of the dry purified solid Avoid naked flames due to flammability of ethanol This step will remove any insoluble impurities and heat will prevent crystals reforming during filtration Soluble impurities will remain in solution form because they are present in small quantities so solution is not saturated. Ice will increase the yield of crystals Detailed method for Nitration Procedure Measure 2.5 cm3 of methyl benzoate into a small conical flask and then dissolve it in 5 cm3 of concentrated sulfuric acid. When the liquid has dissolved, cool the mixture in ice. Prepare the nitrating mixture by adding drop by drop 2 cm3 of concentrated sulfuric acid to 2 cm3 of concentrated nitric acid. Cool this mixture in ice as well. Now add the nitrating mixture drop by drop from a dropping pipette to the solution of methyl benzoate. Stir the mixture with a thermometer and keep the temperature below 10 °C. When the addition is complete, allow the mixture to stand at room temperature for another 15 minutes. After this time, pour the reaction mixture on to about 25 g of crushed ice and stir until all the ice has melted and crystalline methyl 3-nitrobenzoate has formed. Then use same purification method as in aspirin above N Goalby chemrevise.org Conc acids are corrosive- wear gloves The acids react together to make the NO2+ ion This reaction is exothermic so acids are kept cool and acid is added dropwise The temperature is kept low at this stage to prevent multiple substitution of nitro groups on the benzene ring 37 Measuring melting point One way of testing for the degree of purity is to determine the melting “point”, or melting range, of the sample. Thermometer with capillary tube strapped to it containing sample If the sample is very pure then the melting point will be a sharp one, at the same value as quoted in data books. If impurities are present (and this can include solvent from the recrystallisation process) the melting point will be lowered and the sample will melt over a range of several degrees Celsius Heating oil- needs to have boiling point higher than samples melting point and low flammability Melting point can be measured in an electronic melting point machine or by using a practical set up where the capillary tube is strapped to a thermometer immersed in some heating oil. In both cases a small amount of the sample is put into a capillary tube. The tube is heated up and is heated slowly near the melting point Comparing an experimentally determined melting point value with one quoted in a data source will verify the degree of purity. Steam distillation Heat Sometimes an error may occur if the temperature on the thermometer is not the same as the temperature in the actual sample tube. steam in In steam distillation steam is passed into the mixture and the product vapour is distilled off with the water and condensed Advantage of steam distillation: The product distils at a lower temperature which can prevents decomposition of the product if it has a high boiling point Water out Water in Solvent extraction Mix organic solvent and oil-water mixture in a separating funnel then separate the oil layer. Distil to separate oil from organic solvent Add anhydrous CaCl2 to clove oil to dry oil Decant to remove CaCl2 Separating funnel N Goalby chemrevise.org 38 Separation of species by thin-layer chromatography Method: Thin-layer chromatography a) Wearing gloves, draw a pencil line 1 cm above the bottom of a TLC plate and mark spots for each sample, equally spaced along line. b) Use a capillary tube to add a tiny drop of each solution to a different spot and allow the plate to air dry. c) Add solvent to a chamber or large beaker with a lid so that is no more than 1cm in depth d) Place the TLC plate into the chamber, making sure that the level of the solvent is below the pencil line. Replace the lid to get a tight seal. e) When the level of the solvent reaches about 1 cm from the top of the plate, remove the plate and mark the solvent level with a pencil. Allow the plate to dry in the fume cupboard. f) Place the plate under a UV lamp in order to see the spots. Draw around them lightly in pencil. g) Calculate the Rf values of the observed spots. Wear plastic gloves to prevent contamination from the hands to the plate pencil line –will not dissolve in the solvent tiny drop – too big a drop will cause different spots to merge Depth of solvent– if the solvent is too deep it will dissolve the sample spots from the plate lid– to prevent evaporation of toxic solvent Will get more accurate results if the solvent is allowed to rise to near the top of the plate but the Rf value can be calculated if the solvent front does not reach the top of the plate dry in a fume cupboard as the solvent is toxic UV lamp used if the spots are colourless and not visible Rf value = distance moved by amino acid distance moved by the solvent Separation by chromatography depends on the balance between solubility in the moving phase and retention in the stationary phase. A solid stationary phase separates by adsorption, A liquid stationary phase separates by relative solubility If the stationary phase was polar and the moving phase was non- polar e.g. Hexane. Then non-polar compounds would pass through the plate more quickly than polar compounds as they would have a greater solubility in the non-polar moving phase. (Think about intermolecular forces) Rf values are used to identify different substances. N Goalby chemrevise.org 39 Practical: Working out equilibrium constant Kc A common experiment is working out the equilibrium constant for an esterification reaction. Ethanol and ethanoic acid are mixed together with a sulphuric acid catalyst. CH3CO2H + CH3CH2OH Ethanoic acid Ethanol CH3CO2CH2CH3 + H2O Ethyl Ethanoate Method Part 1 Preparing the equilibrium mixture 1 Use burettes to prepare a mixture in boiling tube of carboxylic acid, alcohol, and dilute sulfuric acid. 2 Swirl and bung tube. Leave the mixture to reach equilibrium for one week Part 2 Titrating the equilibrium mixture 1 Rinse a 250 cm3 volumetric flask with distilled water. Use a funnel to transfer the contents of the boiling tube into the flask. Rinse the boiling tube with water and add the washings to the volumetric flask. 2 Use distilled water to make up the solution in the volumetric flask to exactly 250 cm 3. Stopper the flask, then invert and shake the contents thoroughly. 3 Use the pipette to transfer 25.0 cm3 of the diluted equilibrium mixture to a 250 cm3 conical flask. 4 Add 3 or 4 drops of phenolphthalein indicator to the conical flask. 5 Set up the burette with sodium hydroxide solution.. 6 Add the sodium hydroxide solution from the burette until the mixture in the conical flask just turns pink. Record this burette reading in your table. 7 Repeat the titration until you obtain a minimum of two concordant titres. The sodium hydroxide will react with the sulphuric acid catalyst and any unreacted carboxylic acid in the equilibrium mixture There are many different calculations that can be based on this experiment. Let’s look at general stages. Not all calculations will use all the stages. Working out initial amount of moles of reactants The amount of moles of alcohol and carboxylic acid can be calculated from the densities and volumes of liquids added Mass = density x volume then Moles = mass X Mr The initial amount of moles of acid catalyst used is usually determined by titrating a separate sample of catalyst with sodium hydroxide Working out equilibrium amount of moles of acid present from the titre results 39.0 cm3 of 0.400 mol dm-3 sodium hydroxide was used in the above titration. The initial moles of sulphuric acid was 5x10-4 mol. Calculate the moles of ethanoic acid present at equilibrium Amount of NaOH = vol X conc = 0.039 x 0.400 = 0.0156 mol So total amount of H+ present in 25cm3 = 0.0156 mol So total amount of H+ present in 250cm3 = 0.156 mol Total mol acid present = moles of carboxylic acid + moles of acid catalyst So Amount of carboxylic acid at equilibrium = 0.156 – (5x10-4 x 2) = 0.155 mol X 2 because H2SO4 has 2 H+ The pink colour of the phenolphthalein in the titration can fade after the end-point of the titration has been reached because the addition of sodium hydroxide may make the equilibrium shift towards the reactants N Goalby chemrevise.org 40 Working out equilibrium amount of moles of other substances Calculate the equilibrium amount of ethanol, ethyl ethanoate and water if there were initially 0.400 mol of ethanol and 0.500 mol of ethanoic acid and at equilibrium there were 0.155 mol of ethanoic acid. Amount of ethanoic acid that reacted = initial amount – equilibrium amount = 0.5 – 0.155 = 0.344mol Amount of ethanol at equilibrium = initial amount - amount that reacted = 0.400 – 0.344 = 0.056 mol Amount of ethyl ethanoate at equilibrium = initial amount + amount that formed = 0 + 0.344 = 0.344 mol The amount of water at Amount of water at equilibrium = initial amount + amount that formed equilibrium would not really be = 0 + 0.344 0 as there would be water = 0.344 mol present in the acid catalyst Calculating the equilibrium constant Finally calculate the equilibrium constant. To work out equilibrium concentrations divide the equilibrium amounts by the total volume. Then put in Kc expression Kc = [CH3CO2CH2CH3 ] [H2O] [CH3CO2H] [CH3CH2OH] In order to confirm that one week was sufficient time for equilibrium to be established in the mixture from Part 1, several mixtures could be made and left for different amount of time. If the resulting Kc is the same value then it can be concluded the time is sufficient Spectrophotometry If visible light of increasing frequency is passed through a sample of a coloured complex ion, some of the light is absorbed. The amount of light absorbed is proportional to the concentration of the absorbing species (and to the distance travelled through the solution). Some complexes have only pale colours and do not absorb light strongly. In these cases a suitable ligand is added to intensify the colour. Absorption of visible light is used in spectrometry to determine the concentration of coloured ions. method •Add an appropriate ligand to intensify colour •Make up solutions of known concentration •Measure absorption or transmission •Plot graph of absorption vs concentration •Measure absorption of unknown and compare Spectrometers contain a coloured filter. The colour of the filter is chosen to only allow the wavelengths of light through that would be most strongly absorbed by the coloured solution. Detailed method- measuring absorption of copper solutions • Take nine 100cm3 graduated flasks and pipette 20cm3 of 2M ammonia solution into each one. • Use the 0.05M solution of aqueous copper sulphate to make up solutions which are 0.005 to 0.04M [Cu(NH3)6]2+ • Mix each solution thoroughly. • Insert the red filter into the colorimeter. • Use a cuvette with distilled water to zero the colorimeter • Then put each prepared solution in cuvette and measure the absorbance of each solution. • Plot graph of absorption vs concentration • Measure absorption of unknown solution and determine its concentration from the calibration curve N Goalby chemrevise.org 41 Autocatalytic Reaction between Ethanedioate and Manganate ions Potassium manganate(VII) will oxidise ethanedioic acid (oxalic acid) to carbon dioxide and water, in the presence of an excess of acid: 2MnO4-(aq) + 6H+ (aq) + 5(CO2H)2 (aq) 2Mn2+ (aq) +10CO2 (g) + 8H2O (I) Detailed method 1. Prepare a reaction mixture according to the table, using measuring cylinders. 2. Some members of your group should use Mixture 1 and some Mixture 2. The results should then be shared. 3. Add 50 cm3 of 0.02 M potassium manganate(VII) and start timing. Shake the mixture for about half a minute to mix it well. 4. After about a minute use a pipette to withdraw a 10.0 cm3 portion of the reaction mixture and empty into a conical flask. 5. Note the time and add about 10cm3 of 0.1 M potassium iodide solution. This stops the reaction and releases iodine equivalent to the remaining manganate.(VII) ions. 6. Titrate the liberated iodine with 0.01 M sodium thiosulphate, adding a little starch solution near the end-point Record the titre of sodium thiosulphate. 7. Remove further portions every 3 or 4 minutes and titrate them in the same way. Continue until the titre is less than 3 cm3, Solution Mixture 1 Mixture 2 0.2 M ethanedioic acid 0.2 M manganese(ll) sulphate 1 M sulphuric acid Water 100cm3 100cm3 -10 cm3 90 cm3 15cm3 10cm3 75 cm3 Explanation of results The autocatalysis by Mn2+ in titrations of C2O4 2- with MnO4overall 2 MnO4- + 5 C2O42- + 16 H+  2Mn2+ + 10 CO2 + 8 H2O This is an example of autocatalysis where one of the products of the reaction can catalyse the reaction. Catalysed alternative route Step 1 4Mn2+ + MnO4- + 8 H+  5Mn3+ + 4 H2O Step 2 2Mn3+ + C2O42-  2Mn2+ + 2 CO2 The initial uncatalysed reaction is slow because the reaction is a collision between two negative ions which repel each other leading to a high activation energy. The Mn2+ ions produced act as an autocatalyst and therefore the reaction starts to speed up because they bring about the alternative reaction route with lower activation energy. The reaction eventually slows as the MnO4- concentration drops. Mixture with only reactants showing effect of autocatalysis Mixture with added catalyst Mn2+ at start Alternative method for following the reaction rate This experiment can be done by removing samples at set times and titrating to work out the concentration of MnO 4- . It could also be done by use of a spectrometer measuring the intensity of the purple colour. This method has the advantage that it does not disrupt the reaction mixture, using up the reactants and it leads to a much quicker determination of concentration. N Goalby chemrevise.org 42
