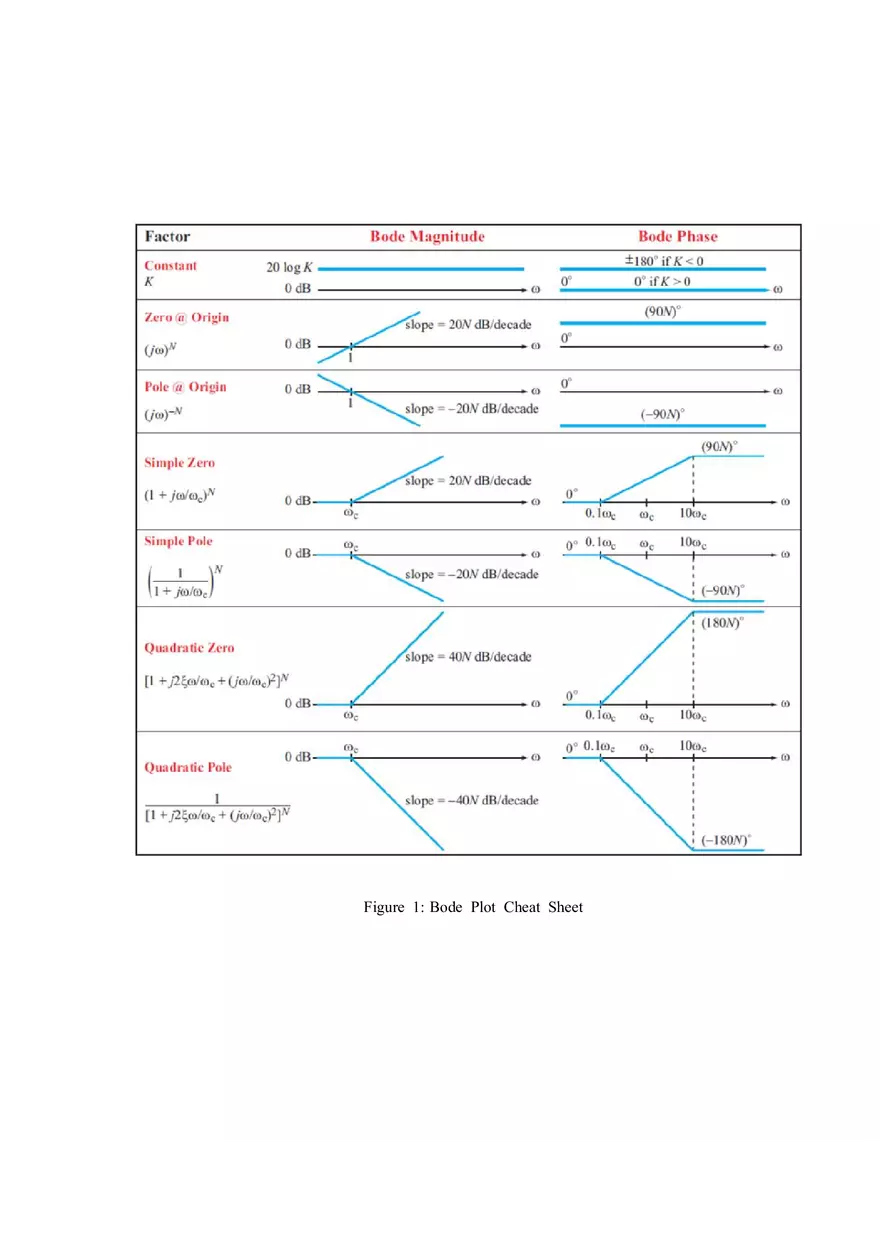

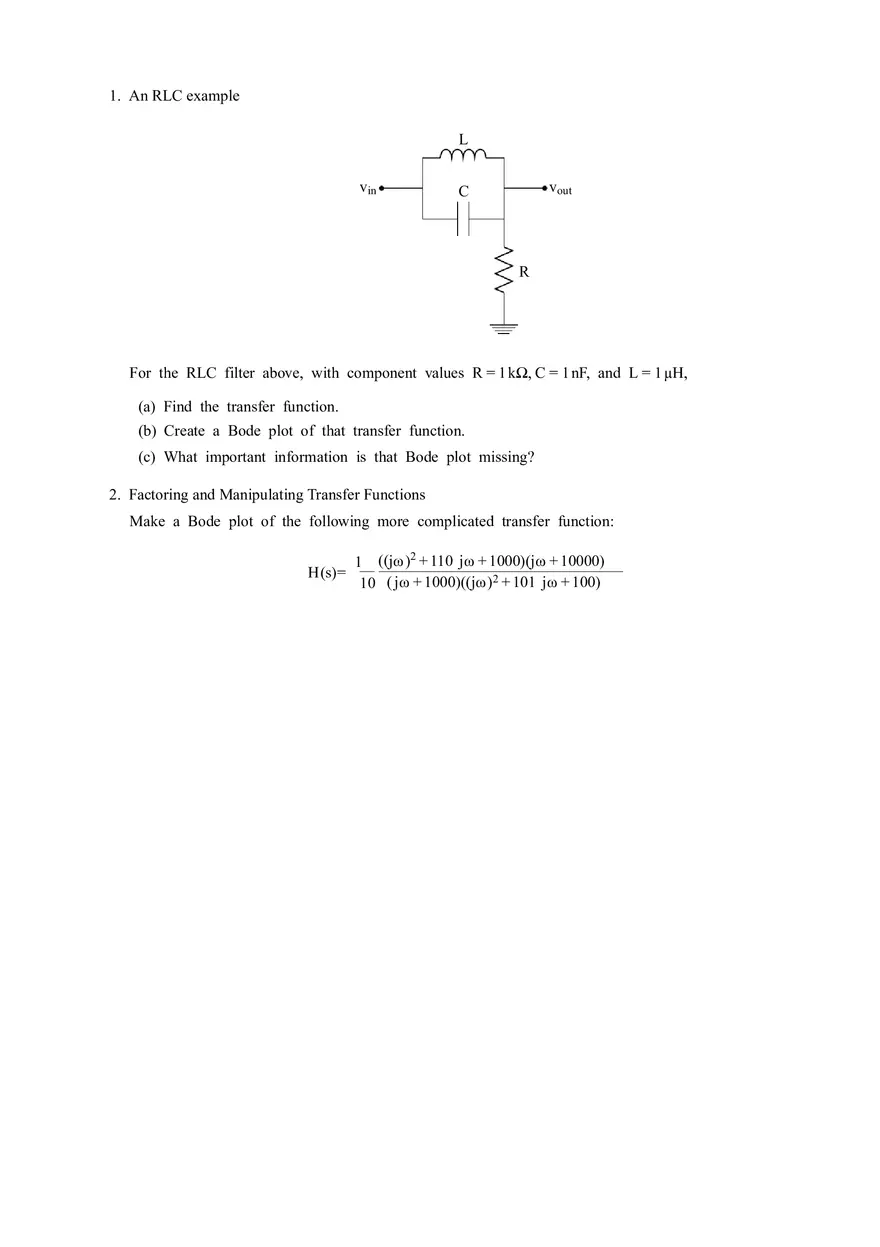

Figure 1: Bode Plot Cheat Sheet 1. An RLC example L vin vout C R For the RLC filter above, with component values R = 1 kΩ, C = 1 nF, and L = 1 µH, (a) Find the transfer function. (b) Create a Bode plot of that transfer function. (c) What important information is that Bode plot missing? 2. Factoring and Manipulating Transfer Functions Make a Bode plot of the following more complicated transfer function: H(s)= 1 ((jω)2 + 110 jω + 1000)(jω + 10000) 10 ( jω + 1000)((jω)2 + 101 jω + 100)
