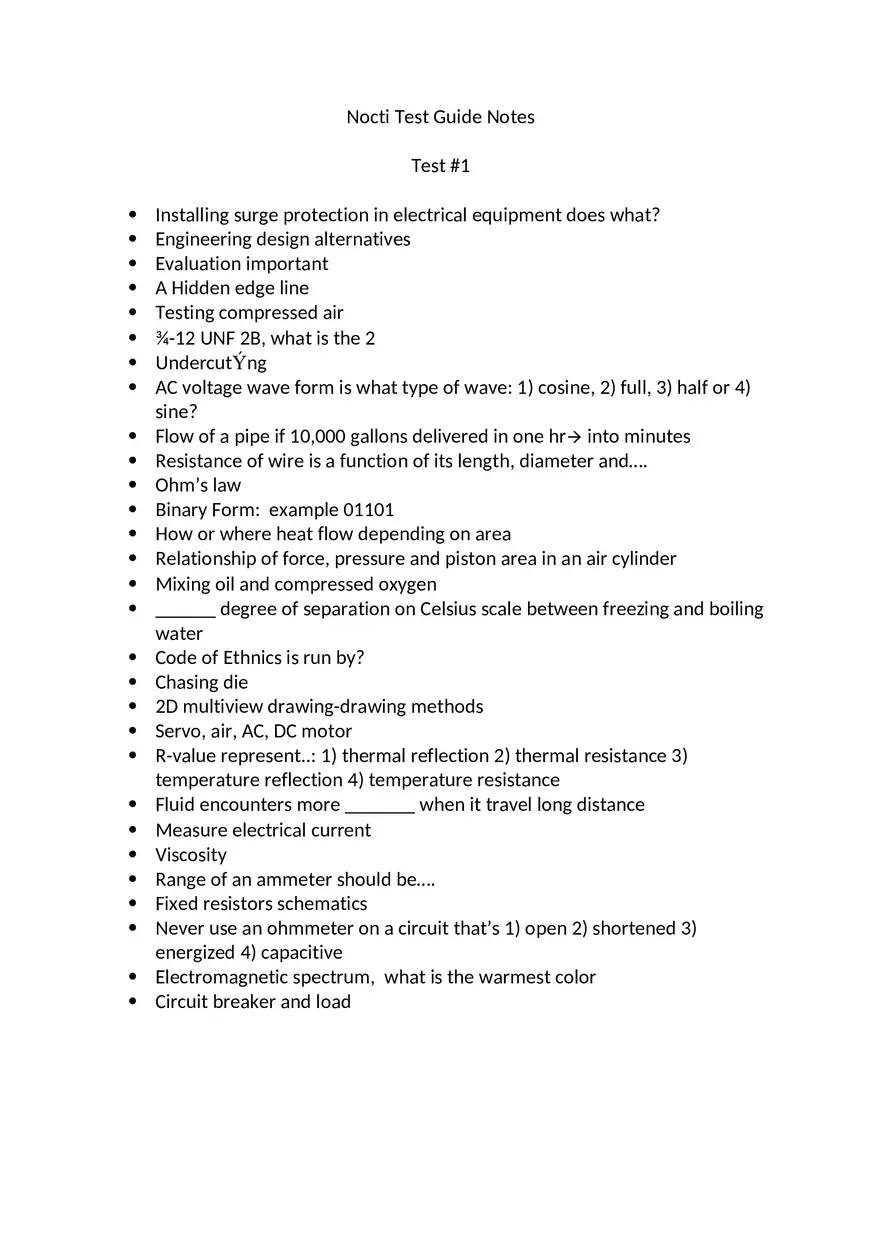

Nocti Test Guide Notes Test #1                              Installing surge protection in electrical equipment does what? Engineering design alternatives Evaluation important A Hidden edge line Testing compressed air ¾-12 UNF 2B, what is the 2 UndercutÝng AC voltage wave form is what type of wave: 1) cosine, 2) full, 3) half or 4) sine? Flow of a pipe if 10,000 gallons delivered in one hr  into minutes Resistance of wire is a function of its length, diameter and…. Ohm’s law Binary Form: example 01101 How or where heat flow depending on area Relationship of force, pressure and piston area in an air cylinder Mixing oil and compressed oxygen ______ degree of separation on Celsius scale between freezing and boiling water Code of Ethnics is run by? Chasing die 2D multiview drawing-drawing methods Servo, air, AC, DC motor R-value represent..: 1) thermal reflection 2) thermal resistance 3) temperature reflection 4) temperature resistance Fluid encounters more _______ when it travel long distance Measure electrical current Viscosity Range of an ammeter should be…. Fixed resistors schematics Never use an ohmmeter on a circuit that’s 1) open 2) shortened 3) energized 4) capacitive Electromagnetic spectrum, what is the warmest color Circuit breaker and load  What affects strength of material? 1) corrosion 2) altitude 3) stains 4) barometric pressure  What is a diode  Function of DC power supply  Find area: object is 22mm and 2 cm wide  If it reads no voltage, then  Specialist of a structural engineering company- designs video and sound  System parking lot and playing surface. Who are they?  I^2 10 volts appealed to 5 ohms resistor  What are technical writing skills good for?  Biomedical Engineering Field- required classes
