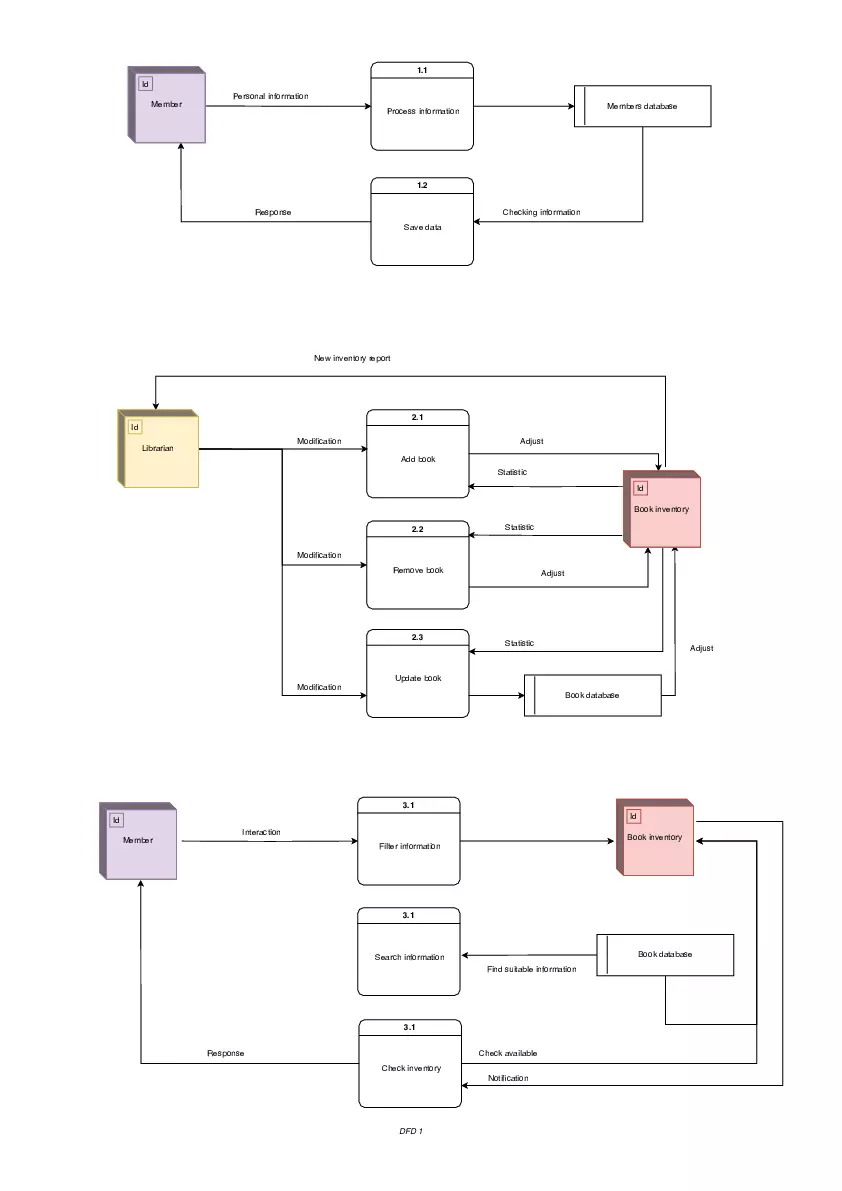

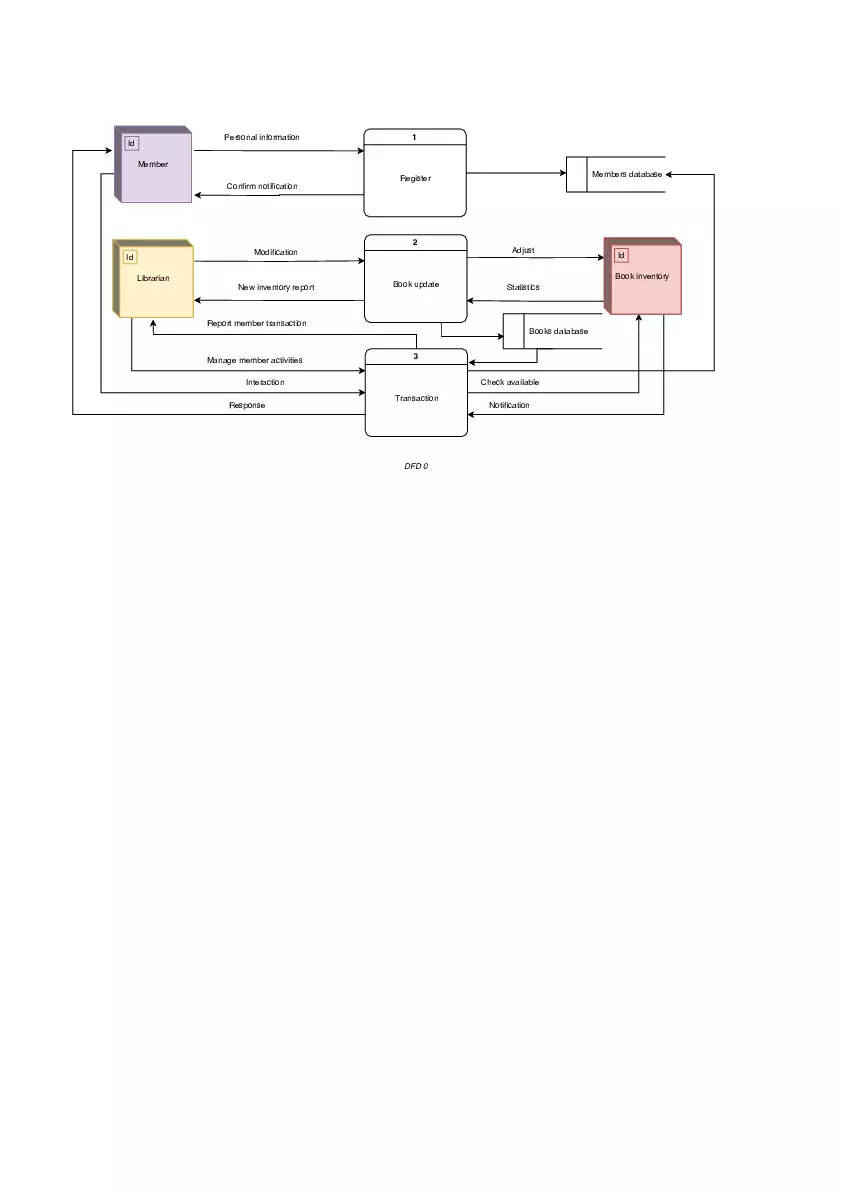

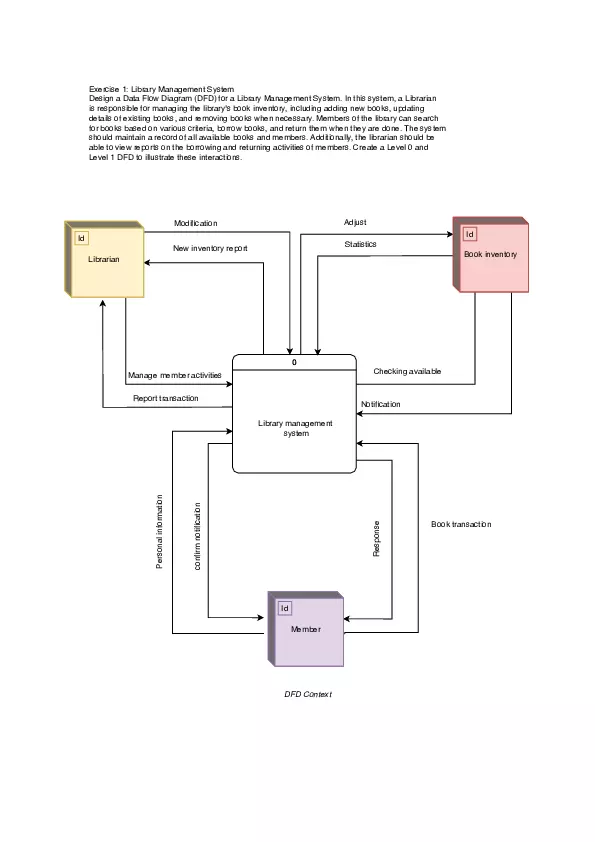

Exercise 1: Library Management System Design a Data Flow Diagram (DFD) for a Library Management System. In this system, a Librarian is responsible for managing the library's book inventory, including adding new books, updating details of existing books, and removing books when necessary. Members of the library can search for books based on various criteria, borrow books, and return them when they are done. The system should maintain a record of all available books and members. Additionally, the librarian should be able to view reports on the borrowing and returning activities of members. Create a Level 0 and Level 1 DFD to illustrate these interactions. Adjust Modification Id Id Statistics New inventory report Book inventory Librarian 0 Checking available Manage member activities Report transaction Notification Response confirm notification Personal information Library management system Id Member DFD Context Book transaction Personal information Id 1 Member Confirm notification 2 Modification Id Librarian New inventory report Book update Report member transaction Manage member activities Adjust 3 Check available Transaction DFD 0 Id Book inventory Statistics Books database Interaction Response Members database Register Notification 1.1 Id Member Personal information Members database Process information 1.2 Response Checking information Save data New inventory report 2.1 Id Modification Librarian Adjust Add book Statistic Id Book inventory 2.2 Statistic Modification Remove book 2.3 Adjust Statistic Adjust Update book Modification Book database 3.1 Id Id Member Interaction Book inventory Filter information 3.1 Book database Search information Find suitable information 3.1 Response Check available Check inventory Notification DFD 1
