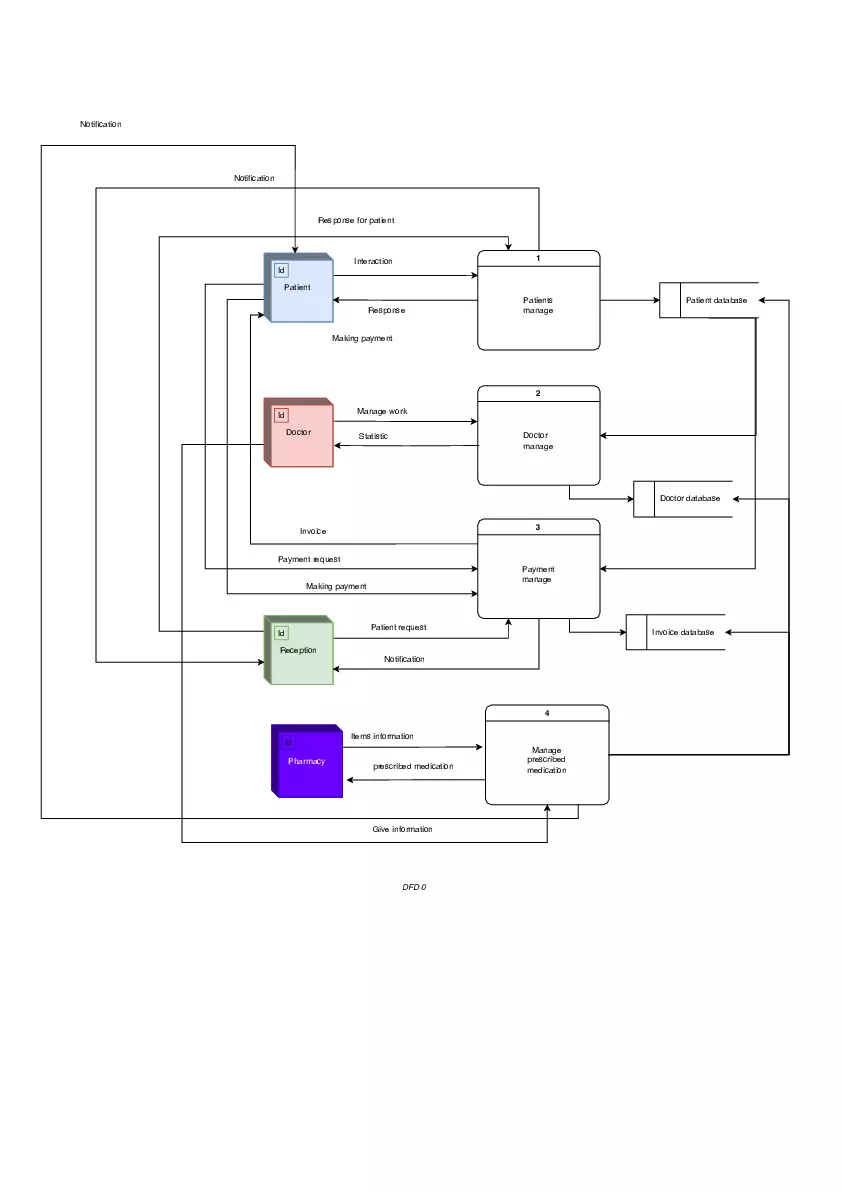

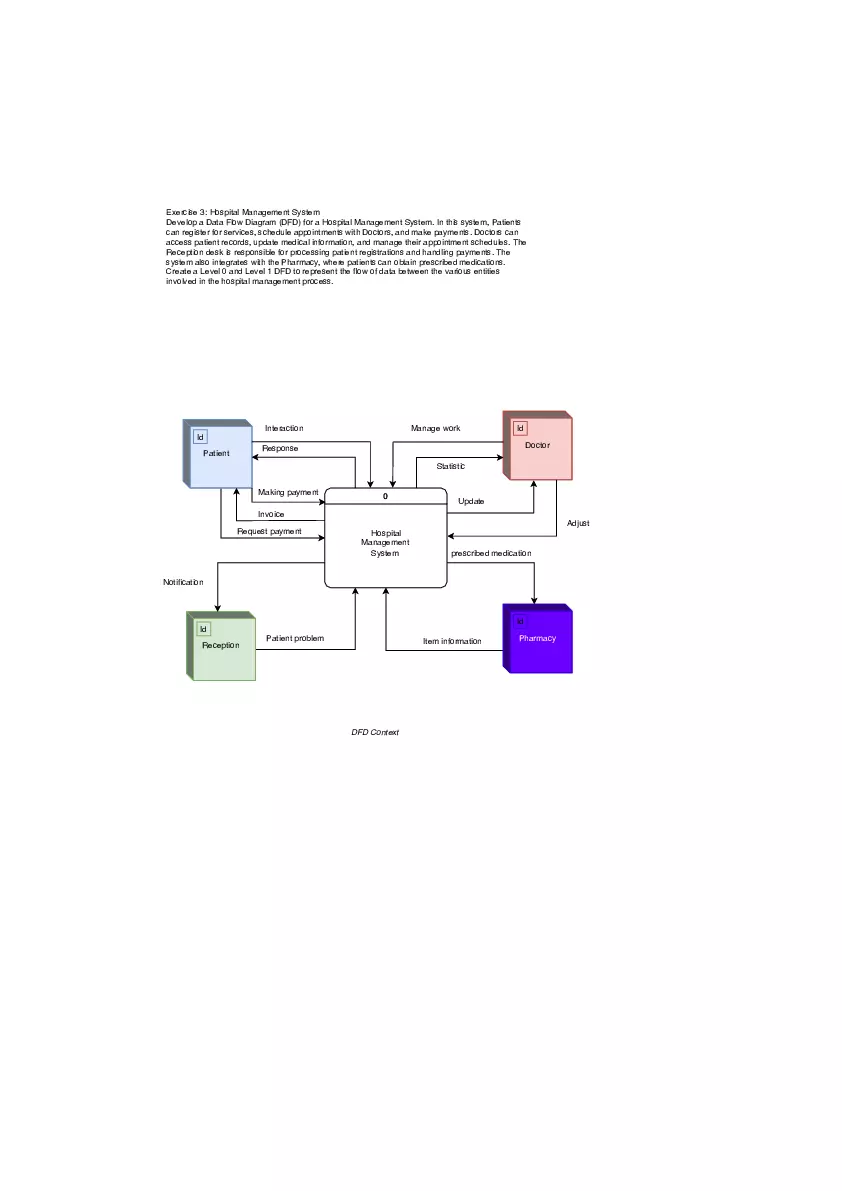

Exercise 3: Hospital Management System Develop a Data Flow Diagram (DFD) for a Hospital Management System. In this system, Patients can register for services, schedule appointments with Doctors, and make payments. Doctors can access patient records, update medical information, and manage their appointment schedules. The Reception desk is responsible for processing patient registrations and handling payments. The system also integrates with the Pharmacy, where patients can obtain prescribed medications. Create a Level 0 and Level 1 DFD to represent the flow of data between the various entities involved in the hospital management process. Interaction Id Manage work Id Doctor Response Patient Statistic Making payment 0 Update Invoice Adjust Request payment Hospital Management System prescribed medication Notification Id Id Reception Patient problem Item information DFD Context Pharmacy Notification Notification Response for patient 1 Interaction Id Patient Response Patients manage Patient database Making payment 2 Manage work Id Doctor Doctor manage Statistic Doctor database 3 Invoice Payment request Payment manage Making payment Patient request Id Invoice database Reception Notification 4 Id Pharmacy Items information prescribed medication Give information DFD 0 Manage prescribed medication Response for patient 1.1 Interaction Id Id Patient Notification Reception Register Response Patient database 1.2 Interaction Response Set up schedule Patient database 2.1 Id Manage work Doctor Work division Doctor database 2.2 Statistic Get information Update Adjust Patient database 2.3 Modification 3.1 Payment request Id Set up payment Patient 3.1 Notification Id Reception Patient request Payment process Making payment Invoice DFD 1 Invoice database Id Give information Doctor Doctor database Id Items information Pharmacy 4.1 Manage patient's medication Patient database Invoice database 4.2 prescribed medication Id Check items status Notification Patient DFD 1
