Business Intelligence and Data Warehouses

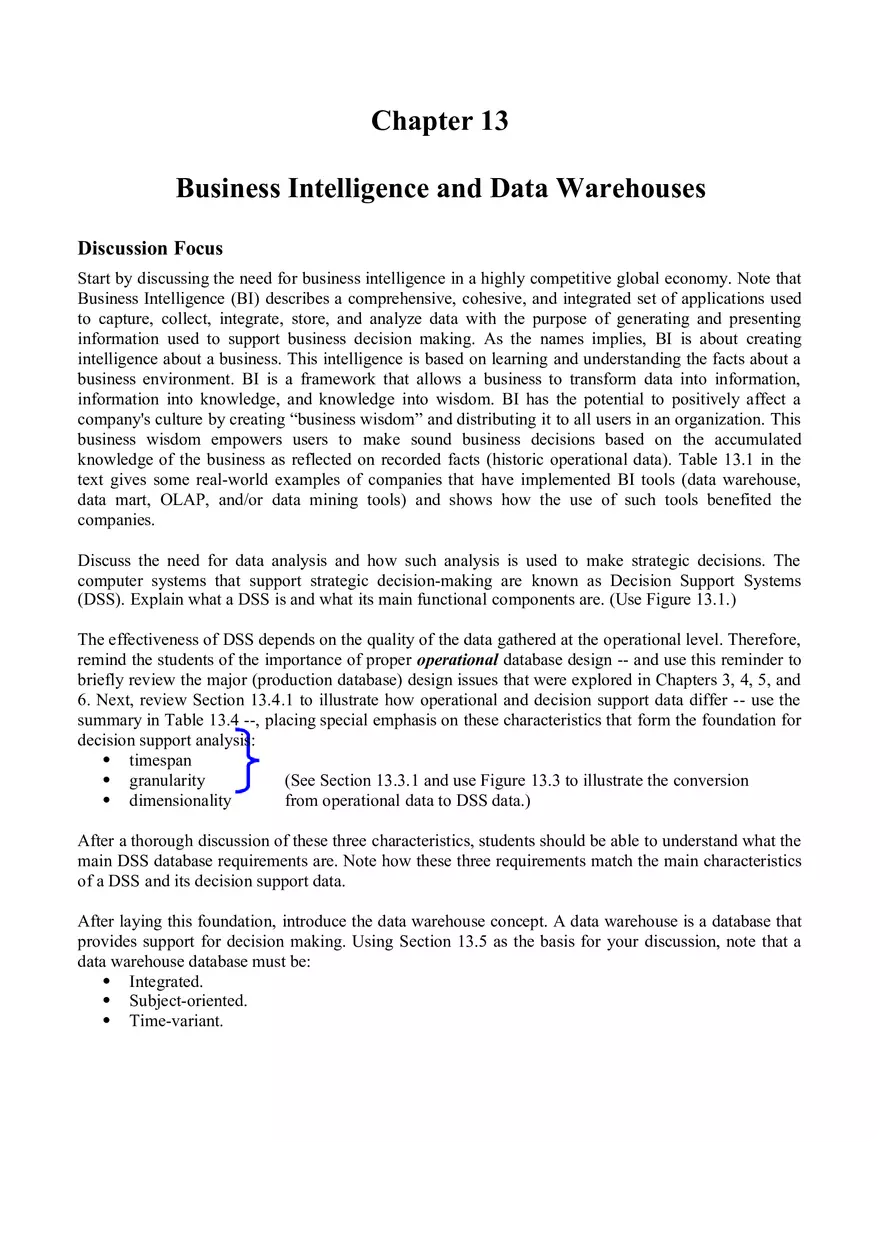

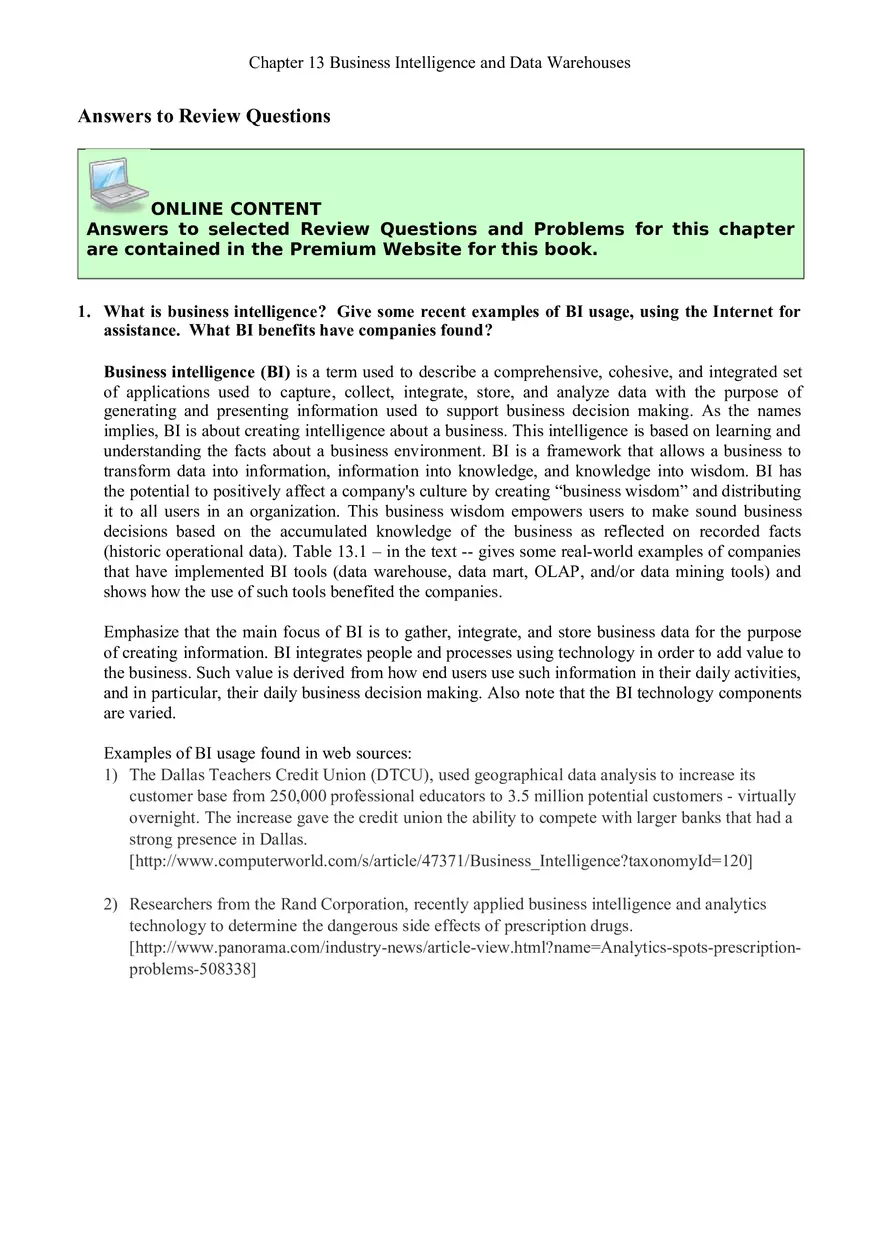

Chapter 13 Business Intelligence and Data Warehouses Discussion Focus Start by discussing the need for business intelligence in a highly competitive global economy. Note that Business Intelligence (BI) describes a comprehensive, cohesive, and integrated set of applications used to capture, collect, integrate, store, and analyze data with the purpose of generating and presenting information used to support business decision making. As the names implies, BI is about creating intelligence about a business. This intelligence is based on learning and understanding the facts about a business environment. BI is a framework that allows a business to transform data into information, information into knowledge, and knowledge into wisdom. BI has the potential to positively affect a company's culture by creating “business wisdom” and distributing it to all users in an organization. This business wisdom empowers users to make sound business decisions based on the accumulated knowledge of the business as reflected on recorded facts (historic operational data). Table 13.1 in the text gives some real-world examples of companies that have implemented BI tools (data warehouse, data mart, OLAP, and/or data mining tools) and shows how the use of such tools benefited the companies. Discuss the need for data analysis and how such analysis is used to make strategic decisions. The computer systems that support strategic decision-making are known as Decision Support Systems (DSS). Explain what a DSS is and what its main functional components are. (Use Figure 13.1.) The effectiveness of DSS depends on the quality of the data gathered at the operational level. Therefore, remind the students of the importance of proper operational database design -- and use this reminder to briefly review the major (production database) design issues that were explored in Chapters 3, 4, 5, and 6. Next, review Section 13.4.1 to illustrate how operational and decision support data differ -- use the summary in Table 13.4 --, placing special emphasis on these characteristics that form the foundation for decision support analysis:  timespan  granularity (See Section 13.3.1 and use Figure 13.3 to illustrate the conversion  dimensionality from operational data to DSS data.) After a thorough discussion of these three characteristics, students should be able to understand what the main DSS database requirements are. Note how these three requirements match the main characteristics of a DSS and its decision support data. After laying this foundation, introduce the data warehouse concept. A data warehouse is a database that provides support for decision making. Using Section 13.5 as the basis for your discussion, note that a data warehouse database must be:  Integrated.  Subject-oriented.  Time-variant. Chapter 13 Business Intelligence and Data Warehouses  Non-volatile. After you have explained each one of these four characteristics in detail, your students should understand:  What the characteristics are of the data likely to be found in a data warehouse.  How the data warehouse is a part of a BI infrastructure. Stress that the data warehouse is a major component of the BI infrastructure. Discuss the contents of Table 13.9 to help them Inmon and Kelley's Twelve Rules That Define a Data Warehouse. (See Inmon, Bill, and Chuck Kelley, "The Twelve Rules of Data Warehouse for a Client/Server World," Data Management Review, 4(5), May, 1994, pp. 6-16.) The data warehouse stores the data needed for decision support. On-Line Analytical Processing (OLAP) refers to a set of tools used by the end users to access and analyze such data. Therefore, the Data Warehouse and OLAP tools are complements to each other. By illustrating various OLAP Architectures, the instructor will help students see how:  Operational data are transformed to data warehouse data.  Data warehouse data are extracted for analysis.  Multidimensional tools are used to analyze the extracted data. The OLAP Architectures are yet another example of the application of client/server concepts to systems development. Because they are the key to data warehouse design, star schemas constitute the chapter's focal point. Therefore, make sure that the following data warehouse design components are thoroughly understood:  Facts.  Dimensions. (See Section 13.5.)  Attributes.  Attribute hierarchies. These four concepts are used to implement data warehouses in the relational database environment. Carefully explain the chapter's Sales and Orders star schema's construction to help ensure that students are equipped to handle the actual design of star schemas. Illustrate the use of performance-enhancing techniques (Section 13.5.6), and data mining (Section 13.6). Chapter 13 Business Intelligence and Data Warehouses Answers to Review Questions ONLINE CONTENT Answers to selected Review Questions and Problems for this chapter are contained in the Premium Website for this book. 1. What is business intelligence? Give some recent examples of BI usage, using the Internet for assistance. What BI benefits have companies found? Business intelligence (BI) is a term used to describe a comprehensive, cohesive, and integrated set of applications used to capture, collect, integrate, store, and analyze data with the purpose of generating and presenting information used to support business decision making. As the names implies, BI is about creating intelligence about a business. This intelligence is based on learning and understanding the facts about a business environment. BI is a framework that allows a business to transform data into information, information into knowledge, and knowledge into wisdom. BI has the potential to positively affect a company's culture by creating “business wisdom” and distributing it to all users in an organization. This business wisdom empowers users to make sound business decisions based on the accumulated knowledge of the business as reflected on recorded facts (historic operational data). Table 13.1 – in the text -- gives some real-world examples of companies that have implemented BI tools (data warehouse, data mart, OLAP, and/or data mining tools) and shows how the use of such tools benefited the companies. Emphasize that the main focus of BI is to gather, integrate, and store business data for the purpose of creating information. BI integrates people and processes using technology in order to add value to the business. Such value is derived from how end users use such information in their daily activities, and in particular, their daily business decision making. Also note that the BI technology components are varied. Examples of BI usage found in web sources: 1) The Dallas Teachers Credit Union (DTCU), used geographical data analysis to increase its customer base from 250,000 professional educators to 3.5 million potential customers - virtually overnight. The increase gave the credit union the ability to compete with larger banks that had a strong presence in Dallas. [http://www.computerworld.com/s/article/47371/Business_Intelligence?taxonomyId=120] 2) Researchers from the Rand Corporation, recently applied business intelligence and analytics technology to determine the dangerous side effects of prescription drugs. [http://www.panorama.com/industry-news/article-view.html?name=Analytics-spots-prescriptionproblems-508338] Chapter 13 Business Intelligence and Data Warehouses 3) Microsoft Case Study web site for hundreds of cases about Business Intelligence usage. [http://www.microsoft.com/casestudies/] 2. Describe the BI framework. Illustrate the evolution of BI. BI is not a product by itself, but a framework of concepts, practices, tools, and technologies that help a business better understand its core capabilities, provide snapshots of the company situation, and identify key opportunities to create competitive advantage. In practice, BI provides a wellorchestrated framework for the management of data that works across all levels of the organization. BI involves the following general steps: 1. Collecting and storing operational data 2. Aggregating the operational data into decision support data 3. Analyzing decision support data to generate information 4. Presenting such information to the end user to support business decisions 5. Making business decisions, which in turn generate more data that is collected, stored, etc. (restarting the process). 6. Monitoring results to evaluate outcomes of the business decisions (providing more data to be collected, stored, etc.) To implement all these steps, BI uses varied components and technologies. Section 13.3 is where you’ll find a discussion of these components and technologies. Figure 3.3 illustrates the evolution of BI formats. 3. What are decision support systems, and what role do they play in the business environment? Decision Support Systems (DSS) are based on computerized tools that are used to enhance managerial decision-making. Because complex data and the proper analysis of such data are crucial to strategic and tactical decision making, DSS are essential to the well-being and even survival of businesses that must compete in a global market place. 4. Explain how the main components of the BI architecture interact to form a system. Describe the evolution of BI information dissemination formats. Refer the students to section 13.3 in the chapter. Emphasize that, actually, there is no single BI architecture; instead, it ranges from highly integrated applications from a single vendor to a loosely integrated, multi-vendor environment. However, there are some general types of functionality that all BI implementations share. Like any critical business IT infrastructure, the BI architecture is composed of data, people, processes, technology, and the management of such components. Figure 13.1 (in the text) depicts how all those components fit together within the BI framework. Figure 13.2, in section 13.2.3 “Business Intelligence Evolution”, tracks the changes of business intelligence reporting and information dissemination over time. In summary: 1) 1970s: centralized reports running on mainframes, minicomputers, or even central server environments. Such reports were predefined and took considerable time to process. Chapter 13 Business Intelligence and Data Warehouses 2) 1980s: desktop computers, downloaded spreadsheet data from central locations. 3) 1990s: first generation DSS, centralized reporting. 4) Mid 1990s: Data Warehouse and Online analytical processing systems (OLAPs). 5) 2000s: BI web-based dashboards and mobile BI. 5. What are the most relevant differences between operational and decision support data? Operational data and decision support data serve different purposes. Therefore, it is not surprising to learn that their formats and structures differ. Most operational data are stored in a relational database in which the structures (tables) tend to be highly normalized. Operational data storage is optimized to support transactions that represent daily operations. For example, each time an item is sold, it must be accounted for. Customer data, inventory data, and so on, are in a frequent update mode. To provide effective update performance, operational systems store data in many tables, each with a minimum number of fields. Thus, a simple sales transaction might be represented by five or more different tables (for example, invoice, invoice line, discount, store, and department). Although such an arrangement is excellent in an operational database, it is not efficient for query processing. For example, to extract a simple invoice, you would have to join several tables. Whereas operational data are useful for capturing daily business transactions, decision support data give tactical and strategic business meaning to the operational data. From the data analyst’s point of view, decision support data differ from operational data in three main areas: times pan, granularity, and dimensionality. 1. Time span. Operational data cover a short time frame. In contrast, decision support data tend to cover a longer time frame. Managers are seldom interested in a specific sales invoice to customer X; rather, they tend to focus on sales generated during the last month, the last year, or the last five years. 2. Granularity (level of aggregation). Decision support data must be presented at different levels of aggregation, from highly summarized to near-atomic. For example, if managers must analyze sales by region, they must be able to access data showing the sales by region, by city within the region, by store within the city within the region, and so on. In that case, summarized data to compare the regions is required, but also data in a structure that enables a manager to drill down, or decompose, the data into more atomic components (that is, finer-grained data at lower levels of aggregation). In contrast, when you roll up the data, you are aggregating the data to a higher level. 3. Dimensionality. Operational data focus on representing individual transactions rather than on the effects of the transactions over time. In contrast, data analysts tend to include many data dimensions and are interested in how the data relate over those dimensions. For example, an analyst might want to know how product X fared relative to product Z during the past six months by region, state, city, store, and customer. In that case, both place and time are part of the picture. Figure 13.3 (in the text) shows how decision support data can be examined from multiple dimensions (such as product, region, and year), using a variety of filters to produce each dimension. The ability to analyze, extract, and present information in meaningful ways is one of the differences Chapter 13 Business Intelligence and Data Warehouses between decision support data and transaction-at-a-time operational data. The DSS components that form a system are shown in the text’s Figure 13.1. Note that:  The data store component is basically a DSS database that contains business data and business-model data. These data represent a snapshot of the company situation.  The data extraction and filtering component is used to extract, consolidate, and validate the data store.  The end user query tool is used by the data analyst to create the queries used to access the database.  The end user presentation tool is used by the data analyst to organize and present the data. 6. What is a data warehouse, and what are its main characteristics? How does it differ from a data mart? A data warehouse is an integrated, subject-oriented, time-variant and non-volatile database that provides support for decision-making. (See section 13.4 for an in-depth discussion about the main characteristics.) The data warehouse is usually a read-only database optimized for data analysis and query processing. Typically, data are extracted from various sources and are then transformed and integrated—in other words, passed through a data filter—before being loaded into the data warehouse. Users access the data warehouse via front-end tools and/or end-user application software to extract the data in usable form. Figure 13.4 in the text illustrates how a data warehouse is created from the data contained in an operational database. You might be tempted to think that the data warehouse is just a big summarized database. But a good data warehouse is much more than that. A complete data warehouse architecture includes support for a decision support data store, a data extraction and integration filter, and a specialized presentation interface. To be useful, the data warehouse must conform to uniform structures and formats to avoid data conflicts and to support decision making. In fact, before a decision support database can be considered a true data warehouse, it must conform to the twelve rules described in section 13.4.2. 7. Give three examples of likely problems when operational data are integrated into the data warehouse. Within different departments of a company, operational data may vary in terms of how they are recorded or in terms of data type and structure. For instance, the status of an order may be indicated with text labels such as "open", "received", "cancel", or "closed" in one department while another department has it as "1", "2", "3", or "4". The student status can be defined as "Freshman", "Sophomore", "Junior", or "Senior" in the Accounting department and as "FR", "SO", "JR", or "SR" in the Computer Information Systems department. A social security number field may be stored in one database as a string of numbers and dashes ('XXX-XX-XXXX'), in another as a string of numbers without the dashes ('XXXXXXXXX'), and in yet a third as a numeric field (#########). Most of the data transformation problems are related to incompatible data formats, the use of synonyms and homonyms, and the use of different coding schemes. Chapter 13 Business Intelligence and Data Warehouses Use the following scenario to answer questions 8 through 14. While working as a database analyst for a national sales organization, you are asked to be part of its data warehouse project team. 8. Prepare a high-level summary of the main requirements for evaluating DBMS products for data warehousing. There are four primary ways to evaluate a DBMS that is tailored to provide fast answers to complex queries:  the database schema supported by the DBMS  the availability and sophistication of data extraction and loading tools  the end user analytical interface  the database size requirements Establish the requirements based on the size of the database, the data sources, the necessary data transformations, and the end user query requirements. Determine what type of database is needed, i.e., a multidimensional or a relational database using the star schema. Other valid evaluation criteria include the cost of acquisition and available upgrades (if any), training, technical and development support, performance, ease of use, and maintenance. 9. Your data warehousing project group is debating whether to create a prototype of a data warehouse before its implementation. The project group members are especially concerned about the need to acquire some data warehousing skills before implementing the enterprisewide data warehouse. What would you recommend? Explain your recommendations. Knowing that data warehousing requires time, money, and considerable managerial effort, many companies create data marts, instead. Data marts use smaller, more manageable data sets that are targeted to fit the special needs of small groups within the organization. In other words, data marts are small, single-subject data warehouse subsets. Data mart development and use costs are lower and the implementation time is shorter. Once the data marts have demonstrated their ability to serve the DSS, they can be expanded to become data warehouses or they can be migrated into larger existing data warehouses. 10. Suppose you are selling the data warehouse idea to your users. How would you define multidimensional data analysis for them? How would you explain its advantages to them? Multidimensional data analysis refers to the processing of data in which data are viewed as part of a multidimensional structure, one in which data are related in many different ways. Business decision makers usually view data from a business perspective. That is, they tend to view business data as they relate to other business data. For example, a business data analyst might investigate the relationship between sales and other business variables such as customers, time, product line, and location. The multidimensional view is much more representative of a business perspective. A good way to visualize the development and use of relationships is to examine data pivot tables in MS Excel. Chapter 13 Business Intelligence and Data Warehouses 11. The data warehousing project group has invited you to provide an OLAP overview. The group’s members are particularly concerned about the OLAP client/server architecture requirements and how OLAP will fit the existing environment. Your job is to explain to them the main OLAP client/server components and architectures. OLAP systems are based on client/server technology and they consist of these main modules:  OLAP Graphical User Interface (GUI)  OLAP Analytical Processing Logic  OLAP Data Processing Logic. The location of each of these modules is a function of different client/server architectures. How and where the modules are placed depends on hardware, software, and professional judgment. Any placement decision has its own advantages or disadvantages. However, the following constraints must be met:  The OLAP GUI is always placed in the end user's computer. The reason it is placed at the client side is simple: this is the main point of contact between the end user and the system. Specifically, it provides the interface through which the end user queries the data warehouse's contents.  The OLAP Analytical Processing Logic (APL) module can be place in the client (for speed) or in the server (for better administration and better throughput). The APL performs the complex transformations required for business data analysis, such as multiple dimensions, aggregation, period comparison, and so on.  The OLAP Data Processing Logic (DPL) maps the data analysis requests to the proper data objects in the Data Warehouse and is, therefore, generally placed at the server level. 12. One of your vendors recommends using an MDBMS. How would you explain this recommendation to your project leader? Multidimensional On-Line Analytical Processing (MOLAP) provides OLAP functionality using multidimensional databases (MDBMS) to store and analyze multidimensional data. Multidimensional database systems (MDBMS) use special proprietary techniques to store data in matrix-like arrays of n-dimensions. 13. The project group is ready to make a final decision between ROLAP and MOLAP. What should be the basis for this decision? Why? The basis for the decision should be the system and end user requirements. Both ROLAP and MOLAP will provide advanced data analysis tools to enable organizations to generate required information. The selection of one or the other depends on which set of tools will fit best within the company's existing expertise base, its technology and end user requirements, and its ability to perform the job at a given cost. The proper OLAP/MOLAP selection criteria must include:  purchase and installation price  supported hardware and software Chapter 13 Business Intelligence and Data Warehouses            compatibility with existing hardware, software, and DBMS available programming interfaces performance availability, extent, and type of administrative tools support for the database schema(s) ability to handle current and projected database size database architecture available resources flexibility scalability total cost of ownership. 14. The data warehouse project is in the design phase. Explain to your fellow designers how you would use a star schema in the design. The star schema is a data modeling technique that is used to map multidimensional decision support data into a relational database. The reason for the star schema's development is that existing relational modeling techniques, E-R and normalization, did not yield a database structure that served the advanced data analysis requirements well. Star schemas yield an easily implemented model for multidimensional data analysis while still preserving the relational structures on which the operational database is built. The basic star schema has two four components: facts, dimensions, attributes, and attribute hierarchies. The star schemas represent aggregated data for specific business activities. Using the schemas, we will create multiple aggregated data sources that will represent different aspects of business operations. For example, the aggregation may involve total sales by selected time periods, by products, by stores, and so on. Aggregated totals can be total product units, total sales values by products, etc. 15. Briefly discuss OLAP architectural styles with and without data marts. Section 13.7.4, “OLAP Architecture”, details the basic architectural components of an OLAP environment:  The graphical user interface (GUI front-end) – located always at the end-user end.  The analytical processing logic – this component could be located in the back end (OLAP server) or could be split between the back end and front-end components.  Data processing logic – logic used to extract data from data; typically located in the back-end. The term OLAP “engine” is sometimes used to refer to the arrangement of the OLAP components as a whole. However, the architecture allows for the split of the some of the components in a client/server arrangement as depicted in Figures 13.19 and 13.19. Figure 13.18 shows a typical OLAP architecture without data marts. In this architecture, the OLAP tool will extract data from the data warehouse and process the data to be presented by the end-user Chapter 13 Business Intelligence and Data Warehouses GUI. The processing of the data takes place mostly on the OLAP engine. The OLAP engine location could be located in each client computer or it could be shared from an OLAP “server”. Figure 13.19 shows a typical OLAP architecture with local data marts (end-user located). The local data marts are “miniature” data warehouses that focus in a subset of the data in the data warehouse. Normally these data marts are subject oriented, such as customers, products, sales, etc. The local data marts provide faster processing but require that the data be periodically “synchronized” with the main data warehouse. 16. What is OLAP, and what are its main characteristics? OLAP stands for On-Line Analytical Processing and uses multidimensional data analysis techniques. OLAP yields an advanced data analysis environment that provides the framework for decision making, business modeling, and operations research activities. Its four main characteristics are: 1. 2. 3. 4. Multidimensional data analysis techniques Advanced database support Easy to use end user interfaces Support for client/server architecture. 17. Explain ROLAP, and list the reasons you would recommend its use in the relational database environment. Relational On-Line Analytical Processing (ROLAP) provides OLAP functionality for relational databases. ROLAP's popularity is based on the fact that it uses familiar relational query tools to store and analyze multidimensional data. Because ROLAP is based on familiar relational technologies, it represents a natural extension to organizations that already use relational database management systems within their organizations. 18. Explain the use of facts, dimensions, and attributes in the star schema. Facts are numeric measurements (values) that represent a specific business aspect or activity. For example, sales figures are numeric measurements that represent product and/or service sales. Facts commonly used in business data analysis are units, costs, prices, and revenues. Facts are normally stored in a fact table, which is the center of the star schema. The fact table contains facts that are linked through their dimensions. Dimensions are qualifying characteristics that provide additional perspectives to a given fact. Dimensions are of interest to us, because business data are almost always viewed in relation to other data. For instance, sales may be compared by product from region to region, and from one time period to the next. The kind of problem typically addressed by DSS might be "make a comparison of the sales of product units of X by region for the first quarter from 1995 through 2005." Chapter 13 Business Intelligence and Data Warehouses In this example, sales have product, location , and time dimensions. Dimensions are normally stored in dimension tables. Each dimension table contains attributes. The attributes are often used to search, filter, or classify facts. Dimensions provide descriptive characteristics about the facts through their attributes. Therefore, the data warehouse designer must define common business attributes that will be used by the data analyst to narrow down a search, group information, or describe dimensions. For example, we can identify some possible attributes for the product, location and time dimensions:    Product dimension: product id, description, product type, manufacturer, etc. Location dimension: region, state, city, and store number. Time dimension: year, quarter, month, week, and date. These product, location, and time dimensions add a business perspective to the sales facts. The data analyst can now associate the sales figures for a given product, in a given region, and at a given time. The star schema, through its facts and dimensions, can provide the data when they are needed and in the required format, without imposing the burden of additional and unnecessary data (such as order #, po #, status, etc.) that commonly exist in operational databases. In essence, dimensions are the magnifying glass through which we study the facts. 19. Explain multidimensional cubes, and describe how the slice and dice technique fits into this model. To explain the multidimensional cube concept, let's assume a sales fact table with three dimensions: product, location, and time. In this case, the multidimensional data model for the sales example is (conceptually) best represented by a three-dimensional cube. This cube represents the view of sales dimensioned by product, location, and time. (We have chosen a three-dimensional cube because such a cube makes it easier for humans to visualize the problem. There is, of course, no limit to the number of dimensions we can use.) The power of multidimensional analysis resides in its ability to focus on specific slices of the cube. For example, the product manager may be interested in examining the sales of a product, thus producing a slice of the product dimension. The store manager may be interested in examining the sales of a store, thus producing a slice of the location dimension. The intersection of the slices yields smaller cubes, thereby producing the "dicing" of the multidimensional cube. By examining these smaller cubes within the multidimensional cube, we can produce very precise analyses of the variable components and interactions. In short, Slice and dice refers to the process that allows us to subdivide a multidimensional cube. Such subdivisions permit a far more detailed analysis than would be possible with the conventional two-dimensional data view. The text's Figures 13.12 through 13.15 illustrate the slice and dice concept. To gain the benefits of slice and dice, we must be able to identify each slice of the cube. Slice identification requires the use of the values of each attribute within a given dimension. For example, to slice the location dimension, we can use a STORE_ID attribute in order to focus on a given store. Chapter 13 Business Intelligence and Data Warehouses 20. In the star schema context, what are attribute hierarchies and aggregation levels and what is their purpose? Attributes within dimensions can be ordered in an attribute hierarchy. The attribute hierarchy yields a top-down data organization that permits both aggregation and drill-down/roll-up data analysis. Use Figure Q13.18 to show how the attributes of the location dimension can be organized into a hierarchy that orders that location dimension by region, state, city, and store. Figure Q13.18 A Location Attribute Hierarchy The attribute hierarchy gives the data warehouse the ability to perform drill-down and roll-up data searches. For example, suppose a data analyst wants an answer to the query "How does the 2005 total monthly sales performance compare to the 2000 monthly sales performance?" Having performed the query, suppose that the data analyst spots a sharp total sales decline in March, 2005. Given this discovery, the data analyst may then decide to perform a drill-down procedure for the month of March to see how this year's March sales by region stack up against last year's. The drilldown results are then used to find out whether the low over-all March sales were reflected in all regions or only in a particular region. This type of drill-down operation may even be extended until the data analyst is able to identify the individual store(s) that is (are) performing below the norm. The attribute hierarchy allows the data warehouse and OLAP systems to use a carefully defined path that will govern how data are to be decomposed and aggregated for drill-down and roll-up operations. Of course, keep in mind that it is not necessary for all attributes to be part of an attribute hierarchy; some attributes exist just to provide narrative descriptions of the dimensions. 21. Discuss the most common performance improvement techniques used in star schemas. The following four techniques are commonly used to optimize data warehouse design:  Normalization of dimensional tables is done to achieve semantic simplicity and to facilitate end user navigation through the dimensions. For example, if the location dimension table Chapter 13 Business Intelligence and Data Warehouses   contains transitive dependencies between region, state, and city, we can revise these relationships to the third normal form (3NF). By normalizing the dimension tables, we simplify the data filtering operations related to the dimensions. We can also speed up query operations by creating and maintaining multiple fact tables related to each level of aggregation. For example, we may use region, state, and city in the location dimension. These aggregate tables are pre-computed at the data loading phase, rather than at run-time. The purpose of this technique is to save processor cycles at run-time, thereby speeding up data analysis. An end user query tool optimized for decision analysis will then properly access the summarized fact tables, instead of computing the values by accessing a "lower level of detail" fact table. Denormalizing fact tables is done to improve data access performance and to save data storage space. The latter objective, storage space savings, is becoming less of a factor: Data storage costs are on a steeply declining path, decreasing almost daily. DBMS limitations that restrict database and table size limits, record size limits, and the maximum number of records in a single table, are far more critical than raw storage space costs. Denormalization improves performance by storing in one single record what normally would take many records in different tables. For example, to compute the total sales for all products in all regions, we may have to access the region sales aggregates and summarize all the records in this table. If we have 300,000 product sales records, we wind up summarizing at least 300,000 rows. Although such summaries may not be a very taxing operation for a DBMS initially, a comparison of ten or twenty years' worth of sales is likely to start bogging the system down. In such cases, it will be useful to have special aggregate tables, which are denormalized. For example a YEAR_TOTAL table may contain the following fields: YEAR_ID, MONTH_1, MONTH_2,....MONTH12, YEAR_TOTAL Such a denormalized YEAR_TOTAL table structure works well to become the basis for year-to-year comparisons at the month level, the quarter level, or the year level. But keep in mind that design criteria such as frequency of use and performance requirements are evaluated against the possible overload placed on the DBMS to manage these denormalized relations.  Table partitioning and replication are particularly important when a DSS is implemented in widely dispersed geographic areas. Partitioning will split a table into subsets of rows or columns. These subsets can then be placed in or near the client computer to improve data access times. Replication makes a copy of a table and places it in a different location for the same reasons. Chapter 13 Business Intelligence and Data Warehouses Problem Solutions ONLINE CONTENT The databases used for this problem set are available at www.cengagebrain.com. These databases are stored in Microsoft Access 2000 format. The databases, named Ch13_P1.mdb, Ch13_P3.mdb , and Ch13_P4.mdb , contain the data for Problems 1, 3, and 4, respectively. The data for Problem 2 are stored in Microsoft Excel format at www.cengagebrain.com. The spreadsheet filename is Ch13_P2.xls. 1. The university computer lab's director keeps track of the lab usage, as measured by the number of students using the lab. This particular function is very important for budgeting purposes. The computer lab director assigns you the task of developing a data warehouse in which to keep track of the lab usage statistics. The main requirements for this database are to  Show the total number of users by different time periods.  Show usage numbers by time period, by major, and by student classification.  Compare usage for different major and different semesters. Use the Ch13_P1.mdb database, which includes the following tables: USELOG STUDENT contains the student lab access data is a dimension table containing student data Chapter 13 Business Intelligence and Data Warehouses Given the three preceding requirements, and using the Ch13_P1.mdb data, complete the following problems: a. Define the main facts to be analyzed. ( Hint : These facts become the source for the design of the fact table.) b. Define and describe the appropriate dimensions. (Hint : These dimensions become the source for the design of the dimension tables.) c. Draw the lab usage star schema, using the fact and dimension structures you defined in Problems 1a and 1b. d. Define the attributes for each of the dimensions in Problem 1b. e. Recommend the appropriate attribute hierarchies. f. Implement your data warehouse design, using the star schema you created in Problem 1c and the attributes you defined in Problem 1d. g. Create the reports that will meet the requirements listed in this problem’s introduction. Before problems 1 a-g can be answered, the students must create the time and semester dimensions. Looking at the data in the USELOG table, the students should be able to figure out that the data belong to the Fall 2005 and Spring 2006 semesters, so the semester dimension must contain entries for at least these two semesters. The time dimension can be defined in several different ways. It will be very useful to provide class time during which students can explore the different benefits derived from various ways to represent the time dimension. Regardless of what time dimension representation is selected, it is clear that the date and time entries in the USELOG must be transformed to meet the TIME and SEMESTER codes. For data analysis purposes, we suggest using the TIME and SEMESTER dimension table configurations shown in Tables P13.1A and P13.1B. (We have used these configurations in the DW-P1sol.MDB database that is located on the CD.) Table P13.1A The TIME Dimension Table Structure TIME_ID 1 2 3 TIME_DESCRIPTION Morning Afternoon Night BEGIN_TIME 6:01AM 12:01PM 6:01PM END_TIME 12:00PM 6:00PM 6:00AM Table P13.1B The SEMESTER Dimension Table Structure SEMESTER_ID FA00 SP01 SEMESTER_DESCRIPTION Fall 2007 Spring 2008 BEGIN_DATE 15-Aug-2013 08-Jan-2014 END_DATE 18-Dec-2013 15-May-2014 The USELOG table contains only the date and time of the access, rather than the semester or time IDs. The student must create the TIME and SEMESTER dimension tables and assign the proper TIME_ID and SEMESTER_ID keys to match the USELOG's time and date. The students should also create the MAJOR dimension table, using the data already stored in the STUDENT table. Using Microsoft Access, we used the Make New Table query type to produce the MAJOR table. The Make New Table query lets you create a new table, MAJOR, using query output. In this case, the query must select all unique major codes and descriptions. The same technique can be used to create the student classification dimension table (In our solution, we have named the student classification Chapter 13 Business Intelligence and Data Warehouses dimension table CLASS.) Naturally, you can use some front-end tool other than Access, but we have found Access to be particularly effective in this environment. To produce the solution we have stored in the PW-P1sol.MBD database, we have used the queries listed in Table P13.1C. Table P13.1C The Queries in the DW_P1sol.MDB Database Query Name Query Description Update DATE format in USELOG The DATE field in USELOG was originally given to us as a character field. This query converted the date text to a date field we can use for date comparisons. This query changes the STUDENT_ID format to make it compatible with the format used in USELOG. This query changes the STUDENT_ID format to make it compatible with the format used in STUDENT. Creates a temporary storage table (TEST) used to make some data transformations previous the creation of the fact table. The TEST table contains the fields that will be used in the USEFACT table, plus other fields used for data transformation purposes. Before we create the USEFACT table, we must transform the dates and time to match the SEMESTER_ID and TIME_ID keys used in our SEMESTER and TIME dimension tables. This query does that. This query does data aggregation over the data in TEST table. This query table will be used to create the new USEFACT table. This query uses the results of the previous query to populate our USEFACT table. Used to generate Report1 Used to generate Report2 Used to generate Report3 Update STUDENT_ID format in STUDENT Update STUDENT_ID format in USELOG Append TEST records from USELOG & STUDENT Update TIME_ID and SEMESTER_ID in TEST Count STUDENTS sort by Fact Keys: SEM, MAJOR, CLASS, TIME. Populate USEFACT Compares usage by Semesters by Times Usage by Time, Major and Classification Usage by Major and Semester Having completed the preliminary work, we can now present the solutions to the seven problems: a. Define the main facts to be analyzed. ( Hint : These facts become the source for the design of the fact table.) The main facts are the total number of students by time, the major, the semester, and the student classification. b. Define and describe the possible dimensions. (Hint : These dimensions become the source for the design of the dimension tables.) The possible dimensions are semester, major, classification, and time. Each of these dimensions provides an additional perspective to the total number of students fact table. The Chapter 13 Business Intelligence and Data Warehouses dimension table names and attributes are shown in the screen shot that illustrates the answer to problem 3. c. Draw the lab usage star schema, using the fact and dimension structures you defined in Problems 1a and 1b. Figure P13.1c shows the MS Access relational diagram – see the Ch13-P1sol.mdb database in the Student Online Companion -- to illustrate the star schema, the relationships, the table names, and the field names used in our solution. The students are given only the USELOG and STUDENT tables and they must produce the fact table and dimension tables. Figure P13.1c The Microsoft Access Relational Diagram d. Define the attributes for each of the dimensions in Problem (b). Given problem 1c's star schema snapshot, the dimension attributes are easily defined: Semester dimension: semester_id, semester_description, begin_date, and end_date. Major dimension: major_code and major_name. Class dimension: class_id, and class_description. Time dimension: time_id, time_description, begin_time and end_time. e. Recommend the appropriate attribute hierarchies. Chapter 13 Business Intelligence and Data Warehouses See the answer to question 18 and the dimensions shown in Problems 1c and 1d to develop the appropriate attribute hierarchies. NOTE To create the dimension tables in MS Access, we had to modify the data. These modifications can be examined in the update queries stored in the Ch13_P1sol.mdb database. We used the switch function in MS Access to assign the proper SEMESTER_ID and the TIME_ID values to the USEFACT table. f. Implement your data warehouse design, using the star schema you created in problem (c) and the attributes you defined in Problem (d). The solution is included in the Ch13_P1sol.mdb database on the Instructor's CD. g. Create the reports that will meet the requirements listed in this problem’s introduction. Use the Ch13_P1sol.mdb database on the Instructor's CD as the basis for the reports. Keep in mind that the Microsoft Access export function can be used to put the Access tables into a different database such as Oracle or DB2. 2. Victoria Ephanor manages a small product distribution company. Because the business is growing fast, Ephanor recognizes that it is time to manage the vast information pool to help guide the accelerating growth. Ephanor, who is familiar with spreadsheet software, currently employs a sales force of four people. She asks you to develop a data warehouse application prototype that will enable her to study sales figures by year, region, salesperson, and product. (This prototype is to be used as the basis for a future data warehouse database.) Using the data supplied in the Ch13_P2.xls file, complete the following seven problems: a. Identify the appropriate fact table components. The dimensions for this star schema are: Year, Region, Agent, and Product. (These are shown in Figure P13.2c.) b. Identify the appropriate dimension tables. (These are shown in Figure P13.2c.) c. Draw a star schema diagram for this data warehouse. See Figure P13.2c. Figure P13.2C The Star Schema for the Ephanor Distribution Company Chapter 13 Business Intelligence and Data Warehouses d. Identify the attributes for the dimension tables that will be required to solve this problem. The solution to this problem is presented in the Ch13_P2sol.xls file in the Student Online Companion. Chapter 13 Business Intelligence and Data Warehouses e. Using a Microsoft Excel or any other spreadsheet capable of producing pivot tables, generate a pivot table to show the sales by product and by region. The end user must be able to specify the display of sales for any given year. The sample output is shown in the first pivot table in Figure P13.2E. FIGURE P13.2E Using a pivot table The solution to this problem is presented in the Ch13_P2sol.xls file in the Student Online Companion. f. Using Problem 2e as your base, add a second pivot table (see Figure P13.2E) to show the sales by salesperson and by region. The end user must be able to specify sales for a given year or for all years, and for a given product or for all products. The solution to this problem is presented in the Ch13_P2sol.xls file in the Student Online Companion. Chapter 13 Business Intelligence and Data Warehouses g. Create a 3-D bar graph to show sales by salesperson, by product, and by region. (See the sample output in Figure P13.2G.) FIGURE P13.2G 3-D bar graph showing the relationships among sales person, product, and region The solution to this problem is presented in the Ch13_P2sol.xls file in the Student Online Companion. Chapter 13 Business Intelligence and Data Warehouses 3. David Suker, the inventory manager for a marketing research company, wants to study the use of supplies within the different company departments. Suker has heard that his friend, Ephanor, has developed a spreadsheet-based data warehouse model that she uses in her analysis of sales data (See Problem 2). Suker is interested in developing a data warehouse model like Ephanor’s so he can analyze orders by department and by product. He will use Microsoft Access as the Data Warehouse DBMS and Microsoft Excel as the analysis tool. a. Develop the order star schema. Figure P13-3A's MS-Access relational diagram reflects the star schema and its relationships. Note that the students are given only the ORDERS table. The student must study the data set and make the queries necessary to create the dimension tables (TIME, DEPT, VENDOR and PRODUCT) and the ORDFACT fact table. Figure P13.3A The Marketing Research Company Relational Diagram b. Identify the appropriate dimension attributes. The dimensions are: TIME, DEPT, VENDOR, and PRODUCT. (See Figure P13.3A.) c. Identify the attribute hierarchies required to support the model. The main hierarchy used for data drilling purposes is represented by TIME-DEPT-VENDORPRODUCT sequence. (See Figure P13.3A.) Within this hierarchy, the user can analyze data at different aggregation levels. Additional hierarchies can be constructed in the TIME dimension to account for quarters or, if necessary, by daily aggregates. The VENDOR dimension could also be expanded to include geographic information that could be used for drill-down purposes. d. Develop a crosstab report (in Microsoft Access), using a 3-D bar graph to show sales by Chapter 13 Business Intelligence and Data Warehouses product and by department. (The sample output is shown in Figure P13.3.) FIGURE P13.3 A Crosstab Report: Sales by Product and Department The solution to this problem is included in the Ch13_P3sol.mdb database in the Student Online Companion. Chapter 13 Business Intelligence and Data Warehouses 4. ROBCOR, Inc., whose sample data are contained in the database named Ch13_P4.mdb, provides "on demand" aviation charters using a mix of different aircraft and aircraft types. Because ROBCOR has grown rapidly, its owner has hired you to be its first database manager. The company's database, developed by an outside consulting team, already has a charter database in place to help manage all of its operations. Your first and critical assignment is to develop a decision support system to analyze the charter data. (Review the company’s operations in Problems 24-31 in Chapter 3, The Relational Database Model.) The charter operations manager wants to be able to analyze charter data such as cost, hours flown, fuel used, and revenue. She also wants to be able to drill down by pilot, type of airplane, and time periods. Given those requirements, complete the following: a. Create a star schema for the charter data. NOTE The students must first create the queries required to filter, integrate, and consolidate the data prior to their inclusion in the Data Warehouse. The Ch13_P4.mdb database contains the data to be used by the students. The Ch13_P4sol.mdb database contains the data and solution to the problems. The problem requires the creation of the time dimension. Looking at the data in the CHARTER table, the students should figure out that the two attributes in the time dimension should be year and month. Another possible attribute could be day, but since no one pilot or airplane was used more than once a day, including it as an attribute would only reduce the database's efficiency. The analysis to be done on the time dimension can be done on a monthly or yearly basis. The CHARTER table contains the date of the charter. No time IDs exist and the date is contained within a single field. The student must create the TIME dimension table and assign the proper TIME_ID keys and its attributes. A temporary table is created to aid in the creation of the CHARTER_FACT table. The queries in Table P13.4-1 are used in the transformation process: Chapter 13 Business Intelligence and Data Warehouses Table P13.4-1 The ROBCOR Data Warehouse Queries Query Name Query Description Make a TEMP table from CHARTER, PILOT, and MODEL Creates a temporary storage table used to make the necessary data transformations before the creation of the fact table. Used to create the TIME_ID key used in the TIME dimension table. In order to get the year and month attributes in the TIME dimension it is necessary to separate that data in the temporary table first. The date is in the TEMP table but will not be in the fact table. This query is used to create the time table using the appropriate data from the TEMP table. This query does data aggregation over the data in the TEMP table. This query table will be used to create the new CHARTER_FACT table. This query uses the results of the previous query to populate our CHARTER_FACT table. Update TIME_ID in TEMP Update YEAR and MONTH in TEMP Make TIME table from TEMP Aggregate TEMP table by fact keys Populate CHARTER_FACT table The MS Access relational diagram in Figure P13-4a reflects the star schema, the relationships, the table names, and field names used in our solution. The student is given only the CHARTER, AIRCRAFT, MODEL, EMPLOYEE, PILOT, and CUSTOMER tables, and they must produce the fact table and the dimension table. Figure P13.4A The RobCor Relational Diagram Chapter 13 Business Intelligence and Data Warehouses b. Define the dimensions and attributes for the charter operation’s star schema. The dimensions are TIME, MODEL, and PILOT. Each of these dimensions is depicted in Figure P13.4a’s star schema figure. The attributes are: Time dimension: time id, year, and month. Model dimension: model code, manufacturer, name, number of seats, etc. Pilot dimension: employee number, pilot license, pilot ratings, etc. c. Define the necessary attribute hierarchies. The main attribute hierarchy is based on the sequence year-month-model-pilot. The aggregate analysis is based on this hierarchy. We can produce a query to generate revenue, hours flown, and fuel used on a yearly basis. We can then drill down to a monthly time period to generate the aggregate information for each model of airplane. We can also drill down to get that information about each pilot. d. Implement the data warehouse design, using the design components you developed in Problems 4a-4c. The Ch13_P4sol.mdb database contains the data and solutions for problems 4a-4c. e. Generate the reports that will illustrate that your data warehouse is able to meet the specified information requirements. The Ch13-P4sol.mdb database contains the solution for problem 4e. Using the data provided in the Ch13_SaleCo_DW database, solve the following problems. ONLINE CONTENT The script files used to populate the database are available at www.cengagebrain.com. The script files are available in Oracle, MySQL and SQL Server formats. MS Access does not have SQL support for the complex grouping required. 5. What is the SQL command to list the total sales by customer and by product, with subtotals by customer and a grand total for all product sales? Oracle: SELECT CUS_CODE, P_CODE, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT GROUP BY ROLLUP (CUS_CODE, P_CODE); SQL Server and MySQL: SELECT CUS_CODE, P_CODE, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES Chapter 13 Business Intelligence and Data Warehouses FROM DWDAYSALESFACT GROUP BY CUS_CODE, P_CODE WITH ROLLUP; 6. What is the SQL command to list the total sales by customer, month and product, with subtotals by customer and by month and a grand total for all product sales? Oracle: SELECT CUS_CODE, TM_MONTH, P_CODE, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY ROLLUP (CUS_CODE, TM_MONTH, P_CODE); SQL Server and MySQL: SELECT CUS_CODE, TM_MONTH, P_CODE, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY CUS_CODE, TM_MONTH, P_CODE WITH ROLLUP; 7. What is the SQL command to list the total sales by region and customer, with subtotals by region and a grand total for all sales? Oracle: SELECT REG_ID, CUS_CODE, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWCUSTOMER C ON S.CUS_CODE = C.CUS_CODE GROUP BY ROLLUP (REG_ID, CUS_CODE); SQL Server and MySQL: SELECT REG_ID, CUS_CODE, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWCUSTOMER C ON S.CUS_CODE = C.CUS_CODE GROUP BY REG_ID, CUS_CODE WITH ROLLUP; 8. What is the SQL command to list the total sales by month and product category, with subtotals by month and a grand total for all sales? Oracle: SELECT TM_MONTH, P_CATEGORY, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY ROLLUP (TM_MONTH, P_CATEGORY); SQL Server and MySQL: SELECT TM_MONTH, P_CATEGORY, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE Chapter 13 Business Intelligence and Data Warehouses JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY TM_MONTH, P_CATEGORY WITH ROLLUP; 9. What is the SQL command to list the number of product sales (number of rows) and total sales by month, with subtotals by month and a grand total for all sales? Oracle: SELECT TM_MONTH, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY ROLLUP (TM_MONTH); SQL Server and MySQL: SELECT TM_MONTH, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY TM_MONTH WITH ROLLUP; 10. What is the SQL command to list the number of product sales (number of rows) and total sales by month and product category with subtotals by month and product category and a grand total for all sales? Oracle: SELECT TM_MONTH, P_CATEGORY, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY ROLLUP (TM_MONTH, P_CATEGORY); SQL Server and MySQL: SELECT TM_MONTH, P_CATEGORY, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY TM_MONTH, P_CATEGORY WITH ROLLUP; 11. What is the SQL command to list the number of product sales (number of rows) and total sales by month, product category and product, with subtotals by month and product category and a grand total for all sales? Oracle: SELECT TM_MONTH, P_CATEGORY, P_CODE, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWTIME T ON S.TM_ID = T.TM_ID JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE Chapter 13 Business Intelligence and Data Warehouses GROUP BY ROLLUP (TM_MONTH, P_CATEGORY, P_CODE); SQL Server and MySQL: SELECT TM_MONTH, P_CATEGORY, P_CODE, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWTIME T ON S.TM_ID = T.TM_ID JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE GROUP BY TM_MONTH, P_CATEGORY, P_CODE WITH ROLLUP; 12. Using the answer to Problem 10 as your base, what command would you need to generate the same output but with subtotals in all columns? ( Hint : Use the CUBE command). Oracle: SELECT TM_MONTH, P_CATEGORY, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY CUBE (TM_MONTH, P_CATEGORY); SQL Server: SELECT TM_MONTH, P_CATEGORY, COUNT(*) AS NUMPROD, SUM(SALE_UNITS*SALE_PRICE) AS TOTSALES FROM DWDAYSALESFACT S JOIN DWPRODUCT P ON S.P_CODE = P.P_CODE JOIN DWTIME T ON S.TM_ID = T.TM_ID GROUP BY TM_MONTH, P_CATEGORY WITH CUBE; 13. Create your own data analysis and visualization presentation. The purpose of this project is for you to search for a publicly available data set using the Internet and create your own presentation using what you have learned in this chapter. a. Search for a data set that may interest you and download it. Some examples of public data sets sources are:  http://www.data.gov  http://data.worldbank.org  http://aws.amazon.com/datasets  http://usgovxml.com/  https://data.medicare.gov/  http://www.faa.gov/data_research/ b. Use any tool available to you to analyze the data. You can use tools such as MS Excel Pivot Tables, Pivot Charts, or other free tools, such as Google Fusion tables, Tableau free trial, IBM Many Eyes, etc. c. Create a short presentation to explain some of your findings (what the data sources are, where the data comes from, what the data represents, etc.) There are an incredible number of possible visualizations that students can create for an exercise like this. Most students enjoy the opportunity to express their creativity in producing visually interesting solutions. Attempt to keep the focus on how the visualization might make the data actionable. What can we learn from the visualization, and how might a decision maker be influenced by it.
