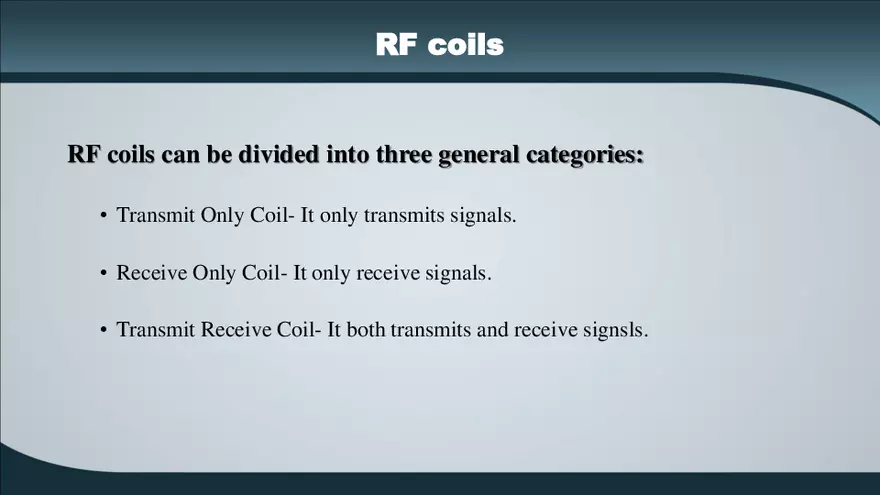

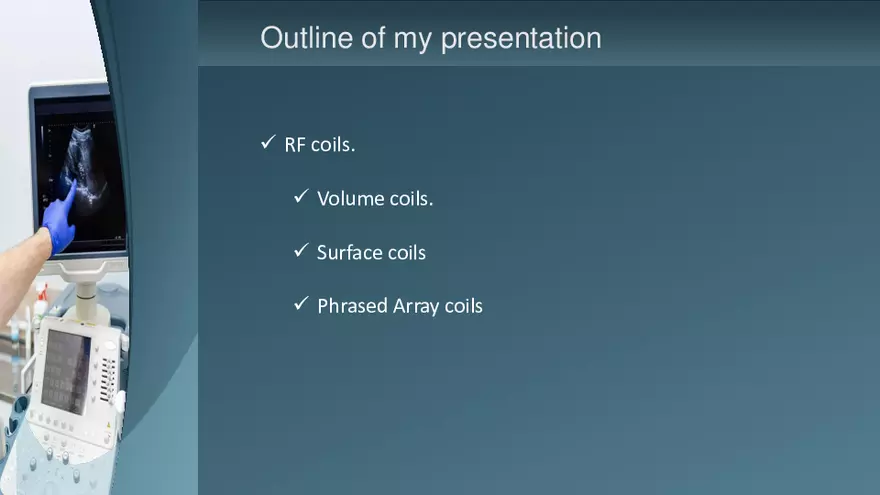

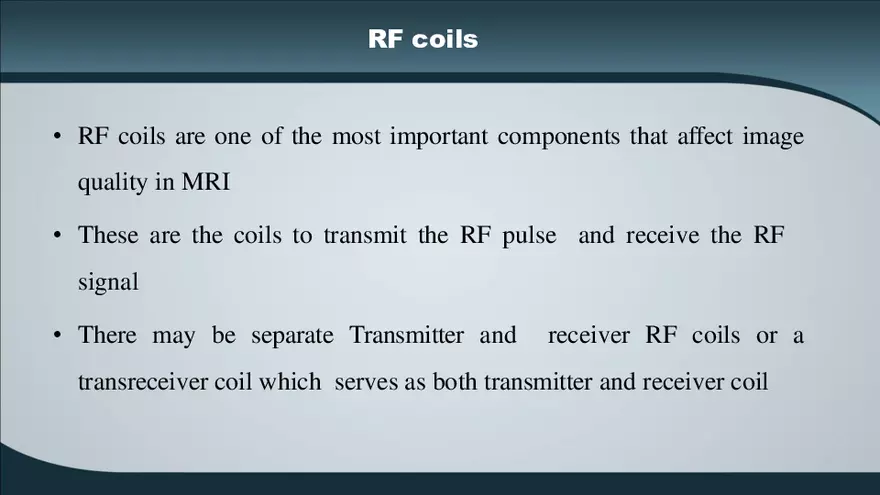

RF coils Outline of my presentation ✓ RF coils. ✓ Volume coils. ✓ Surface coils ✓ Phrased Array coils RF coils • RF coils are one of the most important components that affect image quality in MRI • These are the coils to transmit the RF pulse and receive the RF signal • There may be separate Transmitter and receiver RF coils or a transreceiver coil which serves as both transmitter and receiver coil RF coils RF coils can be divided into three general categories: • Transmit Only Coil- It only transmits signals. • Receive Only Coil- It only receive signals. • Transmit Receive Coil- It both transmits and receive signsls.

RF Coils Lecture
