Computer Organization and Architecture. Input/Output

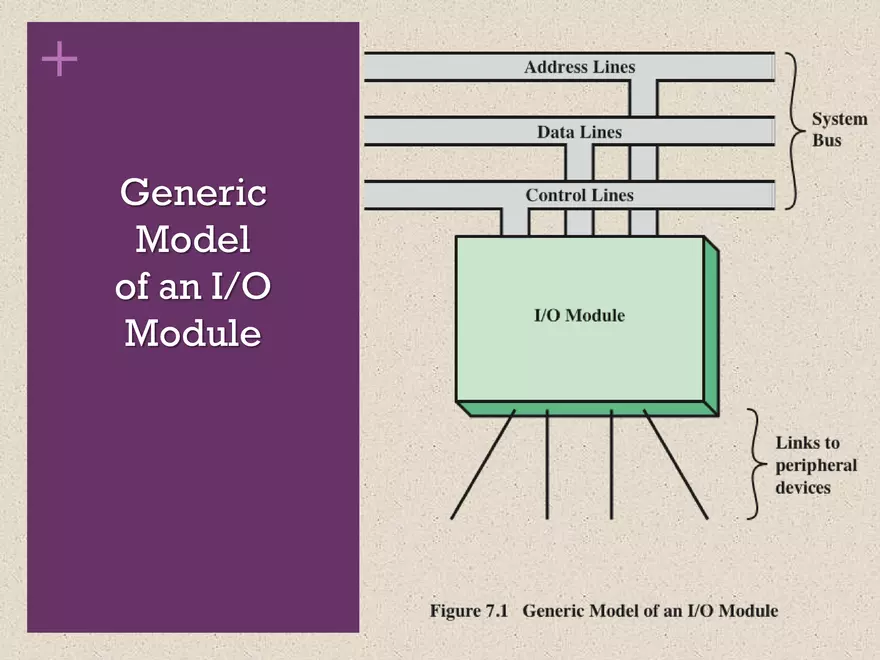

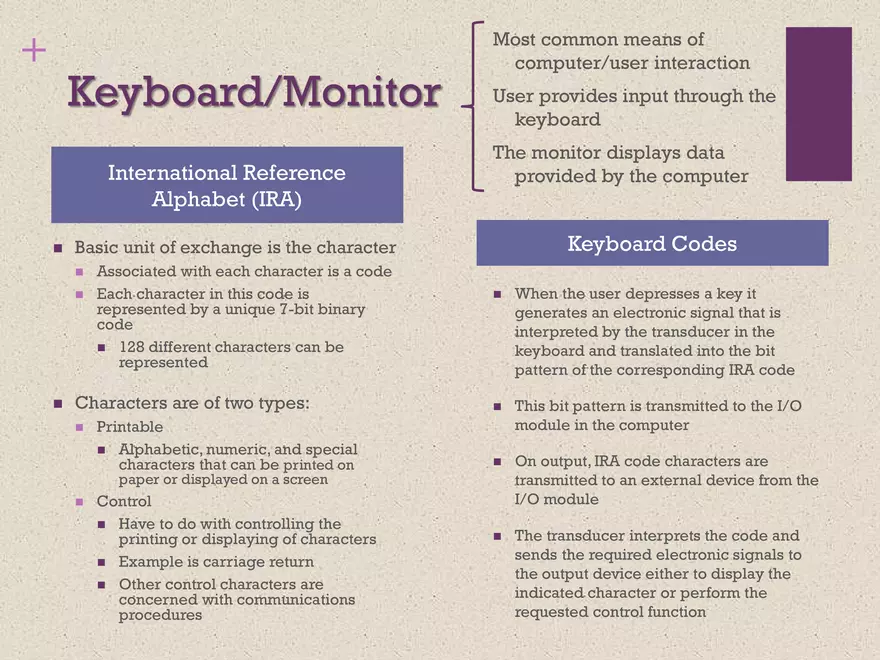

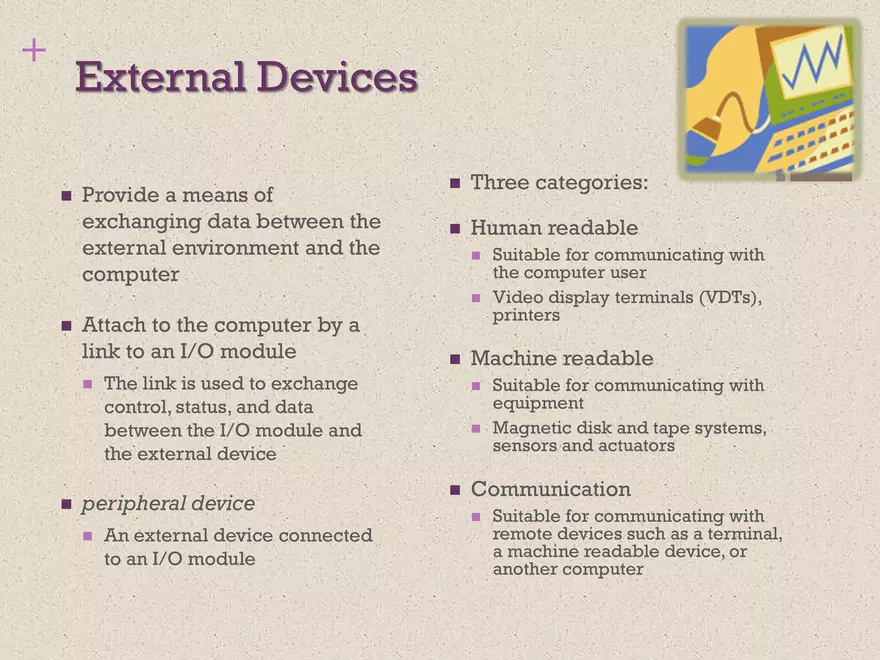

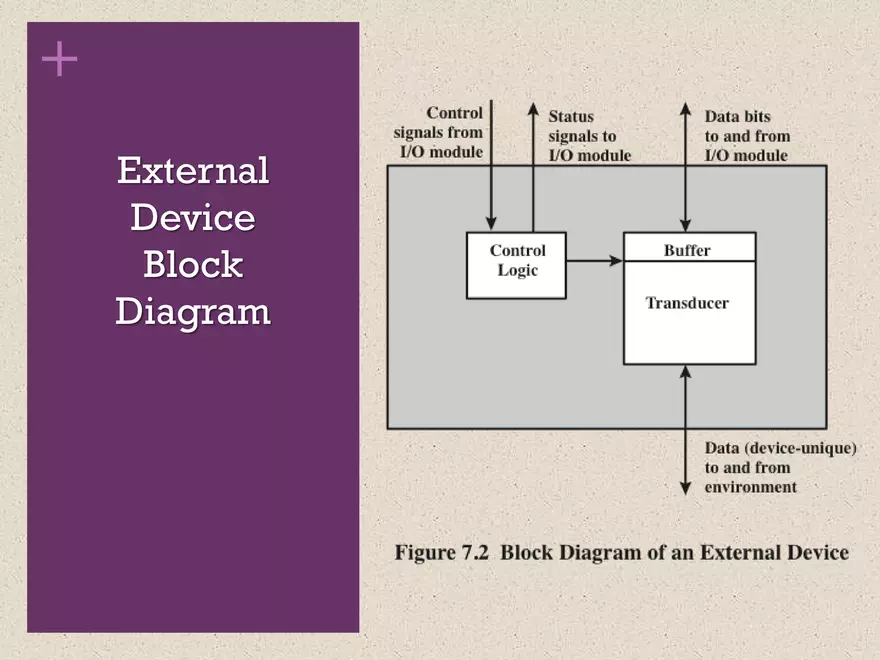

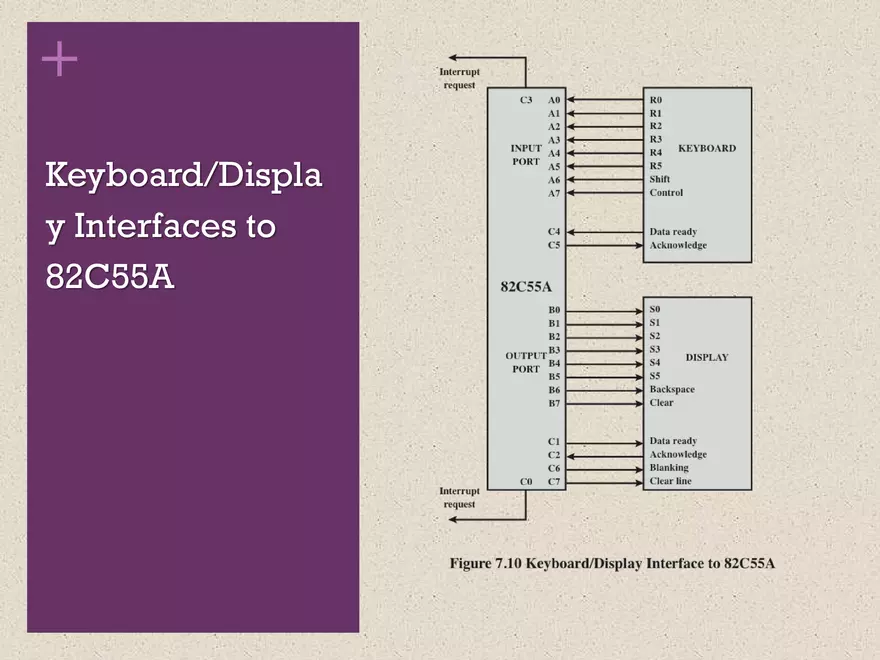

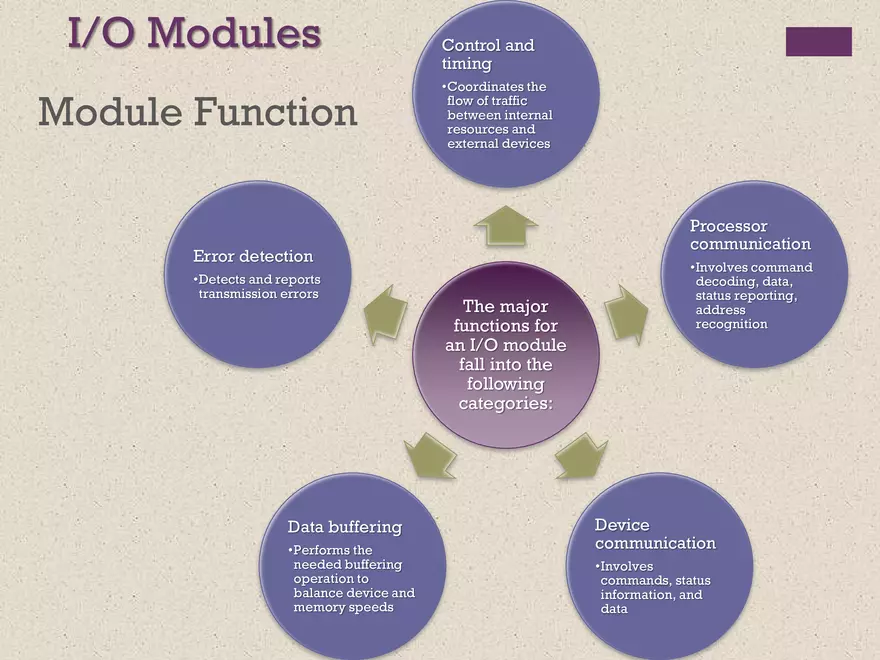

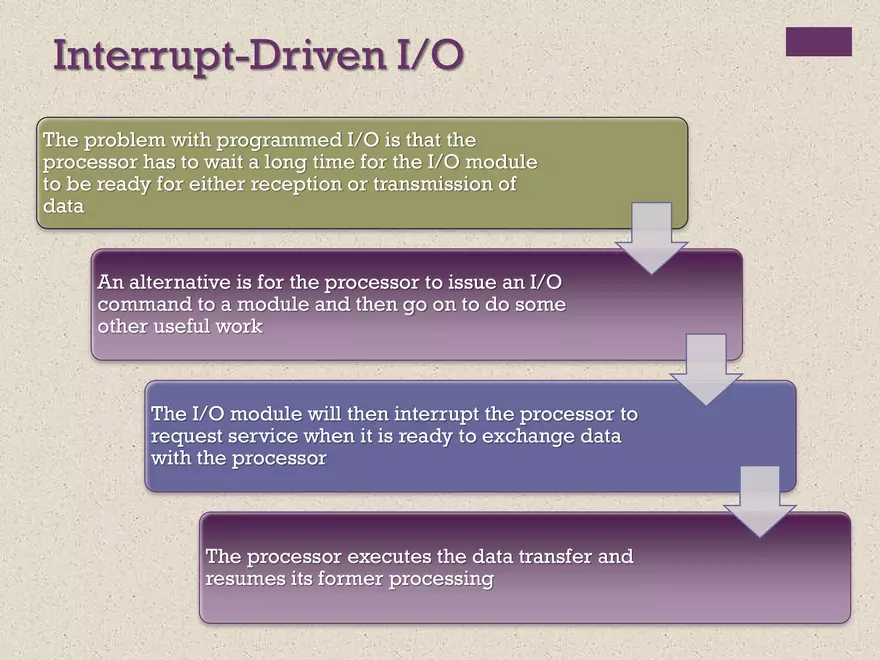

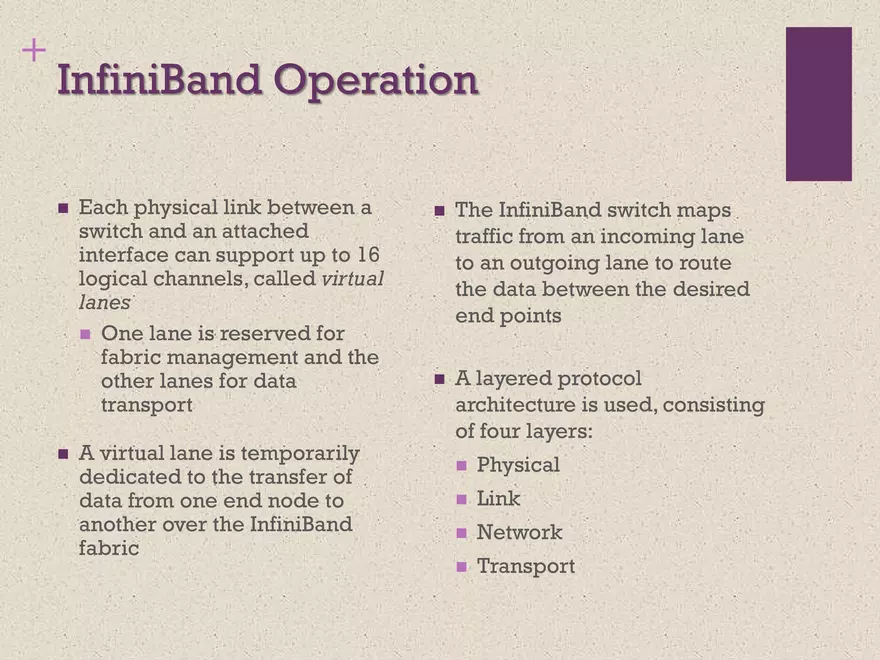

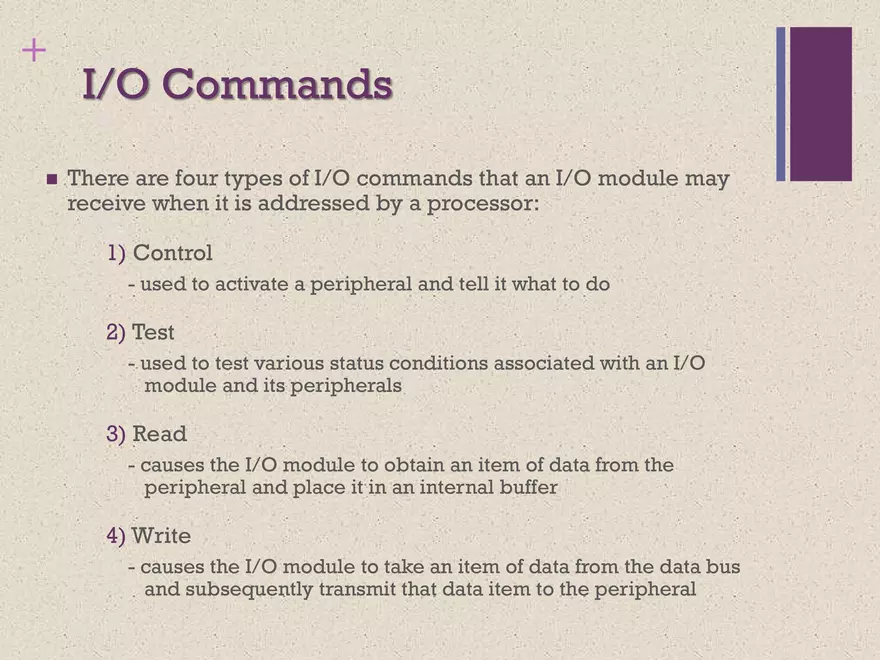

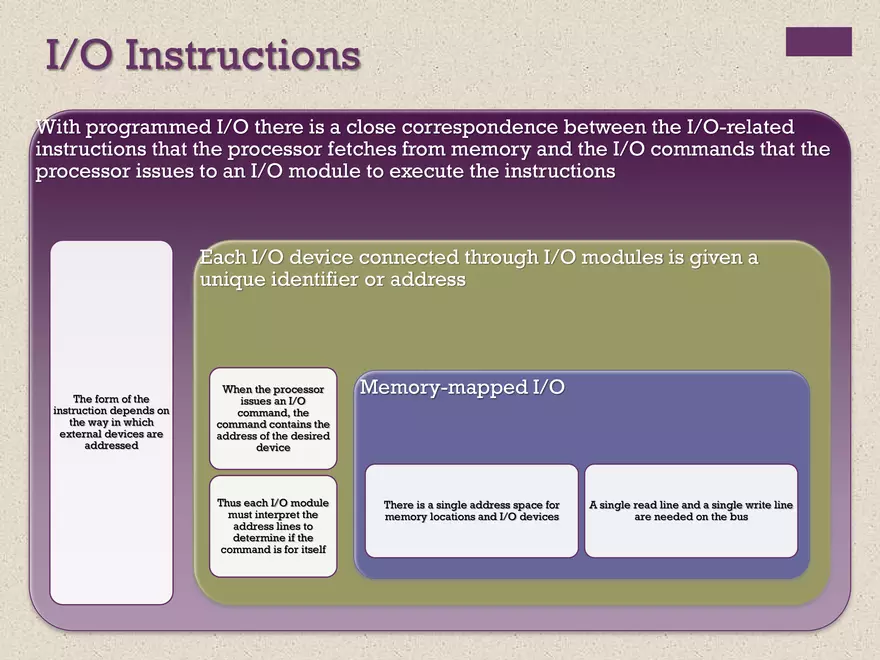

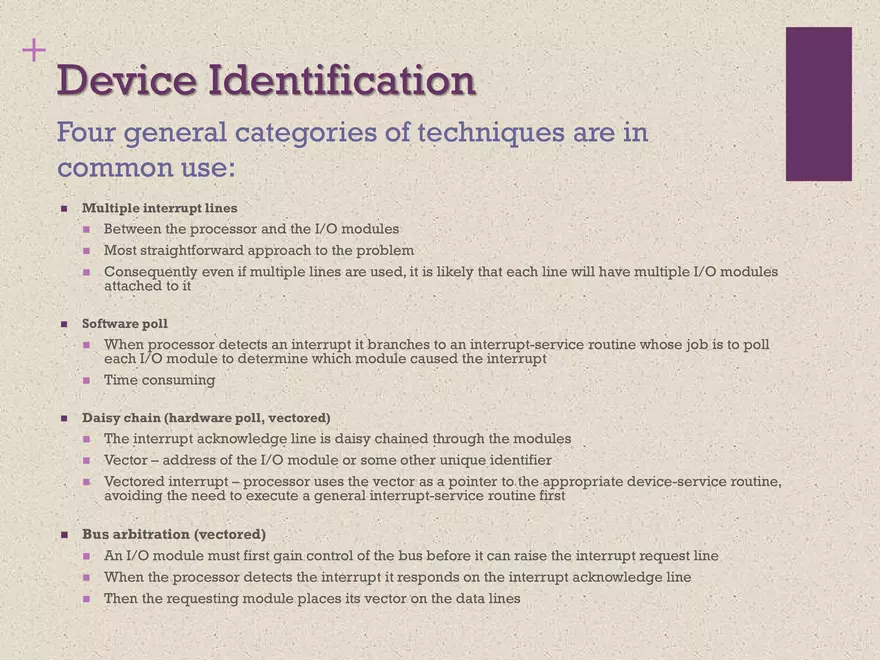

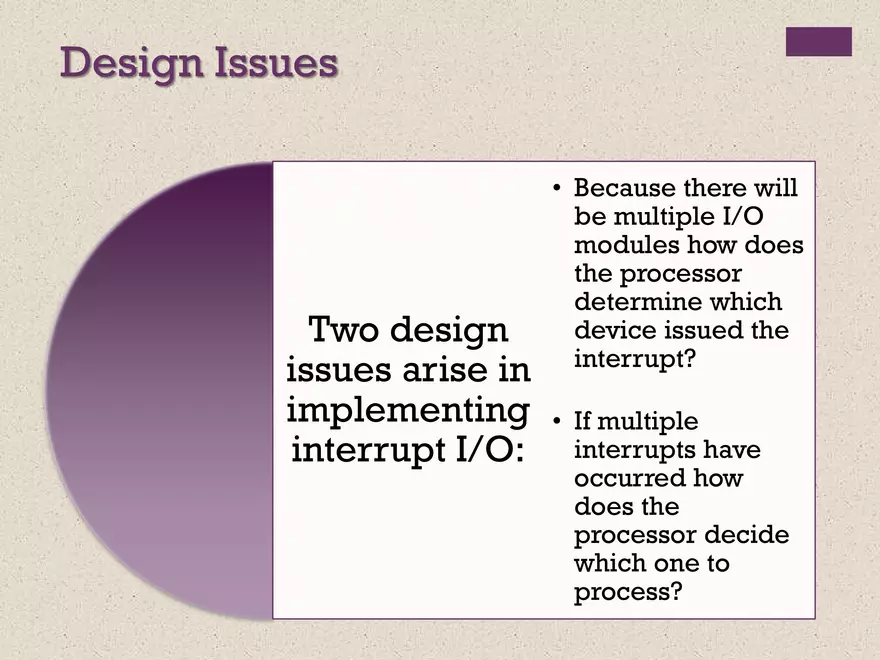

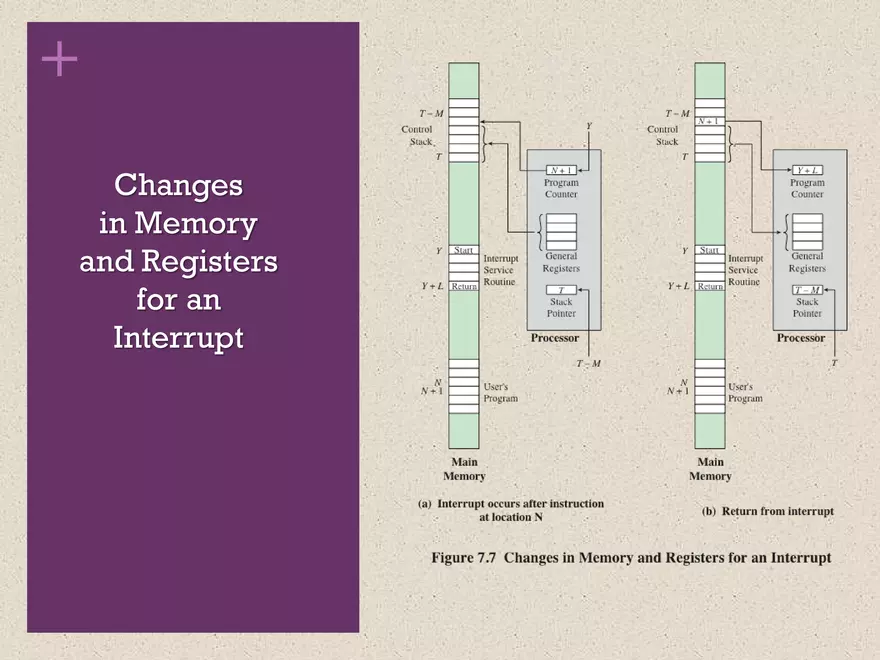

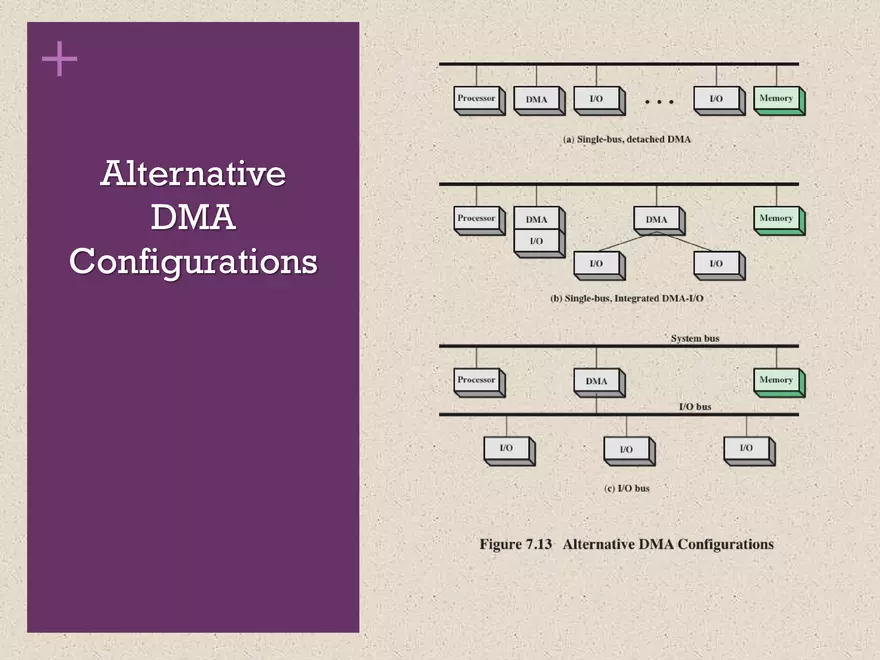

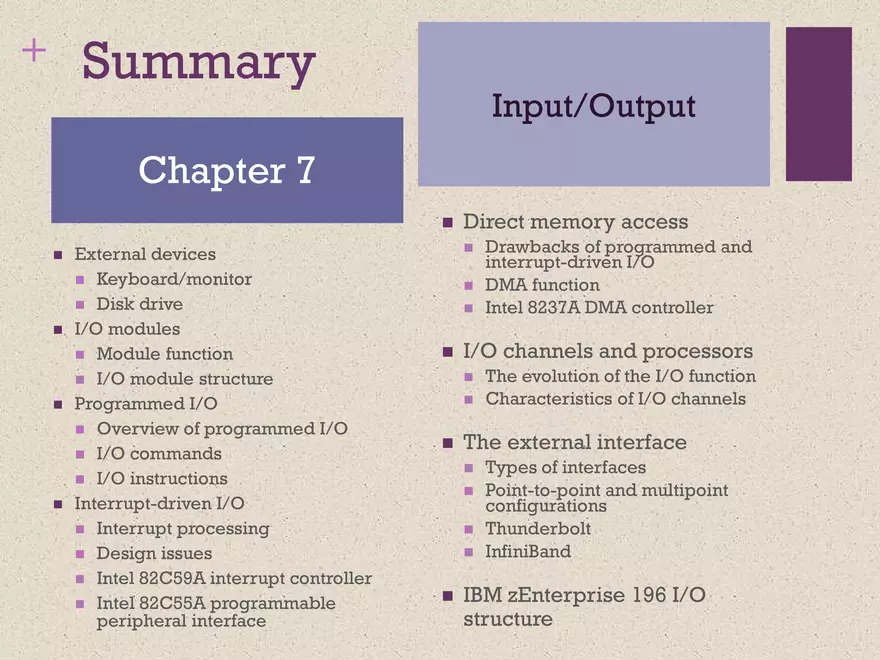

+ Computer Organization and Architecture + Chapter 7 Input/Output + Generic Model of an I/O Module + External Devices  Provide a means of exchanging data between the external environment and the computer  Three categories:  Human readable    Attach to the computer by a link to an I/O module   The link is used to exchange control, status, and data between the I/O module and the external device peripheral device   An external device connected to an I/O module Machine readable    Suitable for communicating with the computer user Video display terminals (VDTs), printers Suitable for communicating with equipment Magnetic disk and tape systems, sensors and actuators Communication  Suitable for communicating with remote devices such as a terminal, a machine readable device, or another computer + External Device Block Diagram + Keyboard/Monitor International Reference Alphabet (IRA)  User provides input through the keyboard The monitor displays data provided by the computer Keyboard Codes Basic unit of exchange is the character    Most common means of computer/user interaction Associated with each character is a code Each character in this code is represented by a unique 7-bit binary code  128 different characters can be represented Characters are of two types:  Printable  Alphabetic, numeric, and special characters that can be printed on  When the user depresses a key it generates an electronic signal that is interpreted by the transducer in the keyboard and translated into the bit pattern of the corresponding IRA code  This bit pattern is transmitted to the I/O module in the computer  On output, IRA code characters are transmitted to an external device from the I/O module  The transducer interprets the code and sends the required electronic signals to the output device either to display the indicated character or perform the requested control function paper or displayed on a screen  Control  Have to do with controlling the printing or displaying of characters  Example is carriage return  Other control characters are concerned with communications procedures I/O Modules Module Function Control and timing •Coordinates the flow of traffic between internal resources and external devices Processor communication Error detection •Detects and reports transmission errors Data buffering •Performs the needed buffering operation to balance device and memory speeds The major functions for an I/O module fall into the following categories: •Involves command decoding, data, status reporting, address recognition Device communication •Involves commands, status information, and data I/O Module Structure + Programmed I/O  Three techniques are possible for I/O operations:  Programmed I/O   Data are exchanged between the processor and the I/O module  Processor executes a program that gives it direct control of the I/O operation  When the processor issues a command it must wait until the I/O operation is complete  If the processor is faster than the I/O module this is wasteful of processor time Interrupt-driven I/O   Processor issues an I/O command, continues to execute other instructions, and is interrupted by the I/O module when the latter has completed its work Direct memory access (DMA)  The I/O module and main memory exchange data directly without processor involvement Table 7.1 I/O Techniques + +  I/O Commands There are four types of I/O commands that an I/O module may receive when it is addressed by a processor: 1) Control - used to activate a peripheral and tell it what to do 2) Test - used to test various status conditions associated with an I/O module and its peripherals 3) Read - causes the I/O module to obtain an item of data from the peripheral and place it in an internal buffer 4) Write - causes the I/O module to take an item of data from the data bus and subsequently transmit that data item to the peripheral Three Techniques for Input of a Block of Data I/O Instructions With programmed I/O there is a close correspondence between the I/O-related instructions that the processor fetches from memory and the I/O commands that the processor issues to an I/O module to execute the instructions Each I/O device connected through I/O modules is given a unique identifier or address The form of the instruction depends on the way in which external devices are addressed When the processor issues an I/O command, the command contains the address of the desired device Thus each I/O module must interpret the address lines to determine if the command is for itself Memory-mapped I/O There is a single address space for memory locations and I/O devices A single read line and a single write line are needed on the bus + I/O Mapping Summary  Memory    Devices and memory share an address space I/O looks just like memory read/write No special commands for I/O  Large selection of memory access commands available  Isolated    mapped I/O I/O Separate address spaces Need I/O or memory select lines Special commands for I/O  Limited set Memory Mapped I/O Isolated I/O + Interrupt-Driven I/O The problem with programmed I/O is that the processor has to wait a long time for the I/O module to be ready for either reception or transmission of data An alternative is for the processor to issue an I/O command to a module and then go on to do some other useful work The I/O module will then interrupt the processor to request service when it is ready to exchange data with the processor The processor executes the data transfer and resumes its former processing + Simple Interrupt Processing + Changes in Memory and Registers for an Interrupt Design Issues Two design issues arise in implementing interrupt I/O: • Because there will be multiple I/O modules how does the processor determine which device issued the interrupt? • If multiple interrupts have occurred how does the processor decide which one to process? + Device Identification Four general categories of techniques are in common use:  Multiple interrupt lines     Software poll    When processor detects an interrupt it branches to an interrupt-service routine whose job is to poll each I/O module to determine which module caused the interrupt Time consuming Daisy chain (hardware poll, vectored)     Between the processor and the I/O modules Most straightforward approach to the problem Consequently even if multiple lines are used, it is likely that each line will have multiple I/O modules attached to it The interrupt acknowledge line is daisy chained through the modules Vector – address of the I/O module or some other unique identifier Vectored interrupt – processor uses the vector as a pointer to the appropriate device-service routine, avoiding the need to execute a general interrupt-service routine first Bus arbitration (vectored)  An I/O module must first gain control of the bus before it can raise the interrupt request line  When the processor detects the interrupt it responds on the interrupt acknowledge line  Then the requesting module places its vector on the data lines + Intel 82C59A Interrupt Controller + Intel 82C55A Programmable Peripheral Interface + Keyboard/Displa y Interfaces to 82C55A Drawbacks of Programmed and Interrupt-Driven I/O  Both forms of I/O suffer from two inherent drawbacks: 1) The I/O transfer rate is limited by the speed with which the processor can test and service a device 2) The processor is tied up in managing an I/O transfer; a number of instructions must be executed for each I/O transfer +  When large volumes of data are to be moved a more efficient technique is direct memory access (DMA) + Typical DMA Module Diagram DMA DMA + DMA Operation + Alternative DMA Configurations 8237 DMA Usage of System Bus + Fly-By DMA Controller Data does not pass through and is not stored in DMA chip • DMA only between I/O port and memory • Not between two I/O ports or two memory locations Can do memory to memory via register 8237 contains four DMA channels • Programmed independently • Any one active • Numbered 0, 1, 2, and 3 Table 7.2 Intel 8237A Registers E/D = enable/disable TC = terminal count + Evolution of the I/O Function 1. The CPU directly controls a peripheral device. 2. A controller or I/O module is added. The CPU uses programmed I/O without interrupts. 3. Same configuration as in step 2 is used, but now interrupts are employed. The CPU need not spend time waiting for an I/O operation to be performed, thus increasing efficiency. 4. The I/O module is given direct access to memory via DMA. It can now move a block of data to or from memory without involving the CPU, except at the beginning and end of the transfer. 5. The I/O module is enhanced to become a processor in its own right, with a specialized instruction set tailored for I/O 6. The I/O module has a local memory of its own and is, in fact, a computer in its own right. With this architecture a large set of I/O devices can be controlled with minimal CPU involvement. + I/O Channel Architecture + Parallel and Serial I/O Point-to-Point and Multipoint Configurations Connection between an I/O module in a computer system and external devices can be either: Point-to-point interface provides a dedicated line between the I/O module and the external device point-to-point On small systems (PCs, workstations) typical point-to-point links include those to the keyboard, printer, and external modem multiport Example is EIA-232 specification Multipoint external interfaces are used to support external mass storage devices (disk and tape drives) and multimedia devices (CD-ROMs, video, audio) Are in effect external buses + Thunderbolt    Most recent and fastest peripheral connection technology to become available for general-purpose use  Provides up to 10 Gbps throughput in each direction and up to 10 Watts of power to connected peripherals  A Thunderbolt-compatible peripheral interface is considerably more complex than a simple USB device  First generation products are primarily aimed at the professionalconsumer market such as audiovisual editors who want to be able to move large volumes of data quickly between storage devices and laptops  Thunderbolt is a standard feature of Apple’s MacBook Pro laptop and iMac desktop computers Developed by Intel with collaboration from Apple The technology combines data, video, audio, and power into a single high-speed connection for peripherals such as hard drives, RAID arrays, video-capture boxes, and network interfaces + Computer Configuration with Thunderbolt + Thunderbolt Protocol Layers + InfiniBand  Recent I/O specification aimed at the high-end server market  First version was released in early 2001  Standard describes an architecture and specifications for data flow among processors and intelligent I/O devices  Has become a popular interface for storage area networking and other large storage configurations  Enables servers, remote storage, and other network devices to be attached in a central fabric of switches and links  The switch-based architecture can connect up to 64,000 servers, storage systems, and networking devices InfiniBand Switch Fabric + InfiniBand Operation   Each physical link between a switch and an attached interface can support up to 16 logical channels, called virtual lanes  One lane is reserved for fabric management and the other lanes for data transport A virtual lane is temporarily dedicated to the transfer of data from one end node to another over the InfiniBand fabric  The InfiniBand switch maps traffic from an incoming lane to an outgoing lane to route the data between the desired end points  A layered protocol architecture is used, consisting of four layers:  Physical  Link  Network  Transport + Table 7.3 InfiniBand Links and Data Throughput Rates InfiniBand Communication Protocol Stack + zEnterprise 196  Introduced in 2010  IBM’s latest mainframe computer offering  System is based on the use of the z196 chip   5.2 GHz multi-core chip with four cores Can have a maximum of 24 processor chips (96 cores)  Has a dedicated I/O subsystem that manages all I/O operations  Of the 96 core processors, up to 4 of these can be dedicated for I/O use, creating 4 channel subsystems (CSS)  Each CSS is made up of the following elements:       System assist processor (SAP) Hardware system area (HSA) Logical partitions Subchannels Channel path Channel I/O System Organization IBM z196 I/O System Structure + Summary Input/Output Chapter 7      External devices  Keyboard/monitor  Disk drive I/O modules  Module function  I/O module structure Programmed I/O  Overview of programmed I/O  I/O commands  I/O instructions Interrupt-driven I/O  Interrupt processing  Design issues  Intel 82C59A interrupt controller  Intel 82C55A programmable peripheral interface Direct memory access     I/O channels and processors    The evolution of the I/O function Characteristics of I/O channels The external interface      Drawbacks of programmed and interrupt-driven I/O DMA function Intel 8237A DMA controller Types of interfaces Point-to-point and multipoint configurations Thunderbolt InfiniBand IBM zEnterprise 196 I/O structure
