Security+ Study Guide Part 1

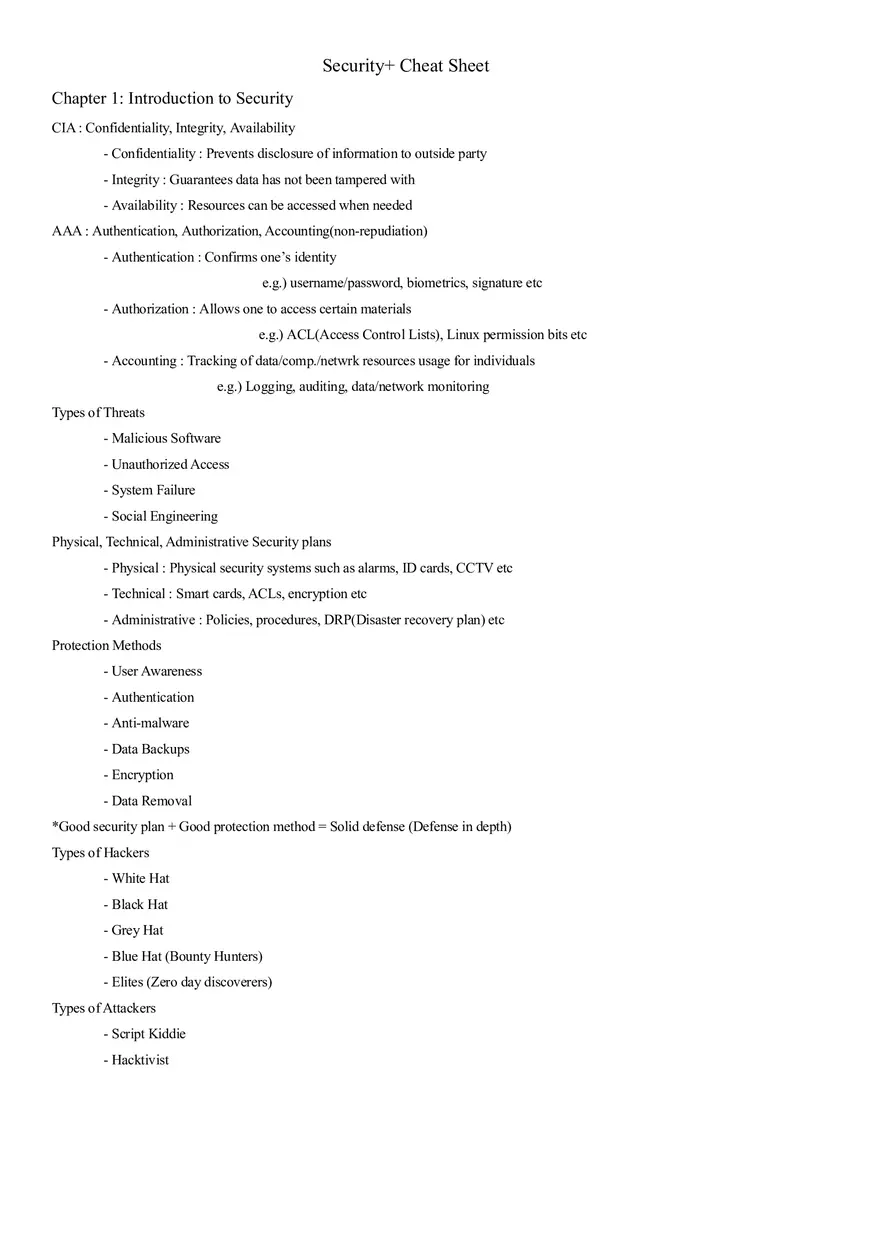

Security+ Cheat Sheet Chapter 1: Introduction to Security CIA : Confidentiality, Integrity, Availability - Confidentiality : Prevents disclosure of information to outside party - Integrity : Guarantees data has not been tampered with - Availability : Resources can be accessed when needed AAA : Authentication, Authorization, Accounting(non-repudiation) - Authentication : Confirms one’s identity e.g.) username/password, biometrics, signature etc - Authorization : Allows one to access certain materials e.g.) ACL(Access Control Lists), Linux permission bits etc - Accounting : Tracking of data/comp./netwrk resources usage for individuals e.g.) Logging, auditing, data/network monitoring Types of Threats - Malicious Software - Unauthorized Access - System Failure - Social Engineering Physical, Technical, Administrative Security plans - Physical : Physical security systems such as alarms, ID cards, CCTV etc - Technical : Smart cards, ACLs, encryption etc - Administrative : Policies, procedures, DRP(Disaster recovery plan) etc Protection Methods - User Awareness - Authentication - Anti-malware - Data Backups - Encryption - Data Removal *Good security plan + Good protection method = Solid defense (Defense in depth) Types of Hackers - White Hat - Black Hat - Grey Hat - Blue Hat (Bounty Hunters) - Elites (Zero day discoverers) Types of Attackers - Script Kiddie - Hacktivist - Organized Crime - APT(Advanced Persistent Threat aka Nation state attacker) Chapter 2 : Computer Systems Security Part 1 (Malware) Types of Malware - Viruses Malicious code executed by the user, lives on a file > Boot Sector : Placed in first hard drive sector > Macro : Placed into documents > Program : Infects executables > Encrypted : Avoids detection through encryption > Polymorphic : Decryption module changes with every infection > Metamorphic : Whole virus code changes with every infection > Stealth > Armored : Misdirects antivirus away from its actual location > Multipartite : Hybrid of boot sector and program - Worms Malicious code that replicates, standalone program, may spread automatically - Trojans Appear to be beneficial but contain malicious code > Keygens > RAT Trojans - Ransomware Encrypts files and data and demands payment to unlock Often propagates as a Trojan or a worm - Spyware Usually hidden inside third party applications Logs various user activities and sends it to attacker Also associated with Adware and Grayware - Rootkits Designed to gain administrative control over a machine Hard to detect b/c it targets low level(UEFI/BIOS, kernel etc) Activates before Antivirus/OS - Spam Abuse of electronic messaging system Malware Delivery Treat Vector vs Attack Vector - Software, Messaging and Media > Emails, FTP, P2P/torrent file downloads > Removable Media - Typosquatting - Exploit kit - Botnets and Zombies > Also used for DDOS or financial gain - Active Interception (MITM) - Privilege Escalation - Backdoor > Authentication bypass mechanisms built into the program itself - Logic Bombs > Triggers malware on certain condition(date, OS type etc) Malware Prevention / Troubleshooting Common Symptoms : Slow computer speed, crashes, incorrect home page, popups Common Prevention > Antivirus : Regular updates and scans Detects : worms, viruses and Trojans Does not detect : Botnet activity, rootkits, logic bombs > Firewalls and Regular OS updates > Separation of OS and data > Hardware + Software based firewall (e.g. router + Windows Firewall) > Encryption for confidentiality (Windows EFS) Common Steps to Malware Removal 1. Identify Symptoms 2. Quarantine infected system / drive to clean machine 3. Disable System Restore 4. Remediate affected system > Update AV / Scan and removal 5. Schedule scans and run update 6. Enable system restore and set new restore point 7. Educate end user Worms and Trojans > Antivirus, Regular maintenance and vigilance Spyware > Antivirus, browser security settings, remove unnecessary application > End user education Rootkits > Antivirus, Rootkit detectors (USB bootable OS) > Use UEFI over BIOS (GPT over MBR) > Wipe the entire drive & reinstall OS Spam > Spam filter, whitelisting/blacklisting, close open mail relays Chapter 3 : Computer Systems Security Part 2 Security Applications - Personal Firewalls (Host based firewalls) > Windows Firewall > ZoneAlarm > Packet Filter and IP Firewall (Mac OSX) > iptables (Linux) - IDS (Intrusion Detection System) Host Based : Loaded onto individual machine Analyzes and monitors that one machine state Can interpret encrypted traffic Network Based : Either loaded onto a machine or standalone device Monitors every packet going through network interface Monitors multiple devices, less expensive Cannot monitor what happens in an OS Monitoring Types – Statistical Anomaly vs Signature > Statistical Anomaly Establishes baseline and compares current performance > Signature Network traffic analyzed to find predetermined patterns HIDS examples > Trend Micro OSSEC (freeware) > Verisys (Commercial, Windows) > Tripwire (Commercial) * Make sure to protect HIDS database with encryption and access control - Popup Blockers Ad filtering & Content filtering - DLP (Data Loss Prevention) Monitors data in use / in motion / at rest Prevents unauthorized use and leakage of data Types of DLP > Endpoint DLP : Runs on single machine, software based > Network DLP : Software/hardware, installed on network perimeter > Storage DLP : Installed in data centers/server rooms Securing Computer Hardware and Peripherals Examples of peripherals: USB flash drives, SATA external HDD, optical disks Securing BIOS - Flashing (Updating) BIOS firmware - BIOS password - Configure BIOS Boot order - Secure boot (disables unsigned device drivers, UEFI) * UEFI and Root of Trust, secure/measured boot, attestation Securing Storage Devices - Removable Storage > Typically prohibits all removable storage besides specific ones > Removable Media Controls USB Lockdown (BIOS), limit USB use, malware scans, audits - NAS (Network Attached Storage) > Built for high availability (no downtime) > Commonly implemented as RAID array (levels depend on situation) > Use encryption, authentication, secure logging etc - Whole Disk Encryption > Requires either self encrypting or full disk encryption SW > Windows BitLocker requirements 1) TPM or External USB key with encrypted keys 2) Hard drive with 2 volumes(1 for boot, 1 to be encrypted) > Double Encryption – BitLocker + EFS - HSM (Hardware Security Modules) Vs TPM TPM handles key storage with limited cryptographic function HSM handles mainly quick crypto functions with key storage Found in USB attachment or network attached device Securing Wireless Peripherals - Force devices to use AES or WPA2 encryption for data transmission Securing Mobile Devices General Security - Keep phone number secure and do not respond to unsolicited calls - Update mobile device OS - Complex password and limit downloads to device Malware - Install & update mobile device AV - Take use of built in security features - Avoid following links, don’t store information on device - Don’t post info on social media Botnet Activity - Follow anti-malware procedures - Avoid rooting / jailbreaking phones SIM Cloning - A cloned SIM redirects all calls and texts to its own device - Able to hijack messages intended for original SIM card owner Wireless Attacks - Bluejacking - Bluesnarfing Theft - Full device encryption(FDE) - Set up GPS tracking - Remote lock & Remote wipe technology Mobile Application - Mobile key management : use Third party software (Verisign) - Application whitelisting / blacklisting - Strong SMS application and endpoint security - Mobile payment : avoid public networks, user education - Geotagging : Disable GPS depending on situation - BYOD concerns > Storage Segmentation : divide corporate vs private data storage > Mobile Device Management systems for corporations Chapter 4 : OS Hardening and Virtualization OS Hardening Motivation : Out of the box OS is vulnerable by default, Need to customize settings to make it more secure Concept of Least Functionality - Restrict and remove any functionality not required for operation - NIST CM-7 control procedures - Target features > Applications > Ports > Services (daemons) - Consider backwards compatibility when removing obsolete applications - SCCM (System Center Configuration Manager) for multiple machines - Application blacklisting / whitelisting - Service configuration commands > Windows : services.msc, net stop, sc stop > Linux : /etc/init.d/ stop, service stop etc > OSX : kill command Update, Patches, Hotfixes - TOS (Trusted Operating System) : Certified OS considered secure by gov standards - Update Categories > Security Update : Product specific, security related > Critical Update : critical, non security related bug fix > Service Pack : Cumulative set of updates, now discontinued > Windows Update : Noncritical fixes, new features and updates > Driver Update : Beware driver shimming / refactoring - Hotfixes and patches are now used interchangeably * Disable automatic updates to synchronize versions and updates Patch Management - Process of planning, testing, implementing and auditing patches > Planning : Deciding which patches are required Checking Compatibility Plan how the patch will be tested / deployed > Testing : Test the patch on one machine / small system > Implement : Patch deployment to all machines Use SCCM or other centralized management system > Auditing : Confirm patch is live on system Check for any failures or changes due to the patch Group Policies, Security Templates, Configuration Baselines Group Policy : Used in Windows to set group configurations * gpedit.msc Hardening File Systems and Hard Drives a) Use a secure file system > NTFS for Windows, allows encryption, ACLs, logging Use chkdsk and convert commands > ext4 for Linux Use fdisk –l or df –T b) Hide important files (System files, personal etc) c) Manage hard drives > Delete temp files > Periodically verify system files integrity > Defrag hard drives > Backup data > Restore points > Whole disk encryption > Separate OS system and personal data Virtualization Virtualization : Creation of virtual machines housed in an OS VM(Virtual Machines) and VDE(Virtual Desktop Environment) - Pros > Flexible and portable > Safe testing of malware in a controlled environment - Cons > Resource intensive > Vulnerable to hardware failures VM Categories 1. System virtual machine : Runs an entire OS 2. Process virtual machine : Runs a single application (browser) * Virtualization ↔ Emulation ↔ Simulation * Virtual Appliance ↔ Image ↔ Virtual Machine Other forms of virtualization > VPN (Virtual Private Network) > VDI (Virtual Desktop Infrastructure) > VLAN (Virtual Local Area Network) Hypervisor (Virtual Machine Manager) - Allows multiple virtual OS to run concurrently Type 1 vs Type 2 Hypervisor - Type 1 - Native > Runs directly on host hardware > Flexible and efficient > Strict hardware/software restrictions, less common - Type 2 – Hosted > One level removed from host hardware > More available to most OS and hardware > Resource intensive Application Containerization - Runs distributed applications w/o running an entire VM - Efficient but less secure Securing Virtual Machines Generally equivalent to securing regular OS, but with little more work 1. Update virtual machine software (e.g. VirtualBox) 2. Be wary of VM-VM and VM-host network connections 3. Protect NAS and SAN from virtual hosts 4. Disable unnecessary USB and external ports on VMs 5. Alter boot priority for virtual BIOS 6. Limit and monitor VM resource usage to prevent DOS attacks 7. Protect raw virtual machine image > Snapshots, Encryption, Access permission and signatures Virtualization Sprawl : When there are too many VMs to manage at once > Employ a VMLM (Virtual Machine Lifecycle Management) tool Chapter 5 : Application Security Securing Web Browsers - Avoid newest versions and disable auto update (new versions are unstable) - Consider organizational requirements and OS - General Browser Security Procedures > Implement Policies Hand written, browser settings, GPO(Windows), OS setting etc > Train Users > Use proxy and content filter Proxy serves as an intermediate cache between server and client Configured in browser settings / domain controller Beware of malicious proxy configurations > Secure against malicious code Configure Java, ActiveX, Javascript, Flash media etc - Web Browser Concerns and Security Methods Basic Methods > Timely Updates > Adblock, pop up blocking > Implement security zones > Control ActiveX/Java/Plugins > Avoid jailbreaking (mobile) Cookies > Configure and control through browser settings > Related threat : Session Hijacking LSO(Locally Shared Objects - Flash) > Flash version of cookies, may be used to track users > Configure and control in Flash Player Settings Manager Addons / Plugins > Inherent security risk, disable all > Most IE plugins made with vulnerable ActiveX Advanced Browser Security > Browser temp files – configure to automatically flush > Disable saved passwords > Configure a minimum version limit on TLS/SSL > Disable all 3rd party plugins > Consider using a VPN or virtual machine for extra separation Securing Other Applications Principle of Least Functionality – don’t give tools users don’t need User Account Control (Windows) - Keeps everyone on regular user level of access by default - Prompts required to access any admin right required things Create Policies (Prioritize app. Whitelisting over blacklisting) Securing common Windows programs 1. Outlook > Install latest update, upgrade to newer version of Office > Use email whitelisting to remove junk email > Read email in text format instead of HTML > Enable attachment blocking > Use encryption - SPA (Secure Password Authentication), PGP, SSL 2. Word > Using passwords for opening/modifying documents > Read only settings > Digital certificates 3. Excel > Password protected worksheets, no macro > Excel encryption Mobile Applications - Disable GPS - Configure strong passwords Server Applications - e.g. FTP, Email, Web, SQL database - Change default username / passwords - Don’t consolidate multiple services into single machine Secure Programming SDLC (Software Development Life Cycle) - Waterfall > Traditional method > Requirements are decided before development - Agile > RAD (Rapid Application Development) approach > Relatively new, Breaks development down to incremental changes > Requires high dedication from members - DevOps > Deployment tool, often used together with Agile method Core SDLC and DevOps Principles - Preserving CIA of software development - Secure code review > In depth code review for security bugs > Included before fuzzing or penetration testing - Threat Modeling > Identifying and prioritizing potential threats - Common Security Principles 1. Least Privilege 2. Defense in Depth 3. Never trust user input 4. Minimizing attack surface 5. Secure defaults 6. Provide authenticity and integrity (program signatures) 7. Fail securely (Error handling) 8. Thorough testing of security fixes and patches Program Testing Methods 1. White box vs Black box testing > white box, black box, gray box, stress testing, pentesting etc 2. Compile time vs runtime errors > Reminder that both software and hardware has runtime errors > SHE (Structured Exception Handling) deals with both SW/HW 3. Input Validation > Perform on both client and server side > Key factor of SQL injections and XSS 4. Static vs Dynamic code analysis > Static : No code execution, examines code with automated tools > Dynamic : Runtime examination of code behavior for bugs * Fuzzing is a form of dynamic code analysis 5. Fuzz Testing > Input of large amounts of random data until code errors Program Vulnerability and Attacks 1. Backdoors > Preprogrammed authentication bypasses built into system > Updates usually remove these, job rotation, code cross checking 2. Memory / Buffer Vulnerabilities > Buffer overflows (Stack, heap) > Integer overflows (integer wrapping) > Memory leaks : Degrades system performance > Nullptr dereference > ASLR and DEP is common defense against buffer overflows 3. Arbitrary and Remote Code Execution > Shellcode injections > Strong input validation, fuzz testing 4. XSS / XSRF > Common browser based attacks, uses HTML code injection 5. Other Code injections > SQL Injection > LDAP Injection > XML Injection 6. Directory Traversal 7. Zero Days
