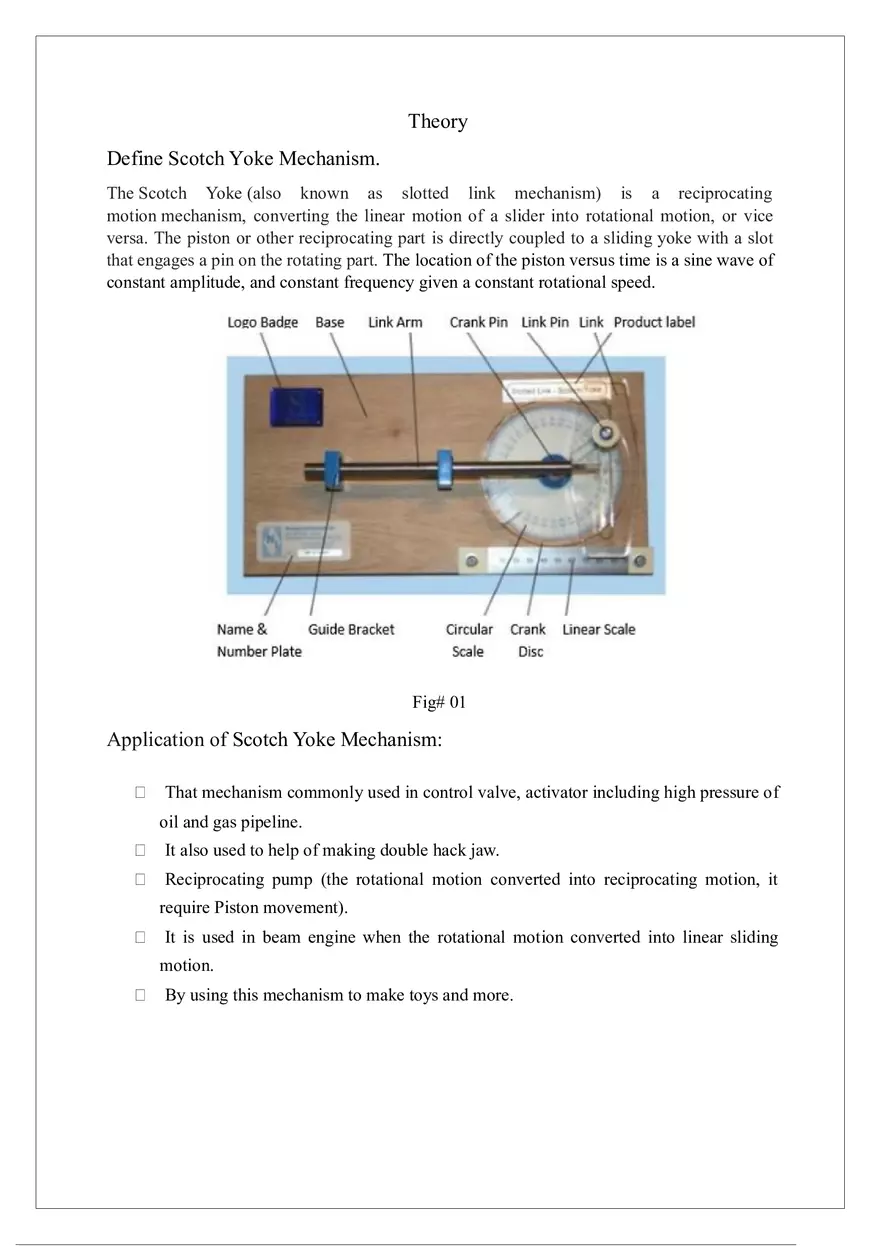

Theory Define Scotch Yoke Mechanism. The Scotch Yoke (also known as slotted link mechanism) is a reciprocating motion mechanism, converting the linear motion of a slider into rotational motion, or vice versa. The piston or other reciprocating part is directly coupled to a sliding yoke with a slot that engages a pin on the rotating part. The location of the piston versus time is a sine wave of constant amplitude, and constant frequency given a constant rotational speed. Fig# 01 Application of Scotch Yoke Mechanism: That mechanism commonly used in control valve, activator including high pressure of oil and gas pipeline. It also used to help of making double hack jaw. Reciprocating pump (the rotational motion converted into reciprocating motion, it require Piston movement). It is used in beam engine when the rotational motion converted into linear sliding motion. By using this mechanism to make toys and more.
