Static Routing and Basic Router Configuration

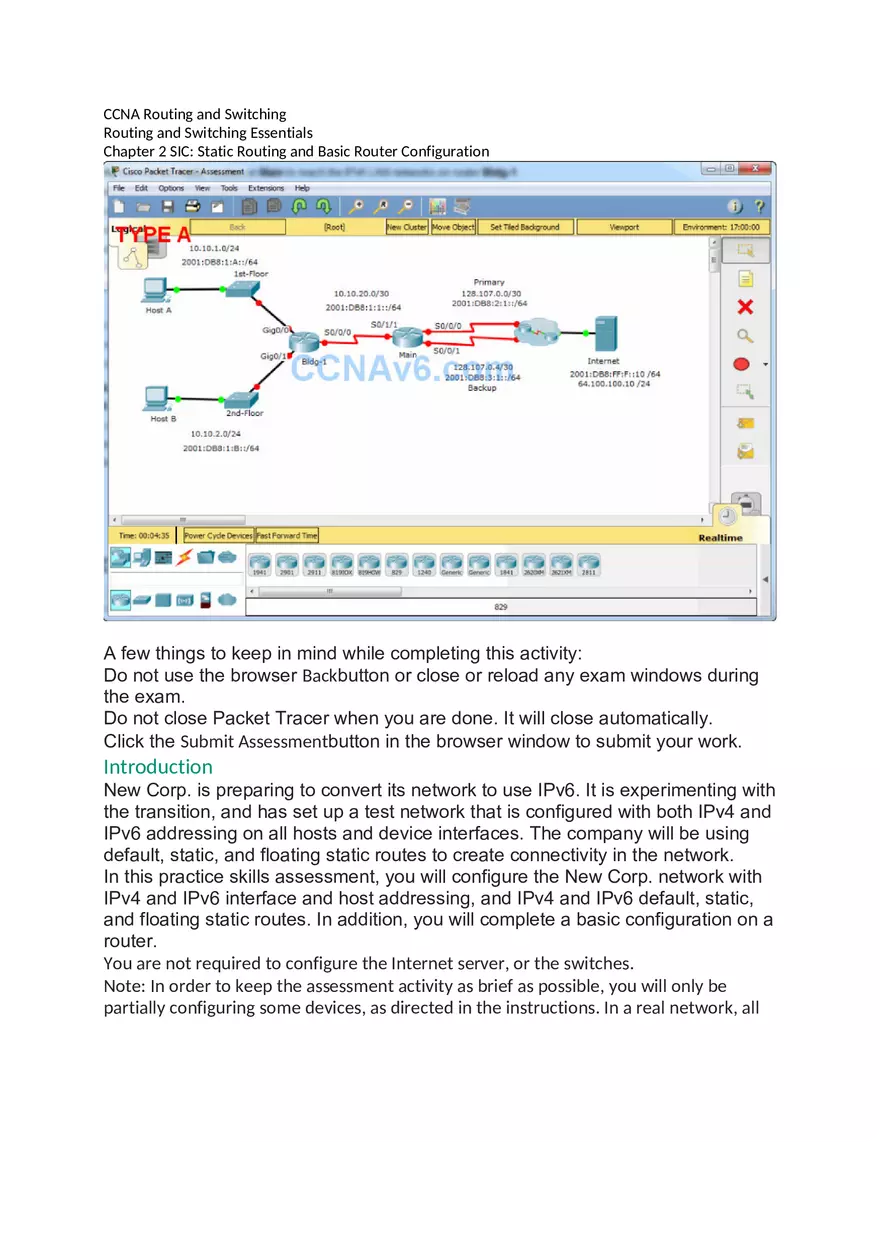

CCNA Routing and Switching Routing and Switching Essentials Chapter 2 SIC: Static Routing and Basic Router Configuration  Afewthingstokeepinmindwhilecompletingthisactivity: DonotusethebrowserBackbuttonorcloseorreloadanyexamwindowsduring theexam. DonotclosePacketTracerwhenyouaredone.Itwillcloseautomatically. ClicktheSubmit Assessmentbuttoninthebrowserwindowtosubmityourwork. Introduction NewCorp.ispreparingtoconvertitsnetworktouseIPv6.Itisexperimentingwith thetransition,andhassetupatestnetworkthatisconfiguredwithbothIPv4and IPv6addressingonallhostsanddeviceinterfaces.Thecompanywillbeusing default,static,andfloatingstaticroutestocreateconnectivityinthenetwork. Inthispracticeskillsassessment,youwillconfiguretheNewCorp.networkwith IPv4andIPv6interfaceandhostaddressing,andIPv4andIPv6default,static, andfloatingstaticroutes.Inaddition,youwillcompleteabasicconfigurationona router. You are not required to configure the Internet server, or the switches. Note: In order to keep the assessment activity as brief as possible, you will only be partially configuring some devices, as directed in the instructions. In a real network, all devices would be fully configured to function in the network. You are only responsible for completing the tasks covered in the instructions. Any configuration that you do beyond the requirements will not result in additional credit. All IOS device configurations should be completed from a direct terminal connection to the device console. In addition, many values that are required to complete the configurations have not been given to you. In those cases, create the values that you need to complete the requirements.  Youwillpracticeandbeassessedonthefollowingskills: Basicrouterconfiguration IPv4andIPv6routerinterfaceactivationandaddressing DirectlyattachedIPv4andIPv6staticrouteconfiguration DirectlyattachedIPv4andIPv6defaultrouteconfiguration DirectlyattachedIPv4andIPv6floatingstaticrouteconfiguration IPv4andIPv6hostaddressing Addressing Table Devices Interface IP Address S0/0/0 128.107.0.1/30 2001:DB8:2:1::1/64 FE80::1 S0/0/1 128.107.0.5/30 2001:DB8:3:1::1/64 FE80::1 S0/1/1 10.10.20.1/30 2001:DB8:1:1::1/64 FE80::1 S0/0/0 10.10.20.2/30 2001:DB8:1:1::2/64 FE80::2 Gig0/0 10.10.1.254/24 2001:DB8:1:A::1/64 FE80::2 Branch / Bldg-1 Gig0/1 10.10.2.254/24 2001:DB8:1:B::1/64 FE80::2 Web NIC 64.100.100.10/24 HQ / Main / Central (DNS Server) 2001:DB8:FF:F::10/64 PC1 NIC 10.10.1.0/24,anyavailableaddress 2001:DB8:1:A::A/64 PC2 NIC 10.10.2.0/24,anyavailableaddress 2001:DB8:1:B::A/64 Instructions Step 1: Basic Device Configuration PerformabasicdeviceconfigurationonMain. Configuretherouterhostnametothevalueintheaddressingtable. PreventtherouterfromattemptingtoresolveunrecognizedCLIentriesas domainnames. Protectdeviceconfigurationsfromunauthorizedaccesswiththeencryptedsecret passwordofcisco. Securetherouterconsoleandvtylineswiththepasswordclass. Preventallpasswordsfrombeingviewedincleartextindeviceconfiguration files. Addamessage-of-the-daybannerofyourchoice. Providedescriptionsonallactiveinterfaces. Step 2: Configure Default, Static, and Floating Static Routes. Configurestatic,default,andfloatingstaticroutesontherouters. Main: ConfigureinterfacesoftheMainrouterwithIPv4andIPv6addressingbasedon theAddressing Table. Configuretwo directly connected static routesonMain toreachthetwoIPv4LAN networksonrouterBldg-1. Configuretwo directly connected static routesonMaintoreachtheIPv6LAN networksonrouterBldg-1. Configuredirectly connectedIPv4defaultstaticroutestoreachhostsoutsideofthe network. ConfiguretheprimarypaththroughSerial0/0/0. ConfigureafloatingdefaultstaticrouteforthebackuppaththroughSerial0/0/1 withametricof2. Configuredirectly connectedIPv6defaultstaticroutestoreachhostsoutsideofthe network. ConfigurethePrimarypaththroughSerial0/0/0. ConfiguretheBackuppaththroughSerial0/0/1withametricof2. Bldg-1: ConfigureinterfacesontheBldg-1routerwithIPv4andIPv6addressingbasedon theAddressing Table. Configureadirectly connectedIPv4defaultstaticrouteonBldg-1 toreachthe Internet. Configureadirectly connectedIPv6defaultstaticrouteonBldg-1 toreachthe Internet. Step 3: Configure Host Addressing ConfiguretheHost A andHost BhostswithbothIPv4andIPv6addressesbased ontheAddressing Table. IPv6defaultgatewayaddressesshouldbethelinklocaladdressoftheLAN routerinterface. ConfiguretheDNSserveraddressforbothIPv4andIPv6. AllPChostsshouldbeabletoreachtheInternetserver. Intruction - Answers Script MainorCentralorHQ(Router 1) en conf ter hostname Main (or Central) (or HQ) no ip domain-lookup enable secret cisco line console 0 password class login line vty 0 15 password cisco login exit service password-encryption banner motd $CCNAv6.com$ int s0/0/0 description PRIMARY CONNECTION ip address 128.107.0.1 255.255.255.252 ipv6 address 2001:DB8:2:1::1/64 ipv6 address FE80::1 link-local no shutdown int s0/0/1 description BACKUP CONNECTION ip address 128.107.0.5 255.255.255.252 ipv6 address 2001:DB8:3:1::1/64 ipv6 address FE80::1 link-local no shutdown int s0/1/1 description Connect to Bldg-1 ip address 10.10.20.1 255.255.255.252 ipv6 address 2001:DB8:1:1::1/64 ipv6 address FE80::1 link-local no shutdown exit ip route 10.10.1.0 255.255.255.0 s0/1/1 ip route 10.10.2.0 255.255.255.0 s0/1/1 ipv6 route 2001:DB8:1:A::/64 s0/1/1 ipv6 route 2001:DB8:1:B::/64 s0/1/1 ip route 0.0.0.0 0.0.0.0 s0/0/0 ip route 0.0.0.0 0.0.0.0 s0/0/1 2 ipv6 route ::/0 s0/0/0 ipv6 route ::/0 s0/0/1 2 ipv6 unicast-routing Bldg-1orQuestorBranch(Router 2) enable conf terminal int s0/0/0 ip address 10.10.20.2 255.255.255.252 ipv6 address 2001:DB8:1:1::2/64 ipv6 address FE80::2 link-local no shutdown int g0/0 ip address 10.10.1.254 255.255.255.0 ipv6 address 2001:DB8:1:A::1/64 ipv6 address FE80::2 link-local no shutdown int g0/1 ip address 10.10.2.254 255.255.255.0 ipv6 address 2001:DB8:1:B::1/64 ipv6 address FE80::2 link-local no shutdown exit int s0/0/0 description Connection to Main int g0/0 description LAN A int g0/1 description LAN B exit ip route 0.0.0.0 0.0.0.0 s0/0/0 ipv6 route ::/0 s0/0/0 ipv6 unicast-routing Configure Host Addressing Host A: IPv4 Configuration: -IPAddress:10.10.1.10 -SubnetMask:255.255.255.0 -Gateway:10.10.1.254 -DNSServer:64.100.100.10 IPv6 Configuration: -IPv6Address:2001:DB8:1:A::A/64 -IPv6Gateway:FE80::2 -IPv6DNSServer:2001:DB8:FF:F::10 Host B: IPv4 Configuration: -IPAddress:10.10.2.10 -SubnetMask:255.255.255.0 -Gateway:10.10.2.254 -DNSServer:64.100.100.10 IPv6 Configuration: -IPv6Address:2001:DB8:1:B::A/64 -IPv6Gateway:FE80::2 -IPv6DNSServer:2001:DB8:FF:F::10
