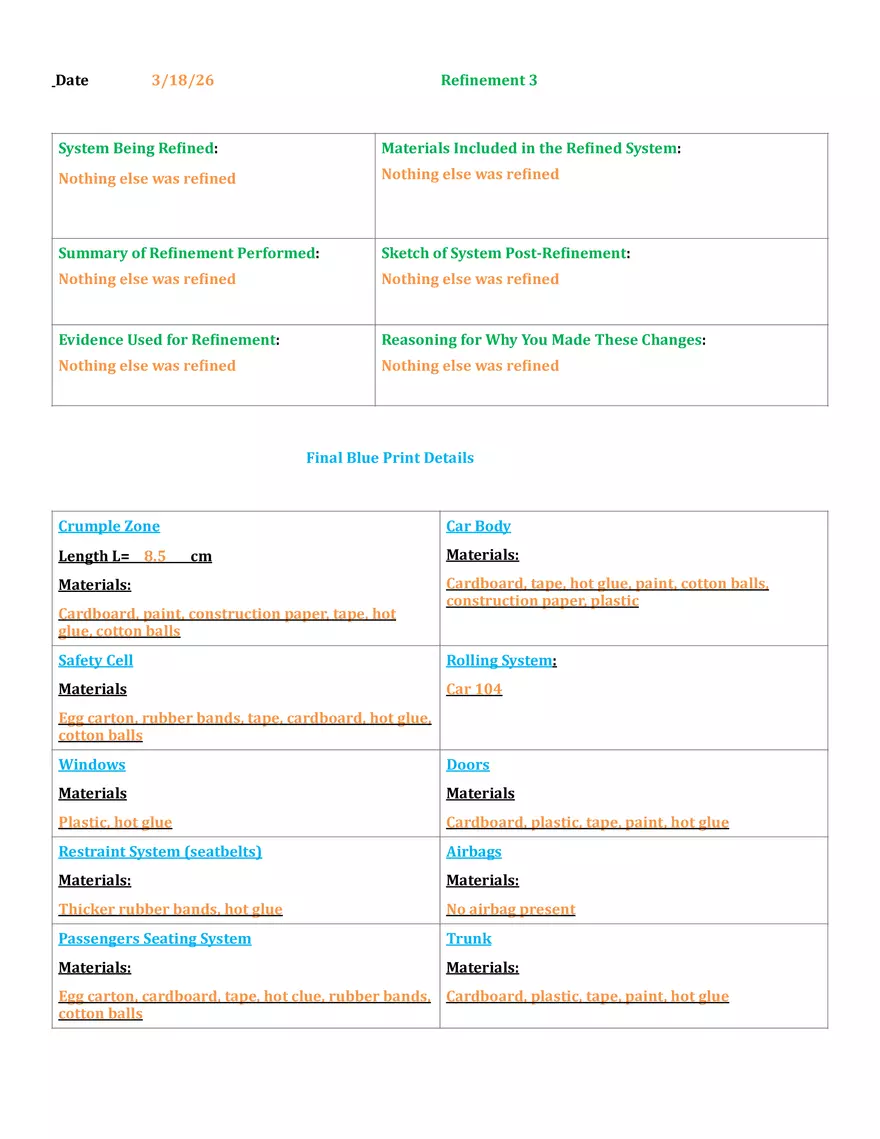

Date 3/18/26 Re inement 3 System Being Re ined: Materials Included in the Re ined System: Nothing else was re ined Nothing else was re ined Summary of Re inement Performed: Sketch of System Post-Re inement: Nothing else was re ined Nothing else was re ined Evidence Used for Re inement: Reasoning for Why You Made These Changes: Nothing else was re ined Nothing else was re ined Final Blue Print Details Crumple Zone Car Body Length L= 8.5 Materials: cm Cardboard, tape, hot glue, paint, cotton balls, construction paper, plastic Materials: Cardboard, paint, construction paper, tape, hot glue, cotton balls Safety Cell Rolling System: Materials Car 104 Egg carton, rubber bands, tape, cardboard, hot glue, cotton balls Windows Doors Materials Materials Plastic, hot glue Cardboard, plastic, tape, paint, hot glue Restraint System (seatbelts) Airbags Materials: Materials: Thicker rubber bands, hot glue No airbag present Passengers Seating System Trunk Materials: Materials: f f f f f f f f f f f f Egg carton, cardboard, tape, hot clue, rubber bands, Cardboard, plastic, tape, paint, hot glue cotton balls
