Photosynthesis - What's in a Leaf

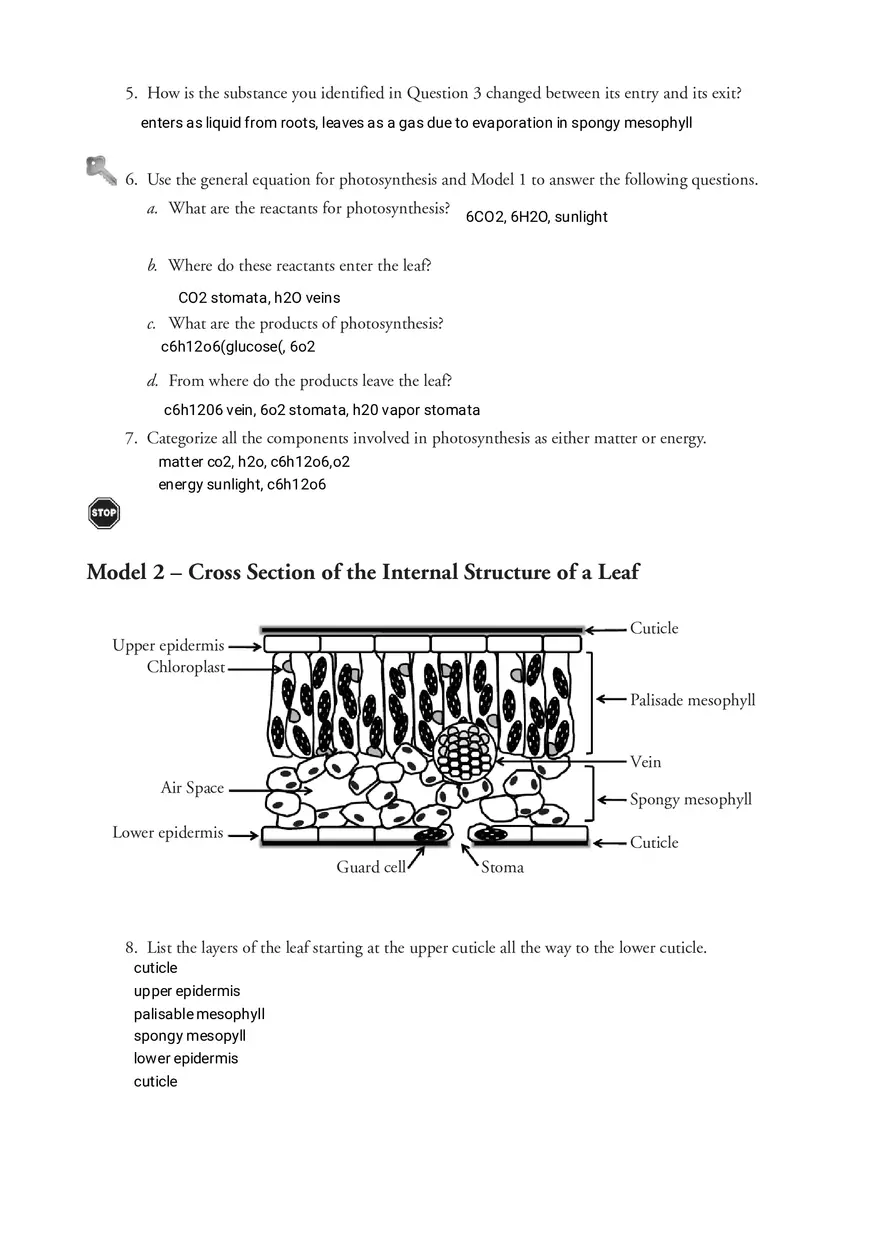

Photosynthesis: What’s in a Leaf? What is the relationship between structure and function in a leaf? Why? What would the world be like without leaves—no grass for ball fields, no beautiful landscaping? It would also mean no oxygen for animals and no food for heterotrophs. Leaves are like living machines that recycle the carbon and oxygen in our environment. This process, driven by the sun’s energy, allows for a constant supply of oxygen and food for the inhabitants of Earth. Model 1 – Leaf Sun-Catcher Sunlight (energy) Water (liquid) rs Suga central vein Water (gas) Water (gas) Carbon dioxide Oxygen General Equation for Photosynthesis Reactants Products light carbon dioxide + water energy ⎯⎯→ sugars + oxygen 1. List three things entering the leaf in Model 1. liquid H2O, gaseous CO2 and light energy from sunlight 2. List three substances leaving the leaf. gaseous H2O, liquid glucose and gaseous oxygen 3. Which substance is both entering and leaving? water in as a liquid out as a gas/vapor 4. Veins are important structures that carry materials through the leaf. Label the central vein in the leaf diagram. on diagram 5. How is the substance you identified in Question 3 changed between its entry and its exit? enters as liquid from roots, leaves as a gas due to evaporation in spongy mesophyll 6. Use the general equation for photosynthesis and Model 1 to answer the following questions. a. What are the reactants for photosynthesis? 6CO2, 6H2O, sunlight b. Where do these reactants enter the leaf? CO2 stomata, h2O veins c. What are the products of photosynthesis? c6h12o6(glucose(, 6o2 d. From where do the products leave the leaf? c6h1206 vein, 6o2 stomata, h20 vapor stomata 7. Categorize all the components involved in photosynthesis as either matter or energy. matter co2, h2o, c6h12o6,o2 energy sunlight, c6h12o6 Model 2 – Cross Section of the Internal Structure of a Leaf Cuticle Upper epidermis Chloroplast Palisade mesophyll Vein Air Space Spongy mesophyll Lower epidermis Cuticle Guard cell Stoma 8. List the layers of the leaf starting at the upper cuticle all the way to the lower cuticle. cuticle upper epidermis palisable mesophyll spongy mesopyll lower epidermis cuticle Read This! Inside plant veins are two different types of tissues. Xylem carries water and minerals up from the roots of the plant and phloem carries the sugars (nutrients) away from the leaf to areas where the plant is growing or to storage areas in the plant. 9. Describe the position of the vein(s) in each model. a. In the leaf in Model 1. in center of the leaf, looks like a pattern of roads b. Within the leaf cross section in Model 2. at border between palisade and spongy mesophyll 10. How does the placement of veins help to carry out their function of transporting materials to and from the leaf? placement gives H2O easy acess to palisade mesophyll, the place where photolysis occurs 11. Look back at your answers to Questions 1–3 and the photosynthesis equation. In the appropriate locations on Model 2, mark with labels and arrows what is entering the leaf and what is exiting the leaf. see model 12. Which kind(s) of cells have chloroplasts in them? palisade mesophyll 13. Remembering the function of chloroplasts, in which part(s) of the leaf is photosynthesis taking place? upper surface where light enrgy is at its highest intensity 14. The green color of chloroplasts is due to a pigment in them that absorbs light energy. Knowing this, infer which layer inside a leaf gives the whole leaf its green color. Write one complete sentence to express your reasoning. the palisade mesophyll contains densly packed chlorophyll this is responsible for making the leaf c\green 15. Through which layer(s) does light energy travel to reach the palisade mesophyll? through the cuticle and upper epidermis 16. List at least three differences between the cells of the palisade mesophyll and the cells that make up the other areas within the leaf. shape colums, densely packed with chloroplasts, dense and long arrangement of cilumar shaped cells 17. How would the cylindrical shape of the palisade mesophyll cells increase the amount of photosynthesis that the leaf can carry out? 18. What would be the advantage(s) to having no chloroplasts in the cells of the spongy mesophyll? cells would be smaller , giving room for air spaces for gas exchange. would also needs veins there 19. Suppose there were many chloroplasts in the cells of the upper epidermis. How would that change the amount of sunlight reaching the chloroplasts in the palisade layer? it would reduce the amount seen by the palisade layer 20. Considering its locations and your previous knowledge of the word, what do you think might be the function of the epidermis? protection and allow for opening /closing of pores stomata Read This! The cuticle covering the upper and lower epidermis of land plants is made of a waxy substance that repels water in much the same way as wax on a paper cup. 21. What is the purpose of having a water-tight covering? 22. Look carefully at the lower surface of the leaf in Model 2. a. What structure is found between guard cells? stoma pore opening b. How would you describe this structure? it is a pore that forms as a gap between guard cells c. How would this affect the ability of the leaf to retain water especially in dry conditions? when closed water retention is at its highest it s the safest arrangement for stomata in dry conditions 23. Suggest a way in which the stoma and guard cells arrangement might work to control the amount of water that is leaving the leaf. guard cells close the stoma when its hot 24. What is the relationship between the stoma and an air space? stomata are the external access point to the internal air space 25. Looking back at Model 1, what gases might you find inside the air spaces? oxygen and garbon dioxide water vapor as well 26. During the time that stomata (the plural of stoma) are closed, gases cannot enter or leave. Explain how this would affect the plant’s ability to do photosynthesis. 27. How would the cuticle and stomata work together to maintain the leaf ’s function? 28. In grammatically correct sentences, trace the path of the reactants for photosynthesis as they enter the leaf. 29. In grammatically correct sentences, trace the path of the products of photosynthesis as they exit the leaf. Extension Questions 30. Plants that live on the floor of forests tend to have much larger leaves than plants than live in hot, sunny conditions. Offer an explanation for this in which you refer to specific parts of the internal structure of a leaf. 31. Cacti are plants that live in extremely dry environments. Unlike most other plants, cacti do not have regular leaves, but instead have spines. They do have green stems. How would the lack of regular leaves help cacti survive in their environment? In what part of the cacti would photosynthesis occur? no leaves prevent water loss through stomata 32. Thinking about the structure and function of leaves, work with your group to propose modifications you might expect to see in the leaves of aquatic plants. Use the space below to make a sketch of the modified leaf, justifying what you include as well as what you leave out. cuticles not nessasary stomata builds differently 33. Use your knowledge of plant cell structure to answer each of the following questions: a. Where might water be stored for later use in the process of photosynthesis. air, space, central vacuole b. What might plant cells do with the sugars made during photosynthesis? release what it doesn't need and store what it does need for later c. How does having cells with walls help a leaf to absorb as much energy as possible? the cells stay in a relatively uniform shape. The distribution becomes much more consistent then.
