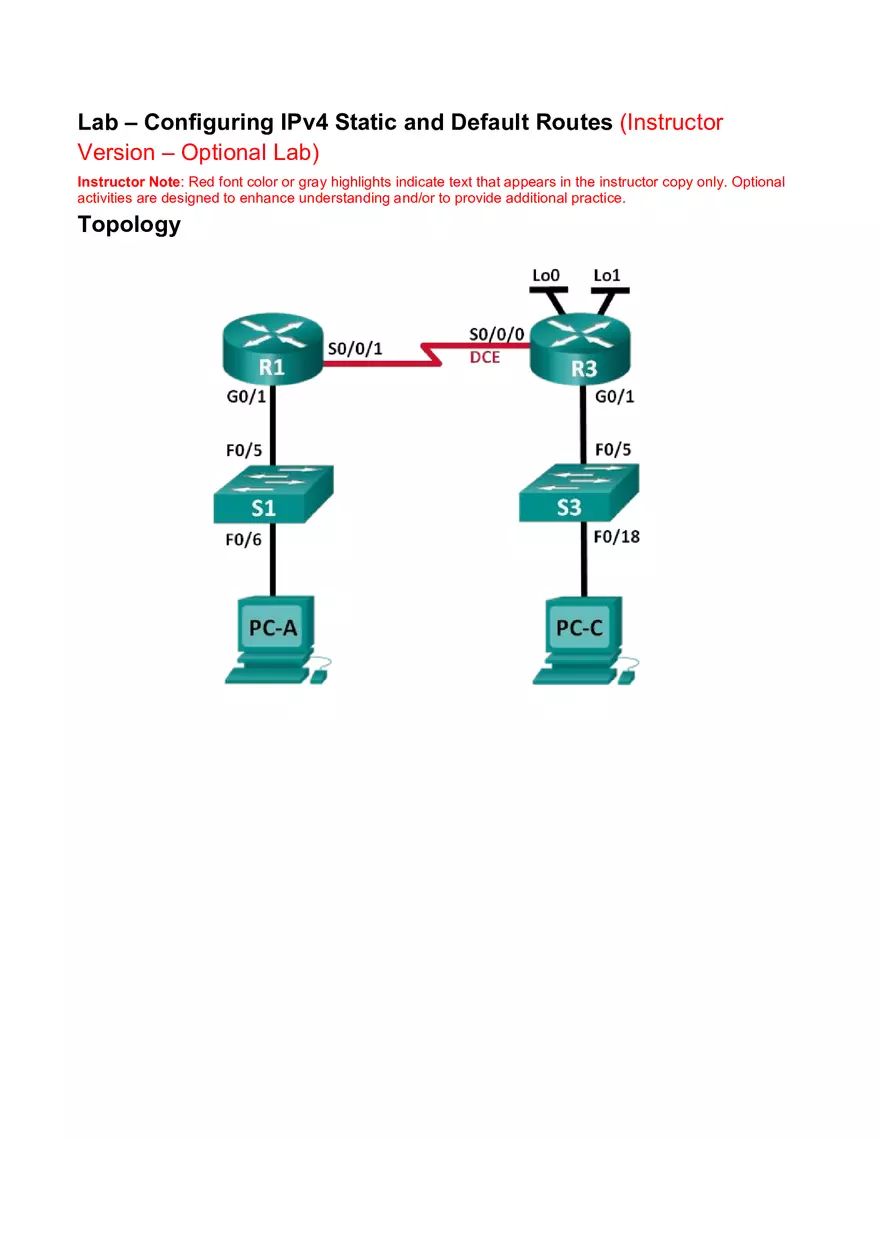

Lab – Configuring IPv4 Static and Default Routes (Instructor Version – Optional Lab) Instructor Note: Red font color or gray highlights indicate text that appears in the instructor copy only. Optional activities are designed to enhance understanding and/or to provide additional practice. Topology Lab – Configuring IPv4 Static and Default Routes Addressing Table Device R1 R3 Interface IP Address Subnet Mask Default Gateway G0/1 192.168.0.1 255.255.255.0 N/A S0/0/1 10.1.1.1 255.255.255.252 N/A G0/1 192.168.1.1 255.255.255.0 N/A S0/0/0 (DCE) 10.1.1.2 255.255.255.252 N/A Lo0 209.165.200.225 255.255.255.224 N/A Lo1 198.133.219.1 255.255.255.0 N/A PC-A NIC 192.168.0.10 255.255.255.0 192.168.0.1 PC-C NIC 192.168.1.10 255.255.255.0 192.168.1.1 Objectives Part 1: Set Up the Topology and Initialize Devices Part 2: Configure Basic Device Settings and Verify Connectivity Part 3: Configure Static Routes • Configure a recursive static route. • Configure a directly connected static route. • Configure and remove static routes. Part 4: Configure and Verify a Default Route Background / Scenario A router uses a routing table to determine where to send packets. The routing table contains a set of routes that describe which gateway or interface the router uses to reach a specified network. Initially, the routing table contains only directly connected networks. To communicate with distant networks, routes must be specified and added to the routing table. In this lab, you will manually configure a static route to a specified distant network based on a next-hop IP address or exit interface. You will also configure a static default route. A default route is a type of static route that specifies a gateway to use when the routing table does not contain a path for the destination network. Note: This lab provides minimal assistance with the actual commands necessary to configure static routing. However, the required commands are provided in Appendix A. Test your knowledge by trying to configure the devices without referring to the appendix. Note: The routers used with CCNA hands-on labs are Cisco 1941 Integrated Services Routers (ISRs) with Cisco IOS Release 15.2(4)M3 (universalk9 image). The switches used are Cisco Catalyst 2960s with Cisco IOS Release 15.0(2) (lanbasek9 image). Other routers, switches, and Cisco IOS versions can be used. Depending on the model and Cisco IOS version, the commands available and output produced might vary from what is shown in the labs. Refer to the Router Interface Summary Table at the end of this lab for the correct interface identifiers. Note: Make sure that the routers and switches have been erased and have no startup configurations. If you are unsure, contact your instructor. Instructor Note: Refer to the Instructor Lab Manual for the procedures to initialize and reload devices. Lab – Configuring IPv4 Static and Default Routes Required Resources • 2 Routers (Cisco 1941 with Cisco IOS Release 15.2(4)M3 universal image or comparable) • 2 Switches (Cisco 2960 with Cisco IOS Release 15.0(2) lanbasek9 image or comparable) • 2 PCs (Windows 7, Vista, or XP with terminal emulation program, such as Tera Term) • Console cables to configure the Cisco IOS devices via the console ports • Ethernet and serial cables as shown in the topology Part 1: Set Up the Topology and Initialize Devices Step 1: Cable the network as shown in the topology. Step 2: Initialize and reload the router and switch. Part 2: Configure Basic Device Settings and Verify Connectivity In Part 2, you will configure basic settings, such as the interface IP addresses, device access, and passwords. You will verify LAN connectivity and identify routes listed in the routing tables for R1 and R3. Step 1: Configure the PC interfaces. Step 2: Configure basic settings on the routers. a. Configure device names, as shown in the Topology and Addressing Table. b. Disable DNS lookup. c. Assign class as the enable password and assign cisco as the console and vty password. d. Save the running configuration to the startup configuration file. Step 3: Configure IP settings on the routers. a. Configure the R1 and R3 interfaces with IP addresses according to the Addressing Table. b. The S0/0/0 connection is the DCE connection and requires the clock rate command. The R3 S0/0/0 configuration is displayed below. Instructor Note: For Cisco 1941 routers, DCE is automatically detected and the clock rate is automatically set to 2000000, and does not need to be configured. R3(config)# interface s0/0/0 R3(config-if)# ip address 10.1.1.2 255.255.255.252 R3(config-if)# clock rate 128000 R3(config-if)# no shutdown Step 4: Verify connectivity of the LANs. a. Test connectivity by pinging from each PC to the default gateway that has been configured for that host. From PC-A, is it possible to ping the default gateway? __________ Yes From PC-C, is it possible to ping the default gateway? __________ Yes b. Test connectivity by pinging between the directly connected routers. From R1, is it possible to ping the S0/0/0 interface of R3? __________ Yes Lab – Configuring IPv4 Static and Default Routes If the answer is no to any of these questions, troubleshoot the configurations and correct the error. c. Test connectivity between devices that are not directly connected. From PC-A, is it possible to ping PC-C? __________ No From PC-A, is it possible to ping Lo0? __________ No From PC-A, is it possible to ping Lo1? __________ No Were these pings successful? Why or why not? ____________________________________________________________________________________ ____________________________________________________________________________________ No, the router does not contain routes to the distant networks. Note: It may be necessary to disable the PC firewall to ping between PCs. Step 5: Gather information. a. Check the status of the interfaces on R1 with the show ip interface brief command. R1# show ip interface brief Interface Embedded-Service-Engine0/0 GigabitEthernet0/0 GigabitEthernet0/1 Serial0/0/0 IP-Address unassigned unassigned 192.168.0.1 unassigned OK? YES YES YES YES Method unset unset manual unset Status Protocol administratively down down administratively down down up up administratively down down Serial0/0/1 10.1.1.1 YES manual up up How many interfaces are activated on R1? __________ Two b. Check the status of the interfaces on R3. R3# show ip interface brief Interface IP-Address Embedded-Service-Engine0/0 unassigned GigabitEthernet0/0 unassigned OK? Method Status Protocol YES unset administratively down down YES unset administratively down down GigabitEthernet0/1 Serial0/0/0 Serial0/0/1 Loopback0 Loopback1 YES YES YES YES YES 192.168.1.1 10.1.1.2 unassigned 209.165.200.225 198.133.219.1 manual manual unset manual manual up up up up administratively down down up up up up How many interfaces are activated on R3? __________ Four c. View the routing table information for R1 using the show ip route command. R1# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Lab – Configuring IPv4 Static and Default Routes Gateway of last resort is not set C 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks 10.1.1.0/30 is directly connected, Serial0/0/1 10.1.1.1/32 is directly connected, Serial0/0/1 192.168.0.0/24 is variably subnetted, 2 subnets, 2 masks 192.168.0.0/24 is directly connected, GigabitEthernet0/1 L 192.168.0.1/32 is directly connected, GigabitEthernet0/1 C L What networks are present in the Addressing Table of this lab, but not in the routing table for R1? ____________________________________________________________________________________ 192.168.1.0, 198.133.219.0, 209.165.200.224 d. View the routing table information for R3. R3# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Gateway of last resort is not set C L C L C L C L 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks 10.1.1.0/30 is directly connected, Serial0/0/0 10.1.1.2/32 is directly connected, Serial0/0/0 192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks 192.168.1.0/24 is directly connected, GigabitEthernet0/1 192.168.1.1/32 is directly connected, GigabitEthernet0/1 198.133.219.0/24 is variably subnetted, 2 subnets, 2 masks 198.133.219.0/24 is directly connected, Loopback1 198.133.219.1/32 is directly connected, Loopback1 209.165.200.0/24 is variably subnetted, 2 subnets, 2 masks 209.165.200.224/27 is directly connected, Loopback0 209.165.200.225/32 is directly connected, Loopback0 What networks are present in the Addressing Table in this lab, but not in the routing table for R3? ____________________________________________________________________________________ 192.168.0.0 Why are all the networks not in the routing tables for each of the routers? ____________________________________________________________________________________ ____________________________________________________________________________________ The routers are not configured with static or dynamic routing; therefore, the routers only know about the directly connected networks. Lab – Configuring IPv4 Static and Default Routes Part 3: Configure Static Routes In Part 3, you will employ multiple ways to implement static and default routes, you will confirm that the routes have been added to the routing tables of R1 and R3, and you will verify connectivity based on the introduced routes. Note: This lab provides minimal assistance with the actual commands necessary to configure static routing. However, the required commands are provided in Appendix A. Test your knowledge by trying to configure the devices without referring to the appendix. Step 1: Configure a recursive static route. With a recursive static route, the next-hop IP address is specified. Because only the next-hop IP is specified, the router must perform multiple lookups in the routing table before forwarding packets. To configure recursive static routes, use the following syntax: Router(config)# ip route network-address subnet-mask ip-address a. On the R1 router, configure a static route to the 192.168.1.0 network using the IP address of the Serial 0/0/0 interface of R3 as the next-hop address. Write the command you used in the space provided. ____________________________________________________________________________________ R1(config)# ip route 192.168.1.0 255.255.255.0 10.1.1.2 b. View the routing table to verify the new static route entry. R1# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Gateway of last resort is not set C L 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks 10.1.1.0/30 is directly connected, Serial0/0/1 10.1.1.1/32 is directly connected, Serial0/0/1 192.168.0.0/24 is variably subnetted, 2 subnets, 2 masks C L S 192.168.0.0/24 is directly connected, GigabitEthernet0/1 192.168.0.1/32 is directly connected, GigabitEthernet0/1 192.168.1.0/24 [1/0] via 10.1.1.2 How is this new route listed in the routing table? ____________________________________________________________________________________ S 192.168.1.0/24 [1/0] via 10.1.1.2 From host PC-A, is it possible to ping the host PC-C? __________ No These pings should fail. If the recursive static route is correctly configured, the ping arrives at PC-C. PC-C sends a ping reply back to PC-A. However, the ping reply is discarded at R3 because R3 does not have a return route to the 192.168.0.0 network in the routing table. Lab – Configuring IPv4 Static and Default Routes Step 2: Configure a directly connected static route. With a directly connected static route, the exit-interface parameter is specified, which allows the router to resolve a forwarding decision in one lookup. A directly connected static route is typically used with a point-topoint serial interface. To configure directly connected static routes with an exit interface specified, use the following syntax: Router(config)# ip route network-address subnet-mask exit-intf a. On the R3 router, configure a static route to the 192.168.0.0 network using S0/0/0 as the exit interface. Write the command you used in the space provided. ____________________________________________________________________________________ R3(config)# ip route 192.168.0.0 255.255.255.0 s0/0/0 b. View the routing table to verify the new static route entry. R3# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Gateway of last resort is not set C L S C L C L C L 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks 10.1.1.0/30 is directly connected, Serial0/0/0 10.1.1.2/32 is directly connected, Serial0/0/0 192.168.0.0/24 is directly connected, Serial0/0/0 192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks 192.168.1.0/24 is directly connected, GigabitEthernet0/1 192.168.1.1/32 is directly connected, GigabitEthernet0/1 198.133.219.0/24 is variably subnetted, 2 subnets, 2 masks 198.133.219.0/24 is directly connected, Loopback1 198.133.219.1/32 is directly connected, Loopback1 209.165.200.0/24 is variably subnetted, 2 subnets, 2 masks 209.165.200.224/27 is directly connected, Loopback0 209.165.200.225/32 is directly connected, Loopback0 How is this new route listed in the routing table? ____________________________________________________________________________________ S c. 192.168.0.0/24 is directly connected, Serial0/0/0 From host PC-A, is it possible to ping the host PC-C? __________ Yes This ping should be successful. Note: It may be necessary to disable the PC firewall to ping between PCs. Lab – Configuring IPv4 Static and Default Routes Step 3: Configure a static route. a. On the R1 router, configure a static route to the 198.133.219.0 network using one of the static route configuration options from the previous steps. Write the command you used in the space provided. ____________________________________________________________________________________ R1(config)# ip route 198.133.219.0 255.255.255.0 S0/0/1 or R1(config)# ip route 198.133.219.0 255.255.255.0 10.1.1.2 b. On the R1 router, configure a static route to the 209.165.200.224 network on R3 using the other static route configuration option from the previous steps. Write the command you used in the space provided. ____________________________________________________________________________________ R1(config)# ip route 209.165.200.224 255.255.255.224 S0/0/1 or R1(config)# ip route 209.165.200.224 255.255.255.224 10.1.1.2 c. View the routing table to verify the new static route entry. Note: The students may have different routing table outputs depending on the type of configured static routes. R1# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Gateway of last resort is not set C L 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks 10.1.1.0/30 is directly connected, Serial0/0/1 10.1.1.1/32 is directly connected, Serial0/0/1 C L S S 192.168.0.0/24 is variably subnetted, 2 subnets, 2 masks 192.168.0.0/24 is directly connected, GigabitEthernet0/1 192.168.0.1/32 is directly connected, GigabitEthernet0/1 192.168.1.0/24 [1/0] via 10.1.1.2 198.133.219.0/24 is directly connected, Serial0/0/1 S 209.165.200.0/27 is subnetted, 1 subnets 209.165.200.224 [1/0] via 10.1.1.2 How is this new route listed in the routing table? ____________________________________________________________________________________ S 198.133.219.0/24 is directly connected, Serial0/0/1 or S 198.133.219.0/24 [1/0] via 10.1.1.2 Lab – Configuring IPv4 Static and Default Routes d. From host PC-A, is it possible to ping the R1 address 198.133.219.1? __________ Yes This ping should be successful. Step 4: Remove static routes for loopback addresses. a. On R1, use the no command to remove the static routes for the two loopback addresses from the routing table. Write the commands you used in the space provided. __________________________________________________________________________________ R1(config)# no ip route 209.165.200.224 255.255.255.224 10.1.1.2 R1(config)# no ip route 198.133.219.0 255.255.255.0 S0/0/1 Note: A static route can be removed with the no command without specifying the exit interface or nexthop ip address as displayed below. R1(config)# no ip route 209.165.200.224 255.255.255.224 R1(config)# no ip route 198.133.219.0 255.255.255.0 b. View the routing table to verify the routes have been removed. R1# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Gateway of last resort is not set 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks C L C L 10.1.1.0/30 is 10.1.1.1/32 is 192.168.0.0/24 is 192.168.0.0/24 192.168.0.1/32 directly connected, Serial0/0/1 directly connected, Serial0/0/1 variably subnetted, 2 subnets, 2 masks is directly connected, GigabitEthernet0/1 is directly connected, GigabitEthernet0/1 S 192.168.1.0/24 [1/0] via 10.1.1.2 How many network routes are listed in the routing table on R1? __________ Three Is the Gateway of last resort set? __________ No Part 4: Configure and Verify a Default Route In Part 4, you will implement a default route, confirm that the route has been added to the routing table, and verify connectivity based on the introduced route. A default route identifies the gateway to which the router sends all IP packets for which it does not have a learned or static route. A default static route is a static route with 0.0.0.0 as the destination IP address and subnet mask. This is commonly referred to as a “quad zero” route. In a default route, either the next-hop IP address or exit interface can be specified. To configure a default static route, use the following syntax: Lab – Configuring IPv4 Static and Default Routes Router(config)# ip route 0.0.0.0 0.0.0.0 {ip-address or exit-intf} a. Configure the R1 router with a default route using the exit interface of S0/0/1. Write the command you used in the space provided. _____________________________________________________________________________ R1(config)# ip route 0.0.0.0 0.0.0.0 s0/0/1 b. View the routing table to verify the new static route entry. R1#show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP + - replicated route, % - next hop override Gateway of last resort is 0.0.0.0 to network 0.0.0.0 S* 0.0.0.0/0 is directly connected, Serial0/0/1 10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks C L 10.1.1.0/30 is directly connected, Serial0/0/1 10.1.1.1/32 is directly connected, Serial0/0/1 192.168.0.0/24 is variably subnetted, 2 subnets, 2 masks 192.168.0.0/24 is directly connected, GigabitEthernet0/1 192.168.0.1/32 is directly connected, GigabitEthernet0/1 192.168.1.0/24 [1/0] via 10.1.1.2 C L S How is this new route listed in the routing table? ____________________________________________________________________________________ S* 0.0.0.0/0 is directly connected, Serial0/0/1 What is the Gateway of last resort? ____________________________________________________________________________________ Gateway of last resort is 0.0.0.0 to network 0.0.0.0 c. From host PC-A, is it possible to ping the 209.165.200.225? __________ Yes d. From host PC-A, is it possible to ping the 198.133.219.1? __________ Yes These pings should be successful. Reflection 1. A new network 192.168.3.0/24 is connected to interface G0/0 on R1. What commands could be used to configure a static route to that network from R3? _______________________________________________________________________________________ _______________________________________________________________________________________ Answers will vary. ip route 192.168.3.0 255.255.255.0 10.1.1.1, ip route192.168.3.0 255.255.255.0 s0/0/0, or ip route 0.0.0.0 0.0.0.0 s0/0/0. Lab – Configuring IPv4 Static and Default Routes 2. Is there a benefit to configuring a directly connected static route instead of a recursive static route? _______________________________________________________________________________________ _______________________________________________________________________________________ Configuring a directly attached static route allows the routing table to resolve the exit interface in a single search instead of in two searches as needed for recursive static routes. 3. Why is it important to configure a default route on a router? _______________________________________________________________________________________ A default route prevents the router from dropping packets to unknown destinations. Router Interface Summary Table Router Interface Summary Router Model Ethernet Interface #1 Ethernet Interface #2 Serial Interface #1 Serial Interface #2 1800 Fast Ethernet 0/0 (F0/0) Fast Ethernet 0/1 (F0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) 1900 Gigabit Ethernet 0/0 (G0/0) Gigabit Ethernet 0/1 (G0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) 2801 Fast Ethernet 0/0 (F0/0) Fast Ethernet 0/1 (F0/1) Serial 0/1/0 (S0/1/0) Serial 0/1/1 (S0/1/1) 2811 Fast Ethernet 0/0 (F0/0) Fast Ethernet 0/1 (F0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) 2900 Gigabit Ethernet 0/0 (G0/0) Gigabit Ethernet 0/1 (G0/1) Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1) Note: To find out how the router is configured, look at the interfaces to identify the type of router and how many interfaces the router has. There is no way to effectively list all the combinations of configurations for each router class. This table includes identifiers for the possible combinations of Ethernet and Serial interfaces in the device. The table does not include any other type of interface, even though a specific router may contain one. An example of this might be an ISDN BRI interface. The string in parenthesis is the legal abbreviation that can be used in Cisco IOS commands to represent the interface. Appendix A: Configuration Commands for Parts 2, 3, and 4 The commands listed in Appendix A are for reference only. This Appendix does not include all the specific commands necessary to complete this lab. Basic Device Settings Configure IP settings on the router. R3(config)# interface s0/0/0 R3(config-if)# ip address 10.1.1.2 255.255.255.252 R3(config-if)# clock rate 128000 R3(config-if)# no shutdown Static Route Configurations Configure a recursive static route. Lab – Configuring IPv4 Static and Default Routes R1(config)# ip route 192.168.1.0 255.255.255.0 10.1.1.2 Configure a directly connected static route. R3(config)# ip route 192.168.0.0 255.255.255.0 s0/0/0 Remove static routes. R1(config)# no ip route 209.165.200.224 255.255.255.224 serial0/0/1 or R1(config)# no ip route 209.165.200.224 255.255.255.224 10.1.1.2 or R1(config)# no ip route 209.165.200.224 255.255.255.224 Default Route Configuration R1(config)# ip route 0.0.0.0 0.0.0.0 s0/0/1 Device Configs - R1 and R3 Router R1 (after Part 4) R1#show run Building configuration... Current configuration : 1547 bytes ! version 15.2 service timestamps debug datetime msec service timestamps log datetime msec service password-encryption ! hostname R1 ! boot-start-marker boot-end-marker ! ! enable secret 4 06YFDUHH61wAE/kLkDq9BGho1QM5EnRtoyr8cHAUg.2 ! no aaa new-model ! ! ! ! ! ! ! no ip domain lookup ip cef no ipv6 cef ! Lab – Configuring IPv4 Static and Default Routes multilink bundle-name authenticated ! ! ! ! ! ! redundancy ! ! ! ! ! ! interface Embedded-Service-Engine0/0 no ip address shutdown ! ! interface GigabitEthernet0/0 no ip address shutdown duplex auto speed auto ! interface GigabitEthernet0/1 ip address 192.168.0.1 255.255.255.0 duplex auto speed auto ! interface Serial0/0/0 no ip address shutdown clock rate 2000000 ! interface Serial0/0/1 ip address 10.1.1.1 255.255.255.252 ! ip forward-protocol nd ! no ip http server no ip http secure-server ! ip route 0.0.0.0 0.0.0.0 Serial0/0/1 ip route 192.168.1.0 255.255.255.0 10.1.1.2 ! ! ! ! control-plane Lab – Configuring IPv4 Static and Default Routes ! ! banner motd ^CUnauthorized access prohibited!^C ! line con 0 password 7 01100F175804 logging synchronous login line aux 0 line 2 no activation-character no exec transport preferred none transport input all transport output pad telnet rlogin lapb-ta mop udptn v120 ssh stopbits 1 line vty 0 4 password 7 01100F175804 logging synchronous login transport input all ! scheduler allocate 20000 1000 ! end Router R3 R3#show run Building configuration... Current configuration : 1700 bytes ! version 15.2 service timestamps debug datetime msec service timestamps log datetime msec service password-encryption ! hostname R3 ! boot-start-marker boot-end-marker ! ! enable secret 4 06YFDUHH61wAE/kLkDq9BGho1QM5EnRtoyr8cHAUg.2 ! no aaa new-model memory-size iomem 15 ! ! Lab – Configuring IPv4 Static and Default Routes ! ! ! ! ! no ip domain lookup ip cef no ipv6 cef ! multilink bundle-name authenticated ! ! ! ! ! vtp domain TSHOOT vtp mode transparent ! redundancy ! ! ! ! ! ! ! ! ! ! ! ! ! ! interface Loopback0 ip address 209.165.200.225 255.255.255.224 ! interface Loopback1 ip address 198.133.219.1 255.255.255.0 ! interface Embedded-Service-Engine0/0 no ip address shutdown ! interface GigabitEthernet0/0 no ip address shutdown duplex auto speed auto ! Lab – Configuring IPv4 Static and Default Routes interface GigabitEthernet0/1 ip address 192.168.1.1 255.255.255.0 duplex auto speed auto ! interface Serial0/0/0 ip address 10.1.1.2 255.255.255.252 clock rate 256000 ! interface Serial0/0/1 no ip address shutdown ! ip forward-protocol nd ! no ip http server no ip http secure-server ! ip route 192.168.0.0 255.255.255.0 Serial0/0/0 ! ! ! ! control-plane ! ! banner motd ^CUnauthorized access prohibited!^C ! line con 0 password 7 110A1016141D logging synchronous login line aux 0 line 2 no activation-character no exec transport preferred none transport input all transport output pad telnet rlogin lapb-ta mop udptn v120 ssh stopbits 1 line vty 0 4 password 7 00071A150754 logging synchronous login transport input all ! scheduler allocate 20000 1000 ! end
