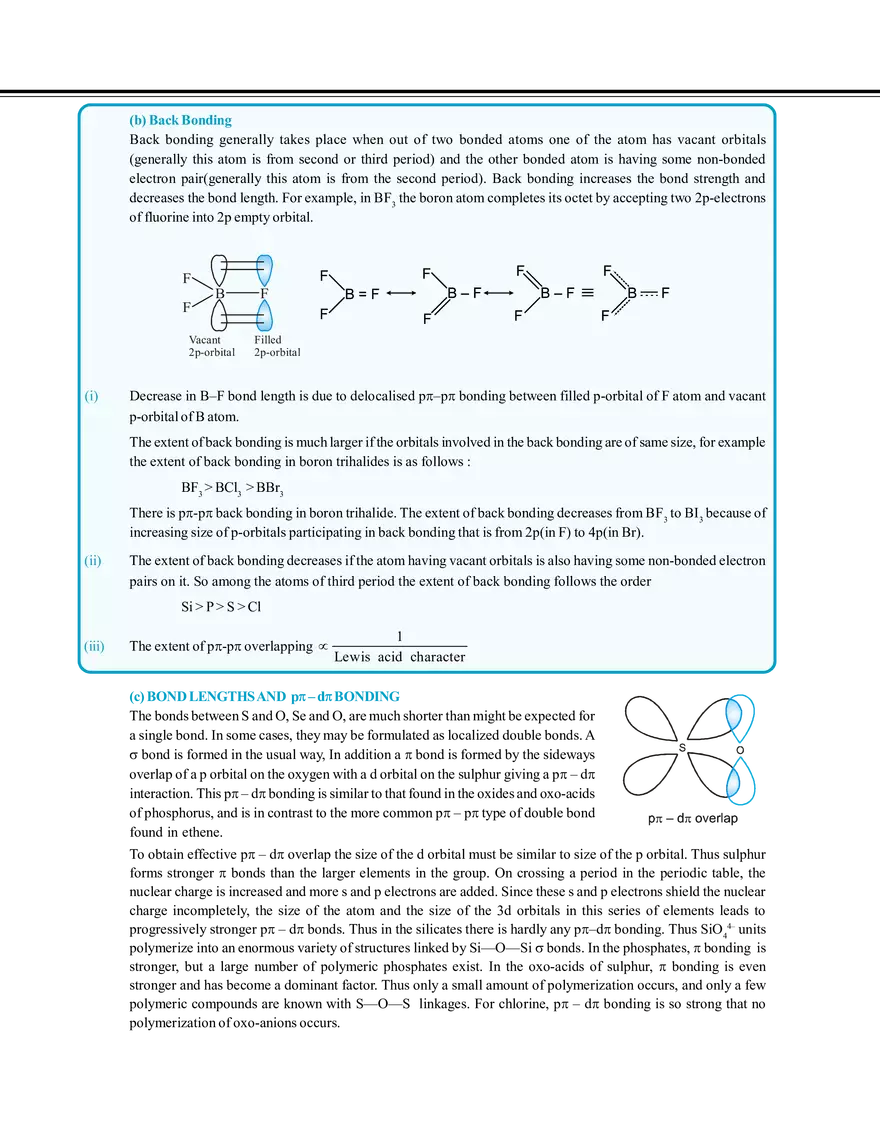

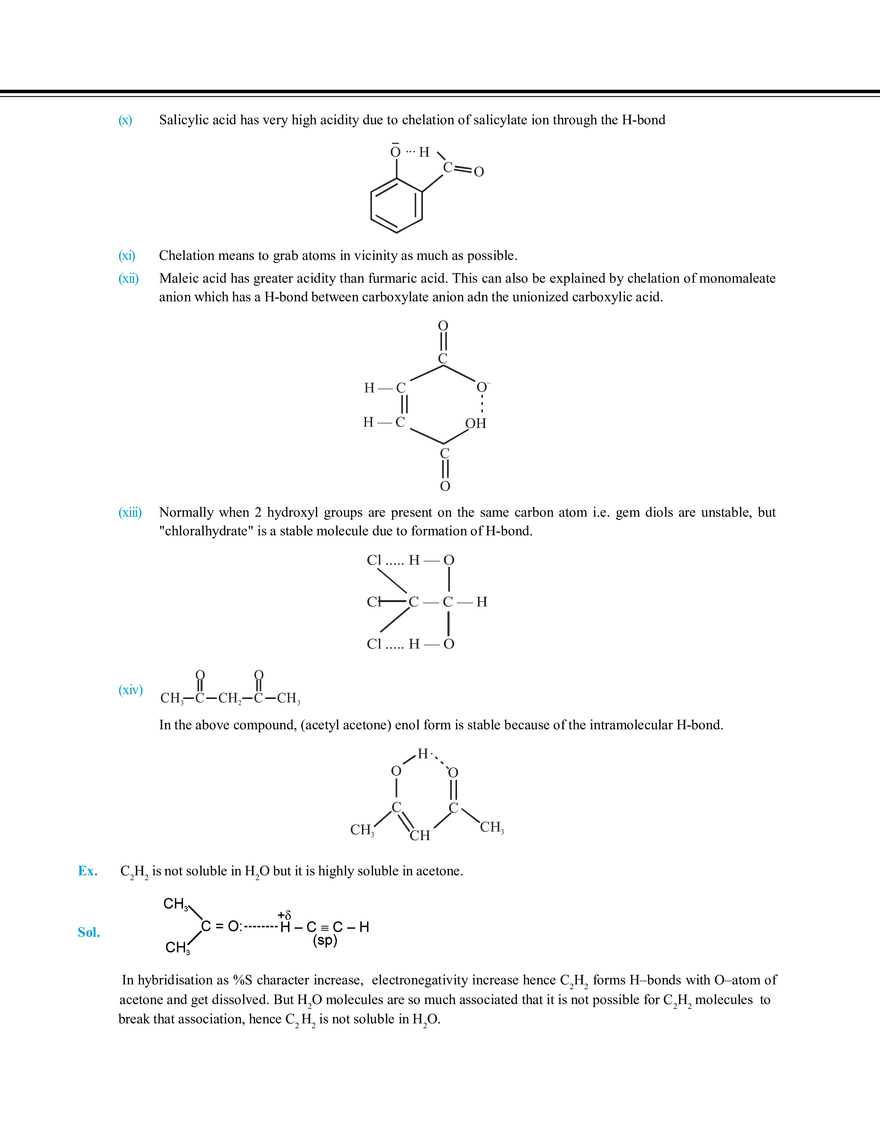

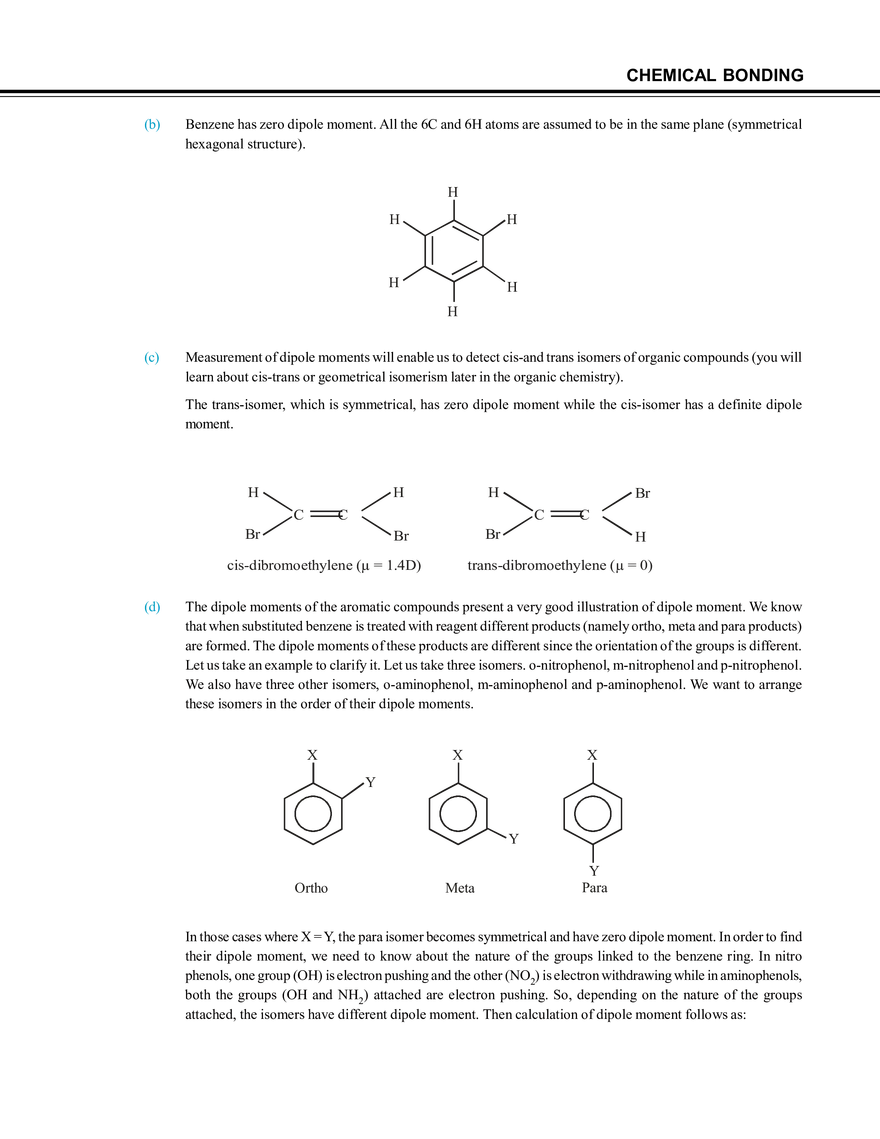

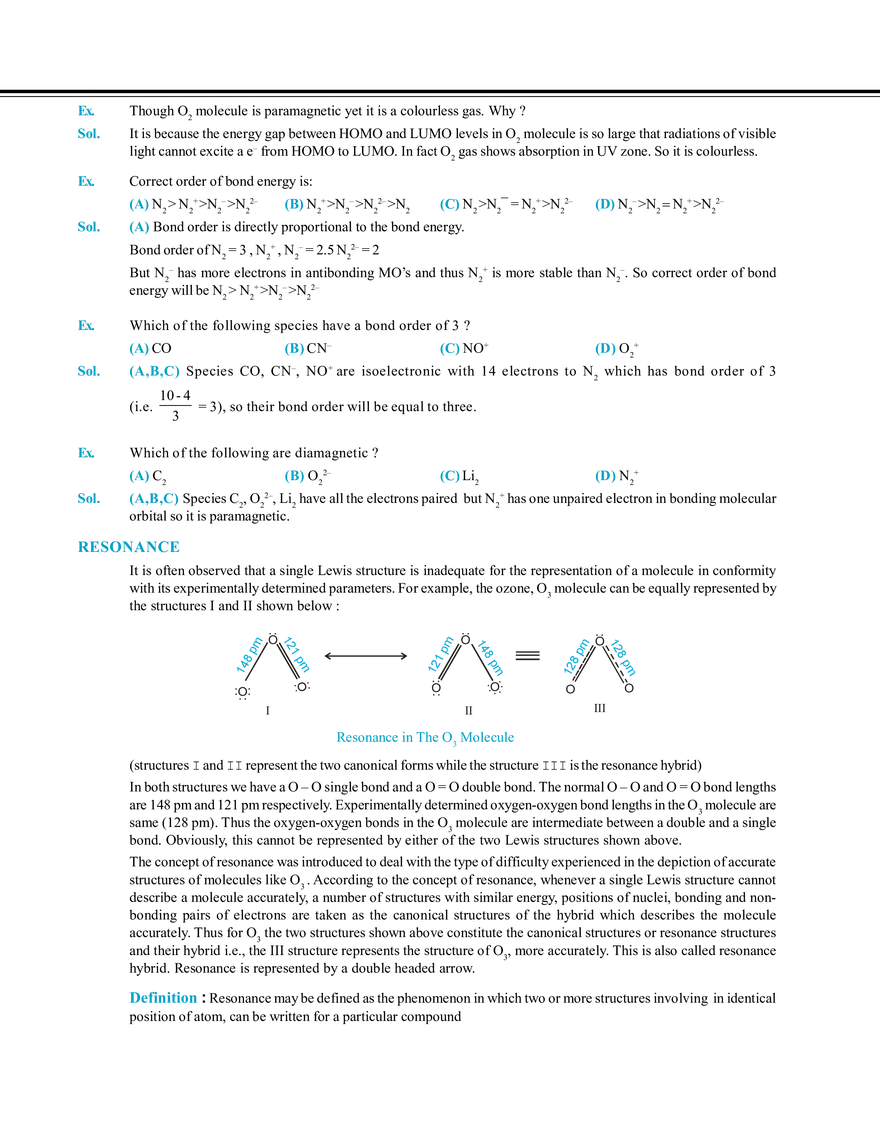

Chemical Bonding Notes

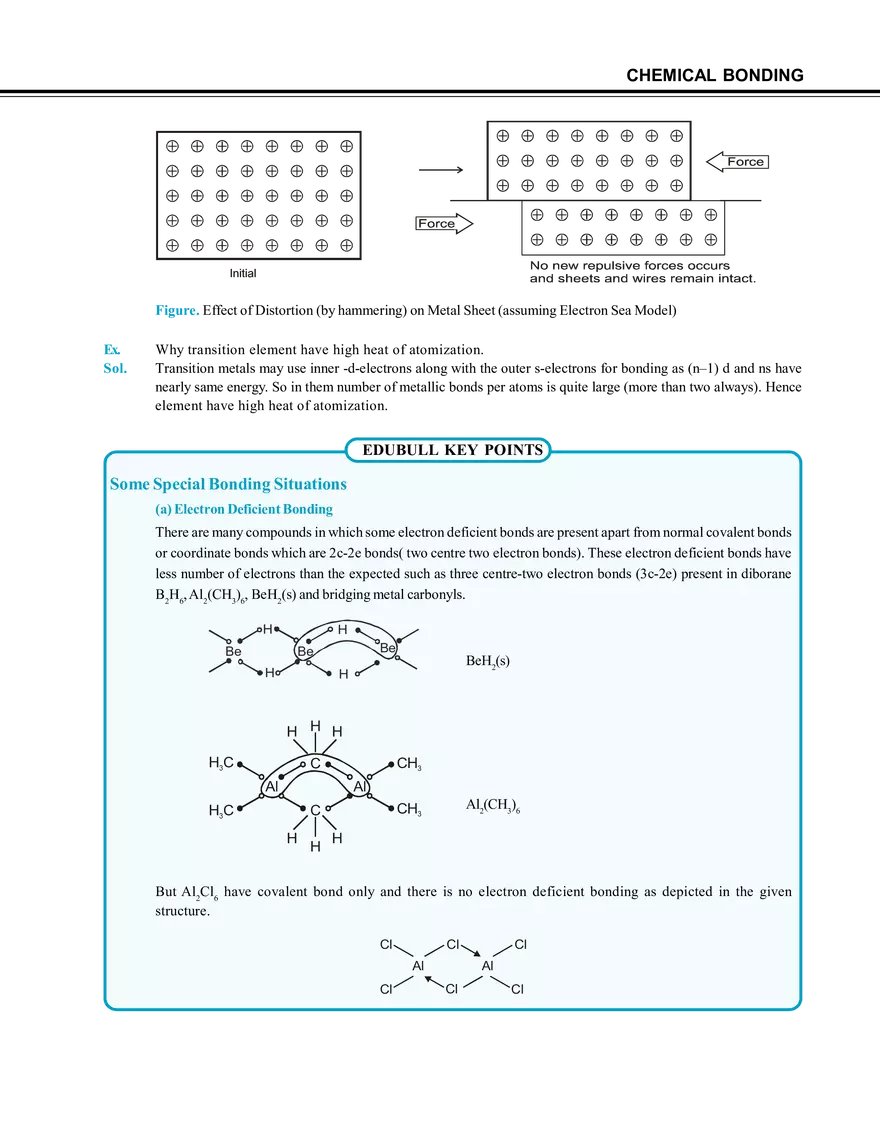

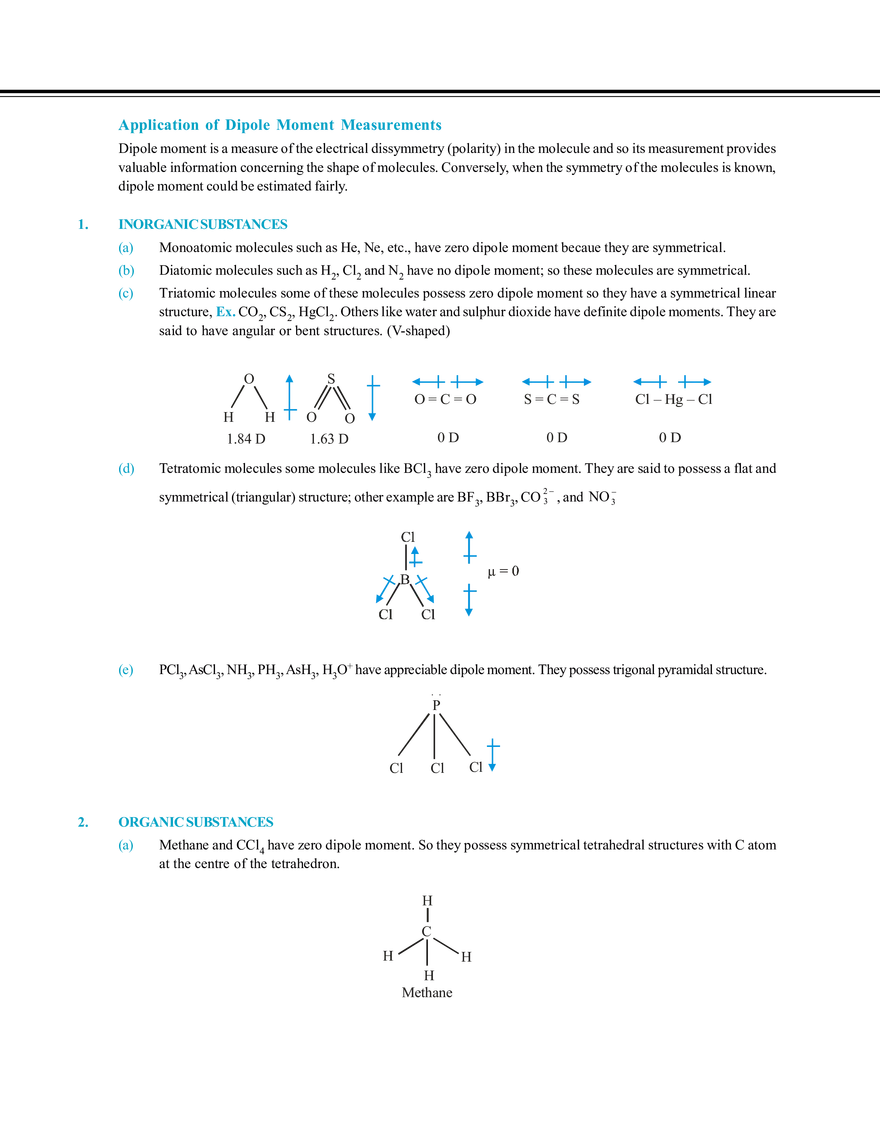

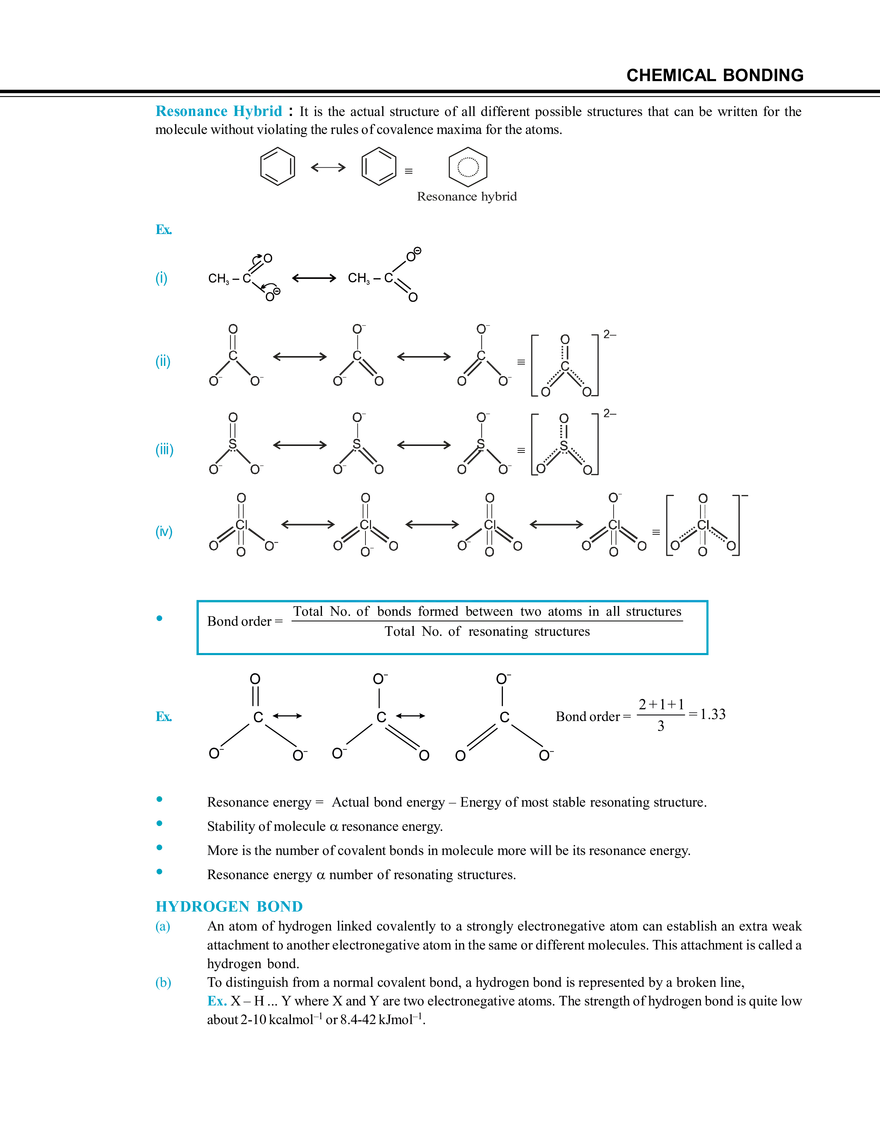

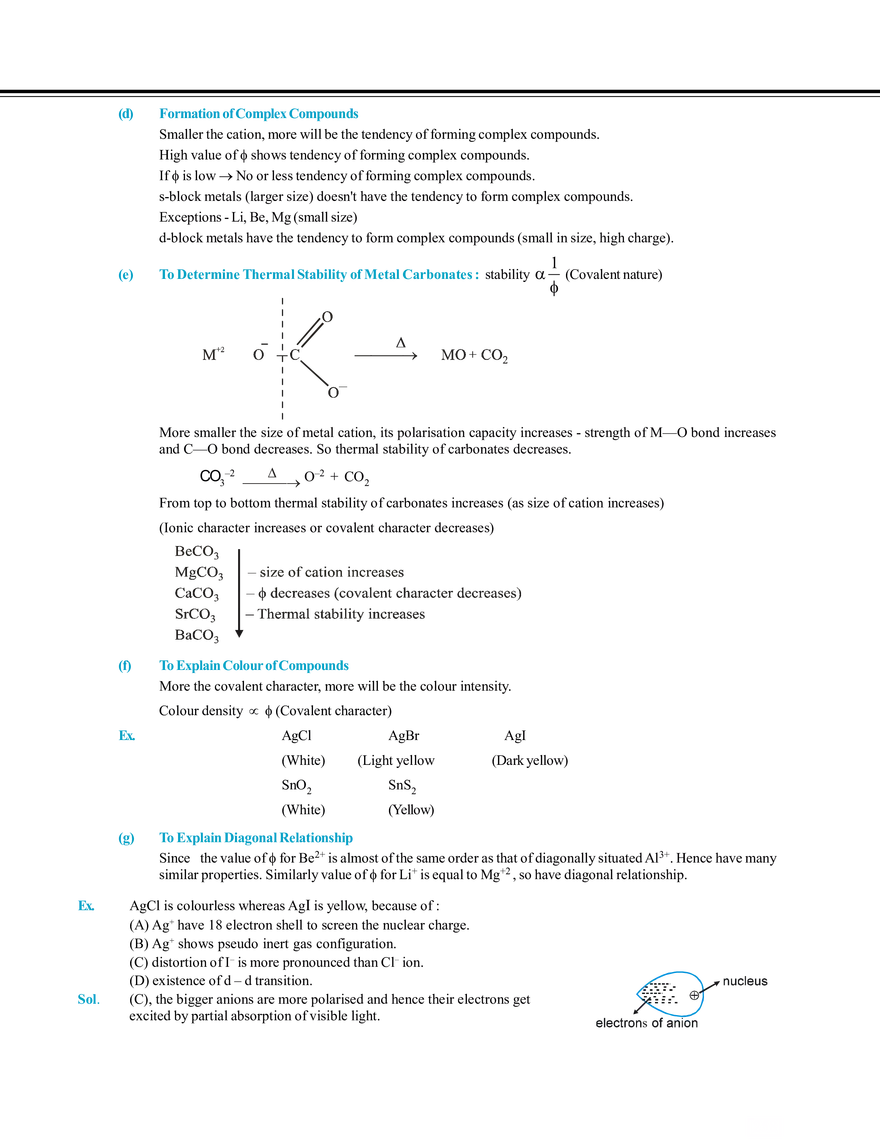

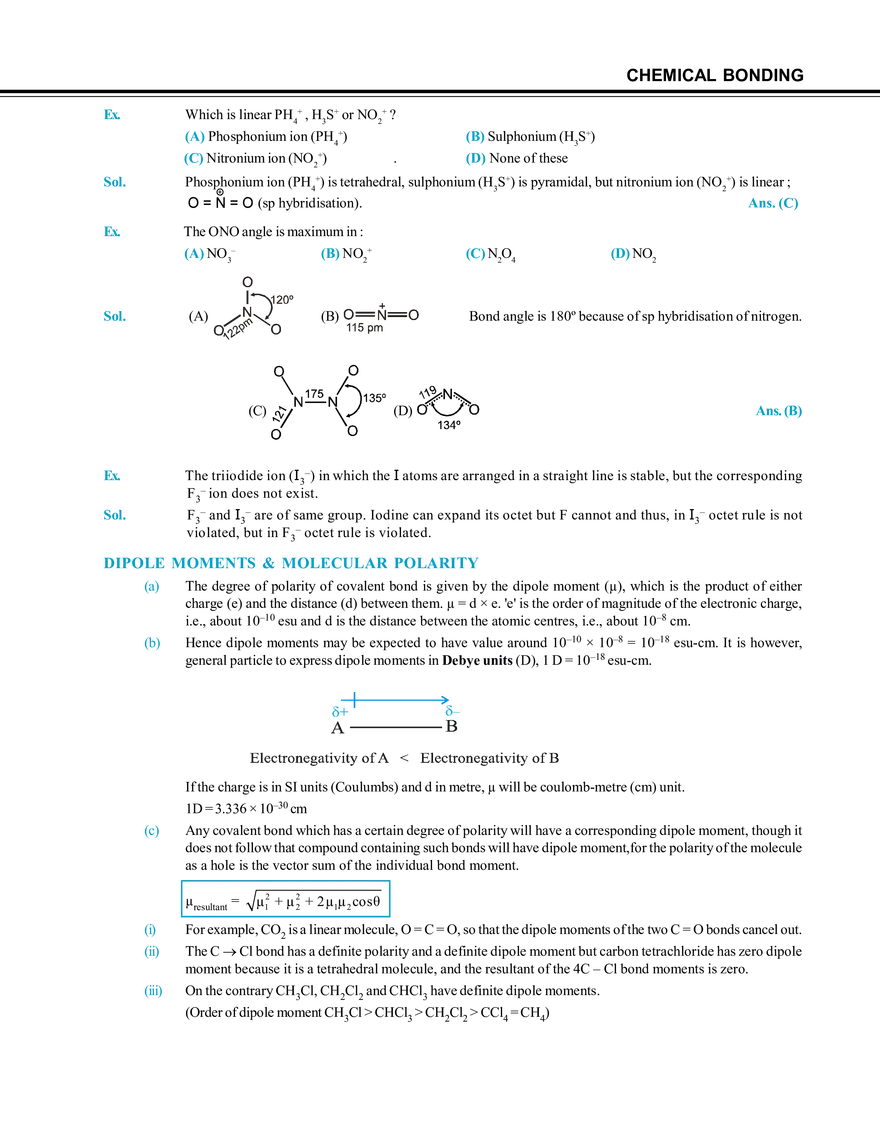

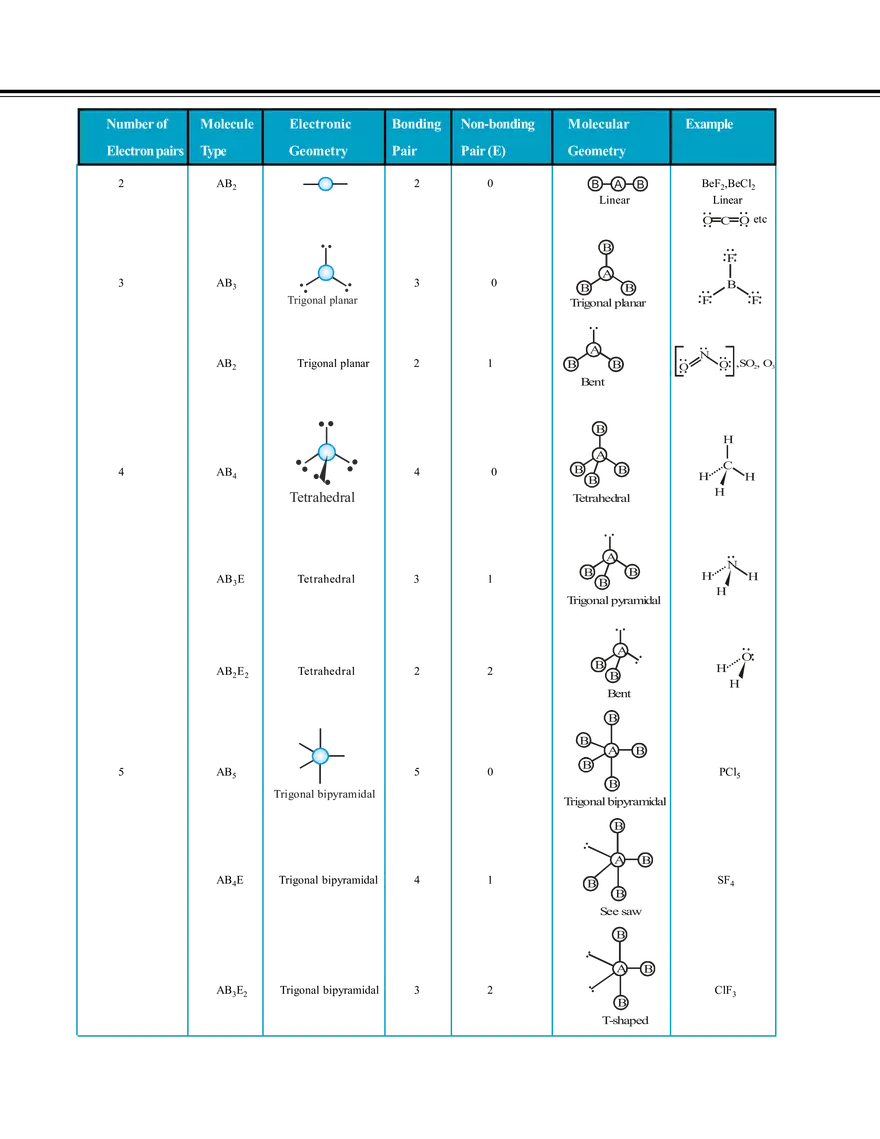

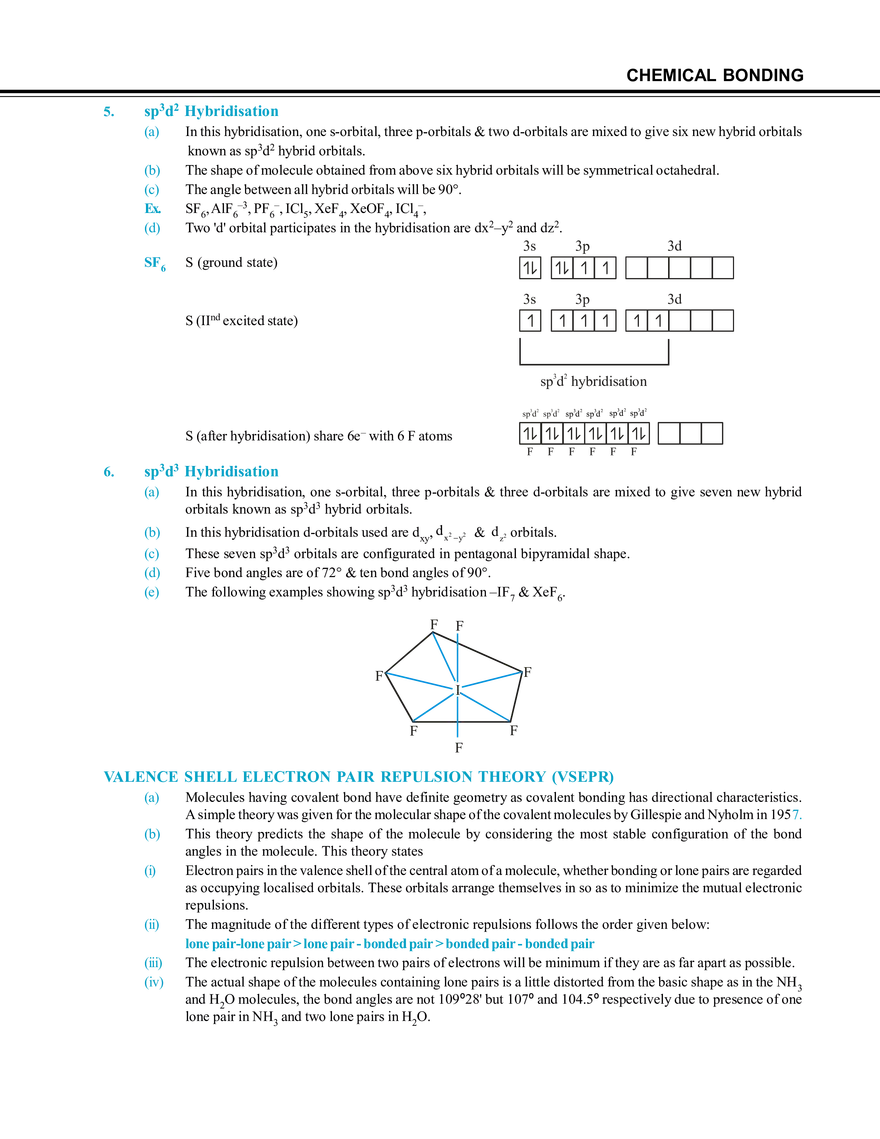

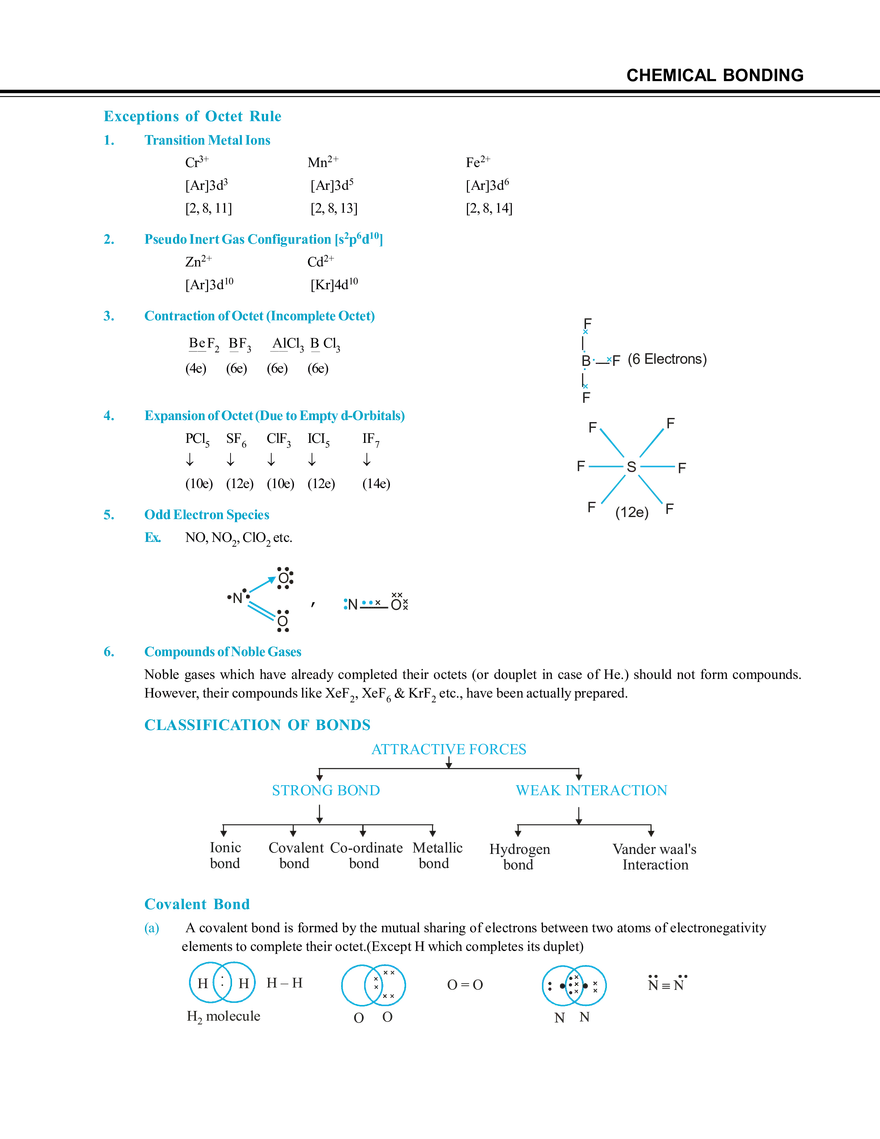

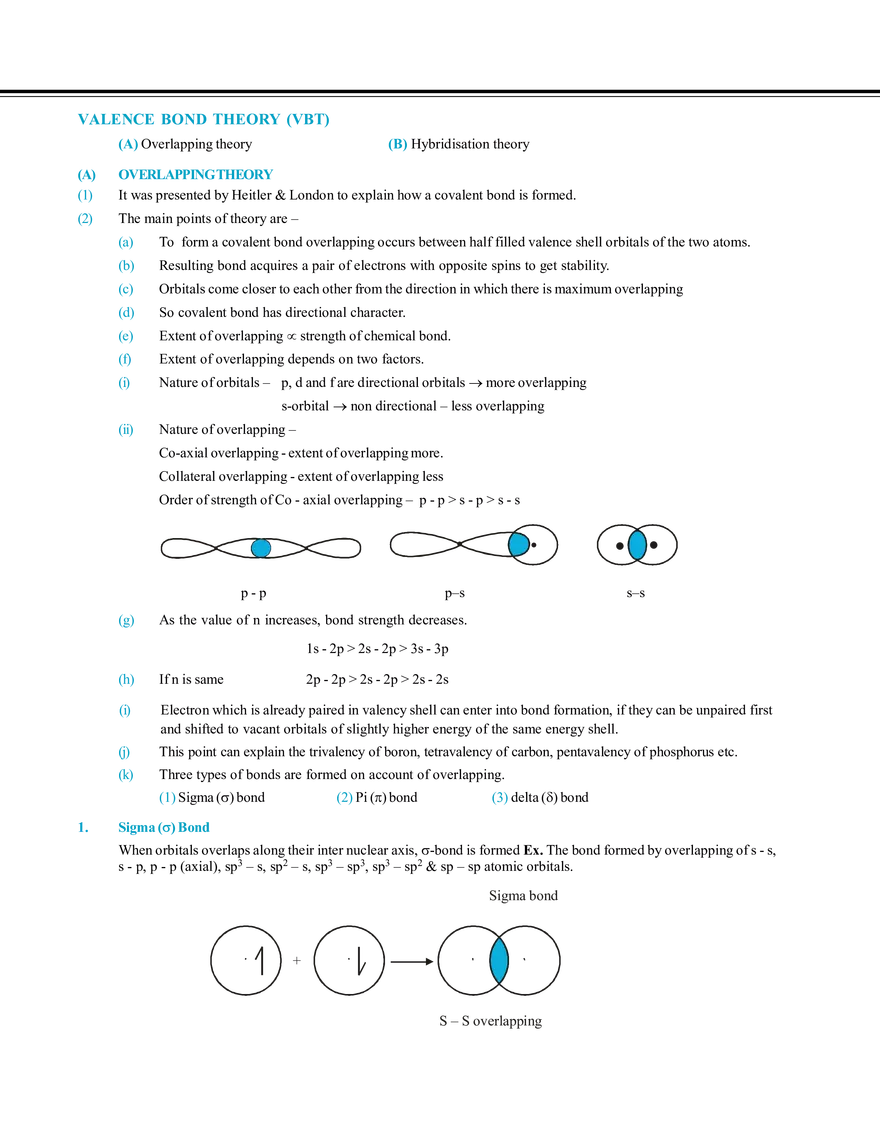

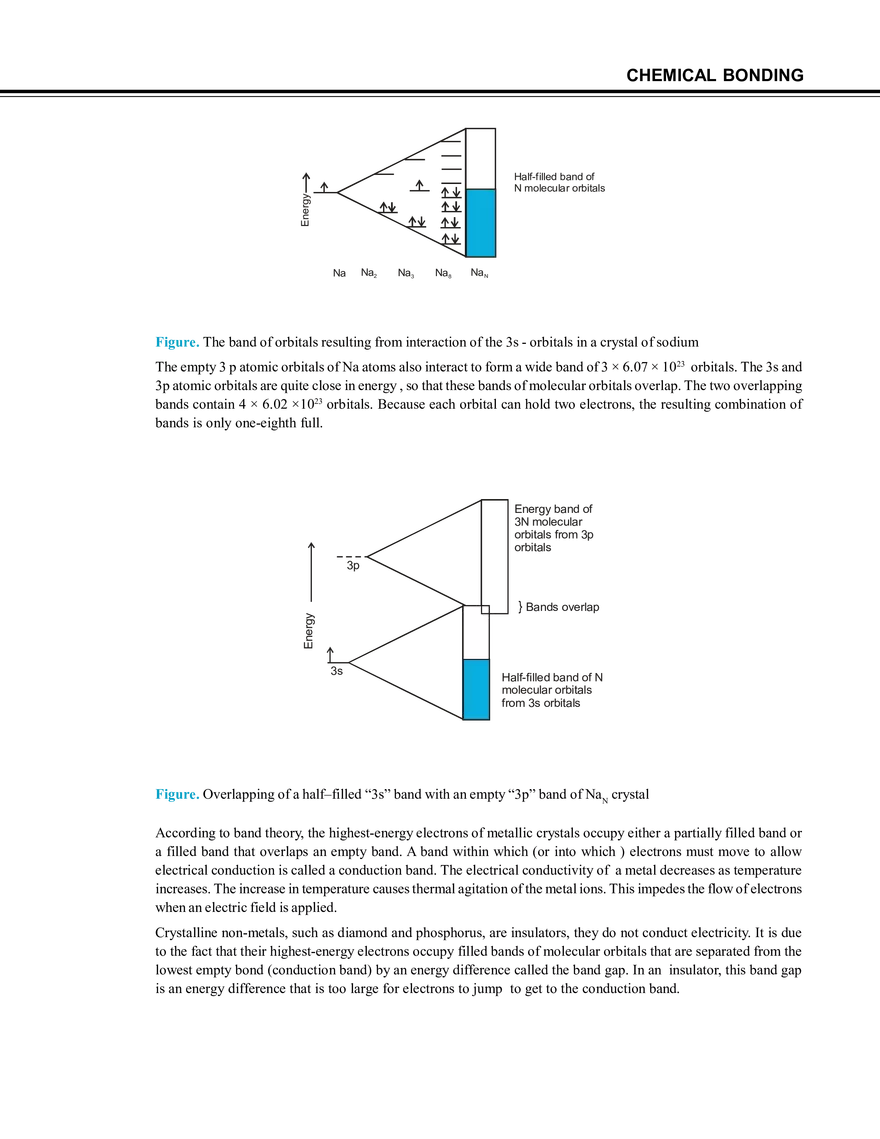

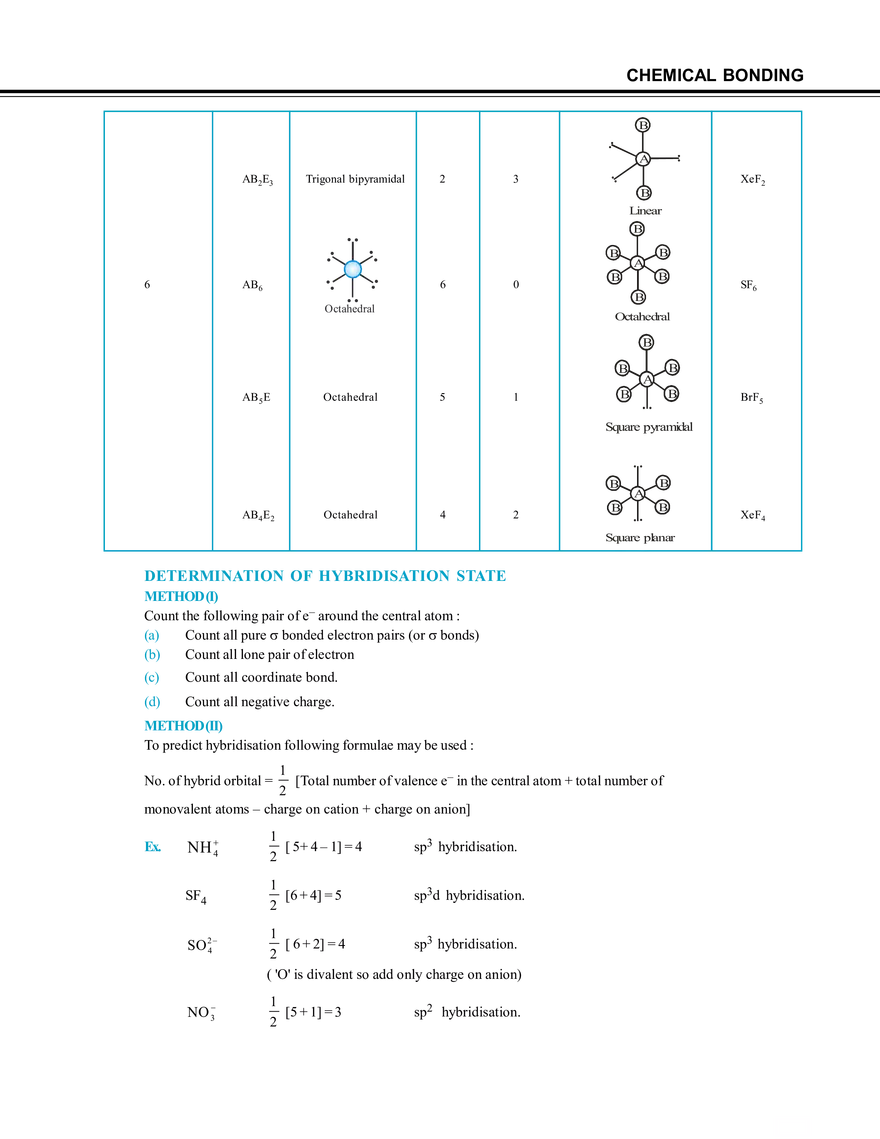

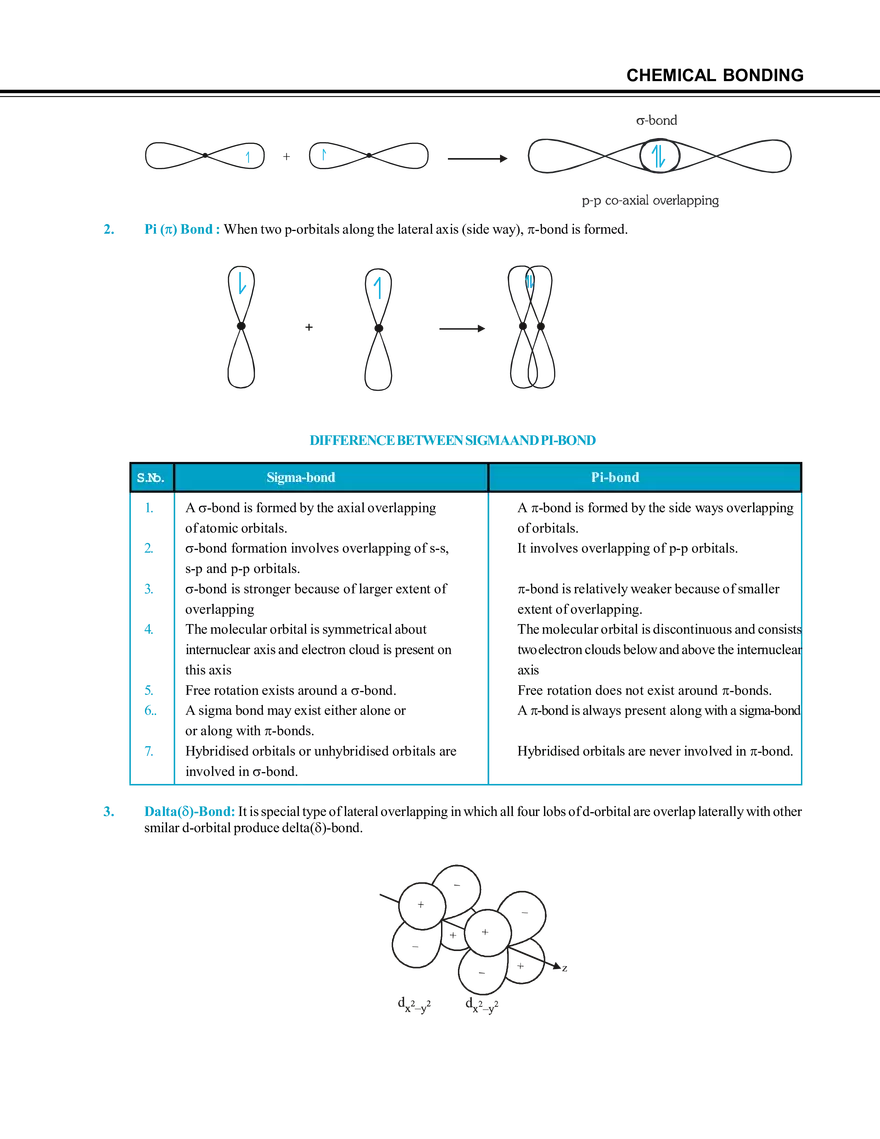

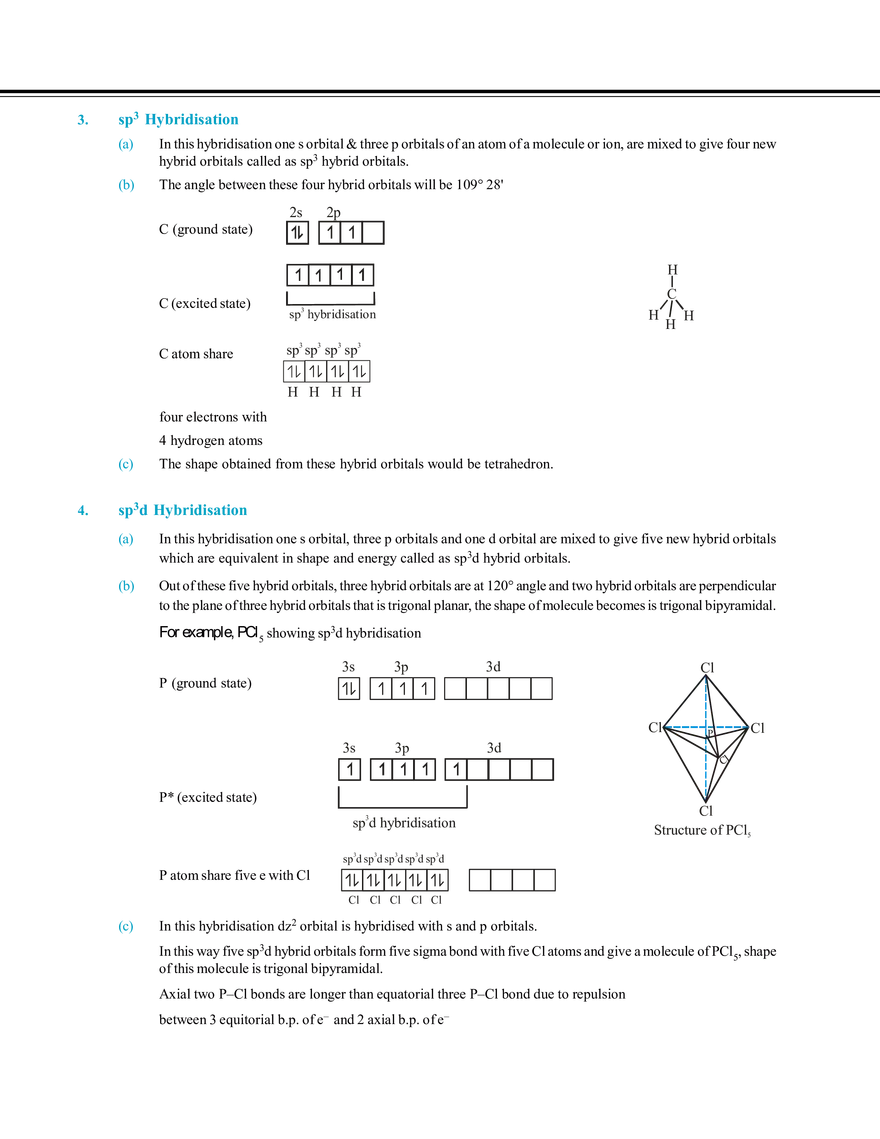

INTRODUCTION (a) It is well known fact that except for inert gases, no other element exists as independent atoms under ordinary condition. (b) Most of the elements exist as molecules which are cluster of atoms. How do atoms combine to form molecules and why do atoms form bonds? Such doubts will be discussed in this chapter. (c) A molecule will only be formed if it is more stable and has a lower energy, than the individual atoms. Chemical Bond (a) A force that acts between two or more atoms to hold them together as a stable molecule. (b) It is union of two or more atoms involving redistribution of e– among them. (c) This process accompanied by decrease in energy. (d) Decrease in energy Strength of the bond. (e) Therefore molecules are more stable than atoms. CAUSE OF CHEMICAL COMBINATION 1. Tendency to Acquire Minimum Energy : (a) When two atoms approaches to each otherNucleus of one atom attracts the electron of another atom. 2. (b) Two nuclei and electron of both the atoms repells each other. (c) If net result is attraction, the total energy of the system (molecule) decreases and a chemical bond forms. (d) So Attraction  1/energy  Stability. (e) Bond formation is an exothermic process Potential Energy diagram Octet Rule Octet rule was given by Lewis & Kossel Atoms Combines to complete an octet of electrons in their outer most orbit. Complete orbital represents to get most stable state. Hence all atoms have a tendency to acquire octet (s2p6) configuration in their outermost orbit. The octet may be complete in following manner: Complete transfer of electrons from one atom to another. Ex. NaCl, CaCl2 & MgO etc. (Ionic Bond) Sharing of electrons between atoms. (a) Sharing of equal number of electron between two atoms. Ex. Cl2, N2, O2 etc., (Covalent bond) (b) Sharing of electron pair given by only one atom Ex. [NH3  H+] & NH3  BF3 (Co-ordinate Bond) 232 CHEMICAL BONDING Exceptions of Octet Rule 2. 3. 4. Transition Metal Ions Cr3+ Mn2+ Fe2+ [Ar]3d3 [Ar]3d5 [Ar]3d6 [2, 8, 11] [2, 8, 13] [2, 8, 14] Pseudo Inert Gas Configuration [s2p6d10] Zn2+ Cd2+ [Ar]3d10 [Kr]4d10 Contraction of Octet (Incomplete Octet) Be F BF —— 2 — 3 AlCl B Cl3 —— 3 — (4e) (6e) (6e) (6e) Expansion of Octet (Due to Empty d-Orbitals) PCl5 SF6 ClF3 ICI5 IF7      (10e) (12e) (10e) (12e) 5. ×F (6 Electrons) F F F (14e) S F Odd Electron Species Ex. (12e) F F NO, NO2, ClO2 etc. O N O 6. F × |. . B . |× F | 1. , N O Compounds of Noble Gases Noble gases which have already completed their octets (or douplet in case of He.) should not form compounds. However, their compounds like XeF2, XeF6 & KrF2 etc., have been actually prepared. CLASSIFICATION OF BONDS ATTRACTIVE FORCES STRONG BOND Ionic bond WEAK INTERACTION Covalent Co-ordinate Metallic bond bond bond Hydrogen bond Vander waal's Interaction Covalent Bond (a) A covalent bond is formed by the mutual sharing of electrons between two atoms of electronegativity elements to complete their octet.(Except H which completes its duplet) H ·· H H2 molecule H–H × × O ×× ×× O O=O (b) The shared pair of electrons should have opposite spins, and are localised between two atoms concerned. (c) Shairing of electrons may occurs in three ways – No. of electrons shared Bonded Electron pair Bond. between two atoms 2 1 Single bond (–) 4 2 Double bond (=) 6 3 Triple bond ()  Ex. H—N—H {Three single bonds (not triple bond} H N N Triple bond. (not three single bond) O = O (Double bond) H – O – H (Two single bonds.) Co-ordinate Bond (a) It is a covalent bond in which the shared electron pair come from one atom is called coordinate bond. (b) Necessary conditions for the formation of co-ordinate bond are (i) Octet of donor atom should be complete and should have atleast one lone pair of electron. (ii) Acceptor atom should have a deficiency of at least one pair of electron. (c) Atom which provide electron pair for shairing is called donor. (d) Other atom which accepts electron pair is called acceptor. That is why it is called donor-acceptor or dative bond. H F   H–N: + B–F  NH3 BF3   H F BF3 is electron deficient compound. H3N [Cu(NH3)4]+2 Metal co-ordinate compounds -  NH3 Cu +2 H3N NH3 H Ex. NH4 ; H3N + H + H N H + H (Lowry - Bronsted acid) (e acceptor) H3 O+ ; H H O +H + H H O H + N2 O ; 234 CHEMICAL BONDING EDUBULL KEY POINTS Compounds in which Ionic, covalent and co-ordinate bonds are present, are as follows NH4Cl, CuSO4.5H2O, K4[Fe(CN)6], KNC, KNO3, etc. WAVE MECHANICAL CONCEPT OF CO-VALENT BONDING – (a) One orbital can accommodate at the most 2 electrons with opposite spins (b) Half filled orbital or unpaired electron orbital accepts one electron from another atom, to complete its orbital. (c) Tendency to complete orbital or to pair the electron is an condition of covalent bond. Completion of octet is not the essential condition of covalent bond. (d) If the outermost orbit has empty orbitals then covalent bonds are formed in excited state. Variable Valency in Covalent Bonds (i) Variable valencies are shown by those elements which have empty orbitals in outermost shell. (ii) Lone pair electrons get excited in the subshell of the same shell to form the maximum number of unpaired electrons. Maximum covalency is shown in excited state. (iii) The energy required for excitation of electrons is called promotion energy. (iv) Promotion rule – Excitation of electrons in the same orbit. Ex. (I) Phosphorus Ground state Covalency 3 (PCl3) 3s 3p Phosphorus Excited state Covalency – 5 (PCl5) 3s (II) 3p 3d 3p 3d Sulphur Ground state. 3s Covalency - 2 (SF2) Sulphur Excited state Ist excited state Covalency - 4 (SF4) 3s 3p 3d 2nd excited state Covalency - 6 (SF6) 3s (III) 3p 3d So variable covalency of S is 2, 4, & 6. Iodine has three lone pair of electrons (Ground state) 5s So it shows three excited states – 5p 5d Maximum number of unpaired electrons = 7 Variable Valencies are 1, 3, 5, 7 To explain the formation of covalent bond two theories based on quantum mechanics have been proposed.  Valence bond theory (VBT)  Molecular orbital theory (MOT) VALENCE BOND THEORY (VBT) (A) Overlapping theory (B) Hybridisation theory (A) (1) OVERLAPPING THEORY It was presented by Heitler & London to explain how a covalent bond is formed. (2) The main points of theory are – (a) To form a covalent bond overlapping occurs between half filled valence shell orbitals of the two atoms. (b) Resulting bond acquires a pair of electrons with opposite spins to get stability. (c) Orbitals come closer to each other from the direction in which there is maximum overlapping (d) So covalent bond has directional character. (e) Extent of overlapping strength of chemical bond. (f) Extent of overlapping depends on two factors. (i) Nature of orbitals – p, d and f are directional orbitals more overlapping s-orbital non directional – less overlapping (ii) Nature of overlapping – Co-axial overlapping - extent of overlapping more. Collateral overlapping - extent of overlapping less Order of strength of Co - axial overlapping – p - p > s - p > s - s • • • p-p (g) • p–s • • s–s As the value of n increases, bond strength decreases. 1s - 2p > 2s - 2p > 3s - 3p (h) If n is same 2p - 2p > 2s - 2p > 2s - 2s (i) Electron which is already paired in valency shell can enter into bond formation, if they can be unpaired first and shifted to vacant orbitals of slightly higher energy of the same energy shell. (j) This point can explain the trivalency of boron, tetravalency of carbon, pentavalency of phosphorus etc. (k) Three types of bonds are formed on account of overlapping. (1) Sigma () bond 1. (2) Pi () bond (3) delta () bond Sigma () Bond When orbitals overlaps along their inter nuclear axis, -bond is formed Ex. The bond formed by overlapping of s - s, s - p, p - p (axial), sp3 – s, sp2 – s, sp3 – sp3, sp3 – sp2 & sp – sp atomic orbitals. Sigma bond · + · ·· ·· S – S overlapping CHEMICAL BONDING + 2. Pi () Bond : When two p-orbitals along the lateral axis (side way), -bond is formed. + DIFFERENCE BETWEEN SIGMAAND PI-BOND S.No. 1. 2. 3. 4. 5. 6.. 7. 3. Sigma-bond A -bond is formed by the axial overlapping of atomic orbitals. -bond formation involves overlapping of s-s, s-p and p-p orbitals. -bond is stronger because of larger extent of overlapping The molecular orbital is symmetrical about internuclear axis and electron cloud is present on this axis Free rotation exists around a -bond. A sigma bond may exist either alone or or along with -bonds. Hybridised orbitals or unhybridised orbitals are involved in -bond. Pi-bond A -bond is formed by the side ways overlapping of orbitals. It involves overlapping of p-p orbitals. -bond is relatively weaker because of smaller extent of overlapping. The molecular orbital is discontinuous and consists two electron clouds below and above the internuclear axis Free rotation does not exist around -bonds. A -bond is always present along with a sigma-bond Hybridised orbitals are never involved in -bond. Dalta()-Bond: It is special type of lateral overlapping in which all four lobs of d-orbital are overlap laterally with other smilar d-orbital produce delta()-bond. Ex. What are the total number of  &  bonds in tetracyanomethane. Sol. From the structure it is clear that it has 8  and 8  bonds. (B) HYBRIDISATION THEORY (a) It is introduced by pauling and slater, to explain equivalent nature of covalent bonds in a molecule. Consider an example of Be compound :If it is formed without hybridisation then p-s p–p Cl —— Be ———— Cl both the Be–Cl bonds should have different parameters and p–p bond strength > s–p bond strength. Practically bond strength and distance of both the Be–Cl bonds are same. This problem may overcome if hybridisation of s and p-orbital occurs. (b) Definition : Mixing of different shapes and approximate equal energy atomic orbitals, and redistribution of energy to form new orbitals, of same shape & same energy. These new orbitals are called hybrid orbitals. and the phenomenon is called hybridisation. Now after considering s–p hybridisation in BeCl2 p–sp sp–p Cl ——— Be ———— Cl bond strength of both the bonds will be equal. Characteristic of Hybridisation (a) Hybridisation is a mixing of orbitals and not electrons. Therefore in hybridisation full filled, half filled and empty orbitals may take part. (b) Number of the hybrid orbitals formed is always be equivalent to number of atomic orbital which have taken part in the process of hybridisation. (c) Each hybrid orbital having two lobes, one is larger and other is smaller. Bond will be formed from large lobe. (d) The number of hybrid orbitals on central atom of a molecule or ion = number of bonds + lone pair of electron. (e) One element can represent many hybridisation state depending on experimental conditions Ex. C showing sp, sp2 and sp3 hybridisation in its compounds. (f) Hybrid orbitals are differentiated as sp, sp2, sp3 etc. (g) The directional properties in hybrid orbital is more than atomic orbitals. Therefore hybrid orbitals form stronger sigma bond. The directional property of different hybrid orbitals will be in following order. sp < sp2 < sp3 < sp3d < sp3d2 < sp3d3 (h) Hybridize orbitals show axial overlapping & form  bond CHEMICAL BONDING TYPES OF HYBRIDISATION 1. sp Hybridisation (a) In this hybridisation one s– & one p– orbital of an atom are mixed to give two new hybrid orbitals which are equivalent in shape & energy known as sp hybrid orbitals. (b) These two sp hybrid orbitals are arrange in straight line & at bond angle 180°. (c) s-character 50% 2s 2p 2s 2p Be (ground state) Be (excited state) sp hybridisation Be atom share two electrons sp sp with F in BeF2, F 2. F sp2 Hybridisation (a) In this hybridisation one s & two p orbitals are mixed to give three new sp2 hybrid orbitals which all are in same shape & equivalent energies. (b) These three sp2 hybrid orbitals are at angle of 120° & giving trigonal planar shape. (c) s-character 33.33% in each orbital. 2s 2p B (ground state) B (excited state) sp2 hybrid orbitals 2 B atom share 3 electrons with 3 F atoms in BF3 sp sp F F 2 2 sp F 3. sp3 Hybridisation (a) In this hybridisation one s orbital & three p orbitals of an atom of a molecule or ion, are mixed to give four new hybrid orbitals called as sp3 hybrid orbitals. (b) The angle between these four hybrid orbitals will be 109° 28' C (ground state) 2s 2p H C (excited state) C atom share C H sp hybridisation 3 H H sp3 sp3 sp3 sp3 H H H H four electrons with 4 hydrogen atoms (c) 4. The shape obtained from these hybrid orbitals would be tetrahedron. sp3d Hybridisation (a) In this hybridisation one s orbital, three p orbitals and one d orbital are mixed to give five new hybrid orbitals which are equivalent in shape and energy called as sp3d hybrid orbitals. (b) Out of these five hybrid orbitals, three hybrid orbitals are at 120° angle and two hybrid orbitals are perpendicular to the plane of three hybrid orbitals that is trigonal planar, the shape of molecule becomes is trigonal bipyramidal. For example, PCl 5 showing sp3d hybridisation P (ground state) 3s 3p 3d 3s 3p 3d Cl Cl P* (excited state) sp3d hybridisation P atom share five e with Cl Cl P Cl Cl Structure of PCl5 sp3d sp3d sp3d sp3d sp3d Cl Cl Cl Cl Cl (c) In this hybridisation dz2 orbital is hybridised with s and p orbitals. In this way five sp3d hybrid orbitals form five sigma bond with five Cl atoms and give a molecule of PCl5, shape of this molecule is trigonal bipyramidal. Axial two P–Cl bonds are longer than equatorial three P–Cl bond due to repulsion between 3 equitorial b.p. of e– and 2 axial b.p. of e– CHEMICAL BONDING 5. sp3d2 Hybridisation (a) (b) (c) Ex. (d) SF6 In this hybridisation, one s-orbital, three p-orbitals & two d-orbitals are mixed to give six new hybrid orbitals known as sp3d2 hybrid orbitals. The shape of molecule obtained from above six hybrid orbitals will be symmetrical octahedral. The angle between all hybrid orbitals will be 90°. SF6, AlF6–3, PF6–, ICl5, XeF4, XeOF4, ICl4–, Two 'd' orbital participates in the hybridisation are dx2–y2 and dz2. 3s 3p 3d S (ground state) 3s 3p 3d S (IInd excited state) sp3d2 hybridisation 3 2 3 2 3 2 3 2 sp d sp d sp d sp d S (after hybridisation) share 6e– with 6 F atoms 6. F F F F sp3d2 sp3d2 F F sp3d3 Hybridisation (a) (b) (c) (d) (e) In this hybridisation, one s-orbital, three p-orbitals & three d-orbitals are mixed to give seven new hybrid orbitals known as sp3d3 hybrid orbitals. In this hybridisation d-orbitals used are dxy, d x2  y2 & d z2 orbitals. These seven sp3d3 orbitals are configurated in pentagonal bipyramidal shape. Five bond angles are of 72° & ten bond angles of 90°. The following examples showing sp3d3 hybridisation –IF7 & XeF6. F F F F I F F F VALENCE SHELL ELECTRON PAIR REPULSION THEORY (VSEPR) (a) (b) (i) (ii) (iii) (iv) Molecules having covalent bond have definite geometry as covalent bonding has directional characteristics. A simple theory was given for the molecular shape of the covalent molecules by Gillespie and Nyholm in 1957. This theory predicts the shape of the molecule by considering the most stable configuration of the bond angles in the molecule. This theory states Electron pairs in the valence shell of the central atom of a molecule, whether bonding or lone pairs are regarded as occupying localised orbitals. These orbitals arrange themselves in so as to minimize the mutual electronic repulsions. The magnitude of the different types of electronic repulsions follows the order given below: lone pair-lone pair > lone pair - bonded pair > bonded pair - bonded pair The electronic repulsion between two pairs of electrons will be minimum if they are as far apart as possible. The actual shape of the molecules containing lone pairs is a little distorted from the basic shape as in the NH 3 and H2O molecules, the bond angles are not 109º28' but 107º and 104.5º respectively due to presence of one lone pair in NH3 and two lone pairs in H2O. Number of Molecule Electronic Bonding Non-bonding Molecular Electron pairs Type Geometry Pair Pair (E) Geometry 2 AB 2 2 0 Example BeF2,BeCl2 Linear B A B Linear         O C O etc F   B   B B Trigonal planar   0   3      F F    Trigonal planar   AB 3 A   3   B      A B O N O ,SO2, O3   B   1   2   Trigonal planar   AB2 Bent  4 AB 4  B   Tetrahedral 4 0 B H A B B H C H Tetrahedral H   AB 3 E Tetrahedral 3 1 A B  B B H Trigonal pyramidal N H H   Tetrahedral 2 2 A   O  H  AB 2 E 2 B B Bent H B B AB5 5 0 Trigonal bipyramidal B A B PCl5 B Trigonal bipyramidal B   A AB4E Trigonal bipyramidal 4 1 B B SF4 B See saw B   A AB3E2 Trigonal bipyramidal 3 2 B  5 B T-shaped ClF3 CHEMICAL BONDING B   A 2 3 XeF2  Trigonal bipyramidal   AB2E3 B Linear B  6 AB 6        B  6 0 B B B SF6 B  Octahedral A Octahedral B B AB 5 E Octahedral 5 B 1 B A B   BrF5 Square pyramidal   B AB 4 E 2 Octahedral 4 2 B A B B   Square planar DETERMINATION OF HYBRIDISATION STATE METHOD (I) Count the following pair of e– around the central atom : (a) Count all pure bonded electron pairs (or bonds) (b) Count all lone pair of electron (c) Count all coordinate bond. (d) Count all negative charge. METHOD (II) To predict hybridisation following formulae may be used : 1 [Total number of valence e– in the central atom + total number of 2 monovalent atoms – charge on cation + charge on anion] No. of hybrid orbital = Ex. NH 4 1 [ 5+ 4 – 1] = 4 2 sp3 hybridisation. SF4 1 [6 + 4] = 5 2 sp3d hybridisation. SO 24  NO 3 1 [ 6 + 2] = 4 sp3 hybridisation. 2 ( 'O' is divalent so add only charge on anion) 1 [5 + 1] = 3 2 sp2 hybridisation. XeF4 If such type of e– pairs are – two – sp hybridisation three – sp 2 hybridisation four – sp 3 hybridisation five – sp 3 d hybridisation six – sp 3 d 2 hybridisation seven – sp 3 d 3 hybridisation BOND LENGTH (i) The internuclear distance between the two single covalently bonded atoms is called bond length or bond distance. (ii) If the electronegativities of both the atoms are equal, then the bond length is equal to the sum of the covalent radii of two bonded atoms. d A – A = rA + rA (ii) If the electronegativities of two bonded atoms differ, then the bond length is smaller than the sum of their covalent radii. dA – B < rA + rB Factors Affecting Bond Length (i) Size of Atoms HI > HBr > HCl > HF H2Te > H2Se > H2S > H2O (ii) Hybridization State of The Bonded Atoms: If the s-character in hybridization state of the bonded atoms increases, the C–H bond distance decreases. Ex. In C – C single bond. (iii) sp3 – sp3 single bond length = 1.54 Å sp3 – sp2 single bond length = 1.52 Å sp2 – sp2 single bond length = 1.51 Å sp3 – sp single bond length = 1.46 Å sp2 – sp single bond length = 1.45 Å sp – sp single bond length = 1.37 Å Bond length decreases in the order sp3 – sp3 > sp2 – sp2 > sp – sp Resonance or Delocalisation of Electrons of The Bond: Bond length between atoms are changed if a molecule shows resonance. BONDANGLE The angle between two bonds is known as bond angle. Factors Affecting Bond Angle (i) Hybridisation State of Central Atom: Compounds having different hybridisation have different bond angle. Ex. BeH2 BH3 CH4 Hybridisation sp sp 2 sp 3 Bond angle 180º 120º 109º28' CHEMICAL BONDING (ii) Lone Pair of Electron: If compounds have same hybridisation states then bond angle depends on lone pair of electron. Ex. CH4 NH3 H2O Hybridisation sp 3 sp 3 sp 3 Lone pair e– zero one two Bond angle 109º28' 107º 105º The different in bond angle is explained on the basis of following repulsion sequence The repulsion between lone pair-lone pair > lone pair - bonded pair > bonded pair - bonded pair (iii) Electronegativity: When compounds having same hybridisation state of central atom and some number of lone pair of electrons, then bond angle depends on electronegativity. Bond angle  electronegativity Ex. H2O > H2S NH3 > PH3 E.N. of oxygen is more than sulphur therefore the bond angle in H2O will be more than H2S. (iv) Size of Terminal Atoms: When size of terminal atoms increases, bond angle increases. Ex. OF2 < Cl2O < Br2O PF3 < PCl3 < PBr3 BOND ENERGY (i) The amount of energy required to break one mole of the bond and separate the bonded atoms in the gaseous state is known as the bond energy of that particular bond. (ii) B.E. is expressed in KJ mol–1 (in SI units) or in Kcal mol–1. Factors Affecting Bond Energy (a) Electronegativity Difference of The Bonded Atoms : As the EN difference of the bonded atoms increases the bond energy increases because the ionic nature of the bond increases. Ex. Bond strength of hydrogen halides decreases in the order H – F > H – Cl > H – Br > H – I (b) Bond Order Bond energy  Bond order, therefore the increasing order of bond energy is C–C Br – Br > I – I because their atomic sizes are in the order Cl < Br < I. (e) Extent of Overlapping of Atomic Orbitals: A larger extent of overlapping of component atomic orbitals imparts great strength to the bond. (f) Repulsion Between the Lone Pairs of Electrons of Bonded Atoms: Bond energy  1 No. of lone pair of electron on the bonded atoms Ex.   F – F    O– O > Use the VSEPR model to predict the geometry of the following : (a) XeF2 (b) ClO3– Sol. Ex.        C – C > N– N>  Ex. the bond energies of the following single bonds having zero, one, two and three lone pair of electrons are in the order. Species Structure (a) XeF2 lone pairs occupy the equatorial positions to have minimum repulsion. Thus it is linear. (b) ClO3– To minimize the repulsion between lone pair and double bond, species acquires trigonal pyramidal. Discuss the bond angle in carbonyl halides COF2 , COCl2 , COBr2 , CO2 Sol. Bond angle   COF2 < COCl2 < COBr2 < CO2 Double bonds require more room than single bonds. Hence C = O group compresses the molecule and bond angle decreasemaximum in COF2 as bond pairs of electrons are more closer to the fluorine atoms because of high electronegativity of fluorine. As size of halogen atoms increase and their electronegativity decreases repulsion between bond pairs increases and therefore  increase. Ex. Compare bond angle of OF2 , Cl2O and Br2O. Sol. OF2 Cl2O Br2O Bond pairs of electrons are more closer to the fluorine atoms (because of high electronegativity of fluorine). So the lp - lp repulsion is more than bp - bp. Thus the F—O—F bond angle decreases to 102º from 109.5º. In Cl2O, the bond pair are more closer to the oxygen atom because of the high electronegativity of oxygen. So the bp - bp repulsion is more than lp - lp. Thus the bond angle Cl—O—Cl increases to 111º due to bp - bp repulsion and repulsion between larger Cl atoms. Note : The steric crowding of the larger halogen atoms also contributes in the increasing bond angles. CHEMICAL BONDING Ex. Which is linear PH4+ , H3S+ or NO2+ ? (A) Phosphonium ion (PH4+) (C) Nitronium ion (NO2+) . (B) Sulphonium (H3S+) (D) None of these Sol. Phosphonium ion (PH4 ) is tetrahedral, sulphonium (H3S+) is pyramidal, but nitronium ion (NO2+) is linear ; (sp hybridisation). Ans. (C) Ex. The ONO angle is maximum in : + (A) NO3– Sol. (A) (B) NO2+ (C) N2O4 (B) Bond angle is 180º because of sp hybridisation of nitrogen. (C) Ex. (D) NO2 (D) Ans. (B) The triiodide ion (I3–) in which the I atoms are arranged in a straight line is stable, but the corresponding F3– ion does not exist. Sol. F3– and I3– are of same group. Iodine can expand its octet but F cannot and thus, in I3– octet rule is not violated, but in F3– octet rule is violated. DIPOLE MOMENTS & MOLECULAR POLARITY (a) The degree of polarity of covalent bond is given by the dipole moment (µ), which is the product of either charge (e) and the distance (d) between them. µ = d × e. 'e' is the order of magnitude of the electronic charge, i.e., about 10–10 esu and d is the distance between the atomic centres, i.e., about 10 –8 cm. (b) Hence dipole moments may be expected to have value around 10–10 × 10–8 = 10–18 esu-cm. It is however, general particle to express dipole moments in Debye units (D), 1 D = 10–18 esu-cm. If the charge is in SI units (Coulumbs) and d in metre, µ will be coulomb-metre (cm) unit. 1D = 3.336 × 10–30 cm (c) Any covalent bond which has a certain degree of polarity will have a corresponding dipole moment, though it does not follow that compound containing such bonds will have dipole moment,for the polarity of the molecule as a hole is the vector sum of the individual bond moment. µresultant = (i) (ii) (iii) µ12 + µ 22 + 2µ1µ 2 cosθ For example, CO2 is a linear molecule, O = C = O, so that the dipole moments of the two C = O bonds cancel out. The C  Cl bond has a definite polarity and a definite dipole moment but carbon tetrachloride has zero dipole moment because it is a tetrahedral molecule, and the resultant of the 4C – Cl bond moments is zero. On the contrary CH3Cl, CH2Cl2 and CHCl3 have definite dipole moments. (Order of dipole moment CH3Cl > CHCl3 > CH2Cl2 > CCl4 = CH4) Application of Dipole Moment Measurements Dipole moment is a measure of the electrical dissymmetry (polarity) in the molecule and so its measurement provides valuable information concerning the shape of molecules. Conversely, when the symmetry of the molecules is known, dipole moment could be estimated fairly. 1. INORGANIC SUBSTANCES (a) Monoatomic molecules such as He, Ne, etc., have zero dipole moment becaue they are symmetrical. (b) Diatomic molecules such as H2, Cl2 and N2 have no dipole moment; so these molecules are symmetrical. (c) Triatomic molecules some of these molecules possess zero dipole moment so they have a symmetrical linear structure, Ex. CO2, CS2, HgCl2. Others like water and sulphur dioxide have definite dipole moments. They are said to have angular or bent structures. (V-shaped) (d) O S H H 1.84 D O O 1.63 D O=C=O 0D S=C=S 0D Cl – Hg – Cl 0D Tetratomic molecules some molecules like BCl3 have zero dipole moment. They are said to possess a flat and 2 symmetrical (triangular) structure; other example are BF3, BBr3, CO 3 , and NO 3 (e) PCl3, AsCl3, NH3, PH3, AsH3, H3O+ have appreciable dipole moment. They possess trigonal pyramidal structure. · · P Cl 2. Cl Cl ORGANIC SUBSTANCES (a) Methane and CCl4 have zero dipole moment. So they possess symmetrical tetrahedral structures with C atom at the centre of the tetrahedron. H C H H Methane H CHEMICAL BONDING (b) Benzene has zero dipole moment. All the 6C and 6H atoms are assumed to be in the same plane (symmetrical hexagonal structure). H H H H H H (c) Measurement of dipole moments will enable us to detect cis-and trans isomers of organic compounds (you will learn about cis-trans or geometrical isomerism later in the organic chemistry). The trans-isomer, which is symmetrical, has zero dipole moment while the cis-isomer has a definite dipole moment. H Br C H H Br Br C cis-dibromoethylene (µ = 1.4D) (d) Br C C H trans-dibromoethylene (µ = 0) The dipole moments of the aromatic compounds present a very good illustration of dipole moment. We know that when substituted benzene is treated with reagent different products (namely ortho, meta and para products) are formed. The dipole moments of these products are different since the orientation of the groups is different. Let us take an example to clarify it. Let us take three isomers. o-nitrophenol, m-nitrophenol and p-nitrophenol. We also have three other isomers, o-aminophenol, m-aminophenol and p-aminophenol. We want to arrange these isomers in the order of their dipole moments. X X X Y Y Ortho Meta Y Para In those cases where X = Y, the para isomer becomes symmetrical and have zero dipole moment. In order to find their dipole moment, we need to know about the nature of the groups linked to the benzene ring. In nitro phenols, one group (OH) is electron pushing and the other (NO2) is electron withdrawing while in aminophenols, both the groups (OH and NH2) attached are electron pushing. So, depending on the nature of the groups attached, the isomers have different dipole moment. Then calculation of dipole moment follows as: Case (i) : When X and Y both are electron pushing or electron withdrawing. Let the bond dipole of C–X bond is represented by µ1 and that of C–Y bond by µ2. Now let us assume that the electron pushing groups have +ve bond moment and the electron withdrawing groups have –ve bond moment. The net dipole moment is the resultant of two bond dipoles at different orientations. µortho =  µo = µm = µ12 + µ22 + 2µ1µ2cos120o µ12 + µ22 - µ1µ2 µpara =  1 µ12 + µ22 + 2µ1µ2 · 2 µ12 + µ22 + µ1µ2 µmeta =  µ12 + µ + 2µ µ cos60o = µ12 + µ22 + 2µ1µ2cos180o = µ12 + µ22 - 2µ1µ2 µp = µ 1 – µ2 From the above expressions of µo, µm and µp, it is clear that when both X and Y are of the same nature i.e., both are electron withdrawing or both are electron pushing the para product has the least dipole moment and ortho product has the highest dipole moment. When X = Y, µ1 = µ2, thus µp would be zero. Case (ii) : When X is electron pushing and Y is electron withdrawing or vice versa. Let the bond moment of C–X dipole is µ1 and that of C–Y dipole is µ2. µo = µ12 + (-µ2 )2 + 2µ1 (-µ2 )cos60o = µ12 + µ 22 - µ1µ 2 = (µ1 + µ2 )2 - 3µ1µ2 µmeta = = µpara = µ12 + (-µ2 )2 + 2µ1 (-µ2 )cos120o = µ12  µ22  µ1 µ2 (µ1  µ2 )2  µ1 µ2 µ12 + (-µ2 )2 + 2µ1 (-µ2 )cos180o = µ12 + µ22 + 2µ1µ2 = µ1 + µ2 Looking at the expressions of µo, µm and µp, it is clear that the para isomer has the highest dipole moment and ortho has the least. 3. DIPOLE MOMENTAND PERCENTAGE IONIC CHARACTER The measured dipole moment of a substance may be used to calculate the percentage ionic character of a covalent bond in simple molecules. 1 unit charge = Magnitude of electronic charge = 4.8 × 10–10 e.s.u. 1 D = 1 × 10–18 e.s.u × cm.  Observed dipole moment % ionic character = Theoritical dipole moment × 100 Theoretical dipole moment is confined when we assume that the bond is 100% ionic and it is broken into ions while observed dipole moment is with respect to fractional charges on the atoms of the bond. CHEMICAL BONDING Ex. The resultant dipole moment of water is 1.85 D ignoring the effects of lone pair. Calculate, the dipole moment of each OH bond (given that bond angle in H2O = 104°, cos 104° = – 0.25). R2 = P2 + Q2 + 2PQ cos  Sol.  1 (1.85)2 = x2 + x2 + 2x2  -   4 (1.85)2 = 2x2 –  Ex. Sol. x2 3x 2  2 2 x = 1.51 D For HCl molecule observed dipole moment is 1.03 D and bond length is 1.275 Å. Calculate % ionic character. Dipole moment = 4.8 × 10–18 × 1.275 × 10–8 = 4.8 × 1.275 % ionic character = 1.03×100  17% 1.275 × 4.8 Ex. Why NH3 is having more dipole moment than NF3. Sol. n molecule Nitrogen is more electronegative than Hydrogen. So the net dipole moment is towards. Nitrogen atom but in NF3 molecule. Fluorine is more electronegative than. Nitrogen so the net dipole moment is towards fluorine atoms. In NH3 the bond pair moments and lone pair moments are in the same direction while in NF3 the lone pair moment and bond pair moments are in opposite direction. .. N F Ex. F F The geometry of SO3 and its dipole moment are : (A) pyramidal and non-zero. (B) trigonal planar and non-zero. (C) trigonal planar and zero. (D) T-shaped and zero. (C) Ans. Sol. The steric number of sulphur = 3; so hybridisation is sp2. There is no lone pair on sulphur atom, therefore, according to VSEPR theory, the repulsions between the bond pairs of electrons will be similar. Hence the molecule will be symmetrical (trigonal planar) with zero dipole moment. ELECTROVALENT OR IONIC BOND (a) (b) (c) The chemical bond formed between two or more atoms as a result of the complete transfer of one or more electrons from one atom to another is called Ionic or electrovalent bond. Electro positive atom loses electron (group IA to IIIA) Electro negative atom gains electron (group VA to VIIA) (d) (e) Electrostatic force of attraction between cation and anion is called ionic bond or electrovalent bond. Total number of electron lose or gained is called electrovalency. 250 Ex. (i) Mg 2, 8, 2 O 2, 6 +  Mg+2 + O–2 2e – electrovalency of Mg = 2 electrovalency of O = 2 (ii) Ca 2,8,8,2 +2 Cl  Ca + 2Cl 2,8,7 + One e – One e – – Cl 2,8,7 electrovalency of Ca = 2 electrovalency of Cl = 1 (iii) Ca + O  Ca+2 + O –2 2e – electrovalency of Ca = 2 electrovalency of O = 2 (f) The force of attraction is equal in all direction so ionic bond is non-directional. (g) A definite three dimensional structure is formed called crystal lattice. (h) Ionic compound do not have molecular formula. It has only empirical formula. Ex. NaCl is empirical formula of sodium chloride FORMATION OF IONIC COMPOUND - BORN HABER CYCLE (a) When elements react to form compounds, G (the free energy of formation) is negative. For a reaction to proceed spontaneously, the free energy of the products must to lower than that of the reactants. (b) Usually the energy changes are measured as enthalpy values H, and G is related to H by the equation G = H – TS In many cases enthalpy values are used instead of free energy values, and the two are almost the same if the term TS is small. At room temperature T is almost 300 K, so G and H are similar when the change in entropy S is very small. Entropy changes are large when three is a change in physical state, Ex. solid to liquid, or liquid to gas, but otherwise entropy changes are usually small. CHEMICAL BONDING (c) A whole series of energy changes is involved when one starts from the elements and finishes with an ionic crystal. These changes are shown in the Born-Haber cycle. Formation of NaCl (s) involves 1 Cl 2 2(g) D S 2 Na(g) Cl(g) I.P. –e– – EGE + e– Na(s) + Na+(g) thus here DHf NaCl(s) –U Cl–(g) S + I.P. + D – EGE – U = Hf 2 S = heat of sublimation of Na(s) I.P. = ionisation potential of Na(g) D = bond dissociation energy of Cl2 EGE = electron gain enthalpy of Cl(g) U = lattice energy Hf = enthalpy heat of formation of NaCl(s) If lattice is MgX2(s) then S + (IP1 + IP2) + D – 2EGE – U = Hf where (IP1 + IP2) = total ionisation energy to form Mg2+(g) from Mg(g). FACTORS FAVOURING IONIC BONDING (a) Ionisation Energy Amount of energy required to remove an electron from the outermost orbit of an isolated gaseous atom to form the +ve ion or cation. (energy absorbed) Lesser Ionization energy Greater tendency to form cation. Ex. Na+ > Mg+2 > Al+3 Cs > Rb > K > Na > Li + (b) + + + +   Cation formation tendency  Electron Affinity Amount of energy released when an electron is added to an isolated gaseous atom to form –ve ion (anion) energy released. Higher electron affinity Greater tendency to form anion Ex. Cl– > F– > Br– > I– F– > O–2 > N–3 (c) Lattice Energy - (Energy released) The energy released in the formation of 1g mole electrovalent compound from isolated gaseous ions is called lattice energy (U) of that compound. Higher lattice energy Greater will be the stability or strength of ionic compound. FACTORSAFFECTINGLATTICE ENERGY (i) Magnitude of charge U z+ z– (Ionic charge) Lattice energy Magnitude of charge NaCl MaCl2 AlCl3 Na+ Mg+2 Al+3  – Lattice energy increases – Size of cation decreases. (ii) Size of Cation :- Lattice energy  LiCl NaCl KCl RbCl 1 r+ + r- CsCl  – Size of cation increasing – Size of anion is constant – Lattice energy decreases. Properties of Ionic Compound (a) Physical State – Ionic compounds are hard, crystalline and brittle due to strong electrostatic force of attraction. Brittleness {Same charged ions comes nearer. So they repell each other} + + + + + + + + + + + + + + + + Attraction + + + + Repulsion (b) Isomorphism : Different ionic compounds, having same configuration/geometry of ions are isomorphs of each other and phenomenon is known as isomorphism Ex. NaF, MgO, ZnSO4 · 7H2O, FeSO4 · 7H2O. All alums M2'SO · M2"(SO4)3 · 24H2O. (c) Boiling Point and Melting Point – Ionic compounds have high boiling point and melting point due to strong electrostatic force of attraction among oppositely charged ions. (d) Conductivity – It depends on ionic mobility. (i) In solid state - No free ions - Bad conductor of electricity. (ii) In fused state or aqueous solution Due to free ions - Good conductor of electricity. Conductivity Order Solid state < fused state < Aqueous solution (e) Solubility – Highly soluble in water (Polar solvents) Ex. NaCl in water (i) The Na+ ions get associates with - vely charged 'O' of water CHEMICAL BONDING (ii) And Cl– ions associates with +vely charged 'H' of water. Cl – (iii) Thus charge on Na+ and Cl– decreases and electrostatic force of attraction also decreases which leads to produce free ion. (iv) The energy released due to interaction between solvent and solute is called solvation energy. If water is used as solvent it is called hydration energy. (v) For an ionic compound to be soluble in water – Hydration energy > Lattice energy Lattice energy  1 Solubility Hydration energy Solubility. Hydration energy (H)  1 1   { r+ & r– are radius of cation and anion}  r r 1 1  is negligible in comparison to r r (vi) Hydration energy mainly depends on the cation radius because the value of (vii) Down the group both the lattice energy & hydration energy decreases, if decrease in lattice energy is greater than hydration energy, solubility increases down the group and vice versa. FACTORAFFECTING SOLUBILITY (a) Dielectric Constant of Solvent The capacity of solvent to neutralise the charge of ionic compounds is called Dielectric constant. It is represented by  (i) Water has maximum dielectric constant (= 80) (CH3OH = 35) , (Acetone = 21) (C2H5OH = 27) , (Ether = 4.1) (Benzene = 2.3) H2O > CH3OH > CH3CH2OH > CH3COCH3 > CH3OCH3 > C6H6 (ii) Ionic compounds are more soluble in the solvents, having high dielectric constant. (iii) H2SO4 and H2O2 have high dielectric constant but these are not a good solvent due to oxidising nature. (b) Size of Ion (i) Keeping size of cation constant, the lattice energy decreases with the increase of anionic radius. Hence order of solubility of LiX in water is LiF < LiCl < LiBr < LiI As solubility  1 lattice energy (ii) In LiI covalent nature is more according to Fajan's rule but HE > LE therefore LiI is more soluble in water. (iii) Keeping size of anion constant, the hydration energy decreases with the increase of cationic radius. Hence order of solubility of MSO4 will be – BeSO4 > MgSO4 > CaSO4 > SrSO4 > BaSO4 ( Exception of Fajan's rule) (iv) If size of cation and anion is very large, solubility decreases from top to bottom. (v) Solubility decreases in a period (as ionic nature decreases and covalent nature increases) NaCl > MgCl2 > AlCl3 TRANSITION FROM IONIC TO COVALENT BOND – FAJANS' RULE (a) Just as a covalent bond may have partial ionic character an ionic bond may also show a certain degree of covalent character. When two oppositely charged ions approach each other closely, the cation would attract the electrons in the outer shell of the anion and simultaneously repel its nucleus. This produces distortion or polarization of the anion, which is accompanied by some sharing of electrons between the ions, i.e., the bond acquires a certain covalent character. The formation of a covalent bond between two ions may be illustrated with reference to formation of Agl. Ag+ I– Ag+ I– distorted ion separate ions Ag+ ... I– covalent character in ionic bond (b) Factors Influencing Ion – Deformation or Increasing Covalent Character (i) Large Charge on the Ions The greater the charge on the cation, the more strongly will it attract the electrons of the anion. For example, Al3+ can distort Cl– ion more than Na+ ion. So aluminium chloride is a covalent compound whereas NaCl, AlF3, AgF are ionic. (ii) Small Cation and Large Anion For a small cation, the electrostatic force with which its nucleus will attract the anion will be more. Moreover a large anion cannot hold the electrons in its outermost shell, especially when they are attracted by a neighbouring cation. Hence there will be increased covalent charcter with a small cation and a large anion, as in AgI. (iii) Cation with a Pseudo-Inert Gas Type of Electronic Configuration A cation with a 18 electron in outermost shell such as Ag+ ([Kr] 4d10) polarizes anions more strongly than a cation with a 8 electron arrangement as in K+. The 'd' electrons in Ag+ do not screen the nuclear charge as effectively as the 's' and 'p' electron shell in K+. Thus AgI is more covalent than KI, although Ag+ and K+ ions are nearly of the same size. Cuprous and mercurous salts are covalent. The above statements regarding the factors, which influence covalent character, are called Fajans' rules. It can thus be seen easily that there is nothing like a purely ionic compound or a purely covalent compound. Polarisation power of a cation is usually called ionic potential or charge density. Ionic potential (phi) = Charge on cation Size of cation CHEMICAL BONDING Application of Concept of Polarisation (a) To Determine Covalent and Ionic Character of Molecule  Covalent character Ionic character From left (larger size) to right (smaller size) in a period increases so covalent character increases. Na+, Mg++ Al+++ Si++++  - charge increases - size decreases increases - Covalent character increases with particular anion From top to bottom in a group decreases so covalent, character decreases. Li+ Na+ - Size increases (charge is fix) K+ - decreases Rb+ - Hence covalent character decreases with particular anion Cs+ (b) To Determine Nature of Oxide  < 2.2 (Basic oxides)  = 2.2 to 3.2 (Amphoteric oxides) Neutral oxides doesn't react with acid & base eg. H2O, CO etc. Amphoteric oxides (Al2O3 etc.) reacts with acid & base  > 3.2 Ex. (Acidic oxide) Li2O, Na2O, K2O, Rb2O, Cs2O  – – (c)  decreases Basic character increases To Determine Conductivity of Metal Halides (MX) If  < 2.2 MX - ionic nature If  > 2.2 MX - covalent nature (d) Formation of Complex Compounds Smaller the cation, more will be the tendency of forming complex compounds. High value of shows tendency of forming complex compounds. If is low No or less tendency of forming complex compounds. s-block metals (larger size) doesn't have the tendency to form complex compounds. Exceptions - Li, Be, Mg (small size) d-block metals have the tendency to form complex compounds (small in size, high charge). (e) To Determine Thermal Stability of Metal Carbonates : stability  1 (Covalent nature)  More smaller the size of metal cation, its polarisation capacity increases - strength of M—O bond increases and C—O bond decreases. So thermal stability of carbonates decreases.  CO3–2  O–2 + CO2 From top to bottom thermal stability of carbonates increases (as size of cation increases) (Ionic character increases or covalent character decreases) (f) To Explain Colour of Compounds More the covalent character, more will be the colour intensity. Colour density (Covalent character) Ex. AgCl (White) (g) Ex. Sol. AgBr (Light yellow SnO2 SnS2 (White) (Yellow) AgI (Dark yellow) To Explain Diagonal Relationship Since the value of for Be2+ is almost of the same order as that of diagonally situated Al3+. Hence have many similar properties. Similarly value of for Li+ is equal to Mg+2 , so have diagonal relationship. AgCl is colourless whereas AgI is yellow, because of : (A) Ag+ have 18 electron shell to screen the nuclear charge. (B) Ag+ shows pseudo inert gas configuration. (C) distortion of I– is more pronounced than Cl– ion. (D) existence of d – d transition. (C), the bigger anions are more polarised and hence their electrons get excited by partial absorption of visible light. s 258 CHEMICAL BONDING MOLECULAR ORBITAL THEORY (MOT) Given by hund & Mulican (a) Two atomic orbital come nearer & then overlap each other to form two molecular orbitals (MO) (b) Combination of two atomic orbital (AO) forms two molecular, orbital (MO): ABMO (antibonding molecular orbital) AO + AO BMO (bonding molecular orbital) (c) Both orbitals can be filled by electrons according to Auffbau principle. (d) Energy of BMO < Energy of ABMO. (e) Order of energy in molecular orbitals of di-atomic molecules. (i) From H2 to N2: 1s < *1s < 2s < *2s < 2pz = 2py < 2px <  *2pz =  *2py <  *2px For N2 Molecule ^ pz       Increasing energy in N2 molecule 2p 2p  pz     py  px    2s   2s 2s  2s    1s  1s 1s  1s   (ii) For O2 & F2: 1s < *1s ; < 2s < *2s < 2px < 2pz = 2py <  *2pz =  *2py <  *2px For O2 Molecule pz ^   2p  * Having two unpaired electrons so paramagnetic   p y   p x Bond order = ½ (8–4) = 2    px    2p py pz Increasing energy  2s   2s  2s 2s  1s  1s  1s  1s = antibonding molecular orbital = bonding molecular orbital Bond order = (g) (h) (i) (j) Ex. Nb  Na 2 Nb = No. of electron in bonding MO's Na = No. of electron in antibonding MO's If bond order = 0, it means species does not exist. Bond order of 1, 2 & 3 corresponds to a single bond, double & triple bond respectively. Bond order stability of molecule bond length  If the molecule has one or more unpaired electron, it will be paramagnetic, while if all the electrons are paired it will be diamagnetic. H2 = Configuration : (1s)2  * (1s)0 Bond order = Nb  Na 2 0 = = 1, 2 2 Hence H – H (diamagnetic) CHEMICAL BONDING MO Electronic Configuration of Some Molecules Molecule or Ion Total No. MO Configuration Bond Order of Electrons Magnetic Behaviour H2 2 (  s)2 1 Diamagnetic H2+ 1 ( 1s)1 0.5 Paramagnetic H2 3 ( 1s)2, ( * 1s)1 0.5 Paramagnetic He2 4 ( 1s)2, ( * 1s)2 0 Diamagnetic N2 14 3 Diamagnetic 2 Diamagnetic 2.5 Paramagnetic KK ( 2s)2, ( * 2s)2 , ( 2py)2=( 2pz)2, ( 2px)2 O2 KK ( 2s)2, ( * 2s)2 ( 2px)2, 16 ( 2py)2=( 2pz)2 ( * 2py)1 ( * 2pz)1 O2+ 15 Remove one electron from  * 2pz from O2 O22+ 14 Same as that of N2 3 Diamagnetic O2 17 KK ( 2s)2, ( * 2s)2 ( 2px)2, 1.5 Paramagnetic 1 Diamagnetic 1 Diamagnetic 0 Diamagnetic ( 2py)2,( 2pz)2 ( *2py)2,( *2pz)1 O22– KK ( 2s)2, ( * 2s)2 ( 2px)2 18 ( 2py)2,( 2pz)2  ( *2py)2,( *2pz)2 F2 18 Same as above Ne2 20 CO 14 Same as in N2 3 Diamagnetic NO 15 Same as in O2+ 2.5 Paramagnetic NO+ 14 Same as in N2 3 Diamagnetic NO2+ 13 2.5 Paramagnetic 18 as above and ( * 2px)2 KK( 2s)2 ( * 2s)2 ( 2px)2 ( 2py)1,( 2pz)1 NO– 16 Same as in O2 2 Paramagnetic CN 13 Same as in NO2+ 2.5 Paramagnetic 14 Same as in N2 3 Diamagnetic – CN Ex. Though O2 molecule is paramagnetic yet it is a colourless gas. Why ? Sol. It is because the energy gap between HOMO and LUMO levels in O 2 molecule is so large that radiations of visible light cannot excite a e– from HOMO to LUMO. In fact O2 gas shows absorption in UV zone. So it is colourless. Ex. Correct order of bond energy is: (A) N2 > N2+ >N2– >N22– Sol. (B) N2+ >N2– >N22– >N2 (C) N2 >N2¯ = N2+ >N22– (D) N2– >N2  N2+ >N22– (A) Bond order is directly proportional to the bond energy. Bond order of N2 = 3 , N2+ , N2– = 2.5 N22– = 2 But N2– has more electrons in antibonding MO’s and thus N2+ is more stable than N2–. So correct order of bond energy will be N2 > N2+ >N2– >N22– Ex. Which of the following species have a bond order of 3 ? (A) CO Sol. (D) O2+ 10 - 4 = 3), so their bond order will be equal to three. 3 Which of the following are diamagnetic ? (A) C2 Sol. (C) NO+ (A,B,C) Species CO, CN –, NO + are isoelectronic with 14 electrons to N 2 which has bond order of 3 (i.e. Ex. (B) CN– (B) O22– (C) Li2 (D) N2+ (A,B,C) Species C2, O22–, Li2 have all the electrons paired but N2+ has one unpaired electron in bonding molecular orbital so it is paramagnetic. RESONANCE It is often observed that a single Lewis structure is inadequate for the representation of a molecule in conformity with its experimentally determined parameters. For example, the ozone, O3 molecule can be equally represented by the structures I and II shown below : pm 12 8 m 14 8p m 12 1p II m 8p 12 :O : : I O : m 8p 14 O : : pm 1 12 :O: : :O: O : : O O O III Resonance in The O3 Molecule (structures I and II represent the two canonical forms while the structure III is the resonance hybrid) In both structures we have a O – O single bond and a O = O double bond. The normal O – O and O = O bond lengths are 148 pm and 121 pm respectively. Experimentally determined oxygen-oxygen bond lengths in the O3 molecule are same (128 pm). Thus the oxygen-oxygen bonds in the O3 molecule are intermediate between a double and a single bond. Obviously, this cannot be represented by either of the two Lewis structures shown above. The concept of resonance was introduced to deal with the type of difficulty experienced in the depiction of accurate structures of molecules like O3 . According to the concept of resonance, whenever a single Lewis structure cannot describe a molecule accurately, a number of structures with similar energy, positions of nuclei, bonding and nonbonding pairs of electrons are taken as the canonical structures of the hybrid which describes the molecule accurately. Thus for O3 the two structures shown above constitute the canonical structures or resonance structures and their hybrid i.e., the III structure represents the structure of O3, more accurately. This is also called resonance hybrid. Resonance is represented by a double headed arrow. Definition : Resonance may be defined as the phenomenon in which two or more structures involving in identical position of atom, can be written for a particular compound CHEMICAL BONDING Resonance Hybrid : It is the actual structure of all different possible structures that can be written for the molecule without violating the rules of covalence maxima for the atoms.  Resonance hybrid Ex. (i) (ii)  (iii)  (iv) •  Bond order = Total No. of bonds formed between two atoms in all structures Total No. of resonating structures Ex. • • • • Bond order = Resonance energy = Actual bond energy – Energy of most stable resonating structure. Stability of molecule  resonance energy. More is the number of covalent bonds in molecule more will be its resonance energy. Resonance energy  number of resonating structures. HYDROGEN BOND (a) (b) 2 +1+1 = 1.33 3 An atom of hydrogen linked covalently to a strongly electronegative atom can establish an extra weak attachment to another electronegative atom in the same or different molecules. This attachment is called a hydrogen bond. To distinguish from a normal covalent bond, a hydrogen bond is represented by a broken line, Ex. X – H ... Y where X and Y are two electronegative atoms. The strength of hydrogen bond is quite low about 2-10 kcalmol–1 or 8.4-42 kJmol–1. (c) Conditions of hydrogen bonding: (i) The molecule must contain a highly electronegative atom linked to H-atom. (If E.N.  polarity of bond ) (ii) The size of the electronegative atom should be small.(size  electrostatic attraction ) Ex. H H H H H — N ····· H — N ····· H — N ····· H — N H H H O (d) H O Strength of H-bond : H .............. F bond dissociation energy = 41.8 kJ mol–1 H .............. O bond dissociation energy = 29.3 kJ mol–1 H .............. N bond dissociation energy = 12.6 kJ mol–1 (e) Ex. Effect of H-bond (i) It causes the association of many molecules. (ii) Due to hydrogen bond molecules are associated and show high molecular weight. (iii) M.P. & B.P. of the molecules increases (iv) Viscosity & surface tension of the molecules increases. (v) The compounds which can form H-bond with the covalent molecules are soluble in such solvents. : Alcohol & Ammonia are water soluble. TYPE OF H-BONDING (a) Intermolecular (a) Intermolecular H-bond (i) This type of H-bonding takes place between two molecules. Ex. ROH, H2O, R - OH & H2O R R | | O – H ... O – H, (b) Intramolecular R H H R H | | | | | O – H ... O – H, O – H ... O – H ... O – H (ii) In such compounds molecular wt., M.P, & B.P. are high. (iii) Extent of H-bonding  viscosity & density . (b) Intramolecular Bond (i) It is the H-bonding in the same molecule of a compound. The bonding also known as chelation. (ii) Solubility in water, M.P. & B.P. of these compounds decreases. (iii) The value of acid strength of acid depends on the relative stability of the acid and its conjugated base if the intramolecular H-bonding stablises the conjugate base then, the acid strength increase and if the conjugate acid is stabilised in this way then the acid strength decreased. 264 CHEMICAL BONDING H-bond has serious consequences on the physical properties. These are – (i) H2O is liquid at room temperature whereas H2S is gas at room temperature although H2S has greater molecular weight. (ii) Ice is lighter than water, although it solid because in ice H2O molecules are extending their H-bonds to full length and six water molecules produce a cage like structure which is porous in nature leading to smaller mass and larger volume, thus lowering the density. (iii) Alcohols have higher boiling points than corresponding alkanes and there of the same molecular mass. This can be explained by the intermolecular H-bonds existing among the R-OH molecules whereas ethers and hydrocarbon are not capable to have such strong intermolecular forces. thus they have lower boling points. H2O > R-OH > R-OH Exceptional H2S < R-SH < R-S-R Normal H-bond increases H2O > R-OH > R-O-R B.P. increases R-O-R  no H-bond H2O  H-bonds R-OH  H-bond. (iv) Alcohol and water are miscible in any proportion due to formation of H-bonds. (v) Ammonia is excessively soluble in water whereas other gases are partially soluble. This is due to the tremendous capacity of NH3 molecule to generate 4-H-bonds. NH3 > RNH2 > R2NH (vi) Solubility order of different amines and ammonia in water follows the order NH3 > RNH2 > R2NH. This can be explained by the capacity of these elements to form H-bonds. (vii) KHF2 exists whereas KHCl2, KHBr2, KHI2 do not because KHF2 is constituted by 2 ions i.e. – K+ & HF2 [ ] exist – [Cl ... H – Cl] does not exist KHF2 is a red orange coloured solid. (viii) o-nitro phenol is steam volatile and less H2O soluble than its coresponding para isomer because in o-nitro phenol, intra molecular H-bond exists which reduces the capacity of the molecule to produce intermolecular H-bonds with other molecules like water. This brings interamolecular forces among the onitrophenol molecules resulting into high volatility. (ix) Acetic acid has a molecular weight of 60 in benzene and it shows a very high boiling points. This is due to dimerization of molecule. O – H ... O C CH3 – C O ... H O CH3 (x) Salicylic acid has very high acidity due to chelation of salicylate ion through the H-bond – O ··· H C O (xi) Chelation means to grab atoms in vicinity as much as possible. (xii) Maleic acid has greater acidity than furmaric acid. This can also be explained by chelation of monomaleate anion which has a H-bond between carboxylate anion adn the unionized carboxylic acid. O C H—C O– H—C OH C O (xiii) Normally when 2 hydroxyl groups are present on the same carbon atom i.e. gem diols are unstable, but "chloralhydrate" is a stable molecule due to formation of H-bond. Cl ..... H — O Cl C—C—H Cl ..... H — O (xiv) O O CH 3 C CH2 C CH 3 In the above compound, (acetyl acetone) enol form is stable because of the intramolecular H-bond. O H C CH3 Ex. O C CH CH3 C2H2 is not soluble in H2O but it is highly soluble in acetone. Sol. In hybridisation as %S character increase electronegativity increase hence C2H2 forms H–bonds with O–atom of acetone and get dissolved. But H2O molecules are so much associated that it is not possible for C2H2 molecules to break that association, hence C2 H2 is not soluble in H2O. CHEMICAL BONDING Ex. Sol. Why SnCl2.2H2O readily loses one molecule of water at 80ºC ? One water molecule is coordinated to lone pair of electrons on SnCl2 and the other is hydrogen bonded to coordinated water molecules . Ex. Sol. Why crystalline sodium peroxide is highly hygroscopic in nature. Na2O2 forms stable hydrates on account of H-bonding. - - -O 22 - - - - (H 2 O ) 8 - - - O 22 - - - - (H 2 O ) 8 - - - Sol. Explain that tetramethyl ammonium hydroxide is a stronger base than that of trimethyl ammonium hydroxide. CH3 | CH3  N  H    O  H | CH3  CH3     |   – C H 3  N  C H 3  O H   |     CH 3   In the trimethyl compound the O–H group is hydrogen bonded to Me3NH group and this makes it more difficult for the OH group to ionize and hence it is a weak base. In the tetramethyl compound, hydrogen bonding can not occur, so the OH– group ionizes easily and thus it is a much stronger base. VANDERWAAL'S FORCES (a) (b) (c) (d) These are the weakest type of inter molecular forces that exist among the molecules which being significant change in physical properties. These are non-directional, non-valence cohesive forces. These attractive forces being played between the two molecules are independent of the presence of other molecules. Solid, liquid or gaseous states of many molecules are explained on the basis of inter molecular forces other than covalent, ionic or metallic bonds. Although inert gases do not form any type of bond but may exist in liquid and solid states. This shows that the atoms of inert gases are attracted by each other through some type of inter molecular forces. These intermolecular forces are called Vander Walls forces and may be of the following types: Ion-Dipole Attraction : Polar molecules are attracted by ions. The negative pole is attracted by cation and positive pole attracted by the anion. This type of attraction is called ion dipole attraction, ion-dipole attraction is observed generally in the process of solvation when sodium chloride (Na+ Cl–) is dissolved in water because negative poles of water aggregate around Na+ ions and positive poles around Cl– ions. H Na+ ······ O H (e) Dipole-Dipole Attraction : The force of attraction between the oppositely charged poles of two polar molecules (for example : H2O, H–F, NH3 etc.) is called dipole-dipole attraction. This type of attraction is weaker than the ion-dipole attraction. O O H H–Cl ·· · · ·· H ··· ··· Ex. O H H H H (f) Ion-Induced Dipole Attraction : When non polar molecules come in contact with ions, its electron cloud gets polarised and the oppositely charged end of it is attracted by the ion. For example attraction between Na+ and Cl2 molecule. Na+ + Cl – Cl  Na+ ........ (g) Dipole-Induced Dipole Attraction : This type of cohesive forces occurs in a mixture of polar and non polar molecules. The former induce polarity in non polar molecules by disturbing their electron system. for example force of attraction between Cl2 and H2O. O H (h) Ex. H H + Cl – Cl  H O ........ Induced-Induced Dipole : The weak intermolecular forces operating in similar non polar gaseous molecules are called London forces. These forces are very weak in nature and exists only at low temperature. For example weak intermolecular forces in F2, Cl2, N2, molecules and in noble gasses. Sol. Give the order of boiling point of following Cl2 , HCl Cl2 – Cl2 < HCl – HCl (boiling point) dispersion force dipole-dipole attraction As dipole-dipole attraction is stronger than dispersion force. Ex. Arrange the inert gases, according to their increasing order of boiling points Sol. He < Ne < Ar < Kr < Xe (boiling point) Because strength of van der Waal’s force increases down the group with increase in molecular mass. METALLIC BOND Most metals crystallise in close-packed structures. The ability of metals to conduct electricity and heat must result from strong electrons interactions among 8 to 12 nearest neighbours (which is also called coordination number). Bonding in metals is called metallic bonding. It results from the electrical attractions among positively charged metal ions and mobile, delocalised electrons belonging to the crystal as a whole. Two models are considered to explain metallic bonding: (A) Band model (B) Electron-sea model (A) Band Model The interaction of two atomic orbitals, say the 3s-orbitals of two sodium atoms, produces two molecular orbitals, one bonding orbital and one antibonding orbital. If N atomic orbitals interact, N molecular orbitals are formed. Atoms interact more strongly with nearby atoms than with those farther away . The energy that separates bonding and antibonding molecular orbitals decreases as the interaction (overlap) between the atomic orbitals decreases. When we consider all the possible interactions among one mole of Na atoms, there is formation of series of very closely spaced molecular orbitals (3s and 3*s). This consists of a nearly continuous band of orbitals belonging to the crystal as a whole. One mole of Na atoms contributes one mole (6.02 × 1023) of valence electrons thus, 6.02 × 1023 orbitals in the band are half-filled. CHEMICAL BONDING Energy Half-filled band of N molecular orbitals Na2 Na Na3 Na8 NaN Figure. The band of orbitals resulting from interaction of the 3s - orbitals in a crystal of sodium The empty 3 p atomic orbitals of Na atoms also interact to form a wide band of 3 × 6.07 × 10 23 orbitals. The 3s and 3p atomic orbitals are quite close in energy , so that these bands of molecular orbitals overlap. The two overlapping bands contain 4 × 6.02 ×1023 orbitals. Because each orbital can hold two electrons, the resulting combination of bands is only one-eighth full. Energy band of 3N molecular orbitals from 3p orbitals 3p Energy Bands overlap 3s Half-filled band of N molecular orbitals from 3s orbitals Figure. Overlapping of a half–filled “3s” band with an empty “3p” band of NaN crystal According to band theory, the highest-energy electrons of metallic crystals occupy either a partially filled band or a filled band that overlaps an empty band. A band within which (or into which ) electrons must move to allow electrical conduction is called a conduction band. The electrical conductivity of a metal decreases as temperature increases. The increase in temperature causes thermal agitation of the metal ions. This impedes the flow of electrons when an electric field is applied. Crystalline non-metals, such as diamond and phosphorus, are insulators, they do not conduct electricity. It is due to the fact that their highest-energy electrons occupy filled bands of molecular orbitals that are separated from the lowest empty bond (conduction band) by an energy difference called the band gap. In an insulator, this band gap is an energy difference that is too large for electrons to jump to get to the conduction band. Insulators Metals Semiconductors Empty band Energy Forbidden zone (large energy gap) Partially filled band or Filled band Overlapping band Figure. Distinction among metals, insulators and semiconductors. In each case an unshaded area represents a conduction band. Elements that are semiconductors have filled bands that are only slightly below, but do not overlap with empty bands. They do not conduct electricity at low temperatures, but a small increase in temperature is sufficient to excite some of the highest-ene rgy electrons into the empty conduction band. (B) Electron-Sea Model Metals have ability to conduct electricity, ability to conduct heat, ease of deformation [that is, the ability to be flattened into sheets (malleability) and to be drawn into wires (ductility)] and lustrous appearance. One over simplified model that can account for some of these properties is the electron-sea model. The metal is pictured as a network of positive ions immersed in a “sea of electrons” . In lithium the ions would be Li + and one electron per atom would be contributed to the sea. These free electrons account for the characteristic metallic properties. If the ends of a bar of metal are connected to a source of electric current, electrons from the external source enter the bar at one end. Free electrons pass through the metal and leave the other end at the same rate. In thermal conductivity no electrons leave or enter the metal but those in the region being heated gain kinetic energy and transfer this to other electrons. According to the electron-sea model, the case of deformation of metals can be thought of in this way : If one layer of metal ions is forced across another, perhaps by hammering, the internal structure remains unchanged as the sea of electrons rapidly adjusts to the new situation. CHEMICAL BONDING Figure. Effect of Distortion (by hammering) on Metal Sheet (assuming Electron Sea Model) Ex. Sol. Why transition element have high heat of atomization. Transition metals may use inner -d-electrons along with the outer s-electrons for bonding as (n–1) d and ns have nearly same energy. So in them number of metallic bonds per atoms is quite large (more than two always). Hence element have high heat of atomization. EDUBULL KEY POINTS Some Special Bonding Situations (a) Electron Deficient Bonding There are many compounds in which some electron deficient bonds are present apart from normal covalent bonds or coordinate bonds which are 2c-2e bonds( two centre two electron bonds). These electron deficient bonds have less number of electrons than the expected such as three centre-two electron bonds (3c-2e) present in diborane B2H6, Al2(CH3)6, BeH2(s) and bridging metal carbonyls. H H Be Be Be H BeH2(s) H H H H H3C CH3 C Al Al H3C H H Al2(CH3)6 CH3 C H But Al2Cl6 have covalent bond only and there is no electron deficient bonding as depicted in the given structure. Cl Cl Al Cl Cl Al Cl Cl (b) Back Bonding Back bonding generally takes place when out of two bonded atoms one of the atom has vacant orbitals (generally this atom is from second or third period) and the other bonded atom is having some non-bonded electron pair(generally this atom is from the second period). Back bonding increases the bond strength and decreases the bond length. For example, in BF3 the boron atom completes its octet by accepting two 2p-electrons of fluorine into 2p empty orbital. F F B Vacant 2p-orbital (i) F Filled 2p-orbital Decrease in B–F bond length is due to delocalised p–p bonding between filled p-orbital of F atom and vacant p-orbital of B atom. The extent of back bonding is much larger if the orbitals involved in the back bonding are of same size, for example the extent of back bonding in boron trihalides is as follows : BF3 > BCl3 > BBr3 There is p-p back bonding in boron trihalide. The extent of back bonding decreases from BF3 to BI3 because of increasing size of p-orbitals participating in back bonding that is from 2p(in F) to 4p(in Br). (ii) The extent of back bonding decreases if the atom having vacant orbitals is also having some non-bonded electron pairs on it. So among the atoms of third period the extent of back bonding follows the order Si > P > S > Cl (iii) The extent of p-p overlapping  1 Lewis acid character (c) BOND LENGTHS AND p – d BONDING The bonds between S and O, Se and O, are much shorter than might be expected for a single bond. In some cases, they may be formulated as localized double bonds. A  bond is formed in the usual way, In addition a  bond is formed by the sideways overlap of a p orbital on the oxygen with a d orbital on the sulphur giving a p– d interaction. This p – d bonding is similar to that found in the oxides and oxo-acids of phosphorus, and is in contrast to the more common p – p type of double bond found in ethene. To obtain effective p – d overlap the size of the d orbital must be similar to size of the p orbital. Thus sulphur forms stronger  bonds than the larger elements in the group. On crossing a period in the periodic table, the nuclear charge is increased and more s and p electrons are added. Since these s and p electrons shield the nuclear charge incompletely, the size of the atom and the size of the 3d orbitals in this series of elements leads to progressively stronger p – d bonds. Thus in the silicates there is hardly any p–d bonding. Thus SiO44– units polymerize into an enormous variety of structures linked by Si—O—Si  bonds. In the phosphates,  bonding is stronger, but a large number of polymeric phosphates exist. In the oxo-acids of sulphur,  bonding is even stronger and has become a dominant factor. Thus only a small amount of polymerization occurs, and only a few polymeric compounds are known with S—O—S linkages. For chlorine, p – d bonding is so strong that no polymerization of oxo-anions occurs.
