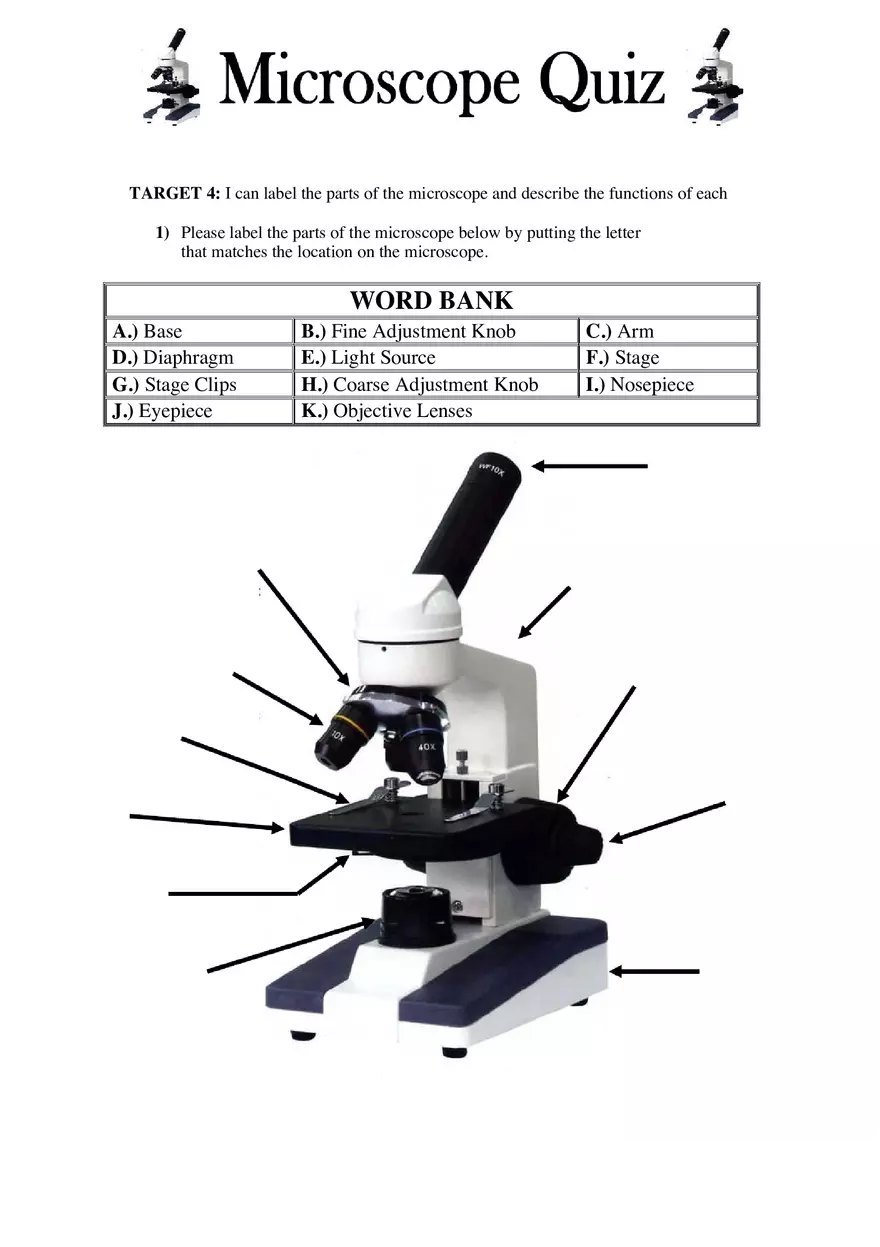

TARGET 4: I can label the parts of the microscope and describe the functions of each 1) Please label the parts of the microscope below by putting the letter that matches the location on the microscope. WORD BANK A.) Base D.) Diaphragm G.) Stage Clips J.) Eyepiece B.) Fine Adjustment Knob E.) Light Source H.) Coarse Adjustment Knob K.) Objective Lenses C.) Arm F.) Stage I.) Nosepiece 2) Please match the parts of the microscope with their function. Put the letter next to the part of the microscope that fits the description. A Ð This part holds the objective lenses and is able to rotate to change magnification. B Ð This part of the microscope adjusts the amount of light that 2. Base: _____ reaches the specimen (1 = least to 5 = most). C Ð This part moves the stage slightly to help you sharpen or ÒfineÓ 3. Nosepiece: _____ tune your view of the specimen. D Ð Where you look into the microscope. This part allows you to 4. Stage: ______ view the image on the stage and contains the ocular lens. E Ð This part is used to support the 5. Coarse Adjustment Knob: _____ microscope when carried. F Ð Part of the microscope that 6. Diaphragm: ______ supports the slide being viewed. G Ð These are used to hold the slide 7. Stage Clips: ______ into place. H Ð The bottom part of the 8. Fine Adjustment Knob: ______ microscope I Ð This part of the microscope is 9. Objective Lenses: ______ found on the nosepiece and range from low to high power. J Ð This part moves the stage up and down to help you get the specimen 10. Arm: _____ into view. K Ð This part of the microscope projects light upwards to allow you 11. Light Source: _____ to see the specimen. 1. Eyepiece: _____
