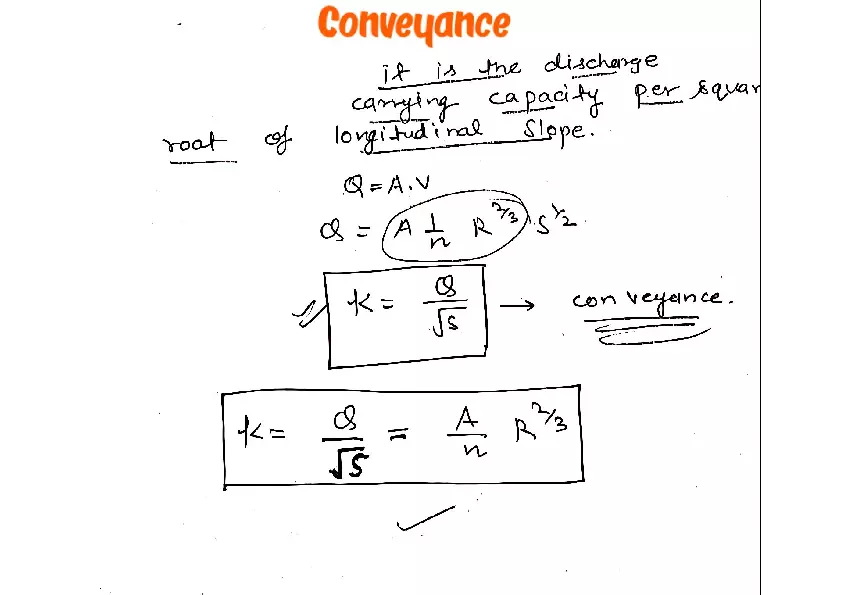

Conveyance It is the discharge carrying capacity per square root of longitudinal slope. Q = A.V Q = A (1/n) R^(2/3) S^(1/2) K = Q / sqrt(S) -> Conveyance. K = Q / sqrt(S) = (A/n) R^(2/3) Conveyance It is the discharge carrying capacity per square root of longitudinal slope. Q = A.V Q = A (1/n) R^(2/3) S^(1/2) K = Q / sqrt(S) -> Conveyance. K = Q / sqrt(S) = (A/n) R^(2/3) e = - gradv Q = A.v Q = B.y.v Q = 2y^2 . (1/n) R^(2/3) S^(1/2) Froude No. -> v/sqrt(gD) = v/sqrt(gy) Q = A V 2 m^3/s = 2y^2 x V V = 1/y^2 fr = 1/(y^2 * sqrt(gy)) = 0.5 calculate sqrt(y) = 0.8357 m Q.3 B, y, n. ] Same 2 x 0.0021 = S' = 2S] S' = 0.0042 T0 = ? T0 = γ R S'
