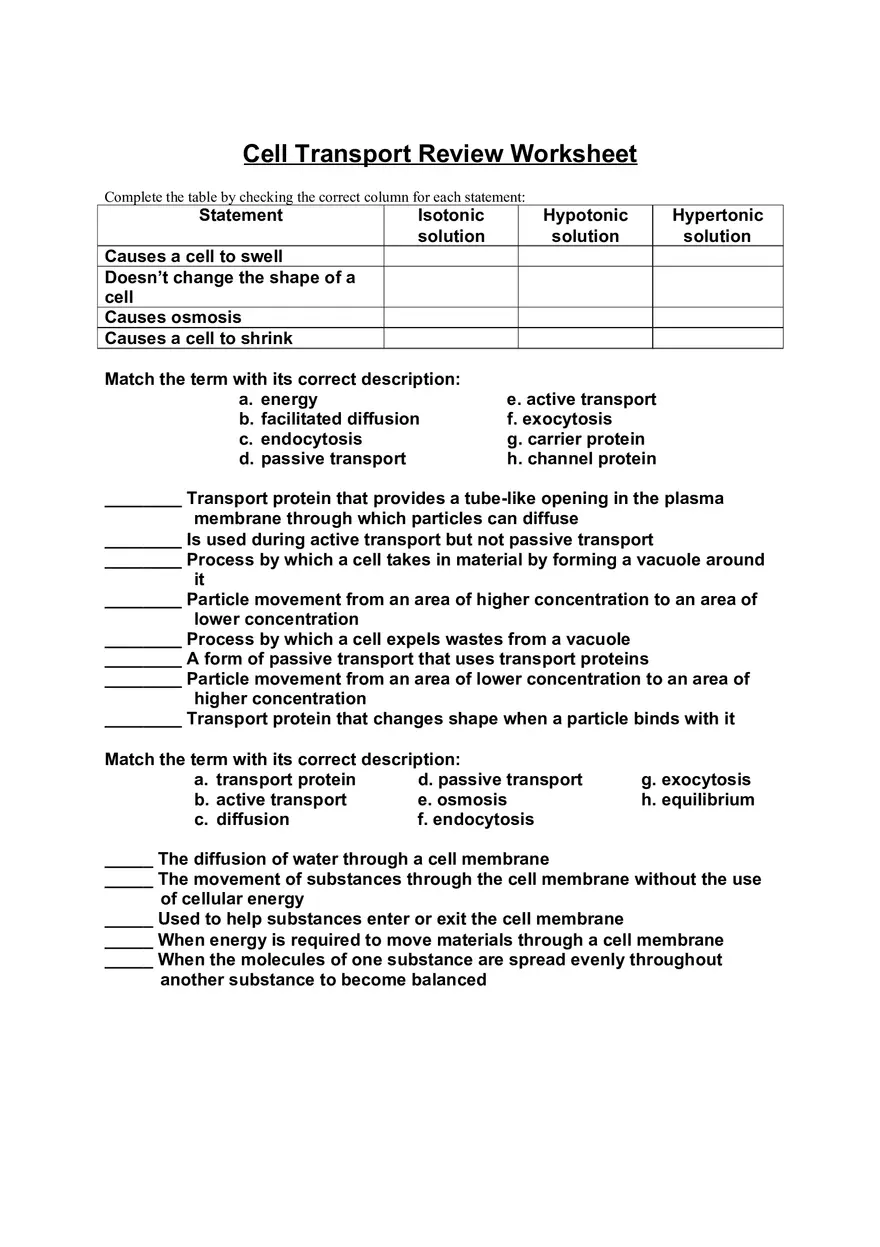

Cell Transport Review Worksheets

Cell Transport Review Worksheet Complete the table by checking the correct column for each statement: Statement Isotonic solution Hypotonic solution Hypertonic solution Causes a cell to swell Doesn’t change the shape of a cell Causes osmosis Causes a cell to shrink Match the term with its correct description: a. energy b. facilitated diffusion c. endocytosis d. passive transport e. active transport f. exocytosis g. carrier protein h. channel protein ________ Transport protein that provides a tube-like opening in the plasma membrane through which particles can diffuse ________ Is used during active transport but not passive transport ________ Process by which a cell takes in material by forming a vacuole around it ________ Particle movement from an area of higher concentration to an area of lower concentration ________ Process by which a cell expels wastes from a vacuole ________ A form of passive transport that uses transport proteins ________ Particle movement from an area of lower concentration to an area of higher concentration ________ Transport protein that changes shape when a particle binds with it Match the term with its correct description: a. transport protein d. passive transport b. active transport e. osmosis c. diffusion f. endocytosis g. exocytosis h. equilibrium _____ The diffusion of water through a cell membrane _____ The movement of substances through the cell membrane without the use of cellular energy _____ Used to help substances enter or exit the cell membrane _____ When energy is required to move materials through a cell membrane _____ When the molecules of one substance are spread evenly throughout another substance to become balanced _____ A vacuole membrane fuses (becomes a part of) the cell membrane and the contents are released _____ The cell membrane forms around another substance, for example, how the amoeba gets its food _____ When molecules move from areas of high concentration to areas of low concentration Label the diagrams of cells using the following terms: diffusion, active transport, osmosis, facilitated diffusion, or equilibrium. The arrows show the direction of transport. You may use the terms more than once! High CO2 levels 8 H2 O molecules 25 glucose molecules 2 H2O molecules Low CO2 levels High protein levels 2 H2 O molecules 8 H2O molecules 5 glucose molecules 10 H2O molecules Low protein levels 10 H2O molecules Osmosis Practice Activity Osmosis is the diffusion of water from an area of high concentration to an area of low concentration. Only water moves in osmosis! The diagrams below show the concentration of water and salt inside the cell and the concentration of water and salt surrounding the cell. Complete the sentences below by comparing the concentration of the water inside the cell and the concentration outside the cell. 1. 5% NaCl 95% H2O 95% NaCl 5% H2O a. Water will flow _____________________ (into the cell, out of the cell, in both directions). b. The cell will ______________________ (shrink, burst, stay the same). 2. 5% NaCl 95% H2O 5% NaCl 95% H2O a. Water will flow _____________________ (into the cell, out of the cell, in both directions). b. The cell will ______________________ (shrink, burst, stay the same). a. Water will flow _____________________ (into the cell, out of the cell, in both directions). 3. 95% NaCl 5% H2O 5% NaCl 95% H2O b. The cell will ______________________ (shrink, burst, stay the same). 4. At which solution of concentration gradient is each cell diagram? (Hypotonic, Hypertonic, Isotonic) a. _____________ b. ________________ c. ____________ 5. This diagram is moving from a high to a low concentration: ___________________ 6. Using a transport protein to move particles across the membrane: ___________________ 7. Describe the processes occurring in the following pictures: 8. Define homeostasis. 9. What role does the cell membrane play in maintaining homeostasis? 10. How is facilitated diffusion different from diffusion? How are they similar? 11. List two ways that active transport is different than passive transport. 1) _________________________ 2) _________________________ 12. Why is the sodium-potassium pump considered an active transport? Which direction are the sodium and potassium bing pumped? How many sodiums are being pumped? How many potassiums are being pumped? 13. 14. What are the 5 functions of the cell membrane? 1) 2) 3) 4) 5) 15. Label the Phospholipid. Include the terms: Phosphate Head, Fatty Acid Tail, Hydrophilic, Hydrophobic 16. On the front of this page, define the words in each box in your own words. Then, on the back, draw a picture of each using 4 colors. Active Transport Semi Permeable Cell Membrane Diffusion Cyclosis Osmosis Endocytosis Exocytosis Facilitated Diffusion Homeostasis Draw a picture of each of these vocabulary terms using at least 4 colors. Active Transport Semi Permeable Cell Membrane Diffusion Cyclosis Osmosis Endocytosis Exocytosis Facilitated Diffusion Homeostasis
