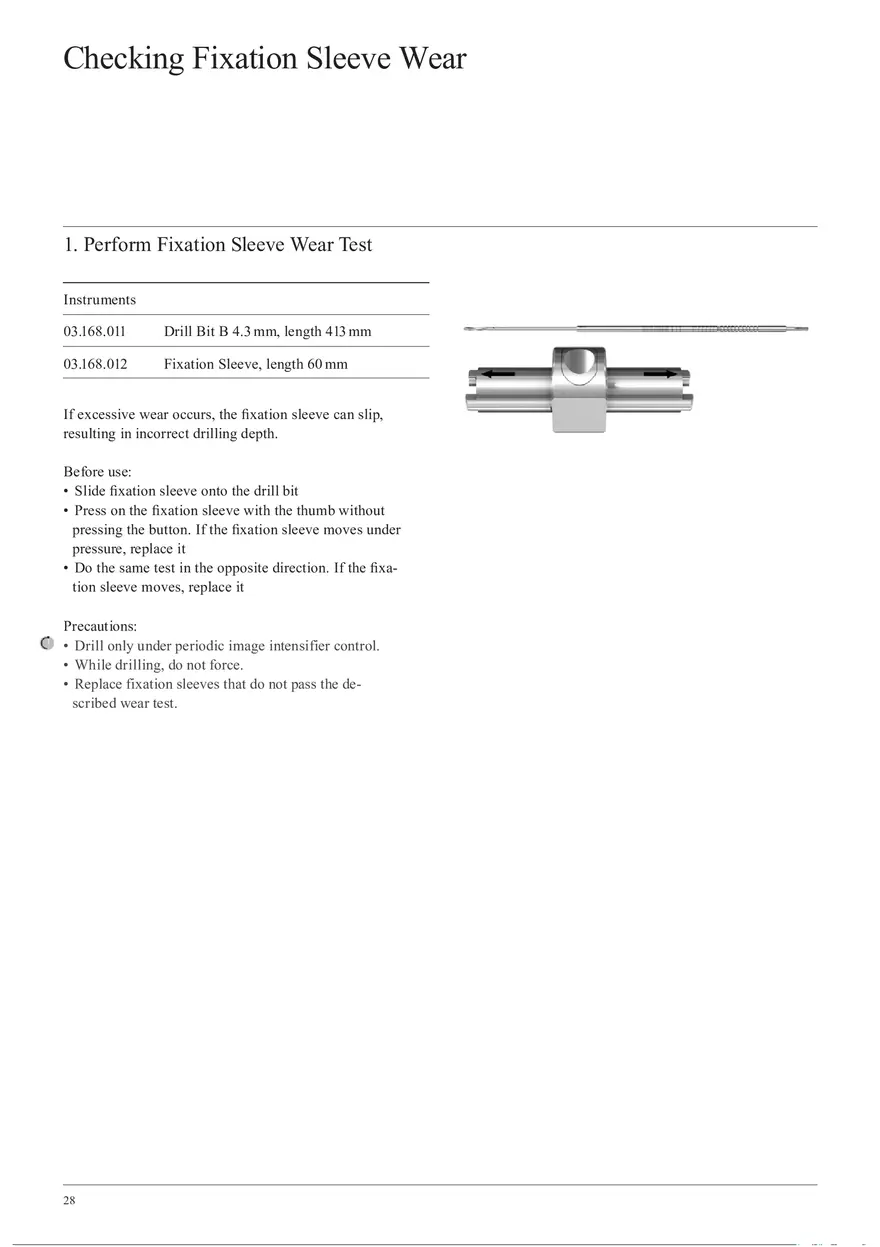

Checking Fixation Sleeve Wear 1. Perform Fixation Sleeve Wear Test Instruments 03.168.011 Drill Bit B 4.3 mm, length 413 mm 03.168.012 Fixation Sleeve, length 60 mm If excessive wear occurs, the ﬁxation sleeve can slip, resulting in incorrect drilling depth. Before use: • Slide ﬁxation sleeve onto the drill bit • Press on the ﬁxation sleeve with the thumb without pressing the button. If the ﬁxation sleeve moves under pressure, replace it • Do the same test in the opposite direction. If the ﬁxation sleeve moves, replace it Precautions: • Drill only under periodic image intensifier control. • While drilling, do not force. • Replace fixation sleeves that do not pass the described wear test. 28
