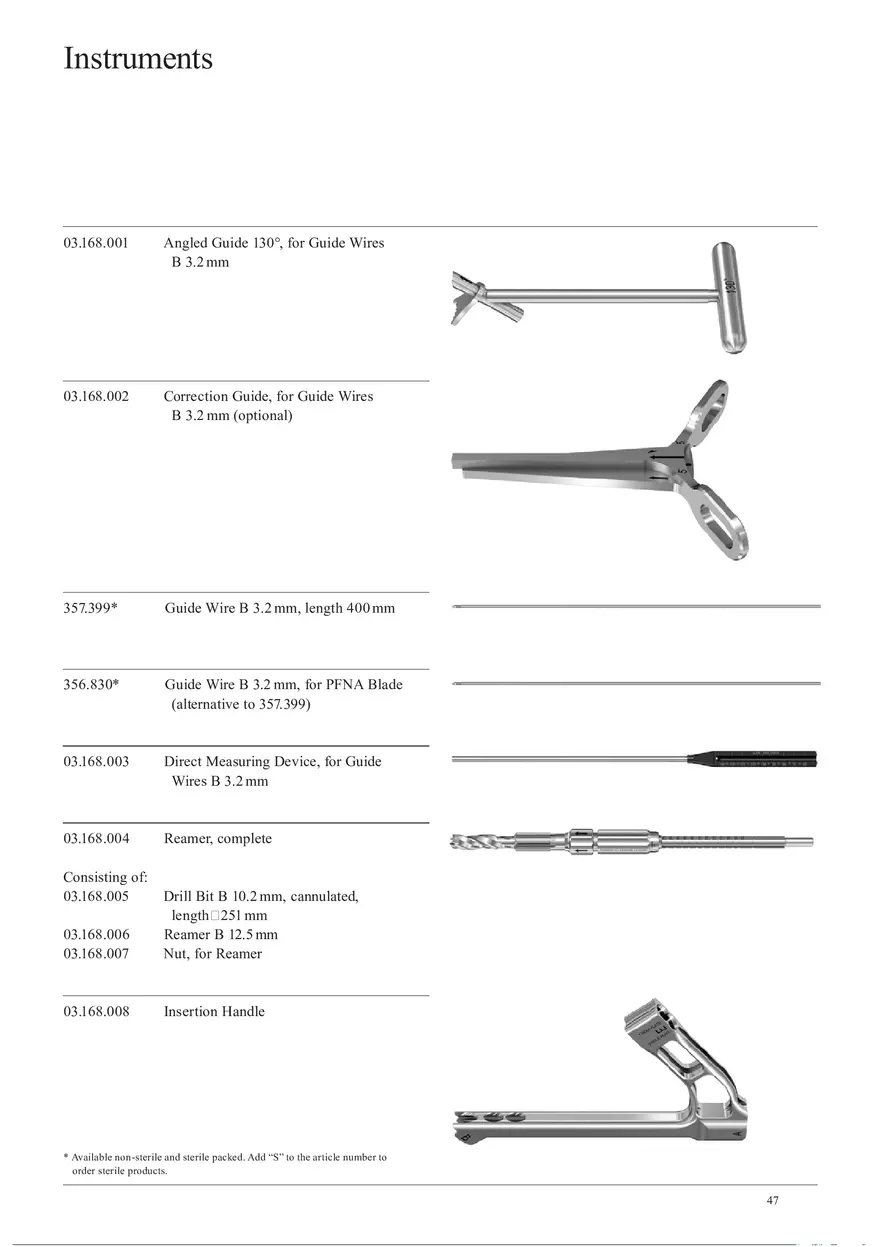

Instruments 03.168.001 Angled Guide 130°, for Guide Wires B 3.2 mm 03.168.002 Correction Guide, for Guide Wires B 3.2 mm (optional) 357.399* Guide Wire B 3.2 mm, length 400 mm 356.830* Guide Wire B 3.2 mm, for PFNA Blade (alternative to 357.399) 03.168.003 Direct Measuring Device, for Guide Wires B 3.2 mm 03.168.004 Reamer, complete Consisting of: 03.168.005 03.168.006 03.168.007 Drill Bit B 10.2 mm, cannulated, length 251 mm Reamer B 12.5 mm Nut, for Reamer 03.168.008 Insertion Handle * Available non-sterile and sterile packed. Add “S” to the article number to order sterile products. 47 Instruments 03.168.009 Insert, for Insertion Handle 03.168.010 Multifunction Rod for Insertion Instruments 03.168.011 Drill Bit B 4.3 mm, length 413 mm 03.168.012 Fixation Sleeve, length 60 mm 03.168.013 Protection Sleeve, for Insertion Instruments 03.168.014 Screwdriver Shaft Stardrive, T25, length 241 mm 03.168.015 Cylinder, for Insertion Instruments 03.168.016 Screwdriver Shaft hexagonal, 3.5 mm, length 241 mm (alternative to 03.168.014 for Locking Screw insertion) 03.168.017 Depth Gauge, measuring range up to 100 mm (optional) 48 03.140.027 Handle, large, cannulated, with Quick Coupling, Hex 12 mm 511.774 Torque Limiter, 4 Nm, for AO/ASIF Quick Coupling for Reamers 03.010.516 Handle, large, with Quick Coupling 49
