Femoral Neck Checking Implants

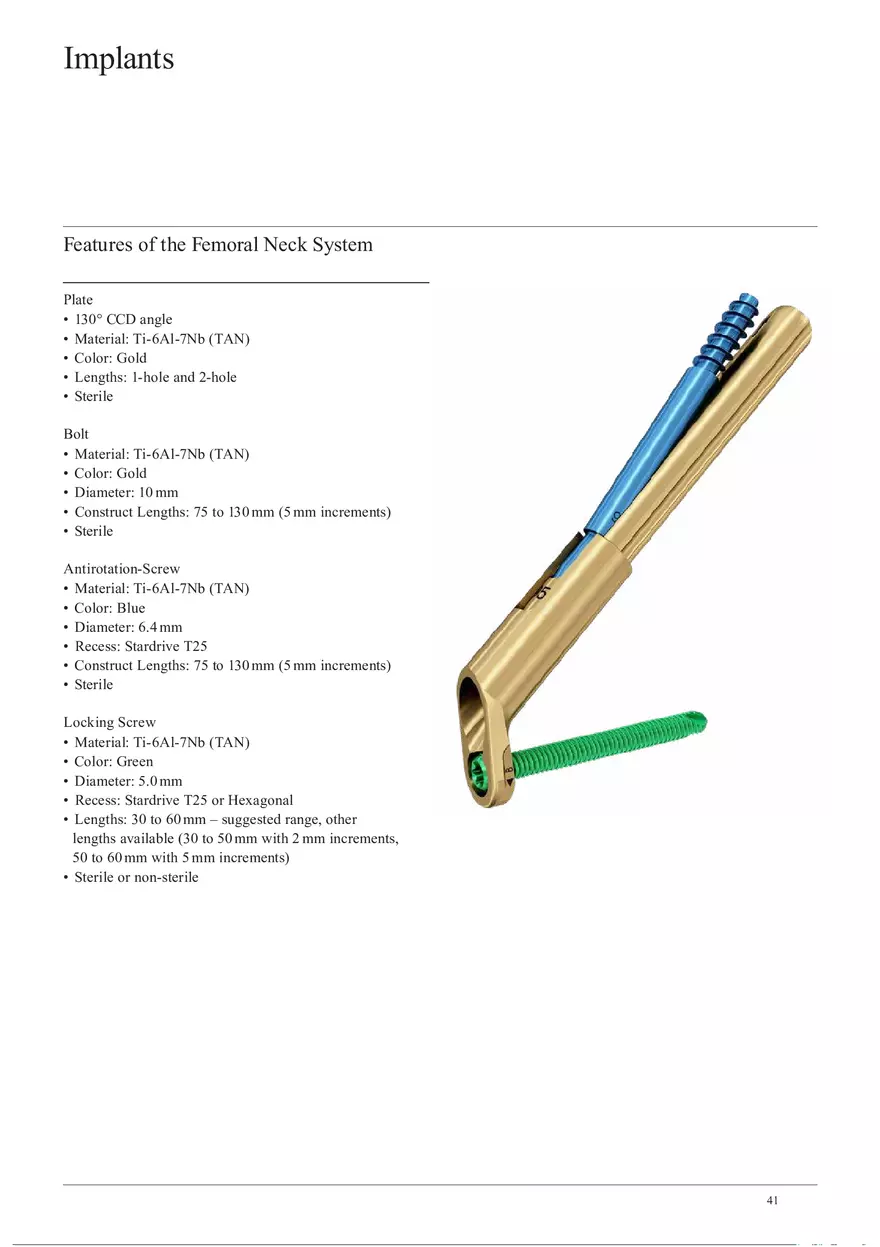

Implants Features of the Femoral Neck System Plate • 130° CCD angle • Material: Ti-6Al-7Nb (TAN) • Color: Gold • Lengths: 1-hole and 2-hole • Sterile Bolt • Material: Ti-6Al-7Nb (TAN) • Color: Gold • Diameter: 10 mm • Construct Lengths: 75 to 130 mm (5 mm increments) • Sterile Antirotation-Screw • Material: Ti-6Al-7Nb (TAN) • Color: Blue • Diameter: 6.4 mm • Recess: Stardrive T25 • Construct Lengths: 75 to 130 mm (5 mm increments) • Sterile Locking Screw • Material: Ti-6Al-7Nb (TAN) • Color: Green • Diameter: 5.0 mm • Recess: Stardrive T25 or Hexagonal • Lengths: 30 to 60 mm – suggested range, other lengths available (30 to 50 mm with 2 mm increments, 50 to 60 mm with 5 mm increments) • Sterile or non-sterile 41 Implants in Kit Packaging Implant Kit 04.168.075S Implant Kit, for Femoral Neck System, Construct Length 75 mm, Titanium Alloy (TAN), sterile 04.168.080S Implant Kit, for Femoral Neck System, Construct Length 80 mm, Titanium Alloy (TAN), sterile 04.168.085S Implant Kit, for Femoral Neck System, Construct Length 85 mm, Titanium Alloy (TAN), sterile 04.168.090S Implant Kit, for Femoral Neck System, Construct Length 90 mm, Titanium Alloy (TAN), sterile 04.168.095S Implant Kit, for Femoral Neck System, Construct Length 95 mm, Titanium Alloy (TAN), sterile 04.168.100S Implant Kit, for Femoral Neck System, Construct Length 100 mm, Titanium Alloy (TAN), sterile 04.168.105S Implant Kit, for Femoral Neck System, Construct Length 105 mm, Titanium Alloy (TAN), sterile 04.168.110S Implant Kit, for Femoral Neck System, Construct Length 110 mm, Titanium Alloy (TAN), sterile 04.168.115S Implant Kit, for Femoral Neck System, Construct Length 115 mm, Titanium Alloy (TAN), sterile 04.168.120S Implant Kit, for Femoral Neck System, Construct Length 120 mm, Titanium Alloy (TAN), sterile 04.168.125S Implant Kit, for Femoral Neck System, Construct Length 125 mm, Titanium Alloy (TAN), sterile 04.168.130S Implant Kit, for Femoral Neck System, Construct Length 130 mm, Titanium Alloy (TAN), sterile 42 Implants in Single Packaging Plate 04.168.000S Plate, 1 hole, for Femoral Neck System, Titanium Alloy (TAN), sterile 04.268.000S Plate, 2 holes, for Femoral Neck System, Titanium Alloy (TAN), sterile 43 Implants Implants in Single Packaging Bolt 04.168.275S Bolt, for Femoral Neck System, for Construct Length 75 mm, Titanium Alloy (TAN), sterile 04.168.280S Bolt, for Femoral Neck System, for Construct Length 80 mm, Titanium Alloy (TAN), sterile 04.168.285S Bolt, for Femoral Neck System, for Construct Length 85 mm, Titanium Alloy (TAN), sterile 04.168.290S Bolt, for Femoral Neck System, for Construct Length 90 mm, Titanium Alloy (TAN), sterile 04.168.295S Bolt, for Femoral Neck System, for Construct Length 95 mm, Titanium Alloy (TAN), sterile 04.168.300S Bolt, for Femoral Neck System, for Construct Length 100 mm, Titanium Alloy (TAN), sterile 04.168.305S Bolt, for Femoral Neck System, for Construct Length 105 mm, Titanium Alloy (TAN), sterile 04.168.310S Bolt, for Femoral Neck System, for Construct Length 110 mm, Titanium Alloy (TAN), sterile 04.168.315S Bolt, for Femoral Neck System, for Construct Length 115 mm, Titanium Alloy (TAN), sterile 04.168.320S Bolt, for Femoral Neck System, for Construct Length 120 mm, Titanium Alloy (TAN), sterile 04.168.325S Bolt, for Femoral Neck System, for Construct Length 125 mm, Titanium Alloy (TAN), sterile 04.168.330S Bolt, for Femoral Neck System, for Construct Length 130 mm, Titanium Alloy (TAN), sterile 44 Antirotation-Screw 04.168.475S Antirotation Screw, for Femoral Neck System, for Construct Length 75 mm, Titanium Alloy (TAN), sterile 04.168.480S Antirotation Screw, for Femoral Neck System, for Construct Length 80 mm, Titanium Alloy (TAN), sterile 04.168.485S Antirotation Screw, for Femoral Neck System, for Construct Length 85 mm, Titanium Alloy (TAN), sterile 04.168.490S Antirotation Screw, for Femoral Neck System, for Construct Length 90 mm, Titanium Alloy (TAN), sterile 04.168.495S Antirotation Screw, for Femoral Neck System, for Construct Length 95 mm, Titanium Alloy (TAN), sterile 04.168.500S Antirotation Screw, for Femoral Neck System, for Construct Length 100 mm, Titanium Alloy (TAN), sterile 04.168.505S Antirotation Screw, for Femoral Neck System, for Construct Length 105 mm, Titanium Alloy (TAN), sterile 04.168.510S Antirotation Screw, for Femoral Neck System, for Construct Length 110 mm, Titanium Alloy (TAN), sterile 04.168.515S Antirotation Screw, for Femoral Neck System, for Construct Length 115 mm, Titanium Alloy (TAN), sterile 04.168.520S Antirotation Screw, for Femoral Neck System, for Construct Length 120 mm, Titanium Alloy (TAN), sterile 04.168.525S Antirotation Screw, for Femoral Neck System, for Construct Length 125 mm, Titanium Alloy (TAN), sterile 04.168.530S Antirotation Screw, for Femoral Neck System, for Construct Length 130 mm, Titanium Alloy (TAN), sterile 45 Implants Implants in Single Packaging 5.0 mm Locking Screws* 412.201 – 412.227 Locking Screw Stardrive B 5.0 mm, self-tapping, Titanium Alloy (TAN) 413.314 – 413.390 Locking Screw B 5.0 mm, self-tapping, Titanium Alloy (TAN) * Available non-sterile and sterile packed. Add “S” to the article number to order sterile products. 46
