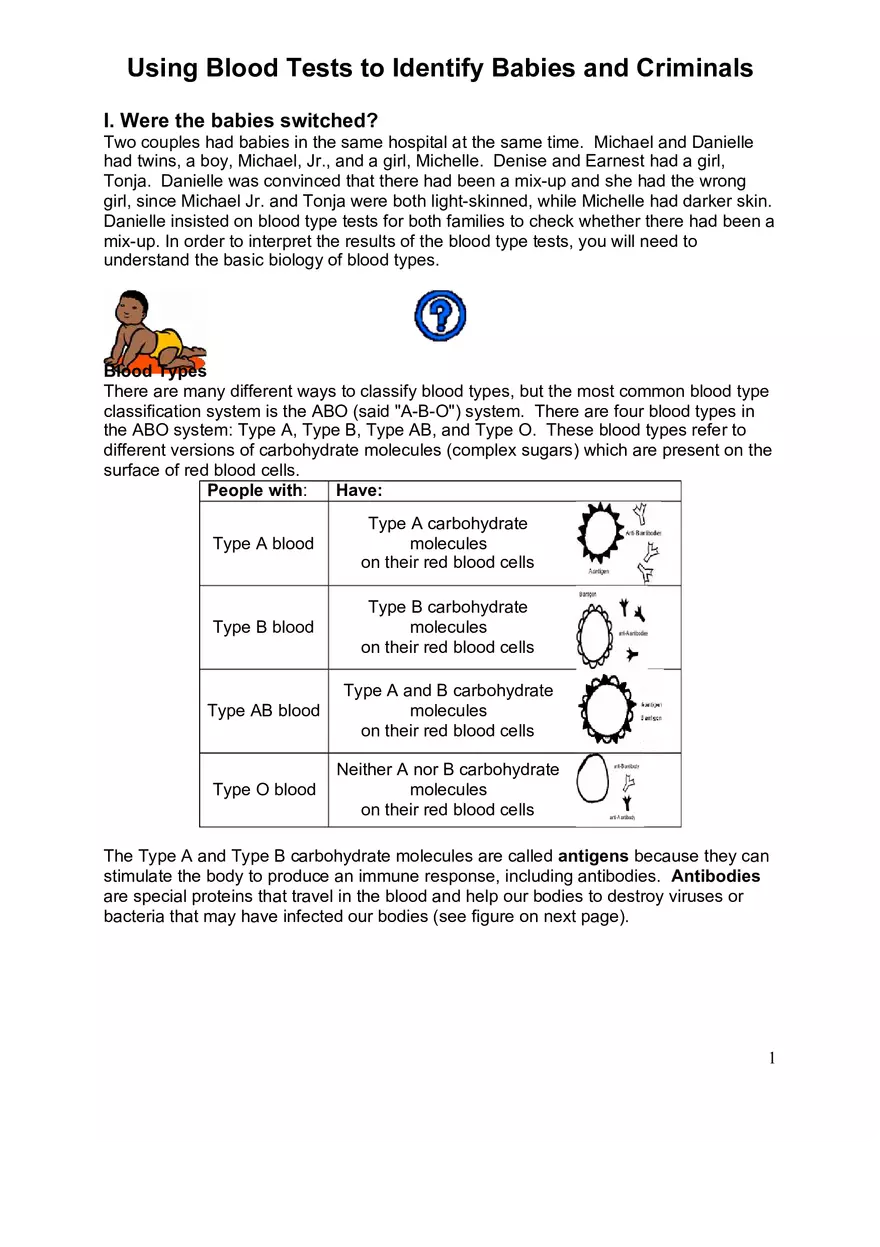

Blood Tests to Identify Babies and Criminals

Using Blood Tests to Identify Babies and Criminals I. Were the babies switched? Two couples had babies in the same hospital at the same time. Michael and Danielle had twins, a boy, Michael, Jr., and a girl, Michelle. Denise and Earnest had a girl, Tonja. Danielle was convinced that there had been a mix-up and she had the wrong girl, since Michael Jr. and Tonja were both light-skinned, while Michelle had darker skin. Danielle insisted on blood type tests for both families to check whether there had been a mix-up. In order to interpret the results of the blood type tests, you will need to understand the basic biology of blood types. Blood Types There are many different ways to classify blood types, but the most common blood type classification system is the ABO (said "A-B-O") system. There are four blood types in the ABO system: Type A, Type B, Type AB, and Type O. These blood types refer to different versions of carbohydrate molecules (complex sugars) which are present on the surface of red blood cells. People with: Have: Type A blood Type A carbohydrate molecules on their red blood cells Type B blood Type B carbohydrate molecules on their red blood cells Type AB blood Type A and B carbohydrate molecules on their red blood cells Type O blood Neither A nor B carbohydrate molecules on their red blood cells The Type A and Type B carbohydrate molecules are called antigens because they can stimulate the body to produce an immune response, including antibodies. Antibodies are special proteins that travel in the blood and help our bodies to destroy viruses or bacteria that may have infected our bodies (see figure on next page). 1 Adapted from Figure 40.5 in Holt Biology by Johnson and Raven Normally, our bodies do not make antibodies against any molecules that are part of our own bodies. Thus, antibodies help to defend against invading viruses and bacteria, but normally antibodies do not attack our own body cells. For example, people with Type A blood do not make antibodies against the Type A antigen which is present on their red blood cells, but they do make antibodies against the Type B antigen. Test your understanding of blood groups by filling in the blanks in the chart below. Blood group A If you belong to the blood group A, you have A antigens on the surface of your red blood cells and B antibodies in your blood. Blood group B If you belong to the blood group B, you have B antigens on the surface of your red blood cells and A antibodies in your blood. Blood group AB If you belong to the blood group AB, you have both A and B antigens on the surface of your red blood cells and no anti-A or anti-B antibodies in your blood. Blood group O If you belong to the blood group O, you have neither A nor B antigens on the surface of your red blood cells, but you have both A and B antibodies in your blood. Blood transfusions — who can receive blood from whom? 2 If you are given a blood transfusion that does not match your blood type, antibodies present in your blood can react with the antigens present on the donated red blood cells. For example, if a person who has Type A blood is given a Type B blood transfusion, then this person's anti-B antibodies will react with the Type B antigens on the donated red blood cells and cause a harmful reaction. This reaction can cause the donated red blood cells to burst and/or clump together and block blood vessels. This type of transfusion reaction is illustrated in the following drawing. Transfusion reactions can be fatal. To prevent this from happening, doctors test whether a person's blood is compatible with the donated blood before they give a transfusion. A person can only be given donated blood with red blood cells that do not have any antigen that can react with the antibodies in the person's blood. Test your understanding of blood groups by completing the table below. Blood Group A B AB O Antigens on red blood cells A B A and B None Antibodies in plasma Can receive blood from Can give blood to Anti-B Anti -A none A and B A and O B and O A and AB A,B,and AB A and AB B and AB A and B A, B, and AB Which blood type would be considered a universal donor (someone who can give blood to anyone)? O-type Genetics of Blood Types Your blood type is established before you are born, by specific genes inherited from your parents. You receive one blood type gene from your mother and one from your father. These two genes determine your blood type by causing the presence or absence of the Type A and Type B antigen molecules on the red blood cells. The blood type gene has three different versions or alleles: IA results in A antigen on the red blood cells, IB results in B antigen on the red blood cells, and i does not result in either antigen. Everyone has two copies of these genes, so there are six possible combinations of alleles (called genotypes) which result in the four possible blood types (phenotypes): 3 IA IA and IA i - both resulting in Type A blood, IB IB and IB i - both resulting in Type B blood, IA IB - resulting in Type AB blood, i i - resulting in Type O blood. In a heterozygous IA i person, which allele is dominant, IA or i? Explain your reasoning. IA would be dominant because in all the possible blood types the only ones that have i are heterozygous. Meaning the capital I would be dominant. Codominance refers to inheritance in which two alleles of a gene each have a different observable effect on the phenotype of a heterozygous individual. Thus, in codominance, neither allele is recessive—both alleles are dominant. Each biological parent gives one of their two ABO alleles to their child. For example, a father who has blood type AB has the IA IB, so he will produce sperm with either an IA or an IB allele and he can give either an IA or an IB allele to a child of his. If the mother has blood type O, her genotype must be i i , and she can only give an i allele to a child of hers. The Punnett Square below shows the possible genotypes for the children of these parents. Write in the blood type for each genotype to show the possible blood types for the children of these parents. Type-AB, Type-0 Mother Fathe (Type O) r Eggs (Type i i AB) IA IA i I A i Sper m IB IB i IB i Were the babies switched? Now you are ready to evaluate whether Earnest and Denise's baby girl was switched with Michael and Danielle's baby girl. The following family tree shows the blood types for both families. 4 1. Is it possible for Michael and Danielle to have a child who has type O blood? How do you know this? Because there is no little i in blood type AB which is required for O Was a switch made at the hospital? No 2. How could fraternal twins be as different in appearance as Michelle and Michael, Jr., including one having light skin and the other having dark skin? Because fraternal twins share the same genetic makeup as regular siblings meaning there could be differences in their appearance. II. Who Killed Shamari Davis? 5 Background Shamari Davis was a 20-year-old college freshman who was majoring in Physical Therapy. She paid for school by working as a personal trainer at a local gym. Shamari had been promoted to head personal trainer at the gym just before she was killed. Crime Scene The body was found in the women’s locker room of the gym at 1 am by the night janitor, Harvey Willis. The victim had been strangled and was wearing a robe. There were signs of a struggle in the room and the glass door of the shower was broken and had traces of blood on it. The victim was pronounced dead at the scene and the coroner suggested that the time of death was at least 3 hours before the body was found. Criminal Investigation Shamari’s co-worker Daleesha Jones told police that Shamari was a newer employee who did not deserve her recent promotion and only got it because she spent a lot of time with their boss, Steve O’Hare. When asked if he knew if Shamari had problems at work, Steve told Police that Shamari had complained to him that one of her fitness clients, Mike Reed, kept asking her out and wouldn’t take no for an answer. Blood Analysis Obviously a real crime investigation would use many clues, but your investigation will be based on the simplest type of blood testing, namely testing for blood types A, B, O, and AB, for the blood sample found at the scene and for each of the possible suspects. No individual can change blood types, and blood type does not change with age. Explain why. In order to test blood type, you mix a sample of the blood with two different types of antiserum—one which contains anti-A antibodies and one which contains anti-B antibodies. The reactions between the antibodies in the antiserum and the corresponding antigens on the red blood cells in the blood sample result in clumping. Which types of blood have the antigens that will react with anti-A antibodies? Type B, O Which types of blood have the antigens that will react with anti-B antibodies? Type A, O Before you carry out the blood type tests, fill in the following chart that will help you to identify the blood type of each individual. 6 Reacts with anti-A antibody Yes Yes No No Reacts with anti-B antibody Yes No Yes No Blood type (A, B, AB, O) Type O Type B, O Type A, O Type AB Procedure 1. Place your dish with the test wells on a piece of white paper, and put two drops of the blood of one suspect on both the A and B wells of the dish. 2. Place two drops of A antiserum on the drop of blood in the A well and place two drops of antiserum B on the drop of blood in the B well. 3. Mix the blood sample with the added A antiserum with one end of the toothpick. Mix the blood sample with the added B antiserum with the other end of the toothpick. Discard each toothpick after you use it for each suspect or victim. 4. Observe the reaction of the antiserum with each blood sample. Record the blood type of the individual in the table below. 5. Repeat the procedure, steps 1 through 4, for each blood sample. 6. Compare the blood types for the samples from the victim and each suspect to the blood type from the broken shower door glass at the scene of the crime. Use your observations to suggest who committed the murder. Reacts with Reacts with Blood type anti-A anti-B (A, B, AB, O) antibody (Yes antibody (Yes or No) or No) Shamari Davis yes no Type B, O Victim Daleesha Jones no no Type AB Co-worker Harvey Willis yes no Type B, O Janitor Mike Reed no no Type AB Client Steve O’Hare no yes Type A,O Boss Blood on shower no yes Type A, O door Investigator’s Report Describe the circumstances which you believe led up to the crime, the time of the crime, and the individual that you believe is guilty of the murder. What evidence supports your conclusions? The victim had worked at a gym and had been strangled and was wearing a robe. There were signs of a struggle in the room and the glass door of the shower was broken and had traces of blood on it. The time of the murder must have been around 10 pm. 7 Based on the blood tests, I think the boss, Steve O´Hare was gulity of the murder because his was the only one that would have matched the blood on the shower door. 8
